Clarke POWER WASH JET 7000 Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
LS1211
POWER WASHER
MODEL NO: JET 7000
PART NO: 7333220

2
INTRODUCTION
Thank you for purchasing this CLARKE Power Washer.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
PARTS AND SERVICING
For Parts & Servicing, please contact your nearest dealer, or
CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: [phone]
PARTS & SERVICE FAX: [phone]
or e-mail as follows:
PARTS: [email protected]
SERVICE: [e-mail]

3
GENERAL SAFETY RULES
1. NEVER direct the spray towards any person or animal.
2. NEVER direct the spray towards electrical wiring or equipment.
3. NEVER hold your finger over the high pressure nozzle.
4. NEVER allow children or untrained personnel to use this machine.
5. NEVER operate the machine with any of the covers removed.
6. NEVER attempt any repairs to this machine. Always refer to your Clarke dealer.
7. NEVER supply any liquid other than water to the water inlet.
8. NEVER use the detergent bottle to introduce solvents, e.g. paint thinners, petrol, oil
as there is a risk of explosion
9. ALWAYS release any residual pressure in the system by turning off the water supply
and operating the trigger before disconnecting any hose or accessory.
10. ALWAYS keep the machine itself dry and well clear of water spray.
11. ALWAYS wear protective clothing and safety glasses. Loose particles and other
debris may be propelled at high speed by the water jet.
12. ALWAYS grip the gun firmly before pressing the trigger, expect the gun to ‘kick’ when
starting.
13. ALWAYS respect the requirements of the local water company. Power washers may
only be connected to the mains drinking water supply, if a backflow preventer valve
is installed in the supply hose.
14. ALWAYS disconnect from the water supply, and ensure the system is completely
drained when not in use. Store in a cool dry location.
15. When using the chemical injection facility, use only the chemical cleaning agents
(detergents), that are approved for power washers. CLARKE Traffic Film Remover or
CLARKE Wash and WAX (available from your dealer), is recommended.
16. WARNING High pressure jets can be dangerous if subject to misuse. The jet must not
be directed at persons or anything that they are wearing.
17. NEVER direct the jet at live electrical equipment or the machine itself.
18. WARNING High pressure hoses, fittings and couplings are important for the safety of
the machine. Use only hoses, fittings and couplings recommended by the
manufacturer.
19. WARNING Water that has flown through backflow preventers is considered to be
non-potable.
20. WARNING If an extension cord is used, the plug and socket must be of watertight
construction. Inadequate extension cords can be dangerous.
WARNING: Water at high pressure can be dangerous and can cause
damage to persons or property if the operator is careless. Never allow
anyone to operate this equipment unless they are familiar with the
safety precautions.

4
SAFETY SYMBOLS
WARNING: Do not direct discharge
stream at persons or animals.
Keep clear of nozzle.
WARNING: Never direct spray
toward any electrical device or
electrical outlet.
General Warning, indicates that failing to follow these
instruction could result in injury or damage to the machine
To reduce the risk of injury, Read the manual before use.
Wear safety glasses when using this machine
Conforms to CE Regulations
Recycle unwanted materials instead of disposing of them as
waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which
is compatible with the environment.

5

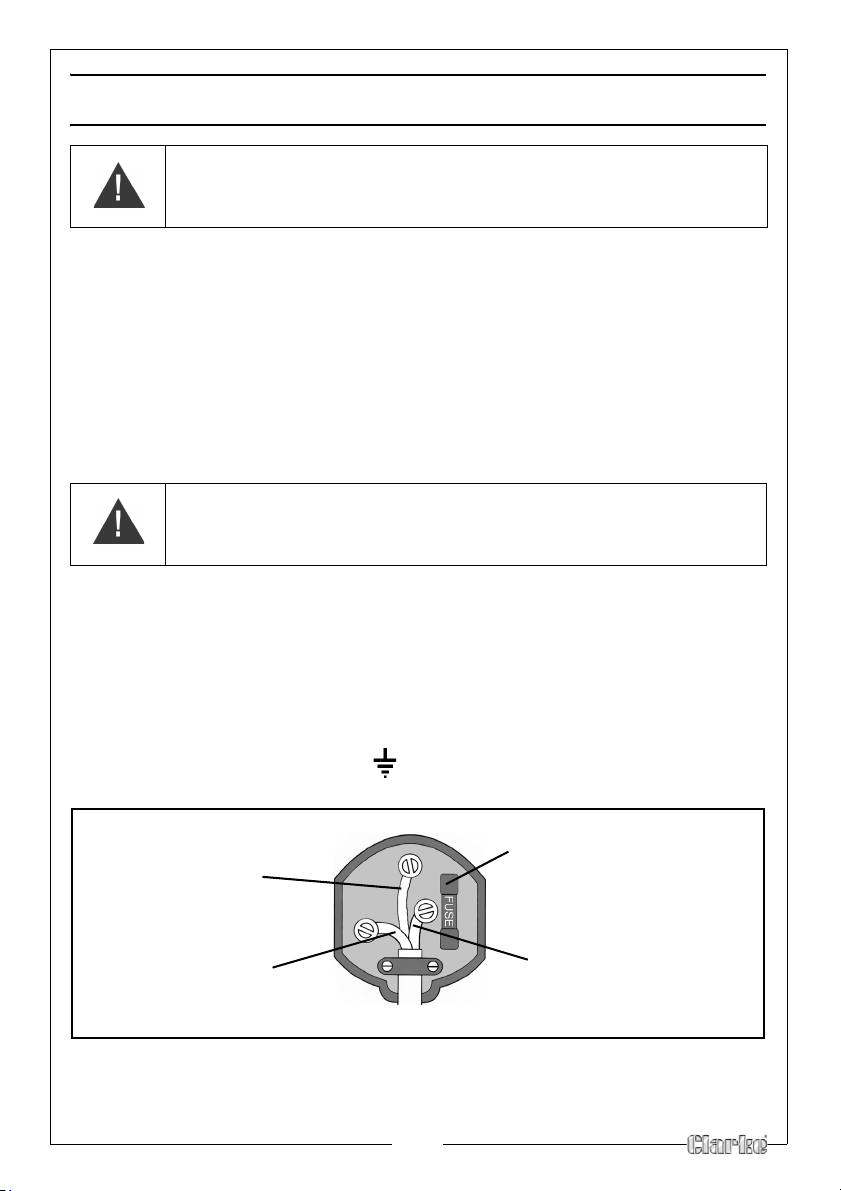

ELECTRICAL CONNECTIONS
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is
marked Lor coloured Red.
• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.
We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.
WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)

6
OVERVIEW
12
3
5
6
8
9
10
4
7
NO DESCRIPTION NO DESCRIPTION
1 Reel Handle 6 Lance
2 Handle 7 Nozzle
3 Motor Housing 8 Water Inlet
4 Detergent Bottle (Rear of the unit) 9 High Pressure Outlet
5 Hose/Gun Assembly 10 ON/OFF Switch

7
UNPACKING AND ASSEMBLY
Unpack your power washer and check to ensure the following items are
present.
Contact your Clarke dealer immediately if any parts are missing or damaged.
• Hose/Gun assembly (attached to the reel)
• Lance with spray nozzle,
• Handle (for connection to the reel)

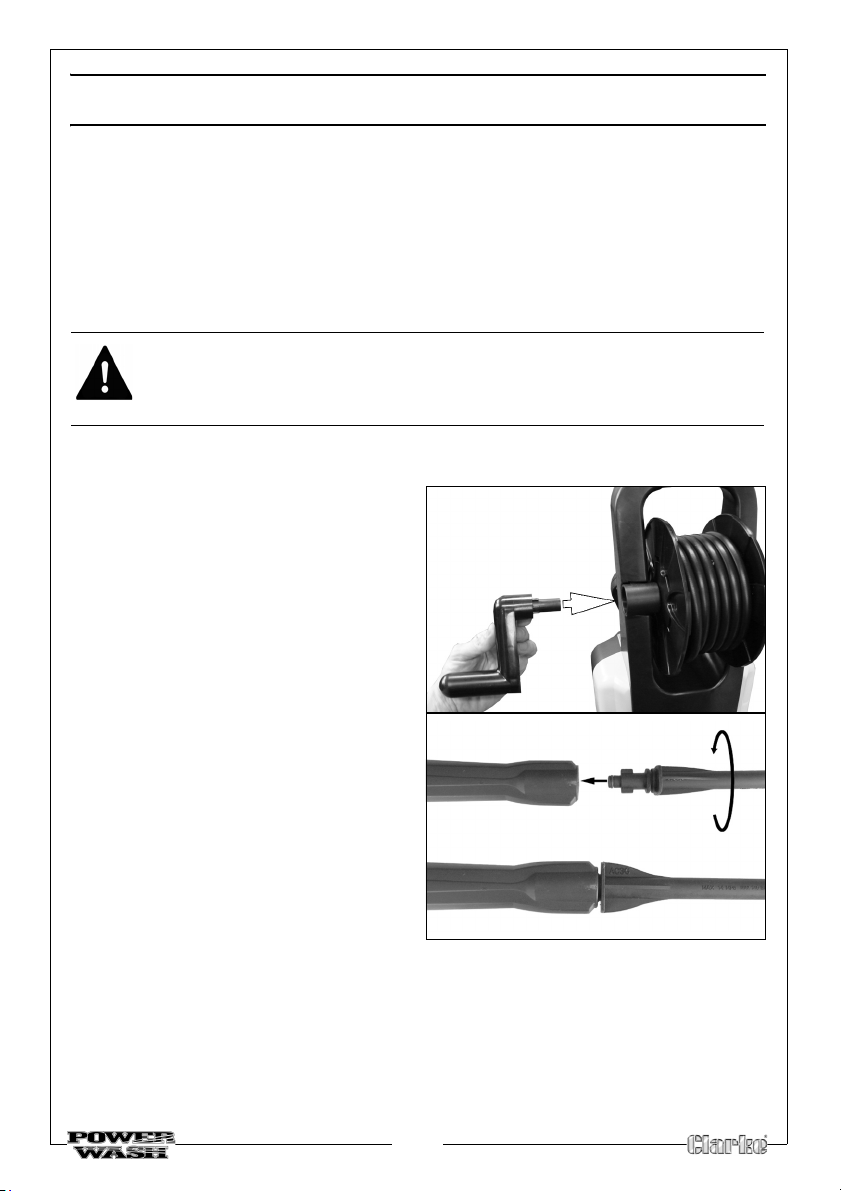

CONNECTING THE REEL HANDLE
1. Fit the reel handle into position as
shown.
• The handle will click into place
ASSEMBLE THE LANCE
The lance must be fitted to the hose/
gun assembly before use
1. Assemble by sliding the spigot end
of the lance into the handle
assembly.
2. Push in firmly and twist to lock it in
position.
WARNING: DO NOT USE THE MACHINE IF A SUPPLY CORD OR IMPORTANT
PARTS OF THE MACHINE ARE DAMAGED, E.G. SAFETY DEVICES, HIGH
PRESSURE HOSES, TRIGGER GUN.

8
CONNECTING THE HIGH PRESSURE HOSE
1. Screw the connector on the end
of the high pressure hose onto the
water outlet pipe.
2. Tighten the connector by hand
only. Do not use a spanner.
NOTE: Make sure the connection is
secure.
CONNECT WATER SOURCE
1. Connect the water supply hose to
the water inlet.
NOTE: Water source must provide a
minimum of 6.6 litres per
minute.
NOTE: Make sure the water
connection is secure.

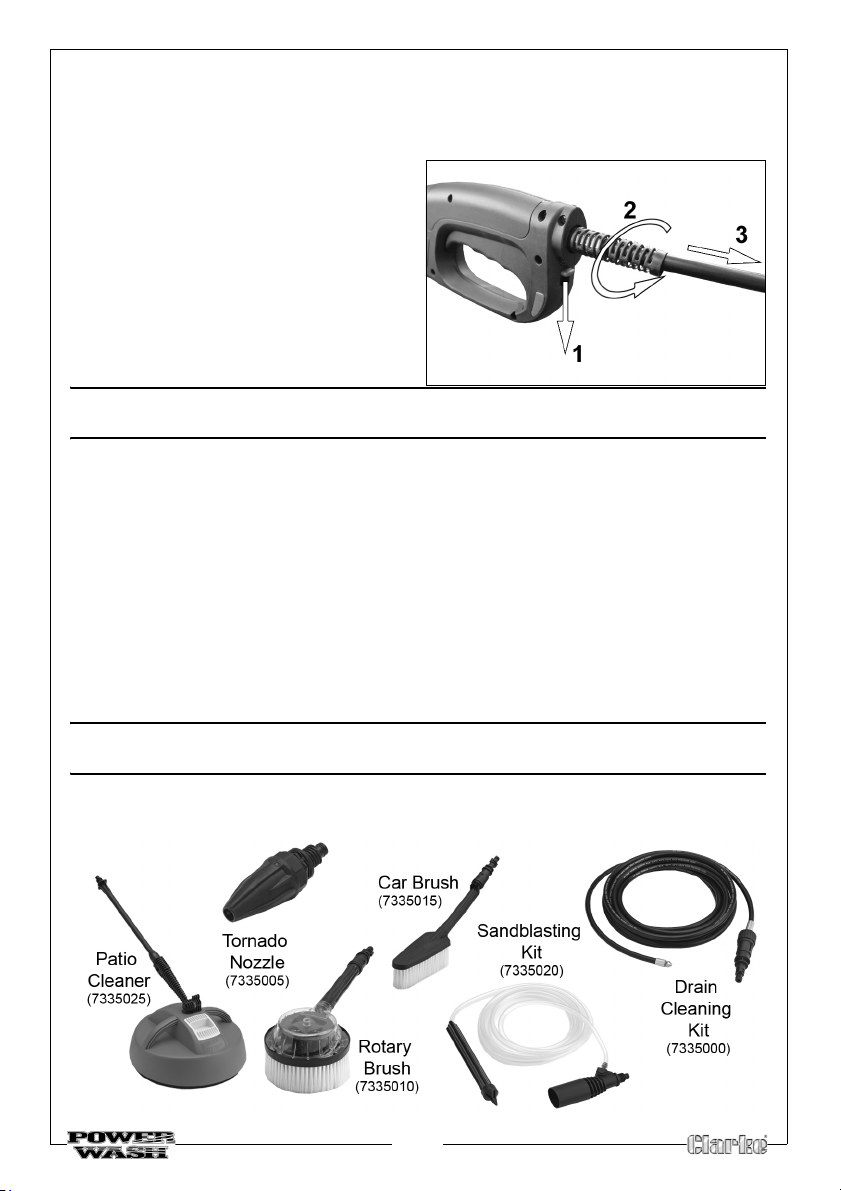

CONNECTING THE GUN TO THE HOSE
This gun may not be supplied fitted to the hose. If it is not fitted connect as
follows
1. Slide the hose lock button down
as shown.
2. Insert the hose into the base of the
gun and twist the hose support
clockwise to lock it into position.
3. Slide the hose lock button up.

9

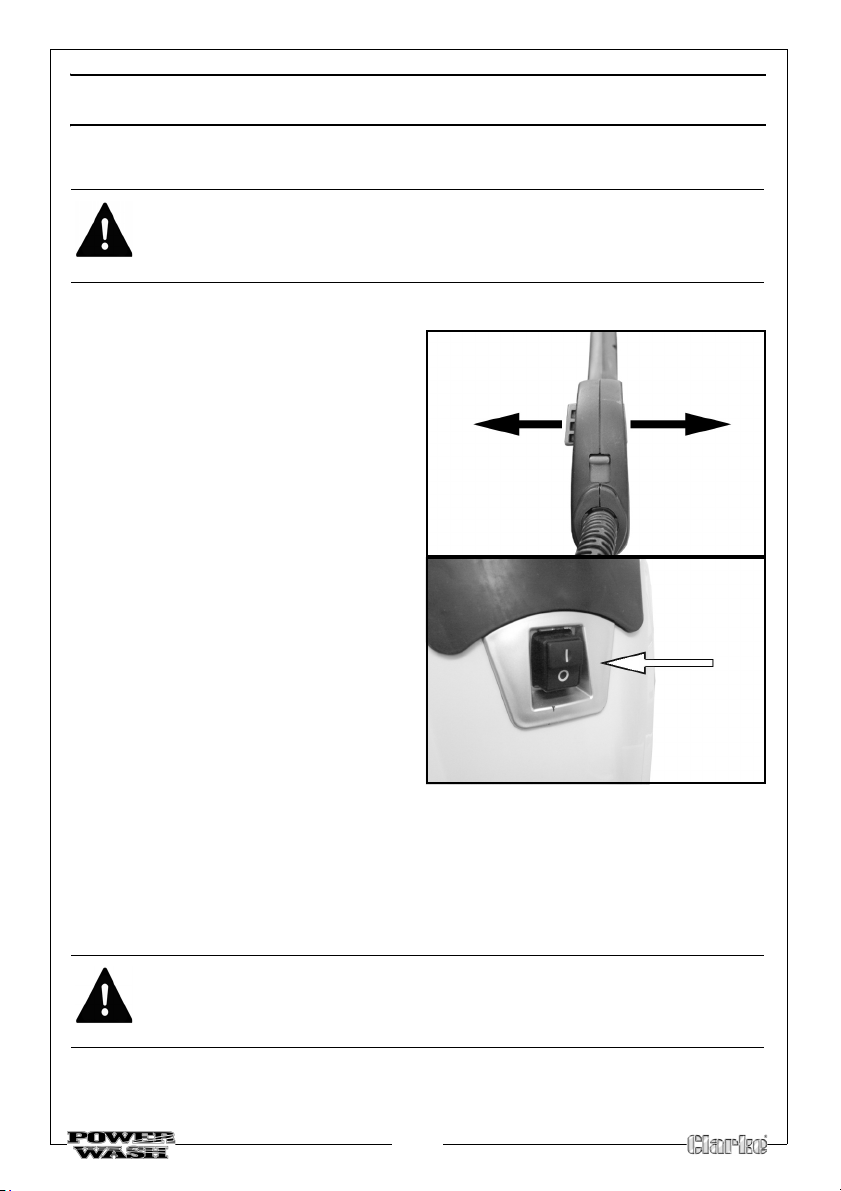

USING YOUR POWER WASHER
1. Turn the water supply on, making sure that the tap is fully open.
2. Plug the mains power cable into the electricity supply.
3.
LOCK
UNLOCK
Release the trigger lock.
4. Press the section of the On/Off
switch marked “I”.
• The pressure washer is now
ready for use.
5. Pull the trigger on the gun to start
water flow.
• Stand on a stable surface and
grip gun/lance firmly with both
hands.
• Expect the gun to kick back when the trigger is pulled.
6. Release trigger to stop water flow.
• The power washer will automatically go into bypass mode.
Bypass mode: In bypass mode, the pump recirculates the water because
the trigger of the spray gun is not being pulled.
WARNING: FAILURE TO TURN ON THE WATER COULD CAUSE DAMAGE TO
THE PRESSURE WASHER.
WARNING: DO NOT ALLOW UNIT TO OPERATE IN BYPASS MODE FOR
MORE THAN TWO MINUTES AT ANY TIME. OVERHEATING OF PUMP CAN
CAUSE DAMAGE TO THE PRESSURE WASHER.

10

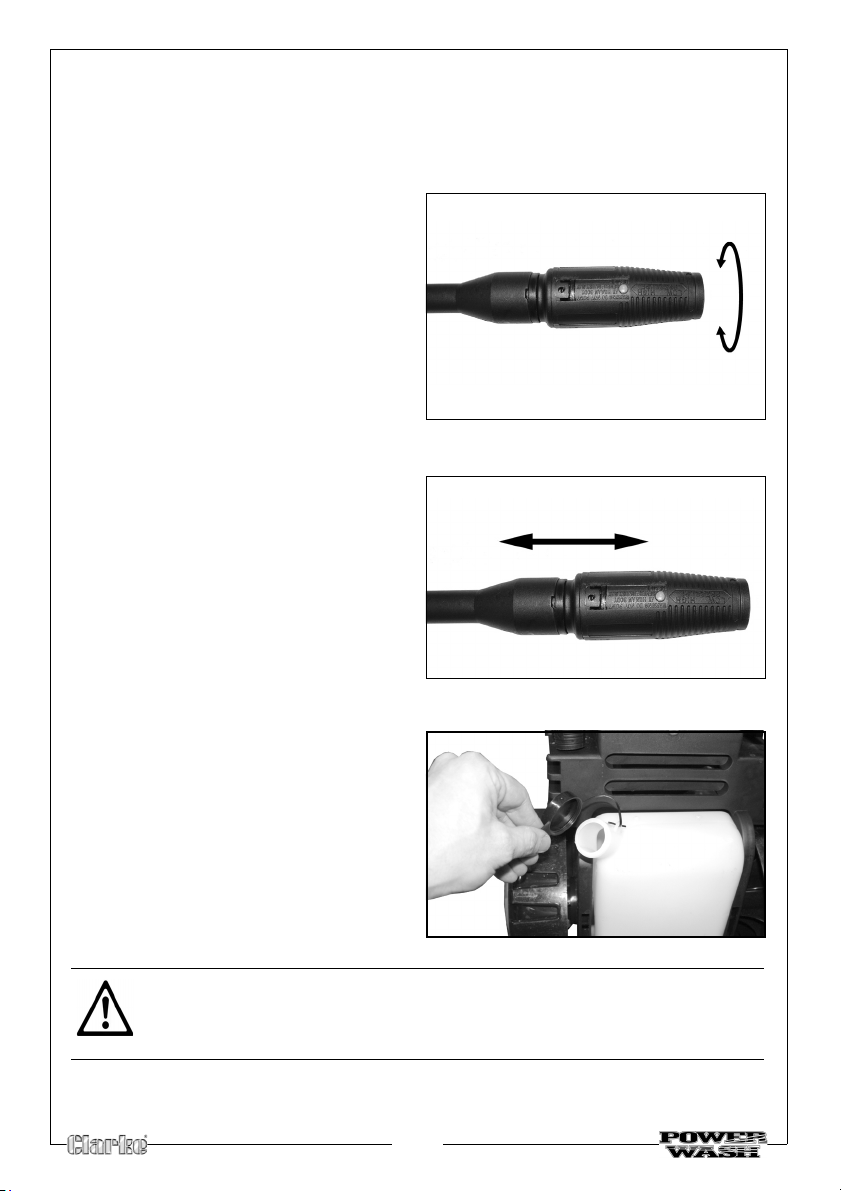

ADJUSTING THE SPRAY
The nozzle is adjustable to allow you to adjust the spray from a narrow jet of
water to a wide spray.
To adjust the nozzle, proceed as follows:
1. Hold the shaft of the lance in one
hand.
2. Twist the nozzle with the other
hand.
3. To vary the spray between narrow
and wide, turn the nozzle counter-
clockwise through 180 degrees.
ADJUSTING THE PRESSURE
There are 3 ways to adjust the pressure
of the water.
1. Slide the nozzle forwards to lower
the pressure and backwards to
increase the pressure.
2. Back away from the surface
being cleaned. The further away
you are the less the pressure will
be on the surface being cleaned.
3. Adjust the spray to a wider angle.
APPLYING CHEMICALS AND CLEANING SOLVENTS
1. Make sure the trigger is locked.
2. Remove the cap from the
detergent bottle.
3. Fill the bottle with a suitable bio-
degradeable detergent.
4. Replace the cap.
5. Squeeze the trigger.
6. Proceed with the wash.
CAUTION: IF YOUR EYES COME INTO CONTACT WITH THE CLEANING
FLUIDS, RINSE THEM IMMEDIATELY WITH PLENTY OF FRESH CLEAN WATER.
AND SEEK MEDICAL ADVICE IF REQUIRED.

11

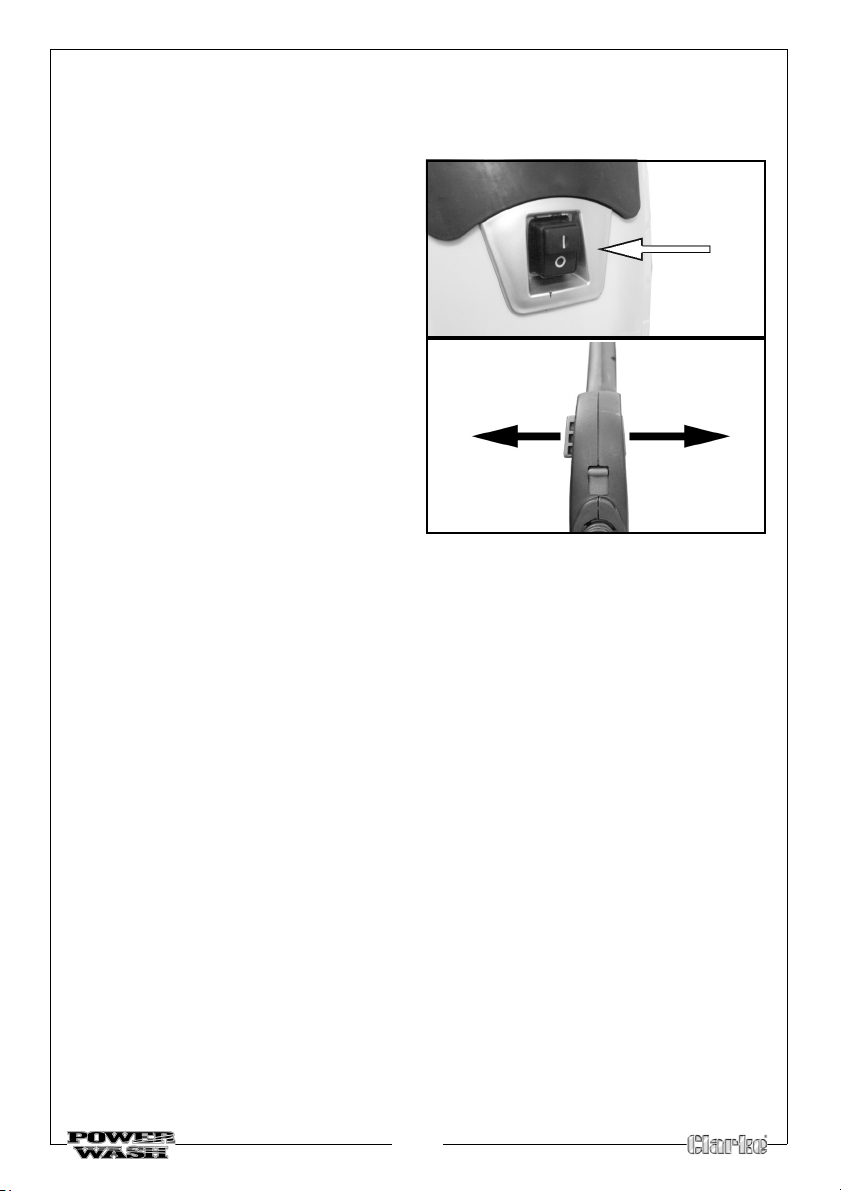

SHUTTING DOWN
When you have finished using the pressure washer, follow the procedure
shown below to switch off and disconnect the unit.
1. Press the section of the On/Off
switch marked “O”.
2. Turn off the water supply at the
tap.
3.
LOCK
UNLOCK
Discharge the water in the pump
and the hose by squeezing the
trigger for a few seconds, or until
nothing is coming out of the lance
nozzle.
4. Lock the trigger in the off position.
5. Disconnect from the mains power
supply.

12
MAINTENANCE
CLEANING THE NOZZLE
If the nozzle becomes clogged with foreign materials such as dirt or calcium,
excessive pressure may develop. If the nozzle becomes partially clogged or
restricted, the pump pressure will pulsate, clean the nozzle immediately by
following the instructions below:
1. Turn off the power washer and
turn off the water supply.
2. Pull trigger to relieve any water
pressure.
3. Disconnect the lance from the
gun.
4. Remove any obstructions with the
nozzle cleaning tool provided.
5. Direct water supply into the end
of the lance for 30 seconds to back flush loose particles.
6. Reconnect the lance to gun and turn on water supply.
CLEANING THE WATER INLET FILTER
This filter should be checked periodically and cleaned if necessary.
1. Remove filter from the water inlet
of the pump as shown.
2. Clean the filter by flushing both
sides with water.
3. Replace the filter into the water
inlet.
• Cone side faces in.
NOTE: Do not operate power
washer without filter properly
installed.
WARNING: THE MACHINE SHALL BE DISCONNECTED FROM ITS POWER
SOURCE BY REMOVING THE PLUG FROM THE SOCKET-OUTLET DURING
CLEANING OR MAINTENANCE AND WHEN REPLACING PARTS.

13
REMOVING THE GUN FROM THE HOSE
This gun can be removed from the hose for cleaning or to unblock the gun/
hose as follows
1. Slide the hose lock button down
as shown.
2. Rotate the hose support
anticlockwise.
3. Pull the hose away from the gun.
STORAGE
BEFORE STORING THE PRESSURE WASHER
1. Disconnect the high pressure hose and drain all water from the hose.
2. Wind the hose onto the reel and store the gun/lance in the holder located
on the rear of the power washer.
STORAGE PROCEDURE
Make sure that the power washer has been thoroughly cleaned before storing
it in a clean dry place.
ACCESSORIES
There are a range of accessories available from your Clarke dealer including the
following

14
TROUBLESHOOTING
If the following does not solve your problem, please contact the CLARKE service
department. See page 2
FAULT CAUSE SOLUTION
Pressure drop. Air in system. Bleed system by quickly operating trigger
several times. If necessary operate the
machine briefly without the high pressure
hose connected.
Worn high pressure
nozzle.
Renew nozzle.
Pressure
fluctuations or
pressure drop.
Shortage of water. Turn water tap on fully.
Water supply hose too
long/too narrow.
Use a 1/2” diameter water supply hose.
No water due to
clogged inlet filter.
Clean water inlet filter.
Oil leak. Worn seals. Contact your Clarke dealer.
Motor does not
start when
switched on.
Plug is not connected
properly.
Check plug and lead and have them
replaced by a qualified electrician if
necessary.
Mains fuse tripped/
blown.
Renew fuse or reset.
Motor hums
when trigger
operated and
does not start.
Mains voltage too low. Have electrical connection checked.
Incorrect diameter cable
resulting in voltage drop.
Use correct diameter cable.
Pump seals stuck. Contact your Clarke dealer.
Motor cuts out -
trigger open.
Motor protection switch
has been activated due
to overheating or motor
overload.
Ensure supply voltage and unit voltage
are equal. Switch off and allow to cool for
at least three minutes.
Nozzle partly clogged. Clean using the supplied nozzle cleaning
needle.
Additives are not
being supplied.
Additive container
empty.
Fill additive container.
Lance not correctly set. Put lance on low pressure setting.
.

15
SPECIFICATIONS
Model JET 7000
Rated voltage 230V AC 50Hz
Input power 1800 W
Maximum operating pressure 100 Bar
Maximum rated flow 6.5 lpm
Hose length 5 m
Maximum inlet water temperature 40°C
Minimum feed volume 400 l/h = 6.6L per minute
Inlet pressure maximum 6 Bar
Protection Level IPX5
Measured sound power level 85 dB (A)
Guaranteed sound power level 87 dB (A)
Vibration - Weighted root mean square acceleration 3.8 m/s2
Length (mm) 340 mm
Width (mm) 300 mm
Height (mm) 800 mm
Weight (kg) 14.2 kg

16
EXPLODED DIAGRAM AND PARTS LIST

NO DESCRIPTION QTY PART NO
KIT 1 MOTOR-PUMP
ASSEMBLY
110201300
KIT 2 MOTOR ASSEMBLY 110025201
KIT 3 PUMP ASSEMBLY 10201200
KIT 4 BEARING ASSEMBLY 110007500
KIT 5 PISTON BODY
ASSEMBLY
110007200
KIT 6 PISTON ASSEMBLY 310010300
KIT 7 PILOT SLEEVE
ASSEMBLY
310010200
KIT 8 PUMP BODY
ASSEMBLY
110007300
KIT 9 ONE-WAY VALVE
ASSEMBLY
610007600
KIT 10 INLET PIPE ASSEMBLY 110151001
KIT 11 OUTLET ASSEMBLY 110201100
KIT 12 MICRO SWITCH
ASSEMBLY
110150800
KIT 13 VALVE ASSEMBLY 110192500
KIT 14 VENTURI ASSEMBLY 110082100
KIT 15 SWITCH BOX
ASSEMBLY
10160300
KIT 16 CABLE 110201400
KIT 17 HOSE REEL ASSEMBLY 110174800
KIT 17.1 CONNECTOR
ASSEMBLY
110230400
KIT 18 SHIFT HP-HOSE
ASSEMBLY
142117800
KIT 19 SWITCH WIRE KIT 110179600
KIT 20 HOUSING ASSEMBLY 10179900
115 SWITCH 133000800
KIT 22 ACCESSORIES 10201500
P2006 GUN 110055100
HOSE ASSEMBLY 142063802
H100 LANCE 110011203
HI-LOW LANCE 110061900
NOZZLE CLEANER 181001700
INLET PIPE
CONNECTOR
ASSEMBLY
110096200
17
EXPLODED DIAGRAM AND PARTS LIST
WARNING: TO ENSURE
MACHINE SAFETY, USE ONLY
ORIGINAL SPARE PARTS FROM
CLARKE INTERNATIONAL.
NO DESCRIPTION QTY PART NO

18
DECLARATION OF CONFORMITY

19

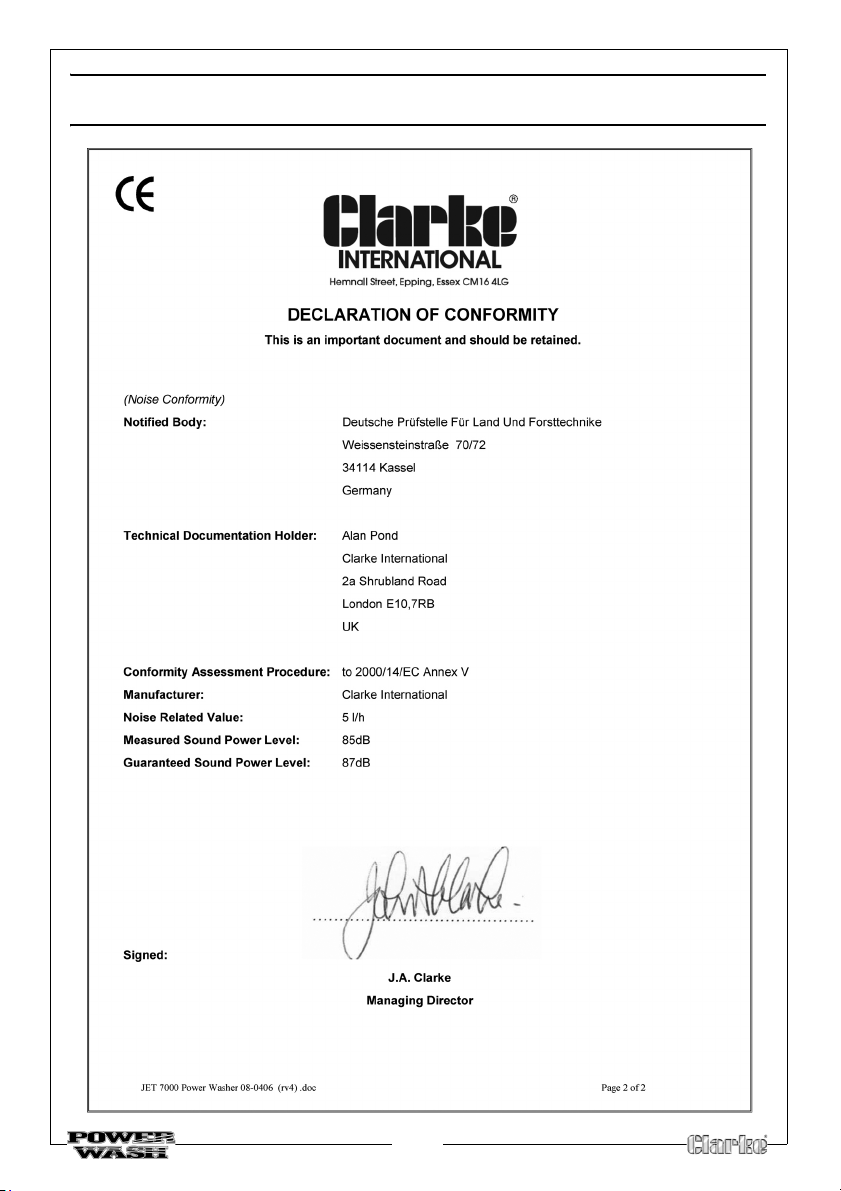

DECLARATION OF CONFORMITY
