Clas Ohlson M1Q-TD-65E-UK User manual

Jigsaw
Art.no Model
18-3464 M1Q-TD-65E-UK
Ver. 201209
Original instructions

2

3
English
Jigsaw
Art.no 18-3464 Model M1Q-TD-65E-UK
Please read theentire instruction manual before use and save it for future reference.
Wereserve theright for any errors in text or images and for making any necessary
technical changes to this document. Ifyou should have any questions concerning
technical problems please contact our Customer Services.
Safety
Warning! Readall theinstructions. Failureto adhere to thefollowing instructions may
lead to electric shocks, fires and/or serious injury. Theterm “power tools” in thewarning
text below refers to your handheld mains operated or battery operated tool.
The work area
a) Keep thework area clean and well illuminated. Clutteredand poorly lit areas
inviteaccidents.
b) Do not use power tools in explosive environments, e.g. near flammable liquids,
gases or dust. Powertools generate sparks that can easily ignite dust or fumes.
c) Keep children and other bystanders away from thearea where you are using
thepower tool. Distractionscan cause you to lose your concentration and control.
Electrical safety
a) The power tool’s plug must fit correctly into thewall socket. Nevermodify
theplug in any way. Neveruse an adaptor together with earthed power tools.
Unmodifiedplugs and suitable wall sockets decrease therisk of electric shock.
b) Avoid physical contact with earthed objects, such as pipes, radiators, ovens or
refrigerators. There is an increased risk of receiving an electrical shock if your body
is earthed.
c) Do not expose thepower tool to rain or other wet conditions. Ifwater gets inside
apower tool it increases therisk of electric shock.
d) Do not abuse thelead. Neveruse thelead to carry thetool or pull theplug from
thewall socket. Keepthelead away from heat, oil, sharp edges and movable
parts. Damagedor tangled leads increase therisk of electric shock.
e) When using power tools outdoors, use an extension lead that is suitable for this
purpose. Useof an extension lead designed for outdoor use decreases therisk for
electric shock.
f) If for some reason you must use apower tool in awet environment, always
connect it to themains via an earth-fault circuit breaker such as an RCD (residual
current device). Usingan RCD significantly reduces thechances of you receiving
an electric shock.

4
English
Personal safety
a) Pay attention to your actions and use common sense when using power tools.
Neveruse power tools if you are tired or under theinfluence of drugs, alcohol
ormedication. Onemoment of inattention while using apower tool may result in
serious injury.
b) Use protective equipment. Alwayswear safety glasses. Usingprotective clothing
such as dust masks, non-slip safety shoes, helmets and ear defenders when
needed decreases therisk of injury.
c) Avoid accidental starts. Makesure that thepower switch is set to OFF before
plugging thetool into awall socket. Nevercarry apower tool with your finger on
thetrigger and never connect thepower tool to awall socket when theswitch is
set to ON, since it may result in injury.
d) Remove all service tools/keys before switching on thepower tool. Aservice tool
left on amoving part of thepower tool may result in injury.
e) Do not overreach. Makesure you stand steady and well balanced at all times.
Thiswill allow you to have more control in unexpected situations.
f) Wear suitable attire. Donot wear loose-fitting clothing or jewellery. Keephair,
clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long
hair could become caught in moving parts.
g) If equipment for dust extraction or collection is available, make sure that it is connected
and used properly. Usingtechnical aids may decrease dust related hazards.
Proper use and maintenance of your power tool
a) Do not force thepower tool. Useapower tool suitable for thework you are about
to perform. Theproper power tool will perform thetask better and safer if used at
thecorrect feed rate.
b) Never use thepower tool if thepower switch does not switch thetool on and
off properly. Allpower tools that cannot be controlled by thepower switch are
dangerous and must be repaired.
c) Unplug thelead from thewall socket before making any adjustments, changing
accessories or storing thepower tool. Theseprecautions reduce therisk of
thepower tool starting unexpectedly.
d) Store any power tools that are not being used out of children’s reach. Donot
allow people who are unfamiliar with thetool or its functions to operate thetool.
Powertools can be dangerous if they fall into thehands of inexperienced users.
e) Maintaining power tools. Checkfor any incorrect settings, parts that catch, broken
parts or anything else which may cause thepower tool to malfunction. Ifsomething
is damaged it must be repaired before use. Manyaccidents are caused by poorly
maintained power tools.
f) Keep tools sharp and clean. Properlymaintained cutting tools with sharp blades
are less likely to jam and are easier to control.
g) Use thepower tool, accessories and similar according to theinstructions
and in an appropriate way suitable for thetype of power tool used. Alsotake
into consideration your work environment and thetype of work to be done.
Usingthepower tool for apurpose other than that for which it is intended could
result in adangerous situation.

5
English
Safety instructions specific to jigsaws
Warning: Always disconnect theplug from themains before adjusting, servicing or
performing maintenance on themachine.
a) If themains lead is damaged it should only be replaced by theretailer.
b) Keep your hands away from theblade and other moving parts. Donot reach under
theworkpiece being sawed. Theblade or your hand could be out of your sight.
c) Never put your hand or finger between thependulum arm and gearbox. Thereis
arisk of crushing.
d) Do not drill into walls or other places where there might be hidden electric cables.
Ifit is necessary to saw in any case: Remove all fuses and cut off all thepower
supply to any wiring circuits which may be hidden behind thewall. Griponly
theplastic (insulated) parts of thesaw. Nevertouch any metal parts of thesaw
when cutting in areas where there might be live electrical wires.
e) Do not use blunt or damaged saw blades. Bentsaw blades can easily break or
cause kickback.
f) Start thesaw and let it get up to speed before starting to cut.
g) Clamp down any small workpieces before starting to cut them. Smallworkpieces
can easily bend or vibrate causing you to lose control of thepower tool.
h) Make sure that thesettings are correct and that theblade is securely fastened in
theblade holder before beginning to saw.
Service
Repairs and service should only be performed by qualified tradesmen, and only with
original spare parts.
Note: Always disconnect theplug from themains before adjusting, servicing or
performing maintenance on themachine.
Product safety symbols
Read theentire instruction manual.
Always use safety glasses.
Always use ear protection.
Always wear face mask.

6
English
1 2 3
4 5 6
7
8
9
101112
Product description
1. Parallel guide
2. Blade holder
3. Saw blade guard
4. Speed selector control
5. On/off switch
6. Locking button
7. Allen key holder
8. Allen key
9. Dust extractor connection
10. Pendulum motion control
11. Sole plate
12. Guide roller
Accessories
• Saw blade

7
English
13
2
11 14
Assembly and setup
Note: Always unplug thesaw before servicing.
Changing thesaw blade
1. Loosen thesocket head
screws (13) holding
thesaw blade.
2. Insert thesaw blade into
theblade holder (2).
3. Tighten thelocking
screws (13).
4. Make sure that theblade
is correctly fitted.
The sole plate (11) can be
tilted up to 45° to theright
or left.
1. Loosen thesocket
head screws (14).
2. Pull thesole plate (11)
backwards and set
thedesired angle.
3. Tighten thesocket
head screws (14).
Adjusting thesole plate

8
English
115
5
6

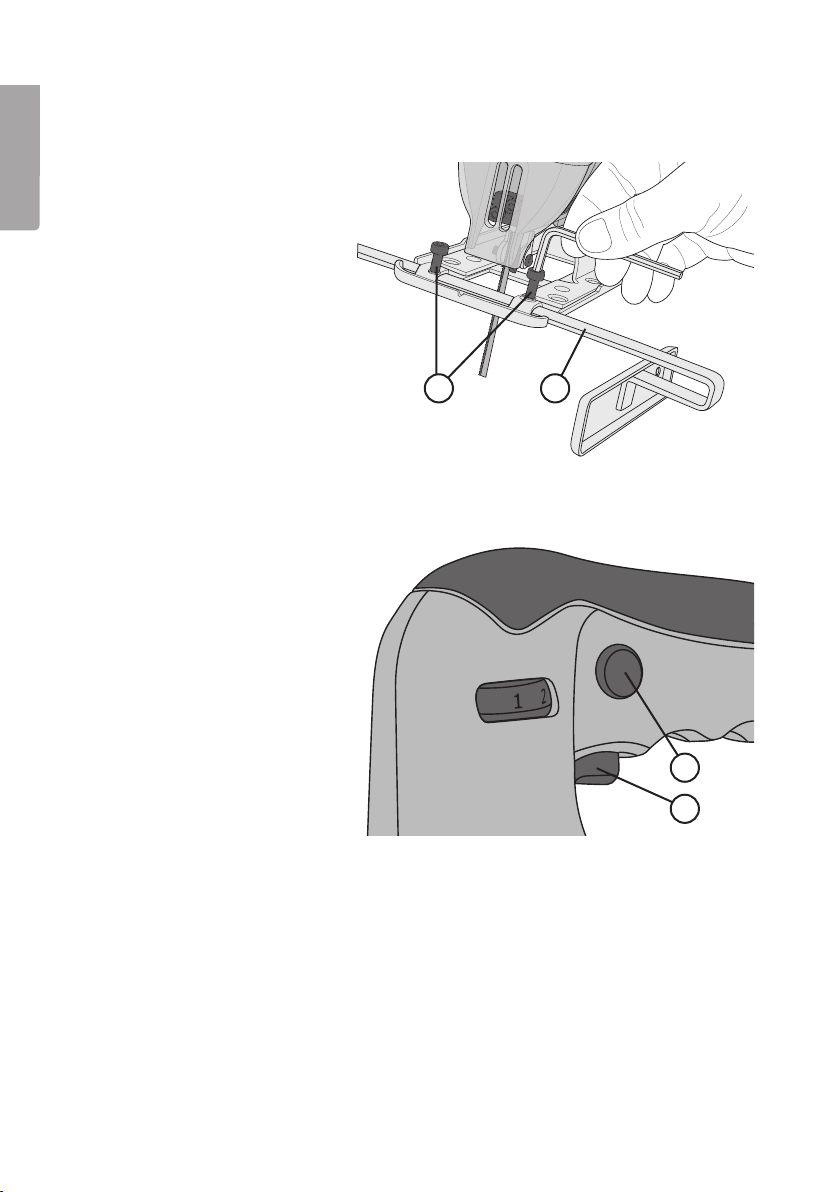

Operation
Sawing with theparallel guide
1. Mount theparallel guide (1)
into theslots.
2. Set thedesired
measurement.
3. Tighten thelocking
screws(15).
On: Press in theon/off switch (5).
Off: Release theon/off switch.
• To lock theon/off switch (5)
in theon position: Pressin
theon/off switch and
thelocking button (6) at
thesame time. Thenrelease
theon/off switch before
thelocking button.
• To switch off – Press only
theon/off switch (5) and
then release it.
Switching thejigsaw on/off

9
English
Setting thespeed
The speed is adjusted by thespeed control (4), even during operation. Aftercutting for
an extended time at low speed themotor should be run at maximum speed for about
3 minutes to cool down themotor.
Setting thependulum motion
The adjustable pendulum motion (10) can be adapted to theworkpiece material
being sawed. Whenthesaw blade moves outwards it is simultaneously lifted from
theworkpiece, thus increasing both debris removal and thecooling of theworkpiece.
0 Sheetmetal, steel or rubber
I Non-ferrous metals, hard woods, plastic
II Wood
Troubleshooting guide
The machine does
not start.
• Check to see if there is power at thewall socket.
• Check that thelead and plug are undamaged.
• Check for any visible damage and test if theon/off switch
is working properly.
The machine runs
slowly.
• The blade speed can be set using theselector (3).
• Replace thesaw blade when it is worn.
• Do not try to force thesaw through theworkpiece too quickly.
The machine
vibrates and emits
unusual noises.
• Make sure that there is nothing underneath theworkpiece
which is in theway.
• Tighten thesaw blade and make sure it is fitted correctly.

10
English
Care and maintenance
• Always keep themotor’s ventilation openings free of dust and debris.
• Clean themachine regularly using amoist cloth and washing up liquid.
• Never use solvents.
Specifications
Voltage 230 V, 50 Hz
Power 600 W
Variable speed 500–3000 strokes/min
Blade holder T-shank
Tiltable sole plate Max 45°
Wood sawing capacity Max. 65 mm
Metal sawing capacity Max. 6 mm
Lpa (sound pressure level) 88 dB(A), KpA: 3 dB(A)
Lwa (sound power level) 99 dB(A), KwA: 3 dB(A)
Vibration value 14.00 m/s2, Kcw: 1.5 m/s2
Weight 2.2 kg

11
Declaration of Conformity
Försäkran om överrenstämmelse
Samsvarerklæring
Vakuutus yhdenmukaisuudesta
CLAS OHLSON AB
SE-793 85 INSJÖN, SWEDEN
Declares that this product complies with the requirements of the following directives and standards
Intygar att denna produkt överensstämmer med kraven i följande direktiv och standarder
Bekrefter at dette produktet er i samsvar med følgende direktiver og standarder
Vakuuttaa, että tämä tuote täyttää seuraavien direktiivien ja standardien vaatimukset
JIG SAW 600 W
18-3464
M1Q-TD-65E-UK
Machinery directive
2006/42/EC
EMC directive
2004/108/EC
LOW VOLTAGE
DIRECTIVE
2006/95/EC
EN 60745-1:2009
EN 60745-2-11:2003
+A11:2007
+A1:2009+A12:2009
EN 55014-1:2006
EN 55014-2:1997
+A1:2001+A2:2008
EN 61000-3-2:2006
EN 61000-3-3:2008
Klas Balkow
President
Insjön, Sweden, 2011-06-10
