Claypaky SHARPY PLUS User manual

1
CD3000
IN TRUCTION MANUAL
ENGLI H
SHARPY PLUS
INDEX
Page Contents
2 1. afety information
3 2. Unpacking and preparation
4 3. Installation and start-up
4 3.1 Installing the fixture
4 3.2 Connecting to manis supply
5 3.3 Connecting the control signal line: DMX / Art-Net
5 3.4 Switching on the fixture and basic SetUp
7 4. Maintenance
7 4.1 Opening the covers
8 4.2 Periodical cleaning
9 4.3 Effects module removal
10 4.4 Cleaning of the filters
12 4.5 Rotating gobos
13 4.6 Battery removal
14 5. pecifications
PRELIMINARY
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.

2
SHARPY PLUS
EN
IT
DE
E
FR
RU
AFETY INFORMATION
IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
www.claypaky.com
Ref: [FIS01H: Safety information Sharpy Plus]
INFORMAZIONI DI ICUREZZA
IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
www.claypaky.com
Rif: [FIS01H: Safety information Sharpy Plus]
INFORMATIONEN ZUR ICHERHEIT
WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
www.claypaky.com
Ref: [FIS01H: Safety information Sharpy Plus]
INFORMACIONE DE EGURIDAD
IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
www.claypaky.com
Ref: [FIS01H: Safety information Sharpy Plus]
CON IGNE DE ÉCURITÉ
IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
www.claypaky.com/download
Réf. : [FIS01H: Safety information Sharpy Plus]
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и со ранить инструкцию по те нике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
www.claypaky.com
Наименование: [FIS01H: Safety information Sharpy Plus]
1. AFETY INFORMATION

3
SHARPY PLUS
1
90°
90°
90°
90°
UNLOCKED
LOCKED
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
2 3
Packing contents - Fig. 1
UNLOCKED LOCKED
45° 45°
45°
45°
45°
45°
45°
2. UNPACKING AND PREPARATION

4
SHARPY PLUS
4
2
1
1
2
3
5
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with th xc ption of wh n th proj ctor is position d on th floor, th saf ty cabl must b fitt d. (Cod. 105041/003 availabl on r qu st).
This must b s cur ly fix d to th support structur of th proj ctor and th n conn ct d to th fixing point at th c ntr of th bas .
3. IN TALLATION AND TART-UP
3.1 Installing the fixture
Light collimation system
This product contains internal light collimation system.
Avoid intense light from any angle.
3.2 Connecting to manis supply

5
SHARPY PLUS
witching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) ystem errors
HARPY PLU Version X.X.X Dmx Address xxx E: .........................
Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control
panel (Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two
conditions: rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
1
Dmx Address
War ning Message
8

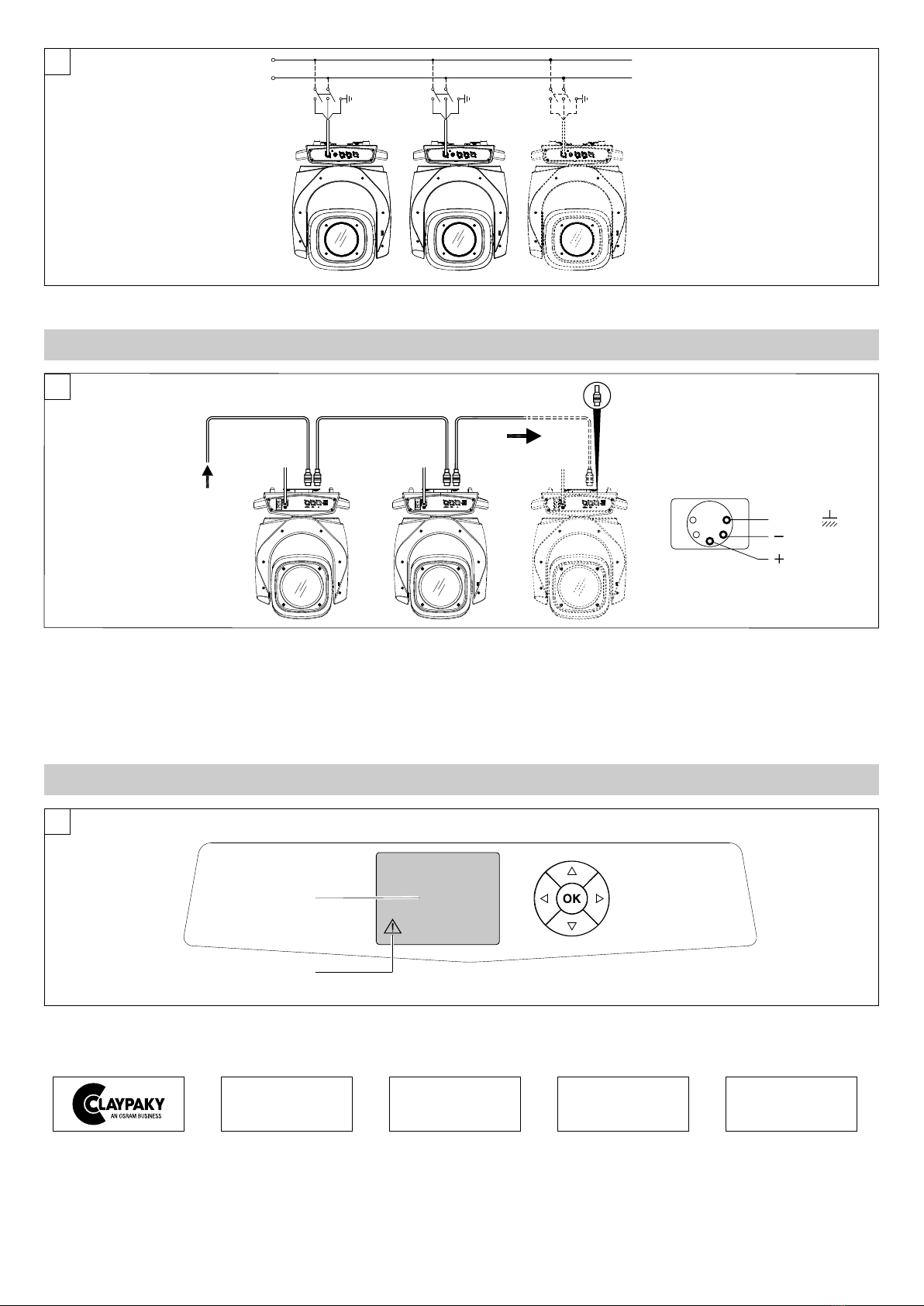

Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
Connecting to the mains supply - Fig. 6
SIGNAL
SCREEN
DMX 512
5PIN
1
2
3
4
5
SIGNAL
Mains
6
7
Continue ➔
3.3 Connecting the control signal line: DMX / Art-Net
3.4 witching on the fixture and basic etUp

SHARPY PLUS
6
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
etting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
If there is no DMX input signal, the display will show "No signal".
9
Functions of the buttons - Using the menu
etting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
RIGHT
E
to momentarily activate the display and thus access the settings. Once the required operations have been
carried out, the display will switch off again after a wait time of 30 seconds.
U ING THE MENU:
1) Press LEFT
D
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT

7
SHARPY PLUS
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPAC ING AND PREPARATION section.

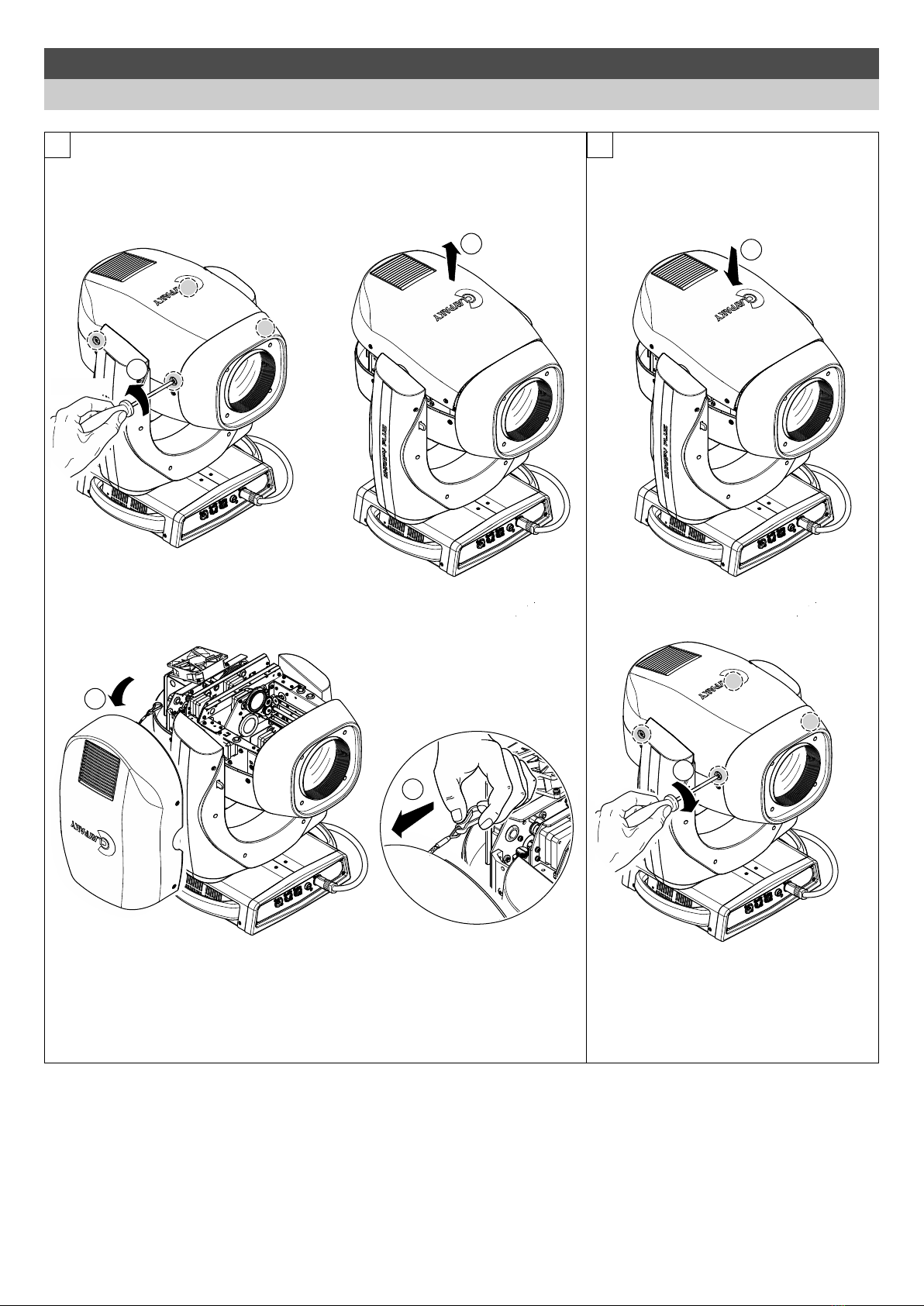

Opening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
2
4
1
1
1/4 Turn
3
2
1/4 Turn
10 11
Continue ➔
4. MAINTENANCE
4.1 Opening the covers

Upper Side
Lower Side
8
SHARPY PLUS
12
Periodical cleaning - Fig. 12
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
•General cleaning of internal parts.
•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
•General visual check of the internal components, cabling, mechanical parts, etc.
•Electrical, photometric and functional checks; eventual repairs.
NOTE: keep a careful cleaning of the ''CMY/colour filters assembly'' to prevent rapid deterioration.
4.2 Periodical cleaning

9
SHARPY PLUS
Continue ➔
4.3 Effects module removal
2
Lower side
1
Extraction of the effect modules - Fig. 13.
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14 and 15 in reverse order.
NOTE:
- Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards.
- Do not switch-on the fixtures with wiring harness disconnected.
13

10
SHARPY PLUS
1
2
3
13

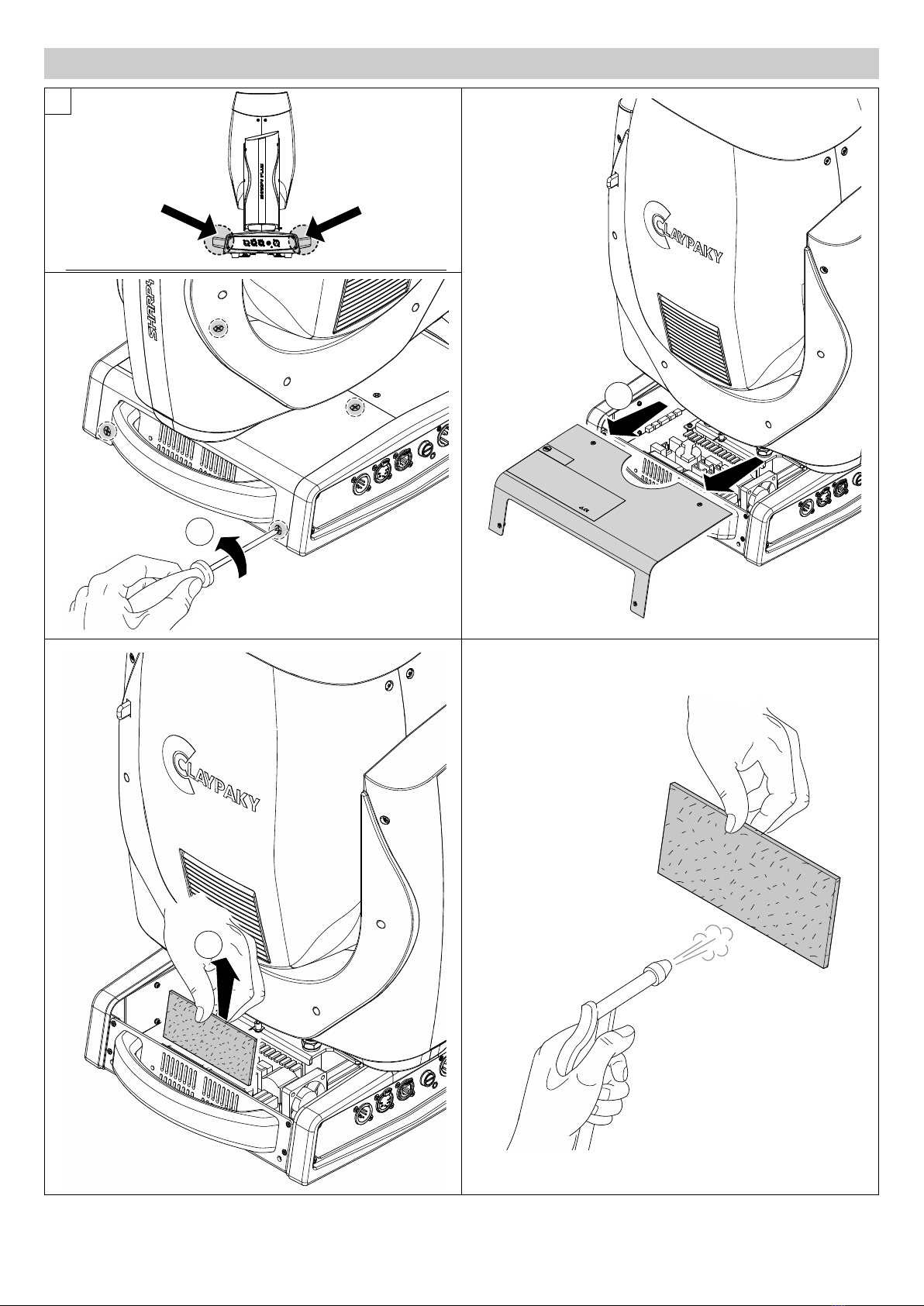

Cleaning of the filters - Fig. 13.
4.4 - Cleaning of the filters

11
SHARPY PLUS
1
1/4 Turn
2
3
4
6
Lower Side
5
Lamp change - Fig 14.
Take the new lamp out of its package and insert in the fitting.
WARNING: do not touch th lamp’s nv lop with bar hands. Should this happ n, cl an th bulb with a cloth soak d in alcohol and dry it
with a cl an, dry cloth.
Lamp regulation
To centre the lamp, move the lamp holder as shown in the figure.
WARNING: Th lamp must b adjust d with th proj ctor switch d off. Aft r adjusting, clos th ff cts cov rs, switch on th proj ctor and ch ck
that th adjustm nt has b n corr ctly mad . If n c ssary, switch off th proj ctor, r mov th ff cts cov rs and r p at lamp adjustm nt.
REMARK:
- Lifetime of the lamp will be influenced by the switching cycle.
- After a successful starting, attempt to keep the lamp burning for at least 15 minutes in order to complete the chemical cycle of the
lamp to secure the lifetime.
- After switching-off the lamp wait at least 2 minutes before switching-on it again.
14
Continue ➔

ROTATING GOBO
4th
6th
2nd
1st
1.1
ø15.9 ±0.2
ø12 ±0.2
3rd
5th
7th
INDEX
8th
2
3
1
Grey/Black side away from lamp
Reflective side towards the lamp
COATED GLASS GOBOS
12
SHARPY PLUS
Replacing rotating gobos - Fig. 17
- Before use custom gobos contact Claypaky;
- The original gobos have a special coating designed specifically to resist to the high temperatures;
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Claypaky;
Gobo orientation - Fig. 16
The pictures shown the correct gobos orientation.
Bearing group replacement - Fig. 15
15
16
17
4.5 - Rotating gobos

13
SHARPY PLUS
Battery removal - Fig. 18
This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
6
1
4
2
3
5
18
4.6 Battery removal

14
SHARPY PLUS
533
(20.98")
455
(17.91")
307
(12.09")
375
(14.76")
404
(15.91")
635
(25")
455
(17.91")
5. PECIFICATION
POWER SUPPLIES
AC power input Neutrik PowerCON True1 (IP65)
100-240V, 50/60 Hz
INPUT POWER
540 VA @230Vac - 50Hz
LIGHT SOURCE
Source: 330W X8 HRI Sirius Osram arc lamp
MOTORS
Stepper motors, operating with micro-steps, totally
microprocessor controlled
CHANNELS
31 control channels
INPUTS
DMX 512 – Art-Net
IP RATING
IP 20 - Protected against the entry of solid bodies
larger than 12mm (0.47”); No protection against
the entry of liquids.
SAFETY SPECIFICATIONS
Minimum distance of illuminated objects 8 meters
Minimum distance from flammable materials 0.2
meters
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C
(194°F)
Automatic break in power supply in case of
overheating
Forced ventilation with axial fans
ELECTRONICS
Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server
OPTICS
Zoom 3°- 36°, Linear and motorized
EFFECTS SECTION
Six beam reducers (down to 0.5°)
CMY color mixing
15 colors on 3 wheels
2 CTO filters
Rotating Gobo Wheel: 8 interchangeable glass
gobos
Static Gobo Wheel: 18 fixed gobos
Rotating 4-facet prism on dedicated channel
Rotating 8-facet prism on dedicated channel
Dynamic Animation disc
Linear soft edge frost filter
Dimmer and stop/strobe
Dense, Sharp, Parallel Light Beams
Extremely quick movements
Excellent visual effect projections
Wide and sharp aerial effects
CONTROL AND PROGRAMMING
DMX 512 control channels
Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net
Display Graphic LCD backlit b/w Display
Display battery Long life self-charging buffer
battery
Pan/Tilt Resolution 16 bit
Focus Resolution 16 bit
Gobo Resolution 16 bit
Dimmer Resolution 16 bit
DMX signal connection 5 pole XLR input and
output
Ethernet Input
Firmware update Software upload through
Ethernet input
BODY
Aluminum and steel structure with plastic covers
Two side handles for transportation
Device locking PAN and TILT mechanisms for
transportation and maintenance
MOVING BODY
PAN range 540°
TILT range 270°
WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4
turn) on the base
CE MARKING
In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment
supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility
(EMC)
• 2011/65/EU - Restriction of the use of certain
hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for
Energy-related Products (ErP)
WEIGHT
23 g

15
SHARPY PLUS
Cause and solution of problems
THE PROJECTOR WILL NOT SWITCH ON
PROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
Lamp exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.
Check the power supply voltage.
Replace the lamp. (See instructions).
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).

CLAYPAKY .p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. [phone] - Fax [phone] - www.claypaky.it
IST01E/001 – EN - PRELIMINARY 01/2019
