Clean Air Optima CA-705 Smart User manual

Model: CA-705 Smart / CA-706 Smart
Read these instructions carefully before you start using this Clean Air Optima® device and keep the manual for later usage.
Clean Air Optima® 2in1: Dehumidifier & Air Purifier
© Copyright: Clean Air Optima
®
Manual
User manual
Gebrauchsanweisung
Gebruiksaanwijzing
Mode d’emploi
Manual del usuario
Instrukcja obsługi
Uživatelská příručka
Manual de utilizare
Naudotojo vadovas
Kasutusjuhend
Lietošanas pamācība
Руководство
пользователя
Прирачник за
користење
Find more languages on:
www.cleanairoptima.com/
info/manuals

2
CA-705 Smart / CA-706 Smart
Main unit

3
English
Thank you for purchasing the Clean Air Optima® 2in1: Dehumidifier & Air Purifier
CA-705 Smart / CA-706 Smart.
We wish you many years of healthy indoor air with this ecient and eective product. Ensure
that all safety precautions are followed when using this electrical appliance for the proper
operation of the device. These instructions describe the safety precautions to be observed
during operation. They are meant to prevent injuries and to avoid damaging the device.

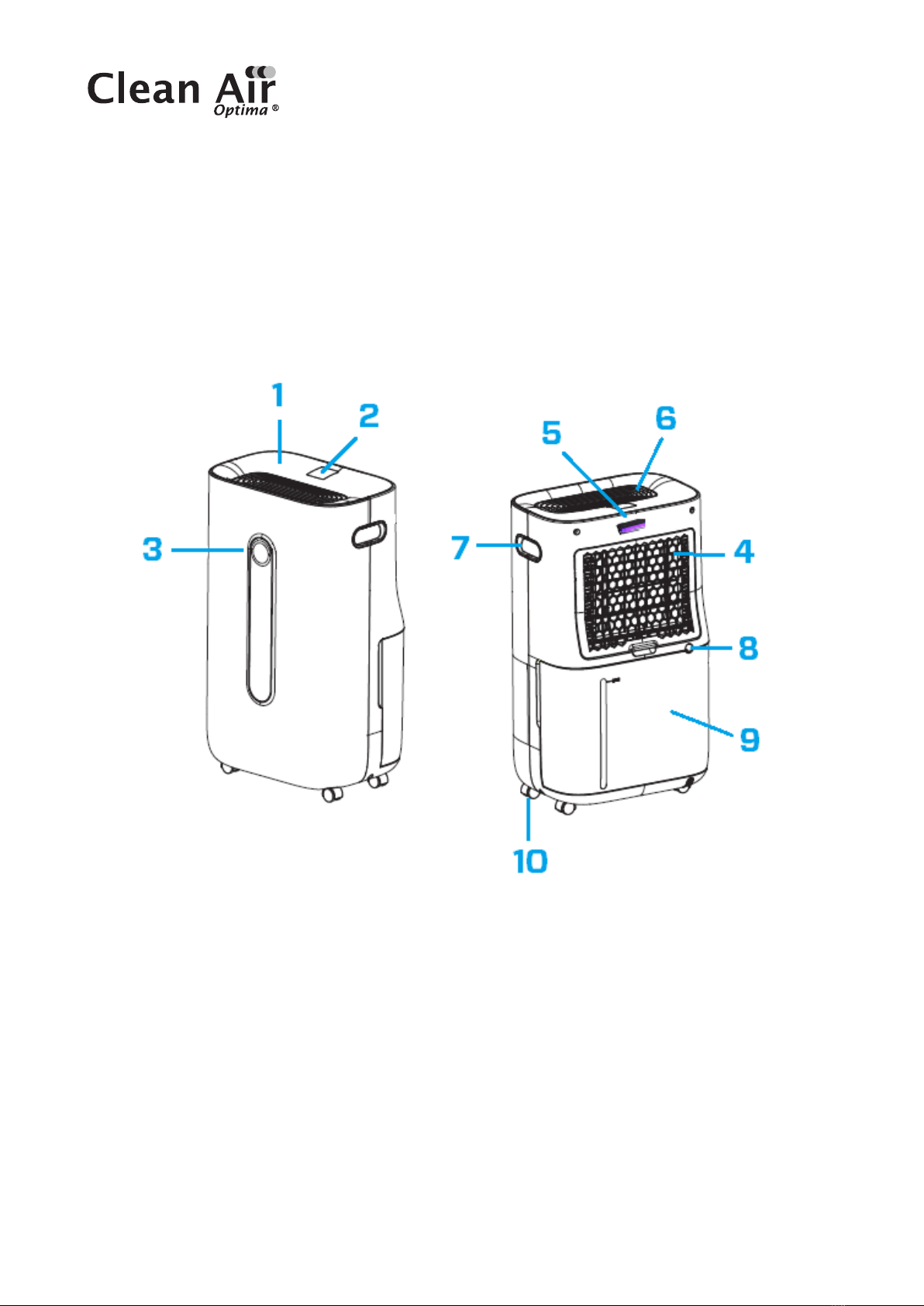

Description
This Clean Air Optima® device consists of the following main components:
1. Control panel
2. Digital display indicates relative humidity in %, WiFi and function settings
3. Color LED monitor indicates relative humidity in blue (below 53%), green
(between 53% - 68%) and red (above 68%)
4. Air inlet and filter frame compartment, includes: Pre-filter, Activated Carbon Filter,
True HEPA H13 Filter
5. UV-C lamp position
6. Air outlet and Ionizer position
7. Handle
8. Continuous drainage (water drain, hose connection) Drain hose 1.5 meter included
9. Water tank
10. Caster wheels

4
Safety warnings
This device may only be used in accordance with this safety instructions. Take the following
steps to minimize the risk of personal injury caused by for example electric shocks or fire.
1. Leave the device to stand for at least two hours before use, especially after
transportation.
2. Only for indoor use. Do not use or store outdoors.
3. Use proper voltage: AC 220V – 240V, 50/60Hz.
4. Allow a free space of min. 20 cm around the air inlet and air outlet of the device.
5. The appliance is not intended to be used by children or persons with reduced physical,
sensory or mental capabilities, unless they are supervised by a person responsible
for their safety.
6. Do not use the device when there is visible damage on the electrical cord or on the device
itself. Do not repair the device yourself in case of damage. Never pull the device by its
cord. If the power cord is damaged, then it must be replaced by an authorized service
person to prevent electric shock or fire.
7. Repairs may only performed by authorized service personal. Do not try to repair the
device yourself to prevent electric shock or fire.
8. Do not touch the power cord and plug with wet hands.
9. Always switch o the device before disconnecting the plug.
10. Never attempt to turn of the device by disconnecting the plug.
11. Pull the plug when you do not use the device or when you clean internal or external parts
of it.
12. For safety use put the device in a steady, horizontal position. Do not move while using.
13. Refrigerant: R290. This refrigerant complies with European environmental regulations.
No part of the cooling circuit may be perforated.
14. Do not use the device in rooms where inflammable liquids, gases are stored or close
to heat sources like radiator, fire place or heat-generating devices like ceramic heater.
15. Never insert any other object into the body to avoid breakdown.
16. Never cover the air inlet and air outlet grid.
17. Never dissemble or replace the device’s inner parts.
18. Use and store the device not under 0°C or above 40°C.
19. Do not tip the unit to any side when the water tank is full.
20. Do not put heavy objects on the unit.
21. Please avoid places with direct sunlight. There is a risk that the device discolors.
22. Never immerse the device in water or other liquids.
23. Empty the water tank regularly. In extreme conditions the water tank may be full after a
few hours operation.
24. Clean the Pre-filter regularly, if the Pre-filter is saturated with dust, it will lead to poor
purifying and dehumidifying eect. The power consumption will increase, it can cause
failure.
25. Replace the Activated Carbon Filter and True HEPA H13 Filter every 3 – 6 months, if the
Activated Carbon Filter and True HEPA H13 Filter are saturated, it will lead to poor
purifying and dehumidifying eect. The power consumption will increase, it can cause
failure.
26. Use, maintain and clean the device as described in this manual.

5
Installation

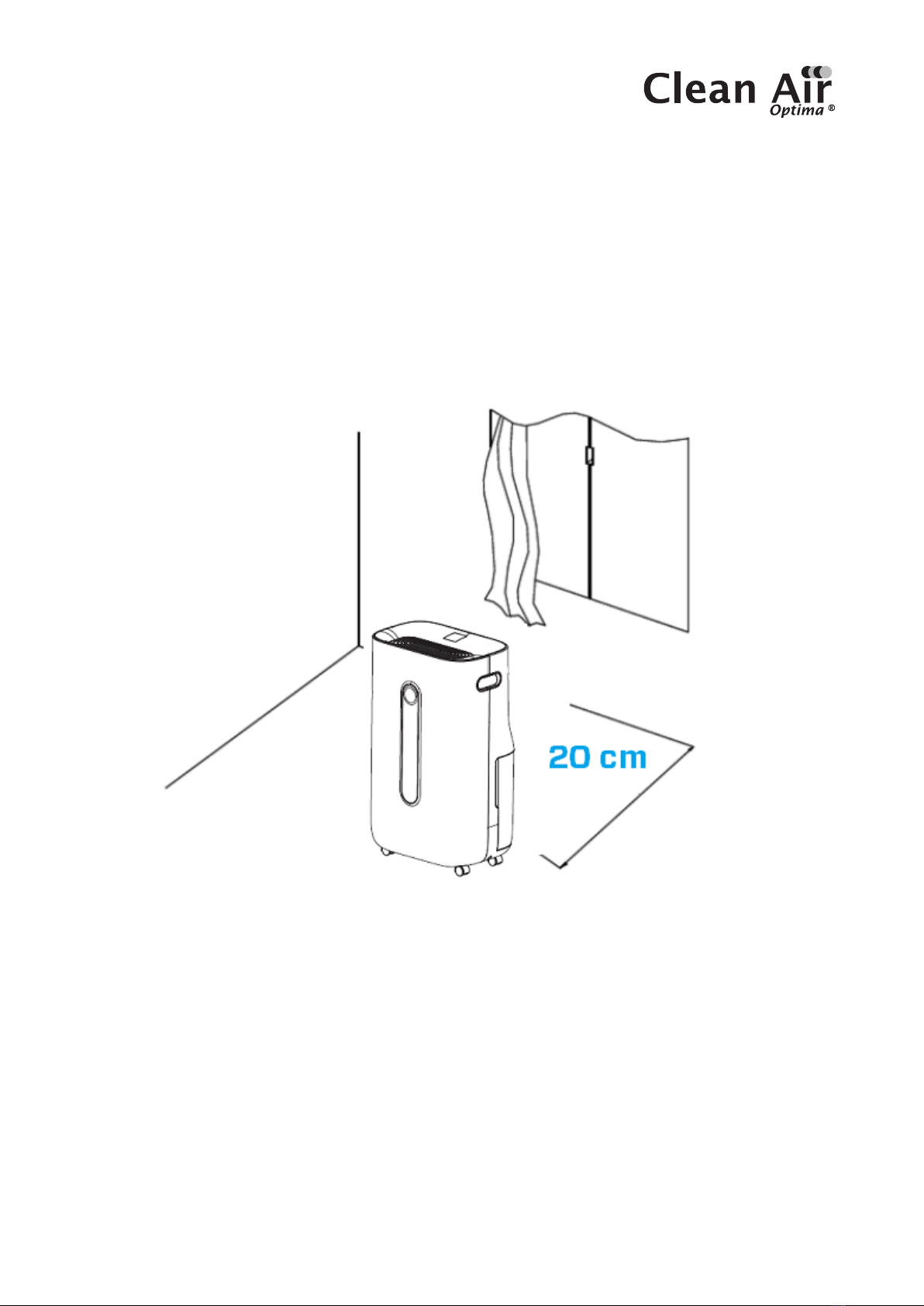

Make sure that the distance from the device is 20 cm away from walls and furniture, see the
illustration below.

6

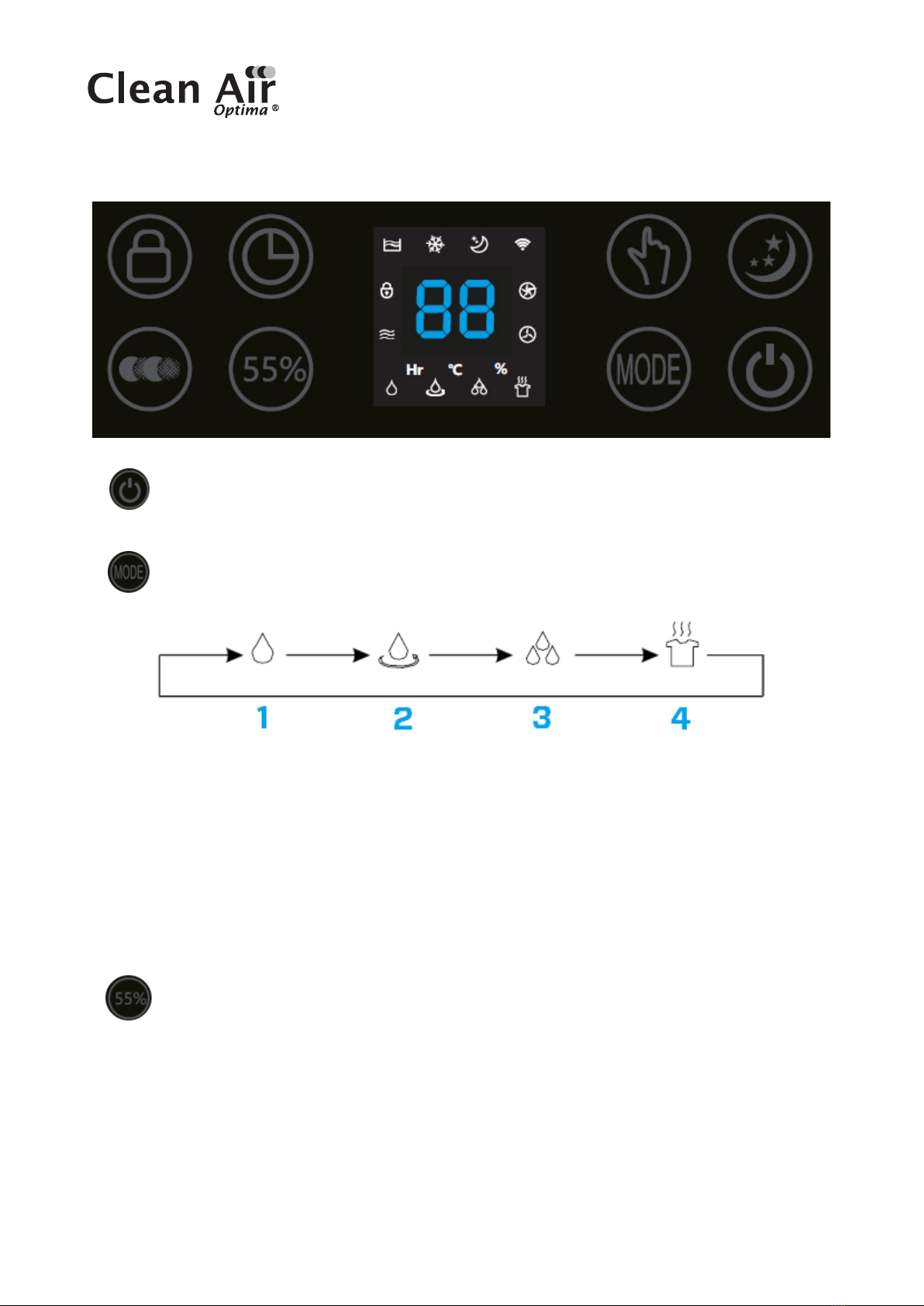

Control panel / Operation instruction
Power
Press the Power Button to activate the device.
Press the Power Button again, the device turns o.
MODE
Press the MODE Button to select one of four desired programs:
1. Normal dehumidification (adjustable fan speed and humidity setting)
Icon with name in App: Normal
2. Continuous dehumidification (low fan speed, humidity setting not adjustable)
Icon with name in App: Continuous
3. Strong dehumidification (high fan speed, fan speed and humidity setting not adjustable)
Icon with name in App: Strong
4. Dry clothes mode (high fan speed, fan speed and humidity setting not adjustable)
Icon with name in App: Dry clothes
Humidity setting (Only for MODE program: Normal dehumidification)
By pressing the Humidity Button, you can select the desired humidity level by
pressing this button repeatedly until the required humidity level is displayed
(from 30% to 80% in increments of 5%).
Once you select your desired humidity level, simply stop pressing the button and
your humidity level will be set. When the humidity level in the room reaches the set
humidity level, the device will go into automatic sleep state and stops dehumidifying
and air purifying. When the room’s actual humidity level increases again above your
set humidity level, then the device will start dehumidifying and air purifying again.
If the desired humidity level is reached at a constant level, you can switch with the air
purification button for continuous air purification.

7
Continuous Air Purification, icon with name in App: Air Clean
By pressing the Air Purification Button you can use the device as an air purifier.
Fan Speed
(Only for MODE program: Normal dehumidification and Continuous air purification)
By pressing the Fan Speed Button, you can change the fan speed level. The 2 fan
speeds oer individual air flow.
Negative Ion
In the four MODE program and Continuous Air Purification function the Negative Ion
function will be automatically be activated. The negative ion generator has a total
capacity of > 3.000.000 negative ions / cm²that are spread through out the entire
room and thereby neutralize pollutants and smells. Negative ions attach onto dust
particles, microorganisms and other unwanted particles in the air and connect them
to each other. This way, the particles become heavier than air and fall onto the
ground so that you can no longer breathe them in.
Negative ions are most found in the forest, mountains and by the sea. Negative ions
ensures fresh and healthy air.
Timer
Press the Timer Button to set 0-24 hours timing. Press the button one time, the
timer will increase with one hour. When the device is operating, the timer that is set
indicates when the device switches o. If the device is in stand-by mode, the timer
that is set is to instruct the device when to turn on.
Sleep
Press the Sleep Button and the sleep mode is activated, the display will turn of.
Press the Sleep Button again to switch back in the settings before.
Child Lock, icon with name in App: Lock
Child Lock is switched on / o by pressing the Child Lock Button for ca. 3 seconds.
Child Lock protects from unwanted use of the device.
Water Tank Full Indicator Light
When the water tank is full, the device will stop automatically. The Water Tank Full
Indicator Light turns on and lights up. Drain the water tank, and return the water tank
to the body of the device, the Water Tank Full Indicator Light will turn o. The device
will work automatically again.

8
Defrosting Indicator Light
The evaporator in the dehumidifier may defrost automatically if it is operated with a
room temperature less than 18 °C. The defrosting device in the dehumidifier my start
up and operate for some time (about 5 minutes) automatically every 25 minutes or
even longer.
- During the defrosting operation, the dehumidification function and air purification function
may intermit.
- Don’t turn of the power or pull out the power plug of the device during the defrosting
operation.
Operation with Clean Air Optima® App
Connectivity
Compatibility with smartphone and tablet:
iPhone, iPad and Android devices
Device connets via WiFi with App:
CleanAirOptima
About the Clean Air Optima® App
Set up WiFi connection
1. Download and install the “CleanAirOptima” App in the App Store or Google Play Store.
2. Make an account and log in.
3. Plug the device into the power socket and switch it on. The WiFi indicator will blink.
4. Make sure that your smartphone or tablet is successfully connected to your WiFi network.
5. Open the ‘CleanAirOptima’ App and click on ‘Add device’ . Your device is listed and you can
select it. If not choose ‘Auto Scan’. Follow the on-screen instructions to connect the device
to your network.
6. Choose to add the Clean Air Optima® device on the App, follow the instructions in the App.
7. When the device is paired, the WiFi indicator light stays on constantly.
8. After the configuration is successful, you can use the Clean Air Optima® App to operate the
device.

9
Note:
• If your default network has changed, reset the WiFi connection, follow step 1 to 9 in the
‘Set up WiFi connection’ section.
• If you want to pair multiple devices to your smartphone or tablet, you have to do this one
after the other.
• Make sure that the distance between your smartphone or tablet and the device is less than
5 meters and there are no obstacles. Also make sure you are in the same room as the
device.
Reset the WiFi function:
- The device must be switched o.
- Reset the WiFi by pressing the ‘Mode’ button for 5 seconds, the indicator light of the WiFi will
blink rapidly.
Turn o WiFi function:
- The device must be switched o.
- Reset the WiFi by pressing the ‘Mode’ button for 5 seconds, the indicator light of the WiFi will
blink rapidly.
- Turn of the WiFi by pressing the ‘Mode’ button for another 5 seconds, the indicator light of the
WiFi will go out.
Room temperature increases during operation
The Clean Air Optima® dehumidifier doesn’t have a cooling function. The device will produce
heat during operation and increase the room temperature between 1 °C to 4 °C.
Dehumidifying capacity
The illustration below shows the dehumidifying capacity of the Clean Air Optima® dehumidifier.
By dierent temperatures and relative humidity, the dehumidifier may have dierent
dehumidifying capacities.
Humidity 80%
Dehumidifying capacity
Room temperature

10
Water Drainage
The Water Tank Full Indicator Light will light up when the water tank is full. Take out the water
tank and empty the water inside. Then put the water tank back into the dehumidifier correctly,
see the illustration below.
Continuous Drainage
For continuous operation you can use the drain hose of 1.5 meter long that is included.
Remove the water tank and install the hose to the water drain hose connection correctly,
seethe illustration below.

11
Maintenance
Cleaning the housing of the Clean Air Optima® dehumidifier
1. Switch o the device and pull the plug.
2. Use a soft and humid piece of cloth to clean the device. Do not use chemical solvent such
as benzene, alcohol or gasoline.
3. Make sure that no water gets into the device, do not sprinkle with water.
Replacing of filters
Depending on the use, the Activated Carbon Filter and True HEPA H13 Filter has a lifespan of
approx. 3 – 6 months. The Pre-filter and UV-C lamp are permanent, no replacement needed.
Take out the filters from the filter frame compartment. After filter replacement or filter
cleaning reinstall the filters back into the filter frame compartment and assemble back to the
device, see the illustration below.
Filter cleaning
The best eect for a longer lifespan of the Filters is reached by cleaning the filters once a
month. If indoor air is extremely polluted, we advice to clean the filters more often ca. once per
two weeks.
Clean the Pre-filter, Activated Carbon Filter and True HEPA H13 Filter carefully with a brush or
your vacuum cleaner. That way bigger dust particles like lint, hair, dust and dander of pets can
be removed from the filters.

12
Warning!
Do not damage the filters, the filters must not be cracked. Damaged filters needs to be
replaced.
Never wet or rinse the filters (Only for Activated Carbon Filter and True HEPA H13 Filter)
withwater. Filters that are rinsed with water needs to be replaced.
Signs for used up filters that needs to be replaced
(Only for Activated Carbon Filter and True HEPA H13 Filter)
Increased sound, reduced air flow, congested filters, rising presence of smells. Filters needs
also to be replaced by new ones when the True HEPA H13 Filter changes its color from white to
grey or black. If the True HEPA H13 Filter remains white, there is NO need to replace the filters.
How to order filters:
Contact Clean Air Optima® Customer Service tel. + 31 (0) 742670145 or visit our webshop:
https://www.cleanairoptima.com/accessoires/mg/44/
Clean Air Optima® dehumidifier storage
If the dehumidifier will not be used for an extended period of time:
1. Drain the water tank completely and make sure that there is no water stocked
inside the water tank.
2. Unplug the device and fold up the power supply cord.
3. Remove and clean the filters. After cleaning reinstall the filters back into the device.
4. Store the dehumidifier in a cool, dry location, away from direct sunlight, extreme
temperature and excessive dust.

13
Troubleshooting
The following is a troubling shooting guide to help you solve any issues that you may have
using the Clean Air Optima® dehumidifier CA-705 Smart / CA-706 Smart.
Problem Possible Cause Solution
Device does not
switch on
Ineciency
dehumidification
The power cord does not
connect correctly
The water tank is full or water
tank is not in the correct
position
The filters are blocked by dust
The air inlet and outlet have
ablockage
The setting humidity is higher
than environmental humidity
The dehumidifier is in
Continuous air purification
MODE
Connect the power plug and
power socket correctly
Drain the water tank and replace
the water tank to the correct
position
Clean or replace the filters
Clean the blockage from the air
inlet and outlet
Set the humidity at least 5%
lower than environmental
humidity
Change the operation MODE
Noise
The device is installed askew
The filters are blocked
Make sure the device is installed
uprightly
Clean or replace the filters
Operation stops during
spot dehumidifying
The room temperature is higher
than the usable operating
temperature
The dehumidifying operation will
be started automatically when
the temperature lowers
Washed clothes are
not dried
The room temperature is to low
Washed clothes are hard to be
dried under low temperature
conditions
Operation with Clean
Air Optima® App does
not work
Smartphone or tablet is not
connected to WiFi network
The device has no connection to
the network
Switch o the device and reset
the WiFi on the device by
pressing the Mode button for 5
seconds, the indicator light of the
WiFi will blink rapidly. Than follow
step 4 to 8 from chapter
Operation with Clean Air Optima®
App

14
WARNING!
If the above recommended solutions do not work, please contact Clean Air Optima® technical
support at the telephone number for your region. Do not attempt to disassemble, reassemble,
or repair the device as this may void the warranty.
Specifications CA-705 Smart
Model CA-705 Smart
For rooms up to 50m²/ 125m³/ 540ft²
Rated voltage 220V - 240V, 50Hz
Rated power 240W
Fan capacity 195 m³/h
Dehumidifying capacity 16 liters per day at 30°C and 80%RH
Working temperature range 5°C - 32°C
Water tank 6,5 liter
Air purification with: Pre-Filter, Activated Carbon Filter, True HEPA H13 Filter,
UV-C lamp, Ionizer
Filter performance 99,97%, Sterilization rate 99.9%
Negative ion >3.000.000 ions/cm²
Sound level Silent fan < 30dB(A) Low / 48dB(A) High
Drain hose 1.5 meter
Dimensions 340 x 240 x 570mm
Weight 14kg
Colour White / black
Refrigerant R290 / 55g
Complies with EU regulations CE / WEEE / RoHS
Specifications CA-706 Smart
Model CA-706 Smart
For rooms up to 70m²/ 175m³/ 750ft²
Rated voltage 220V - 240V, 50Hz
Rated power 320W
Fan capacity 195 m³/h
Dehumidifying capacity 20 liters per day at 30°C and 80%RH
Working temperature range 5°C - 32°C
Water tank 6,5 liter
Air purification with: Pre-Filter, Activated Carbon Filter, True HEPA H13 Filter,
UV-C lamp, Ionizer
Filter performance 99,97%, Sterilization rate 99.9%
Negative ion >3.000.000 ions/cm²
Sound level Silent fan < 30dB(A) Low / 48dB(A) High
Drain hose 1.5 meter
Dimensions 340 x 240 x 570mm
Weight 14.5kg
Colour White / black
Refrigerant R290 / 60g
Complies with EU regulations CE / WEEE / RoHS

15
Ask your retailer or your municipality for updated information regarding
the disposal of the packaging and of the device.
Danger
Natural refrigerant propane (R290)!

16
Service
Warranty Certificate for the Clean Air Optima® Dehumidifier
CA-705 Smart / CA-706 Smart.
Date of purchase: …………………………………………………………………………………………
Customers name: …………………………………………………………………………………………
Address: …………………………………………………………………………………………………….
Telephone: ………………………………………………………………………………………………….
Email: ………………………………………………………………………………………………………..
Seller’s name: ……………………………………………………………………………………………...
Address: …………………………………………………………………………………………………….
1. Please fill in completely this Warranty Certificate. Send it with the invoice and the unit,
postage pre-paid and using the original packing box, to your distributor. Make sure to include
the appropriate return postage for the package.
2. Please enclose a short description of the damage, fault or malfunction, and the circum-
stances under which these problems arose.
The Clean Air Optima® Dehumidifier CA-705 Smart / CA-706 Smart is subjected to strict
testing procedures before leaving the factory. If within two years from the date of purchase
the product does not perform according to the specifications, because of factory defects, the
purchaser is entitled to free repairs or replacement of parts upon presentation of this warranty
(provided that the malfunction or damage to the device and/or parts occurred under normal
operating conditions). What is covered: All parts defective in material and workmanship. For
how long: two years from purchase date. What we will do: Repair or replace any defective parts.
Other Conditions
The provisions of this warranty are in lieu of any other written warranty whether express or
implied, written or oral, including any warranty of merchantability or fitness for a particular
purpose. The manufacturer’s maximum liability shall not exceed the actual purchase price paid
by you for the product. In no event shall the manufacturer be liable for special, incidental,
consequential, or indirect damages. This warranty does not cover a defect that has resulted
from improper or unreasonable use or maintenance, faulty assembly, accident, natural ca-
tastrophes,
improper packing, or unauthorized tampering, alteration, or modification as determined solely
by us. This warranty is void if the label bearing the serial number has been removed or defaced.

17
Thank you
for reading!
Share your feedback about the Clean Air Optima®
Dehumidifier CA-705 Smart / CA-706 Smart on:
www.cleanairoptima.com
For frequently asked questions about the CA-705 Smart / CA-706 Smart
go to: www.cleanairoptima.com and search for the CA-705 Smart /
CA-706 Smart
Download PDF instruction manual on:
www.cleanairoptima.com/info/manuals
Watch all Clean Air Optima® Product
animation video’s on:
www.youtube.com
Clean Air Optima International B.V. | David Ricardostraat 9-7 / 9-9 | 7559 SH Hengelo (ov)
The Netherlands | Phone: +31 (0) 74 - 2670145
Clean Air Optima Germany GmbH | Enschedestraße 14 | 48529 Nordhorn | Germany
Phone: [phone]
E-mail: inf[email protected] Internet: www.cleanairoptima.com

18
CA-705 Smart/CA-706 Smart
Hauptgerät

19
Deutsch
Vielen Dank, dass Sie sich für den Clean Air Optima® 2 in 1 entschieden haben:
Luftentfeuchter und Luftreiniger CA-705 Smart/CA-706 Smart.
Wir wünschen Ihnen viele Jahre gesunde Raumluft mit diesem ezienten und eektiven
Produkt. Treen Sie für die ordnungsgemäße Funktion dieses elektrischen Geräts unbedingt
alle Sicherheitsvorkehrungen, wenn Sie das Gerät verwenden. Diese Anleitung beschreibt
die Sicherheitsvorkehrungen, die im Betrieb zu beachten sind. Sie sind dafür vorgesehen,
Verletzungen vorzubeugen und Beschädigungen am Gerät zu vermeiden.
Beschreibung
Dieses Clean Air Optima® Gerät besteht aus den folgenden Hauptkomponenten:
1. Bedienfeld
2. Das digitale Display zeigt die relative Luftfeuchtigkeit in %, WiFi- und
Funktionseinstellungen an
3. Der Farb-LED-Monitor zeigt die relative Luftfeuchtigkeit in Blau (unter 53 %),
Grün(zwischen 53 % - 68 %) und Rot (über 68 %) an
4. Lufteinlass- und Filterrahmenfach, einschließlich: Vorfilter, Aktivkohlefilter,
True HEPA H13-Filter
5. Position der UV-C-Lampe
6. Luftauslass und Ionisatorposition
7. Gri
8. Kontinuierliche Entwässerung (Wasserablauf, Schlauchanschluss) Abflussschlauch
1,5Meter im Lieferumfang enthalten
9. Wassertank
10. Laufrollen

20
Sicherheitshinweise
Dieses Gerät darf nur in Übereinstimmung mit diesen Sicherheitshinweisen verwendet werden.
Führen Sie die folgenden Schritte aus, um das Verletzungsrisiko für Personen (z.B.durch
Stromschläge oder Feuer) zu minimieren.
1. Lassen Sie das Gerät vor dem Gebrauch mindestens zwei Stunden stehen, vor allem nach
dem Transport.
2. Nur für Innenräume geeignet. Nicht im Freien verwenden oder lagern.
3. Die richtige Spannung verwenden: AC 220V – 240V, 50/60Hz.
4. Lassen Sie um den Lufteinlass und den Luftauslass des Geräts einen Freiraum
vonmindestens 20 cm.
5. Das Gerät ist nicht für die Verwendung durch Kinder oder Personen mit eingeschränkten
körperlichen, sensorischen oder geistigen Fähigkeiten bestimmt, es sei denn, diese Personen
werden von einer für ihre Sicherheit verantwortlichen Person beaufsichtigt.
6. Verwenden Sie das Gerät nicht, wenn sichtbare Schäden am Netzkabel oder am Gerät selbst
vorhanden sind. Reparieren Sie das Gerät nicht selbst, wenn es beschädigt ist. Ziehen Sie
das Gerät niemals an seinem Kabel. Wenn das Netzkabel beschädigt ist, muss es von einer
autorisierten Person ausgetauscht werden, um einen Stromschlag oder Brand zu vermeiden.
7. Reparaturen dürfen nur von befugtem Servicepersonal durchgeführt werden. ZurVermeidung
von Stromschlägen und Bränden sollten Sie nicht versuchen, das Gerät selbst zu reparieren.
8. Das Netzkabel nicht mit nassen Händen berühren.
9. Immer das Gerät ausschalten, bevor Sie den Netzstecker abziehen.
10. Versuchen Sie niemals, das Gerät durch Ziehen des Steckers auszuschalten.
11. Den Netzstecker aus der Steckdose ziehen, wenn Sie das Gerät nicht benutzen oder wenn Sie
innere oder äußere Teile des Geräts reinigen.
12. Zur Sicherheit das Gerät in eine stabile, horizontale Position stellen. Während des Gebrauchs
nicht bewegen.
13. Kältemittel: R290. Dieses Kältemittel entspricht den europäischen Umweltvorschriften.
KeinTeil des Kühlkreislaufs darf perforiert sein.
14. Verwenden Sie das Gerät nicht in Räumen, in denen brennbare Flüssigkeiten oder Gase
gelagert werden, in der Nähe von Wärmequellen oder in besonders feuchten Räumen
(wieim Badezimmer).
15. Nie andere Gegenstände in das Gehäuse einführen, um Ausfällen vorzubeugen.
16. Nie den Lufteinlass und das Luftauslassgitter abdecken.
17. Nie die inneren Teile des Geräts zerlegen oder ersetzen.
18. Verwenden und lagern Sie das Gerät nicht unter 0°C oder über 40°C.
19. Neigen Sie das Gerät nicht zur Seite, wenn der Wassertank voll ist.
20. Keine schweren Gegenstände auf das Gerät stellen.
21. Bitte Orte mit direktem Sonnenlicht vermeiden. Es besteht die Gefahr, dass das
Gerätausbleicht.
22. Das Gerät niemals in Wasser oder andere Flüssigkeiten eintauchen.
23. Den Wassertank regelmäßig entleeren. Unter extremen Bedingungen kann der Wassertank
bereits nach wenigen Stunden voll sein.
24. Der Vorfilter sollte regelmäßig gereinigt werden, da ein mit Staub gesättigter Vorfilter zu einer
schlechten Reinigungs- und Entfeuchtungswirkung führt. Die Leistungsaufnahme steigt,
eskann zu Ausfällen führen.
25. Tauschen Sie den Aktivkohlefilter und den True HEPA H13-Filter alle 3 bis 6 Monate aus. Wenn
der Aktivkohlefilter und der True HEPA H13-Filter voll sind, wird die Reinigungs- und Entfeuch-
tungswirkung beeinträchtigt. Die Leistungsaufnahme steigt, es kann zu Ausfällen führen.
26. Verwenden, warten und reinigen Sie das Gerät wie in dieser Anleitung beschrieben.
