7500-REV4 Nitrate Filter Installation Guide
Thank you for purchasing a Clean Water System!
Please review this start‐up guide entirely before beginning
to install your system, and follow the steps outlined for
best results.
Minimum pressure of 30 PSI recommended.
Maximum pressure recommended 80 PSI.
For indoor installation only.
Protect from sunlight, rain, and freezing.
Nitrate levels can change in well water. It is
important to check for nitrate levels before and after
you system on a regular basis.
We recommend you have a home nitrate test kit and
then have the water tested at a lab annually.
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us: [e-mail]
See more information on our website: www.cleanwaterstore.com/resources
Clean Water Made Easy
www.cleanwaterstore.com

Table of Contents
Packing Lists................................................................................................................................................ 3
Pre‐Installation ........................................................................................................................................... 4
Best Practices for Piping & Drain Installation:............................................................................................. 4
How the Bypass Valve Works...................................................................................................................... 5
Installation of Your System in Copper or Metal Piping Systems: ................................................................ 5
How Your Nitrate Filter Works:................................................................................................................... 6
Diagram of Typical Installation Well Water ................................................................................................ 6
Filter Tank Assembly and Installation Instructions:..................................................................................... 7
Programming Your Valve and Setting Time and Days for Backwash........................................................... 8
Set Time of Day........................................................................................................................................... 9
Set Date ...................................................................................................................................................... 9
Determine Nitrate in Grains per Gallon and Set Capacity......................................................................... 10
Start the First Backwash ........................................................................................................................... 11
Advanced Programming Mode ................................................................................................................. 11
7500‐Rev4 Water Filters Limited Warranty .............................................................................................. 13

7500-Rev4 Nitrate Filter Installation & Startup Guide
3www.cleanwaterstore.com rev112621
Packing Lists
All systems include:
7500‐REV4 control valve, small tube of silicone grease, bypass valve, 1” pipe connectors, power
supply, funnel for adding nitrate media, top screen, start‐up guide, and items included in one of
the following options:
Find Your Size System to See What is Included:
What to Do if Your Tank is Not Level Out of the Box:
Your black filter tank base is not glued to the bottom of your tank. Occasionally tank bases will become
crooked during shipment. If you find that that your tank does not sit level on the floor, you can easily
adjust it by holding the empty tank and knocking it on a concrete or solid floor once or twice to level it.
Nitrate Filter 1.0 cubic foot size
9” x 48” filter tank with distributor tube
12 lbs. filter gravel
1 cubic foot of Nitrate Resin
Nitrate Filter 1.5 cubic foot size
10” x 54” filter tank with distributor tube
16 lbs. Filter gravel
1.5 cubic foot of Nitrate Resin
Nitrate Filter 2.0 cubic foot size
12” x 52” filter tank with distributor tube
20 lbs. filter gravel
2.0 cubic foot of Nitrate Resin
Nitrate Filter 2.5 cubic foot size
13” x 54” filter tank with distributor tube
35 lbs. filter gravel
2.5 cubic foot of Nitrate Resin
Nitrate Filter 3.0 cubic foot size
14” x 65” filter tank with distributor tube
40 lbs. filter gravel
3.0 cubic foot of Nitrate Resin

7500-Rev4 Nitrate Filter Installation & Startup Guide
4www.cleanwaterstore.com rev112621
Pre-Installation
1. Review your packing list and make sure you have received all the parts before installation.
2. If you are going to be turning off the water to the house and you have an electric water heater,
shut off the power to the water heater before beginning installation in case water heater is
accidentally drained.
3. Pick a suitable location for your filter system on a dry level spot where it won’t be exposed to
freezing temperatures. A minimum of 20 PSI is required. Maximum pressure is 90 PSI.
4. Get all of your plumbing parts together before beginning installation, and make sure you have
received all of your packages before beginning or scheduling an installation. Installation typically
takes 3 to 5 hours. However, after installation the Nitrate Filter must be allowed to run through a
complete regeneration (backwash and rinse cycle) which can 2 hours to the time.
5. After the system is installed and running, your water may be discolored particularly if you have
older or corroded piping. This typically clears up over a day or two.
Best Practices for Piping & Drain Installation:
1. Make sure to connect the Inlet from your water source and outlet, following arrows on control
valve. Connect the External Flow Control fitting onto the Drain line.
2. Make sure there is a working gate or ball valve before the system and also one after as well as a
bypass valve.

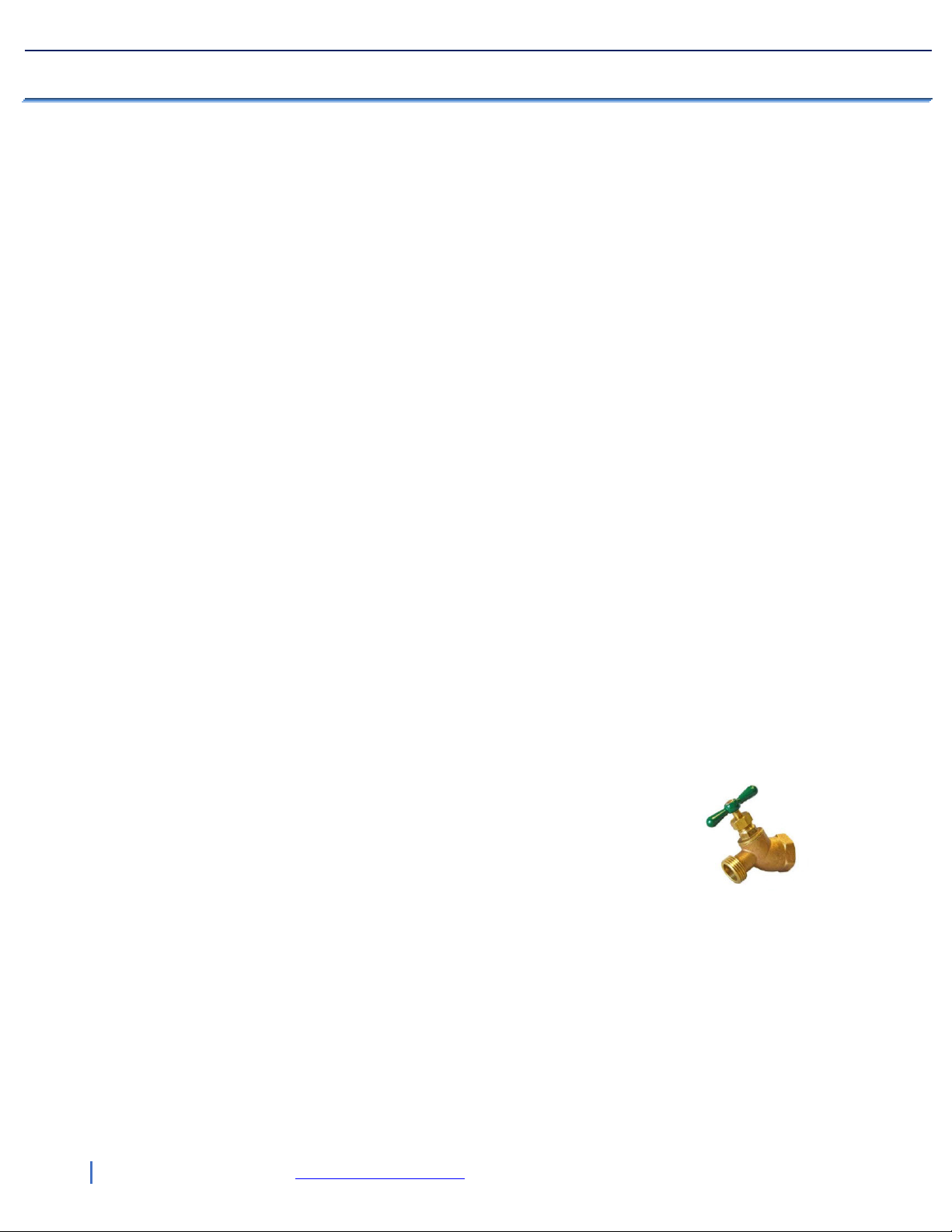

3. A hose bib (which is a faucet to which you can attach a garden hose) is strongly recommended
after the Nitrate Filter and before the second ball valve. This makes it easy to
rinse your new Nitrate Filter on start‐up and gives you a place to test the
water.
4. If you will be using copper piping, do not sweat the copper pipe directly on to
the 7500‐REV4 control valve.
5. To connect drain line to drain, use an air‐gap connection, so that if your sewer or septic tank
backs up, it cannot cross connect with the drain tubing.
6. The pipe connectors are 1’ male pipe thread but you can add a reducer to reduce to ¾” pipe
with common pipe fittings if needed.
7. Make sure bypass valves are closed (system is in bypass) when you first start installing and keep on
bypass until you are ready to start it up with the first backwash.

7500-Rev4 Nitrate Filter Installation & Startup Guide
5www.cleanwaterstore.com rev112621
How the Bypass Valve Works
Turn knob so the valve is bypassed
when installing.
When you go to start up system
turn the bypass SLOWLY to let
water in and put in service.
Installation of Your System in Copper or Metal Piping Systems:
If your new filter system is to be installed in a metal (conductive) plumbing system, i.e., copper, or
galvanized steel pipe, the plastic components of the system will interrupt the electrical continuity of the
plumbing system.
As a result, any stray currents from improperly grounded appliances downstream or potential galvanic
activity in the plumbing system can no longer ground through the contiguous metal plumbing.
Some homes may have been built in accordance with building codes, which encouraged the grounding
of electrical appliances through the plumbing system.
Consequently, the installation of a bypass consisting of the same material as the existing plumbing, or a
grounded "jumper wire" bridging the equipment and reestablishing the contiguous conductive nature of
the plumbing system must be installed prior to your systems use.
This is simple and easy step to take if you are installing your water treatment system into copper piping.
A simple ground jumper wire with a pipe clamp can be purchased at any Home Center, or hardware
store etc. for a few dollars.

7500-Rev4 Nitrate Filter Installation & Startup Guide
6www.cleanwaterstore.com rev112621
How Your Nitrate Filter Works:
In the Nitrate filter, water enters the top of the tank
and flows down through the media and up the
distributor tube. Nitrates are attracted to the resin
beads.
During backwash, the water flow is reversed and
water flows down the distributor tube and up
through the media, expanding the Nitrate media,
and removing sediment.
After the backwash stage, salt brine is automatically
drawn in from the brine tank which then slowly
rinses through the Nitrate resin for 1 hour, allowing
the Nitrates to be swapped out with harmless
chloride ions.
This entire automatic process, called ‘regeneration’ takes about 90 minutes.
The 7500‐Rev4 Control Valve tracks the amount of water that is used and will backwash based
on gallons OR every 7 days, whichever comes first.
Diagram of Typical Installation Well Water
(Optional water softener shown for hard water)

7500-Rev4 Nitrate Filter Installation & Startup Guide
7www.cleanwaterstore.com rev112621

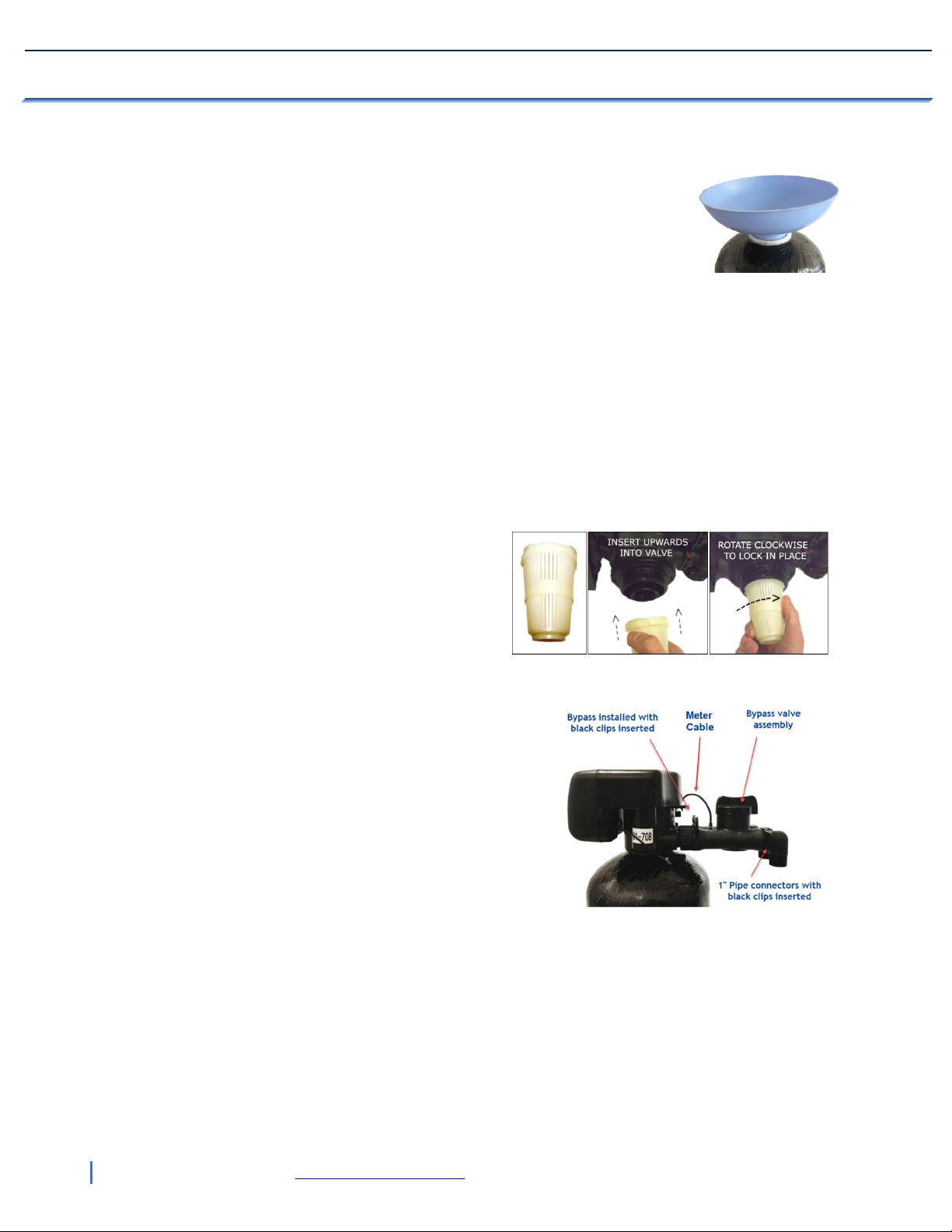

Filter Tank Assembly and Installation Instructions:
1. Wrap the top of distributor tube with electrical or duct tape so that no gravel
or Nitrate media will go down the distributor tube when adding the media.
2. Add the filter gravel that came with your order. You want the gravel to cover
the bottom distributor screen before adding the Nitrate media.
3. Next add Nitrate media. The tank should be about 2/3rds full of media, do not fill more than
2/3rds, even if there is some media left over.
4. Remove cap or tape from top of distributor tube. Be careful not to pull up distributor tube when
removing cap or tape.
5. A 1 cup of Clorox or other chlorine bleach and fill tank completely with water. This will allow the
Nitrate Backwash Filter media to settle and reduce the need of purging the air out of the tank later.
Allow nitrate to soak for at least 1 hour but 24 hours or more is OK.
6. Add a small amount of silicone grease to the
inner O‐ring, where the distribution tube goes.
7. Next, install the top screen by inserting upwards
and rotating to lock in place. (This is a funnel‐
shaped plastic screen that locks into the bottom
side of control valve.
8. Lubricate the main tank O‐ring with silicone grease and
screw on the 7500‐Rev4 control valve carefully. Do not
use pipe‐joint compound, vegetable oil, Teflon tape, or
Vaseline or other grease.
9. Connect bypass assembly with 1” pipe connectors to
control valve install black clips and make sure valve is in
bypass position.
10. Insert meter cable into meter cable port on bypass.
11. Install inlet and outlet piping and hook up drain line tubing to drain.
12. If you are in earthquake zone, strap your backwash filter tank to wall with metal strapping.
13. Proceed to programming your 7500‐Rev4 control valve timer and backwash frequency.
14. IMPORTANT: you must program the time and then start a backwash and rinse. The filter system
must be backwashed and rinsed several times before using. See following pages for instructions.

7500-Rev4 Nitrate Filter Installation & Startup Guide
8www.cleanwaterstore.com rev112621
Programming Your Valve and Setting Time and Days for Backwash
How to Start a Manual Backwash: Press the Back / Regen button
Pressing “Back Regen” at any time results in an immediate manual regeneration.
Pressing and holding for 3 seconds, when system is locked, results in a delayed regeneration at the
preselected time.
Extended Power Outage Indicator
If power outage exceeds 3 days, the time‐of‐day indicator “_” will flash 12:12. The current time of day
needs to be re‐set. All other set parameters remain stored in memory. The valve will resume to operate
from the point of the power outage.
Lockout Function
Keypad will lock after 5 minutes without use. To access the parameter changes, press and hold “Up” and
“Down” buttons simultaneously for 3 seconds to unlock.

7500-Rev4 Nitrate Filter Installation & Startup Guide
9www.cleanwaterstore.com rev112621
Set Time of Day
1. If LOCK icon is lit, press, and hold both UP and DOWN
buttons for 3 seconds to unlock keypad.
2. Then press the MENU/CONFIRM button to enter the
main menu.
3. Press DOWN button to select “Set Time of Day”
4. Press the MENU/CONFIRM button again to change time of day (Hour will flash)
5. Adjust hour by using DOWN or UP buttons.
6. Press the MENU/CONFIRM button again to change minutes (Minutes will flash)
7. Adjust minutes by using DOWN or UP buttons.
8. Press Back/Regen
Set Date
1. If LOCK icon is lit, press, and hold both UP and DOWN buttons for 3 seconds to unlock keypad.
2. Then press the MENU/CONFIRM button to enter the main menu.
3. Press DOWN button to select “Set Date”
4. Month: Press the MENU/CONFIRM button again to change time of day (Month will flash) and
adjust to current Month date by using DOWN or UP buttons.
5. Day: Press the MENU/CONFIRM button again to change Day date (Day date will flash) and
adjust to current day date by using DOWN or UP buttons.
6. Year: Press the MENU/CONFIRM button again to change Year date (Year date will flash) and
adjust to current Year by using DOWN or UP buttons.
7. Press BACK/REGEN button to save current date and go back to menu.
8. Continue to review and/or change the remaining settings (as follows)

7500-Rev4 Nitrate Filter Installation & Startup Guide
10 www.cleanwaterstore.com rev112621
Determine Nitrate in Grains per Gallon and Set Capacity
This refers to the number of gallons your 7500‐Rev4 is set to backwash.
If we know your water’s nitrate and sulfate levels, we will preset this for you.
Step 1: Note capacity of resin: 18,000 grains per cubic foot. For example, if you have a 2.0 cubic
system, it has the capacity to remove 36,000 grains equivalent of nitrate and sulfate. These nitrate
systems remove sulfate as well as nitrate.
The nitrate resin capacity is rated as ‘grains per gallon’ of calcium carbonate, so we need to convert the
sulfate parts per million to grains per gallon equivalent.
Step 2: Note the nitrate level in your well water as nitrogen: for example you have 44 PPM nitrate
Step 3: Note the sulfate level in your well water: for example you have 60 PPM sulfate
Step 4: Multiply the nitrate level by 0.81. Nitrate level = (Nitrate) ppm x 0.81 = ppm as CaC04
Step 5: Sulfate: Multiply the sulfate level x 1.04 (Sulfate) ppm x 1.04 = ppm as CaC04
Example
44 PPM x 0.81 = 36 grains
30 PPM x 1.04 = 31 grains
Step 6: Compute the Total grains = 67 grains per gallon
Total capacity of 2.0 Cubic Foot Nitrate system 36,000 grains divided by 67 grains = 537 gallons
Therefore set the Capacity to every 500 gallons.
Set Regen Time This is the time your system will backwash. Default is 2:00 AM
Set Backwash Time Length Set for 10 minutes. This is the first cycle.
Set B. S. R. Time “Brine Slow Rinse” time. Set for 60 minutes. This is where the potassium
permanganate solution is drawn in to the system.
Set Secondary Backwash Time Set for 8 minutes.
Set Fast Rinse Time Set for 8 minutes.
Set B. R. Time ”Brine Refill” – this is where the brine tank refills with water.
Pick your nitrate filter size and enter minutes.
B.R. Times
0.75 CF
4 MIN.
1.0 CF
5 MIN.
1.5 CF
6 MIN.
2.0 CF
7 MIN.
2.5 CF
8 MIN.

7500-Rev4 Nitrate Filter Installation & Startup Guide
11 www.cleanwaterstore.com rev112621
Maximum Days for Regen. Set to 4 Days. This refers to the days between each backwash. The
recommended initial setting for the Nitrate Filter is every 4 days for families or heavy use and every 7
days for 1 to 2 persons in the home.
Usage Logs: The following are diagnostic menus you can review later if you wish:
Daily Usage Log
Daily Peak Usage
Weekly Usage Log
Weekly Peak Usage
Start the First Backwash
1After programming, the system must be run through 2 or 3 backwash/rinse regeneration
cycles to clean the new filter media.
2Start with both bypass valves in the Bypass Position.
3Press the BACK/REGEN button once to enter the backwashing cycle.
4When the backwash icon is displayed, slowly open the bypass to a quarter position to make
the water flow into the tank and out the backwash drain line to drain.
5After several minutes open bypass valve completely.
6After the backwash, the system will automatically go into the fast rinse stage. The control
valve will return to service status (indicated by the up flowing meter on the left).
Congratulations, you are done setting up your system!
Advanced Programming Mode
The Advanced Programming Mode allows you to set the Regen Cycle and Regen Mode. Skip this for
most applications as your filter system has already been set to correct modes.
1. Plug the RevV4 in and immediately press in sequence MENU/CONFIRM, then press
BACK/REGEN button, then press the DOWN button to enter the Advanced Programming Mode.
2. Press UP or DOWN buttons or to select the menu item to be changed
3. Note: If valve locks while programming, unplug power supply and repeat step above.
Monthly Usage Log
Monthly Peak Usage
Review Regen. Times

7500-Rev4 Nitrate Filter Installation & Startup Guide
12 www.cleanwaterstore.com rev112621
4. Press MENU/CONFIRM to enter the main menu
5. Press the UP or DOWN buttons to highlight each option.
6. Press MENU/CONFIRM to enter highlighted option.
7. Press the UP or DOWN buttons to adjust the value.
8. Press the MENU/CONFIRM to accept the changes.
9. Press BACK/REGEN button to advance to service status
Screen View
Default Settings
Review Company Info
CWS 831‐462‐8500
Set Valve Model
62605
Set Language
English
Set Company Info
CWS 831‐462‐8500
Set Hour Mode
12 HR
Set Time of Day
Current time of day
Set Date
Current date
Set Program Type
Interlock
Set Regen Cycles
No. 1
Set Set Clear Data
Close
Set Regen Mode
A-01
Set Capacity
Gals
Set Regen Time
2:00 AM
Set Backwash Time
10 Minutes
Set B.S.R. Time
60 Minutes
Set Fast Rinse Time
8 Minutes
Set B.R. Time
Minutes
Max Days for Regeneration
7
Signal Output Mode
b‐01
Set Service Alarm
Disabled
Review Regen Times
NA
Review Software Version
Ver. 5.0

7500-Rev4 Nitrate Filter Installation & Startup Guide
13 www.cleanwaterstore.com rev112621
7500-Rev4 Water Filters Limited Warranty
We warrant this water filter when installed according to factory recommendations, to be free from defects in materials
and workmanship as follows:
‐‐‐‐‐‐‐‐‐‐Limited Warranty‐‐‐‐‐‐‐‐‐‐
This water conditioner unit is comprised of the finest industry components available. Each individual component used in the
assembly of our equipment is covered by the original equipment manufacturer’s warranty. All components, except those
specifically listed below, are warranted for a period of one (1) year from date of installation to the original purchaser to be free
of defects in materials and workmanship subject to the manufacturer’s conditions and/or the conditions shown below.
‐‐‐‐‐‐‐‐‐‐Mineral Tanks‐‐‐‐‐‐‐‐‐‐
The fiberglass, polyglass or composite mineral tanks used in the assembly of this unit are warranted to be free of defects in
materials and workmanship for a period of ten (10) years on 6” – 13” size tanks, and five (5) years on 14” and larger size tanks
used for softener/filtration applications, subject to the manufacture’s conditions and/or the conditions shown below.
Warranty does not cover exposure to weather, freezing, fractures caused by external impact, or exposure to vacuum.
‐‐‐‐‐‐‐‐‐‐Control Valves‐‐‐‐‐‐‐‐‐‐
The CWS control valve is warranted to be free of defects in materials and workmanship for a period or five (5) years.
‐‐‐‐‐‐‐‐‐‐Conditions‐‐‐‐‐‐‐‐‐‐
1. This warranty only covers water conditioners installed for residential use. Water conditioners installed for
commercial or industrial applications are guaranteed for one (1) year from the date of installation.
2. Installation must be made in accordance with legal or local codes and manufacturer’s recommendations.
3. Failure must not result from exposure to weather, rodents, misuse, alteration, fire, lightning, power surges or neglect.
4. Water pressure must not exceed 100 PSI and water temperature must not exceed 100 degrees.
5. Subject to the above terms and conditions we will replace and/or repair, at our option, any parts of the water
conditioner found defective in materials and workmanship. Defective parts must be returned, freight pre‐paid
for repair or replacement.
6. This warranty does not cover labor, shipping charges, damages caused by delays of consequential damages or
other causes beyond our control. Warranty does not cover pipes, fixtures or appliances. Warranty extends to
the actual water conditioner components only.
7. This warranty is to the original purchaser and is not transferable to any subsequent owner(s).
8. No other guarantees or warranty, expressed or implied, is applicable to our product. No repair or replacement
made under the terms of the warranty shall extend this warranty.
9. Any product returned to Clean Water Store without a valid return authorization number will be
rejected. Any product found to be defective will, at the sole discretion of Clean Water Store be
repaired or replaced. Clean Water Store is not responsible for shipping cost to the repair facility.
