Clean Water Systems Greensand 7500 Installation manual





CleanWaterMadeEasy
www.cleanwaterstore.com


7500GreensandFilterInstallation&Start‐Up
Guide
ThankyouforpurchasingaCleanWaterSystem!Withproperinstallationandalittleroutinemaintenance
yoursystemwillbeprovidingironfreewaterformanyyears.
Pleasereviewthisstart‐upguideentirelybeforebeginningtoinstallyoursystem,andfollowthesteps
outlinedforbestresults.


GREENSANDMEDIACONTAINSDUST.
USEPAPERMASKANDVENTILATETOAVOIDBREATHINGDUST.









Questions?
Callustoll‐free:1‐888‐600‐5426or1‐831‐462‐8500
Emailus:[email protected]
Seemoreinformationonourwebsite:www.cleanwaterstore.com/resources

7500Pro‐OxFilterInstallation&StartupGuide
Page2www.cleanwaterstore.comRev060116




Contents
PackingList....................................................................................................................................................3
GreensandFilter0.75cubicfootsize.......................................................................................................3
GreensandFilter1.0cubicfootsize..........................................................................................................3
GreensandFilter1.5cubicfootsize.........................................................................................................3
GreensandFilter2.0cubicfootsize.........................................................................................................3
GreensandFilter2.5cubicfootsize.........................................................................................................4
Pre‐Installation..............................................................................................................................................4
BestPracticesforPiping&DrainInstallation...............................................................................................4
InstallationofYourSystemIntoCopperorMetalPipingSystems...........................................................5
HowYourGreensandFilterWorks...........................................................................................................5
AssemblyandInstallationInstructions.....................................................................................................6
2.BasicSetting&Usage............................................................................................................................7
Programmingthe7500Valve:..................................................................................................................9
TypicalBypassassembly:........................................................................................................................11
InitialBackwash:.....................................................................................................................................12
HowToRemoveMediaFromControlHead...........................................................................................12


7500Pro‐OxFilterInstallation&StartupGuide
Page3www.cleanwaterstore.comRev060116



PackingList
GreensandFilter0.75cubicfootsize
7500BackwashControlValve
5GPMExternalDrainlineFlowControlFitting
8”x44”filtertankwithdistributortube
BluemediafunnelforaddingtheGreensandmedia
8lbs.Filtergravel
0.75cubicfootofGreensandmedia

GreensandFilter1.0cubicfootsize
7500BackwashControlValve
7GPMExternalDrainlineFlowControlFitting
9”x48”filtertankwithdistributortube
BluemediafunnelforaddingtheGreensandmedia
12lbs.Filtergravel
1cubicfootofCarbonmedia
GreensandFilter1.5cubicfootsize
7500BackwashControlValve
10GPMExternalDrainlineFlowControlFitting
10”x54”filtertankwithdistributortube
BluemediafunnelforaddingtheGreensandmedia
16lbs.Filtergravel
1.5cubicfootofGreensandmedia
GreensandFilter2.0cubicfootsize
7500BackwashControl
12GPMExternalDrainlineFlowControlFitting
12”x52”filtertankwithdistributortube
BluemediafunnelforaddingtheGreensandmedia
20lbs.Filtergraveland2.0cubicfootofGreensandmedia

7500Pro‐OxFilterInstallation&StartupGuide
Page4www.cleanwaterstore.comRev060116
GreensandFilter2.5cubicfootsize
7500BackwashControl
15GPMExternalDrainlineFlowControlFitting
12”x52”filtertankwithdistributortube
BluemediafunnelforaddingtheGreensandmedia
20lbs.Filtergraveland2.0cubicfootofGreensandmedia

GreensandFilter3.0cubicfootsize
7500BackwashControl
20GPMExternalDrainlineFlowControlFitting
12”x52”filtertankwithdistributortube
BluemediafunnelforaddingtheGreensandmedia
20lbs.Filtergraveland2.0cubicfootofGreensandmedia

Pre‐Installation
1. Reviewyourpackinglistandmakesureyouhavereceivedallthepartsbeforebeginning
installation.
2. Ifyouaregoingtobeturningoffthewatertothehouseandyouhaveanelectricwaterheater,
shutoffthepowertothewaterheaterbeforebeginninginstallationincasewaterheateris
accidentallydrained.
3. Pickasuitablelocationforyourfiltersystemonadrylevelspotwhereitwon’tbeexposedto
freezingtemperatures.Aminimumof20PSIisrequired.Maximumpressureis90PSI.
4. Getallofyourplumbingpartstogetherbeforebeginninginstallation,andmakesureyouhave
receivedallofyourpackagesbeforebeginningorschedulinganinstallation.Installationtypically
takes3to5hours.However,afterinstallationtheGreensandFiltermustbeallowedtorun
throughacompletebackwashandrinsecycle.
5. Afterthesystemisinstalledandrunning,yourwatermaybediscolored,orfullofsedimentor
rust,particularlyifthisisolderorcorrodedpiping.Thistypicallyclearsupoveradayortwo.
BestPracticesforPiping&DrainInstallation
1. Seetypicalinstallationonpage7(Fig2).TheGreensandfilterisinstalledafterthepressure
tank.
2. MakesuretoconnecttheInletfromyourwatersource.MakesuretoconnecttheOutletto
wherethewaterisbeingusedandbesureandinstalltheExternalFlowControlfittingontothe

7500Pro‐OxFilterInstallation&StartupGuide
Page5www.cleanwaterstore.comRev060116
DrainPort.FromthemalepipethreadontheExternalFlowfitting,youcantransitiontoabarb
fittingandruntubingtowhereyouneedto.
3. Makesurethereisaworkinggateorballvalvebeforethe7500GreensandFilterandalsoone
afterasshowninFig2.Thepressuregaugesareoptional,buttheyareagreatwaytotellata
glanceifyourfilterneedstobebackwashed.Ahosebib(whichisafaucettowhichyoucan
attachagardenhose)isstronglyrecommendedaftertheGreensandFilterandbeforethe
secondballvalve.ThismakesiteasytorinseyournewGreensandFilteronstart‐upandgives
youaplacetotestthewaterbeforeitentersyourhouseholdplumbing.
4. Ifyouwillbeusingcopperpiping,donotsweatthecopperpipedirectlyontothe7500control
valve.Avoidheatingupthe7500controlvalveplasticwiththetorch.

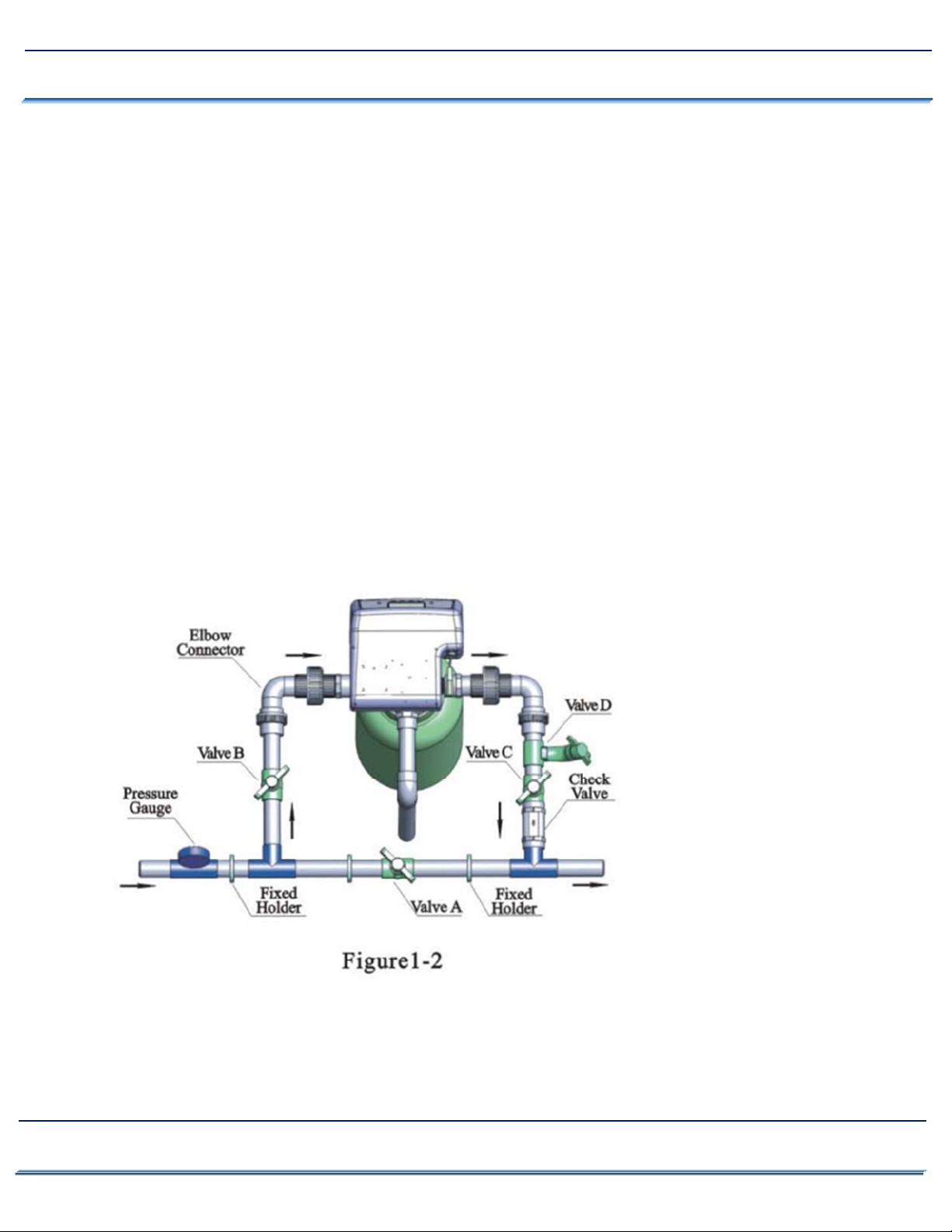

5. Youshouldinstallunionsandabypassaroundthevalve,sothatyoucanremoveitandstillhave
water.
6. Thedrainlinetubing(notsupplied)isconnectedtoadrainfromtheExternalFlowControlfitting
usingaFemaleXBarbedfittingandflexibletubing.Notethatthedraincanrunupabovethe
7500controlheadandintoadrain,itdoesnothavetodraindown,asthefilterbackwashes
underlinepressurefromyourwellpump.Mostplumbingcodesrequireanair‐gapconnection,
sothatifyoursewerorseptictankbacksup,itcannotcrossconnectwiththedraintubing.



HowYourGreensandFilterWorksSeeFig1ontheright.
InyourGreensandFilterthewaterentersthetopofthetank(red
arrows)andflowsdownthroughthemediaandupthedistributor
tube(bluearrows).ThedownflowtypeGreensandFilterremoves
ironandcanbebackwashed,whichcleansandre‐classifiesthe
media,preventingchanneling.Duringbackwashtheflowofwateris
reversedandwaterflowsdownthedistributortubeandupthrough
themedia,liftingandexpandingtheGreensandmedia.Duringthe
backwashthemediaiscleanedbytheactionofthewaterflowing
throughit.


Greensand
Media

7500Pro‐OxFilterInstallation&StartupGuide
Page6www.cleanwaterstore.comRev060116
AssemblyandInstallationInstructions
1. Wrapthetopofdistributortubewithblackelectricaltapeorbluepainter’smaskingtapesothat
nogravelorGreensandmediawillgodownthedistributortubewhenaddingthemedia.Also,
leavingafoldedtaboftapethatyouwillbeabletograbontotogentlypulloffthetapeafter
fillingthetank.Whenyouarereadytoscrewthevalveheadon,applysiliconelubricanttothe
outsideofthedistributiontube,andtheo‐ringonthecontrolvalvewherethetubegoesin.






2. Addthefiltergravelthatcamewithyourorder.Youwantthegraveltocoverthebottom
distributorscreenbeforeaddingtheGreensandmedia.
3. NextaddGreensandmedia.Thetankshouldbeabout2/3rdsfullofmedia,donotfillmorethan
2/3rds,evenifthereissomemedialeftover.
4. Removetapefromtopofdistributortube.Becarefulnottopullupdistributortubewhen
removingtape.
5. Add1cuphouseholdbleachtoinsidedistributortubeandfillGreensandFilterwithwater.This
willallowtheGreensandFiltermediatosettleandeliminatetheneedof“purging”theairoutof
thetanklater.Letchlorinewatersolutionsoakfor1–2hoursbeforebackwashingandrinsing.

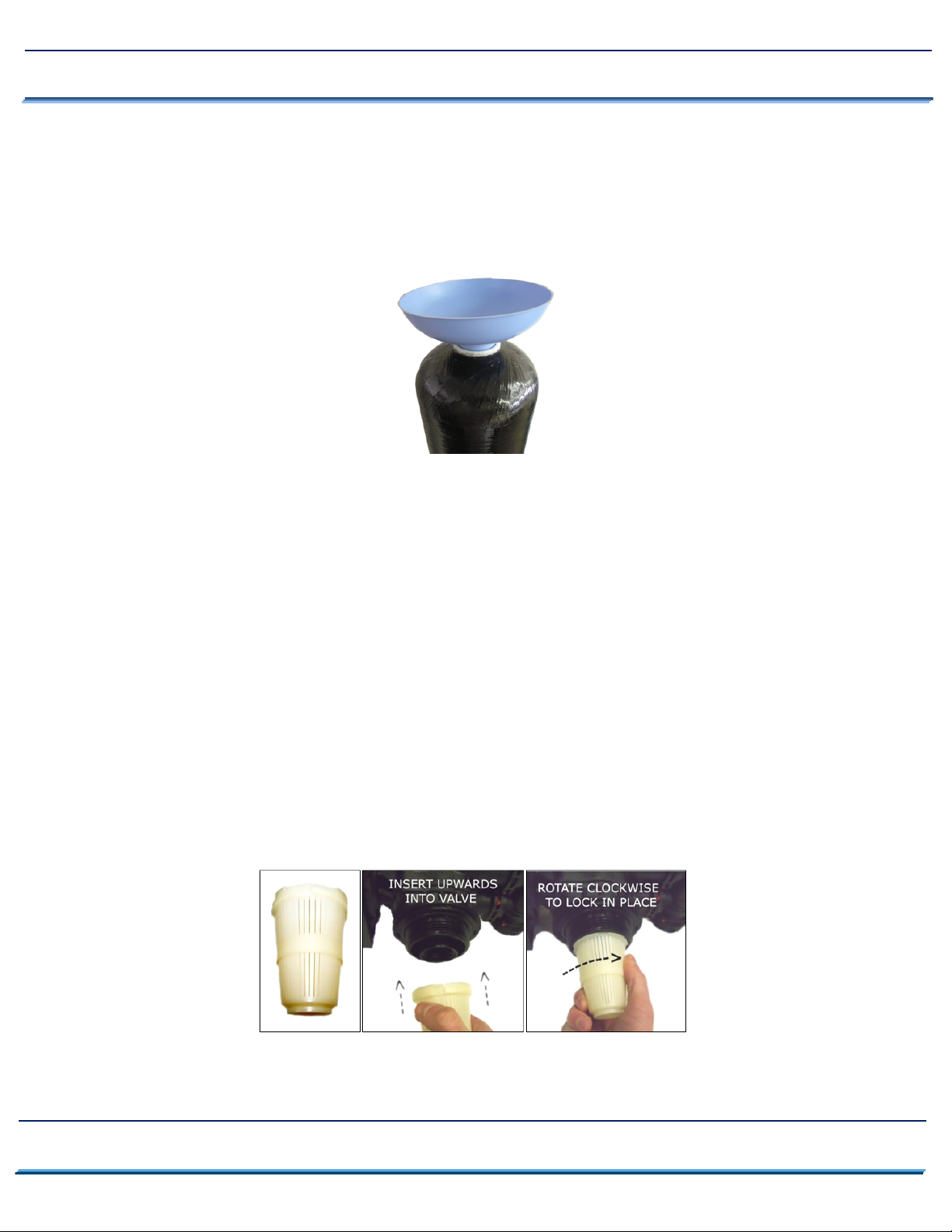

6. Attachplastictopscreentotheunder‐sideofthe7500controlvalve.Itisafunnel‐shaped
plasticscreenthatsnapsontothecontrolvalveandpreventsresinfrombeingbackwashedout
todrainduringtheregenerationcycles.Itmaytwistonclockwiseorcounter‐clockwise.




7. Screwon7500controlvalvecarefully.Donotusepipe‐jointcompound,vegetableoil,Teflon
tape,orVaselineorotherpetroleumgreasestolubricatetankthreads.

7500Pro‐OxFilterInstallation&StartupGuide
Page7www.cleanwaterstore.comRev060116

2.BasicSetting&Usage:




DigitalDisplayIconsandthefourServiceButtons:InadditiontotheDynamicDisplayStripe
(explainedimmediatelybelowthis)therearesixdigitaliconsonthedisplaythatwillindicate
“wherethevalveis”.Theyareasfollows:

GreenKeyIcon:Indicatesthatthebuttonsarelocked;pressandholdbothscrollbuttonsto
unlock.
BlueClock‐faceIcon:IndicatesthatthereddigitaldisplayisshowingtheCurrentClockTime.
BlueHourglassIcon:Indicateshowmanydaysremaininguntilthenextbackwash.
GreenWrenchIcon:Thisindicatesthatyouareintheprogrammingmenuandcanchangethe
values.
RedBackwashIcon:threearrowspointingup,underneatharectanglewithdots.This
indicatesthatyouareprogrammingtheBackwashstep,orthatthefilterisinbackwash.
RedRapidRinseIcon:threearrowspointingdown,ontopofarectanglewithdots.This
indicatesthatyouareprogrammingtheRapidRinsestep,orthatthefilterisinRapidRinse.

DynamicDisplayStripe:Ontheleftsideofthedigitaldisplay,therearesevengreenbarsthat
lightupandrepeata“goingup”pattern.WhenthevalveisinServiceMode,youwillseethat
bardisplayflashing.ThegreenKeyIconindicatesthatthebuttonsare“locked”.Tounlockthe
buttons,pressandholdbothscrollarrows.Whilelocked,themenualsochanges,scrolling

7500Pro‐OxFilterInstallation&StartupGuide
Page8www.cleanwaterstore.comRev060116
betweenthecurrantclocktime(blueClockIconwillbelit),thenumberofdaysuntilthenext
backwash(theblueHourglassIconwillbelit)andtheBackwashStartTime(onlythegreenkey
islit).

SampleDisplaysShowingServiceModeandBackwashandFast(orRapid)RinseModes:




FourServiceButtons:Lefttoright,Menu/Confirm,Manual/Return,ScrollDown,ScrollUp.

UpandDownArrows:WhentheGreenKeyIconislit,pressandholdbothbuttonstounlock.
WhentheDynamicDisplayStipeisblinking,pushingtheup/downbuttonshasnoeffect.
WhentheGreenWrenchiconislit,pressingeitherup/downarrowwillscrollthroughthemenu
options.ThereareatotalofsevenMenuitems(explainedlater).

Menu/ConfirmButton(thebuttononthefarleft,anemptysquarewithanarrowpointing
left):Thisisthebuttonyoupress(afteryouhaveunlockedthescreen)thatputsyouinthe
ServiceMenu,soyoucanprogramthevalve.Thefirsttimeyoupressit,theDynamicDisplay
StripegoesawayandtheGreenWrenchiconappears.WhicheveroftheIconsislitatthistime,
pressingtheMenu/ConfirmbuttonagainwillnowcausethatIcon’svaluetoflash,onthered
digitaldisplay.

Manual/ReturnButton:Secondfromleft,buttoniconisa“pointingindexfinger”withaleft‐
pointingarrowunderneath.
PressingthisbuttoninServiceMode(DynamicDisplayStripeisrunning)willIMMEDIATELY
startabackwashcycle.PressingthisbuttonwheninProgramModewillreturnyoutothe
ServiceMode.

A.Timeofdayindicator

•WhentheblueClockIconislit,thedigitaldisplayisshowingthecurrenttime.Thattimeis
displayedin24‐hourformat,i.e.13:00is1:00pm.

7500Pro‐OxFilterInstallation&StartupGuide
Page9www.cleanwaterstore.comRev060116

B.Buttonlockindicator

•WhenthegreenKeyIconislit,thebuttonsarelocked.PressandholdboththeUpandDown
arrowstounlock.Buttonswilllock60secondsafterthelasttimeabuttonispressed.

C.Programmodeindicator(shownondrawingasEnquiry/Setting)isthegreenWrenchIcon.
ToactivatethisIconfromServiceMode,pressandreleasetheMenu/Confirmbutton(button
onfarleft,withasquareandanarrowpointingleft)andthegreenWrenchIconwillbelit.

•WiththegreenWrenchiconlit,youcanpresseitherthescrollUporscrollDownbuttonsto
navigatetoeachmenuitem.Youwilldothisinorderto:

Set/confirmthatthevalveisprogrammedforNon‐externalinputmode.
SetCurrentClockTime
Setthetimewhenyouwantthefiltertobackwash
Setthenumberofcompletebackwashcyclesitwilldoatthattime
Sethowmanydaysbetweenbackwashes
SetthenumberofminutesfortheBackwashCycle
SetthenumberofminutesfortheRapidRinseCycle.

•WhenthegreenWrenchIconisflashing,whateverparameterthatisselected(setclocktime,
setcyclestep,etc.)cannowbeadjustedbyusingtheScrollbuttons.


Forexample,Whenyoupressitthefirsttime,theDynamicserviceStripegoesaway,theGreen
WrenchIconislit,andtheothericonthatislitistheBlueClockIcon‐thatmeansthatwhatever
digitsareonthereddisplay,theyarestatingtheclocktime(in24hourmode).Whenyoupress
themenu/Confirmbuttonagain,theHourswillflash,andnowyoucanchangethehourby
pressingthescrollarrows.Whenyouareatthecorrecthour,presstheMenu/Confirmbutton,
andtheMinuteswillflash.AfteradjustingtheminuteswiththeScrollarrow,pressingthe
Menu/Confirmonemoretimedisplaysyourcurrentlysetclocktime,andthedigitsarenot
flashing.

Programmingthe7500Valve:

Therearesevenmenuitemsthatwewillsetandconfirm,toprogramyourGreensandfilter.

Plugthevalvein,andwaitfortheServiceScreentocomeon,theDynamicDisplayStripis
blinking.

IfthegreenKeyIconislit,pressandholdbothScrollButtons.Thevalvewillbeepandthekey
Iconwilldisappear.

7500Pro‐OxFilterInstallation&StartupGuide
Page10www.cleanwaterstore.comRev060116
PresstheMenu/Confirmbutton(farleft)andtheGreenWrenchIconwillcomeon.

YoucannowuseeitherthescrollUporDownbuttonstostopateachofthe7menuitemsyou
willneedtoprogram.Theyarelistedbelowintheordertheyappearifyouusethescrolldown
arrowand,whenyouentertheprogramming,itwillbeatwhicheverMenuoptionthatwaslast
displayedwhentheprogrammingmodewasexited.Thefactorydefaultscreeniswherethislist
starts:

1. b‐01.Thissettingmustbeatb–01.Ifitsaysb–02,presstheMenu/Confirm
button,the02willstartflashing.Presseitherscrollkeyanditwilldisplayb–01,press
theMenu/Confirmbuttonagain,anditwillsayb–01andnotbeflashing.Pressthe
ScrollDownbuttontocontinue.

2. BlueClockFaceIconisdisplayed.Tochangetheclocktime,pressthemenu/Confirm
button;thehourswillflash.Adjustthehourswiththescrollarrows.Clocktimeis24‐
Hour(orMilitaryTime),so1pmis13:00,twopmis14:00,etc.…Whenyouareatthe
correcthour,presstheMenu/Confirmbuttonandtheminuteswillflash,setthe
minutesusingthescrollup/downbuttons,andpresstheMenu/Confirmbuttonwhen
done.Thetimeyousetwillnowbedisplayed,andnotflashing.PresstheScrollDown
buttontocontinue.

3. Thisisthescreenwhereyousetwhattimeofdaythebackwashwillstart.02:00(2am)
isthedefaulttime.Thebackwashcycleshouldbestartedwhilenooneisusingwater,
andwhilenootherfiltersyoumayalsohavearebackwashing.Youwilladjusttheclock
timeforthisasyoudidfortheCurrenttimeclockabove.Note:Thisistheone
parameterthatdoesnothaveanIconthatidentifiesit.WhentheServiceScreenis
automaticallyscrolling,oryouareprogramming,theCurrentClocktimeshowstheBlue
ClockfaceIcon.TheBackwashStartTime(alsocalledtheregenerationtime)doesnot
haveanicon.

4. F‐00Thismenuitemsetsthenumberofcompletebackwashcyclesthevalvewilldo,
whenitreachesthetimetodoabackwashcycle.ThedefaultisF–00,whichisdoing
onecycle.IfyousetitatF–01,thenitwilldotwobackwashcycles.Your7500
Greensandfilteronlyneedstobackwashonetimeeachtime,soleavethisatF–00.

5. 1–07dThismenuitemsetsthenumberofdaysbetweenregenerations.Thedefault
valueissayingthattheunitwillbackwashonceeversevendays.Thisisagoodstarter
settingforyourGreensandfilter,onceaweek,soleaveitat,oradjustitto,7.

6. 2–10mThismenuitemisforthenumberofminutesthatthebackwashcyclestepwill
run.Thedefaultistenminutes,andshouldbeleftatoradjustedtotenminutes.


7500Pro‐OxFilterInstallation&StartupGuide
Page11www.cleanwaterstore.comRev060116
7. 3–10
m
ThismenuitemisforthenumberofminutesfortheFast(orRapid)Rinse.The
defaultis10minutes.Pressthemenu/confirmbutton,the10willflash;adjustitdown
to06withtheScrollDownbutton,andpresstheMenu/Confirmbutton.Nowthevalve
isprogrammedtoRapidRinseforsixminutes.Pressthescrolldownbutton,andyou
arebackatthefirstmenuitem,b–01.PresstheMenu/Confirmbutton,andtheGreen
WrenchIcongoesaway,theDynamicDisplayStripereturns,andyouaredone
programmingyourvalve.

Whenthemotoristurning‐00‐isdisplayed…

ThisvalvecanbeusedwithChemsorb(sedimentmedia),Calcite(AcidNeutralizermedia),
Carbon(Carbonmedia)anddifferenttypesofIronRemovalmedia(Greensand,Mang‐Ox,
KataloxliteandGreensand).

TypicalBypassassembly:
Itisimperativethatthethreeballvalvesbeinstalled.Caremustalsobetakentoplumbthebypass
assemblywithaminimumofpipedeflection,sothatexcesspressureisnotplacedonthemainvalve
body,wherethevalvethreadsintothetank.





7500Pro‐OxFilterInstallation&StartupGuide
Page12www.cleanwaterstore.comRev060116

InitialBackwash:
Beforetheunitcanbeputintoservice,acoupleofbackwashcyclesmustbedone.Thisisfor:
Rinsingthedustoffthemedia
Removemedia“fines”(bitsofbrokenmediasosmalltheypassthroughthescreen)
Testsystemforplumbingleaks/failures.
YouwillstartthefirstbackwashwiththeInletandOutletvalvesclosed.
1) FromtheServiceMode(DynamicDisplayStripeisshowing),presstheManual/Returnbutton.
Thiswilladvancethevalvetothebackwashposition(redicon,threearrowspointingdown).
2) OpentheInletvalvejustenoughsothatyoucanhearwatergoingthrough.Afterafewseconds,
asmallamountofwaterwillstartcomingoutofthedrainline.Thevalveiscountingdown,
fromtenminutes.
3) Openthevalvealittlemore;youwillseeanincreaseintheflowcomingoutofthedrainline.
Eachtimeyouopenthevalve,youarelookingforbubblesandforthewatertoturnblackfora
while‐thedust

HowToRemoveMediaFromControlHead
Sometimes,whendoingtheInitialBackwash,themediagetsliftedupintothecontrolhead.Youcantell
thishappenedbecauseyouwillhavelittleornoflow,eithergoingouttodrainwhileinthebackwash
positon,orwhenintheservicepositon.
Toremovemediafromacontrolhead,dothefollowing:
1)PuttheInletBypassintheClosedposition.
2)FromtheServiceMode,initiateamanualregeneration,bypressingandholdingtheregenbutton
(buttononfarleft).
3)ThevalvewilladvancetotheBW(backwash)position,andstartcountingdown.PresstheRegen
buttonagain,andwaitforthevalvetoadvanceandstopattheRapidRinse(RR)position.
4)WiththevalveintheRRposition,openandclosetheInletBypassvalveseveraltimes.Afterthethird
orfourthtime,leaveitintheopenpositionandcheckthedrainline‐doyouhaveagoodsolidflow?
90%ofthetime,theanswerisyes,butsometimes,evenafteropeningandclosingthevalvemanytimes,
youstilldon’thavegoodflow…But,ineithercase(goodornoflow),continue…
5)WiththeInletValveOFF,AdvancethevalvebacktoServicepositionagain,andagainpressandhold
theRegenbutton,weareputtingthevalvebacktotheBackwashposition.


7500Pro‐OxFilterInstallation&StartupGuide
Page13www.cleanwaterstore.comRev060116


6)OpentheInletvalvejustenoughsoyoucanhearthewaterpassingthruthevalve‐youshouldnotice
acorrespondingslowflowoutofthedrainline.Afteraminute,iftherearenoairbubblespresent,open
thevalveaboutanotherquarterinch‐again,youshouldseeacorrespondingincreaseintheflow…And
youwillcontinueuntilthevalveisfullopen.
IMPORTANT:
AnytimethatyouareintheBackwashorRapidRinseposition,youmayneedtounplugthepower‐this
willholdthevalveinitscurrentposition,soitdoesn’t‘timeout’andgotothenextposition.Whenyou
plugthevalvebackin,afteraminuteitwillreturntowhereitwaswhenyouunpluggedit(i.e.2:32
remaininginBW).Understand,itisnotpossibletojammediaintotheheadwhileinRapidRinse,or
Service,justintheBackwash,whentheflowdirectionisreversed.
Whatyouaretryingtoaccomplish,afteryouhavepushedthemediabackintothetankintheRapid
Rinseposition,istogettheInletvalveallthewayopenintheBackwashposition,withoutitjamming
mediabackinthehead,andthisisthepartwhereyouhavetogoslow,openuptheInletvalvealittle
bitatatimeandletitrunforafewminutes‐thisiswhyyoumayhavetounplugit‐andthen,onceyou
havedonethat,finally,doonemorebackwash,startingwiththeInletvalveopen,justasitwillbewhen
itdoesitautomaticallyatnight.Onceitdoesthatsuccessfully,youaredone.


