7500-S1 Sediment Filter
Installation Guide
Thank you for purchasing a Clean Water System! With proper
installation and a little routine maintenance your system will be
providing chlorine free water for many years.
Please review this start‐up guide entirely before beginning to install
your system, and follow the steps outlined for best results.
Minimum pressure of 30 PSI recommended.
Maximum pressure recommended 80 PSI.
For indoor installation only.
Protect from sunlight, rain, and freezing.
SEDIMENT MEDIA CONTAINS DUST.
USE MASK TO AVOID BREATHING DUST.
OK to wet down media with spray bottle
To connect drain line to drain, use an air-gap connection
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us: [email protected]om
See more information on our website: www.cleanwaterstore.com/resources
Clean Water Made Easy
www.cleanwaterstore.com

Table of Contents
Packing Lists .................................................................................................................................................. 3
Pre‐Installation:............................................................................................................................................. 2
Best Practices for Piping & Drain Installation: .............................................................................................. 2
Installation of Your System in to Copper or Metal Piping Systems: ............................................................. 3
How Your Sediment Filter Works:................................................................................................................. 4
Assembly and Installation Instructions:........................................................................................................ 4
Programming Overview: ............................................................................................................................... 7
Program the 7500 S Valve:.......................................................................................................................... 10
Initial Backwash: ......................................................................................................................................... 12
Maintenance: .............................................................................................................................................. 14
Troubleshooting the 7500 S Sediment Filter: ............................................................................................. 14

7500-S Sediment Filter Installation & Startup Guide
Page 3www.cleanwaterstore.com Rev 070319
Packing Lists
All systems include:
7500‐S control valve; power supply; funnel for adding media through the top; drain line flow
control; and items included in one of the following options:
Find Your Size System to See What is Included:
What to Do if Your Tank is Not Level Out of the Box:
Your black filter tank base is not glued to the bottom of your tank. Occasionally tank bases will become
crooked during shipment.
If you find that that your tank does not sit level on the floor, you can easily adjust it by holding the
empty tank and rapping it on a concrete or solid floor once or twice to level.
Sediment Filter 0.75 cubic foot size
8” x 44” filter tank with distributor tube
8 lbs. filter gravel
0.75 cubic foot of Chemsorb Filter Media.
Sediment Filter 1.0 cubic foot size
9” x 48” filter tank with distributor tube
12 lbs. filter gravel
1 cubic foot of Chemsorb Filter Media
Sediment Filter 1.5 cubic foot size
10” x 54” filter tank with distributor tube
16 lbs. Filter gravel
1.5 cubic foot of Chemsorb Filter Media
Sediment Filter 2.0 cubic foot size
12” x 52” filter tank with distributor tube
20 lbs. filter gravel
2.0 cubic foot of Chemsorb Filter Media
Sediment Filter 2.5 cubic foot size
13” x 54” filter tank with distributor tube
35 lbs. filter gravel
2.5 cubic foot of Chemsorb Filter Media
Sediment Filter 3.0 cubic foot size
14” x 65” filter tank with distributor tube
40 lbs. filter gravel
3.0 cubic foot of Chemsorb Filter Media
Sediment Filter 4.0 cubic foot size
16” x 65” filter tank with distributor tube
50 lbs. filter gravel
4.0 cubic foot of Chemsorb Filter Media

Pre-Installation:
1. Review your packing list and make sure you have received all the parts before beginning
installation.
2. If you are going to be turning off the water to the house and you have an electric water heater,
shut off the power to the water heater before beginning installation in case water heater is
accidentally drained.
3. Pick a suitable location for your filter system on a dry level spot where it won’t be exposed to
freezing temperatures. A minimum of 20 PSI is required. Maximum pressure is 90 PSI.
4. Get all of your plumbing parts together before beginning installation, and make sure you have
received all of your packages before beginning or scheduling an installation. Installation typically
takes 3 to 5 hours. However, after installation the Sediment Filter must be allowed to run
through a complete backwash and rinse cycle.
5. After the system is installed and running, your water may be discolored, or full of sediment or
rust, particularly if this is older or corroded piping. This typically clears up over a day or two.
Best Practices for Piping & Drain Installation:
1. Make sure to connect the Inlet from your water source and outlet, following arrows on control
valve. Connect the External Flow Control fitting onto the Drain line.
2. Make sure there is a working gate or ball valve before the 7500 Sediment Filter and also one after.
A hose bib (which is a faucet to which you can attach a garden hose) is strongly recommended after
the Sediment Filter and before the second ball valve.
3. Your 7500‐S Sediment Backwash Filter must be backwashed and rinsed several times on start‐up.
During the initital backwashes and rinses, keep the valve AFTER the system closed. After
backwashing and rinsing, open up hose bib after system and before closed valve, and run the water.
If water is not clear, perform additional backwash and rinses.
4. If you will be using copper piping, do not sweat the copper pipe directly on to the 7500‐S control
valve. Avoid heating up the control valve plastic with the torch.
5. You should install unions and a bypass around the valve, so that you can remove it and still have
water (See Build Your Bypass).
6. To connect drain line to drain, use an air-gap connection, so that if your sewer or septic tank
backs up, it cannot cross connect with the drain tubing.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Installation of Your System in to Copper or Metal Piping Systems:
If your new filter system is to be installed in a metal (conductive) plumbing system, i.e. copper or
galvanized steel pipe, the plastic components of the system will interrupt the electrical continuity of the
plumbing system.
As a result, any stray currents from improperly grounded appliances downstream or potential galvanic
activity in the plumbing system can no longer ground through the contiguous metal plumbing.
Some homes may have been built in accordance with building codes, which encouraged the grounding
of electrical appliances through the plumbing system.
Consequently, the installation of a bypass consisting of the same material as the existing plumbing, or a
grounded "jumper wire" bridging the equipment and reestablishing the contiguous conductive nature of
the plumbing system must be installed prior to your systems use.
This is simple and easy step to take if you are installing your water treatment system into copper
piping. A simple ground jumper wire with a pipe clamp can be purchased at any Home Center, or
hardware store etc. for a few dollars.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
How Your Sediment Filter
Works:
Water enters the top of the tank and
flows down through the media and up
the distributor tube.
The downflow type Sediment Filter
removes sediment and can be
backwashed, which cleans and re‐
classifies the Sediment, preventing
channeling.
During backwash the flow of water is
reversed and water flows down the
distributor tube and up through the
media, lifting and expanding the
Sediment media.
During the backwash the Sediment is
cleaned by the action of the water
flowing through it.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Assembly and Installation Instructions:
1. Wrap the top of distributor tube with electrical or duct tape so that no
gravel or Sediment media will go down the distributor tube when
adding the media.
2. Add the filter gravel that came with your order. You want the gravel to
cover the bottom distributor screen before adding the Sediment media.
3. Next add Sediment media. The tank should be about 2/3rds full of
media, do not fill more than 2/3rds, even if there is some media left
over.
4. Remove cap or tape from top of distributor tube. Be careful not to pull up distributor tube when
removing cap or tape.
5. Fill tank completely with water. This will allow the Sediment Filter media to settle and reduce the
need of purging the air out of the tank later.
6. Add a small amount of silicone grease to the inner O‐ring, where the distribution tube goes.
7. Screw on control valve until tight, by hand.
8. Do not use pipe‐joint compound, vegetable oil, Teflon tape, or Vaseline or other petroleum greases
to lubricate tank threads (where the control valve threads on to the tank, do not lubricate those
threads).
9. Install INLET to Inlet port, and OUTLET from filter to the outlet (see arrows, marked on control
valve)
10. Install drain line flow control on drain line from 7500‐S control valve.
11. Install piping to drain. Be sure to use an air gap so the drain is not connected directly to the drain
or sewer, to avoid cross connection. Do NOT install check valve on drain, use air gap (a gap of air
of 2” between end of drain tubing coming from 7500‐S control valve and opening to the drain pipe
to sewer or septic tank.
12. NOTE: for 2.0 CF sizes and up, use 1” piping for drain. For sizes smaller than 2.0 CF, it is OK to use
5/8” or ¾’ OD plastic tubing.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
The 7500‐S Does not come with a pre‐made bypass; you can build one yourself with PVC pipe or can also
purchase our kit. Flex lines may be used where the unions shown where the Elbow Connector is, you
could have slip by male fittings, then flex lines, then male nipples, and then you do not have to worry
about plumbing it with too much pipe deflection‐ this must be avoided, as pipe deflection will put undue
pressure on the control valve threads which may then crack. Reword this
Next, you will need to program the system to work as a Sediment Filter. There are a few settings that
must be changed before the system can be put into service. Plug in the control valve and continue to the
programming instructions.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016

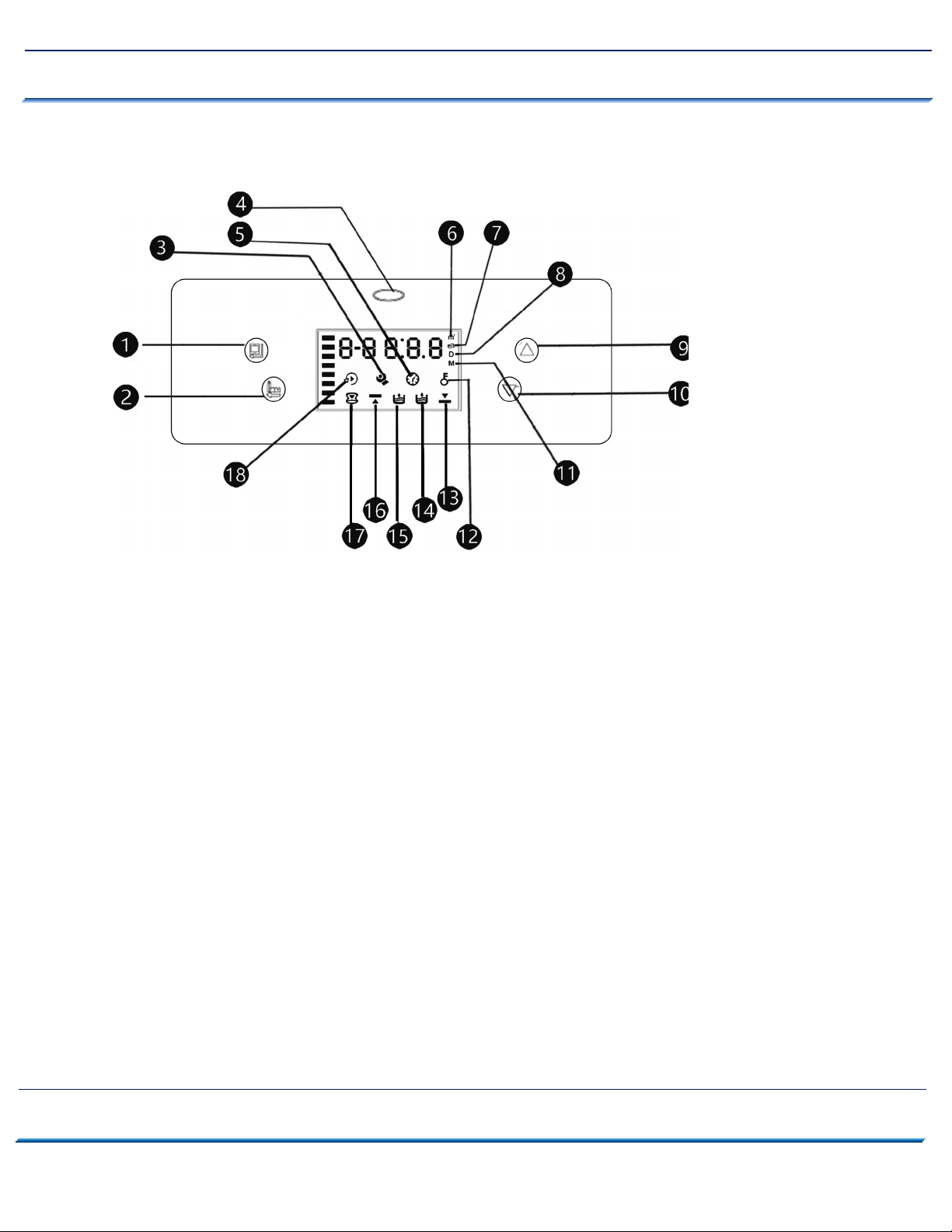

Programming Overview:
Note: Indicator and button locations may vary between models
1. Menu/Confirm 10. Scroll down
2. Return/Manual regeneration override 11. Minutes
3. Enquiry/Setting 12. Button Lock
4. Power Indicator 13. Fast Rinse
5. Time of day 14. Not used
6. Not Used 15. Not used
7. Not Used 16. Backwash
8. Day 17. In Service/Working
9. Scroll up 18. Regeneration cycle in process
*IMPORTANT*: Before any operation, the valve menu must be unlocked. Press and hold both
the Up and Down buttons for approximately 5 seconds. A sound will indicate the menu is
unlocked. The menu will re‐lock automatically after 1 minute of inactivity.
Digital Display Icons and the four Service Buttons: In addition to the Dynamic Display Stripe
(explained immediately below this) there are six digital icons on the display that will indicate
“where the valve is”. They are as follows:
Blue Key Icon: Indicates that the buttons are locked; press and hold both scroll buttons to
unlock.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Blue Clock-face Icon: Indicates that the red digital display is showing the Current Clock Time.
Green Hourglass Icon: Indicates the system is in normal Service (Filtering) Mode.
Blue Wrench Icon: This indicates that you are in the programming menu and can change the
values.
Green Backwash Icon: arrow pointing up, underneath a green bar. This indicates that you are
programming the Backwash step, or that the filter is in backwash.
Green Rapid Rinse Icon: arrow pointing down above green bar. This indicates that you are
programming the Rapid Rinse step, or that the filter is in Rapid Rinse.
Dynamic Display Stripe: On the left side of the digital display, there are eight bars that light up
from red to green in a “going up” pattern. When the valve is in Service Mode, you will see that
bar display flashing.
Sample Displays Showing Service Mode and Backwash and Fast (or Rapid) Rinse Modes:
Four Service Buttons: Left to right, Menu/Confirm, Manual/ Return, Scroll Down, Scroll Up.
Up and Down Arrows: When the Blue Key Icon is lit, press and hold both buttons to unlock.
When the Dynamic Display Stipe is blinking, pushing the up/down buttons has no effect.
When the Green Wrench icon is lit, pressing either up/down arrow will scroll through the menu
options.
Menu/ Confirm Button (the button on the far left, an empty square with an arrow pointing
left): This is the button you press (after you have unlocked the screen) that puts you in the
Service Menu, so you can program the valve. The first time you press it, the Dynamic Display
Stripe goes away, and the Blue Wrench icon appears.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Manual/ Return Button: Second from left, button icon is a “pointing index finger” with a left‐
pointing arrow underneath.
After unlocking the display, pressing this button in Service Mode (Dynamic Display Stripe is
running) will start a backwash cycle.
Pressing this button when in Program Mode will return you to the Service Mode.
A. Time of day indicator
• When the blue Clock Icon is lit, the digital display is showing the current time. That time is
displayed in 24‐hour format, i.e. 13:00 is 1:00 pm.
B. Button lock indicator
• When the b Key Icon is lit, the buttons are locked. Press and hold both the Up and Down
arrows to unlock. Buttons will lock 60 seconds after the last time a button is pressed.
C. Program mode indicator (shown on drawing as Enquiry/ Setting) is the Blue Wrench Icon. To
activate this Icon from Service Mode, press and release the Menu/Confirm button (button on
far left, with a square and an arrow pointing left) and the green Wrench Icon will be lit.
• When the green Wrench Icon is flashing, whatever parameter that is selected (set clock time,
set cycle step, etc.) can now be adjusted by using the Scroll buttons.
For example, when you press it the first time, the Dynamic Service Stripe goes away, the Green
Wrench Icon is lit, and the other icon that is lit is the Blue Clock Icon‐ that means that whatever
digits are on the red display, they are stating the clock time (in 24 hour mode).

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Program the 7500 S Valve
Turn On Valve:
Plug the valve in, and wait for the Service Screen to come on, the Dynamic Display Strip is
blinking and the numbers 3101 will flash briefly, indicating you have a filter valve and not a
softener type valve.
Unlock
When first powered up the valve will not be locked, but after several minutes will lock. During
the programming if you need to unlock, and the blue Key Icon on right is lit, press and hold both
Scroll Buttons to unlock. The valve will beep, and the blue key Icon will disappear.
Set Time
Press the Menu/Confirm button (far left) once and the blue wrench icon and time clock icon will
display.
Press the Menu/Confirm button again to set the time. The hours digit will flash. Adjust the
hours with the scroll arrows. Clock time is 24‐ Hour (or Military Time), so 1 pm is 13:00, two pm
is 14:00, etc.…
Press the Menu/ Confirm button when done. The time you set will now be displayed, and not
flashing.
Press the Scroll Down button to continue, A‐00 will display.
Valve Type
A‐00 is correct setting for time clock (non‐flow meter) valve, do not change. Press the Scroll
Down button to continue.
Set Regeneration Time of Day or Night
Set this to 2:00, which means 2:00 AM, in order for filter system to regenerate (backwash and
rinse) at 2:00 or other time when no water is being used. Note that during the 10 – 20
regeneration no water will be able to be used in house, the valve stops water flow to house.
Press the Scroll Down button to continue. Display will read 1 – 01

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Set Days Between Backwash
Display will read 1 – 01. Press the Menu/Confirm button and days will flash. Using the up or
down arrow adjust to number of Days between Backwash.
For Sediment Backwash filters, we recommend 4 – 6 days. This can be changed later. If you
find you have pressure loss (meaning the sediment filter material needs backwashing) adjust to
more frequent backwashes up to 1 per day.
Press the Menu/Confirm button.
Press the Scroll Down button to continue, F – 00 will display.
Set Number of Consecutive Backwash Cycles (not used)
Leave at F – 00. If you ever wanted the filter to go into another backwash/rinse cycle
immediately following a backwash/rinse cycle, this can be set to F – 01. However, this is rarely
used and a single backwash and rinse regeneration cycle is usually enough.
Press the Scroll Down button to continue, 2 – 10 will display.
Set Length of Backwash Cycle
2 – 10 refers to the minutes the system will go into or be in backwash mode. Leave this at 10
but can be set to 8 or increased to 12 or 14 etc if a shorter or longer backwash is desired.
To change Press the Menu/Confirm button and using up or down arrows adjust the minutes.
Press the Scroll Down button to continue, 3 – 10 will display.
Set Length of Rinse Cycle
3– 10 refers to the minutes the system will go into or be in rinse to drain mode (after backwash
cycle). This can be set to 8 minutes. To change Press the Menu/Confirm button and using up
or down arrows adjust the minutes.
Press the Scroll Down button to continue, b ‐ 01 will display. Press the Menu/Confirm button.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Set Output Signal Relay Controllers (Generally not used)
Underneath the valve are two relay outputs, one is normally closed contacts and one is
normally open contacts. These can be set to be normally open or normally closed. For this
setting you don’t need to do anything and can be left at b‐01.
Press the Menu/Confirm button.
Normal Operation
Now the display will cycle between:
Current time of Day
Days Left in Backwash Cycle
Time of Regeneration
Display will be locked, and blue Key icon will display.
Initial Backwash:
1After programming, the system must be run through an initial backwash.
2Close Inlet ball valve B and Outlet valve C, and open the bypass valve A, to turn off water
before starting.
3From the initial valve menu, press the UP and DOWN buttons at same time to unlock. Then
press the Green Return/Manual Regeneration button (second button from left) and a the
valve will enter backwash mode. The backwash icon will be lit, and the time will count
down.
4When the backwash icon is displayed, slowly open the inlet valve B to a quarter position to
make the water flow into the resin tank; you should be able to hear air escaping from the
drain pipeline. After all the air is out of the pipeline, open inlet valve B and clean the foreign
materials in the tank until the water is clean.

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
5Verify that the backwash flow rate coming out of the drain line corresponds with the size of
your system below. You can easily run the drain hose to a bucket and using a watch verify
the flow rate in gallons per minute. An adequate backwash is critical to properly clean the
Sediment media and prevent it from fouling or channeling.
0.75 CF
5 GPM
1.0 CF
5 GPM
1.5 CF
5 GPM
2.0 CF
7 GPM
2.5 CF
7 GPM
3.0 CF
15 GPM
6After the backwash, the system will automatically go into the fast rinse stage. Both stages
will last for as long as you have programmed that cycle step. The control valve will return to
service status (indicated by the up‐flowing meter on the left) after the backwash and rinse
are complete.
7Make sure to backwash and rinse the filter several times to clean up media, repeated
backwash/rinse cycles may be needed when filter is first put on line with new media, to
clean up media and rinse out fines and dust from the naturally mined sediment media.
Congratulations, you are done setting up your valve!

7500-S Sediment Filter Installation & Startup Guide
Page 4www.cleanwaterstore.com Rev 083016
Maintenance:
Normal Operation
‐Normal service display alternates between service days, time of day and scheduled
rinsing time.
‐Days remaining until the next service will count down from the day value to 1 day
remaining.
‐Once the count reaches 1, a service cycle will be initiated at the next designated rinsing
time.
Troubleshooting the 7500 S Sediment Filter:
Backwash Flow Rate
One problem that may occur is if you do not have enough backwash flow rate to properly clean
the Sediment filter.
You can verify the backwash flow rate by running the drain line into a bucket and timing it when
the 7500 S is in Cycle 1 or backwash. A 1.0 or 1.5 cubic foot system should have 5 gallons per
minute and a 2.5 cubic foot system should have 10 gallons per minute of backwash.
