IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Please read and comply with these
original instructions prior to the initial operation
of your appliance and store them for later use or
subsequent owners.
Apart from the notes contained herein the
general safety provisions and rules for the
prevention of accidents of the legislator must be
observed.
Warnings and notes that are attached on the
appliance provide important notes for the safe
operation.
Hazard levels
DANGER
Pointer to immediate danger, if not avoided,
which leads to severe injuries or death.
WARNING
Pointer to a possibly dangerous situation, if not
avoided, which can lead to severe injuries or
death.
CAUTION
Pointer to a possibly dangerous situation, if not
avoided, which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation, which
can lead to property damage.
Electric components
DANGER
Risk of electric shock.
Never touch the mains plug and the socket with
wet hands.
Check the power cord with mains Plug for
damage prior to every use. Do not use the
machine if a supply cord or important parts of
the machine are damaged, e.g. safety devices,
high pressure hoses, trigger gun.
All current-conducting parts in the working area
must be protected against jet water.
The mains plug and the coupling of an
extension cable must be watertight and must
never lie in water. Moreover, the coupling may
never lie on the ground. The use of cable reels
that ensure that the sockets are at least 60 mm
above the ground is commended.
Make sure that the power cord or extension
cable is not damaged by running over, pinching,
dragging or the like. Protect the power cords
from heat, oil, and sharp edges.
Always switch off the mains disconnecting
switch when leaving the appliance unattended.

WARNING
The appliance may only be connected to an
electric supply that has been installed by an
electrician in accordance with IEC 60364.
The appliance may only be connected to
alternate current. The voltage must correspond
with the type plate of the appliance.
For safety reasons, we recommend that you
operate the appliance only via a residual
current device (max. 30mA).
An unsuitable electrical extension cable can be
hazardous. Only use an electrical extension
cable which has been approved and labeled for
this purpose and has an adequate cable
cross-section outdoors: 1 - 10 m: 1.5 mm2;10 -
30 m: 2.5 mm2
Always fully unreel the extension cable from the
cable drum.
An unsuitable electrical extension cable can be
hazardous.
Safe handling
DANGER
The user must be the appliance as intended.
The person must consider the local conditions
and must pay attention to other persons in the
vicinity when working with the appliance.
Check important components, such as high
pressure hose, hand spray gun and safety
installations, for damage prior to every
operation. Immediately replace damaged
components. Do not operate appliance with
damaged components.
The appliance has been designed for use with
the cleaning agent supplied or recommended
by the manufacturer. The use of the other
cleaning agents or chemicals may adversely
affect the safety of the appliance.
High-pressure jets can be dangerous if subject
to misuse. The jet must not be directed at
persons, live electrical equipment or the
machine itself.
Do not direct the jet against yourself or others in
order to clean clothes or foot-wear.
Do not use the appliance within range of
persons unless they wear protective clothing.
Wear appropriate Personnel Protection
Equipment (PPE) while operating the
appliance.
Do not direct the jet against yourself or others in
order to clean clothes or foot-wear.
WARNING
The appliance must not be operated by children
or untrained personnel.
This appliance is not intended for use by
persons(including children) with reduced
physical, sensory or mental capacities, or

lacking experience and knowledge.
Children must not play with this appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
Supervise children to prevent them from playing
with the appliance.
Create stability for the appliance prior to any
work on or with the appliance to prevent
accidents damage.
The water jet that is emitted from the high
pressure nozzle results in a repulsion power
acting on the hand spray gun. Make sure that
you have a firm footing and are also holding the
hand spray gun and spray lance firmly.
Never leave the appliance unattended as long
as it is in operation.
ATTENTION
In case of extended breaks, switch the
appliance off at the main switch or pull the
mains plug.
Do not operate the appliance at temperatures
below 0ºC
CAUTION
Don't pull the cord to unplug, when yon would
like to retract the cable, hold the plug and then
press the Turn back button.
Keep off from ovens and stoves, etc.
Don't suck at large fragments or sharp objects.
Don't wrest, tramp and haul the hose.
Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
Do not use to pick up flammable or combustible
liquids, such as gasoline, matches, or use in
areas where they may be present.
Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or hot
ashes.
Do not use without dust bag and/or filters in
place.
Other risks
DANGER
The appliance may not be operate in explosive
atmospheres.
Risk of explosion-Do not spray flammable
liquids.
Never draw in fluids containing solvents or
undiluted acids and solvents! This includes
petrol, paint thinner and heating oil. The spray
mist is highly inflammable, explosive and
poisonous. Do not use acetone, undiluted acids
and solvents, as they corrode the materials
used on the appliance.
Never use the product with inflammable or toxic
liquids, or liquids with characteristics

incompatible with its proper operation.

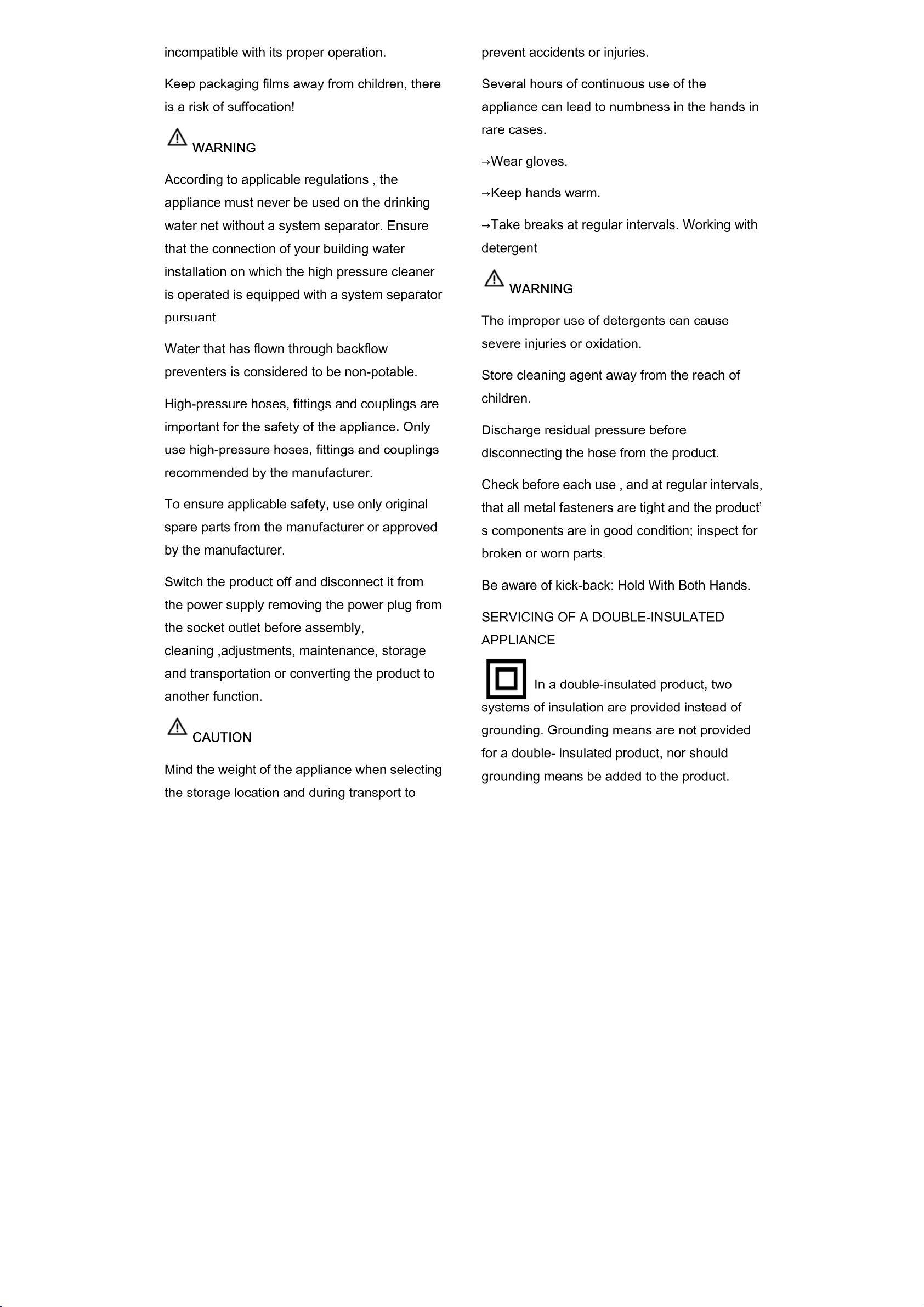

Keep packaging films away from children, there
is a risk of suffocation!
WARNING
According to applicable regulations , the
appliance must never be used on the drinking
water net without a system separator. Ensure
that the connection of your building water
installation on which the high pressure cleaner
is operated is equipped with a system separator
pursuant
Water that has flown through backflow
preventers is considered to be non-potable.
High-pressure hoses, fittings and couplings are
important for the safety of the appliance. Only
use high-pressure hoses, fittings and couplings
recommended by the manufacturer.
To ensure applicable safety, use only original
spare parts from the manufacturer or approved
by the manufacturer.
Switch the product off and disconnect it from
the power supply removing the power plug from
the socket outlet before assembly,
cleaning ,adjustments, maintenance, storage
and transportation or converting the product to
another function.
CAUTION
Mind the weight of the appliance when selecting
the storage location and during transport to
prevent accidents or injuries.
Several hours of continuous use of the
appliance can lead to numbness in the hands in
rare cases.
→Wear gloves.
→Keep hands warm.
→Take breaks at regular intervals. Working with
detergent
WARNING
The improper use of detergents can cause
severe injuries or oxidation.
Store cleaning agent away from the reach of
children.
Discharge residual pressure before
disconnecting the hose from the product.
Check before each use , and at regular intervals,
that all metal fasteners are tight and the product’
s components are in good condition; inspect for
broken or worn parts.
Be aware of kick-back: Hold With Both Hands.
SERVICING OF A DOUBLE-INSULATED
APPLIANCE
In a double-insulated product, two
systems of insulation are provided instead of
grounding. Grounding means are not provided
for a double- insulated product, nor should
grounding means be added to the product.

Servicing a double-insulated product requires
extreme care and knowledge of the system,
and should only be done by qualified service
personnel. Replacement parts for a
double-insulated product must be identical to
the original parts. A double-insulated product is
marked with the words “Double Insulation” or
“Double Insulated”.
Residual risks
Even if you are operating this product in
accordance with all the safety requirements,
potential risks of injury and damage remain.
The following dangers can arise in connection
with the structure and design of this product:
Health defects resulting from vibration emission
if the product is being used over long periods of
time or not adequately managed and properly
maintained.
Danger of injury and property damage caused
by flying objects.
Injuries and damage to property due to broken
accessories or the sudden impact of hidden
objects during use.
Safety Devices
CAUTION
Safety installations serve the protection of the
user and may not be modified or by past.
Power switch
The appliance switch prevents unintentional
operation of the appliance.
Lock trigger gun
This lock locks the lever of the trigger gun and
prevents the inadvertent start of the appliance.
Overflow valve with.
Water that has flowed through backflow
preventers is considered to be non-potable.
Pressure switch
If the lever on the trigger gun is released the
pressure switch turns off the pump, the high
pressure jet is stopped. If the lever is pulled the
pump is turned on again.
Motor protection switch
The motor protection switch off the device if the
power consumption is high.
Personal protective equipment
CAUTION
Wear protective clothing and safety goggles to
protect against splash back containing water or
dirt.
During the use of high-pressure cleaners
aerosols can develop. Inhaling aerosols can
cause health damage.
—Depending on the application, completely
shielded nozzles(e.g. surface cleaner)that
significantly reduce the emission of aqueous

aerosols can be used for high-pressure
cleaning.
—The use of such shielding is not possible with
all applications.
Symbols on the machine
The high pressure jet must not
be directed at persons, animals, live electrical
equipment or at the appliance itself.
The appliance must not be directly
connected to the public drinking water network.
For protection against injury, wear ear
defenders and safety goggles.
Wear safety gloves during use to
protect hands
Wear non-slip footwear that will
protect your feet and improve your footing on
slippery surfaces.
Sound power level is 92dB(A)
Proper use
Use this pressure washer for private
households only:
If connection is made to a potable water system,
the system shall be protected against backflow.
This high pressure cleaner is designated with a
rated input current. The intended use of this
product covers the cleaning of vehicles,
buildings, terraces, facades and garden
equipment using clean water and
biodegradable chemical detergents. Likewise
the product can be used to clean paving slabs
or rain gutters.
This product may not be used to clean clothing,
shoes and other textiles. The water jet should
not be directed against persons. Animals, any
electrical equipment or on the product itself. Do
not flush any objects which contain health
hazardous materials. The product must not be
run with inflammable, explosive and toxic
liquids.
For safety reasons it is essential to read the
entire instruction manual before first operation
and to observe all the instructions there in.

Description of the Appliance
1. Handle
2. Power cord hook
3. High-pressure hose hook
4. Dust compartment
5. Water outlet
6. Blow air outlet
7. Wheel
8. Trigger gun
9. High-pressure hose
10. Floor brush
11. Trigger gun holder
12. Power switch
13. Nozzle
14. Soft tube
15. Water inlet
16. Power cord
17. Extension tube
18. Detergent bottle
Technical specifications
Model. No Vacuum Cleaner
Rated voltage: AC220-240 V , 50/60Hz
Rated input power: 1000W
Max Vacuum Degree ≥16KPa
Max Airflow ≥1.4m
3
/min
Max Suction Power ≥280W
Model. No Pressure Washer
Rated voltage: AC220-240V, 50/60Hz
Rated input power: 1400W
Protection class II
Degree of protection: IPX5
Rated pressure: 7MPa
Max. pressure: 10MPa
Rated flow: 5.5 l/min
Max. flow: 6/min
Rated temperature: 0-40℃
Max. inlet pressure: 0.7MPa
Sound pressure level:
Uncertainty:
LpA=76.7 dB(A)
KPA=3dB
Sound power level: LwA=92dB (A)
Vibration value αh=1.086m/s2
Kαh=1.5m/s2
Weight: 17Kg

Assembly
Mount loose parts delivered with appliance prior
to start-up
1. Installing the handle with screw
2. Slide the trigger gun hook into position
3. Installing the dust compartment into
position
4. Installing the spray wand to trigger
gun.
• Fit the spray wand into the gun and rotate it
until the two parts are completely locked.
5. Connect the high pressure hose to the
trigger gun
• Connect the sliver end of the high-pressure
hose to the trigger gun and twist the nut as
indicated to secure the connection.

6. Connect the high-pressure hose to the
water outlet
Connect the other end of the high-pressure
hose to the water outlet on the washer and twist
the black rotatable end-piece as indicated to
secure the connection.
7. Connect the garden hose to the water
inlet
Connect the garden hose adaptor(female
coupler) to the water inlet of the pressure
washer, then thread your garden hose(male
end) into the garden hose adaptor.
Start up
Park the appliance on an even surface.
Insert the mains plug into the socket.
Pressure washer.
ATTENTION
Impurities in the water can damage the
high-pressure pump and the accessories.
Water supply from mains
Drawing in water from the open reservoirs
This high-pressure cleaner is suited to work
with the YILI suction hose with backflow vale to
draw in surface water, e.g. from water butts or
ponds.
Fill the suction hose with water.
Screw the suction hose into the water
connection of the appliance and insert it into the
water source (e.g. rainwater drum).
Bleed the device as follows prior to operation:

• Turn on the appliance power switch.
• Unlock the lever of the trigger gun.
• Push the lever of the trigger gun, the device
will switch on.
• Let the device run (max. 2 minutes) until the
water exits the trigger gun without bubbles.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
Operation
ATTENTION
Dry running of more than 2 minutes leads to
damage of the high-pressure pump. If the
appliance does not build up pressure within 2
minutes, switch the appliance off and proceed
in accordance with the instructions in Chapter
“Troubleshooting”
High pressure washer operation
CAUTION
Keep a distance of at least 30 cm when using
the jet for cleaning painted surfaces to avoid
damage.
CAUTION
Make sure the on/off switch is set to “OFF/O”
and insert the plug into a properly installed
socket.
ATTENTION
• The washer must be used on a secure and
stable surface in a standing, upright position
Connect the product to power and water supply
as described.
• Open the water supply
• Hold the spray gun with both hands.
• Direct the nozzle of the chosen accessory
away from you towards the surface to be
cleaned.
• Unlock the trigger and press it until a constant
amount of water flows through the nozzle, to
allow air trapped in the hose to escape.
• Release the trigger.
• Turn on the switch “PW(I)"

• Hold the spray gun with both hands. Direct the
water jet to the object to be cleaned and press
the trigger.
Release the lever of the trigger gun; the device
will switch off again and stop the water jet. High
pressure remains in the system.
WARNING! Beware of kickback when pressing
the trigger!
Operation with detergent
Detergent can only be added when the device
is operated in low pressure mode.
DANGER
When using detergents, the material data safety
sheet issued by the detergent manufacturer
must be adhered, especially the instructions
regarding personal protective equipment.
Remove the cap of the clean detergent bottle.
Gently pull the onboard detergent tank out of its
storage position.
Fill the tank with detergent designed specifically
for use with pressure washers.
Push the detergent bottle with the opening
pointing downwards into the connection for the
hose clean detergent.
Recommended cleaning method
• Spray the detergent sparingly on the dry
surface and allow it to react, but not to dry.
• Spray off loosened dirt with the high pressure
Met.
After operation with detergent
• Remove the hose clean detergent bottle from
the intake and close it with the lid.
• For storage, put the detergent bottle into the
retainer with the cap pointing up.
Vacuum Cleaner operation
CAUTION
Make sure the on/off switch is set to “OFF(O)”
and insert the plug into a properly installed
socket.

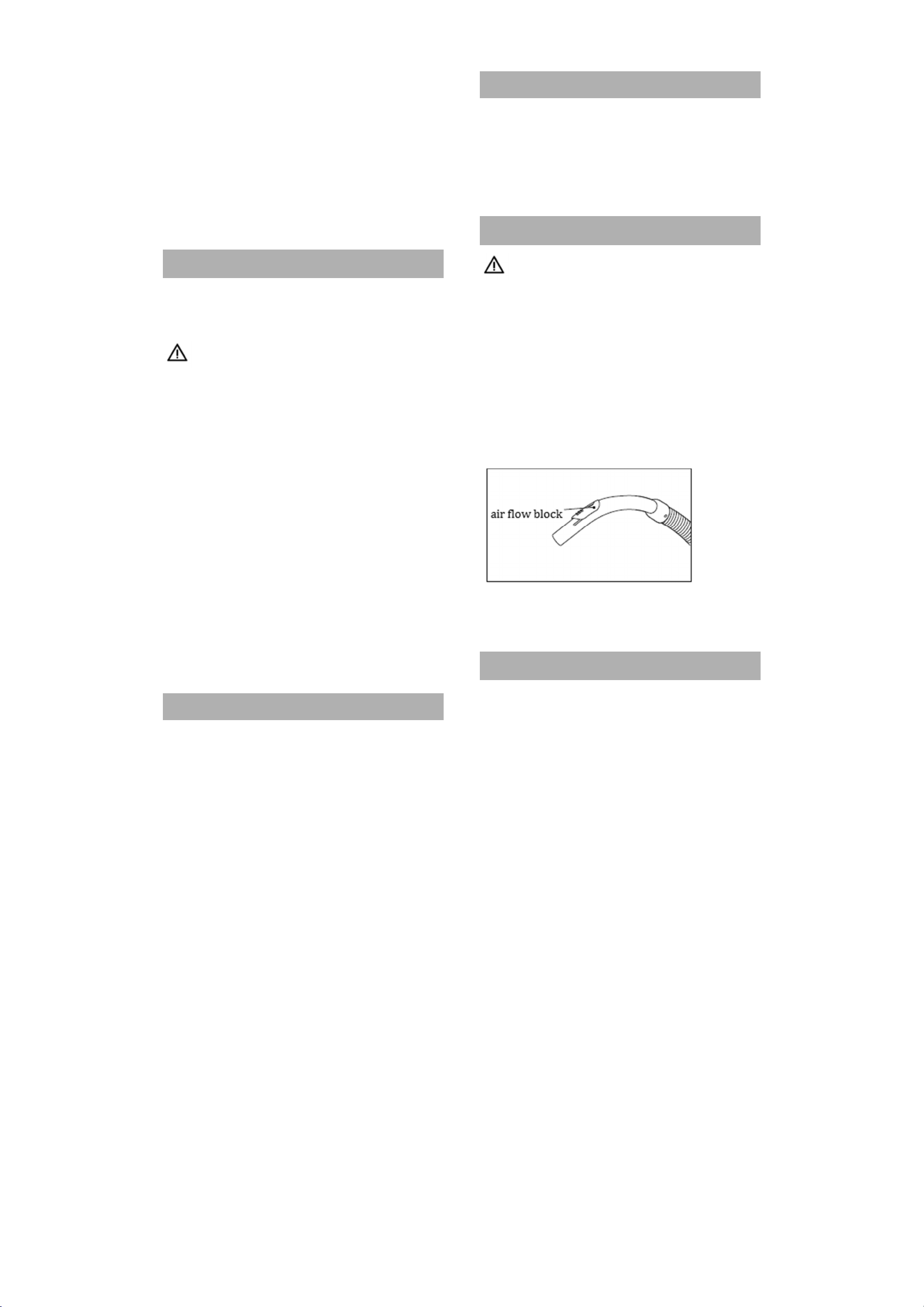

Adjust air flow
Open the air flow block , suck power will come
down. If close the block , suck power will max.
power.
•
Turn on the switch “VAC(II)", then can use it to
clean.
Interrupting operation
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
• Put the trigger gun with the spray lance into
the parking position.

• During longer breaks(more than 5 minutes),
also turn the appliance off using the power
switch.
Finish operation
• Release the lever of the trigger gun.
• Turn off the appliance switch pre
• Disconnect the mains plug from the socket.
Only separate the high-pressure hose from the
trigger gun or the device when there is no
pressure in the system.
TURN OFF TAP
• Pressure the lever of the trigger gun to release
any remaining pressure in the system.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
ATTENTION
• When disconnecting the supply or high
pressure hose, warm water may leak from the
connection after operation.
• Detach the appliance from the water supply.
Transportation
CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
When transporting by hand
• Switch the product off and disconnect it from
the water and power supply.
• Pull out the transport handle until it audibly
snaps into place. Attach transportation guards,
if applicable.
• Pull the appliance by its transport handle.
When transporting in vehicles
• Prior to horizontal transport: close the cap of
clean detergent bottle.
• Tilt the product towards you until it balances
on the wheels. Then move it by its
transportation handle.
• Protect the product from any heavy impact or
strong vibrations which may occur during
transportation in vehicles.
• Secure the appliance against shifting and
tipping over.
Storage
CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when
storing it.
Storing the appliance
• Park the machine on an even surface.
• Detach spray lance from the trigger gun.
• Push the disconnect button on the trigger gun
and pull the high-pressure hose out of the

trigger gun.
• Place the trigger gun into the storage for the
trigger gun.
• Put both spray lances into the storage for the
spray lance.
• Dirt grinder spray lance: Nozzle towards the
bottom.
• Coil the high-pressure hose and hang it over
the hose storage.
• Store the mains connection in the accessory
compartment.
• Prior to extended storage periods, as during
the winter, also observe the instructions in the
care section.
• Always store the pressure cleaner, parts, and
accessories in a place that is inaccessible to
children. The ideal storage temperature is
between 10 °C and 30 °C. Store the power
washer indoors to prevent the water in the unit
from expanding under freezing conditions.
• We recommend using the original package for
storage or covering the product with a suitable
cloth or enclosure to protect it against dust.
Frost protection
ATTENTION
Appliance and accessories that are not
completely drained can be destroyed by frost.
Completely drain appliance and accessories
and protect them against frost. To avoid
damage:
• Detach the appliance from the water supply.
• Detach spray lance from the trigger gun.
• Turn on the appliance power switch
• Push the lever of the trigger gun until no more
water is escaping .
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
• Turn off the appliance power switch.
• Store the appliance and the entire accessories
in a frost free room.
Care and maintenance
DANGER
Risk of electric shock
Prior to all work on the appliance, switch off the
appliance and pull the power plug.
High pressure hose
The high pressure hose is specially constructed
with reinforced walls it can be easily damaged
and should be stored carefully.
• Do not kink.
• Do not drive vehicles over the hose.
• Do not expose the hose to sharp edges or
corners. Misuse will lead to ballooning or
premature failure and will invalidate warranty.
Clean the sieve in the water
connection
Clean the sieve in the water connection
regularly.
Remove coupling from the water connection,
and rinse with warm water to prevent any

foreign matter from clogging the pump.
Clean the nozzle with the needle clean-out
tool provided . Remove the spray wand from
the gun. Remove any dirt from the nozzle
hole and rinse.
ATTENTION
• The sieve must not be damaged.
• Pull the sieve out using flat pliers.
• Clean the sieve under running water.
• Reinsert the sieve into the water connection.
Clean the dust bag
pressure the locking block, then push front to
open the dust compartment.
Take up the dust compartment.
Pressure the automatic release button to empty
the dust into dust container.

Troubleshooting
DANGER Risk of electric shook.
Turn off the appliance and remove the main plug prior to performing any care and maintenance work.
Repair work and work on the electrical components may not only be performed by an authorized
customer service. You can rectify minor faults yourself with the help of the following overview. If in
doubt, please consult the authorized customer service.
Symptom Cause Recommended action
Machine refuse
s
to start
Machine not plugged in
Defective socket
Fuse has blown
Defective extension cord
Plug in machine
Try another socket.
Replace fuse. Switch off other machines.
Try without the extension cord.
Fluctuating pressure
Pump sucking air
Valves dirty, w
orn out or stuck
Pump seals worn out
Check that hoses and connections are
airtight.
Clean and replace or refer to local
distributor
Clean and replace or refer to local
distributor
Machine stops
Incorrect mains voltage
Thermal sensor activated
Nozzle parti
ally blocked
Check that the mains voltage corresponds
to specification on the model tag.
Leave the washer for 5 minutes to cool
down. Clean the nozzle
Machine pulsating
Air in inlet hose
Inadequate supply of mains water
Nozzle partially blocked
Water fil
ter blocked
Hose kinked
Allow machine to run with open trigger
until regular working pressure resumes.
Check that the water supply corresponds
to specifications required
NB!
Avoid using long, thin hoses (min.
1/2")
.Clean the nozzle /Clean the filter
Stra
ighten out hose.
Machine starts, but no
water comes out
Pump/hoses or accessory frozen
No water supply
Water filter blocked
/Nozzle blocked
Wait for pump/hoses or accessory to
thaw. Connect inlet water.
Clean the filter
/Clean the nozzle

Accessories
A choice of accessories is supplied in
the scope of the delivery of this product.
Please check the technical
specification of any accessories that
you purchase to ensure they are
compatible with this product.
SERVICE DEPARTMENT
_ Damaged switches must be replaced by our
after-sales service department.
_ If replacing the power cord is necessary, it
should be done by the manufacturer or his agent
to avoid a hazard.
After-sales Service and Application Service
Our after-sales service responds to your questions
concerning maintenance and repair of your product
as well as spare parts. Exploded views and
information on spare parts can also be found
under:www.eco-repa.com
CONSTRUCTOR application service team will gladly
answer questions concerning our products and their
accessories : [email protected]
STORAGE
_ Thoroughly clean the whole machine and its
accessories.
_ Store it out of the reach of children, in a stable and
secure position, in a cool and dry place, avoid too
high and too low temperatures.
_ Protect it from exposure to direct sunlight. Keep it in
the dark, if possible.
_ Don’t keep it in plastic bags to avoid humidity
build-up.
GUARANTEE
Refer to the enclosed guarantee conditions
for the terms and conditions of guarantee.
ENVIRONMENT
Should your machine need
replacement after extended use,
do not put it in the domestic
waste but dispose of it in an
environmentally safe way.
Made in China 2018

GB
Declaration of Conformity
We “CLEANER WASH” hereby declare that the machine described below complies
with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the
version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: HIGH-PRESSURE WASHER / VACUUM CLEANER WET-DRY
Type: CW1400-3F
SN : 2018.01 :001~388
Relevant EU Directives
2014/35/EU(LVD)
2014/30/EU(EMC)
2011/65/EU(ROHS)
2012/19/EU(WEEE)
Applied harmonized standards
EN 60335-1 :2012/A11 :2014
EN 60335-2-2 :2010/A1 :2013
EN 60335-2-79 :2012
EN 62233 :2008
EN 55014-1 :2006/A2 :2011
EN 55014-2 :2014
EN 61000-3-2 :2014
EN 61000-3-3 :2013
Technical Data
Product: HIGH-PRESSURE WASHER / VACUUM CLEANER WET-DRY
Type: CW1400-3F
220-240V~ 50/60Hz 1400W / 1000W
Noise emission values measured according to relevant standard.
Acoustic pressure levelL
PA
76.7 dB(A) K = 3 dB(A)
Acoustic power levelL
WA
92 dB(A) K = 3 dB(A)
Weighted root mean square acceleration according to relevant standard. :
1.086 m/s²K = 1.5 m/s²
SN : 2018.01 :001~388
08.12.12313
Date of arrival : 16/04/2018
Year of production : 2018
CLEANER WASH
81 rue de Gozée 6110 Montigny-le-Tilleul Belgique
Belgium in January 2018
Mr Joostens Pierre
Director
CLEANER WASH, rue de Gozée 81,
6110 Montigny-le-Tilleul, Belgique
Tél : [phone]
Fax : [phone]
Technical file at: [email protected]
