Kruger KH4014F User manual

KH4014F-KH3018F
Cold water pressure cleaner - Hidrolimpiadora en frío
Use and maintenance manual - Manual de uso y manutención
WARNING:
Do not use the cleaner without first reading the
“use and maintenance manual”
A TENCIÓN :
No usar la hidrolimpiadora sin haber leído el
"Manual de uso y mantenimiento"

KH4014F-KH3018F
WARNING
Carefully read the operating instructions. The manufacturer shall not
be held liable for any damage to property or persons due to
improper use of the machine or failure to observe the safety and
maintenance regulations.
This maintenance manual is an integral part of the machine and must
always be at the disposal of the user and/or maintenance staff.
The instructions given in this maintenance manual do not
substitute the safety provisions and technical data for installation
and operation, directly affixed on the machine.
The user must keep to the safety standards in force in the Country of
installation.
Never use the machine if wear or damage which may reduce its
original safety level is noticed;
the installer, user and maintenance staff must notify the
manufacturer of any irregularity.
The machine is made for specific applications.
It must not be modified and/or used for applications other than
those included in the field of use.
This machine must be used by an adult person trained to use it.

KH4014F-KH3018F
ENGLISH
SAFETY RULES
Do not leave the machine in closed
rooms, nor where theventilation is
inadequate.
Before doing any work on the
machine it is necessary to take
the plug out of the power socket.
The manufacturer is declining any
liability on this precise matter as this
is
a technical operation, therefore it
must
bealways carried out at an
authorized service cente r .
Take care not to throttle the water
hose.
Never trouch the power socket
with wet hands.
CAUTION
The hear t connection is
compulsory.

KH4014F-KH3018F
It is forbidden to make precarious
repairs to the electric cable. It is
forbidden to use extensions, precarious
plugs and generally components not in
confor mity with the standards. Pay
attention to the flow value of the extension
that must not be lower than the machine
electrical input stated on the data label.
It is forbidden to direct the water jet on
the pump and on any other component
under electric tension.
This can cause electrical damages and
danger for the operato r .
Please protect the machine from
atmospheric agents. Avoid using the
machine under the rain, thunderstorms
and in all those situations where water or
other liquids can reach the electrical
parts of the machine.
Never use the supply cable or the
connecting hoses to move the machine.
Never use the power plug for switching
on or off. Never use the machine if the
power supply cable or other important
components are damaged (e.g.
safety devices, high pressure hoses,
spray gun and electric wiring).
W ARNING:
Never use the machine close to
people not wearing the protective
clothing.
W ARNING:
The flexible hoses, the accessories and the
high pressure fittings are important for the
machine safety . Use original accessories or
spare parts only.
Park the machine on flat floor.

KH4014F-KH3018F
ENGLISH
W ARNING:
High pressure water jet.
The water jet may be dangerous if improperly used, never direct it on
people or animals.
NOT TO BE USED BY
CHILDREN.
Park the machine on flat floo r .
MARKING AND IDENTIFICATION

KH4014F-KH3018F
INSTALLATION
1) Check the oil level that must bealways higher than the rod notch.
C
2) Connect the high pressure hose to
the outlet fitting (B), tightening the
B ferrule
completely and the other
end to the automatic gun (C).
3) If the electric current characteristics (Volt/Hz) correspond to those stated
on the label fixed to the machine, you can inser t the plug. The use of
extensions and loose plugs not to standards is prohibited. The
electrical system the machine is connected to must be made in
conformity with the laws in force in the Country of installation. It is
r ecommended to have a differential thermomagnetic switch with
sensitivity equal to 30 m A upstream from the power socket.
CAUTION :
The earth connection is compulsor y .
4) Connect the water supply hose (the
A
inner diameter must be not smaller
than 14 mm) to the pump inlet fitting
(A). Make sure that the suction filter
of the suction fitting is always
clean . The dirty filter causes a bad
water supply and consequently a
very bad pump operation with the
inevitable risk of a rapid wearing
out and breakage of the internal
mechanisms.

KH4014F-KH3018F
ENGLISH
Brake inser t
A. Braked machine
B. Freemachine
Starting up
USE
A B
1. Openthe water supply cock. (A)
2. Open the gun and keep it open for few seconds to let the air
inside the hoses come out. (B)
CAUTION: Firmly grip the lance with the two hands.
C. Press the ON switch 1 . (C)
A BC
Switching off
1. Close the water delivery cock. (A)
2. Open the gun and keep it open for few seconds to let the water still
inside the hoses come out. (B)
3. Press the OFF switch 0 . (C)
4. Close the gun.(B)
5. Disconnect the machine from the electric supply by removing the
plug from the power socket.
CAUTION:
The new machine needs a shor t running in of the motor/pump set. The
running in consists of operating the machine for no more than 1 hour and
wait 1 hour for its cooling; this operation has to be done 4 or 5 times.

KH4014F-KH3018F
How to use the adjustable head:
Selection of the low and high pressure (passing from one to the other
pressure must absolutely be done with closed gun) (1)
High pressure (arrow operation) (2)
Low pressure (arrow operation) (3)
HIGH 2
PRESSURE
1 LOW 3
PRESSURE
In low pressure the pump is pre-arranged to suck and mix detergents
and other liquid additives thanks to an incorporated automatic device that
can be remote controlled by the adjustable head. POS. 3
To suck detergent and other liquid additive the operator must act on the
head and reach thelow pressure that allows the automatic suction.
When the detergent suction operation is ove r , the operator must reach the
high pressure acting on the adjustable head. POS.2
How to use the gun safety:
1 . Safety release ( A )
2 . Safety locking (B)
A B

KH4014F-KH3018F
ENGLISH
ROUTINE MAINTENANCE
The following operations must be done in order to avoid damages to
the mechanical components bearing the heavier work load and to keep your
water pressure cleaner performances efficient.
1) Important ! When the machine is new , the pump/motor set must berun
in for a shor t period. This running in consists of using the machine for
no more than 1 hour and to wait for 1 hour for its cooling;
this operation has to be done 4 or 5 times.
2) Check thepump and gear box oil level periodically , it must always be
higher than the rod notch. Change the pump oil after the first 25 working
hours, then every 300 hours. Use mineral base ISO 6743/4 (DIN
51524) hydraulic oil only , with ISO VG150 viscosity according to ISO
3448 (DIN 51519) standards.
3) Do not leave the machine at very low
temperatures. The frost can damage
the pump and the circuits.
In case of long stay at temperatures
lower than 0 C the operator must
empty the circuits and make
the pump run for some minutes
with antifreeze liquid reaching the
pump through the water suction hose.
Whereas, too high temperature can
cause the motor overheating when the
machine is working.
4) Do not suck corrosive liquids(paints, acids, solvents, very dense
liquids) as they could p permanently damage the pump. After the use of
detergents or other liquids, always suck clean water to avoid deposits
and scales.
5) Check and clean the water filter on the
pressure cleaner at least once a
month.
6) Park the machine on flat floo r .
When not used, the machine must be stored in places
protected from the atmospheric agents.

KH4014F-KH3018F
TROUBLE ESHOOTING
TROUBLES
CAUSE
S
CURE
S
The pump runs but fails to reach the
stated pressure
The pump sucks air
Check suction hose and seals
Worn, dirty or locked suction/
deliveryvalves
Clean or replace
Inadequate or worn nozzle
Replace
Worn gaskets
Replace
Clogged suction filter
Clean or replace
Dirty VBR valve seat
Clean or replace
Irregular swings in pressure
Worn, dirty or locked suction/
deliveryvalves
Check, clean and/or replace
Air suction
Check the suction hose
Worn gaskets
Replace
Poor water supply
Check the water supply
Pressure drop
Worn nozzle
Replace the nozzle
Dirty suction/delivery valves
Clean or replace
Worn gaskets
Replace
Noise
Air suction
Check the air suction lines
Worn, dirty valves
Clean and/or replace
Worn bearings
Replace
Presence of water in the oil
Worn water-oil seal rings
Replace
Water leaking from the head
Worn gaskets
Replace
Worn o-rings
Replace
Oil leakages
Worn oil sealing rings
Replace
The motor does not start
The plug is not correctly inserted
Check plug, cable, switch
No power
Check plug, cable, switch
Locked 0-1 switch
Unlock or replace
The motor hums but does not start
The voltage (Volt) is lower than required
Check the electric system is
adequate
The pump is locked or frozen
Make the motor turn manually
Electrical extension with inadequate
cross-section
Refer to the table for correct use of
the extensions.
The motor suddenly stops
Check that voltage is as required.
Disconnect the switch and leave
cooling for a few minutes.
Please contact manufacturer or an after-sales service center for each of the above mentioned operation.

KH4014F-KH3018F
ENGLISH
GUARANTEE REGULATIONS
The general warranty laws applied refer to rule 1999/44 CE “about some aspects of warranty
and sale of goods”.
In particular:
1. Manufacturer’s responsability:
Our products are covered by a 12-months guarantee period for manufacturing
defects.Warranty does not cover parts subject to normal wear and tear when the machine is
being used, in particular: pistons, grommets, seals, pipes, nozzles and valves.
Warranty is limited to defects that can be proved and attributed to manufacturing and/or to
the material used.
Cases and/or defects deriving from normal wear, incorrect and/or improper use,
erroneous electrical and/or water connection of the appliance are not covered by
warranty.
The manifacturer will not be responsable for any costs or claims due to the machine in
non operational, resulting from repair or servicing.
2. Technical interventions:
Any technical intervention carried out by non-authorized personnel nullifies warranty,
excluding any further responsability on part of the manufacturer, especially for damages to
things or third parties. The replacement or repair of any faulty parts is subject to the
manufacturer’s unquestionable decision.
Each time something is done to the appliance and/or its system without the explicit
authorization of the assistance centre, all guarantee rights will become void.
Only the assistance service and specialised dealers can receive spare parts, therefore these
spare parts will be supplied on the basis of this warranty.
3. Authorized Assistance Centres:
The authorized assistance service substitutes the manufacturer insofar as the obbligations
and rights of the conditions of this warranty are concerned.
However, the Authorized Assistance Centre can lay no claims and neither has it any right,
being irrelevant as far as this warranty is concerned.
4. Other aspects:
•Warranty becomes effective on purchase.
•In any case, the buyer is responsible for costs and risks of transport of the product.
•Warranty does not cover periodical checks, calibrations and any further maintenance and/or
editing operation.
•It is compulsory to show either the receipt or invoice to have the right to use this warranty.
•Any right to warranty becomes void if the identification label stuck on machine (indicating
the test technical data and the SERIAL NUMBER, see paragraph “LABELLING AND
IDENTIFICATION”) is removed, tampered or made illegible.
•The dealer must put his stamp and signature in the space provided on the last page of the
handbook.
The manifacturer reserves the right to make modifications to this manual and to the technical
specifications of the appliances produced without any previous notice.
• OWNERSHIP RIGHTS:
The goods remain the exclusive property of the selling party until the agreed price has been
paid in full as foreseen by art. 1523 of the Civil Code.
•DISPUTES:
Any dispute whatsoever falls under the legal jurisdication of the law court of Reggio Emilia
(Italy).

KH4014F-KH3018F
La dotazione standard comprende :
- High-pressure hose.
- Washing lance with gun.
- T otal stop.
- Detergent reservoir.
OPTIONAL EQUIMENT
K5000//K5050 water pressure cleaners can be equipped with additional
accessories according to your cleaning requirements; request them from
you local point-of-sale.
- Sandblasting kit:
To sandblast with the power of high pressure.
- Antiscaling filter:
Toavoid scales and deposits inside the pump.
-16 mt. Hose.

KH4014F-KH3018F
ENGLISH
TECHNICAL FEACTURES

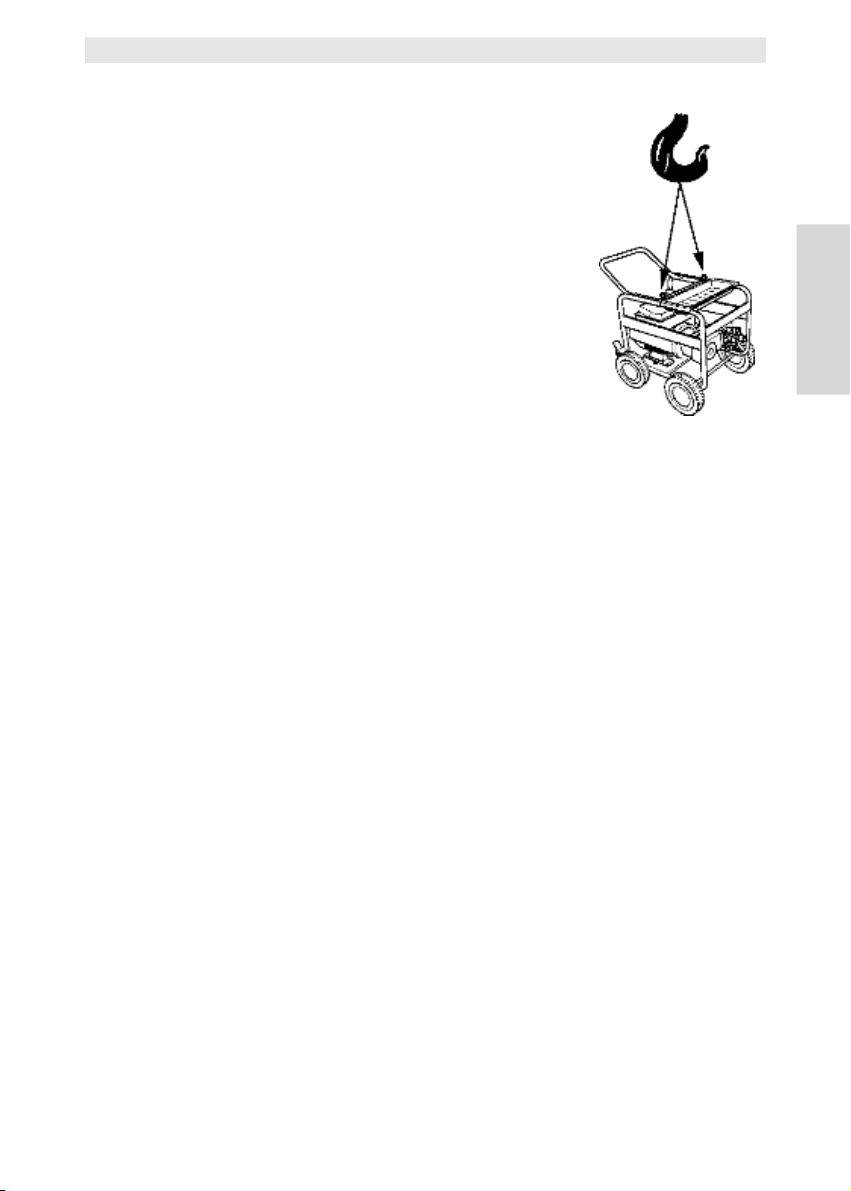

Packing and despatch
When despatched or moved the machine is
packed on pallets. The packing material is
particularly sensitive to rain, fog, direct sunshine,
etc.
If the machine has to be moved and it is impossible to
rebuild the original packing , it must be well tied to
avoid any movement inside the vehicle.
Demolition of the machine
Once decided to scrap the water pressure cleane r , we recommend to make it
inoperative by taking off the external supply cable and the motor supply
cable, not before having completely empty the various internal reservoirs from
the liquids they contain.
Ecological information
Theenvironment must be respected in getting rid of: thepacking material,
the spare parts, the whole machine and the various liquids in order not to
pollute the earth, water and air , always respecting the relative current
laws.
Instructions for a proper treatment of waste materials:
- Ferrous materials, aluminium, copper: these metals must be recycled:
please take them to a special authorized collecting centre.
- Plastic materials: they must be taken to a dump, an incinerato r , or a
special recycling centre.
- Used oils: they must be taken to a special authorized collecting
centre.

KH4014F-KH3018F
TECHNICAL FEACTURES
MODEL
MAX PRESSURE
CAPACITY
MOTOR POWER
THREE-PHASE
VOL T AGE
I CURRENT INTENSITY
MAX SPEED (REV/MIN)
MOTOR PROTECTION
INSULATING CLASS
MOTOR PROTECTOR
MAX WATER
TEMPERATURE
MAX SUPPLY
PRESSURE
HOSE LENGTH
OIL CAPACITY
TYPE OF OIL
VISCOSITÀ OLIO
DIMENSIONS
WEIGHT
KH3018F
300bar 400bar
18L/min 14 L/min
15HP 15 HP
400V 50HZ 400V 50HZ
24A 24A
1450 1450
IPx4 IPx4
F F
TÉRMICO TÉRMICO
45 C 45 C
5 bar 5 bar
10 m t 10 m t
0,7 L 0,7 L
ISO 6743/4
(DIN 51524)
ISO
6743/4
(DIN 51524)
ISO VG 150
ISO3448
(DIN 51519)
ISO VG 150
ISO3448
(DIN 51519)
cm70x80x100 cm70x80x100
125 kg 125 kg
KH4014F

KH4014F-KH3018F
ADVERTENCIAS
Leer atentamente las instrucciones de uso. La casa costructora no responde
de los daños que pudieran sufrir personas o cosas debido a un uso
inadecuado de la máquina y a no haber observado las prescripciones de
seguridad y mantenimiento. El presente manual es parte integrante de la
máquina, y debe estar siempre a disposición del usuario y/o encargado del
mantenimiento;
Las indicaciones recogidas en este manual no sustituyen a las disposiciones
de seguridad y datos técnicos, para instalación y funcionamiento, aplicadas
directamente a la máquina.
El usuario debe atenerse a las normas de seguridad vigentes en el país de
instalación. No se debe utilizar la máquina en caso de detección de defectos
o señales de deterioro que pudieran afectar a la seguridad original.
El instalador, usuario o encargado de manutención tienen obligación de
señalar a la casa fabricante las anomalías que pudieran producirse.
La máquina se ha construido destinada a aplicaciones específicas.
No debe ser modificada ni usada para aplicaciones que difieran de las
establecidas en el campo de empleo.
La máquina debe ser utilizada por una persona adulta y adiestrada en su uso.

KH4014F-KH3018F
ESPAÑOL
NORMAS DE SEGURIDAD
A TENCIÓN:
Nunca tocar la toma de corriente
con las manos mojadas.
No dejar la máquina en espacios
cerrados o, en todo caso, donde la
ventilación sea escasa.
Antes de efectuar cualquier
operación en el aparato, es
necesario desenchufar la clavija de
la toma de corriente.
La casa costructora en estos casos
declina toda forma de
responsabilidad, ya que el
mencionado tipo de actuación es
siempre de tipo técnico, siendo im-
perativo el confiar su realización a
un centro especializado.
Comprobar que el tubo del agua
esté libre de estrangulamientos.
ATENCIÓN:
Es obligatoria la conexión a
tierra.

KH4014F-KH3018F
Se prohíben las reparaciones de carácter
improvisado en el cable eléctrico. Se
prohíbe el empleo de alargaderas y
enchufes de carácter improvisado o, en
todo caso, no conformes a la
norma.Prestar atención a que el caudal
eléctrico que la alargadera pueda asumir
no represente un valor inferior a la
absorción de la máquina, señalada en la
placa de datos.
Se prohíbe dirigir el chorro de agua
contra la bomba y contra cualquier otra
parte bajo tensión eléctrica. Puede ser
causa de desperfectos eléctricos y
de peligro para el operador.
Proteger la máquina de los agentes
atmosféricos. Evitar el uso de la máquina
bajo la lluvia o tormentas, y en cualquier
otra situación en que el agua u otros
líquidos puedan afectar las partes
eléctricas.
No utilizar el cable de alimentación o los
tubos de conexión para mover la
máquina. No utilizar la clavija de
alimentación para efectuar las opera-
ciones de encendido y apagado.
No utilizar el aparato si estuvieran
dañados el cable de alimentación u otras
partes importantes, como por ejemplo
los dispositivos de seguridad, los tubos
flexibles de alta presión, las pistolas de
gatillo o los cables eléctricos.
ATENCIÓN:ATENCIÓN:
Los tubos flexibles, los tubos racores y los
accesorios de alta presión son importantes para
la seguridad del aparato. Utilizar solamente
accesorios o recambios originales.
No utilizar el aparato con personas si
éstas no están protegidas con la
vestimenta adecuada.

KH4014F-KH3018F
ESPAÑOL
ATENCIÓN:
Chorro de agua a alta presión.
El uso indebido del chorro de agua puede ser peligroso; nunca
dirigirlo contra personas o animales.
SE PROHÍBE SU UTILIZACIÓN A LOS
NIÑOS.
Estacionarla máquina en piso llano.
MARCA E IDENTIFICACIÓN

KH4014F-KH3018F

KH4014F-KH3018F
INSTALACIÓN
1) Controlar el nivel del aceite, que siempre deberá estar por encima de
la muesca en la varilla.
C
2) Conectar el tubo de altapresión
al racor de impulsión (B),
apretando a fondo la abrazadera;
conectar el otro extremo a la
pistola automática (C).
B
3) Si las características de la corriente eléctrica (Volt/Hz)
correspondena las establecidas en la placa fijada a la máquina, se
puede enchufar la clavija. Se prohíbe el uso de alargaderas y clavijas
provisorias no conformes a la normativa.
La instalación eléctrica a la que se conecte el aparato deberá haber
sido realizada en conformidad con las leyes vigentes en el país de
instalación. Se recomienda situar un interruptor magnetotérmico
diferencial, con sensibilidad equivalente a 30 mA, por encima de la
toma de alimentación.
A TENCIÓN:
Es obligatoria la
conexión a tierra.
4)
A
Conectar el tubo de alimentación
del agua (de diámetro no inferior a
14 mm) al racor de entrada de la
bomba (A). Asegurarse de que el
filtro de aspiración contenido en el
racor de aspiración esté siempre
limpio. El filtro, si está sucio, no
permitirá una correcta alimentación
de agua, lo cual será causa de un
pésimo funcionamiento de la
bomba, con el inevitable riesgo de
que los mecanismos internos se
desgasten y se rompan
rápidamente.
