MODEL: HPB
OPERATING INSTRUCTION
AND PARTS MANUAL
■ HPB-3520 ■ HPB-4020

3
MACHINE SPECIFICATIONS
●●
●●
●Pump Volume At Pump Head:
HPB-3520 3.5 GPM
HPB-4020 4.2 GPM
●●
●●
●Pump Pressure At Pump Head:
HPB-3520 2000 PSI
HPB-4020 2000 PSI
●●
●●
●Machine Voltage:
HPB-3520 230V/1PH
HPB-4020 230V/1Ph
● ●
● ●
● Machine Dimensions: HPB-3520 Length = 28" Width = 28" Height = 43"
HPB-4020 Length = 41" Width = 32" Height = 44"
●●
●●
●Total Machine Amperage:
HPB-3520 22 Amps
HPB-4020 29 Amps
●●
●●
●Shipping Weight:
HPB-3520 340 Lbs.
HPB-4020 515 Lbs.

CONTENTS
Shark HPB Manual • Form 97-6131 • Revised 12/01
SERIAL NUMBER:
DATE PURCHASED:
FOR SALES AND SERVICE, PLEASE CONTACT:
4
Introduction ............................................................ 5
Important Safety Information ............................. 5-6
Installation .......................................................... 6,9
Component Identification, Junior Series .............. 7
Component Identification, Senior Series .............. 8
Starting and Operating Instructions ..................... 9
Preventative Maintenance................................ 9-10
Optional Equipment ............................................... 9
Maintenance and Service .............................. 10-11
HPB Junior Series Exploded View...................... 12
HPB Junior Series
Exploded View Parts List .......................... 13-14
HPB Senior Series Exploded View ..................... 15
HPB Senior Series
Exploded View Parts List .......................... 16-17

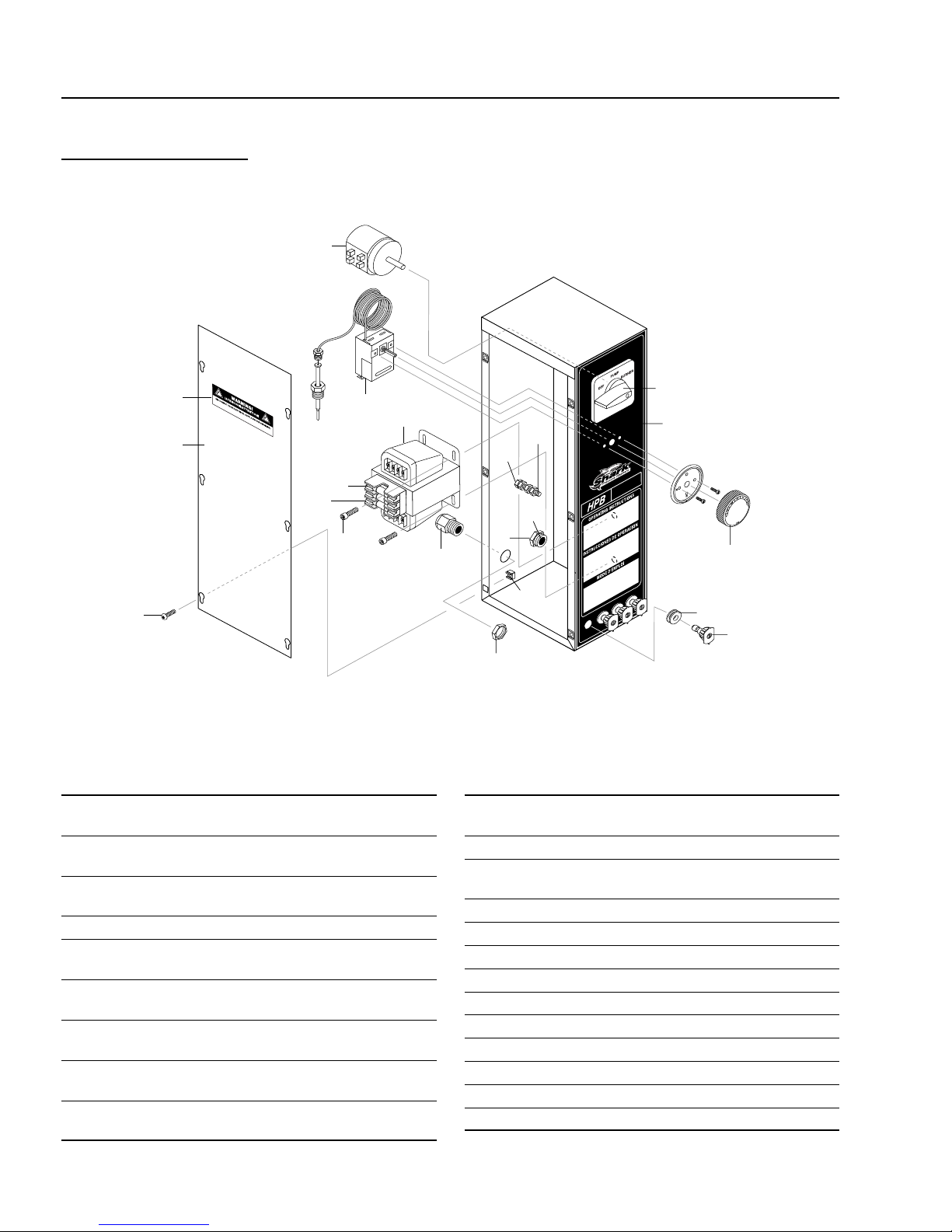

Control Panel Exploded View and Parts List,
Junior Series ................................................... 18
Control Panel Exploded View and Parts List,
Senior Series .................................................. 19
Hose & Spray Gun Assembly ............................. 20
Troubleshooting .............................................. 21-23
Maintenance Schedule........................................ 24
Oil Change Record .............................................. 24
Warranty

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
5
INTRODUCTION
Thank you for purchasing a HPB.
This manual covers the operation and maintenance
of the HPB-352001A, 352007A Junior Series and
HPB-402001A, 402007A Senior Series pressure wash-
ers. All information in this manual is based on the latest
product information available at the time of printing.
We reserve the right to make changes at any time with-
out incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer. Warning information
should be emphasized and understood. If the operator
is not fluent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with the
operator in the operator’s native language by the pur-
chaser/owner, making sure that the operator compre-
hends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
This manual should be considered a permanent
part of the machine and should remain with it
if machine is resold.
When ordering parts, please specify model and
serial number.
IMPORTANT SAFETY
INFORMATION
CAUTION: To reduce the risk of
injury, read operating instruc-
tions carefully before using.
1. Read the owner's manual thor-
oughly. Failure to follow instruc-
tions could cause malfunction
of the machine and result in
death, serious bodily injury and/
or property damage.
2. All installations must comply with local codes. Con-
tact your electrician, plumber, utility company or the
selling distributor for specific details.
To comply with National Electrical Code (NGPA 70)
and provide additional protection from risk of elec-
tric shock, this hot water converter is equipped with
a UL approved ground fault circuit interrupter (GFCI)
power cord.
WARNING
KEEP WATER SPRAY
AWAY FROM
ELECTRICAL
WIRING.
WARNING
RISK OF FIRE.
DO NOT USE WITH
FLAMMABLE
LIQUIDS.
WARNING
HIGH PRESSURE
SPRAY CAN PIERCE
SKIN AND TISSUES.
WARNING: Flammable liquids
can create fumes which can ignite
causing property damage or se-
vere injury.
WARNING: Do not use gasoline,
crankcase drainings or oil con-
taining gasoline, solvents or alco-
hol. Doing so will result in fire
and/or explosion.
WARNING: Do not spray flammable liquids. Operate
only where an open torch is permitted.
3. This fuel burning machine shall be installed only in
locations where combustible dusts and flammable
gases or vapors are not present.
4. In these oil burning models, use only kerosene, No.1
home heating fuel, or diesel fuel.
WARNING: Keep water spray,
wand and high pressure hose
away from electrical wiring or fa-
tal electric shock may result. Read
warning tag on electrical cord.
5. To protect the operator from
electrical shock, the machine
must be electrically grounded.
It is the responsibility of the
owner to connect this machine
to a UL grounded receptacle of proper voltage and
amperage ratings. Do not spray water on or near
electrical components. Do not touch machine with
wet hands or while standing in water. Always dis-
connect power before servicing.
CAUTION: Spray gun kicks back —hold with both
hands.
6. Grip cleaning wand of attached pressure washer se-
curely with both hands before starting cleaner. Fail-
ure to do this could result in injury from a whipping
wand.
WARNING: High pressure stream
of fluid that this equipment can
produce can pierce the skin and
its underlying tissues, leading to
serious injury and possible am-
putation.
7. High pressure developed by the
attached pressure washer can
cause bodily injury or damage.
Use caution when operating. Do not point the spray
gun at anyone or at any part of the body. This ma-
chine is to be used only by qualified operators.
8. Never make adjustments on machine while it is in
operation.
READ OPERATOR’S
MANUALTHOROUGHLY
PRIOR TO USE.
CAUTION

6 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
WARNING
RISK OF FIRE.
DO NOT ADD FUEL
WHEN OPERATING
MACHINE.
WARNING
PROTECTIVE
EYEWEAR AND
CLOTHING MUST
BE WORN.
WARNING
RISK OF
ASPHYXIATION.
USE ONLY IN A WELL
VENTILATED AREA.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne and
fly at high speeds.
9. Eye safety devices must be
worn when using this equip-
ment.
WARNING: Risk of asphyxiation
—Use this product only in a well
ventilated area.
10. When the machine is working,
do not cover or place in a closed
space where ventilation is insuf-
ficient.
WARNING: Risk of fire. Do not add
fuel when the machine is operat-
ing or still hot.
11. Machines with a spray gun
should not be operated with
the spray gun in the off position
for extended periods of time as
this may cause damage to the
pump. Check to make sure
burner shuts off when spray gun trigger is closed.
12. Protect from freezing.
13. To prevent a serious injury, make certain quick cou-
pler on discharge hose has locked before using pres-
sure washer.
14. Do not allow acids, caustic or abrasive fluids to pass
through the pump.
15. Inlet water must be cold and clean fresh water.
16. Do not allow CHILDREN to operate the pressure
washer at any time. THIS MACHINE MUST BE
ATTENDED DURING OPERATION.
17. The best insurance against an accident is precau-
tion, and knowledge of the machine.
18. Do not operate this product when fatigued or under
the influence of alcohol or drugs. Keep operating area
clear of all persons.
19. We will not be liable for any changes made to our
standard machines, or any components not pur-
chased from us.
20. Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
21. Follow the maintenance instructions specified in the
manual.
22. When making repairs disconnect from electrical
source.
23. Turn burner off and open spray gun to allow water to
flow and cool coil to 100°F before turning machine
off.
24. Before disconnecting high pressure hose from
hot water outlet, turn off burner to allow water to cool
to 100°F, then turn off pump motor and water supply
and operate spray gun to relieve back pressure in
hose.This will prevent coil damage from thermal ex-
pansion.
Caution:This machine produces hot water and must
have insulated components attached to protect the
operator.
INSTALLATION
Place machine in a convenient location providing ample
support, draining and room for maintenance.
This machine is intended for indoor use. Machine
must be stored indoors when not in use.
Location:
The location should protect the machine from damag-
ing environmental conditions, such as wind, rain, and
freezing.
1. This machine should be run on a level surface where
it is not readily influenced by outside sources such
as strong winds, freezing temperatures, rain, etc.
It should be located to allow accessibility for refilling
of fuel, adjustments and maintenance. Normal
precautions should be taken by the operator of the
machine to prevent moisture from reaching the
electrical controls.
2. It is recommended that a partition be made between
the wash area and the machine to prevent water
spray from coming in contact with the machine. Ex-
cess moisture reaching any electric components or
electrical controls will reduce machine life and may
cause electrical shorts.
3. During installation of the machine, beware of poorly
ventilated locations or areas where exhaust fans may
cause an insufficient supply of oxygen. Sufficient
combustion can only be obtained when there is a
sufficient supply of oxygen available for the amount
of fuel being burned. If it is necessary to install a
machine in a poorly ventilated area, outside fresh
air may have to be piped to the burner and a fan
installed to bring air into the machine.
Avoid small locations or areas near exhaust fans.

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
7

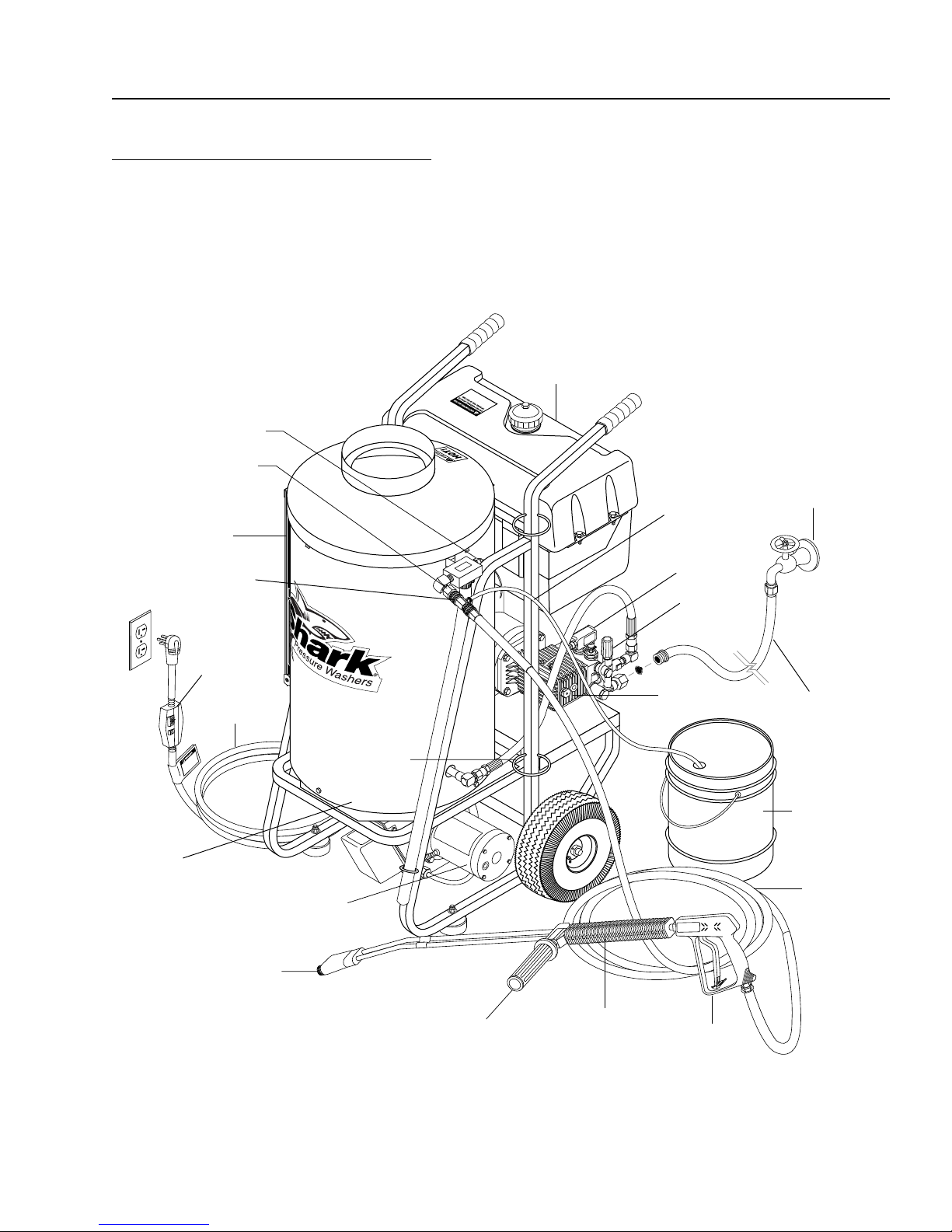

COMPONENT IDENTIFICATION
JUNIOR SERIES
CAUTION HOT WATER:
Must use insulated
spray gun and wand.
High Limit
Thermostat
Fuel Tank
Fresh Water
Faucet
(not included)
Detergent
Suction Hose
Unloader
Pressure
Switch
Garden Hose
(not included)
Pump
Downstream
Detergent Injector
Wand Holder
Burner
Chamber
Detergent Bucket
(not included)
High Pressure
Outlet Hose
Insulated
Spray Gun
Variable Pressure
Insulated Wand
Control
Handle
Burner Motor
Control Panel
Discharge
Nipple
High Pressure
Nozzle
GFCI
Nozzle Coupler

8 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL

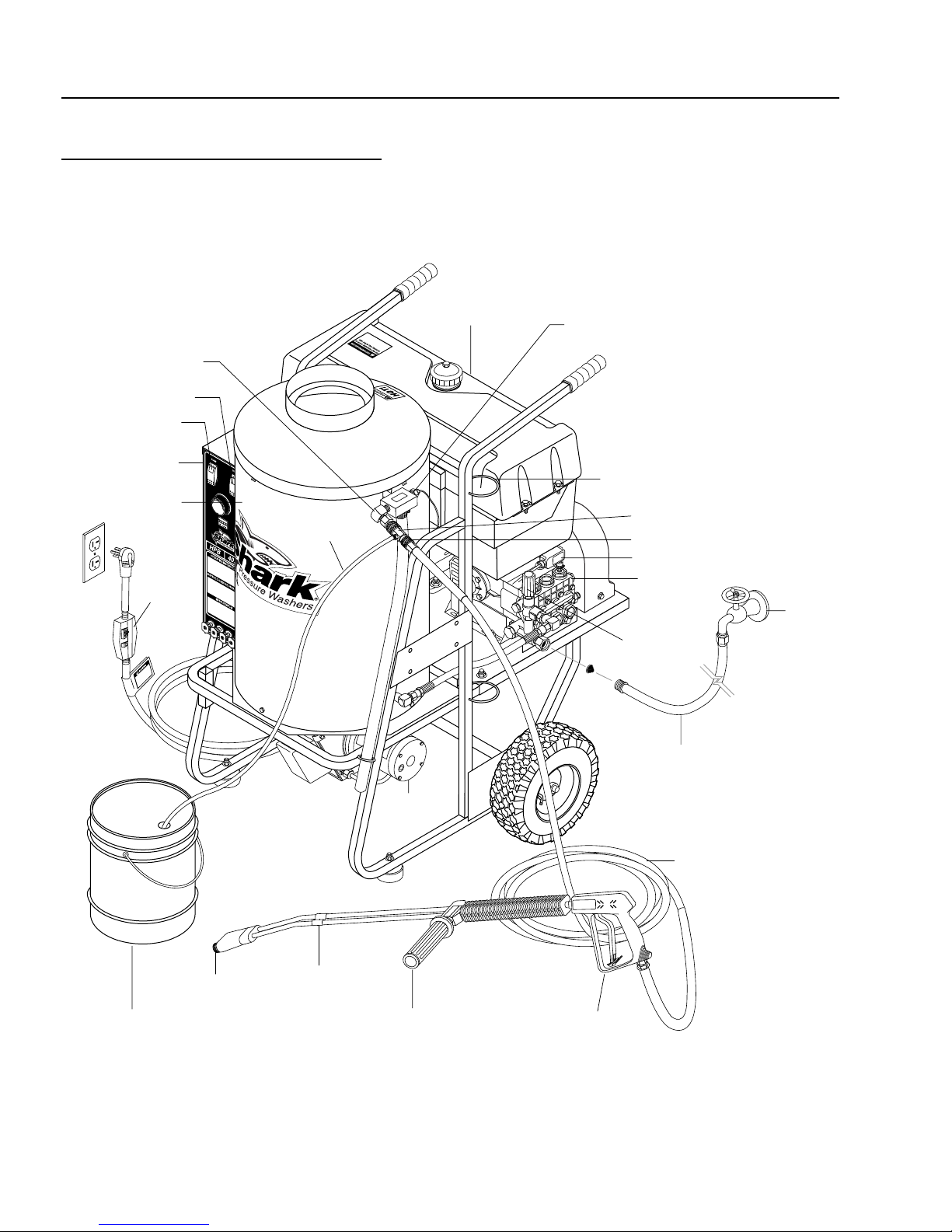

COMPONENT IDENTIFICATION
SENIOR SERIES
CAUTION HOT WATER:
Must use insulated
spray gun and wand.
High Limit
Thermostat
Fuel Tank
Wand Holder
Downstream
Detergent Injector
Pump
Fresh Water
Faucet
(not included)
Garden Hose
(not included)
High Pressure
Outlet Hose
Burner
Motor
Insulated
Spray Gun
Variable Pressure
Insulated Wand
Control
Handle
Detergent
Bucket
(not included)
Detergent
Suction Hose
Burner
Chamber
Control
Panel
Pump Switch
Burner Switch
Discharge
Nipple
Quick Coupler
Nozzle
Coupler
Pressure Switch
Unloader
GFCI

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
9
Electrical:
This machine, when installed, must be electrically
grounded in accordance to local codes. Check for proper
power supply using a volt meter.
Placement:
Do not locate near any combustible material. Keep all
flammable material at least 20 feet away.
Allow enough space for servicing the machine.
Local code will require certain distances from floor and
walls. (Two feet away from walls should be adequate.)
Water Source:
The water source for the pressure washer should be sup-
plied by a minimum 5/8" I.D. garden hose with a city wa-
ter pressure of not less than 30 PSI. If the water supply
is inadequate, or if the garden hose is kinked, the at-
tached pressure washer will run very rough and the
burner will not fire.
Connection:
Connect the wand, nozzle, hose and spray gun (where
applicable). On pipe thread connections, use teflon tape
to avoid water leaks. (See Component Identification).
Venting:
Adding exhaust vent pipe to your oil fired burner is not
recommended because restricted air flow causes car-
bon build-up, which affects the operation, and increases
maintenance on the coil. If a stack must be used, refrain
from using 90° bends. If the pipe can not go straight up
then use only 45° bends and go to the next size pipe.
The overall pipe length must not exceed 6 feet in length.
STARTING AND OPERATING
INSTRUCTIONS
To Start:
1. STOP! Read operator’s manual
before operating. Failure to read
operation and warning instruc-
tions may result in personal in-
jury or property damage.
2. Connect water supply hose and
turn on water.
3. Check fuel tank and pump oil
levels.
4. Connect high pressure hose to discharge nipple by
sliding quick coupler collar back. (If detergent is to
be applied, insert a detergent injector as shown in
Component Identification).
5. Insert quick coupler onto discharge nipple and se-
cure by pushing quick coupler collar forward.
6. Securely attach the desired high pressure nozzle into
wand coupler as described in steps 4 and 5.
7. Connect the power cord into the proper electrical
outlet, then push in the GFCI reset button. (Refer to
serial plate for information.)
8. Grip spray gun handle securely and pull trigger.Then
turn variable pressure control handle counterclock-
wise.
9. Turn switch to pump position.When a steady stream
of water flows from the spray gun and wand the ma-
chine is ready for cold water cleaning by turning the
variable pressure control handle clockwise to raise
the pressure.
10. For hot water washing, turn the switch to the burner
position. (The burner will light automatically when
the trigger on the spray gun is pulled.)
To Stop:
1. If using the detergent injector, place the suction line
in a bucket of water allowing detergent to be flushed
from system.
2. Turn HPB burner switch off and continue spraying
water, allowing the water to cool.
3. After water has cooled to less than 100°F, turn the
attached pressure washer off.
4. Turn garden hose water off. Open the spray gun to
relieve remaining pressure.
5. Protect from freezing.
OPTIONAL EQUIPMENT
Auto Start/Stop Timer Operation
Once the pump switch is turned on, simply triggering the
spray gun is all it takes to start the machine. Once the
trigger is released the timer will let the machine bypass
water for 15 seconds. It also starts an internal 5 to 60
minute lockout timer.This feature is totally adjustable by
the operator by adjusting the knob at the top of the timer.
We recommend setting the timer for 15 minutes. To re-
set the lockout feature, operator must trigger the spray
for 10 full seconds.
PREVENTATIVE MAINTENANCE
1. Use clean fuel - kerosene, No. 1 home heating fuel
or diesel fuel. Clean or replace fuel filter every 100
hours of operation. Avoid water contaminated fuel
as it will seize up the fuel pump. De-soot coils monthly.
Use an additive if diesel is being used.
2. Check to see that the attached pressure washer wa-
ter pump is properly lubricated.
3. Follow winterizing instructions to prevent freeze dam-
age to pump and coils.
4. Always neutralize and flush detergent from system
after use.
READ OPERATOR’S
MANUALTHOROUGHLY
PRIOR TO USE.
CAUTION

10 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
5. If water is known to be high in mineral content, use a
water softener on your water system, or de-scale as
needed.
6. Do not allow acidic, caustic or abrasive fluids to be
pumped through system.
7. Always use high grade quality cleaning products.
8. Never run attached pressure washer pump dry for
extended periods of time.
9. If machine is operated with smoky or eye burning
exhaust, coils will soot up, not letting water reach
maximum operating temperature. (See section on
Maintenance and Service).
10. Never allow water to be sprayed on or near the mo-
tor or burner assembly or any electrical component.
11. Delime coils as per instructions.
It is advisable, periodically, to visually inspect the burner.
Check air inlet to make sure it is not clogged or blocked.
Wipe off any oil spills and keep equipment clean and
dry.
The areas around the HPB should be kept clean and
free of combustible materials, gasoline and other flam-
mable vapors and liquids.
The flow of ventilating air to the burner must not be
blocked or obstructed in any manner.
MAINTENANCE AND SERVICE
Unloader Valves:
Unloader valves trap pressure in the line when a shut-
off spray gun is closed. Machines with unloader valves
are preset and tested at the factory before shipping. Oc-
casional adjustment of the unloader may be necessary
to maintain correct pressure.
Winterizing Procedure:
Damage due to freezing is not covered by warranty. Ad-
here to the following cold weather procedures whenever
the washer must be stored or operated outdoors under
freezing conditions.
During winter months, when temperatures drop below
32°F, protecting your machine against freezing is nec-
essary. Store the machine in a heated room. If this is not
possible then mix a 50/50 solution of anti-freeze/water
or windshield washer fluid with water in a 5 gallon bucket.
Place a short section of garden hose into the bucket and
connect it to the machine. Elevate the bucket and turn
the pump on to siphon the anti-freeze through the ma-
chine. If compressed air is available, an air fitting can be
screwed into the inlet connector and by injecting com-
pressed air, all water will be blown out of the system.
If you have an optional float tank, pour the antifreeze
into this tank and run machine until antifreeze exits dis-
charge nipple.
High Limit Hot Water Thermostat:
For safety, each machine is equipped with a high limit
control switch. In the event the temperature of the water
should exceed its operating temperature, the high limit
control will turn the burner off until the water cools.
Pumps:
Use only SAE 30 weight non-detergent oil. Change oil
after first 50 hours of use. Thereafter, change oil every
three months or at 500 hour intervals. Oil level should be
checked by using the dipstick found on the top of the
pump or by the red dot visible through the oil gauge win-
dow. Oil should be maintained at that level.
Cleaning of Coils:
In alkaline water areas, lime deposits can accumulate
rapidly inside the coil pipes. This growth is increased by
the extreme heat build up in the coil.The best prevention
for liming conditions is to use high quality cleaning de-
tergents. In areas where alkaline water is an extreme
problem, periodic use of Deliming Powder will remove
lime and other deposits before coil becomes plugged.
Deliming Coils With A Pressure Washer:
Periodic flushing of coils is recommended.
Step 1 Fill a 5 gallon bucket with 4 gallons of water, then
add 1 lb. of deliming powder. Mix thoroughly.
Step 2 Remove the high pressure nozzle from the pres-
sure wand and put the wand into the bucket. Se-
cure the trigger on the spray gun into the open
position.
Step 3 Attach a short section (3-5 ft.) of garden hose to
the attached pressure washer to siphon solu-
tion from the elevated bucket. Start up pressure
washer, allowing solution to be pumped through
pressure washer and into HPB coils and back
into the bucket. Solution should be allowed to
circulate 2-4 hours.
Step 4 After circulating solution flush entire system with
fresh water.
Removal of Soot In Heating Coil:
In the heating process, fuel residue in the form of soot
deposits may develop between the heating coil pipe and
block air flow which will affect burner combustion. When
soot has been detected on visual observation, the soot
on the coil must be washed off after coil has been re-
moved using the following steps:
1. Remove the tank head assembly by unscrewing the
three tek screws and lifting the tank head off.
2. Remove the two pipe nipples and associated fittings.
3. Lift the coil out of the outer wrap.
CAUTION: The coil weighs about 80 lbs. Use proper
lifting techniques.

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
11
4. Clean, repair and replace the coil by reversing the
above steps.
Coil Reinstallation
Reinstall by reversing the above steps 4 through 1.
Rupture Disk
If pressure from pump or thermal expansion should ex-
ceed safe limits, the rupture disk will burst, allowing high
pressure to be discharged through hose to ground.When
the disk ruptures, it will need to be replaced.
Fuel:
Use clean fuel oil that is not contaminated with water
and debris. Replace fuel filter and drain tank every 100
hours of operation. Use Kerosene No. 1 or No. 2 Heating
Fuel (ASTM D306) or diesel only. NEVER use gasoline
in your burner tank. Gasoline is more combustible than
fuel oil and could result in a serious explosion. NEVER
use crankcase or waste oil in your burner. Fuel unit mal-
function could result from contamination.
Ignition Circuit:
Periodically inspect wires, spring contact and electrodes
for condition, security and proper spacing. For trans-
former test (CAUTION 10,000 VOLTS) use defect free
insulated screwdriver and keep fingers off blade! Lay
blade across one contact: OK if arc will span 1/2" be-
tween end of blade and other contact (see illustration).
Electrode Setting:
(See illustration below)
Burner Nozzle:
Keep the tip free of surface deposits by wiping it with a
clean, solvent-saturated cloth, being careful not to plug
or enlarge the nozzle. For maximum efficiency, replace
the nozzle each season.
Fuel Control System:
The HPB utilizes a fuel solenoid valve located on the fuel
pump to control the flow of fuel to the combustion cham-
ber.This solenoid is activated by a pressure switch located
on the unloader valve.When an operator releases the trig-
Electrodes Check: Periodically check wiring connections.
If necessary to adjust electrodes, use diagram.
Gap
1/8"
3/16"
Side View
1/8"
3/8"
1/2"
2-7/8"
Electrodes
Nozzle Adapter
Top View
ger on the spray gun, the pressure drops, allowing the pres-
sure switch to activate the fuel solenoid.The solenoid then
closes, shutting off the supply of fuel to the combustion
chamber. Controlling the flow of fuel in this way gives an
instantaneous burn or no burn situation, thereby eliminat-
ing high and low water temperatures, and combustion
smoke normally associated with machines incorporating
a spray gun. Periodic inspection is recommended to in-
sure that the fuel solenoid valve functions properly. This
can be done by operating the machine and checking to
see that when the trigger on the spray gun is in the off
position, the burner is not firing.
Fuel Pressure Adjustment:
To adjust fuel pressure, turn the adjusting screw with a
5/32" allen wrench (located on the fuel pump) clockwise
to increase, counterclockwise to decrease. Do not ex-
ceed 200 PSI.
Air Adjustment
Machines are preset and performance tested at the fac-
tory — elevation 100' above sea level. A one time cor-
rection for your location will pay off in economy, perfor-
mance and extended service life. If a smoky or eye-burn-
ing exhaust is being emitted from the stack, two things
should be checked.
First, check the fuel to be certain that kerosene or No. 1
home heating fuel is being used.
Next, check the air adjustment on the burner. An oily, black,
smoky fire indicates a lack of air and the air band should
be moved to allow the air to flow through the burner. Sharp,
eye-burning white fumes indicate too much air flowing
through the combustion chamber.The air band should be
moved to allow less air to flow through the burner.
FUEL AIR ADJUSTMENT
Air Band
Pressure
Adjustment
Screw
Fuel Pump
Pressure
Gauge
Port
Air Band
Adjustment
Screw
Fuel Filter

12 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
6
7
5
2
For Detail
See Control
Panel Illus
13
29
26
25
30
21
19
17
43
22
1
24
23
36
35
40
57
41
27
37
34
38 39

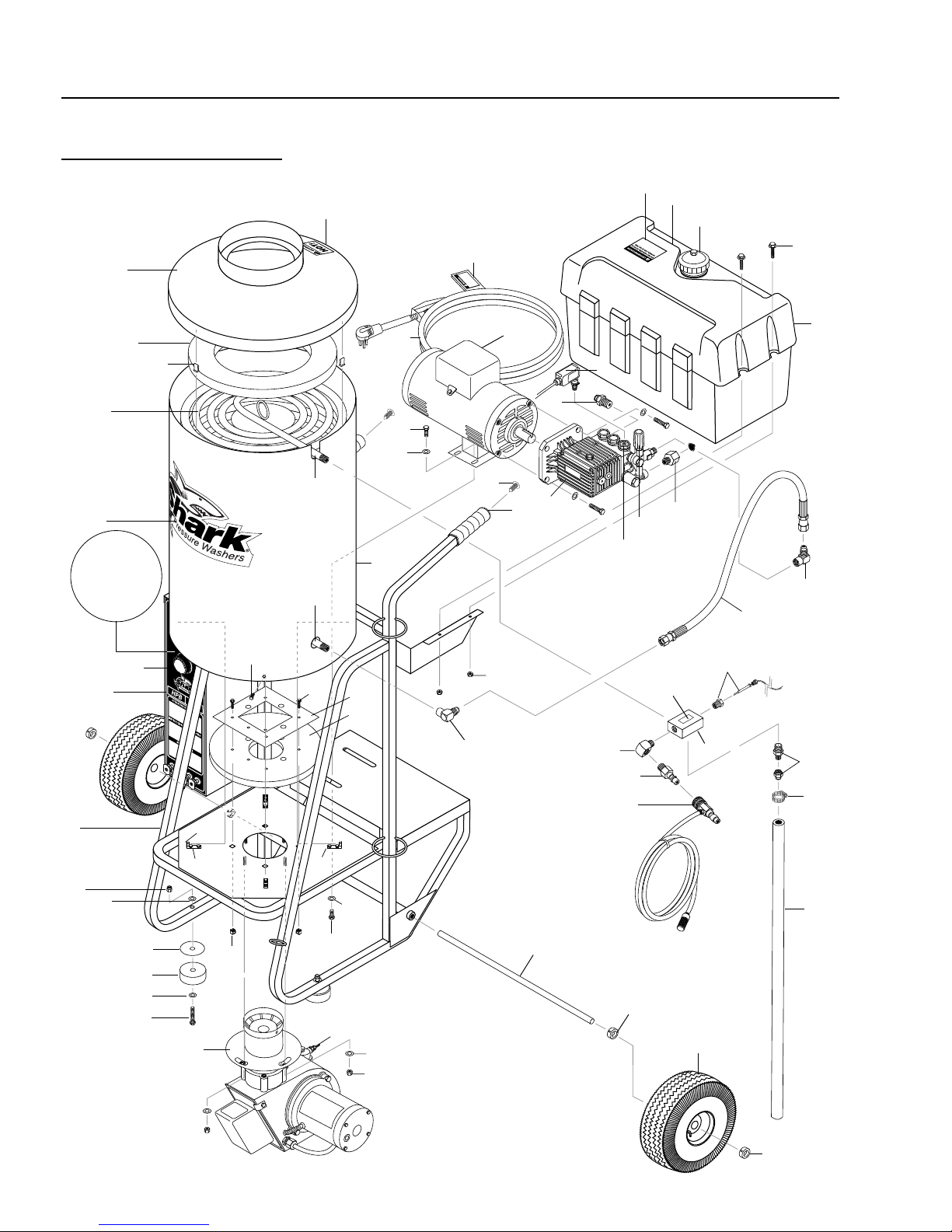

HPB JUNIOR SERIES
EXPLODED VIEW
45
32
4
46
47
54
28
3
48
51
16
15
26
61
58
59
50
60
49
38
39
62
53
31
11
33
18
10
8
63
14
12
9
20
44
42
53
52
55
56

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
13
ITEM PART NO. DESCRIPTION QTY
1 10-020110 Label, Use Only Kerosene 1
2 10-02025A Label, "Hot/Caliente" with Arrows
Warning 1
3 10-08018 Label, Warning, Service Cord 1
4 10-09004 Label, Hot Water Outlet 1
5 11-0101 Label, Shark, Warning 1
6 11-013 Label, Logo Large, Die Cut 1
7 5-1053 Motor, 5 HP, 1 PH, 230V
3450 RPM C-Face
35R606R761G1 1
6-0108 ▲ Cord, Service, SEO, 10/3
/ft 1.5
8 5-2303 Pump, General, TT2035 EBF
(352001A) 1
5-1621 Pump, Legacy, WMH-2035-F
(352007A) 1
9 5-3024 Unloader, PA 6.5 GPM
@ 2600 PSI, VB135L TT
(352001A) 1
5-3151 Unloader, APR 3000 (352007A) 1
10 2-00601 Elbow, 1/2" JIC 3/8" Fem 1
11 2-0031 Elbow, 3/8" Street 2
12 2-10942 Swivel, 1/2" MP x 3/4" GHF
w/Strainer 1
13 4-011184 Detergent Injector Assy, 3-5 GPM,
0.83" 1
14 1-190029 Cap, Valve with 1/4" Gauge Port
(352001A) 1
15-070042532 Cap, Valve, with 1/4" Gauge Port
(352007A) 1
15 2-00101 Nipple, 1/2" x 4", Galv. Sch. 80 1
16 2-00091 Nipple, 1/2" x 3", Galv. Sch .80 1
17 11-0305 Label, Shark, Control Panel 1
18 4-02047720 Hose, 3/8" x 20", 2 Wire,
Pressure Loop 1
19 95-07121218 Coil, Dura, 14.5" Dia. Sch. 80 1
20 90-19980 Screw, 1/4" x 1" 4
21 2-01041 Pad, Soft Rubber, 50 Duro 2
22 2-01103 Grip, 1" Square, Handle 2
23 2-011506 Tank Fuel, 9 Gallon Poly, Black 1
2-9000 ▲ Clamp, Screw, #4 6
4-02100000 ▲ Hose, 1/4", Push-On, Fuel Line
per ft. 3
HPB JUNIOR SERIES
EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
24 2-01167 Cap, Fuel Tank Plastic 1
25 4-0303 Wheel & Tire Assy, 4" Steel Rim
w/Tube 2
26 4-05088 Thermostat, Adjustable, 302°F 1
27 90-1006 Bolt, 5/16" x 3/4" NC 4
28 6-01059 GFCI, 240V 1PH 30A,
w/36' 10-3 Cord 1
29 2-3480 Disk, Rupture Assy, 8000 PSI 1
30 7-00039 Burner Assembly, Oil, MSR,
230V Low Amp 1
7-0009 ▲ Fuel Pump 1
7-21854 ▲ Blower Wheel 1
7-0009611 ▲ Fuel Solenoid, 115V 1
2-99031 ▲ Fuel Filter, Diesel, Disposable1
7-20627 ▲Motor, 115V 1
7-20892 ▲Motor, 230V 1
7-101050-001 ▲Transformer, 120V
Back Hinge 1
7-21948001 ▲ Transformer, 240V
Back Hinge 1
7-0124 Nozzle, Burner, 1.75 "A" 80° 1
31 90-20041 Collar, 5/8" 2
32 2-00602 Elbow, 1/2" JIC x 1/2" Fem, 90° 1
33 90-200012 Nut, 1/4" Flange 4
34 95-07102242 Frame, Assy, Jr., Red 1
2-9030 ▲ Clamp - C, 3/8" 3376 Plastic
Black 3
35 4-02130050 Hose, 7/8" Push-On, Conduit,
/ft. 2.5
36 2-90041 Clamp, Screw #16 1
37 90-50045 Clip, Retaining 4
38 90-2002 Nut, 3/8" ESNA 5
39 90-4002 Washer, 3/8" 12
40 90-4015 Washer, 7/16" x 2-1/2" 2
41 90-10201 Bolt, 3/8" x 2-1/4" 2
42 2-300816 Pump Protector, 3/8" PTP
(General Pumps) 1
2-30082 Pump Protector, 1/2" PTP
(Legacy Pump) 1
43 2-2007 Nipple, 3/8" x 3/8", NPT ST
Male 1
44 6-021720 Pressure Switch, N/O 1/4" 1

14 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
HPB JUNIOR SERIES
EXPLODED VIEW PARTS LIST (CONTINUED)
ITEM PART NO. DESCRIPTION QTY
45 95-07290029 Tank Head Assembly
16" Dia. x 8" Stack 1
46 95-07101225 Block Discharge, Brass
3/8" x 1/2" 1
47 95-07102205 Axle 1
48 95-072000129 Wrap, Outer Coil 1
49 2-1085 Hose Barb, 1/4" Barb x 1/4" ML
Pipe 2
50 7-01482 Insulation, Tank Bottom, 1"
Blanket 1
51 7-014832 Insulation, Tank Head
16" OD x 8" ID 1
52 90-2001 Nut, 5/16", ESNA 4
53 90-4001 Washer, 5/16" Flat 8
54 90-400520 Washer, 7/8" 2
55 95-07290053 Retainer, Burner Insulation 1
56 90-2020 Nut, Cage, 3/8" x 12 GA 4
57 90-40125 Washer, 3/8" x 1" 1
58 95-0729007 Tab, Outer Wrap 4
59 90-20231 Nut, Cage, 1/4" x 12 GA 18
60 90-19960 Screw, 3/8" x 1-1/4" Whiz Loc 4
61 90-19710 Screw, 1/4" x 3/4" Whiz Loc 8
62 90-19711 Screw, 1/4" x 1/2" Whix Loc 10
63 2-0155 Fastener, Ratchet, Nylon 2
▲ Not Shown

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
15
51
8
24
HPB SENIOR SERIES
EXPLODED VIEW
For
Detail See
Control
Panel Illus
18
21
10
6
9
37
32
33
31
28
49
50
52
54
53
19
29
17
36
445
43
44
35
5
7
22
80
27
16
25
26
48
41
47
40
21
Optional
Float Tank
Assembly
76
75
58
69
66
23
79
71 67
62
59
69
66
68
57
17
77
38
56
3
55
69
66
69 80
66
66
46
65
69
60 15
12
39
34
70
14
13
73
42
63
78
64
64
61
20
74

16 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
HPB SENIOR SERIES
EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 10-020110 Label, Use Only Kerosene 1
2 10-02025A Label, "Hot/Caliente" with
Arrows Warning 1
3 10-08018 Label, Warning, Service Cord 1
4 10-09004 Label, Hot Water Outlet 1
5 11-013 Label, Logo Large, Die Cut 1
6 11-0101 Label, Shark, Warning 1
7 2-01041 Pad, Soft Rubber, 50 Duro 2
8 2-01103 Grip, 1" Square, Handle, Shark 2
9 2-011506 Tank, Fuel, 9 Gallon Poly, Black 1
4-02100000 ▲ Hose, 1/4", Push-On, Fuel Line
per ft. 5
10 2-01167 Cap, Fuel Tank, Plastic 1
11 2-30082 Pump Protector, 1/2" PTP 1
12 2-3408 Disk, Rupture Assy, 8000 PSI 1
2-3480 Disk, Rupture Replacement,
8000 PSI 1
13 4-011184 Detergent Injector Assy,
3-5 GPM, .83" 1
14 4-02047722 Hose, 3/8" x 22", 2 Wire,
Pressure Loop 1
15 4-02110000 Hose, 1/2", Push-On /ft. 1.2
15-070042532 Cap, Valve with 1/4" Gauge Port
(402007A) 1
1-190029 Cap, Valve with 1/4" Gauge Port
(402001A) 1
16 4-0307 Wheel & Tire Assy, 6" Steel Rim
w/Tube 2
17 4-05088 Thermostat, Adjustable, 302°F 1
18 5-10401 Motor, 6 HP 1 PH 230V
1725 RPM 36J185X288G1 1
6-0108 ▲ Cord, Service, SEO, 10/3 /ft.1.5
19 5-2304 Pump, General, T-1011
(402001A) 1
5-1651 Pump, TML-3053 (402007A) 1
20 5-3205 Unloader, PA 8 GPM @ 3650 PSI,
VB75K47L 1
5-3151 Unloader, APR.S 3000
(402007A) 1
21 7-00024 Burner Assy, Oil, 046, 230V, 115V
SOL 1
7-21153 Transformer, Burner 240V 1
ITEM PART NO. DESCRIPTION QTY
21 7-21328 ▲ Motor, 1/5 HP, 230V 1
7-0009 ▲ Fuel Pump 1
7-21854 ▲ Blower Wheel 1
7-0009611 ▲ Fuel Solenoid, 115V 1
2-99050 ▲ Filter, Fuel/H20 Separator 1
7-01251 ▲ Burner Nozzle, 2.00W, 80° 1
2-99031 ▲ Filter, Diesel Fuel, Disposable1
22 2-00602 Elbow, 1/2" JIC x 1/2" Fem 90° 1
23 2-1085 Hose Barb, 1/4" ML Pipe 2
24 2-3015 Metering Valve 1
25 2-1035 Cross, 1/2"
(Optional Float Tank) 1
26 2-1089 Hose Barb, 1/4" Barb x 1/4"
Pipe, 90°1
27 35-160 Float Tank (Optional) 1
28 95-07121219 Coil, Dura, 18" Dia., Sch 80 1
7-01433 ▲ Insulation, Blanket 1
29 6-021720 Pressure Switch, 1/4" 1
31 95-07200130 Outer Wrap, 18" Coil, Sr., Red 1
32 95-07163088 Top, Burner Wrap, 18" 1
33 7-014866 Insulation Disk,
17.781" OD x 8" ID 1
34 2-0031 Elbow, 3/8" Street 2
35 2-2007 Nipple, 3/8" x 3/8" NPT ST Male1
36 95-07101225 Discharge Block, 3/8" x 1/2" 1
37 11-3229 Label, Belt Guard, Die Cut 1
38 2-00091 Nipple, 1/2" x 3", Galv. Sch. 80 1
39 2-00601 Elbow, 1/2" JIC, 3/8" Fem 1
40 90-10201 Bolt, 3/8" 1
41 2-1052 Nipple, 1/2" JIC, 3/8" Pipe 2
42 2-00101 Nipple, 1/2" x 4", Galv. Sch. 80 1
43 2-90041 Clamp, Screw #16 1
44 4-02130050 Hose, 7/8" Push-On, Conduit 2.5
45 2-10942 Swivel, 1/2" MP x 3/4" GHF
w/Strainer 1
46 2-011724 Belt Guard 1
95-07102101 ▲ Tab, Belt Guard Mount 3
47 90-20041 Collar, 5/8" 2
48 95-07102215 Axle, Senior 1

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
17
ITEM PART NO. DESCRIPTION QTY
49 95-07163136 Rail, Pump, Legacy (402007A) 1
95-07102244 Rail, Pump Combo, Red
(402001A) 1
50 5-40204101 Pulley, 2AK 41 H (402001A) 1
5-40204401 Pulley, 2AK 44 H (402007A) 1
51 5-40206401 Pulley, 2AK 64 H (4020) 1
52 5-602034 Belt, AX34 (4020) 2
53 5-511113 Bushing, H x 1-1/8" 1
54 5-512024 Bushing, H x 24mm 1
55 90-50045 Clip, Retaining 4
56 6-01059 GFCI, 240V 1PH 30A, 36' 1
57 95-07290007 Tab, Outer Wrap 4
58 2-9000 Clamp, Screw, #4 6
59 7-014865 Insulation, Blanket,
18" OD x 4.5" ID 1
60 90-1016 Bolt, 3/8" x 1" 8
61 90-10220 Bolt, 3/8" x 3-1/2", TAP 2
90-2007 ▲ Nut, 3/8", Hex 2
62 90-19711 Screw, 1/4" x 1/2", Whiz Loc 18
63 90-19960 Screw, 3/8" x 1-1/4" 4
64 90-19980 Screw, 1/4" x 1" 7
90-40001 ▲ Washer, 1/4", Flat 4
65 90-200012 Nut, 1/4" Flange 4
66 90-2002 Nut, 3/8", ESNA 16
67 90-2020 Nut, Cage, 3/8" x 12 GA 4
68 90-20231 Nut, Cage, 1/4" x 12 GA 8
69 90-4002 Washer, 3/8", Flat 25
70 90-400520 Washer, 7/8", Flat 2
71 90-4015 Washer, 7/16" x 2-1/2" 2
72 95-07102241 Frame, Assy, Senior, Red 1
2-9030 ▲ Clamp - C, 3/8" 3376 Plastic
Black 3
73 95-07102243 Assy, Power Platform, Small,
Senior, Red 1
74 2-1076 Bushing, 1/2" x 1/4" 1
75 2-1105 Swivel, 1/2" JIC Fem, Push-On 2
76 4-02110000 Hose, 1/2" Push-On 1.25
77 90-19710 Screw, 1/4" x 3/4" Whiz Loc 8
78 95-07290053 Retainer, Burner Insulation 1
79 90-40125 Washer, 3/8" x 1" 2
80 2-0155 Fastener, Ratchet, Nylon 2
▲ Not Shown
HPB SENIOR SERIES
EXPLODED VIEW PARTS LIST (CONTINUED)

18 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
CONTROL PANEL
JUNIOR SERIES
ITEM PART NO. DESCRIPTION QTY
1 2-02294 Fuse, ATMR, 1 Amp, 600 Volt
(230V Machines) 2
2 6-022970 Fuse, Paper, Buss, FNM-1/2
(230V Machines) 1
3 6-020201 Switch, 3 PS, 115V-230V, 1 PH
Salzer 1
4 4-12805000 Nozzle, SAQCMEG 0005, Red 1
4-12805015 Nozzle, SAQCMEG 1505,
Yellow 1
4 4-12805025 Nozzle, SAQCMEG 2505,
Green 1
4-12805040 Nozzle, SAQCMEG 4005,
White 1
5 2-0103 Grommet, Rubber,
Nozzle Holder 4
6 6-60101 Transformer, Micron
240/480-120V 1
7
3
18
15
6
10
8
1
2
10
9
11
14
17
12
13
5
4
8
16
3
ITEM PART NO. DESCRIPTION QTY
7 10-08021 Label, Disconnect Power
Supply 1
8 4-05088 Thermostat, Adjustable, 302°F1
9 95-07102240 Cover, Electrical Box, Shark,
Red 1
10 90-1991 Screw, 10/32" x 1/2" 10
11 90-2018 Nut, Cage, 10/32" x 16 GA 6
12 90-1994 Screw, 10/32" x 1-1/4" 1
13 90-017 Nut, 10/32" Keps 4
14 6-051591 Connector, 1/2", L/T 90°, Black 2
15 6-051595 Strain Relief, STRT, L/T, Lg 1
6-051562 ▲ Strain Relief, STRT, L/T, Sm 3
16 11-0305 Label, Control Panel 1
17 6-05181A Locknut, 1/2" 3
18 6-05181B Locknut, 3/4" 1
▲ Not Shown

HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
19
1
2
3
4
5
6
7
8
9
10
7
14
ITEM PART NO. DESCRIPTION QTY
1 6-020240 Switch, Rocker, Carling
w/Green Lens 2
2 6-021595 Din Rail, 35mm, Purch by Ea.,
Sold by In. 4
3 6-02294 Fuse, ATMR, 1 Amp, 600 Volt 2
4 6-022970 Fuse, Paper, Buss, FNM-1/2 1
5 6-60101 Transformer, 240/480-120V
.050KVA/Glass 1
6 6-4018 Contactor, CH, CE15FNS3AB 1
7 4-05088 Thermostat, General 302°1
8 4-050822 Hour Meter (Optional) 1
9 4-12806000 Nozzle, SAQCMEG 0006,
Red (402001) 1
4-12806015 Nozzle, SAQCMEG 1506,
Yellow (402001) 1
4-12806025 Nozzle, SAQCMEG 2506,
Green (402001) 1
ITEM PART NO. DESCRIPTION QTY
9 4-12806040 Nozzle, SAQCMEG 4006,
White (402001) 1
10 2-0103 Grommet, Rubber, Nozzle
Holder 4
11 95-07102240 Cover, Electrical Box, Shark, Red1
12 90-1991 Screw, 10/32" x 1/2" 10
13 10-08018 Label, Disconnect Power Supply 1
14 90-2018 Nut, Cage, 10/32" x 16 GA 6
15 90-1994 Screw, 10/32" x 1-1/4" 1
16 90-017 Nut, 10/32" Keps 4
17 11-0304 Label, Control Panel 1
18 6-051591 Connector, 1/2", L/T 90°, Black 2
19 6-051595 Strain Relief, STRT, L/T, Lg 2
6-051562 ▲ Strain Relief, STRT, L/T, Sm 2
20 6-05181A Locknut, 1/2" 2
21 6-05181B Locknut, 3/4" 1
▲ Not Shown
CONTROL PANEL
SENIOR SERIES
12
13
12
11
16
15
20
18
21
19
17

20 HPB SERIES PRESSURE WASHER OPERATOR’S MANUAL
HOSE AND SPRAY GUN ASSEMBLY
ITEM PART NO. DESCRIPTION QTY
1 2-2001 Coupler, 1/4" Male 1
2-0119 ▲ Quick Coupler O-Ring, Small 1
2 4-06540 Nozzle Only, 1/8" Soap 1
3 4-0111341A Wand, Zinc, VP, w/Coupler 1
4 4-02093450BC Hose, 50' x 3/8", 100R1,
Nomar w/Coupler 1
5 4-01246 Spray Gun, Shut-off, AP-1000 1
6 4-011184 Detergent Injector,
Non Adjust #3 1
ITEM PART NO. DESCRIPTION QTY
7 2-1904 Strainer, 1/4" Hose Barb 1
8 2-2002 Coupler, 3/8" Female 1
2-0121 ▲ Quick Coupler, O-Ring,
Large 1
9 2-9000 Clamp, Screw #4 1
10 4-02090000 Tube, 1/4"x1/2"
Clear Vinyl /Ft. 5
▲ Not Shown
7
2
1
4
3
8
6
9
10
5
