Intellian s6HD User manual

Document Number: 2014KO-UM0211-V2_0
s6HD
Installation and Operation Manual

2
Intellian Satellite TV Antenna Systems
Intellian s6HD Serial Number
This serial number will be requested for all troubleshooting or service Inquiries.
Notice
All Rights Reserved
Intellian s6HD®and Intellian®are the registered trademarks of Intellian Technologies, Inc., and should not be appropriated without permission by Intellian Technologies, Inc.,
and the information contained in this manual is the property of Intellian Technologies, Inc. Any and all parts of this manual shall not be reproduced and distributed in any form
without prior written consent by Intellian Technologies, Inc. The information contained in this manual shall be subject to change at any time without notice due to the functional
upgrades of the product.

3
Table of Contents
INTRODUCTION
INTRODUCTION TO INTELLIAN s6HD
FEATURES OF INTELLIAN s6HD
BASIC SYSTEM CONFIGURATION OF INTELLIAN
INSTALLATION
SYSTEM COMPONENTS
TOOLS REQUIRED FOR INSTALLATION
PLANNING THE INSTALLATION
INSTALLATION AND MOUNTING OF ANTENNA
INSTALLING THE ACU

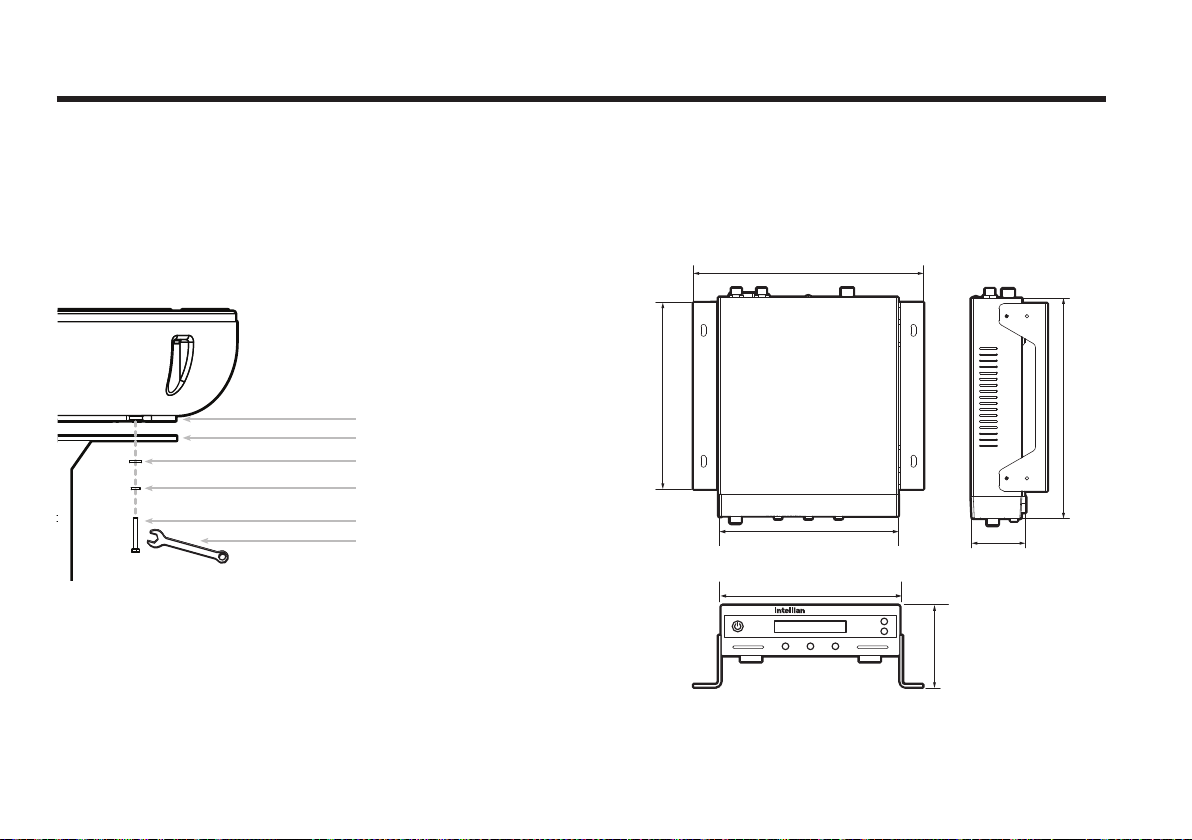

ACU DIMENSIONS
SELECTION OF INSTALLATION SITE
CONNECTING THE SYSTEM TO A GPS
DC OUT PORT
PC TO ACU COMMUNICATION SETUP
OPERATION INSTRUCTION
INTRODUCTION
OPERATING THE ACU
ACU SOFT KEYS
NORMAL MODE
SETUP MODE
ANTENNA CONTROL SOFTWARE
INTRODUCTION TO Aptus®
SOFTWARE INSTALLATION
PC TO ACU COMMUNICATION SETUP
ESTABLISH A DATA COMMUNICATION
AUTO UPDATE
TOOLBAR MENUS
SYSTEM PROPERTY STATUS DASHBOARD
WORK VIEW TABS
PREPARATION FOR TRANSPORTATION
WARRANTY
APPENDIX : s6HD TECHNICAL SPECIFICATION
4
4
5
6
7
7
10
11
13
16
16
17
23
24
24
26
26
27
27
27
30
51
51
51
52
52
53
54
57
60
71
72
73

4
Intellian Satellite TV Antenna Systems

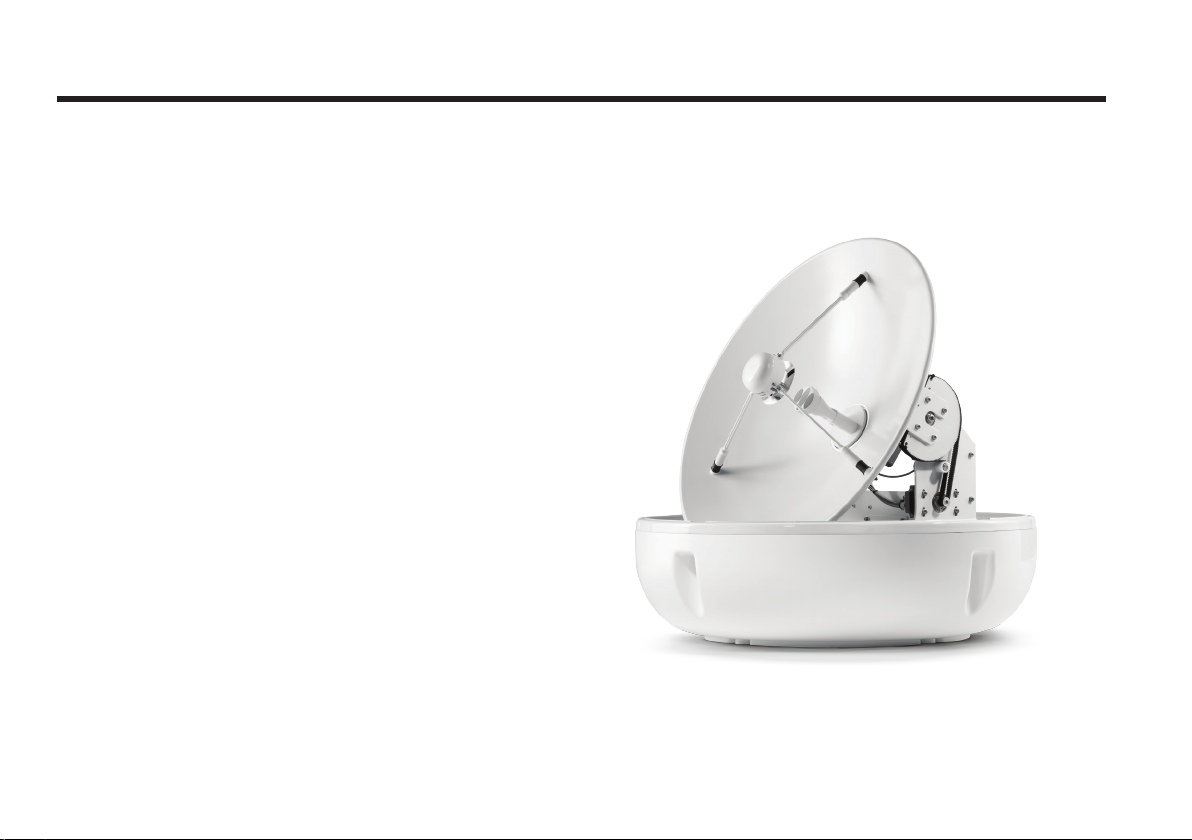

Introduction to Intellian s6HD
Intellian s6HD is a digital marine satellite antenna system specially
designed for the DIRECTV services for all types of vessels (Anchored or
in transit) to automatically identify, track and capture satellite signals
from the Digital Video Broadcasting (DVB: the international standard for
digital TV transmissions) compatible Satellites.
Intellian s6HD is a dual-band 2-axis marine satellite antenna system
which is capable of receiving 3 DIRECTV satellite signals simultaneously.
Receiving signals from one DIRECTV 101°W Ku-band satellite and two
DIRECTV 99°W and DIRECTV 103°W Ka-band satellites at the same
time, you can simultaneously watch all DIRECTV channels no matter
which satellite your target program is coming from. This also enables
the channel guide data to remain constantly up to date.
Using simple connection to the antenna, the Intellian s6HD with SWM
(Single Wiring Multi-switch) enables 16 Receivers to view all DIRECTV
channels with the possibility to upgrade to 32 SWM Receivers or DVRs.
The s6HD is also compatible with general Ku-band receivers such as
DISH Network, Bell TV, and DIRECTV local channel services.
Introduction

5
Features of Intellian s6HD
Simultaneous reception of 3 DIRECTV satellites
Intellian s6HD receives HDTV channels from 3 primary DIRECTV’s
Ka-band and Ku-band satellites located at 99°W, 101°W and 103°W.
No delay time or changing the satellite signal, you can simultaneously
watch every DIRECTV channels.
Plug and play, DIRECTV capable
Intellian s6HD uses single cable from the antenna to ACU for simple
installation. The Built-in SWM (Single Wiring Multi-switch) and two
8-way splitters in the default package of the s6HD enables 16-receiver
connections as standard. The s6HD is expandable up to 32 receivers
and beyond and fully capable of supporting DVR receivers.
Multi-band alignment control systems
The built-in multi-band alignment control systems keeps the multi-feed
LNB aligned with the three DIRECTV satellites at sea even during harsh
marine environment or high-speed cruising.
Non-primary DIRECTV service receptions
Intellian s6HD is capable of receiving DIRECTV local channels broadcast
from the two DIRECTV Ku-band satellites located 110°W and 119°W as
well as Dish Network and Bell TV services.
Ethernet Port for management
The Ethernet Port on the rear panel of ACU enables direct and simple
network connection between a PC and the ACU. By connecting to ISP or
the modem linked with VSAT systems, Intellian s6HD can be monitored,
controlled, and diagnosed remotely from anywhere, anytime through the
TCP/IP protocol.
This not only can save tremendous time but also save the cost
generated from the hundreds of routine maintenance activities such as
operating rmware upgrades, tracking parameters resets, and system
diagnostic.
Wireless Connectivity and Aptus mobile
The built-in WiFi enables the ACU to be wirelessly connected. Any kind
of wireless devices such as PCs, laptops and smartphones can be used
to connect to the ACU and monitor, control and change the settings of
the system wirelessly. Intellian Aptus mobile is available for download to
access to the ACU via Wi-Fi and operate the antenna from their iPhone,
iPad or other network devices.
iPhone and iPad are registered trademarks of Apple Inc.

6
Intellian Satellite TV Antenna Systems
Basic System Conguration
For your satellite TV system to function properly, the system will have
to be connected with all of the provided components as shown in the
gure below (Refer to the next chapter ‘Installation’ in this manual for
more detailed connection instructions). Separate purchase of a satellite
receiver and a TV is required.
Figure 01 : Basic Conguration with 16 Receivers
SWM
Power
Supply
ACU
Receiver 1
Receiver 8
Receiver 1
Receiver 8
8-Way Splitter
8-Way Splitter
L1
S2
S1
R8
R1
R8
R1
R7 R6 R5 R4 R3 R2
R7 R6 R5 R4 R3 R2

7
The components of the Intellian s6HD are designed as module system
so that it is suitable for simple installation on all types of vessels.
System Components
Antenna Unit
The antenna of Intellian s6HD is composed with the following
components for optimum search and reception of the satellite signal.
• Mechanical Unit – manipulates the antenna to receive the optimal
satellite signal regardless of the movement of the vessel.
• Control Unit – controls mechanical operation of the antenna.
• RF Unit – transmits the optimum satellite signal to the receiver.
• Radome – protects the antenna from the severe marine environment.
Installation

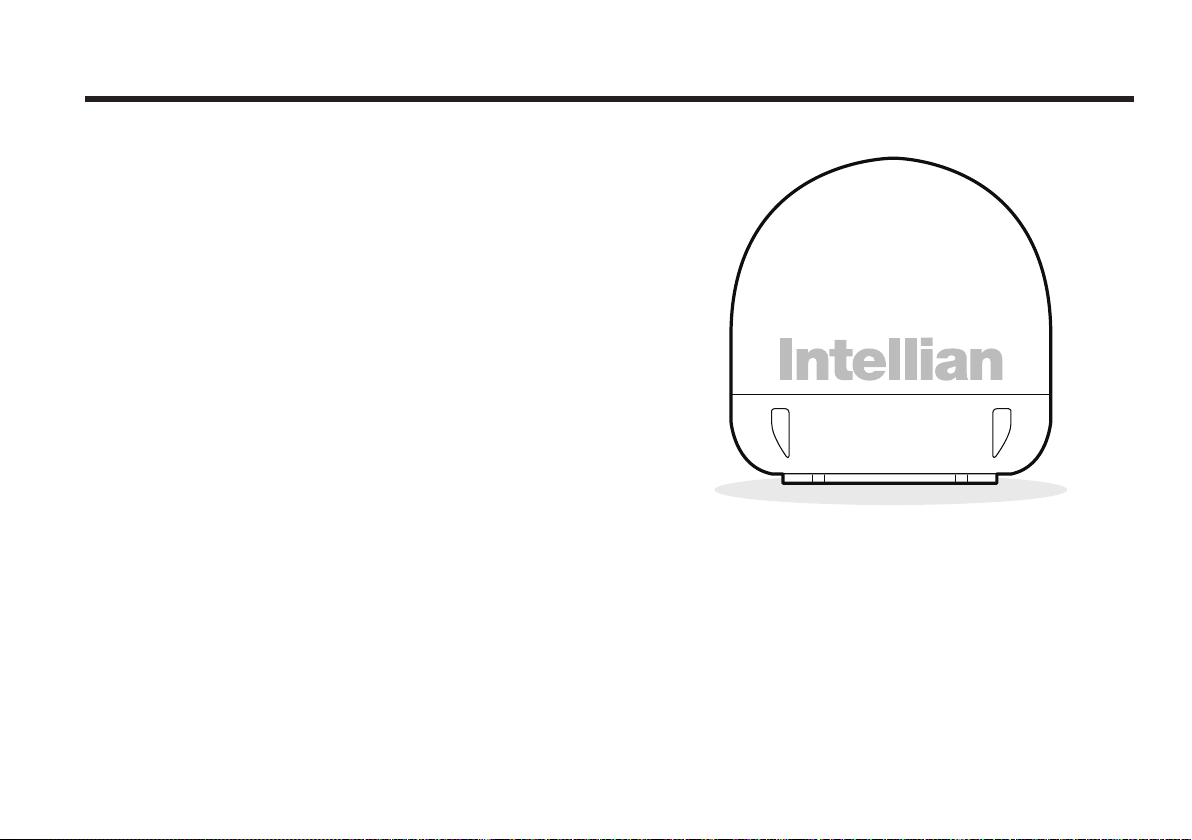

Figure 02 : Radome

8
Intellian Satellite TV Antenna Systems
Antenna Control Unit (ACU)
The Antenna Control Unit (ACU) provides the power to the antenna and
controls the various settings of the antenna. The digital VFD (Vacuum
Fluorescent Display) allows for easy operation of the ACU, even in the
dark.
The functions of the ACU are as follows:
• Controls the antenna system
• Provides power to the antenna unit
• Monitors the antenna status
• Changes the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Move antenna manually
• Perform self-diagnosis of the antenna
• Set up the interface with a PC
Figure 03 : Front & Rear of ACU
Front
Rear

9
Installation Kit
Contains the items required for securing the antenna unit and ACU to the vessel.
Other Components
4 Power Cable 33ft (10m) 1
5 PC Serial Cable 6ft (1.8m) 1
6 NMEA Connector AK950-2 1
7 Power Connector AK950-3 1
8 Hex Bolt M8x50L 5
9 Self-Tapping Screw ø4x16L 5
ø3x8L 5
10 Flat Washer M8 5
11 Spring Washer M8 5
12 SWM Power Supply - 1
13 SWM 8-Way Splitter - 2
14 Aptus CD - 1
15 Manual - 1
16 Mounting Template - 1
17 Quick Installation Guide - 1
No Components Size Qty
1 ACU Bracket - 2
2 RG6 (Antenna - ACU RF Cable) 49ft (15m) 2
3 RG6 (ACU - IRD Cable) 9.8ft (3m) 2 Figure 05 : List of the Supplied Parts

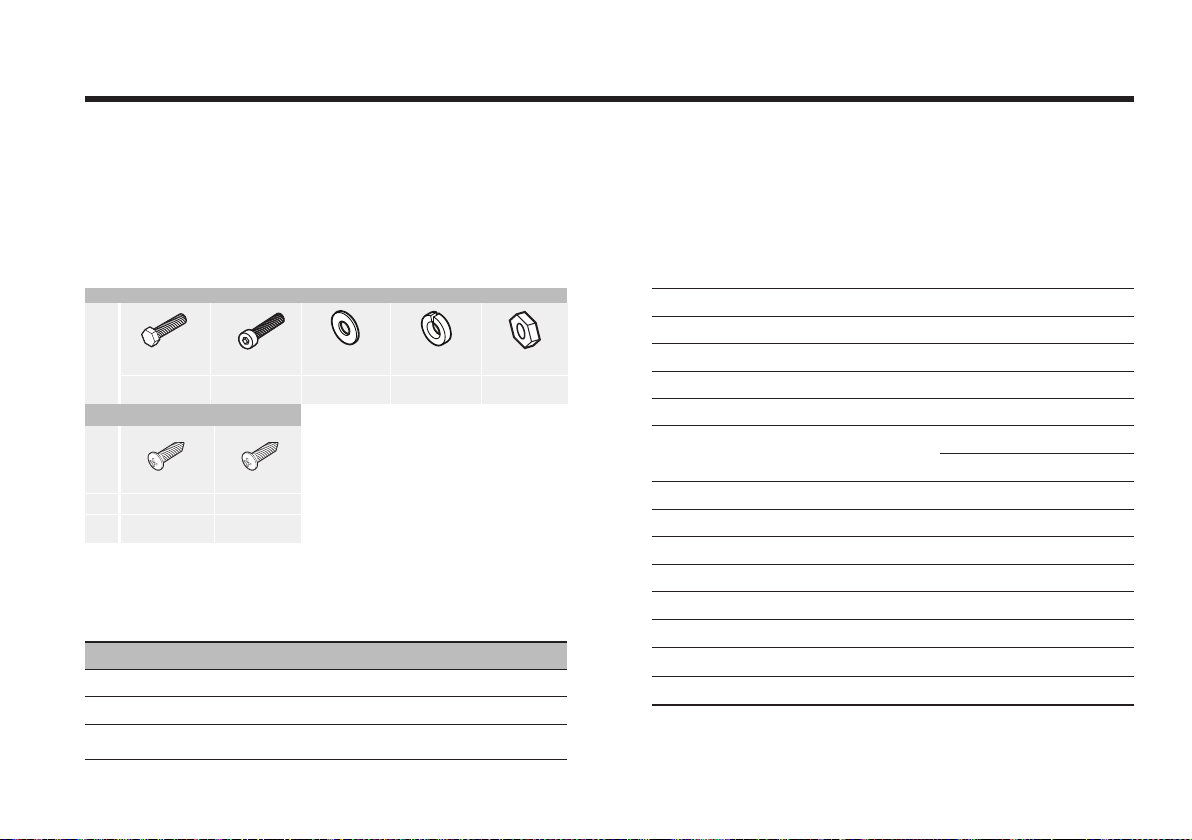

Figure 4 : Installation Bolt Kit
Hex.Bolt
5
Hex.Head
Wrench Bolt
5
-
Flat Washer
5
Hex. Nut
5
Spring Washer
5
Antenna
Item
Qty
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)
ACU

10
Intellian Satellite TV Antenna Systems
Tools Required for Installation
Power Drill 11 mm Spanner
Cross-Head
Screwdriver 13 mm Spanner
10 mm Drill Bit
Ø80 mm
Hole Saw
Pencil
5 mm
Allen/Hex key
Figure 06 : Required Tools for Installation

11
15°
Planning the Installation
Antenna Unit
Install the antenna in accordance with the following procedures to
insure maximum performance of the antenna. The antenna should be
installed in the place where is an all round clear view of the horizon.
Please be sure there are no obstacles within 15 degrees above the
antenna. Any obstacles can prevent the antenna from tracking the
satellite signal (Refer to the drawing).
Do not install the antenna near by the radar especially on the same
plane as their energy levels may overload the antenna front-end circuits.
It is recommended to position the antenna at least 4 feet (1.2m) above
or below the level of the radar and minimum of 15 feet (4.6m) away
from the high power short wave radars.
The mounting platform should be rigid enough and not subjected to
excessive vibration. The movement of the antenna can be minimized
by installing at the center of the vessel. For optimal performance of the
antenna, it is not recommended to install at any corner of the vessel,
where the movement of the vessel is the greatest. Install the bottom
of the antenna parallel to the surface of the sea and x tightly to the
structure of the vessel. When setting the antenna down, be careful not
to damage the RF connector. Striking the connectors on the bottom
directly will damage the connector.
Figure 07 : Elevation Limit of Obstacles
Antenna Unit Obstacle

12
Intellian Satellite TV Antenna Systems
Extending the Cables
The cables that have been supplied with your Intellian system should be
of adequate length to complete the installation on most boats.
Power Cable
This cable supplied at a length of 33ft (10m).
RF Cable
This cable is supplied at a length of 49ft (15m). If a longer length is
required you should replace this cable with an extended RF cable
supplied by Intellian Technologies.
Note: Exceeding the indicated cable lengths will result in reduced
performance of your system.
Cables
Before installing the system cables, consider the following points.
• All cables need to be well clamped and protected from physical
damage and exposure to heat and humidity.
• Cables with severe bends are not allowed.
• Where a cable passes through an exposed bulkhead or deckhead,
a watertight grommet or swan neck tube should be used.
Power Requirements
You need to follow the power requirements to avoid damage the system.
Intellian s6HD has been designed to work on a boat’s power supply
rated at 12V / 24 V DC (acceptable range: 9~30 V DC).
If your IRD(s) and television(s) require a 110V/240V AC power supply,
you will need to install a suitable DC to AC converter to operate the
unit(s) from your boat’s DC power supply.

13

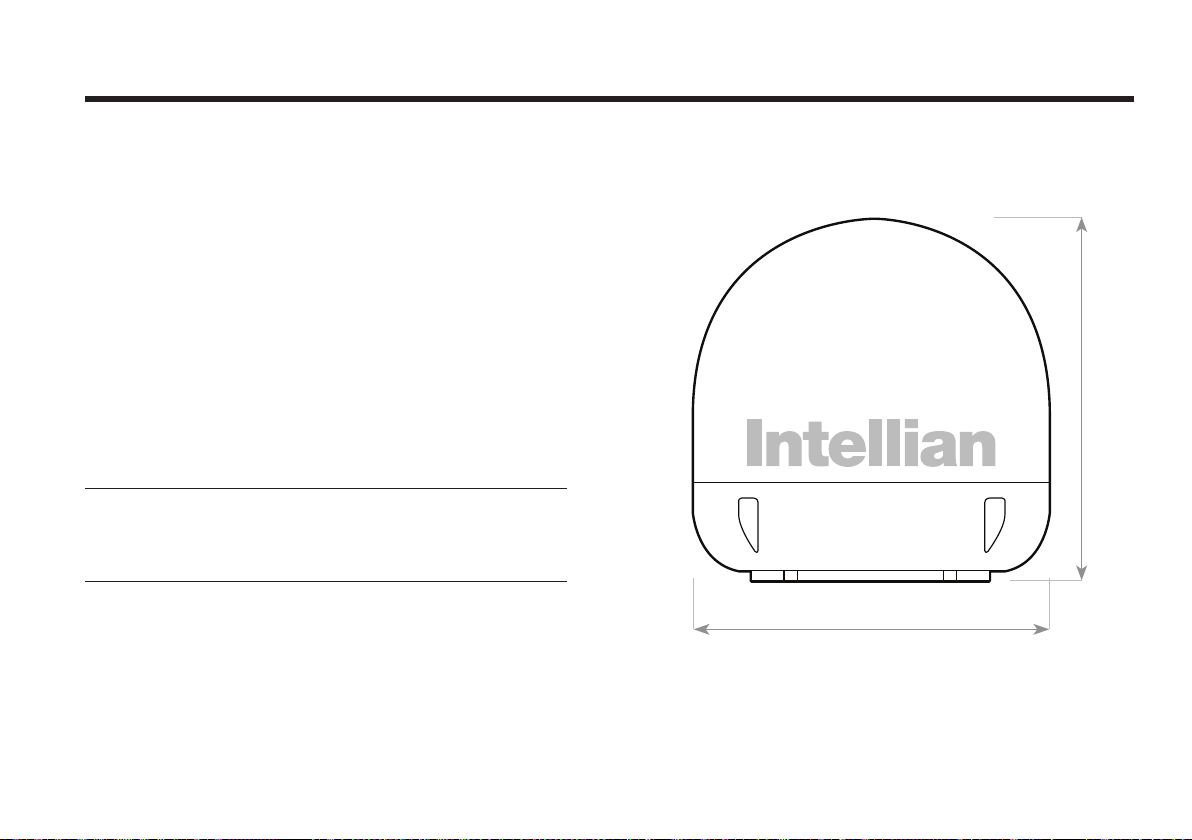

Figure 08 : Radome Dimension of s6HD
Installation and Mounting of Antenna
The method of installation and mounting of antenna may vary due
to vessel design but the following procedures are applicable in most
situations, and will result in a secure and effective installation.
Conrmation of Size Prior to Installation
• Check the height and diameter of the bottom surface of the antenna
before installing.
• The space must be sufcient for installing the antenna unit
considering the height and diameter of the antenna.
• The height and the diameter of the bottom surface of the antenna are
as shown in the following drawing. If possible, install the antenna
using a power tower.
Note: Before installing the antenna you have to remove the radome
and remove the shipping foam from the antenna interior. Replace the
radome before installation. The system functions will be abnormal if the
radome is removed.
Ø70 cm (27.5”)
72 cm (28.3”)

14
Intellian Satellite TV Antenna Systems
Mark of the Antenna Mounting Position
Referring to the mounting template, mark where the antenna is to be
mounted on a ship (it must be a at surface) or on a separate power
tower by drawing a square of 30.4cm (12”).
Note: If a power tower is not suitable to mount the antenna, separate
cable shock and waterproong measures must be taken to protect the
RF connector from being exposed to the sea water and external shocks.
An exposed cable may cause electric shock and cause serious damage
to the equipment.

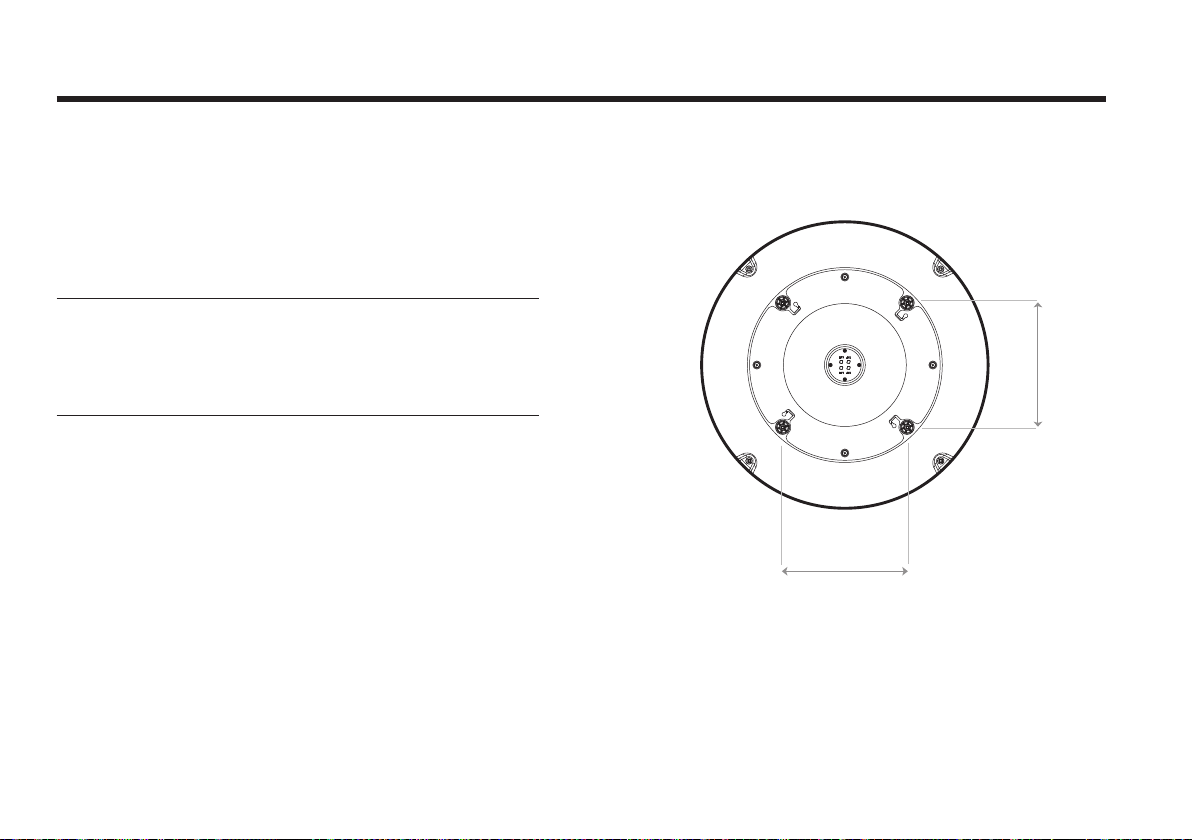

Figure 09 : Mounting Hole Position of s6HD
30.4cm (12”)
30.4 cm (12”)

15
Connection of the Cable
Remove the rubber cap from RF connector. Connect the RF cable to the
RF connector under the base plate through the access hole using an
11mm spanner. Be careful not to over tighten, as you may damage the
connector.
Note: Do not use excessive force when using the spanner, this will
damage the threads. Be careful that the connectors do not contact the
mounting surface of the antenna, this may cause a critical malfunction
and serious damage to the equipment.
Securing Holes for Bolts and Cable Way
Make 4 bolt holes of 10mm diameter, one at each corner of a rectangle
drawn as below, and make a circular hole of 80mm diameter at the
center of the rectangle through which the cable will run.

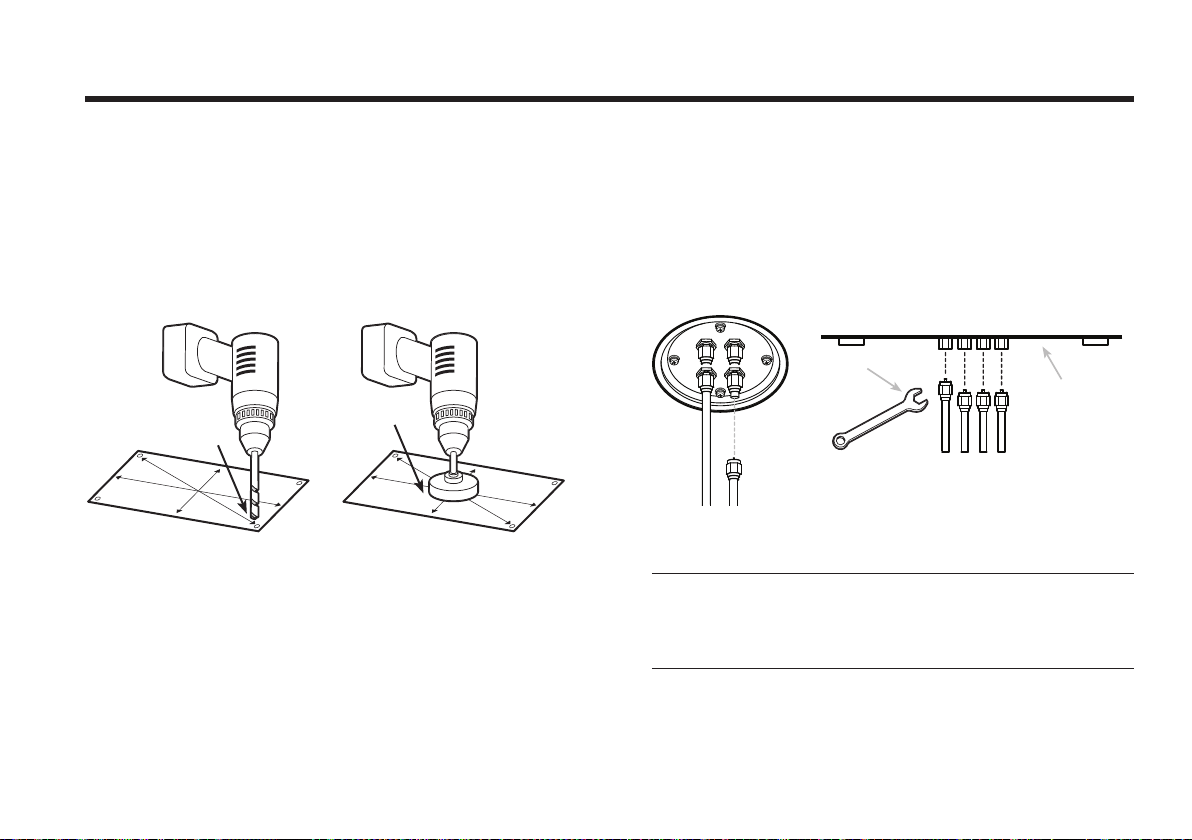

Figure 10 : Drilling Instruction
Ø80mm
Hole Saw
Ø 10mm
Drill
Figure 11 : Connectors on Bottom of Antenna
Antenna Unit
RF Cables
11mm
Spanner

16
Intellian Satellite TV Antenna Systems
Mounting the Antenna
Attach the antenna by using the hex head bolts (M8X50L), M8 spring
washers, and M8 at washers supplied.
Antenna Unit Support
Deck
M8 Flat Washer
M8 Spring Washer
M8 Hex. Bolt
13mm Spanner
7.5 cm (2.95”)
17.8 cm (7”)
17.8cm (7”) 5.4cm (2.1”)
22.8cm(9”)
18.5cm (7.3”)
21.7cm(8.5”)
Figure 12 : Mounting the Antenna
Figure 13 : Dimension of ACU
Installing the ACU
ACU Dimensions

17
Figure 14 : Mounting the ACU
Selection of Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool, and ventilated.
• Easy access from your main TV viewing area.
ACU Installation
1. The ACU should be installed using the two supplied mounting
brackets which allow for a top or bottom mounting conguration.
2. Using the self tapping screws supplied, attach the mounting brackets
to the sides of the ACU.
3. Place the ACU in the location where it is going to be installed.
4. Connect the cables to the rear of the ACU.
5. Using a pencil to mark the 4 hole positions (2 on each side), and
use the appropriate drill bit to drill them.

18
Intellian Satellite TV Antenna Systems
Advance Conguration – Up to 32 receivers for
DIRECTV 99°W,101°W,and 103°W reception
An Intellian 32 receiver expansion kit can be purchased with the
antenna. In this conguration 2 SWM 16 switches are mounted below
decks. Both switches require a 29v SWM power supply.
RF L1 is connected through the ACU to a 2-way splitter, and then to the
13v0khz input on 2 SWM 16 switches.
RF S1 connects through a 2-way splitter to the 18v0khz input on 2 SWM
16 switches.
RF L2 connects through a 2-way splitter to the 18v22khz input on 2
SWM 16 switches.
RF S2 connects through a 2-way splitter to the 13v22khz input on 2
SWM 16 switches.
See diagram below.
Note: Removal of the SWM switch from the antenna dome by non-
certied technicians will void the warranty.
PV23-302x4
Antenna
Antenna
SWM16 2SWM16 1
SWM Power 1
SWM Power 2

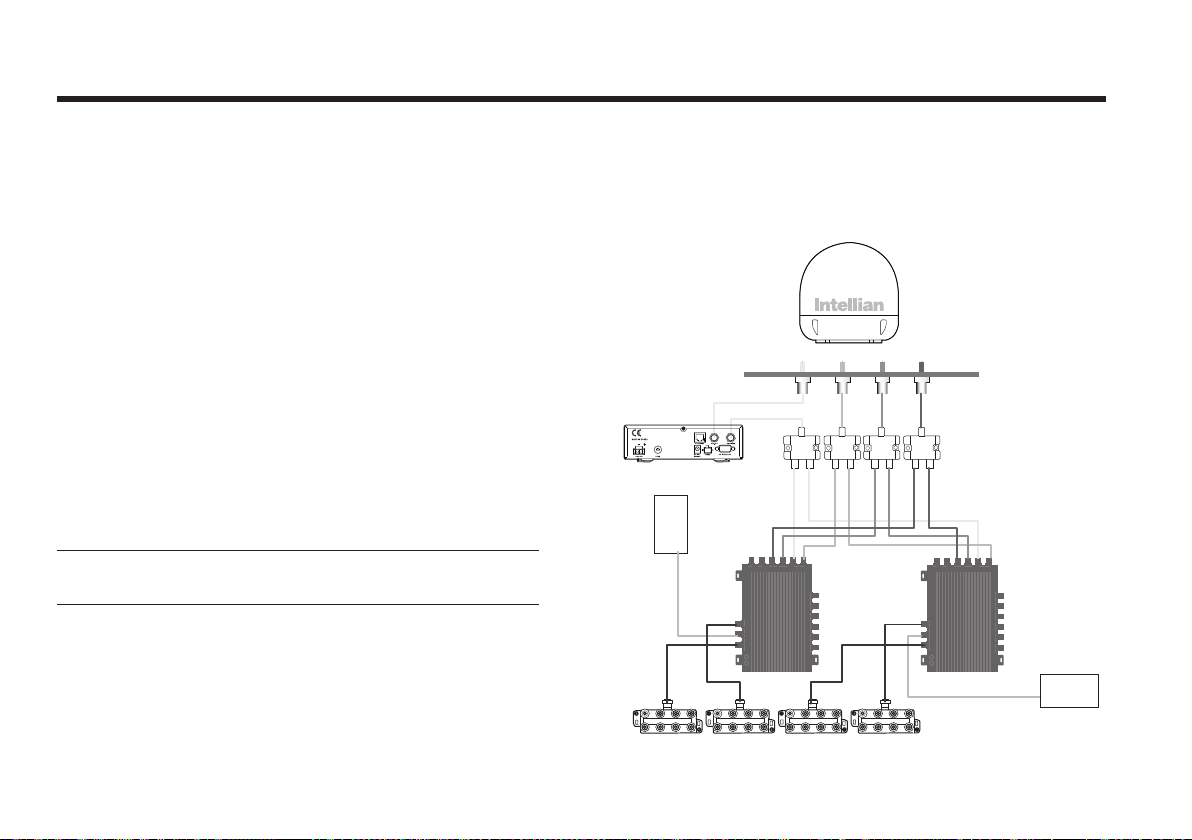

Figure 16 : 32 Receivers Connection

19
Standard Conguration –Single receiver for
Legacy DIRECTV reception
RF L1 is connected to the ACU. RF L2 is connected directly to the
receiver. For multiple receivers a separate multiswitch must be
purchased. RF S1 must be connected to the 29v SWM power supply.
Note: SWM Power Supply must be connected to S1 to power
multiswitch inside antenna radome.
ACU
Receiver 1
L1L2
SWM
Power
Supply
Figure 17 : Multi Receivers Connection

20
Intellian Satellite TV Antenna Systems
ACU
LHCP RHCP
Receiver 1
L1S1 L2
R4
R3 R2
SWM
Power
Supply
MultiSwitch
Standard Conguration – Single or Multiple receivers for
Legacy DIRECTV reception
RF L1 needs to be connected through the ACU to the RHCP 13v0khz
on the multiswitch. RF L2 needs to be connected to the LHCP 18v0khz
on the multiswitch. RF S1 must be connected to the 29v SWM power
supply.
Note: SWM Power Supply must be connected to S1 to power
multiswitch inside antenna radome.
Figure 15 : 16 Receivers Connection
