Clearaudio Professional Power 24V User manual

User manual
Bedienungsanleitung
© clearaudio electronic GmbH, 2021-05 Made in Germany
Professional Power 24V

User manual / Bedienungsanleitung
Page / Seite 2 © clearaudio electronic GmbH, 2021-05
User manual ..................................................2 - 7
Bedienungsanleitung ....................................8 - 13
Dear Clearaudio customer,
Thank you for choosing the Professional Power 24V, a high quality transformer-based and stabilized
24 Volt DC power supply made in Germany by Clearaudio.
The
Professional Power 24V provides improved ltering over the standard power supply, which
delivers a much cleaner power source. Cleaner power and increased ‘headroom’ for Clearaudio’s
Innovation and Ovation series turntables, thanks to a smoother motor performance and extended
reserves.
The attractive design and improved listening experience will ensure that the Professional Power 24V
is a welcome addition to your home audio system.
We wish you much musical enjoyment with your new Clearaudio Professional Power 24V .
Clearaudio electronic GmbH
CE-MARKING
More information on page 7.
Clearaudio ProfessionalPower24V meetstheregulationsconcerningelectromagneticdisturbance
(EMC) and low-voltage appliances.
Warnings
Don’t expose the unit to rain or humidity.
Don’t handle the mains leads with wet hands.
No naked ame sources, such as lighted candles, should be placed on the equipment.
EQUIPMENT MAINS WORKING SETTING
Your Clearaudio product has been prepared to comply with the household power and safety requirements
that exist in your area. This product can be ordered as 230 V or 110 V AC (50 Hz and 60 Hz) version.

User manual / Bedienungsanleitung
Made in Germany Page / Seite 3
Contents
1. Scope of delivery ....................................................4
2. Control elements ....................................................4
3. Initial start .............................................................5
4. Operating modes ....................................................5
 5.Turno ...................................................................6
6. Special instructions ................................................6
7. Technical data ........................................................7
8. CE Marking..............................................................7
Warranty.....................................................................14 - 15

User manual / Bedienungsanleitung
Page / Seite 4 © clearaudio electronic GmbH, 2021-05
1. Scope of delivery
Please check the contents of the package:
1. Professional Power 24V (with built-in power cable)
2. Power cord with country-specic plug
3. User manual
Beside the delivered items you should also check, whether you have received the correct plug type
and the correct version. The voltage required to supply the device (110 V / 230 V) is noted on the
underside of the device and on the label on the box.
Please note:
Using the Professional Power 24V with the wrong voltage can damage the device!
2. Control elements
1ON/OFF/Standby button with LED 4Cover of the fuse
2Main switch 5Built-in power cable
3Grounding socket (for optional grounding) 6IEC socket
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION

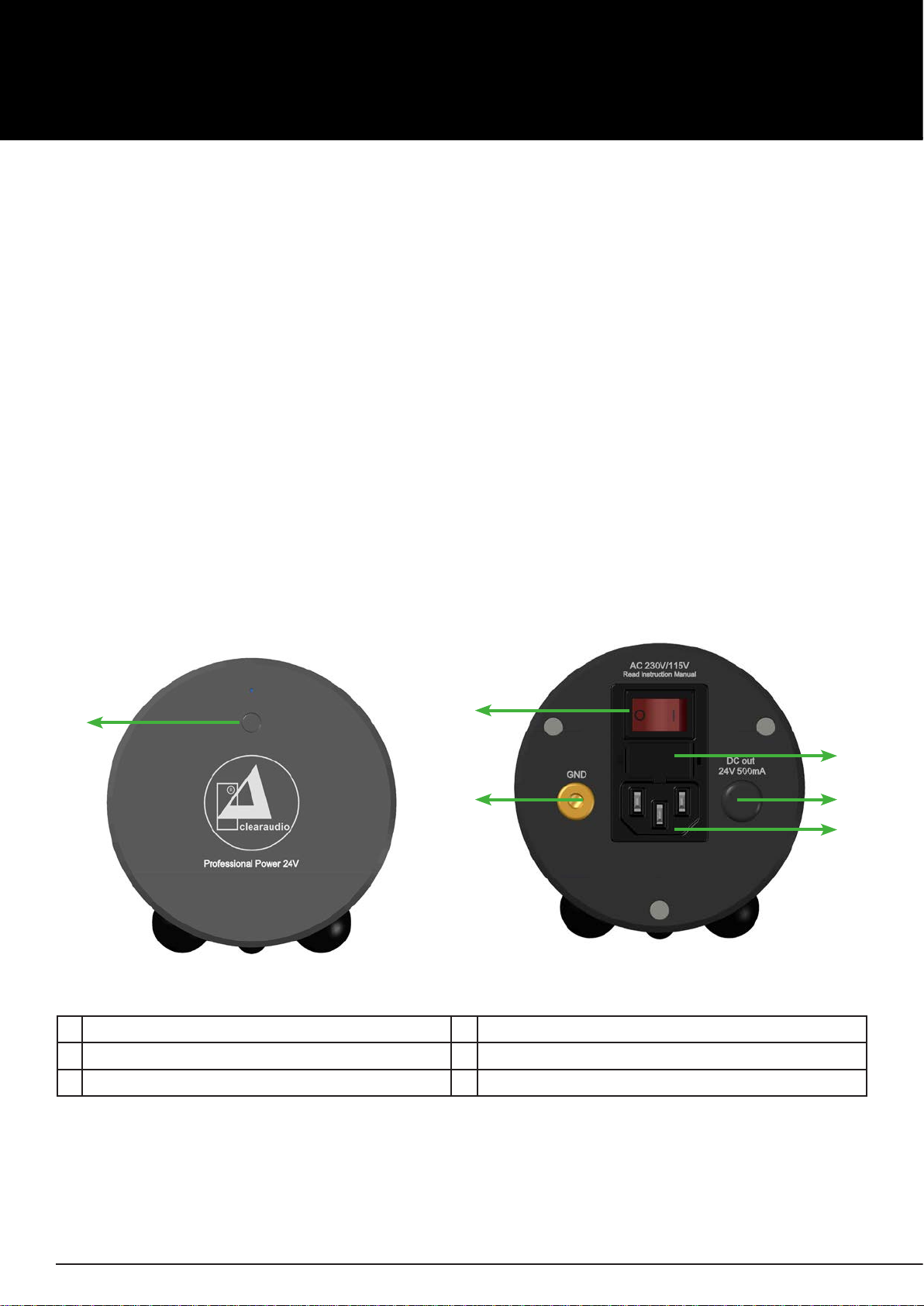

Pic. 1: Front view Pic. 2: Rear view
1
3
2
4
5
6

User manual / Bedienungsanleitung
Made in Germany Page / Seite 5
3. Initial start
Clearaudio has developed a special packaging for your Professional Power 24V to ensures a safe
transportation.
Please keep this original packing, if you need to ship the unit.
Take the device out of the box and set it up at the desired location.
Before connecting the device to the power supply, make sure that the main switch on the back is
set to “0” (=OFF).
1. Connect the device to the mains with the enclosed power cord.
2. Then connect your turntable and the Professional Power 24V with the built-in power cable
instead of the standard plug-in power supply.
3. Now you can turn the main switch on the back to „I“ (=ON).
4. The LED light on the front panel of the Professional Power 24V starts to ash for approx. 40
seconds, while the device starts up and the output voltage stabilizes.
5. When the LED light shines continuously, the device is ready (ON mode) and you can start the
turntable.
4. Operating modes
4.1 Standby
The „Standby“ mode is characterized by:
6. The output is deactivated (the turntable is not supplied with power).
7. The LED light is o.
4.2 ON
The „ON“ mode is characterized by:
1. The output is activated (the turntable is supplied with power).
2. The LED light shines continuously.
4.3 Dimming the LED
The LED light on the front panel can be darkened or lightened by one level by long pressing the ON/
OFF/Standby button on the front panel.

User manual / Bedienungsanleitung
Page / Seite 6 © clearaudio electronic GmbH, 2021-05
5.Turno
Due to the Professional Power 24V you can turn o the turntable by pressing the ON / OFF button
on the front panel (Standby mode) of the Professional Power 24V . You don’t have to switch o the
turntable itself.
You can leave the main switch on the back on, so when you switch the unit on again, the device is
immediately ready for use and does not have to start up rst.
However, the turntable must be reactivated at the desired speed.
6. Special instruction
6.1) Maintenance
For your own safety, you should inspect regular the mains voltage lead. If the insolation is damaged,
please have it replaced immediately by a specialist!
6.2) Transport
Please note that the full warranty can only be provided for products that are sent back in the original
box.
6.3) Service
If any servicing or repair of a Clearaudio product is necessary, please rst contact your dealer or
distributor. Alternatively contact Clearaudio directly and we will inform you about your nearest
service location.

User manual / Bedienungsanleitung
Made in Germany Page / Seite 7
7. Technical data
Power supply: 110V AC 60Hz, max. 1.4A
240V AC, 50Hz, max. 1.4A
Output: 24V, max. 1.4A; fused (time delay fuse)
Power consumption
In operation/ON
(switched on at the rear „I“):
O
(turnedoatrearpanel„0“):
33.3rpm > 3.0 watts
45rpm > 3.1 watts
78rpm > 3,3 Watt
0.0 watts
Weight: approx. 1.10kg
Dimensions
(w x d x h): 92 x 145 x 94mm 3.62 x 5.71 x 3,70 inches
Manufacturer warranty: 2 years*
* Provided that the warranty card is correctly registered online at
https://clearaudio.de/en/service/registration.php, within 14 days of purchase.
8. CE Marking
8.1 Intended use
The indented use of the Professional Power 24V is the use in accordance with the information
provided in the user manual.
The power supply may only be operated with maximum permissible connection values according to
the technical data. Any other use or modication of the power supply is improper.
8.2Specicationlabel
8.3 Installation place requirements
The unit must be set up on a level and solid surface and is not suitable for outdoor use.
The required set up area is 92 x 145 x 94mm (w x d x h).
Pic. 3: Specication label

User manual / Bedienungsanleitung
Page / Seite 8 © clearaudio electronic GmbH, 2021-05
Sehr geehrte clearaudio Kundin, sehr geehrter clearaudio Kunde,
wir danken Ihnen für das in uns gesetzte Vertrauen und Ihren Kauf der Professional Power 24V , eine
verbesserte, transformatorbasierte und stabilisierte 24 Volt Gleichstromversorgung.
Sie bietet eine verbesserte Filterung und genügend Kapazität für Plattenspieler der Ovation und
Innovation-Serie von clearaudio.
Die Verbesserung der Klangqualität ist erheblich, da die gereinigte, analoge Stromquelle erweitere
Reserven für eine noch sauberere und gleichmäßigerere Motorleistung bietet.
Somit wird ein klares, natürlicheres sowie hörbares Erlebnis für noch mehr Vergnügen geschaen.
Wir wünschen Ihnen viel Vergnügen mit Ihrer
Professional Power 24V .
Ihre clearaudio electronic GmbH
CE-MARKIERUNG
WeitereInformationenhierzundenSieaufSeite13.
Die clearaudio Professional Power 24V entspricht den Bestimmungen über elektromagnetische
Störfreiheit (EMC) und denen über Niederspannungsgeräte.
Warnungen
Das Gerät nicht Regen oder Feuchtigkeit aussetzen.
Das Netzkabel nicht mit feuchten oder nassen Händen anfassen.
Auf dem Gerät dürfen keine Gegenstände mit oener Flamme aufgestellt werden
(brennende Kerzen o.Ä.).
GERÄTENETZEINSTELLUNG
IhrclearaudioProduktwurdesokonstruiert,dassesderHaushaltsleistungunddenSicherheitsbestimmungen
in Ihrer Region genügt.
Dieses Produkt ist als 110 V (50 Hz) oder mit 230 V (60 Hz) Version verfügbar.

User manual / Bedienungsanleitung
Made in Germany Page / Seite 9
Inhaltsverzeichnis
1. Lieferumfang..........................................................10
2. Bedienelemente......................................................10
3. Inbetriebnahme .....................................................11
4. Betriebsarten..........................................................11
5. Ausschalten............................................................12
6. Besondere Hinweise...............................................12
7. Technische Daten...................................................13
 8.CEKonrmität ........................................................13
Garantie......................................................................14 - 15

User manual / Bedienungsanleitung
Page / Seite 10 © clearaudio electronic GmbH, 2021-05
1. Lieferumfang
Bitte überprüfen Sie den Packungsinhalt:
1. Professional Power 24V (mit fest verbauten Stromkabel)
2. Netzkabel mit länderspezischen Steckertyp
3. Bedienungsanleitung
Neben dem Packungsinhalt sollten Sie zusätzlich prüfen, ob Sie den korrekten Steckertyp, sowie die
richtige Ausführung des Gerätes erhalten haben.
Die benötigte Spannung zur Versorgung des Gerätes (110 V / 230 V) ist auf der Unterseite des
Gerätes, sowie auf dem Aufkleber des Kartons vermerkt.
Bitte beachten:
Die Verwendung der
Professional Power 24V mit der falschen Spannungsversorgung
kannzueinerBeschädigungamGerätführen!
2. Bedienelemente
1 ON/OFF/Standby-Knopf mit LED 4 Abdeckung für Sicherung
2 Hauptschalter 5 Fest verbautes Stromkabel
3 Erdungsbuchse (für optionale Erdung) 6 Kaltgerätebuchse
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
Abb. 1: Frontansicht Abb. 2: Rückansicht
1
3
2
4
5
6
