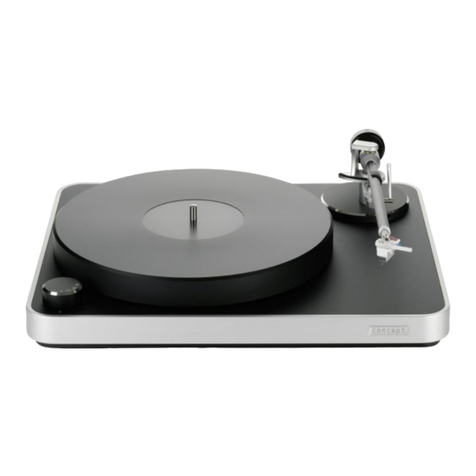

Clearaudio Concept User manual

Hi-Fi Components clearaudio electronic® GmbH
Spardorfer Str. 150 ●D-91054 Erlangen ●Tel. [phone] ●FAX [phone]
www.clearaudio.de●[email protected]●copyright clearaudio2010
Made in Germany
Version1_Musical Surroundings_E
[
]
Concept
User manual

Concept
User manual
Page 1 clearaudio electronic GmbH 2010
Dear clearaudio customer,
Thank you for purchasing the clearaudio Concept – turntable.
The clearaudio Concept - turntable sets a new timeline in turntable manufacturing.
Highest demands and Made in Germany, combined with technology and a timeless design
start a New Era.
The Concept is equipped with the innovative Verify- tonearm using a friction free magnetic
bearing technology.
Optionally, a high quality moving magnet or moving coil cartridge is completing this set up.
All parameters have been already adjusted at the clearaudio factory, including the tracking-
and antiskating force.
This genuine, timeless and modern design guarantees a flawless musical enjoyment for
decades.
Please read this instruction manual carefully, to avoid any damages or loss of warranty.
This manual will help you for an easy set-up and guarantees the highest pleasure for a long
time.
We wish you a lot of listening pleasure with your new clearaudio Concept - turntable.
clearaudio electronic GmbH
This section must be read before any connection is made to the mains supply.
CE-MARKING
The clearaudio Concept meets the regulations concerning electromagnetic disturbance
(EMC) and low-voltage appliances.
EQUIPMENT MAINS WORKING SETTING
Your clearaudio product has been prepared to comply with the household power and safety
requirements that exist in your area. This product can be connected to INPUT: 100 V – 240 V
~/ 50 – 60 Hz / 150 mA; OUTPUT: 12 V= / 450 mA
COPYRIGHT
Recording und reproduction of any sound-material may require the consent of the creator. Please
acknowledge the information given in the
-Copyright Act 1956,
-Dramatic and Musical Performers Act 1958,
-Performers Protection Acts 1963 and 1072,
-any more recent legal regulations.

Concept
User manual
Page 2 clearaudio electronic GmbH 2010
Contents Page
1. Packing overview 3
2. Parts list 3
3. Set up 4
4. Cartridge mounting 6
5. Service 8
6. Technical data 9
Warranty information 10

Concept
User manual
Page 3 clearaudio electronic GmbH 2010
1. Packing overview
clearaudio has developed a special and secure packing for your Concept - turntable that
ensures safe transportation.
Please keep this original packing, if you need to ship the turntable.
2. Part list
1.
Accessories: Level gauge, screwdriver,
wrenches (No. 2& 2.5), drive belt,
power supply (incl. adaptors: EU, UK;
US, AUS), User manual, Quality Card
3.
Turntable - platter
2.
Turntable chassis with tonearm and
cartridge (optional)
Accessories-box,
user manual,
warranty card,
clearaudio
Quality Card
Turntable -
Platter
Concept
turntable chassis
incl. integrated
motor unit and
tonearm with
cartridge
(optional)
2. Second layer
1. First layer:

Concept
User manual
Page 4 clearaudio electronic GmbH 2010
3. Set up
The set up of the Concept - turntable is easy as the turntable and tonearm are pre-
assembled. If you chose the model with included cartridge, it has been mounted and all
parameters have been already adjusted and tested at the clearaudio factory. If not, refer
the section 4 on cartridge mounting and tonearm adjustment.
The Concept - turntable requires a place for set-up of at least 17 inch x 14 inch.
1.)
Please take first the Concept - turntable chassis out of the package and place it on a
suitable surface. After that please take the accessory box out of the package.
2.)
Please remove the adhesive security tape from the sub-platter.
3.)
Take the drive belt out of the accessory box and place it around the sub-platter and around
the motor pulley.
4.)
Take the platter out of the package and place it carefully with both hands onto the shaft.
5.)
Now remove carefully the adhesive security tape
from the tonearm and the cartridge (optional).
Pic. 2: Removing the security tape
Pic. 3: Set up of the platter
Pic. 4: Removing the tapes

Concept
User manual
Page 5 clearaudio electronic GmbH 2010
6.)The following adjustment is very important:
Place the clearaudio level gauge on the platter as in picture 5.
Should the bubble of the level-gauge not be in the center of the black circle, please check
that that the surface under the turntable is level. You can achieve the perfect level position
by adjusting the feet of your Concept – turntable. First loosen the lock screw and turn the
feet clockwise or counter clockwise till you reach the level position. Please fix the ideal
position of the spikes by using the lock screw again.
Only if the turntable is in the ideal level position you will get the best sound out of your
Concept - turntable.
7.)
Connect the one side of the supplied external Power supply to the socket on the backside of
the Concept – turntable and the other side to a live AC outlet. After that connect the
tonearm to your phonostage.(More information on phono-preamplifiers can be found on our
Website: www.musicalsurroundings.com).
Your Concept - turntable is now completely set up and ready to play.
We wish you a lot of listening pleasure!
Pic. 5: Alignment of the turntable
Pic. 6: Height adjustment of the feet
Pic. 7: Connecting the Power supply
Lock screw

Concept
User manual
Page 6 clearaudio electronic GmbH 2010
4. Cartridge mounting
Please pay attention during every step to avoid damaging the cartridge!
Please refer to the cartridge manufacturer’s manual during installation
and follow the appropriate instructions.
1.)
Physically mount the cartridge using mounting hardware
supplied with your cartridge. Locate and rotate it as
pictured. Fine adjustments will follow later.
2.)
Connect the headshell wires carefully using tweezers or fine needle-nose pliers. The
headshell wires (cartridge connection leads) are colour coded according to the international
standard:
3.) VTF
Now adjust the tracking force of the cartridge. Please follow the instructions provided by the
cartridge manufacturer.
You can adjust the force by turning the tonearm`s counterweight on
the threaded bolt. For adjusting the tracking force, you can use tools
like the clearaudio Smart Stylus or Weight Watcher gauges. For
more information on other Clearaudio setup tools, please contact
your local dealer or Musical Surroundings directly. It is
recommended to place your stylus gauge directly on the Concept
platter to most accurately set the Vertical Tracking Force.
4.) VTA
For the next step, place an LP (180 gram preferred) on the platter. Now you can remove the
stylus protector from your cartridge.
Next, using the cuing lever, lower the cartridge onto the middle of the turntable platter.
When looking from the side, check to see that the upper edge of the tonearm tube is parallel
to the surface of the record. If necessary you can adjust the height of the tonearm. To do
this, hold the tonearm and use the key to loosen the arm locking screw on the side of the
black circular tonearm mounting plate. Adjust the height of the tonearm accordingly and re-
tighten the screw.
Colour code of the Concept tonearm wire:
Signal left channel (L+) →white
Signal ground left channel (L -) →blue
Signal right channel (R+) →red
Signal ground right channel (R -) →green
Pic. 8: Cartridge mounting

Concept
User manual
Page 7 clearaudio electronic GmbH 2010
5.) Azimuth
Next, use the cueing mechanism to lower the cartridge and check that the upper edge of the
cartridge is parallel to the record surface as viewed from the front. This adjustment has been
pre-set at the Clearaudio factory. Although it is rarely necessary, you can adjust the
cartridge azimuth. Carefully loosen the small screw on the bottom side of the tonearm tube
near the headshell (Caution: don’t unscrew the screw completely!). Now you can twist the
headshell to adjust the azimuth of the cartridge. When you find the right position, carefully
lock the small screw while holding the headshell steady.
Don’t adjust the headshell when the cartridge is lowered onto the surface of the record.
It is necessary to lift the cartridge from the record before you can make adjustments.
6.) Overhang & Offset
For the final set-up of the tonearm, you need a cartridge alignment
gauge. Place the gauge over the spindle of the turntable platter and
turn the platter into the position as shown in picture 9.
Lower the cartridge and place the stylus tip of the cartridge on the
reference point on the alignment gauge. Make sure that the cartridge
cantilever is absolutely parallel to the marking lines printed on the
cartridge alignment gauge.
To adjust the position of the cartridge, loosen the screw on the top of
the headshell and move the cartridge into the correct position
(picture 10) by sliding forward or back and rotating. Make sure the
stylus tip of the cartridge is on the reference point on the alignment
gauge, the cartridge cantilever is absolutely parallel to the short
marking lines printed on the cartridge alignment gauge and that the
front edge of the cartridge is parallel to the long marker lines on the
cartridge alignment gauge. Hold the cartridge in the proper position
and tighten the screw on the top of the headshell. While making the
final adjustments to the tonearm and cartridge, always look down at
the alignment gauge from directly above Picture 10: Fine alignment
to avoid any optical parallax errors.
If the installation has been done correctly, the diamond tip
should be on the reference point, the cantilever should be
parallel to the short marking lines on the gauge, and the front
edge of the cartridge should be parallel to the long lines on the
gauge (as in picture 11). Re-check your tracking force as this
may have changed during alignment.
7.) Anti-skating
The Concept tonearm comes factory pre-adjusted for medium anti-skate. Underneath the
turntable, at the base of the tonearm, is a knob for further adjustment if needed. Observe
the calibration marking as a reference point. Turn knob clockwise to increase, counter-
clockwise to decrease anti-skate. Do not turn more than 1 complete rotation from reference
point to avoid damage to tonearm bearing (not covered by warranty).
The general set-up is now finished.
Picture 9: Alignment of the cartridge
Picture 11: Correct installation

Concept
User manual
Page 8 clearaudio electronic GmbH 2010
5. Service
If any service or repair on a clearaudio product is necessary, service for should be done by
authorized personal only. Please contact your dealer first then the US distributor: Musical
Surroundings at 510 547-5006 or [email protected]
In case any repair is needed, the clearaudio Concept -turntable may need to be sent to your
authorized dealer or directly to Musical Surroundings. Please contact your dealer to begin the
process of obtaining assistance and, if needed, a Return Authorization (RA) number.
Transportation advice:
If any transportation of the Concept - turntable should be necessary, please always remove
the turntable platter and fix the sub-platter as well as the tonearm and the cartridge stylus
protection. Otherwise serious damage can occur!
PLEASE RETAIN ALL ORIGINAL PACKAGING. You will need it if your turntable needs to
be transported and/or shipped. The 2 year warranty can only be honoured if the turntable is
returned in the original Clearaudio packaging. If you repackage the turntable, please pack
the parts in the reverse order that they were taken out of the box.
Any further questions you may have about this turntable should be directed to
Musical Surroundings Inc.
5662 Shattuck Ave Oakland, CA 94609
tel [phone], fax [phone]
www.musicalsurroundings.com
[email protected]
or directly to clearaudio at
clearaudio electronic GmbH
Spardorfer Str 150
91054 Erlangen
Germany
Tel/Phone: [phone]
www.clearaudio.de
[email protected]

Concept
User manual
Page 9 clearaudio electronic GmbH 2010
6. Technical data
Construction:
- Resonance-optimised chassis
- Friction free tonearm with magnetic bearing
technology
Speed ranges:
33 1/3, 45 and 78 RPM
Drive unit (motor):
Decoupled DC motor with low noise bearings
Bearing:
Polished and tempered steel shaft in a sintered bronze
bushing, runs on a mirror of Teflon
Platter:
Black colored POM, 30 mm thickness
Speed variation:
+- 0.04 %
Weight:
approx. 7.5 kg incl. motor, tonearm and cartridge
Dimensions:
mm approx. 420 mm x 350 mm x 140 mm
inch approx: 16.54 x 13.78 x 5.51
Warranty:
2 years
clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or
improvement without prior notice.Availability as long as stock lasts. Copies and imprints- also only in extracts – require written
conformation through clearaudio electronic GmbH; Germany
May 2010

Concept
User manual
Page 10 clearaudio electronic GmbH 2010
Warranty
To achieve the full clearaudio2 year warranty, it is necessary that you fill out and send the warranty
registration certificate /card and a copy of your sales receipt back to Musical Surroundings, within 30
days after purchase.
Musical Surroundings Inc.
5662 Shattuck Ave Oakland, CA 94609
tel [phone], fax [phone]
www.musicalsurroundings.com
[email protected]
Otherwise clearaudio provides the legal warranty of 1 year.
In the case of return for service, only if the product is returned in it’s original packing can
clearaudioprovide the warranty.
WARRANTY TERMS AND CONDITIONS
1. Musical Surroundings warrants the product designated herein to be free of manufacturing defects in
material and workmanship, subject to the conditions herein set forth, for a period of 1 year from the
date of purchase by the original purchaser. If the purchaser registers the unit with Musical
Surroundings by mailing in the warranty card, together with a copy of the bill of sale, within 30 days
of the date of purchase, said purchaser will be registered for an extended service contract. The
extended service contract extends to a period of 2 years from the date of purchase by the original
purchaser or no later than 3 years from the date of shipment to the authorized Musical Surroundings
dealer, whichever comes first.
2. CONDITIONS - This warranty is subject to the following conditions and limitations. The warranty is
void and inapplicable if the product has been used or handled other than in accordance with the
instructions in the owner's manual, abused or misused, damaged by accident or neglect or in being
transported, or the defect is due to the product being repaired or tampered with or modified by
anyone other than Musical Surroundings or their authorized repair stations. To obtain warranty
service, you must first contact Musical Surroundings at 510 547-5006 or
[email protected] to obtain a Return Authorization (RA) number. The
product must be packed in its original carton and returned to Musical Surroundings or authorized
repair station by the customer at his or her sole expense. A returned product must be accompanied
by a written description of the defect and a photocopy of the original purchase receipt. This receipt
must clearly list model and serial number, the date of purchase, the name and address of the
purchaser and authorized dealer and the purchase price. Musical Surroundings reserves the right to
modify the design of any product without obligation to purchasers of previously manufactured
products and to change the prices or specifications of any product without notice or obligation to any
person.
3. REMEDY - In the event the above product fails to meet the warranty, and the above conditions
have been met, the purchaser's sole remedy under the limited warranty shall be to return the product
to Musical Surroundings where the defect will be rectified without charge for parts or labor.
4. LIMITED TO ORIGINAL PURCHASER - This warranty is for the sole benefit of the original purchaser
of the covered product and is NOT TRANSFERRABLE.
