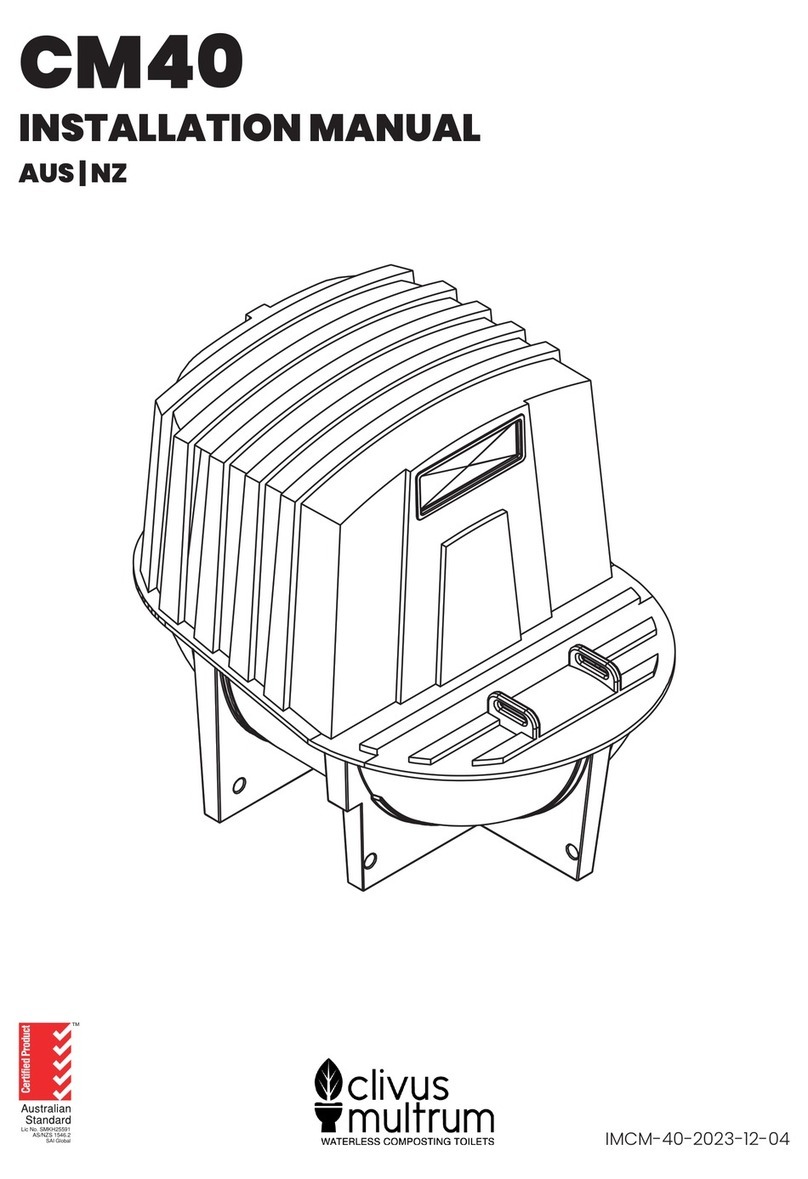

clivus multrum CM40 User manual

CM40
INSTALLATION MANUAL
AUS | NZ
IMCM-40.090522
Lic No.SMKH25591
AS/NZS 1546.2
SAIGlobal

2
IMCM-40.090522 www.ecoo.com.au
1300-138-182
TABLE OF CONTENTS
CM40 TANK ITEMS 3
PEDESTAL ITEMS 3
DRAIN ITEMS 4
VENT ITEMS 4
OPTIONAL ITEMS FOR BURIED ANCHOR SYSTEM ONLY 5
OPTIONAL ITEMS FOR LEACHATE DRAIN 5
CONSUMABLES 5
TOOLS REQUIRED 6
MATERIALS REQUIRED 6
INSTALLATION SUMMARY 6
CONDITIONS 7
POSITIONING THE TANK 8
TANK SUPPORT 8
INSTALLATION FOR BURIED ANCHOR SYSTEM ONLY 9
EXCESS LEACHATE DRAIN INSTALLATION (OPTIONAL) 10
ALTERNATIVE EXCESS LEACHATE DRAINAGE 10
TOILET CHUTE & PEDESTAL 11
PEDESTAL INSTALLATION 14
INSTALLATION OF VENTILATION SYSTEM 14
HOW TO USE THE MAIN LID 17
STARTER-BED OF ORGANIC MATTER 18

3
IMCM-40.090522 www.ecoo.com.au
1300-138-182
1x TOILET CHUTE
COLLAR
1x CM40 TANK
CM40 TANK ITEMS
1x TOILET
CHUTE
1x SILICONE
SEALANT
1x MAINTENANCE RAKE
PEDESTAL ITEMS
16x ROOFING
SCREWS
1x PEDESTAL & TOILET
SEAT
(Type and quantity
dependent on customer
requirements)
SEALANT
1x ‘HOW TO
USE’ SIGN
How to use:

4
IMCM-40.090522 www.ecoo.com.au
1300-138-182
1x VENT COWL
150mm
3x SLIP JOINERS
150mm
2x PIPE REDUCER
150-100mm
1x FAN IN HOUSING 1x TRANSFORMER
1x LIQUID DRAIN PIPE
CONNECTOR 50mm
VENT ITEMS
DRAIN ITEMS
1x WALLACE SEAL
150mm
2x 45° BEND 50MM
4x VENT PIPE SECTIONS
150mm OD 1000mm Long
1x 90° BEND
150mm
2x VENT SUPPORT
BRACKETS & 4x
SCREWS
1x MOZZIE STOPPA
(with Pipe Adapters)
ELECTRONIC VENT ITEMS:

5
IMCM-40.090522 www.ecoo.com.au
1300-138-182
1x 125mL
ENZYMES
BULKING
MATERIAL
3x STARTER
BULKING
MATERIAL
CONSUMABLES
1x SPRAY BOTTLE
OPTIONAL ITEMS FOR BURIED ANCHOR
SYSTEM ONLY
OPTIONAL ITEMS FOR LEACHATE DRAIN
5x FRP PIPE
50mm OD 300mm Long
1x PVC DRAIN PIPE
50mm OD 1000mm Long
1x FILTER CLOTH
1x SLOTTED DRAIN COIL
100mm OD 3000mm Long
1x BAG OF
MICROBES

6
IMCM-40.090522 www.ecoo.com.au
1300-138-182
MATERIALS REQUIRED
• Water to wet starter material.
• Additional 50mm PVC pipe (coupling and bends if absorption trench is to be located some
distance away from tank). Additional pipe bends if needed for vent pipe.
• In poor soil conditions, extra length of trenching arch or agi drain may be required.
• Drainage gravel for leachate drain.
INSTALLATION SUMMARY
1. Ensure the tank is in a position so that the toilet chute will be perfectly straight over the
tank below.
2. Ensure the tank foundation is solid with a sand or crusher dust bed.
3. Mark and cut holes in the oor for the toilet chute.
4. Mark and cut holes in the tank top.
5. Insert toilet chute and pedestal.
6. Install the vent system.
7. Install the liquid end-product drain pipe and absorption/transpiration trench.
8. Connect fan to power source.
9. Check everything is sealed.
10. Place a starter-bed of suitable bulking agent (e.g. wood shavings) in the unit.
11. Wet bulking agent before use of toilet.
12. Add starter bacteria after 14 days of use.
Screwdriver
(Philips/plain)
Jigsaw Tape Measure
Caulking gun
Marker
Spade
Ladder
Spirit Level
TOOLS REQUIRED
Scissors/Knife Drill PPE

7
IMCM-40.090522 www.ecoo.com.au
1300-138-182
CONDITIONS
Any decomposition process works better where temperatures are warmer. Over the winter
months the composting process slows or can even temporarily stop where temperatures in the
pile drop below 4°C.
>13°C
Ideal temperature for composting
<13°C
Composting process slows
As the composting tank is black, it will absorb heat from the sun. Simply by installing the
compost bin on the north side of the house will make a dramatic difference to the
composting process. In addition, a translucent hatch and enclosure can be installed around
the compost bin. In extreme alpine conditions it may be necessary to insulate the tank itself in
addition to the above.
N
Ideal chute/pedestal
location on tank.
Side of Building
Lid
PLAN VIEW

8
IMCM-40.090522 www.ecoo.com.au
1300-138-182
POSITIONING THE TANK
If there is very little room between the top of the tank and the oor of the building, the order
of the installation can be changed as follows: Firstly, cut the hole for the pedestal in the oor
of the building (refer to page 11, Toilet Chute & Pedestal). Position the tank under the hole
and then mark the position of the hole onto the tank. After the tank has been marked, it can
be removed from under the building. Cut the hole in the tank and t the chute collar before
placing the tank back into position.
- Check the position planned for the toilet chute. The toilet chute must be positioned over
the top of the compost tank. For less maintenance of the compost pile, the optimum
location for the chute/s to enter the tank is mid-width, in the rear half of the tank. A
clearance of at least 150mm from edge of chute to edge of tank-top is desirable to avoid
rapid build up of the pile against the sides.
- Check there are no major support beams, pipes or electrical wire that are in the way of the
toilet chute.
- Where mains power is to be used, check that a power point has been installed near the
location for the ventilation fan.
- Locate where the excess liquid drainpipe and tench is to go and take this into account
when positioning the tank.
TANK SUPPORT
The composting tank must be supported by either compacted subsoil with the tank placed on
a bed of sand, or a concrete slab. Insulation between the tank and the concrete slab will reduce
heat loss and aid the composting process. NOTE: The tank and enclosure should be protected
from surface and oodwater.
Uneven GroundSmooth Ground
50-75mm bed of sand, crusher dust
or similar on compacted sub-soil

9
IMCM-40.090522 www.ecoo.com.au
1300-138-182
INSTALLATION FOR BURIED ANCHOR
SYSTEM ONLY
For a buried system it is required to hold the tank down with galvanised rods. These are slid
into the slots provided on both sides and the front of the CM40 tank.
Sand or crusher dust 50mm
thick under the tank
Firm sub-soil
0.5m3 of
concrete over
anchor pipes
FRP Pipe
50mm OD
FRP Pipe
50mm OD
Excavate 300mm larger
than tank all around. Fill
with clean ll.
LEFT SIDE VIEW SECTIONAL IN GROUND

10
IMCM-40.090522 www.ecoo.com.au
1300-138-182
EXCESS LEACHATE DRAIN
INSTALLATION (OPTIONAL)
ALTERNATIVE EXCESS LEACHATE
DRAINAGE
PLEASE CONTACT OUR SALES STAFF ABOUT ZERO DISCHARGE UNITS.
300 min
150 min
450 min
20mm Gravel
ø100mm Agi Drain
Geofabric layer
230 min
150 min
500 min
Trench arch
Gravel
Geofabric layer
Trench Arch Drain Agi Drain
SECTION VIEW
Straight Pipe
45° Bend
45° Bend
Trench Arch or
Agi Drain

11
IMCM-40.090522 www.ecoo.com.au
1300-138-182
TOILET CHUTE & PEDESTAL
Please refer to the Pedestal
installation manual for instructions
on how to locate the pedestal in
your bathroom.
FRONT
BACK
A3 Template to
cut chute hole at
the correct size
(included with
pedestal).
BACK WALL
<5mm of sideways play around the hole.
SIDE WALL
Note: If the oor of the building is high above
the top of the tank a chute extension piece/s
may be needed. Extra lengths are available from
your supplier. Joints should be screwed with
short self-tapper screws, and sealed with silicon.
If more than 2 chutes are joined then additional
support straps or brackets are needed to support
their weight from the building frame, instead of
hanging only by the top chute.
Using the outside of the toilet
chute as a template, mark and
cut the chute hole into the top
of the tank.
Bathroom oor
1
2
3

12
IMCM-40.090522 www.ecoo.com.au
1300-138-182
Enlarge the hole in the rubber chute
collar (dektite) so it will stretch snugly
around the toilet chute without gaps.
Drip Edge
Max 100mm
SECTION VIEW
Mark and cut
chute.
4
5
6
Tank
inspection door
Floor representation

13
IMCM-40.090522 www.ecoo.com.au
1300-138-182
Lift the toilet chute slightly
and put sealant between
the toilet chute and the
oor then press chute
down again to seat rmly
onto the oor.
SEALANT
TOP FLOOR
Bend and move the
metal edging strip of the
chute collar to the tank.
SEALANT
Run a bead of silicon sealant
around the underside edge of
the collar.
Using the 1/2 stainless screw
provided, secured the collar of the
tank top by screwing through the
metal edging strip.
12
3
Collar
Lift up Push down
7
8
9

14
IMCM-40.090522 www.ecoo.com.au
1300-138-182
PEDESTAL INSTALLATION
See separate instruction manual for pedestal installation.
INSTALLATION OF VENTILATION SYSTEM
Note: As air ow is essential to the operation of the unit, the fewer bends that are used
when installing the vent system the better.
NOTE: The hole for the vent pipe is best at the side of the
tank
or along the top edge, as far as practical from the nearest
chute entry. Refrain from placing it along the front face as
this can hinder opening of maintenance access.
Plan the vent
pipe layout.
Cut hole 168mm in
diameter (as noted on
the wallace seal).
1
2

15
IMCM-40.090522 www.ecoo.com.au
1300-138-182
Secure Wallace seal into position.
Tip: Putting the wallace seal in
hot water for 5 minutes can help
when installing the PVC pipe.
Secure pipe ttings according
to building/roong instructions.
Complexity may vary.
Mount the fan housing and Mozzie
Stoppa onto the vent pipe. Position
the fan housing so that it can be
easily accessed and secure with
silicon.
3
4
5
Fan Housing
Mozzie Stoppa
with Pipe Adapter
Slip joiner
Fan in housing

16
IMCM-40.090522 www.ecoo.com.au
1300-138-182
Attach the upper section
of the vent pipe. The pipe
should be supported
against the wall of the
building with the brackets
provided (2, 3). This
conguration will vary
depending on location of
CM40.
Install the vent cowl or optional turbo vent (1).
Secure with 3 self-tapping screws. 1
900mm minimum
2
3
6
7

17
IMCM-40.090522 www.ecoo.com.au
1300-138-182
1
2
3
HOW TO USE THE MAIN LID
Aline the lip of the lid with the
front rib of the Main Top Tank.
Push the lip under the rib and
ensure there is a strong secure t.
Once the lip is secured push the lid
down to its nal position.
Once the lid is in its nal position
use the two wing nuts to secure the
front of the lid.

18
IMCM-40.090522 www.ecoo.com.au
1300-138-182
STARTER-BED OF ORGANIC MATTER
SUITABLE BULKING MATERIAL
Fine sawdustLarge wood chips
Wood shavings
Lawn clippings
Add starter bed of bulking material to underside of bafe.
1
2
BULKING
MATERIAL
0.40m³ loose
Front Bafe
Hemp
Sugar cane mulch
NOT SUITABLE BULKING MATERIAL
Dry Leaves Peanut or
coconut husk
Dampen down
well with water.
INSTALLATION COMPLETE
