Installation Manual
202056 REV. 1
R
WOODBRIDGE
● Thank you for choosing our products.Please read the instructions carefully before
installation and keep it available for future maintenance or reference.
●Our company reserves the right of final interpretation for this manual.
The manual is subject to change without notice.
Customer Service Phone: [phone]. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: [email protected]
INSTALLATION MANUAL B0970S
www.woodbridgebath.com
ELECTRONIC WASHLET TOILET

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
www.woodbridgebath.com
1
R
WOODBRIDGE IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
When using electrical products, especially when children are present, basic safety
precautions shouldalways be followed, including the following:
1.The appliance is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction.
2.Children being supervised not to play with the appliance.
3.This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
4.Children shall not play with the appliance.
5.Cleaning and user maintenance shall not be made by children without supervision.
DANGER –To reduce the risk of electrocution:
1. Do not use while bathing.
3. Do not place in or drop into water or other liquid.
4. Do not reach for a product that has fallen into water. Unplug immediately.
5. Do not wash the main unit or electrical plug with water or detergent.
6. Do not handle the electrical plug with wet hands.
7. Do not put a hand or other staff over the outlet of air dryer or block the outlet of air dryer.
8. Never disassemble,repair or modify this product.
9. During installation, disassembly, repaire and maintenance of the product,the power plug
must be switched off and water supply be shut off.
WARNING–To reduce the risk of burns, electrocution, fire, or injury to persons.
1. Close supervision is necessary when this product is used by, on, or near children or
invalids.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the product to a
service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never use while sleeping or drowsy.
6. Never drop or insert any object into any opening or hose.
7. Do not use outdoors or operate where aerosol (spray) products are being used or
where oxygen is being administered.
8. Connect this product to a properly grounded outlet only. See Grounding Instructions.
9. Do not throw cigarettes and other burning stuff into toilet, otherwise it might cause fire.
10.This product is electric appliance, so it must be placed far away from water. Please
don’t drench urine and other liquid to it.
11.Do not lay on side or upside the product during the electrical circuit.
12.It is prohibited to use other electric appliances in the same socket.
13.It is forbidden to use the power extension or unstable loose outlet.
14.The old aging water supply hose can not be used, otherwise it might cause leakage,
fire or electrical shock.Installation of the bidet seat should include specified components
and new water supply hose.
2. Do not place or store product where it can fall or be pulled into a tub or sink.

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
www.woodbridgebath.com 2
R
WOODBRIDGE
CAUTION–
DANGER –
IMPORTANT SAFETY INSTRUCTIONS
Indicates that failure to follow the instruction may cause body injury or
property damage.
GROUNDING INSTRUCTIONS
Improper use of the grounding plug can result in a risk of electric shock.
SAVE THESE INSTRUCTIONS
1. Do not install or use the product in wet places as steam room etc.This product must be
connected to properly grounded power outlet socket.
2. It is recommended to use water-proof electrical outlet which should be lnstalled in the place
where is not easily got wet.
3. This product should be used with AC 110V-120V,50/60Hz electrical current only,load current
is at least 15A. P ower plug must be equipped with ground fault circuit interrupter or ground
fault electrical leakage protector or similar high sensitive, rapid type leakage switch
(Rated sensitive current under 6mA).
4. When it thunders,it is strongly recommended to pull out the power plug.
5. Do not stand on ceramic toilet.
6. Ceramic toilet must install floor fixing bolt.
7. Do not stand on product unit,seat and cover.
8. Do not lean against the seat cover when using the product,to avoid damage.
9. This product is equipped with soft-closing seal cover.Heavy pressing or pushing may damage
the soft-closing damper.
10. Do not use lacquer thinner,petrol,liquid medicine,detergent,insecticide,toilet cleanser and
scrubbing brush to clean the product.
11.Exposure to direct sunlight is prohibited.
12.Only use tap water or potable water;otherwise it may cause chafing.
13.Do not connect water supply to heater outlet.Make sure inlet water temperature at 3~35˚C
14.When the room temperature is under zero degree,please dry up the water tank,to avoid
freezing.
15.Raise rest room temperature to prevent the toilet from damage due to freezing.
16.When move the product from cold or wet environment into normal room temperature,wait for
2 hours until the condensation water is fully volatilized.Doing so can prevent the product from
electrical short-circuit.
17.When not using the product over three(3) days,drain the water out of the container and pull
the elelctrical plug from the wall outlet.
18.Stop using the product and shut off the power when product malfunctions,please contact the
service people for professional service.
This product should be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to
either flat blade terminal. The wire with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
This product is factory equipped with a specific electric cord and plug to permit connection to a
proper electric circuit. Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product. Do not modify the plug
provided — if it will not fit the outlet, have the proper outlet installed by a qualified electrician. If
the product must be reconnected for use on a different type of electric circuit, the reconnection
should be made by qualified service personnel.

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
3
R
WOODBRIDGE TECHNICAL SPECIFICATION
Rating power
Main Unit
Toilet
Rating pressure
Electrical wire
Flush volume
Flushing mode Siphonic jet
length is about 1.5m
Rough-in
distance
Outlet outside
diameter
Drainage method Down-drain
Heating power
Water
temperature 6 different level adjustment
Water volume 3 different level adjustment
5 different level adjustment
Cleansing mode Rear washing/Massage washing ,
Feminine washing/ Massage washing,
Pressure stabilizer,Automatic pressure discharging
Automatic cleansing nozzle, Anti-syphon device,
Anti-backflow device, Filter device
Over 0.2m3/min
6 different level adjustment
Thermal fuse, Temperature senor, Thermostat
250W
1400W
3 1/2"
1200W-1400W
110V-120V,50/60Hz
Spray cleansing
location
Water pressure
protector
Anti-fouling
device
Safety device
Warm air volume
Warm wind
temperature
Heating power
Safety device
Cleaning
device
Drying
device
Thermal fuse, Water temperature senor,
Ground protection,
Thermostat,
Over temperature protection ,
Leakage protection plug
Model
Overall unit
Waterproof IPX4
B0970S
4.8L（full flush6.0L/half flush4.2L）
Water pressure
range
0.09MPa (dynamic water pressure, flow rate 15.0L/min
or more)--0.8MPa (static water pressure)
Heating mode Instant heated
www.woodbridgebath.com
12" 15 3/4"

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
www.woodbridgebath.com 4
R
WOODBRIDGE
Sensed area,Temperature senor,Thermal fuse,
Bimetal thermostat,Leakage protection plug
Heated seat
Caring
device
Surface
temperature
Heating power
Open and close
device
Heated burning
protection
Safety device
Night light
assembly
User ID setting
Automatic flushing
6 different level adjustment
50W
Quiet soft-closing device,Auto open and close
The seat temperature will automatically lower to level
1 in 10 minutes after using
Intelligent,often in the off state
To avoid disturbance from remote controls by multi-user
Toilet will automatically flush as user walks away from
bowl
Model
Seat, Spray nozzle
Antibacterial position
Deodorization Deodorization
Method Diatoms Deodorization
B0970S

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
5
LIST OF MATERIALS
Main Unit Remote controller components
Sealing Flange
Wrranty Card
Braided hose
Installation Manual
Installation Cardboard
Angle Valve Flange
Thank you for choosing our products.Please rea the instructions carefully before installation
and keep it available for future maintenance or refere.
Our company reserves the right of final interpretation for this manual.
The manual is subject to change without notice.
Model E2-B1 E2-F1
Installation Manual
www.woodbridgebath.com
R
WOODBRIDGE

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
www.woodbridgebath.com 6
R
WOODBRIDGE TECHNICAL DRAWING
The product drawing is for reference only, and we reserve the right to
modify the appearance of the product.
27 1/4"
16 1/8"
15 3/8"
18 5/8"

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
www.woodbridgebath.com
Flush
Front
cleaning
button
Rear
cleaning
button
Stop
Left side

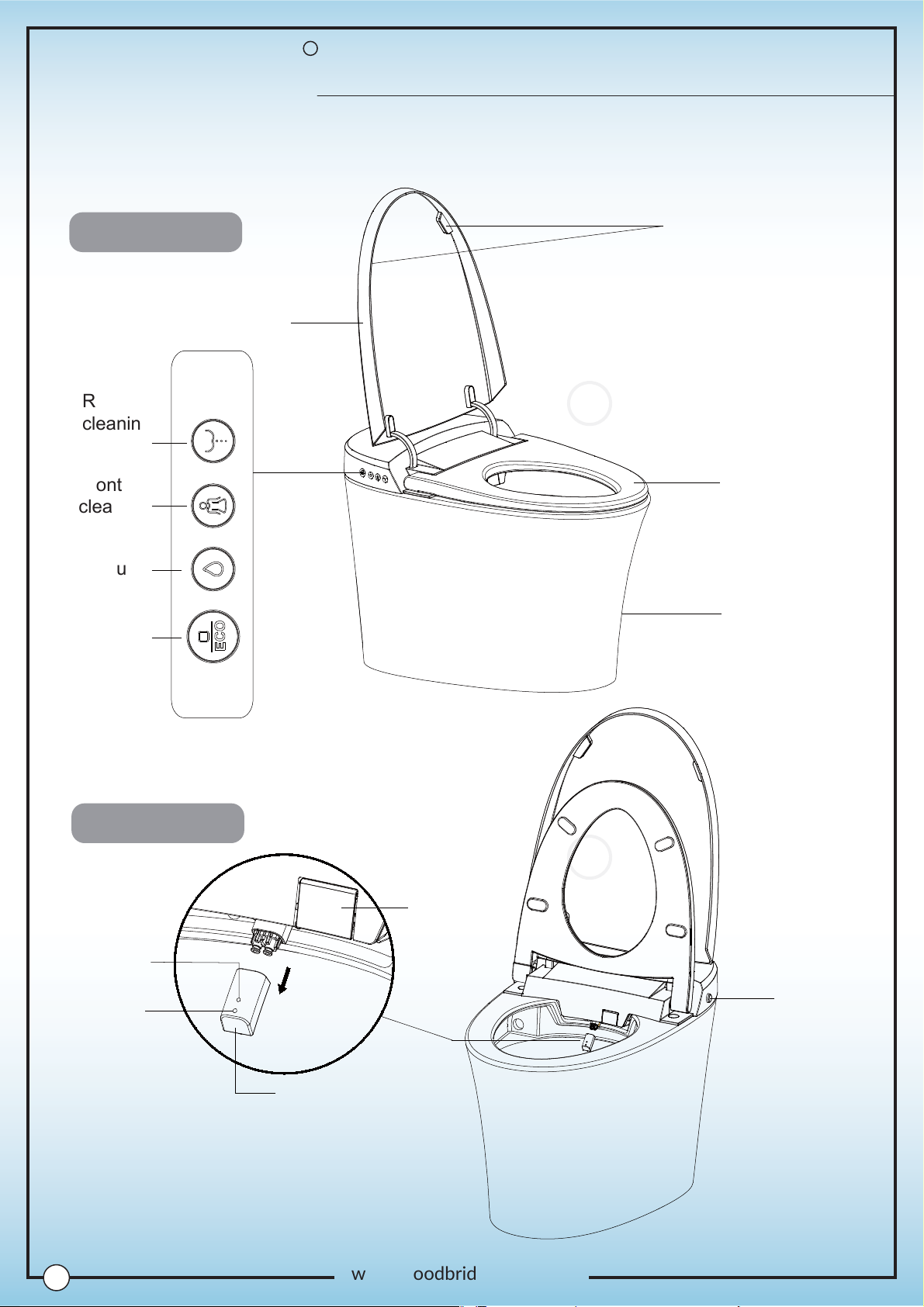

PARTS IDENTIFICATION
Bumper
Seat
Ceramic toilet
Lid
Remote
sensing
window
Drying
baffle
Rear
cleaning
Spray
nozzle
Front
cleaning
Right side
7

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
8
R
WOODBRIDGE
www.woodbridgebath.com
Cardboard 01
INSTALLATION OF CERAMIC TOILET
Precaution before installing
Minimum dynamic working water pressure:
0.09MPa or more (15.0L/min or more),
failure to meet this pressure will not achieve
the best flushing effect.
Remark: Apply the methods below if you
don’t have water pressure testing device.
Draw drain outlet centerline on the floor,
Install angle valve at proper position on
wall according to dimension of toilet.

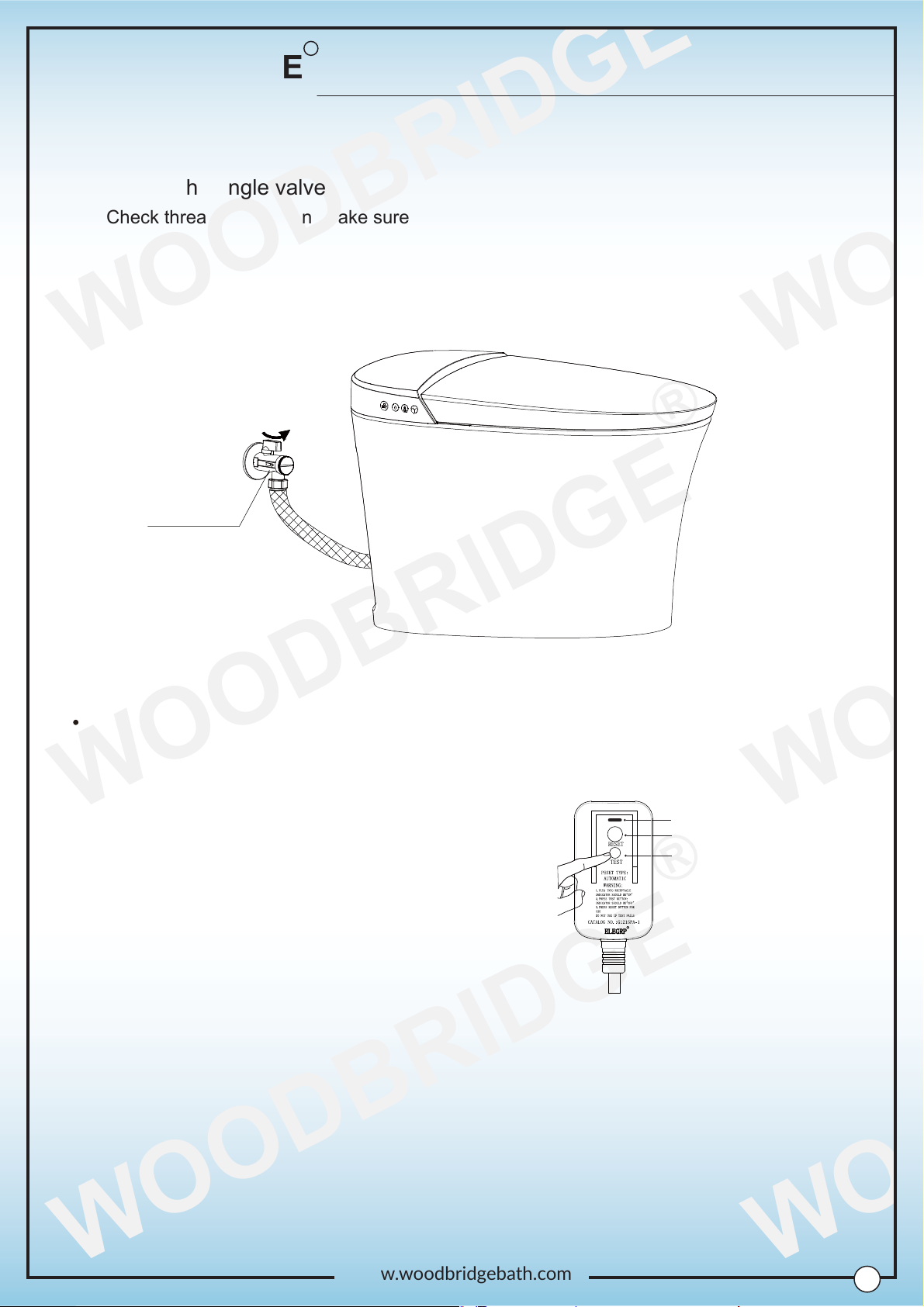

1. Installation of mating angle valve
Line
Drain outlet
Mating angle valve

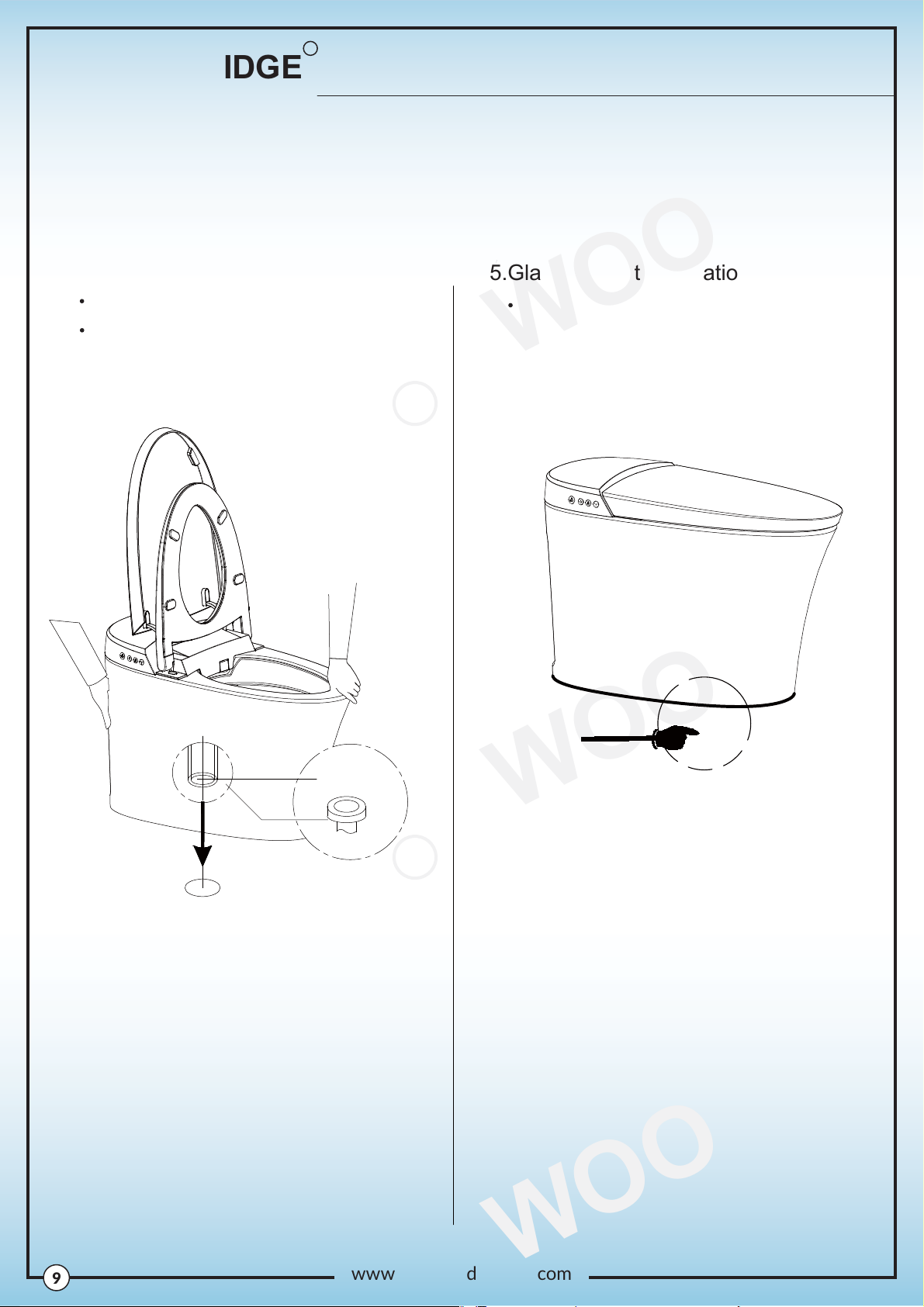

2. Cardboard installation
Align cardboard with the centerline of
drain outlet;
Draw contour line according to cardboard;
Angle
valve
Hose
Water storage
barrel
Open the angle valve and connect water inlet
for 10s, once the water volume is above 2.5L,
the minimum water pressure of the product is
ensured.(can be filled with 5 bottles of 500ml
mineral water bottles)
Cardboard 02
3.Hose
Connect the water inlet and angle valve of the
toilet with the matching hose and tighten it
Angle valve connector
Inlet connector
Flexible hose
2 3/4”
15 3/4”
12”
2 3/4”

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
9
R
WOODBRIDGE
www.woodbridgebath.com
5.Glass cement application
Apply high quality mildew glass glue around
the lower edge of the toilet.
4.Ceramic toilet installtion
Install sealing flange into drain outlet;
Install ceramic toilet on corresponding
position according to contour line.
Tips:The toilet is heavy, and it needs to open
the seat cover to carry it by two people.
Tips:
Please clean the drain outlet;
Please make sure ceramic toilet outlet
sits perfectly on drain outlet.
Glass
Cement
Toilet drain outlet
Sealing flange

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
10
R
WOODBRIDGE
www.woodbridgebath.com
1. Turn on the angle valve
Check thread connection, make sure no leakage is found,unscrew angle valve
anticlockwise to maximum opening.
(Tips: When opening for the first time, the angle valve handle has a larger torque)
PREVIOUS PREPARATEION
Angle valve
2. Power Connection
Insert power line leakage protection plug into the power socket, press the reset switch,
plug indicator lights on indicating that the power is on.
Tips:
Press electric leakage test button prior to usage,
the reset switch pops up indicating that the leakage
protection function is normal.
Electric leakage
test button
Reset switch
Indicator light
Press the TEST button (then RESET button) every
month to assure proper operation.
1. The main unit buzzer rings "beep", first blue light on, then blue light off; red light up
again, start self-inspection.
2. The main unit buzzer rings another "beep", self-inspection finish, blue light off.
3. Start function mode for normal usage.
3. Self-inspection

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
11
R
WOODBRIDGE
www.woodbridgebath.com

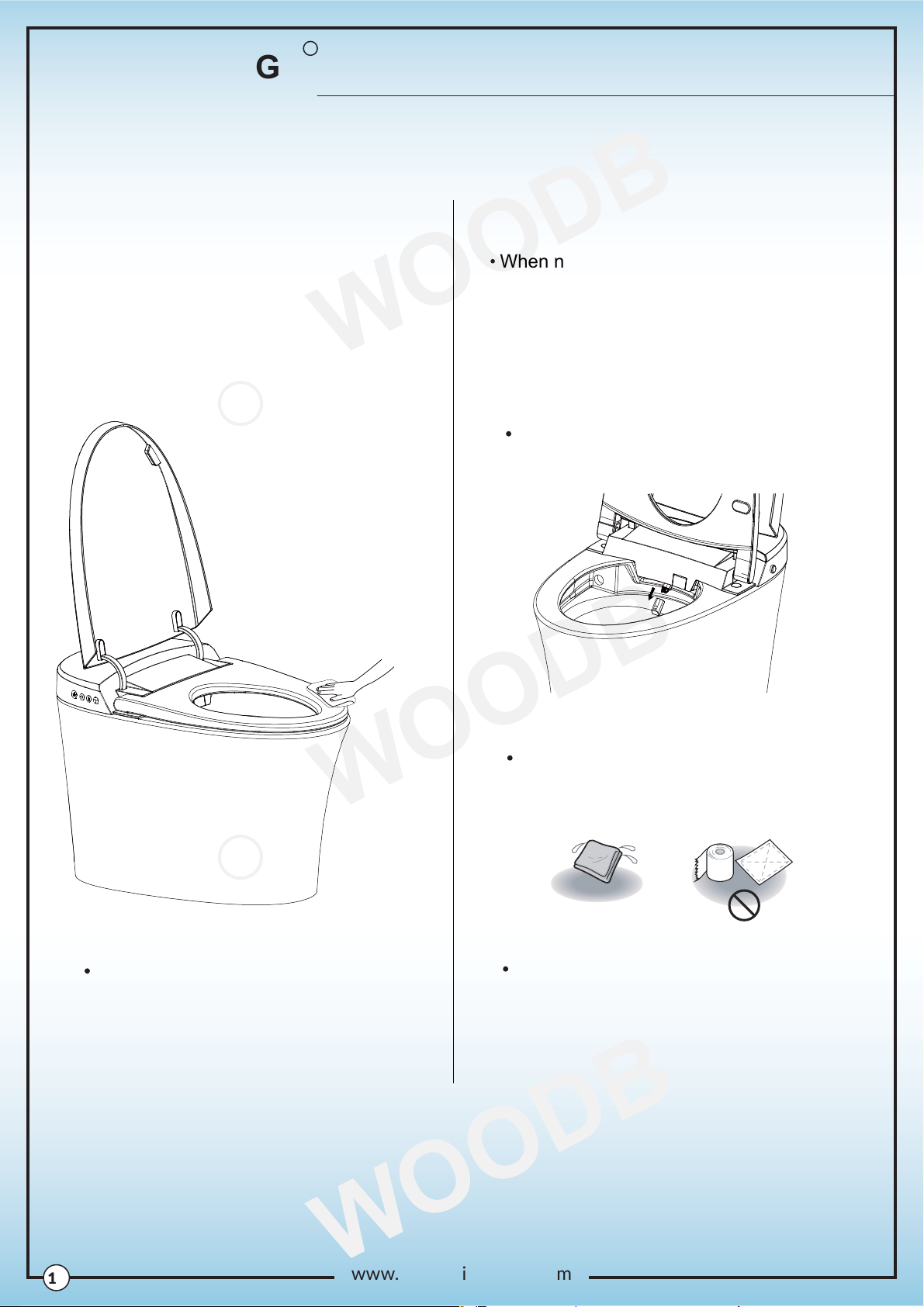

When no user is seated, press the “rear
cleaning button” on the main unit to start
nozzle self-cleaning manually, the nozzle
will automatically moves forward and clean
itself with water.
DAILY MAINTENANCE
Main unit care and maintenace
1. Shut off power supply at maintenance.
2.Wipe the stain with a soft damp cloth.
3. Safety self- inspection
After cleaning, re-connect the toilet with
the power supply.
3. Use soft cloth or soft brush to clean
Do not pull or push the spray rod,to avoid
damage.
4. Nozzle retraction
Put the nozzle back to the front of the boom
and press the “Stop” button to automatically
retract the nozzle.
2. Spray nozzle disassemble
When the nozzle moves forward,the nozzle
can be disassembled to clean.
Spray nozzle maintenance and care
1. Nozzle self-cleaning

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
12
R
WOODBRIDGE
www.woodbridgebath.com
Maintenance of filter net
Time for maintenance: It is under
normal water pressure but poor
flush performance occurs.
2. Unscrew angle valve nut
2. Remove filter net
3. Use the brush to clean filter net
4.Reinstall filter and angle valve nut,
turn on the angle valve and connect
power,then it can work normally after
self inspection.
No water supply
Put around 8L water into a barrel and
flush the bowl of ceramic.
Note: Avoid water spilling from bowl.
EMERGENCY TROUBLESHOOTING
1.Turn off power and the angle valve

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
13 www.woodbridgebath.com

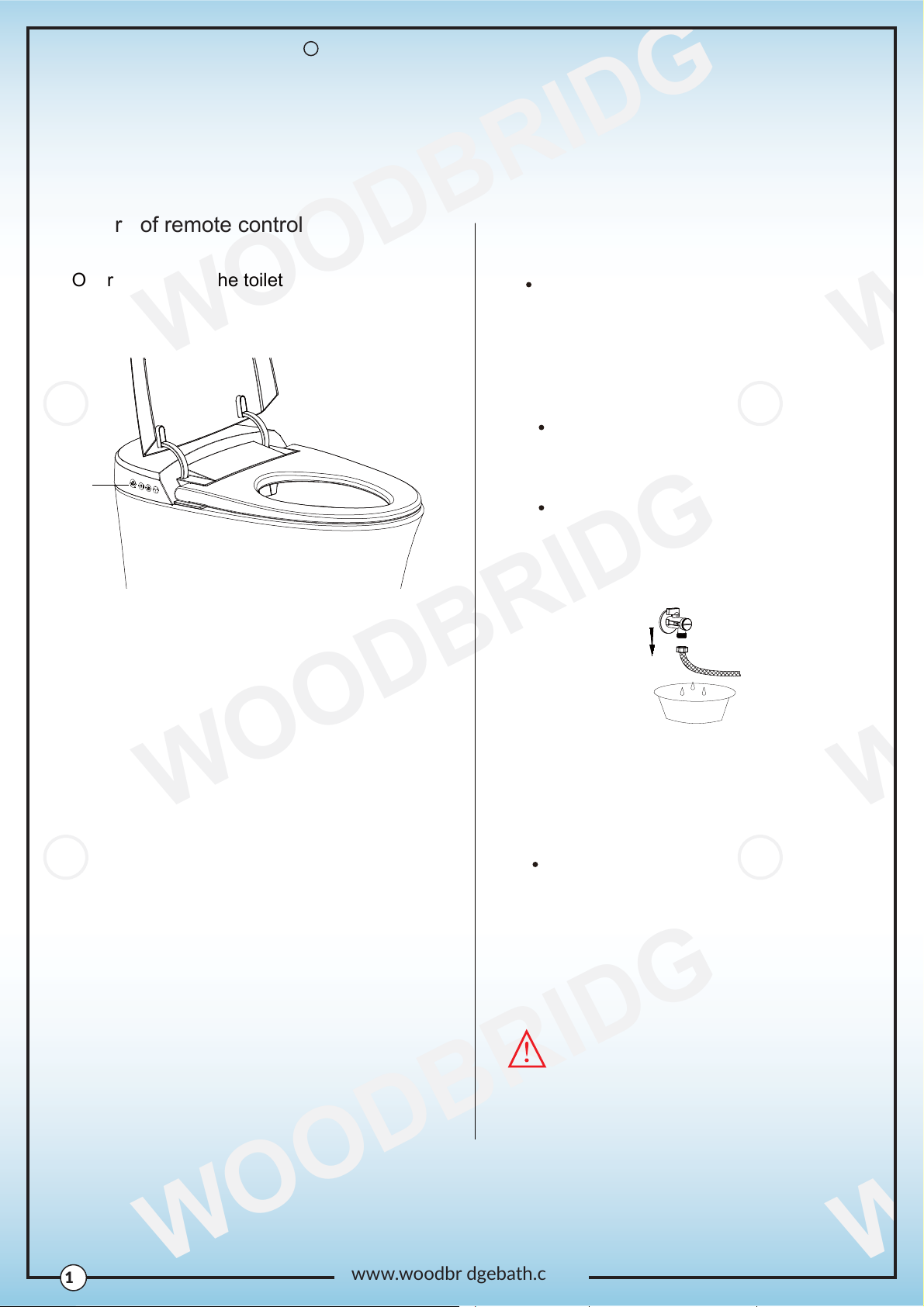

Buttons
Failure of remote control
Operate through the toilet body knob
When the product is left unused for
long time
Especially in winter when no one at home
for a long time, please drain out the water
inside tank and pipe to prevent freezing.
To discharge water
1. Drain out the water inside tank
Activate flushing, and then turn off angle
valve to prevent water inlet.
2. Drain out the water inside pipe
Unscrew the hose connector off angle
valve, drain the water in the pipe and
reinstall.
3. Unplug and cut off the electricity
4. Handle the remaining water in bowl
It is suggested to put some
antifreeze into water inside
the bowl.
Note：Before water discharging,
the power must be cut off!

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
14
R
WOODBRIDGE
www.woodbridgebath.com
Tips:
When the main unit is initializing, the “stop” button lights up, after about 1.5s, the blue light
(ECO light) will switch to red light (power light) .
Under ECO mode, the “stop” button lights up blue light (ECO light). Under working mode,
the “stop” button lights up red light (power light). Under power-off mode, the “stop” button on
the main unit lights off.
Right after main unit starts up, all function levels default to middle level. If the remote control
is used, all function levels will switch to the levels set by the remote control.
THE ILLUSTRATION OF MAIN UNIT KEYS
The illustration of main unit buttons
1. Press and hold the “Stop” button （for about 3s） on the unit, the
unit enters the shutdown mode (red light off), press the “stop button”
again, the unit returns to the working mode (lights red).【In the
shutdown mode, except for the “Stop” button on the main unit, any
button (including the unit and the remote control) is invalid.
2. When the user is seated, press the “Stop” button on the main unit to
stop the feminine washing, rear washing or drying function. When
the user is not seated, press the “Stop” button on the main unit
repeatedly. The main unit switches over between working mode
(red light) and power save mode (blue light).
1. When people is seated, press "rear cleaning" button, to wash the
rear portion of body; Press "rear cleaning" button repeatedly, then
turn on/off mobile massage function; Press "stop" button to stop.
When one circle cleaning is finished and the body remains seated,
the dry function will be automatically turn on and will stop after one
cycle.
2. When no one is seated, press "rear cleaning" button, the wand will
stretch out ,people can wash the nozzle and wand manually, press
"stop" button, the wand will retracts.
When people is seated, press "Front cleaning" button, to wash the
front portion of body; Press "Front cleaning" button epeatedly, then
turn on/off mobile massage function; Press "stop" button to stop.
When one circle cleaning is finished and the body remains seated,
the dry function will be automatically turn on and will stop after one
cycle.
1.When the user is seated, long press the “flushing” button
（for about
3s）
on the main unit to turn on the drying function. After drying for one
cycle, it will stop automatically. During the drying process, press the
“Stop” button to stop the drying function.
2.In the non-off mode, short press the “flushing” button on the main unit
to turn on the flush function. [Under the rear wash or the femail wash
function, the flush function is invalid; when the nozzle is manually
cleaned, the flush function is activated after the nozzle is fully extended
and retracted into position]
Flush
Front
washing/
massage
Rear
washing/
massage
Stop
3.In the case of power failure, press and hold “flush” button on the main
unit (for about 1s) to flush manually (full flush).

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
15 www.woodbridgebath.com
TROUBLESHOOTING GUIDE
Problem Cause
No Water from
Nozzle
Water inlet hose bent to
cause blocking
Inlet valve is off
Water supply is cut off
Weak water
cleaning
cause partial blocking
Inlet valve is not fully
turned on
Inlet filter blocked
The water temperature is setted
on normal temperature level
The seat temperature is setted
on normal temperature level
In standby mode
Solution
Solve the problem of bending
of water inlet hose
Turn on the inlet valve
Connect water supply and
wait for the water
Solve the problem of bending
of water inlet hose
Turn on the inlet valve fully
Clean the filter
Reset the water temperature
Reset the seat temperature
No wind out
Spray wand
cannot retracted
Spray wand
cannot stretch out
display
Malfunction of
deodorization
Caution
The wind temperature is setted
on normal temperature level
In standby mode or power
save mode
Power off
Get stuck by impurities
Power off
Not sit in sensing area
User doesn't reach the
sensing area in seat
Deodorization function
keeps working after user
leaves
If the problems cannot be solved as per above methods, please
shut-off the power, and contact service providers for maintenance.
If the leakage circuit breacker often trips off, it means the
products has electricity leakage, so please shut-off the
power, and contact service provider for maintenance.
It's a normal phenomenon if
deodorization function keeps
working after user leaves to
ensure eliminating smell entirely
Adjust to reach the sensing area
Reload the battery
Sit right in the sensing area
Push back the wand lightly and
wait for the power
Clear away the impurities
Push back the rod lightly and
wait for the power
Shift to function mode to use
dry function
Reset the wind temperature
Low water
temperature
Low seat
temperature
Low wind
temperature
Remote control
cannot
Switch to functional mode and
use it after 3 minutes of use
Water inlet hose bent to
The battery of the remote control
is installed in the opposite direction
Customer Service Phone: [phone]. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: [email protected]
ASVFAF0321003A-1.0
