Separett Tiny 1271-01 User manual

Tiny with urine tube art.no. 1271-01
Installation manual
Installationsmanual
Asennusopas
Installasjonsmanual
Installationsanleitung
Installation manuel
Manual de instalación
Tiny®
12356-01

3
WARNING!
Before making holes in walls or oors. Ensure that the location for wall penetration
allows for a hole to be made and that the piping meets construction regulations. Keep
in mind that the wall may conceal, for example: electrical wiring, piping, waterproong,
load-bearing construction.
IMPORTANT! Always consult your local environmental oce to nd out what rules apply in your munici-
pality. Always follow local regulations. Please view our installation video at www.separett.com
To make sure the toilet stays odor free, the fan in the toilet should always be running for it to ventilate
and receive fresh air to ventilate out. To achieve this, the following is required:
1. No other fan/ventilation system may aect the same room.
2. Ensure that fresh air from the outside enters the room. The air entry point should be as close to the
toilet as possible.
Useful tools
Hole sizes:
51mm (1,5”) - ventilation
33mm (1 3/8”) - urine outlet

4
1 x 90-degree connection
1 x Ventilation pipe 40 cm
(15.75”)
1 x Sample drain cleaner
10 x Compostable wastebags Tiny
1 x Sample Absorb pad Tiny
1 x Urine bowl extension
3 x Mounting screws for wall or
oor mountings
1 x Lid for solid waste container
1 x Adaptor ventilation pipe 50
mm to 1.5” (schedule 40)
1 x Basket for bioblock
1 x Pipe cap with insect net
50 mm/1.5”
1 x Ventilation cowl 50 mm/1.5”
2 x Screw for ventilation cowl
1 x Tube of silicone
1 x Installation template
1 x Power adapter
1 x 12 V battery cable
1 x Fan lter
1 x Urine hose
1 x Straight joint 32 mm pipe
1 x 90-degree joint
32 mm pipe
Included with the product

5
Installation steps
Please read more under each heading
1. Toilet placement
2. Make holes according to the installation template
3. Install ventilation pipe
4. Install urine hose
5. Install ventilation pipe cap or ventilation cowl
6. Power supply for toilet
7. Connect the toilet to the ventilation pipe and urine tube
8. Fix the toilet to the wall and/or oor
9. Install xed fan lter
10. Place basket in the urine drain

6
Toilet placement
Separett Tiny has no requirements for room temperature and works in both cold and warm spaces. The only
requirements are that you must be able to lead the urine away and t a ventilation pipe.
The toilet is made to be placed on the oor against the wall, and for extra stability it should be attached either
to the oor, wall or both.
Make holes according to installation template
The enclosed installation template shows possible installation options for urine drains and ventilation pipes
through the wall behind the toilet or through the oor. These options enable an installation without visible
pipes.
Install ventilation pipe
The toilet is designed for 50 mm pipes (outer diameter). For optimal function it is recommended that you use
Separett’s own installation kit that has pipes and angles in the correct dimensions.
Separett Tiny can be installed with up to 5 meters of ventilation piping and 2 90-degree bends. Ventilated air
can go through a wall, oor or roof, for example, up into an attic and out through a suitable side of the house.
If there is already a ventilation pipe present from a previous toilet installation, the toilet may be connected to
that duct, provided that it is not smaller than 50 mm and that it meets the piping requirements. Should you
need longer piping that exceeds the recommendations above, you may install an extra fan (art. no.: 13008)
The toilet comes with a coupling for connecting the included 40 cm-long 50 mm pipe to a 1.5 inch pipe (sche-
dule 40). For more information on this, please read section X.
X. When connecting the toilet to 1.5 inch pipes
Ensure as short and simple a piping as possible, as the inner diameter of these
pipes is smaller than the pipes in the Separett ventilation kit, hence the air-
ow restrictions. For these installations, a maximum of 4 meters of pipe and 2
90-degree bend is recommended.
This toilet is designed for direct connection with 50 mm pipes. A coupling to
connect the toilet to a 1.5 inch pipe (schedule 40) is also included. The inclu-
ded 50 mm pipe is to be connected to the toilet or to the supplied 90-degree
bend. The 50 mm pipe should be cut to a suitable length. Use a coupling to
continue the installation with 1.5 inch pipes (schedule 40).
1.5 inch pipes (schedule 40) have a smaller inner diameter and when using
these pipes, as short and simple installation as possible is desirable to ensure
high functionality. The total length of the pipes must be less than 4 meters
and a maximum of 2 x 90-degree bends is recommended.

7
Installation without visible pipes
The included 90-degree bend is used to lay pipes backwards or to the side. The bend is placed as shown
below and turned in the rearward direction. The bend can be dicult to get in place. Vaseline or a similar
product may be used to facilitate the assembly.
The supplied ventilation pipe is then connected to the 90-degree bend. The pipe is 40 cm (15,7”) long, which
generally is enough to reach through an outer wall. If additional pipes are needed to direct the air out of
the house, the Separett ventilation kit (art. no. 1344) is recommended for Tiny. It includes 4 meters of piping
and bends to ensure a simple extended installation. These can also be used to extend the piping onto the
facade of the house. Please note that as short an installation as possible is recommended to guarantee full
function throughout the year.
If the installation is to go through the
oor, the pipe should be connected
directly to the toilet, as shown below.
The picture below shows what a con-
nection to Tiny can look like.

8
Alternative installation – visible pipes
In cases where installation with hidden pipes is not possible, the ventilation duct is guided to the right or
left by turning the 90-degree bend according to the pictures below. The piping must then be carried out in
accordance with the recommendations for the installation of ventilation pipes.
If additional pipes are needed to direct the air out of the house, the Separett ventilation kit (art. no. 1344) is
recommended for Tiny. It includes 4 meters (13 ft) of piping and bends to ensure a simple extended installa-
tion. These can also be used to extend the piping onto the facade of the house. Please note that as short an
installation as possible is recommended to guarantee full function throughout the year.

9
Install urine hose
The toilet is delivered with a 2-meter (6,6 ft) urine hose. To connect this to the toilet, use the included
straight joint or the 90-degree joint. Like the installation of the ventilation pipes, it is possible to connect the
urine tube so that no pipe is visible where the toilet is installed. This is achieved by angling the 90-degree
connection downwards or using the straight connection, as shown in the pictures below.
Recommendations for installation of urine hose
As with the ventilation duct, Tiny provides the option of installing the urine hose without any visible pipes/tu-
bes in the bathroom. Below are a few tips that should be followed to maintain a well-functioning urine outlet
over time and all year round.
• If you are going to go through an insulated wall or a wall with an air gap between the inner and outer wall,
you must use a pipe for the penetration, or lead the hose through a pipe. Pipes are used to reduce the risk
of pests causing damage to the tube.
• If you are going to run the urine a longer distance than the 2 meters (6,6 ft) of the supplied hose, you
should switch to a pipe after the 2 meters (6,6 ft). Since urine contains minerals that can accumulate in pi-
pes/hoses, we recommend that the subsequent pipe have a diameter of at least 40 mm to avoid blockages.
• Make sure that you always have a downward inclination of at least 2 degrees (2 cm per meter or 0,8 inch
per 40 inch) throughout the piping, also make sure that there are no air pockets created by bends in the
hose.
• If the toilet is to be used in winter, outdoor pipes must have a diameter of at least 40 mm (1,6”).
• If the toilet is to be used in winter, we recommend that you insulate outdoor pipes with pipe insulation.
This insulation can be bought in most DIY stores.
• An important rule for longer installations (over 2 meters (6,6ft)) is that the sooner you switch to pipes with
a larger diameter, the lower the risk of blockages in the pipes.
• Do not place pipe joints near electrical appliances or wall sockets. This is to prevent liquid from coming
into contact with electricity in the event of a leak.

10

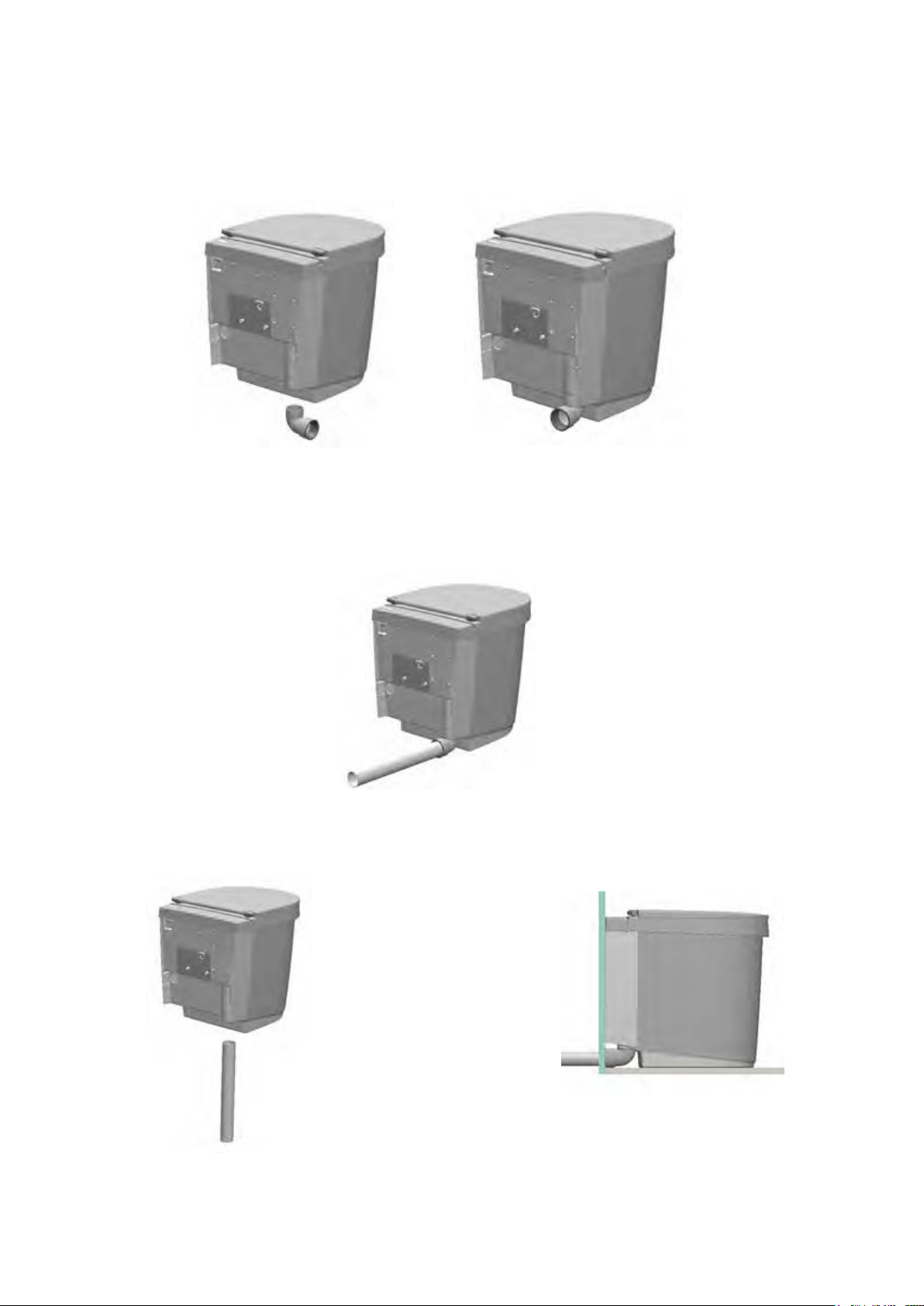

Installation without visible urine hose
For installation without visible pipes, the 90-degree bend is used to guide the urine downwards or the
straight joint to go backwards as shown in the pictures below. Use the enclosed installation template to
make holes in the wall or oor in the correct positions.

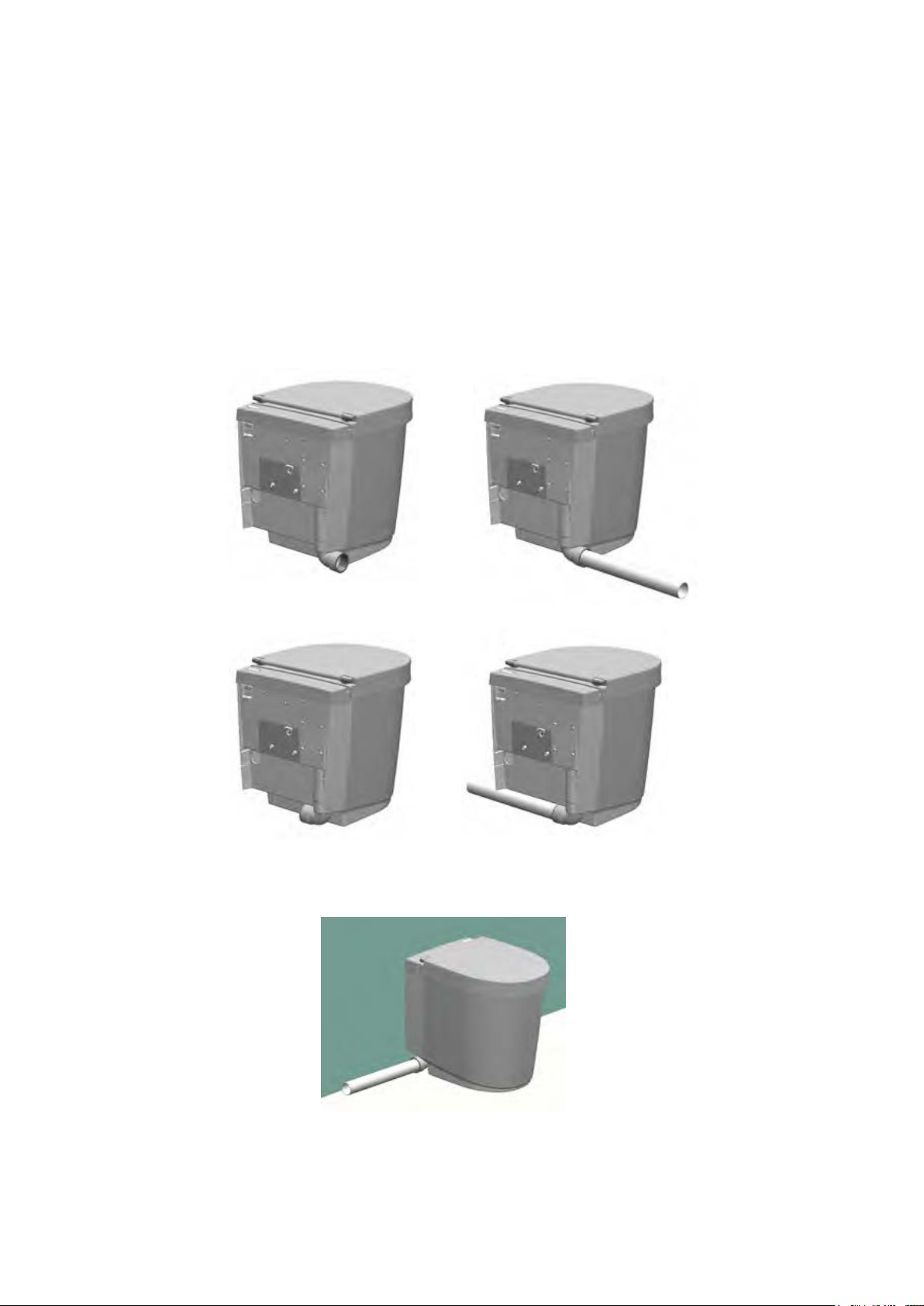

Installation with visible urine hose
In cases where installation without visible pipes is not possible, a 90 degree bend is used to install the urine
hose to the side (right or left) according to the pictures below.
If the urine hose is to be laid sideways and the toilet is to be installed against the wall, the urine hose must be
led through the side of the toilet, which requires a hole to be made in the plastic. For optimal results, use the
same drill you would use for making holes in the wall. The toilet has marks on either side to show where the
hole should be made, see pictures below. If you nd it dicult to drill from the inside, use a smaller drill to make
a small hole in the center, and then continue to drill from the outside. Use a knife or sandpaper to get a good
border.
If the urine hose is to be led further within the room, use the supplied Wall mount for urine hose.
Make sure that the urine hose has a downward inclination all the way and that you have read through the
recommendations for installing the urine hose.

11

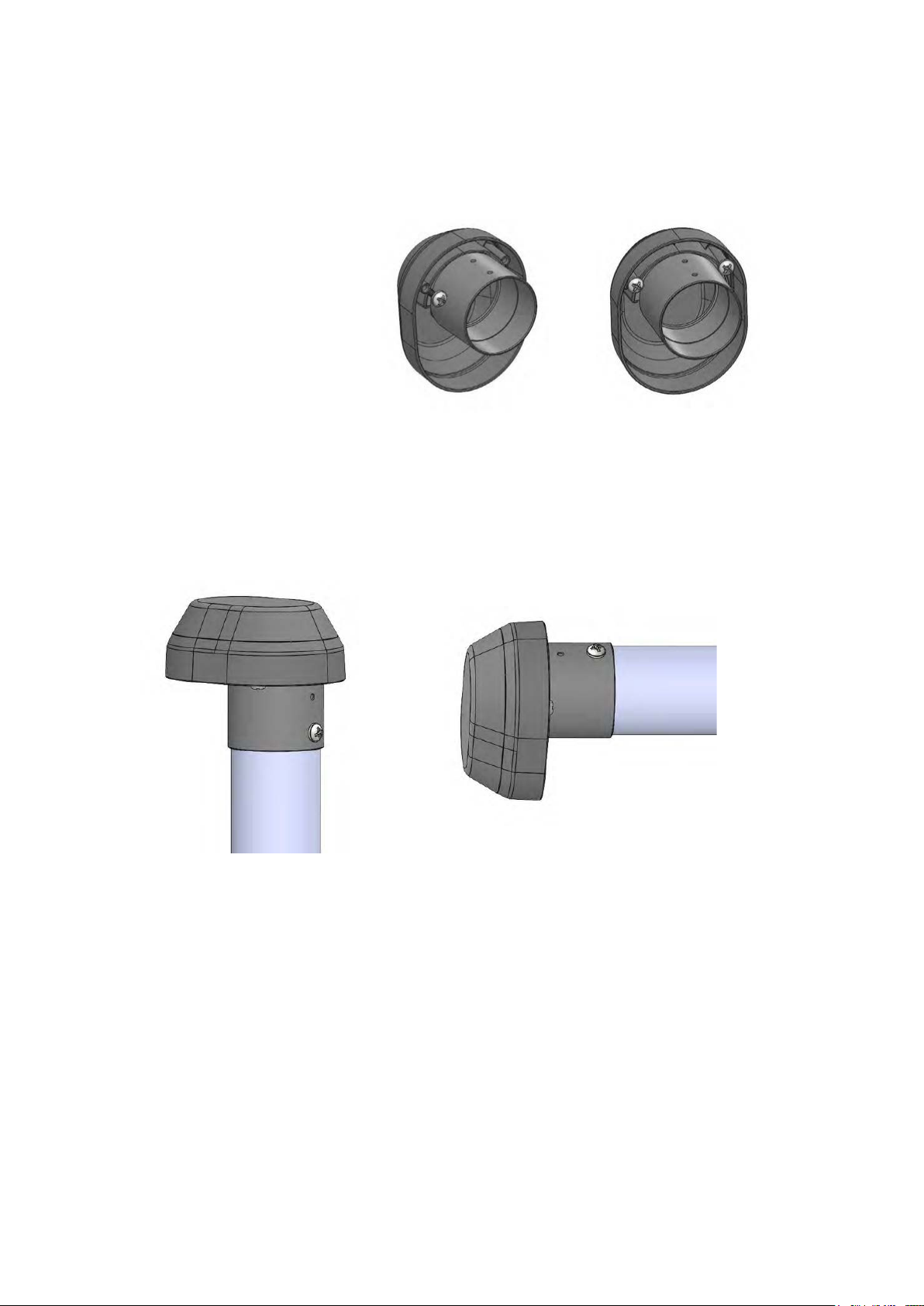

The pipe cap can be xed to the pipe through the visible screw markings.
When the pipe end is vertical, the supplied ventilation cowl is to be used together with a pipe cap to ensure
that rain and snow do not enter the pipe.
Pipe cap and ventilation cowl are mounted together with the two supplied screws as shown below.
Installation of pipe cap or ventilation cowl
It is important to ensure that the end of the ventilation pipe is protected from rain and snow, and prevents
insects from entering the toilet. To achieve this, the toilet comes with a pipe cap that is equipped with an
integrated insect net. This pipe cap should be used when the pipe end is horizontal and must be mounted
with the screen upwards to ensure protection from rain and snow. The pipe cap ts both 50 mm and 1.5
inch pipes. 50 mm pipes go half way in and 1.5 inch pipes go all the way in. See picture below.

The assembled parts are then mounted as pipe ends in the same way as shown in previous sections. It is
also possible to use the ventilation cowl at a horizontal pipe end in more demanding conditions to ensure
better protection against weather and wind.

13
Power supply for toilet
If the toilet is to be mounted against a wall, a power cord must be connected to the toilet before it is moun-
ted. After wall mounting, the connection is not accessible.
The toilet must be connected to a power source. The toilet comes with a power adapter for 110–240 V and
a 12 V battery cable. Regardless of the power source, the chord must be connected to the back of the toilet,
at the marked input in the picture above. Make sure that the plug is properly connected.
Verify that the toilet is receiving power
by checking that air is exiting the venti-
lation outlet.

14
Connect the toilet to the ventilation pipe and
urine tube
Toilet mounting
IMPORTANT! Connect the power cord to the toilet before mounting it. After mounting, you will not have ac-
cess to the back of the toilet where the cable is to be connected.
Tiny is designed to be xed to the oor or to the wall. For maximum stability, both options can be combined.
Floor
To attach the toilet to the oor, use the supp-
lied screw or other screw suitable for the
purpose. There are two intended screw holes
in the bottom of the toilet, the plastic in the
middle of the hole is removed with a suitable
tool.
Wall
Use the following holes to mount the toilet to
the wall.

15
Install the fixed fan filter
The toilet is continuously ventilated to ensure an odor-free bathroom as well as drying out waste. To protect
the fan from dirt and dust resulting from use, there is a lter in the air duct. This lter is not pre-installed
but must be installed on site as shown below. The lter should be cleaned regularly to maintain its proper
functioning.
To install the yellow fan lter in the toilet, follow the steps below:
1.
1.
2.
2.
3.
Place basket in the urine drain
Place the supplied basket in the urine drain. The net ensures that no large ob-
jects enter the urine outlet. The basket is designed to perfectly t a Separett Bio
Drain Cleaner.

17
VARNING!
Innan du gör hål i väggar eller golv. Tillse att platsen för väggenomföring tillåter att ett
hål görs och att rördragningen uppfyller eventuella byggkrav. Tänk på att väggen kan
dölja exempelvis: el-dragning, rördragning, tätskikt, bärande konstruktion.
OBS! Fråga alltid miljökontoret vilka regler som gäller i din kommun. Följ alltid lokala föreskrifter. Se även
installationslm på www.separett.com
För att toaletten ska vara doftfri så krävs det att äkten i toaletten konstant är igång så att den ventilerar
och kan få ny luft att ventilera ut. För att uppnå detta så krävs följande:
1. Ingen annan äkt/ventilation får vara i samma utrymme som också ventilerar ut luft.
2. Tillse att det kommer in ny luft utifrån till utrymmet. Inluften ska vara så nära toaletten som möjligt.
Användbara verktyg
Hål-mått:
51mm (1,5”) - ventilation
33mm (1 3/8”) - urinutlopp

18
Detta medföljer produkten
1 x 90 graders-anslutning
1 x Rör väggenomföring
40cm (15,75”)
1 x Varuprov Avloppsrens
10 x Komposterbara säckar Tiny
1 x Varuprov Absorberingsduk Tiny
1 x Urinskålsförlängare
3 x Monteringsskruvar till vägg-
eller golvfästen
(inklusive plugg och bricka)
1 x Lock avfallsbehållare
1 x Röradapter 50mm till 1,5”
(schedual 40)
1 x Korg för avloppsrens Tiny
1 x Ventilationsgaller 50mm/1,5”
1 x Vindhuv Tiny
2 x Skruv för vindhuv
1 x Silikontub
1 x Installationsmåttskiss
1 x Batterieliminator
1 x 12V batterikablage
1 x Fläktlter
1 x Urinslang
1 x Rakskarv 32mm rör
1 x 90 gradersskarv
32mm rör

19
Steg för installation
Läs mer under varje rubrik
1. Placering av toalett
2. Gör hål efter måttskiss
3. Rördragning av ventilation
4. Dra urinledning
5. Montera ventilationsgaller eller vindhuv
6. Strömsätt toaletten
7. Anslut toaletten till ventilationsrör och urinledning
8. Fixera toaletten i vägg- och/eller golv
9. Montera fast äktlter
10. Placera korg för avloppsrens

20
Placering av toalett
Separett Tiny har inga krav på rumstemperatur och fungerar i både kalla och varma utrymmen. Kraven är att
det nns möjlighet att leda bort urinen och montera ett rör för ventilation.
Toaletten är gjord för att stå på golv mot vägg och ska för extra stabilitet fästas antingen i golv, vägg eller både
och.
Gör hål efter måttskiss
Medföljande måttskiss visar möjliga installationsalternativ för urinavlopp och ventilationsrör genom vägg bak-
om toaletten eller genom golv. Dessa alternativ ger en installation utan synliga rör.
Rördragning av ventilation
Toaletten är konstruerad för 50 mm rör (yttermått). För optimal funktion rekommenderas Separetts egna
installationskit med rör och vinklar i korrekt dimension.
Separett Tiny kan installeras med upp till 5 meter ventilationsrör samt 2 st 90-gradersböjar. Utluftning kan ske
genom vägg, golv eller tak, till exempel upp i kallvind och ut genom lämplig sida av huset. Finns rör för ventila-
tion sedan en tidigare toalettinstallation kan toaletten anslutas till den kanalen förutsatt att den inte är min-
dre än 50mm och att den uppfyller kraven för rördragning. Vid behov av längre rördragning som överskrider
rekommendationerna ovan så kan man installera en extra äkt (art. nr: 13008)
Med toaletten medföljer koppling för att ansluta det medföljande 40 cm långa 50mm röret till 1,5 tums-rör
(schedual 40). För mer information om detta, läs avsnitt X.
X. Vid anslutning av toaletten till 1,5 tums-rör
Tillse en så kort och enkel rördragning som möjligt då innerdiametern på dessa
rör är mindre än rören i Separetts ventilationskit, därav luftödesbegränsning-
ar. Vid dessa installationer rekommenderas max 4 meter rör och 2st 90 graders
böj.
Toaletten är designad för direktanslutning av 50 mm rör. Medföljer i toaletten
gör också en koppling för att ansluta 1,5 tums-rör (schedual 40) till toaletten.
Det medföljande 50mm-röret används för att ansluta till toaletten eller den
medföljande 90-gradesböjen. 50 mm röret kapas med fördel till lämplig längd.
Använd koppling för att fortsätta installationen med 1,5 tums-rör (schedual
40).
1,5-tums rör (schedual 40) har en mindre inre diameter och vid användning
av dessa rör ska en så kort och enkel dragning som möjligt eftersträvas för att
uppnå god funktion. Rörens totala längd ska understiga 4 meter och max 2 90
graders böj rekommenderas.
