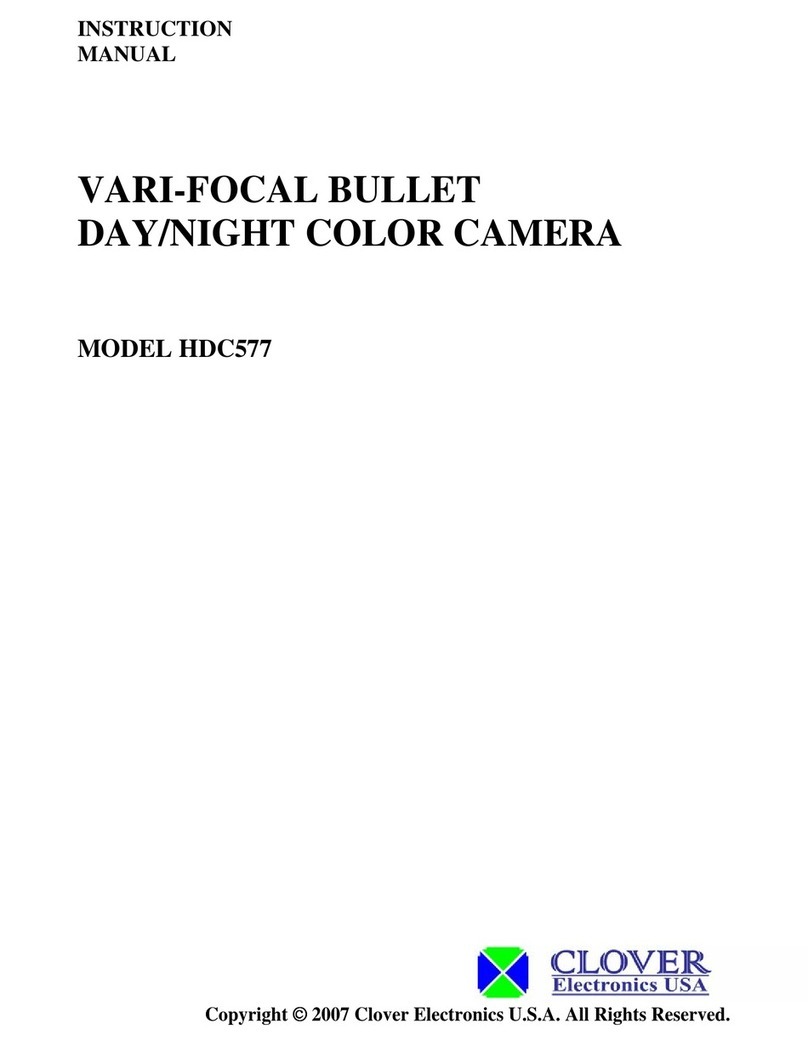

Clover HDC577 User manual

Model # HDC577
IR Day / Night Digital Color Camera
Security Professional Camera
Built-in 22-Power Infrared LEDs with CDS Sensor
• Weatherproof (IP67)
• 1/3" Sony Super HAD CCD
• High Resolution 560 TV Lines
• Rugged Steel Construction
• 22 Infrared LEDs with a CDS Sensor
• 70' IR Range (Depends on Scene Reflection)
• DC Auto Iris Vari-Focal Lens (4-9mm)
• Attached Universal Mounting Bracket
and 100' Cable
120ft NIGHT
VISION RANGE
100ft 6pin Din Cable
Attached Mounting Base
for Ceiling & Wall
Home
Business
Hood Camera
560TV Lines
DC Auto Iris Varifocal
Lens(4mm-9mm)
850nm IR LEDs * 22ea
SONY CHIPSET

IR Day / Night Digital Color Camera
Security Professional Camera
Built-in 22-Power Infrared LEDs with CDS Sensor
Hood Camera
Image Sensor
Effective Pixels
Scanning System
Horizontal Resolution
Shutter Speed
Sync. System
S/N Ratio
Minimum Illumination
Video Output
AGC
Digital Noise Reduction
White Balance
Lens
Current Consumption
Power Supply
Operating Temperature
Dimensions
Weight
1/3” Sony Super HAD CCD, 811H x 508V
768H x 494V
525 Lines, 2:1 Interlace
560 TV Lines
Auto, Manual (1/60 to 1/120,000 Sec)
Internal
More Than 50db (AGC Off)
0.0001 Lux @F1.2
Composite 1.0Vp-p @75 Ω
Auto
Auto
Auto
DC Auto Iris Vari-Focal Lens 4mm to 9mm
500mA Max @DC15V
DC 15V, 1.5A
-10°C to 50°C
88Ø x 158(L) mm
5.3 Lbs
Specifications
560TV Lines
DC Auto Iris Varifocal
Lens(4mm-9mm)
850nm IR LEDs * 22ea
Security with Reliability
SONY CHIPSET
