Club Car IQ PLUS 2008 Manual

Club Car
MANUAL NUMBER 103373107
EDITION CODE 1107A00000
IQ PLUS
ELECTRIC VEHICLES
2008
MAINTENANCE
SERVICE
SUPPLEMENT
Club Car, Inc.
P.O. Box 204658
Augusta, GA 30917-4658
USA
Web www.clubcar.com
Phone [phone]
1.800.ClubCar
Int’l +1 706.863.3000
Fax [phone]

2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page i
FOREWORD
Club Car vehicles are designed and built to provide the ultimate in performance efficiency; however, proper
maintenance and repair are essential for achieving maximum service life and continued safe and reliable
operation.
This supplement provides detailed information for the maintenance and repair of IQ Plus™ electric vehicles
and should be used in conjunction with the appropriate maintenance and service manual.
If you do not have the appropriate maintenance and service manual, you may order one from your local Club
Car representative. Maintenance and service manuals available include the following:
This supplement and corresponding maintenance and service manual should be thoroughly reviewed prior to
servicing the vehicle. The procedures provided must be properly implemented, and the DANGER, WARNING,
and CAUTION statements must be heeded.
This supplement was written for the trained technician who already has knowledge and skills in electrical and
mechanical repair. If the technician does not have such knowledge and skills, attempted service or repairs to
the vehicle may render the vehicle unsafe. For this reason, Club Car advises that all repairs and/or service be
performed by an authorized Club Car distributor/dealer representative or by a Club Car factory-trained tech-
nician.
It is the policy of Club Car, Inc. to assist its distributors and dealers in continually updating their service knowl-
edge and facilities so they can provide prompt and efficient service for vehicle owners. Regional technical rep-
resentatives, vehicle service seminars, periodic service bulletins, maintenance and service manuals, and
other service publications also represent Club Car’s continuing commitment to customer support.
This supplement, used in conjunction with the appropriate maintenance and service manual, covers all
aspects of typical vehicle service; however, unique situations do sometimes occur when servicing a vehicle.
If it appears that a service question is not answered in this supplement, you may write to us at: Club Car, Inc.,
P.O. Box 204658; Augusta, Georgia 30917-4658, USA, Attention: Technical Services, or contact a Club Car
Technical Service Representative at [phone], ext. 3580.
This supplement does not contain maintenance and service procedures for the battery charger. Contact your
local Club Car representative for information on how to obtain the appropriate battery charger maintenance
and service manual.
2008 Turf/Carryall Vehicle Maintenance & Service Manual Publication Part No. 103373104
2008 Transportation Vehicle Maintenance & Service Manual Publication Part No. 103373105
Copyright © 2007 Club Car, Inc.
Club Car is a registered
trademark of Club Car, Inc.
This manual effective August 1, 2007

Page ii 2008 IQ Plus Electric Vehicle Maintenance and Service Supplement
ý WARNING
• Read Section 1 – Safety in the appropriate maintenance and service manual before attempting
any service on the vehicle.
• Before servicing vehicle, read complete section(s) and any referenced information that may
be relevant to the service or repair to be performed.
NOTE: This supplement represents the most current information at the time of publication. Club Car, Inc.
is continually working to further improve its vehicles and other products. These improvements may
affect servicing procedures. Any modification and/or significant change in specifications or proce-
dures will be forwarded to all Club Car distributors/dealers and will, when applicable, appear in
future editions of this supplement.
Club Car, Inc. reserves the right to change specifications and designs at any time without notice
and without the obligation of making changes to units previously sold.
There are no warranties expressed or implied in this supplement. See the limited warranty found in
the vehicle owner’s manual or write to: Club Car, Inc., P.O. Box 204658, Augusta, Georgia 30917-
4658, USA, Attention: Warranty Administration.

2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page iii
CONTENTS
SECTION 10 – PERIODIC MAINTENANCE
General Warning ............................................................................................................................... 10-1
General Information .......................................................................................................................... 10-3
Periodic Service Schedule ................................................................................................................ 10-3

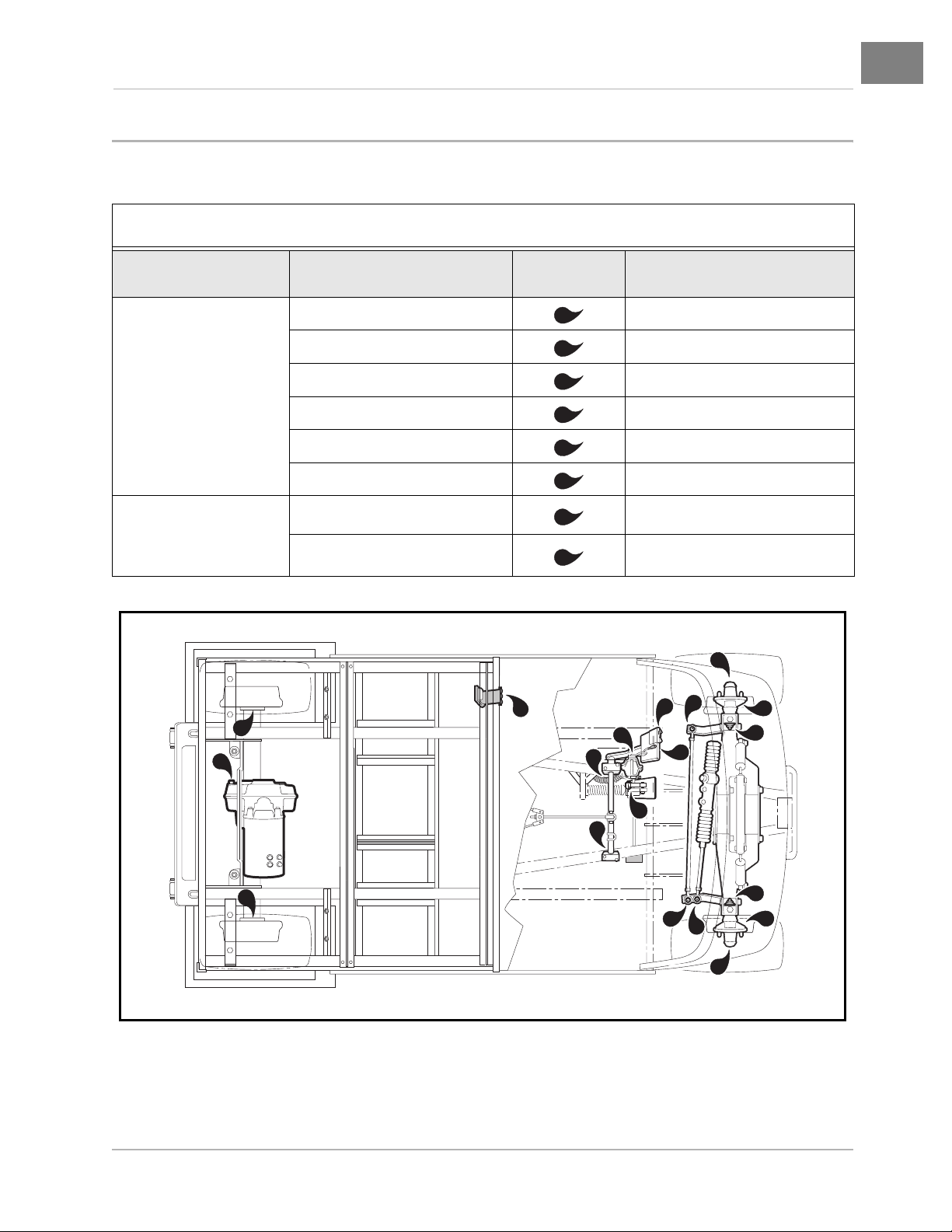

Periodic Lubrication Schedule .......................................................................................................... 10-5
SECTION 11 – ELECTRICAL SYSTEM AND TESTING
General Information .......................................................................................................................... 11-1
Wiring Diagrams ............................................................................................................................... 11-2
Troubleshooting ................................................................................................................................ 11-8
Troubleshooting the Vehicle with the IQDM ................................................................................. 11-8
Troubleshooting Guide 1 .............................................................................................................. 11-9
Troubleshooting Guide 2 .............................................................................................................. 11-12
Test Procedures ............................................................................................................................... 11-14
Index of Test Procedures .............................................................................................................. 11-14
Communication Display Module (CDM) ............................................................................................ 11-45
Using the CDM to Retrieve Data from the Onboard Computer .................................................... 11-46
CDM Troubleshooting Guide ........................................................................................................ 11-47
SECTION 12 – IQ DISPLAY MODULE (IQDM) SERIES 2 AND IQDM-P DIAGNOSTICS
Plugging the Handset into the Vehicle .............................................................................................. 12-1
Introductory Display .......................................................................................................................... 12-2
Menu Navigation ............................................................................................................................... 12-2
Monitor Menu .................................................................................................................................... 12-4
Faults Menu ...................................................................................................................................... 12-8
System Faults ............................................................................................................................... 12-8
Fault Recovery .............................................................................................................................. 12-9
Fault Descriptions ......................................................................................................................... 12-11
Functions Menu ................................................................................................................................ 12-14
Get Settings From Controller ........................................................................................................ 12-14
Write Settings to Controller ........................................................................................................... 12-15
Reset All Settings ......................................................................................................................... 12-16
Information ........................................................................................................................................ 12-17
Programmer Setup ........................................................................................................................... 12-17
Program ........................................................................................................................................ 12-17
Faults ............................................................................................................................................ 12-17
Information .................................................................................................................................... 12-18

Page iv 2008 IQ Plus Electric Vehicle Maintenance and Service Supplement
IQDM and IQDM-P Handset Troubleshooting .................................................................................. 12-19
Test Procedures ............................................................................................................................... 12-20
Index of Test Procedures ............................................................................................................. 12-20
SECTION 13 – ELECTRICAL COMPONENTS
Key Switch ....................................................................................................................................... 13-1
Forward/Reverse Rocker Switch ...................................................................................................... 13-3
Tow/Run Switch ............................................................................................................................... 13-4
Circuit Breaker ................................................................................................................................. 13-5
Motor Controller Output Regulator (MCOR) ..................................................................................... 13-6
Reverse Buzzer ................................................................................................................................ 13-7
Speed controller cover ..................................................................................................................... 13-7
Solenoid ........................................................................................................................................... 13-8
Onboard Computer (OBC) ............................................................................................................... 13-10
Solid State Speed Controller ............................................................................................................ 13-11
Charger Receptacle ......................................................................................................................... 13-13
Receptacle Fuse Link ................................................................................................................... 13-15
Battery Warning Light ....................................................................................................................... 13-16
SECTION 14 – BATTERIES
General Information ......................................................................................................................... 14-1
Battery Replacement ........................................................................................................................ 14-1
Battery Care ..................................................................................................................................... 14-3
Preventive Maintenance ............................................................................................................... 14-3
Self-Discharge .............................................................................................................................. 14-3
Electrolyte Level ........................................................................................................................... 14-4
Mineral Content ............................................................................................................................ 14-5
Vibration Damage ......................................................................................................................... 14-5
Battery Charging .............................................................................................................................. 14-5
Charger Shuts Off After 16 Hours ................................................................................................ 14-5
Deep-Discharge ........................................................................................................................... 14-6
Early Excessive Discharging ........................................................................................................ 14-6
Incoming AC Service .................................................................................................................... 14-6
Fleet Rotation ............................................................................................................................... 14-6
Numbering Vehicles and Chargers .............................................................................................. 14-6
Battery Troubleshooting Chart ......................................................................................................... 14-7

2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page v
Battery Testing .................................................................................................................................. 14-8
Battery Charger Test .................................................................................................................... 14-8
On-Charge Voltage Test ............................................................................................................... 14-8
Hydrometer Test ........................................................................................................................... 14-8
Discharge Test .............................................................................................................................. 14-10
Battery Troubleshooting Examples ............................................................................................... 14-12
Battery Storage ................................................................................................................................. 14-13
Charging a Battery Pack that has Low Voltage ................................................................................ 14-13
SECTION 15 – BATTERY CHARGER
Refer to the appropriate battery charger maintenance and service manual.
SECTION 16 – MOTOR (MODEL DA5-4006)
General Information .......................................................................................................................... 16-1
External Motor Testing ...................................................................................................................... 16-1
Motor ................................................................................................................................................. 16-2
Motor Removal ............................................................................................................................. 16-2
Motor Disassembly ....................................................................................................................... 16-4
Motor Component Testing and Inspection ........................................................................................ 16-6
Armature Inspection and Testing .................................................................................................. 16-6
Motor Frame and Field Windings Inspection ................................................................................ 16-7
Motor Brush, Spring, and Terminal Insulator Inspection ............................................................... 16-7
Reconditioning the Motor .................................................................................................................. 16-11
Motor Assembly ................................................................................................................................ 16-11
Motor Installation .............................................................................................................................. 16-12
SECTION 17 – TRANSAXLE (TYPE G)
Lubrication ........................................................................................................................................ 17-1
Axle Bearing and Shaft ..................................................................................................................... 17-1
Axle Shaft ..................................................................................................................................... 17-1
Axle Bearing ................................................................................................................................. 17-4
Transaxle .......................................................................................................................................... 17-5
Transaxle Removal ....................................................................................................................... 17-5
Transaxle Disassembly, Inspection, and Assembly .......................................................................... 17-7
Transaxle Disassembly and Inspection ........................................................................................ 17-7
Transaxle Assembly ..................................................................................................................... 17-9
Transaxle Installation ........................................................................................................................ 17-10
SECTION 18 – IQ DISPLAY MODULE (IQDM-P) SERIES 2 PROGRAMMING
Plugging the Handset into the Vehicle .............................................................................................. 18-1

Program Menu ................................................................................................................................. 18-2
M1/M2 Speed ............................................................................................................................... 18-2
M1/M2 Fast Accel ......................................................................................................................... 18-3
M1/M2 Pedal Up ........................................................................................................................... 18-3
M1/M2 Speed Cal ......................................................................................................................... 18-4
Code A, Code B, and Code C ...................................................................................................... 18-5
SECTION i – INDEX

2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page 10-1
10
SECTION 10 – PERIODIC MAINTENANCE
GENERAL WARNING
The following safety statements must be heeded whenever the vehicle is being operated, repaired, or ser-
viced. Service technicians should become familiar with these general safety statements, which can be found
throughout this manual. Also, other specific safety statements appear throughout this manual and on the vehi-
cle.
ý DANGER
• Battery – Explosive gases! Do not smoke. Keep sparks and flames away from the vehicle and
service area. Ventilate when charging or using in an enclosed space. Wear a full face shield
and rubber gloves when working on or near batteries.
• Battery – Poison! Contains acid! Causes severe burns. Avoid contact with skin, eyes, or
clothing. Antidotes:
- External: Flush with water. Call a physician immediately.
- Internal: Drink large quantities of milk or water. Follow with milk of magnesia or vegetable
oil. Call a physician immediately.
- Eyes: Flush with water for 15 minutes. Call a physician immediately.
ý WARNING
• Only trained technicians should repair or service the vehicle. Anyone doing even simple
repairs or service should have knowledge and experience in electrical and mechanical repair.
• Follow the procedures exactly as stated in this manual, and heed all DANGER, WARNING, and
CAUTION statements in this manual as well as those affixed to the vehicle.
• Improper use of the vehicle or failure to properly maintain it could result in decreased vehicle
performance or severe personal injury.
• Any modification or change to the vehicle that affects the stability or handling of the vehicle,
or increases maximum vehicle speed beyond factory specifications, could result in severe
personal injury or death.
• Check the vehicle owner’s manual for proper location of all vehicle warning decals and make
sure they are in place and are easy to read.
• Wear safety glasses or approved eye protection when servicing the vehicle. Wear a full face
shield and rubber gloves when working on or near batteries.
• Do not wear loose clothing or jewelry such as rings, watches, chains, etc., when servicing
vehicle.
• Moving parts! Do not attempt to service the vehicle while it is running.
• Hot! Do not attempt to service hot motor. Failure to heed this warning could result in severe
burns.
• Use insulated tools when working near batteries or electrical connections. Use extreme
caution to avoid shorting of components or wiring.
• Turn key switch OFF and remove key, place Forward/Reverse switch in the NEUTRAL
position, and chock the wheels prior to servicing the vehicle.
• Ensure battery connections are clean and properly tightened. See Battery Care on page 14-3.
• Place Tow/Run switch in the TOW position before disconnecting or connecting the batteries.
WARNING CONTINUED ON NEXT PAGE...

PERIODIC MAINTENANCE General Warning
Page 10-2 2008 IQ Plus Electric Vehicle Maintenance and Service Supplement
10
ý WARNING
• To avoid unintentionally starting the vehicle, place Tow/Run switch in the TOW position, then
disconnect the batteries as shown (See Figures 10-1, 10-2, or 10-3 beginning on page 10-2).
• After disconnecting the batteries, wait 90 seconds for the controller capacitors to discharge.
• Use only 4-gauge (AWG) wires with low-resistance terminals to replace battery wires on IQ
Plus models.
• If wires are removed or replaced, make sure wiring and wire harness is properly routed and
secured. Failure to properly route and secure wiring could result in vehicle malfunction,
property damage, personal injury, or death.
• Lift only one end of the vehicle at a time. Use a suitable lifting device (chain hoist or hydraulic
floor jack) with 1000 lb. (454 kg) minimum lifting capacity. Do not use lifting device to hold
vehicle in raised position. Use approved jack stands of proper weight capacity to support the
vehicle and chock the wheels that remain on the floor. When not performing a test or service
procedure that requires movement of the wheels, lock the brakes.
• For vehicles with cargo beds, remove all cargo before raising the bed or servicing the vehicle.
If the vehicle is equipped with a prop rod, ensure that it is securely engaged while bed is
raised. Do not close bed until all persons are clear of cargo bed area. Keep hands clear of all
crush areas. Do not drop cargo bed; lower gently and keep entire body clear. Failure to heed
this warning could result in severe personal injury or death.
Figure 10-1 Battery Configuration (Transporter 4 and
6, Carryall 6)
Figure 10-2 Battery Configuration (Villager 6 and 8)
TRANSPORTER 4 AND 6
VEHICLES
CARRYALL 6 VEHICLES
FRONT
OF VEHICLE
Remove negative
cable first.
Place Tow/Run switch in
the TOW position before
disconnecting or connecting
battery cables.
Place Tow/Run
Switch in TOW.
1
3
5
7
8
2
4
6
8
74
5
6
1
3
2
FRONT
OF VEHICLE
VILLAGER 6 AND 8
VEHICLES
Place Tow/Run
Switch in TOW.
Place Tow/Run switch in
the TOW position before
disconnecting or connecting
battery cables.
Remove negative
cable first.

PERIODIC MAINTENANCE General Information
2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page 10-3
10
GENERAL INFORMATION
To ensure trouble-free vehicle performance, it is very important to follow an established preventive mainte-
nance program. Regular and consistent vehicle maintenance can prevent vehicle downtime and expensive
repairs that can result from neglect. Any vehicle not functioning correctly should be removed from use until it
is properly repaired. This will prevent further damage to the vehicle and avoid the possibility of injury due to
unsafe conditions.
Contact your local Club Car distributor/dealer to perform all repairs and semiannual and annual periodic ser-
vice.
PERIODIC SERVICE SCHEDULE
ý WARNING
• Service, repairs, and adjustments must be made per instructions in the appropriate
maintenance and service manual and this supplement.
NOTE: If the vehicle is constantly subjected to heavy use or severe operating conditions, the preventive
maintenance procedure should be performed more often than recommended in the periodic ser-
vice and lubrication schedules.
Both the Periodic Service Schedule and the Periodic Lubrication Schedule must be followed to
keep vehicle in optimum operating condition.
Figure 10-3 Battery Configuration (Turf 2, Carryall 2)
1
3
5
7
8
2
4
6
TOWRUN
WARNING
FRONT
OF VEHICLE
Remove negative
cable first.
Place Tow/Run switch in
the TOW position before
disconnecting or connecting
battery cables.
Place Tow/Run
Switch in TOW.
TURF 2 VEHICLES
CARRYALL 2 VEHICLES

PERIODIC MAINTENANCE Periodic Service Schedule
Page 10-4 2008 IQ Plus Electric Vehicle Maintenance and Service Supplement
10
ý WARNING
• If any problems are found during scheduled inspection or service, do not operate the vehicle
until repairs are made. Failure to make necessary repairs could result in fire, property
damage, severe personal injury, or death.
PERIODIC SERVICE SCHEDULE
REGULAR INTERVAL SERVICE
Daily service by owner
Pre-Operation and Daily Safety Checklist
See Pre-Operation and Daily Safety
Checklist in the appropriate Owner’s
Manual
Performance Inspection See Performance Inspection in the
appropriate Owner’s Manual
Batteries Charge batteries (after each use only).
Brake System Check Brakes per Performance inspection
on page 10-3. Adjust brakes as required.
Weekly service by owner Batteries Check electrolyte level. Add water if
necessary. See Section 14 – Batteries.
Monthly service by owner
or trained technician Batteries Wash battery tops and clean terminals with baking soda/water solution.
Tires
Check air pressure and adjust if
necessary. See Section 2 –
Specifications in the appropriate
maintenance and service manual.
General vehicle Wash battery compartment and underside
of vehicle.
Semiannual service by trained
technician only
or every 50 hours of operation,
whichever comes first
Brake System
Check brake shoes; replace if necessary
or adjust as required. See Section 6 –
Wheel Brake Assemblies in the
appropriate maintenance and service
manual.
Lubricate brake slides per Lubrication
Schedule. See Section 6 – Wheel Brake
Assemblies in the appropriate
maintenance and service manual.
Check brake cables for damage; replace if
necessary.
Electrical wiring and connections Check for tightness and damage.
Forward/Reverse switch
Check condition of contacts and wire
connection; make sure connections are
tight.
Front wheel alignment and camber
Check and adjust as required. See
Section 7 – Steering and Front
Suspension in the appropriate
maintenance and service manual.
Motor controller output regulator (MCOR) Check for loose hardware, cracks and
other damage.
Annual service by trained technician
only (or every 100 hours of operation,
whichever comes first)
Batteries If batteries are not performing as
expected, see Section 14 – Batteries.

PERIODIC MAINTENANCE Periodic Lubrication Schedule
2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page 10-5
10
PERIODIC LUBRICATION SCHEDULE
See General Warning on page 10-1.
PERIODIC LUBRICATION SCHEDULE
REGULAR INTERVAL SERVICE LUBRICATION
POINTS RECOMMENDED LUBRICANT
Semiannually by owner
or trained technician
(or every 50 hours of
operation, whichever
comes first)
Brake pedal shaft bearings Dry Moly Lube (CCI P/N 1012151)
Brake linkage and pivots Dry Moly Lube (CCI P/N 1012151)
Accelerator pivot rod supports Dry Moly Lube (CCI P/N 1012151)
Charger receptacle (if equipped) WD 40
Brake slides Dry Moly Lube (CCI P/N 1012151)
Front suspension (5 fittings) Chassis Lube – EP NLGI Grade 2
Annually by trained
technician only
(or every 100 hours of
operation, whichever
comes first)
Check/fill transaxle to plug level 22 oz. (0.67 liters) SAE 30 WT. API
Class SE, SF, or SG Oil (or higher)
Inspect front wheel bearings
(Repack as necessary) Chassis Lube – EP NLGI Grade 2
Figure 10-4 Vehicle Lubrication Points
11
22
33
4
5
6
7
8
FLOORBOARD
1
3
1
66
8
8
7
3
2
6
6
26
5
5
5
5
4*
* Not applicable to Carryall 6 or TransPorter vehicles

10

2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page 11-1
11
SECTION 11 – ELECTRICAL SYSTEM AND
TESTING
ý DANGER
• See General Warning, Section 10, Page 10-1.
ý WARNING
• See General Warning, Section 10, Page 10-1.
GENERAL INFORMATION
The IQ Plus vehicle uses a 48-volt electrical system that is powered by eight 6-volt lead-acid batteries and
includes an onboard computer. The IQ Plus vehicle uses a shunt-wound 3.7 hp motor and includes several
additional features.
• Shunt-Wound Motor: The shunt-wound motor, unlike a series motor, is designed so that the speed
controller is able to vary the amount of current passing through the field coils independently from the
current passing through the armature.
• Motor Braking: Under certain conditions a shunt-wound motor also has the ability to act as an electri-
cal brake to slow the vehicle. There are three features of the IQ Plus electrical system which will acti-
vate the motor braking function: Walk Away Braking, Pedal Down Motor Braking, and Pedal Up Motor
Braking (adjustable with the IQDM-P handset).
• Walk Away Braking: the walk away braking feature will prevent the vehicle from rolling at more than 1
or 3 mph (1.5 or 4.8 km/h) unless the accelerator is pressed. This prevents the possibility of a parked
vehicle (with the park brake disengaged) rolling away too fast to be overtaken on foot. If the walk away
braking function remains engaged for two seconds or more, a warning buzzer will sound to alert the
driver that motor braking has been activated.
ý WARNING
• Walk away braking will not limit vehicle speed to 1 mph (1.6 km/h) on very steep grades. Do
not operate vehicle on slopes exceeding 20% grades.
• Pedal Down Motor Braking: This feature helps to control vehicle downhill speed. Motor braking is
activated when the vehicle reaches the programmed top speed and holds the vehicle at that speed.
Motor braking is automatically disengaged when vehicle speed slows below the programmed top
speed.
• Pedal Up Motor Braking (adjustable): Speed settings are programmable for IQ Plus vehicles. Motor
braking is activated when the accelerator pedal is released at or above the programmed speed. When
the vehicle slows to the programmed lower speed, motor braking will disengage. If no speed settings
are programmed, motor braking will be activated at any time accelerator is released, and it will only dis-
engage when the vehicle comes to a stop. Contact your Club Car dealer/distributor to inquire about this
programmable feature.
• Regenerative Braking: When motor braking is activated, the vehicle motor acts as a generator, slow-
ing the vehicle as it creates energy that is used to charge the batteries.
(continued on page 11-8)

ELECTRICAL SYSTEM AND TESTING Wiring Diagrams
Page 11-2 2008 IQ Plus Electric Vehicle Maintenance and Service Supplement
11
WIRING DIAGRAMS
Figure 11-1 Wiring Diagram –Carryall 2, Turf 2 Vehicles
Turf 2 and Carryall 2 IQ Plus Vehicles
000566-001

ELECTRICAL SYSTEM AND TESTING Wiring Diagrams
2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page 11-3
11
Figure 11-2 Wiring Diagram –Carryall 2, Turf 2 Vehicles
000566-001

ELECTRICAL SYSTEM AND TESTING Wiring Diagrams
Page 11-4 2008 IQ Plus Electric Vehicle Maintenance and Service Supplement
11
Figure 11-3 Wiring Diagram – Carryall 6, Transporter 4 and 6 Vehicles
Carryall 6, Trans 4 and 6 IQ Plus Vehicles
000580-001

ELECTRICAL SYSTEM AND TESTING Wiring Diagrams
2008 IQ Plus Electric Vehicle Maintenance and Service Supplement Page 11-5
11
Figure 11-4 Wiring Diagram – Carryall 6, Transporter 4 and 6 Vehicles
000580-001

ELECTRICAL SYSTEM AND TESTING Wiring Diagrams
Page 11-6 2008 IQ Plus Electric Vehicle Maintenance and Service Supplement
11
Figure 11-5 Wiring Diagram –Villager 6 and 8 Vehicle
Villager 6 and Villager 8 IQ Plus Vehicle
000581-001
