CMA Dishmachines CWS User manual

MODEL CWS
PARTS MANUAL
Rev.1.00
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841
800-854-6417
FAX [phone]
www.cmadishmachines.com

TABLE OF CONTENTS
MODEL CWS
1. PARTS MANUAL ..........................................................................................3
1.1. INITIAL PARTS KIT (P/N)................................................................................................................. 3
1.2. OPTIONAL SANI ALARM.................................................................................................................. 4
1.3. EXPLODED VIEW DRAWINGS........................................................................................................... 5
1.3.1. Cabinet Assembly ................................................................................................................... 5
1.3.2. Three Compartment Sink........................................................................................................ 6
1.3.3. Control Box Assembly ............................................................................................................ 7
1.3.4. Door Actuator Assembly......................................................................................................... 8
1.3.5. Pump Assembly....................................................................................................................... 9
1.3.6. Plumbing System Assembly................................................................................................... 10
1.3.7. Spray System Assembly......................................................................................................... 11
1.3.8. Power Drain Assembly......................................................................................................... 12
1.3.9. Peristaltic Pump Assembly................................................................................................... 13
1.3.10. Booster Heater Assembly...................................................................................................... 14
www.cmadishmachines.com

Parts Manual
1. Parts Manual
1.1. Initial Parts Kit (P/N)
P/N DESCRIPTION Qty
00104.86 50 RPM Drain Motor, 220 V 50 HZ 1
00115.85 Drain Sump Screen 1
00121.60 Drain Diaphragm 1
00105.81 Drain Spring 1
00200.14 Pump Assembly CWS 1
00205.00 Pump Gasket 1
00206.00 Pump Seal kit 1
00304.06 Spray Arm A&C 1
00308.50 Spray Arm End Plug SS 1
00341.00 Spray Arm Bearing 1
00363.00 Spray Base Lock Pin 1
00404.80 Contactor 220 V 20 Amp 1
00411.00 Micro Switch 1
00415.20 Peristaltic Pump Assembly 220 V/60Hz 1
00418.00 Peristaltic Pump Cover 1
00421.35 Lighted Rocker Switch 220 V (Amber) 1
00421.87 CMA-44 Rocker Switch (White) 1
00433.00 Master Switch (30 Amp) 1
00435.00 Squeeze Tube 8” Silicone 1
00501.10 Timer Motor Assembly 2Min 220/60Hz 1
00562.00 Roller Door Switch 1
00631.05 Ice Cube Relay 220 V 1
00706.00 3/4” Water Solenoid Repair Kit JE 1
00715.00 1/2” Boll Check Valve 1
00735.00 3/4” Vac. Breaker Repair Kit Watts 1
13003.50 Contactor 60 Amp 3 Pole 1
13003.50 Contactor 30 Amp 1
13415.00 EGO Thermostat Retrofit Kit 1
17523.51 Hi Limit Switch 250 Deg. 1
MODEL CWS PARTS MANUAL Rev. 1.00 Page 3

Parts Manual

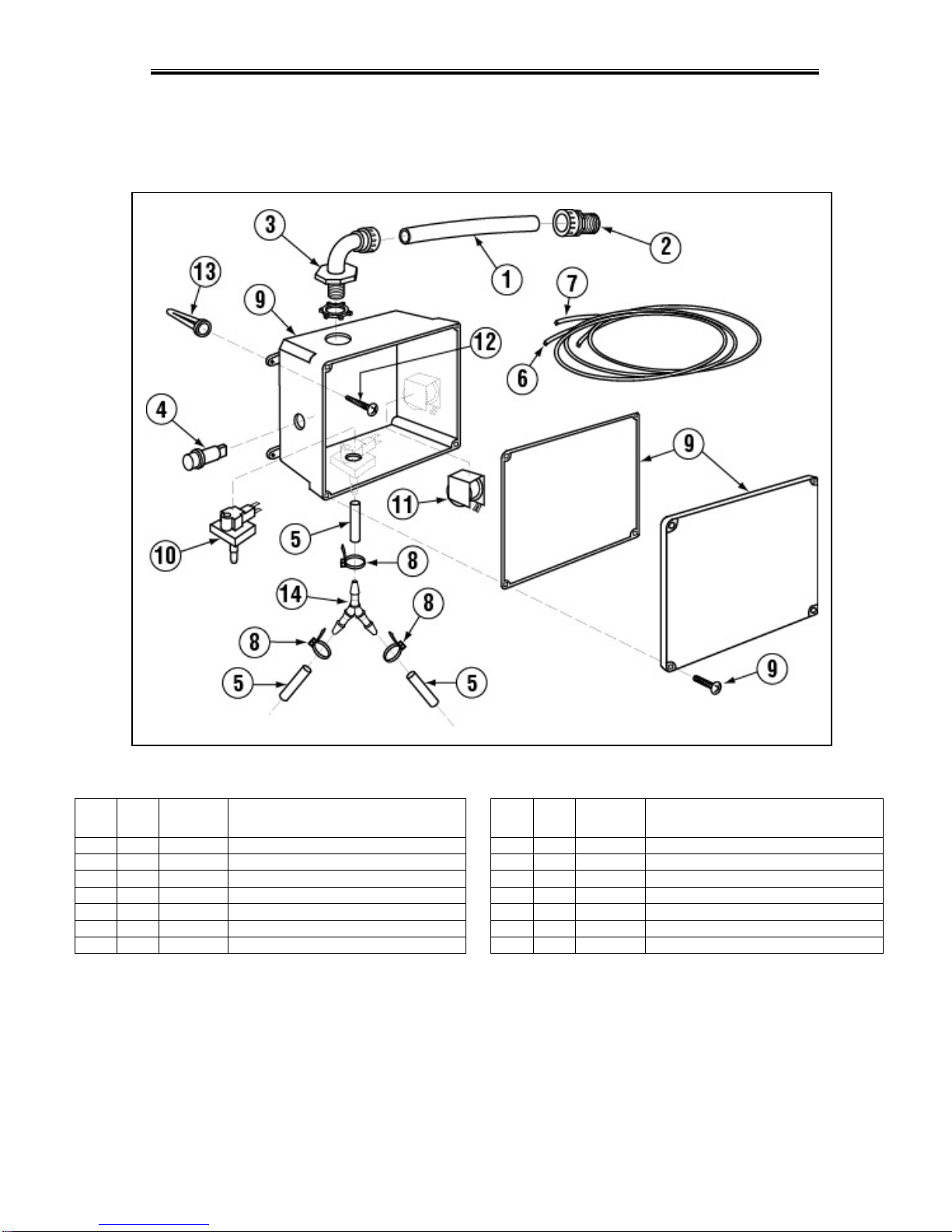

1.2. Optional Sani Alarm
Part Number 12508.05
Exploded View
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 3 00400.00 Conduit, 3/8” Sealtite 8 5 00931.00 Wire Tie, Small
2 1 00401.00 S.T. 3/8” Straight Connector 9 1 12510.00 Sanitizer Alarm Box Assembly
3 1 00402.00 S.T. 90 Degree 3/8” Connector 10 1 12511.00 Sanitizer Low Level Vacuum Switch
4 1 00406.05 Control Box Light, .5” Diameter, Red 11 1 12512.05 Sanitizer Alarm Buzzer, 220 Volts
5 1 00435.00 Squeeze Tube, 8” 12 4 40126.10 #10 x 3/4" Sheet metal Screw
6 1 00521.00 Wire, 18 Gauge, Orange, 6 ft. 13 4 40127.00 Wall Anchors
7 1 00531.00 Wire, 18 Gauge, White, 6 ft. 14 1 00426.00 Y Hose Connector, 3/16”
MODEL CWS PARTS MANUAL Rev. 1.00 Page 4

Parts Manual
1.3. Exploded View Drawings
1.3.1. Cabinet Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 01500.21 Wrapper 10B 1 16920.00 CWS Pan /Stand Left Sink
2 2 01505.32 Tray Track Inline (AH) 11 1 00120.50 Power Drain Cover CWS/N-EVA
3 2 01506.20 Door (Scullary & CWS) 12 1 01573.50 Sani Mount Drain Lid-CWS
4 1 01577.10 Molded Scrap Trap Body (New) 13 24 00924.00 ¼”ss Washer
5 1 01577.20 Molded Scrap Trap Drawer (New) 14 24 00912.00 ¼”-20 Nylon Lock Nut
6 4 01310.00 Bullet Foot 15 20 00905.00 ¼”-20x1/2” Truss Head Bolt
7 4 00636.30 EZ Glide Plastic Dr 31 ¾” 16 4 00914.10 ¼”-20x5/8” Hex Head Bolt
8 1 16904.00 CWS Chemical Tray 17 4 00911.00 8-32x1/2 » Pan Head Screw
9 4 01554.50 EZ Glide Door Guide ss.33” 18 1 01577.40 Scrap Trap Lid
10 1 16920.50 CWS Pan /Stand Right Sink 19 1 00115.85 Drain Screen VA
MODEL CWS PARTS MANUAL Rev. 1.00 Page 5

Parts Manual
1.3.2. Three Compartment Sink
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 16922.00 CWS 3 Comp Sink Left 9 1 20472.00 Bumper Spray
1A 1 16922.50 CWS 3 Comp Sink Right 10 1 20475.00 Spray Valve
2 1 16906.00 CWS Sink Scrap Basket 11 1 20450.00 Pre Rinse Hose Handle
3 2 16905.00 CWS Sink Covers 12 1 20416.00 Pre Rinse Check Valve
4 3 20500.00 CWS Rotary Waste Valve 13 1 20451.00 Pre Rinse Hose
4A 3 20500.10 Waste Valve Screen Gasket 14 1 20417.00 Pre Rinse Spring
4B 4 20500.20 Waste Valve Screen 15 1 20419.00 Pre Rinse Hook
5 2 01310.00 Bullet foot 16 1 20420.00 Pre Rinse Hose Pipe Adapter
6 1 20505.00 CWS ½” Faucet 17 1 20415.00 Pre Rinse Wall Bracket
7 1 20411.00 Pre Rinse Unit 18 1 20418.00 Pre Rinse Riser Pipe
8 1 20414.00 Pre Rinse Brush 19 1 20413.00 Add On Faucet
MODEL CWS PARTS MANUAL Rev. 1.00 Page 6

Parts Manual
1.3.3. Control Box Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 3 00416.20 Peristaltic Pump Motor 220 V 17 3 00911.50 8-32 X 3/8” Pan Head Screw
2 3 00417.00 Peristaltic Pump Block 18 3 00927.00 8-32 Nylon Lock Nut
3 3 00418.00 Peristaltic Pump Cover 19 1 00631.05 Ice Cube relay 220 V
4 3 00419.00 Peristaltic Pump Rotor 20 1 00433.10 Master Switch (20Amp)
5 6 00919.00 10-32 X 1 ½” Panhead Bolt 21 1 13404.20 Socket Terminal Block
6 12 00911.00 8-32 X ½” Panhead screw 22 2 13825.00 8-32 X 1” Pan Head Screw
7 3 00918.00 10-32 X 1 ½” Filister Bolt 23 6 00907.00 6-32 X 1/2” Pan Head Screw
8 1 00449.00 Lock and Key 24 1 00535.00 Control Box Lid Handle
8A 1 00450.00 Key Only 25 1 01504.14 Control Box Lid
9 1 00562.00 Roller Switch 26 3 03470.00 Primer Switch (Momentary)
10 1 00562.60 Roller Switch Connector 27 1 00475.30 Delimer Switch (DPDT 15Amp)
11 5FT 00546.00 Switch Cord 28 1 00421.35 Illuminated Rocker Switch (Amber)
12 1 00404.80 Motor Contactor 20 Amp 29 1 00421.87 Illuminated Rocker Switch (White)
13 1 13003.17 Main Contactor 60 Amp 30 1 03408.55 Counter (Panel Mount) 220 V
14 1 00408.40 Timer 120 Sec 8 Cam 220V/60Hz 31 1 16903.00 Control Box Body
15 1 01514.00 Timer Support Bar 32 5 00470.10 Toggle Switch Rubber Boot
16 8 00411.00 Microswitch
MODEL CWS PARTS MANUAL Rev. 1.00 Page 7

Parts Manual
1.3.4. Door Actuator Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 00613.65 Door Handle For CWS 11 4 00906.00 1/4-20 x 1/2" Hex Head Screw
2 1 01556.50 Door Handle Support, 1” (Right) 12 6 00924.00 1/4" SS Washer
3 2 00603.63 Door Spring Extension Rod 13 8 00912.00 1/4-20 Nylon Locknut
4 2 00602.00 Door Spring 14 4 00610.00 Door Handle Spacer, Small
5 2 01552.00 Door Stop 15 4 00611.00 Door Handle Spacer, Large
6 2 01553.20 Door Handle Link 16 2 00904.00 1/4-20 x 2” Hex Screw
7 2 00606.00 5/16-18 x 7” Eyebolt 17 1 01555.50 Door Handle Support, 1” (Left)
8 2 00913.00 5/16-18 Nut 18 2 00903.00 1/4-20 x 1-3/4” Hex Head Screw
9 2 00926.00 5/16” SS Washer 19 2 00607.04 Door Handle Cap, 1”
10 2 00900.00 Cotter Pin
MODEL CWS PARTS MANUAL Rev. 1.00 Page 8

Parts Manual
1.3.5. Pump Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 00206.00 Pump Seal Kit 9 1 03108.61 Intake Hose
2 1 00201.30 Pump Motor 2HP 230/115 V 10 2 03108.00 Hose Clamp
3 1 00203.05 Impeller (close) 4-1/2” 11 2 00238.00 3/8” Male Plug
4 1 00202.00 Pump Base Large 12 2 00914.10 1/4 “ - 20 X 5/8 “ Hex Head Bolt
5 1 00205.00 Pump Gasket 13 2 00912.00 1/4 “ - 20 Nylon Lock Nut
6 1 00204.00 Pump Cover 14 8 00921.00 3/8 “ –16 X 3/4” Hex Head Bolt
7 1 50302.40 1-1/4” MIP X 1” Barb Fitting 15 4 00926.00 5/16” SS Washer
8 1 50302.06 1” MPT X 1” Barb Fitting 16 1 00200.14 CWS Pump Motor Assembly
MODEL CWS PARTS MANUAL Rev. 1.00 Page 9

Parts Manual
1.3.6. Plumbing System Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 00700.00 3/4" Gate Valve 7 1 00747.10 Nipple Brass 1/2” X 5”
2 2 00704.00 3/4" Street Elbow 8 2 00748.00 1/2” Sprinkler Head
3 1 00705.05 3/4" Water Solenoid Valve JE 220 V 9 2 00760.00 5/8 “ Comp X 1/2” MIP Adapter
3A 1 00706.00 Solenoid Valve Repair Kit ¾” 10 2 00761.00 5/8 “ Comp X 3/4” MIP Adapter
3B 1 00705.20 Solenoid Valve Bonnet 11 1 00797.00 CWS Booster Heater Water Line
3C 1 00786.00 Solenoid Valve Plunger w/Spring 12 4 00797.10 CWS Booster Heater Water Line
3D 1 00738.15 Solenoid Valve Coil 220 V 13 1 01525.06 Plumbing Support Bracket
4 1 00710.50 3/4” Vacuum Breaker, Watts 14 1 13633.20 Booster Heater ¾”’ In/Out Adapter
4A 1 00735.00 3/4” Vacuum Breaker Repair Kit 15 2 13639.00 Nipple S/S 3/4” Close
4B 1 00735.60 Vacuum Breaker Bonnet, Brass 16 2 00745.00 1/2” 90 Deg. Street Elbow
4C 2 00970.40 6-32 X 1/4” Self Threading Screw 17 1 00795.60 Flush Tube CWS
5 1 00716.00 1/2 “ X 1/2” X 3/4” Tee F X F X F 18 1 00912.00 1/4”-20 Nylon Lock Nut
6 2 00721.00 1/2 “ Jamb Nut Thin Pattern 19 1 00922.00 1/4” Lock Nut
MODEL CWS PARTS MANUAL Rev. 1.00 Page 10

Parts Manual
1.3.7. Spray System Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 4 00914.00 1/4-20 x 3/4" Hex Head Bolt 10 1 03108.24 Discharge Hose CWS 7”
2 9 00924.00 1/4" SS Washer 11 2 03101.00 Hose Clamp
3 4 00912.00 1/4-20 Nylon Lock Nut 12 1 00905.82 1/4-20 x 3/8” Truss Head Bolt
4 1 00966.10 10-32 x 1/4" Hex Head SS Bolt 13 1 00360.05 CWS Lower Spray Base
5 2 00341.00 Spray Arm Bearing 14 4 00363.00 Spray Base Lock Pin
6 2 00304.06 Spray Arm 14A 4 00363.10 Lock Pin Spring
7 4 00308.50 Spray Arm End Plug 15 1 50302.06 1" MPT X 1" Barb Fitting
8 1 00305.65 CWS Manifold 16 1 00302.84 Spray Base 0-Ring
9 1 04306.00 Square Manifold Gasket
MODEL CWS PARTS MANUAL Rev. 1.00 Page 11

Parts Manual

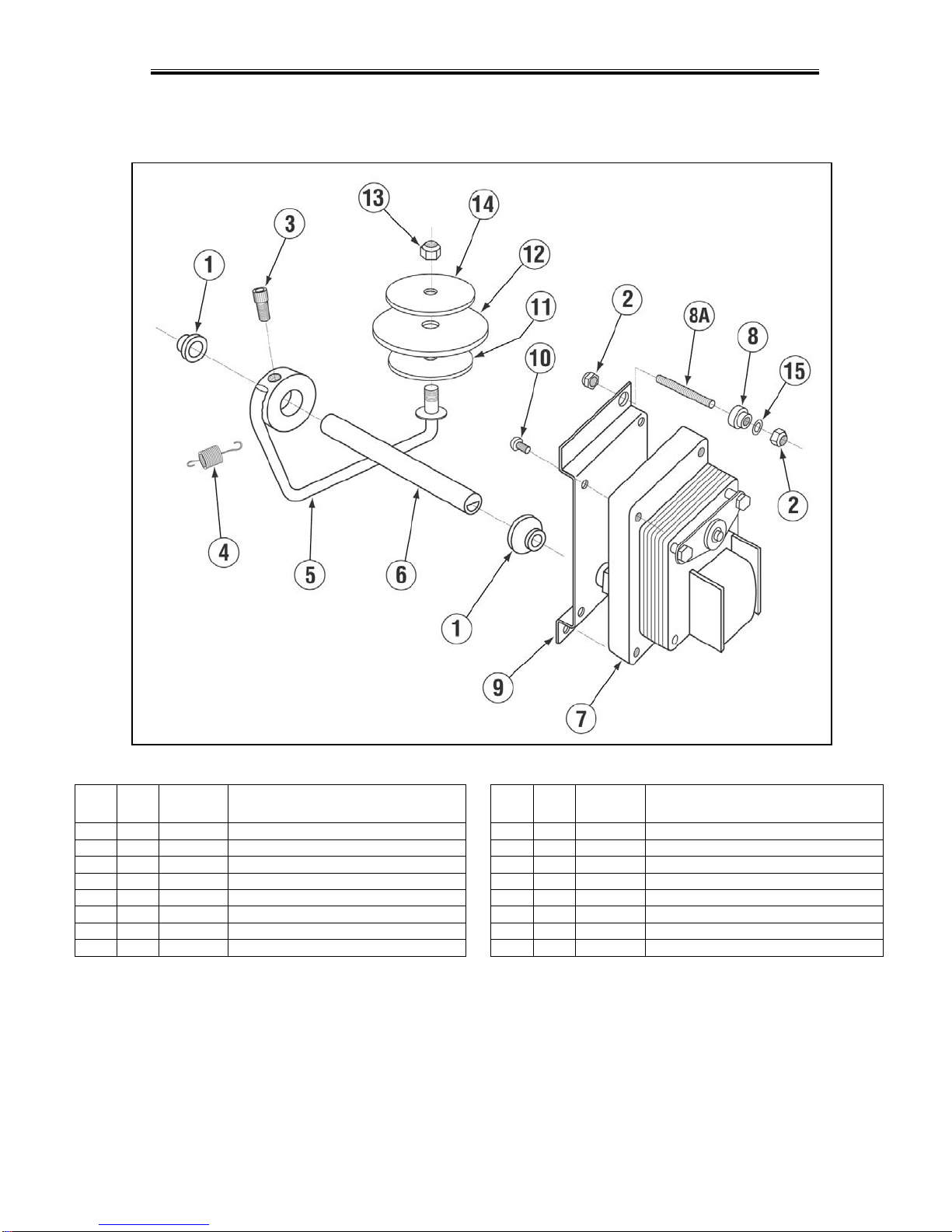

1.3.8. Power Drain Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 2 00938.82 1/2" Drain Bushing, Brass (V) 8A 2 00109.50 10-32 x 1” Stud
2 4 03801.00 10-32 Lock Nut 9 1 01511.84 Drain Motor Bracket – 3rd Generation
3 1 00906.82 1/4-20 x 5/8” Socket Head Screw 10 2 00941.00 10-32 x 5/8” Pan Head Screw
4 1 00105.81 Drain Spring (V) 11 1 01520.82 Diaphragm Support Disk, 1-1/8”
5 1 00108.82 Drain Actuator Arm 12 1 00121.60 Drain Diaphragm
6 1 00109.82 Drain Actuator Shaft (V) 13 1 00912.00 1/4-20 Nylon Lock Nut
7 1 00104.86 50 RPM Drain Motor, 220V 60Hz 14 1 01521.82 Diaphragm Support Disk, 2”
8 2 00109.40 Shoulder Nut, SS 15 2 04806.00 #10 Brass Washer
MODEL CWS PARTS MANUAL Rev. 1.00 Page 12

Parts Manual

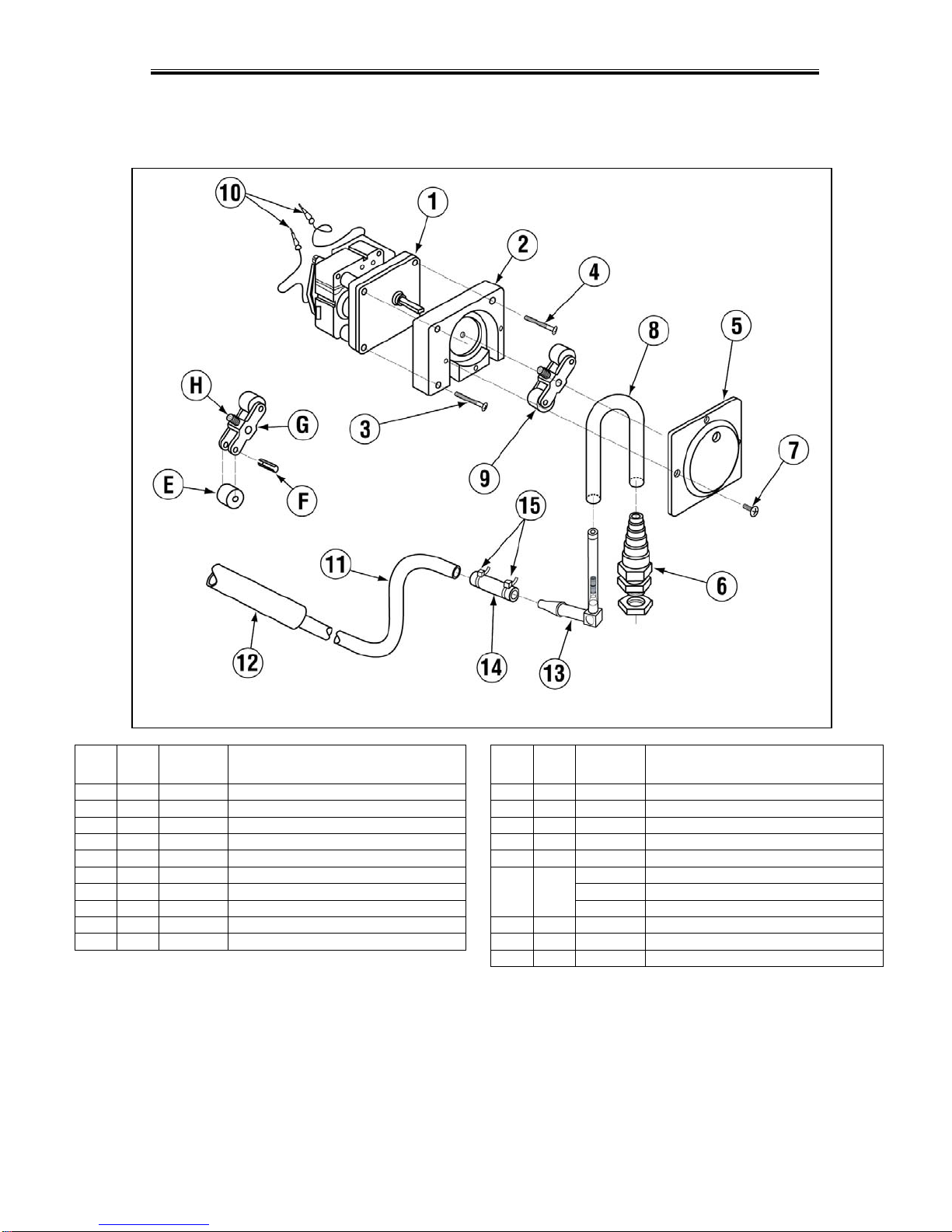

1.3.9. Peristaltic Pump Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 00416.00 Peristaltic Pump Motor E 2 00423.00 Rotor Bearing
2 1 00417.00 Peristaltic Pump Block F 2 00422.00 Rotor Bearing Pin
3 2 00919.00 10-32 x 1-1/2” Pan Head Screw G 1 00424.00 Rotor Bearing Carriage
4 1 00918.00 10-32 x 1-1/2” Fillister Head Screw H 1 00935.00 1/4-20 x 1/4" Allen Screw
5 1 00418.00 Peristaltic Pump Block Cover 10 2 00448.00 Barrel Connector, Male
6 1 03415.50 Flex-Tight Fitting 11 1 00425.51 Chemical Tubing, Blue
7 4 00911.00 8-32 x 1/2" Pan Head Screw 00425.53 Chemical Tubing, Red
8 1 00435.00 Squeeze Tube 00425.54 Chemical Tubing, White
9 1 00419.00 2-Bearing Rotor Assembly 12 1 00443.00 Tube Stiffener
13 2 03426.00 Sight Glass 90 Deg Elbow 14 2 00435.11 Squeeze Tube 3”
15 4 00932.00 Twist tye
MODEL CWS PARTS MANUAL Rev. 1.00 Page 13

Parts Manual

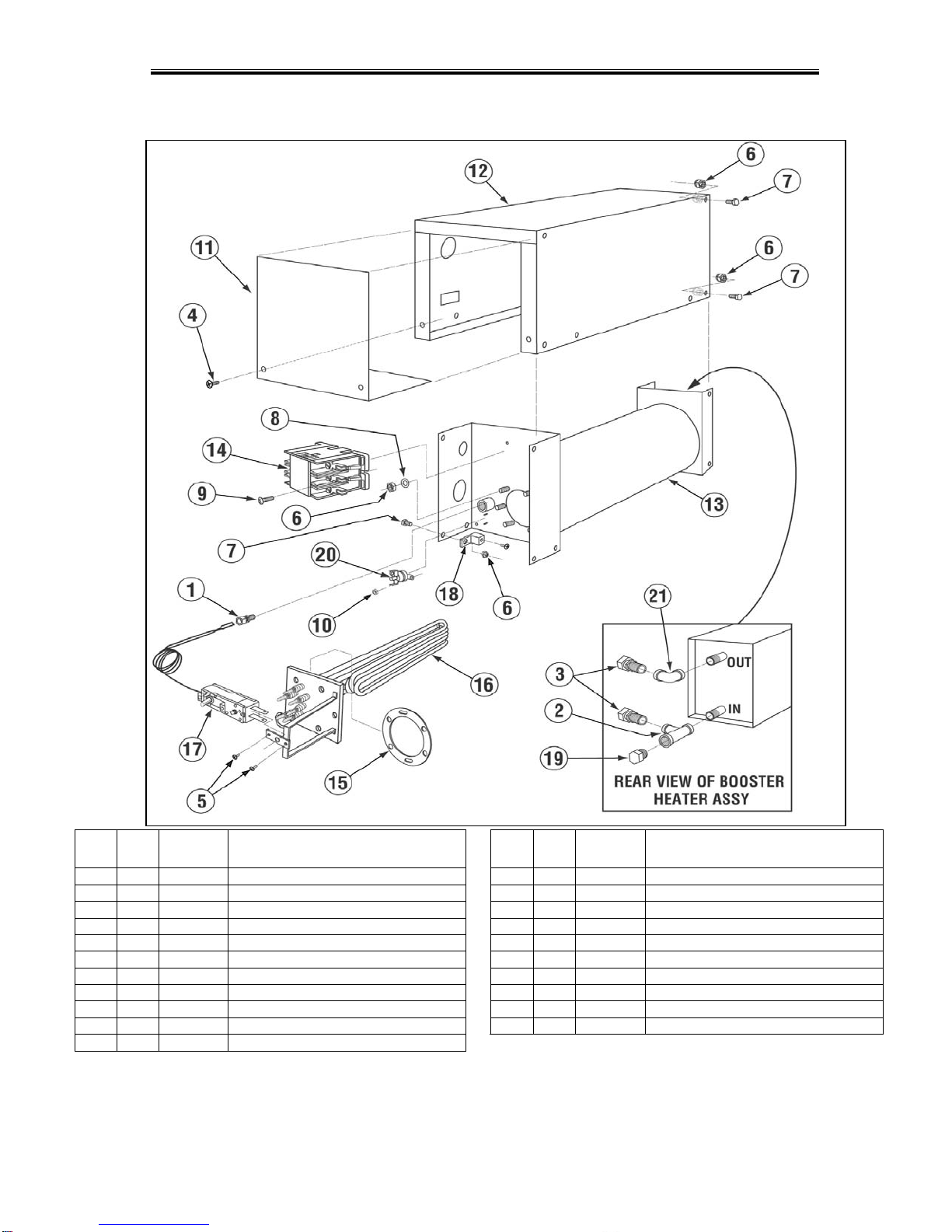

1.3.10. Booster Heater Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 00214.30 1/4” Comp X 3/8” MIP Fitting 12 1 01594.30 3 Sided Heater Tank Shield w/o Hole
2 1 00743.10 1/2 “ Tee FXFXF Brass 13 1 01595.20 Heater Tank For Temp Sure
3 2 00760.00 5/8 “ Comp X 1/2 ” MIP Adapter 14 1 13003.17 Contactor 60 Amp 3 Pole
4 2 00911.50 8-32” X 3/8 “ Pan Head Screw 15 1 13417.47 CMA 180 Booster Heater Gasket
5 2 00911.60 Screw Phillips M4X6 16 1 13417.67 Immersion Heater 12 Kw 3ph/1ph
6 14 00912.00 1/4”-20 Nylon Lock Nut 17 1 13417.89 Thermostat For 12 Kw Heater (EGO)
7 8 00914.10 1/4”-20 X 5/8 Hex Head Bolt 18 1 13426.50 Ground Block
8 6 00924.00 1/4” S/S Washer 19 1 13642.00 1/2” Male Plug Brass
9 2 00941.00 10-32” X 5/8 “ Pan Head Screw 20 1 17523.51 Hi Limit Switch 250 Deg.
10 2 00971.10 4-40 Nylon Lock Nut 21 1 41030.10 ½” 90 Deg. Ell. FXF Brass
11 1 01594.10 Booster Tank Access Cover
MODEL CWS PARTS MANUAL Rev. 1.00 Page 14
