IDC4050IR
Features
zHD IP Mega-pixel TDN Dome Camera
zBuilt-in Fixed Mega Pixel Lens (f=4.0mm)
z1/3” Progressive CMOS Sensor
zMax. Full HD(1920x1080)
zTDN(ICR)
zBuilt-in IR LEDs (18EA) & Sensor 1EA
z2.0 Mega-Pixel Resolution up to 30 Frames/sec
zUltimate High Resolution 1100TV Lines
zBuilt-in System State LED
zDual Stream H.264/MJPEG Resolution
zSupport Two-way Audio (ADPCM)
zEthernet 10/100 Base-T (PoE)
HD IP IR DOME CAMERA
Full HD (2.0 MEGA Pixel) Image
XNET IP products provide real time steaming at 1080P
(1920 x 1080) Full HD resolution and 720P even
Different HD resolution over IP.
Much bigger resolution image provides several Cropped
streaming image by digital zoom.
2.0 Mega-pixel image
Digital Zoom image
Progressive Scan and De-interlaced Image Processing Technology
XNET progressive scan type IP cameras provide
much higher quality for clear monitoring than
interlaced scan type. Hardware type of De-interlaced
filter applies for D1 resolution type of IP cameras to
provide much clearer image.
High Quality Progressive Image Interlaced Image
XNET IP products provide triple codec with selectable dual streaming for multi-clients. High quality of
H.264(or MPEG4) and MJPEG both video streaming can be provided to the multi clients simultaneously.
Dynamic Dual Stream
Multiple Event Trigger
XNET IP products series includes a physical type alarm & sensor event functions and logical event type
to define event setting on screen display or integrate any kind of event action easily on the network
environment.

www.cnbtec.com
HD IP IR DOME CAMERA
The built-in PoE feature provides much easier connection and installation with cost saving on network
environment also efficient maintenance. XNET IP products are standard IEEE 802.3af supported.
Built-in PoE (Power over Ethernet - Standard IEEE 802.3af)
*) Xpeed IP & Waterproof IP using with High PoE (IEEE 802.3at)
XNET supports plug and play with wizard installer.
Auto system configuration and easily user setup by
XNET applications.
- Simple installation for network and systems setup
- Simultaneous system setup
- Support UPnP, Bonjour for easy installation
Plug & Easy Play over IP
Web Viewer Setup page IP Installer
XNET APP (XNET Alliance Partner Program)
CNB XNET Products support Open-API for partners.
Supplying a dynamic SDK based on API for various IP security
environment. Join hands with XNET Alliance Partner Program,
you can make a stable and strong IP security environment
with improving your CMS and NVR.
[SDK Package Items]
- Sample Program and System Library for debug
- Release Mode Sample Method
- Documentation for SDK
- Sample Header File
- Library (debug/release)
- Sample Source Code (by Visual Studio ver. 2005)
CNB CMS software
CNB CMS is compatible with all of CNB digital surveillance
video products from HDx DVR series to XNET IP products
for flexible and efficient surveillance monitoring
environment CCTV system.
Main Features
- Max. 128Channel *)Dual Monitor
- Remote search and Local search
- Remote setup and Local setup
-Motion/Sensor/AlarmEventTrigger
- Support E-Map (Same DVR systems UI)
- Support 1024*768, 1280*1024 resolution and Full Screen
- Bi-directional Audio communication
*) Two-way Audio / support model
- Support Dual Monitor (E-map, Search etc…)
-SupportPCDVR'V3‘series
Standalone DVR (SDx series, HDx series) XNET IP product

www.cnbtec.com

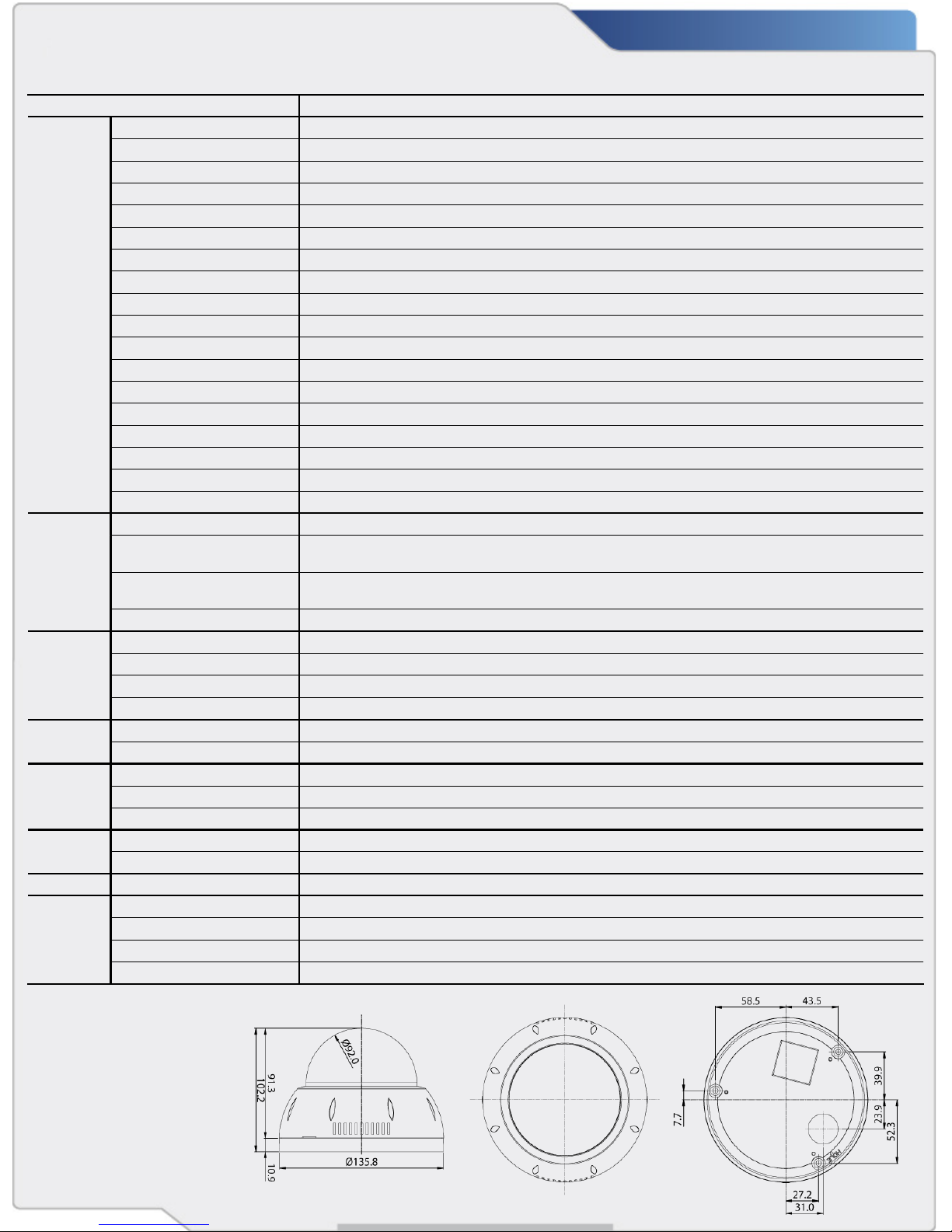

IDC4050IR Specifications
Signal System Progressive image processing
Scanning System 16:9 Progressive
Pixel Clock 80MHz
Day & Night System ICR (AGC Type)
IR LED and Sensor 18EA (850nm, 45˚) & Sensor 1EA
Frame rate Dual Mode : H.264 (30fps)
MJPEG (30fps)
Pan/Tilt/Horizontal 3-Axis Movement for Free Lens Rotation
Dimensions 135.8(Ø) x 102.2(H)mm
Image Sensor 1/3”Progressive CMOS Sensor
Sync. System Internal
Effective Pixels Number 1920 (H) x 1080 (V) 2.0 Mega
Horizontal Resolution 1100 TV Lines
Operating Temperature 0℃ ~ 40℃
Video Output Level Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite)
Lens Built-in Fixed Mega Pixel Lens (f=4.0mm, F1.8)
Min. Illumination 1 Lux (DSS On), 0.00 Lux (IR LED On)
Back Light Compensation On/Off
Flickerless On/Off
White Balance Auto/Manual
Exposure Auto/Manual
Functions B/W
Electronic Shutter Speed NTSC : 1/6~1/600, PAL : 1/6~1/500, (13 Steps)
Compression H.264 / MJPEG
Resolution Full HD(1920 x 1080), SXGA(1280 x 1024), 720P(1280x720),
D1(720 x 480 / 720 x 576), VGA(640x480), CIF(352 x 240 / 352 x 288)
Audio Two-way (full duplex / ADPCM G.726)
Protocol IPv4, HTTP, TCP, RTSP, RTP, RTCP, UDP, SMTP, FTP, ICMP, DHCP, UPnP, Bonjour, ARP, DNS, DynDNS
Supported DDNS 1. CNB DDNS 2. DynDNS.org 3. Reference code with SDK
LAN Interface Ethernet 10/100 Base-T (RJ-45 Type)
Support PoE Standard IEEE 802.3af supported
Access level setup Multiple user access levels with password protection
Network Security IP Filtering
Image detection Motion detection (Select 3 Regions - each area)
Sensor detection Sensor In, Scheduling, Alarm out
After Event process JPEG Image upload over FTP server / SMTP (E-mail server)
Browser Internet Explorer 6.0 or Higher
Monitoring Application XNVR, CNB CMS and Utility (IP-Installer, etc)
Maintenance System Upgrade Firmware upgrade over HTTP
Mechanical
Power DC 12V Max. 7 W
Applications
Alarm and
Event
Management
Security
Network
Video / Audio
Camera
Specifications
HD IP IR DOME CAMERA
Dimensions
