ENGLISH
Pressure Washer Co/Tech 140 BAR
Art. nr: 18-3076 / 30-9584, modell: HPA10712-2-UK / HPA10712-2
Caution!
Always follow these rules when using this product:
1. Do not use the high pressure cleaner before having read the entire operations
manual.
2. Never aim the water jet at yourself or any other person due to risk for personal
injury. The water jet can penetrate the skin.
3. Electrical tools should be connected to the mains via a residual current circuit-
breaker (tripping current maximum 30mA within a maximum of 30ms.)
4. Do not use the high pressure cleaner with people nearby nor without protective
clothing and goggles.
5. High pressure cleaners can be dangerous if used incorrectly. Never aim
the water jet at people or animals, or at the high pressure cleaner or other
electrical equipment.
6. Never aim the water jet at yourself to wash clothes or shoes you are wearing.
7. Always unplug the mains cord before servicing and adjusting the machine.
8. The high pressure cleaner may not be used by minors or people not familiar
with the machine.
9. Only use original parts for repairs for your own safety.
10. High pressure hoses, connections, and attachments are important safety
parts; only use attachments or replacement parts recommended by the
manufacturer.
11. Do not use the high pressure cleaner if the connection cable or another
important part is damaged: Safety features, high pressure hoses, lances,
pistol-grips, etc.
12. Caution: Faulty extension cables may be dangerous.
13. If an extension cable is used it must be equipped with a waterproof plug and
waterproof extension socket designed to be used outdoors.
14. Damaged electrical cables and power switches should always be replaced by
professionals.
15. Read the entire operations manual before using the product.
16. Be aware of the risk of accidents if the high pressure cleaner is used near
children.
17. Familiarize yourself with how the high pressure cleaner works so you can
quickly stop it and depressurise it.
18. Be attentive, be aware of what you are doing.
19. Do not use the high pressure cleaner if you are under the inuence of alcohol,
drugs, or medications.


ENGLISH
20. Keep your working area free from onlookers and pets.
21. Do not reach too far or do not stand on an unstable surface. Always stand with
both feet rmly on the ground and remain well-balanced.
22. Follow all instructions for service and maintenance described in the manual.
23. The high pressure cleaner should be connected to the mains via a residual
current circuit-breaker (tripping current maximum 30mA within a maximum of
30ms.)
24. Always wear protective clothes and goggles or a visor. Rocks and other small
objects may be expelled by the water jet. Use hearing protection.
25. The electric socket the high pressure cleaner is connected to should be
installed by a qualied electrical installer in accordance with IEC 60364-1
norms.
26. Only use detergents intended for high pressure cleaners, other detergents and
chemicals may damage the high pressure cleaner or cause personal injury.
Save this operations manual, to insure it is enclosed with the product when
leant out to others.
1. Safety rules
1. Read all instructions before using the product; follow the safety rules to reduce
the risk of accidents.
2. Check that the voltage in the socket is at 220-240 VAC, that the extension
cables have a core area of at least 1.5 mm², and that a residual current circuit
breaker has been installed.
3. Unplug the cord when the high pressure cleaner is not in use.
4. Never expose the high pressure cleaner to rain and never aim the water jet at
the high pressure cleaner.
5. Keep the extension cords away from heat sources, knives, sharp edges, etc.
to avoid damage.
6. Do not touch the electrical connections with wet hands and do not move the
high pressure cleaner with wet hands.
7. Do not use the high pressure cleaner if the high pressure hose is damaged; it
must be replaced immediately. Only use hoses and connections recommended
by the manufacturer.
8. Do not expose the high pressure cleaner to concentrated acids, solvents or to
areas with ammable/explosive materials/uids/gases, petrol, thinners, etc.
9. Do not keep the trigger pressed down.
10. There are no safety vents to adjust, when the water pressure reaches
maximum the safety vents open automatically.


ENGLISH
2. Areas of use
• The high pressure cleaner is intended for cleaning cars, lawn mowers, bicycles
etc.
• The high pressure cleaner is intended for use outdoors for cleaning of: stone,
wood, metal, and plastic materials.
Caution: Read the operations manual carefully before using the high pressure
cleaner. Take particular notice of the cautions. This high pressure cleaner has
many functions, which make your job easier and quicker. Safety, efciency, and
quality have guided the development of this high pressure cleaner. It is also easy
to use and requires minimal maintenance.
3. Explanation of warning symbols on the machine:

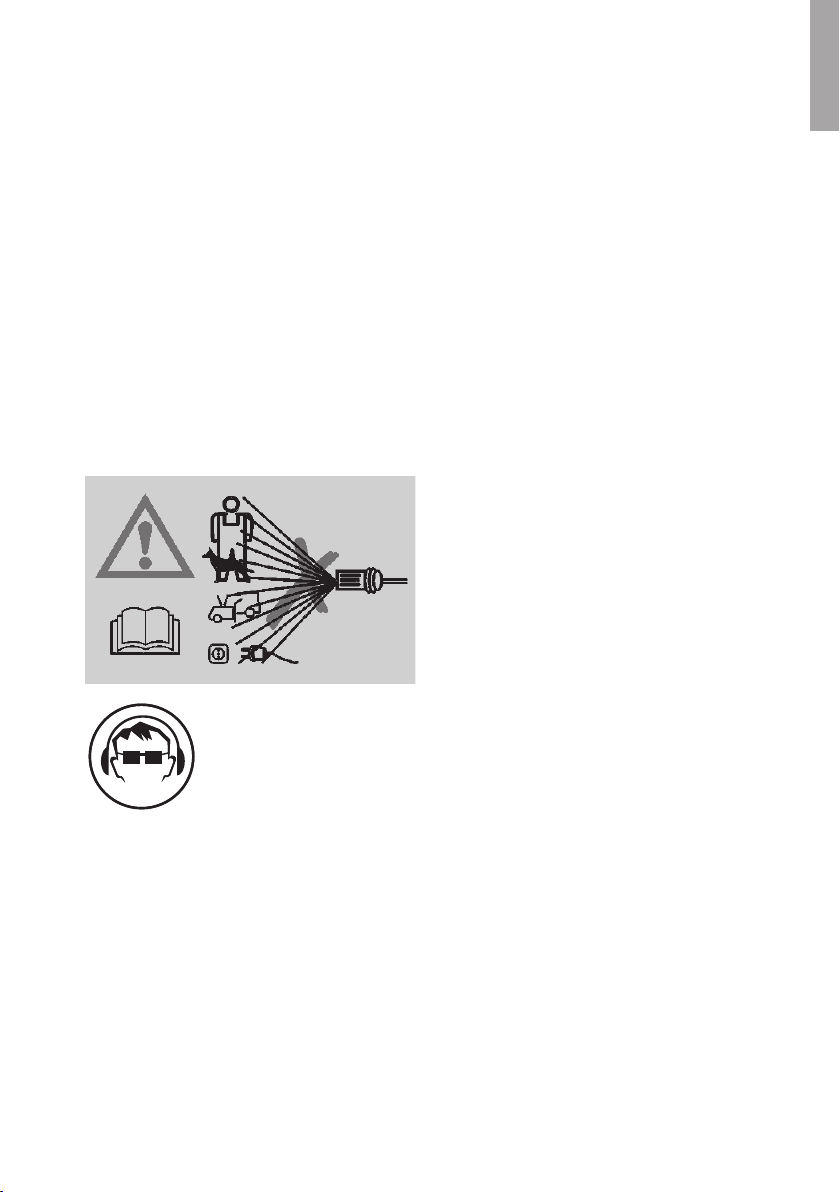

The high pressure cleaner has markings with symbols containing important
information or instructions for the use of the high pressure cleaner.
Caution: High pressure cleaners may
be dangerous if used incorrectly.
Never aim the water jet at people or
animals, at the high pressure cleaner,
or other electrical equipment.
Always unplug the electric cord service
and adjustment of the product.
Use hearing protection and goggles or a visor.


ENGLISH
4. The package contains
Verify that all parts are undamaged and are included in the package at the
time of delivery.
• High pressure cleaner with hose wheel
• Pistol grip with trigger
• Handle with fastening screws
• Lance with adjustable nozzle
• Adapter thread/bayonet
• Turbo lance
• Car wash brush
• Quick connection for incoming water
• Terrace cleaner with adjustable wash power
• Drain & pipe cleaner 15 m
• Cleaning needle for lances


ENGLISH
1

1
2
1


8
1
9
1  1 10 12
1  11
5. Use
5.1 Getting to know your machine
1. Power switch
2. Handle
3. Connection for pistol grip
4. Connection for incoming water (with
lter/packing)
5. Pistol grip with trigger
6. High pressure hose on a hose reel
7. Lance with adjustable nozzle
8. Hose wheel crank
9. Detergent holder
10. Car wash brush with bayonet adapter
11. Turbo lance
12. Terrace cleaner with adjustable wash
power
13. Drain & pipe cleaner 15 m
14. Adapter thread/bayonet
15. Cleaning needle for lances
16. Holder pistol grip/lance
17. Compartment for attachments

8
ENGLISH
Fig 1. Fig 2.
Fig 3.
Turn
5.2 Preparations before use:
Caution: Turn off the high pressure cleaner and unplug the electrical cord when
servicing and adjusting the machine.
1. Check that the power switch is in the “0” position.

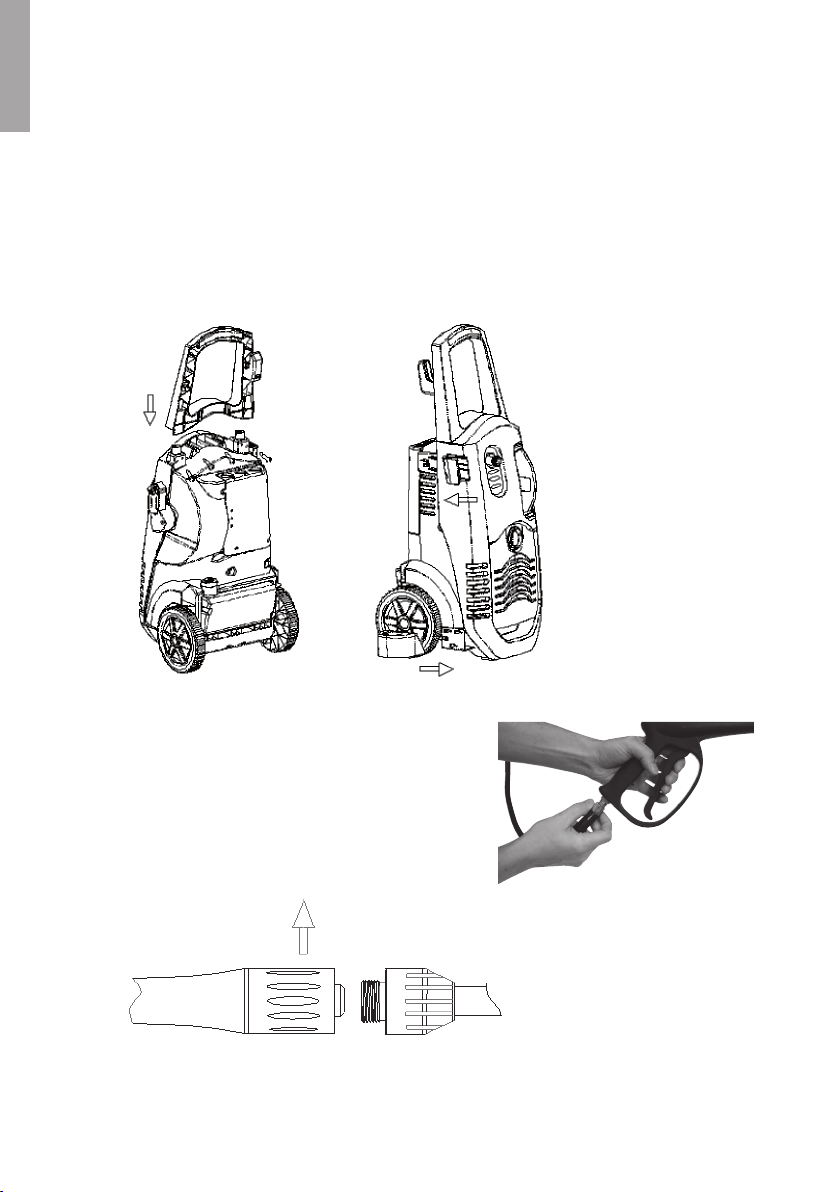

2. Connect the handle (2): Press it down from the upward position and secure it
with the screws included (see g. 1).
3. Connect the upper and lower holders for pistol grip/lance (16): Press the lower
one to the right and the upper one to the left to fasten (see g. 2).
4. Connect the high pressure hose (6) to the
pistol grip (5), tighten with a spanner.
5. To use the regular lance (7): Attach the
lance to the pistol grip (se g. 3).

9
ENGLISH
6. To use another attachment:
a. Attach the adapter (14) to the pistol grip (5) (see Illustration 3).
b. Attach one of the attachments (car wash brush, turbo lance, terrace
cleaner, or drain & pipe cleaner) to the adapter as follows:
Press the holder of the attachment into the bayonet connection on the
pistol grip (5) and turn clockwise until it locks. Do this before beginning to
use the high pressure cleaner and attachments.
Caution: Make sure that the attachment is secure in the lance or it may be
forcefully expelled from the lance.
7. Connect a garden hose (not included) to a water supply and to the connection
for incoming water (4). Use a threaded connection or a quick connection.
The connection for incoming water (4) is factory tted with a lter for removing
sand and other pollutants that may damage the pump vents.
8. Press the trigger and release any air until the water ows.
Caution: The temperature of the incoming water must not exceed 40°C. Let
the water run for a while before starting if the hose has been lying in the sun
and is warm. The high pressure cleaner must always be used in an upright/
vertical position. Never use it lying down.
Caution: Make sure there are no people or pets within the risk zone of 15 m
from the nozzle before assembly continues. The high pressure cleaner must be
used in an upright/vertical position; use the high pressure cleaner standing up.
9. Make sure that the garden hose is intact and fastened at both ends. Turn the
tap all the way on (or enough that the water supply is sufcient for the high
pressure cleaner.)
10. Connect the mains cable to a socket, press the pistol grip trigger, aim the
lance in a safe direction, and turn on the motor with the power switch (1).
If water is taken from a tank or similar without natural pressure, the pump and
inow of those must be lled with water before the pump is started. The tank must
be at a higher level than the high pressure cleaner. If the water is polluted or clou-
dy, an inow lter must be installed on the hose’s inow.
Attention: The recommended distance between the nozzle and surface to be
washed is approximately 30 cm. Shorter distances provide higher cleaning power
and may damage the surface being cleaned. Longer distances provide softer clea-
ning of fragile surfaces.

10
ENGLISH

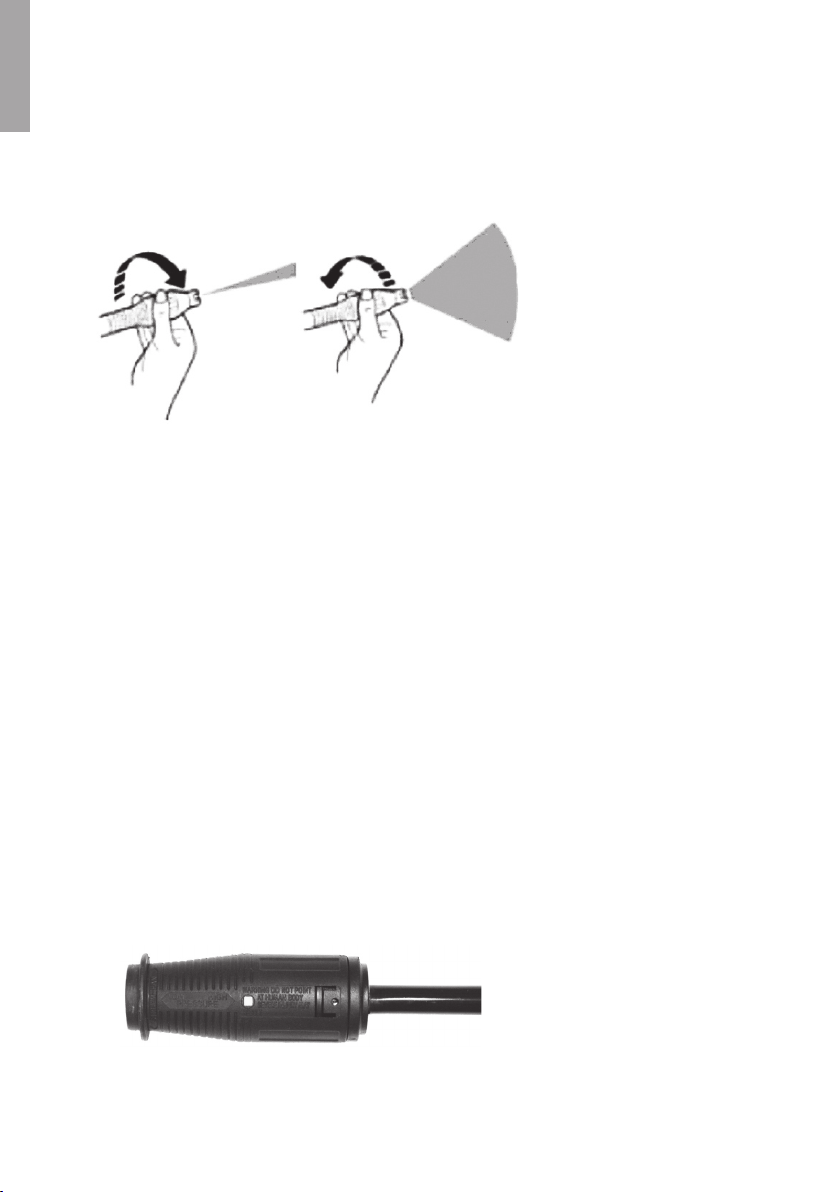

Narrow beam Wide beam
LOW <---> HIGH
Do not place the connection cable on a pavement, cycle lane, etc, exposing it to
damage.
Caution: Do not use a shorter connection hose than 6 m (1/2 inch hose). The
hose absorbs any pressure surges in the water line and protects the high pressure
cleaner, making it work more softly.
Caution: When the water sprays out from the lance, a recoil effect occurs on the
lance. Therefore, make sure that you hold it steadily with both hands and that you
stand rmly.
Never aim the water jet at people or animals or against the high pressure cleaner
or any electrical equipment.
Use protective goggles, as water and particles may be kicked back when you aim
the water stream at an object.
Caution: Turn off the high pressure cleaner during a long pause in your work. Do
not leave the machine switched on without supervision. Activate the safety lock at
the trigger.
5.3 Adjustment of the nozzle
(The turbo lance cannot be adjusted)
Make sure that the high pressure cleaner is correctly assembled. Aim the lance at
the surface to be washed, press the trigger and turn on the motor with the power
switch (1). Set to narrow or wide beam by turning the nozzle.
