COBHAM SAILOR 7222 VHF DSC User manual

SAILOR 7222 VHF DSC
User Manual

i
SAILOR 7222 VHF DSC
User manual
Document number: 98-171832-A
Release date: July 2, 2021

ii 98-171832-A
Disclaimer
Any responsibility or liability for loss or damage in connection with the use of
this product and the accompanying documentation is disclaimed by Thrane
& Thrane A/S. The information in this manual is provided for information
purposes only, is subject to change without notice and may contain errors or
inaccuracies. Manuals issued by Thrane & Thrane A/S are periodically revised
and updated. Anyone relying on this information should acquire the most
current version e.g. from www.cobhamsatcom.com, Cobham SYNC
Partner Portal, or from the distributor.Thrane & Thrane A/S is not
responsible for the content or accuracy of any translations or reproductions,
in whole or in part, of this manual from any other source. In the event of any
discrepancies, the English version shall be the governing text.
Thrane & Thrane A/S is trading as Cobham SATCOM.
Manufacturer
Thrane & Thrane A/S, Lundtoftegårdsvej 93D, 2800 Kgs. Lyngby, Denmark
Industrivej 30, 9490 Pandrup, Danmark
Copyright
© 2021 Thrane & Thrane A/S. All rights reserved.
Trademark Acknowledgments
•SAILOR is a registered trademark of Thrane & Thrane A/S.
• Other product and company names mentioned in this manual may be
trademarks or trade names of their respective owners.

98-171832-A iii
GPL notification
The software included in this product contains copyrighted software that is
licensed under the GPL/LGPL. The verbatim licenses can be found online at:
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
For the parts of the software that fall under the GPL/LGPL licenses, you may
obtain the complete corresponding source code from us for a period of three
years after our last shipment of this product, which will be no earlier than
December 31, 2027, by sending a money order or check for DKK 50 to:
SW Technology/GPL Compliance,
Cobham SATCOM (Thrane & Thrane A/S),
Lundtoftegaardsvej 93D
2800 Lyngby
DENMARK
Write "source for product SAILOR 7222 VHF DSC" in the memo line of your
payment. This offer is valid to anyone in receipt of this information.
https://www.cobhamsatcom.com/legal/free-and-open-source-software-foss/

iv 98-171832-A
Safety warning
The following general safety precautions must be observed during all phases
of operation, service and repair of this equipment. Failure to comply with
these precautions or with specific warnings elsewhere in this manual violates
safety standards of design, manufacture and intended use of the equipment.
Thrane & Thrane A/S assumes no liability for the customer's failure to comply
with these requirements.
Ground the equipment
To minimize shock hazard, the SAILOR 7224 Control Unit unit and the
SAILOR 7226 VHF Transceiver Unit must be connected to an electrical
ground and the cable instructions must be followed.
RF exposure hazards and instructions
Your Cobham SATCOM radio set generates electromagnetic RF (radio
frequency) energy when transmitting. To ensure that you and those around
you are not exposed to excessive amounts of energy and thus to avoid health
hazards from excessive exposure to RF energy, all persons must be at least
200 cm away from the antenna when the radio is transmitting.
Warranty limitation
IMPORTANT - The radio is not a user maintainable unit, and under no
circumstances should the unit be opened except by authorized personnel.
Unauthorized opening of the unit will invalidate the warranty.
Installation and service
Installation and general service must be done by skilled service personnel.
Compass safe distance
SAILOR 7226 VHF Transceiver Unit: Min. compass safe distance: 0.55 m
SAILOR 7224 Control Unit: Min. compass safe distance: 0.85 m

98-171832-A v
Alerte de sécurité
Dangers liés à l'exposition aux fréquences radio et
instructions
Conformément à la réglementation d'Industrie Canada, le présent radio
émetteur ne peut fonctionner qu'avec une antenne de type
omnidirectionnelle, demi-onde ou d'un gain maximal de 4 dB, approuvée par
Industrie Canada. Pour éviter les risques pour la santé dus à une exposition
excessive aux champs de fréquences radio, une distance minimale de 200 cm
est nécessaire entre l'utilisateur et le radio-émetteur.

vi 98-171832-A

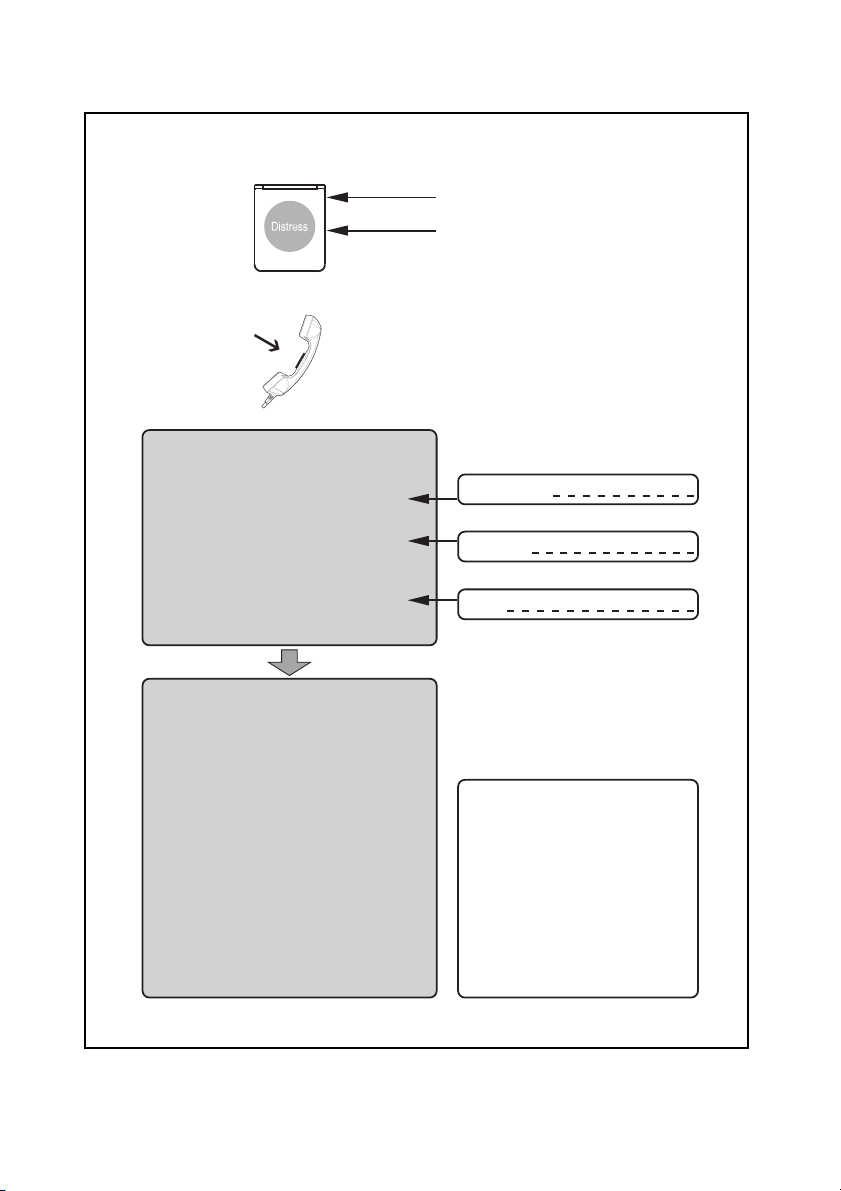

Emergency calls
MM
MM
MAA
AA
AYY
YY
YDD
DD
DAA
AA
AYY
YY
Y
NANA
NANA
NAMEME
MEME
ME of the VV
VV
VEE
EE
ESS
SS
SSS
SS
SELEL
ELEL
EL in distress
CC
CC
CALAL
ALAL
ALLL
LL
LSS
SS
SIGNIGN
IGNIGN
IGN or other IDENIDEN
IDENIDEN
IDENTT
TT
TIFICIFIC
IFICIFIC
IFICAA
AA
ATT
TT
TIONION
IONION
ION
MM
MM
MMM
MM
MS
S
SS
SII
II
I
(If the initial alert is sent by DSC)
PP
PP
POO
OO
OSS
SS
SITIT
ITIT
ITIONION
IONION
ION
given as ll
ll
latat
atat
atitit
itit
itudeude
udeude
ude and longitlongit
longitlongit
longitudeude
udeude
ude
or
If latitude and longitude are not known
or if time is insufficient,
in relation to a known geographical location
NANA
NANA
NA
TURETURE
TURETURE
TURE of distress
Kind of AA
AA
ASS
SS
SSS
SS
SII
II
ISS
SS
STT
TT
TANCANC
ANCANC
ANCEE
EE
E required
Any other useful INFINF
INFINF
INFOROR
OROR
ORMM
MM
MAA
AA
ATT
TT
TIONION
IONION
ION
MM
MM
MAA
AA
AYY
YY
YDD
DD
DAA
AA
AYY
YY
Y-M-M
-M-M
-MAA
AA
AYY
YY
YDD
DD
DAA
AA
AYY
YY
Y-M-M
-M-M
-MAA
AA
AYY
YY
YDD
DD
DAA
AA
AYY
YY
Y
This is
NANA
NANA
NAME-NAME-NA
ME-NAME-NA
ME-NAME-NAME-NA
ME-NAME-NA
ME-NAMEME
MEME
ME
CC
CC
CALAL
ALAL
ALLL
LL
LSS
SS
SIGNIGN
IGNIGN
IGN
or other IDENTIFICATION
MM
MM
MMM
MM
MSS
SS
SII
II
I
(If the initial alert is sent by DSC)
Use the HANDHAND
HANDHAND
HANDSS
SS
SETET
ETET
ET for voice calling
LL
LL
Lifif
ifif
ift Ct C
t Ct C
t Covov
ovov
overer
erer
er
PP
PP
Prr
rr
ree
ee
ess
ss
ss RED Buttons RED Button
s RED Buttons RED Button
s RED Button
until beep sounds continuously
(more than 3 seconds)
SHIP‘s NAME:
CALLSIGN:
MMSI:
OWNOWN
OWNOWN
OWN IDID
IDID
ID
99-132140
Press
VHF
MF
HF4
HF6
HF8
HF12
HF16
Channel 70
2187.5 kHz
4207.5 kHz
6312.0 kHz
8414.5 kHz
12577.0 kHz
16804.5 kHz
Channel 16
2182.0 kHz
4125.0 kHz
6215.0 kHz
8291.0 kHz
12290.0 kHz
16420.0 kHz
- - - - -
2174.5 kHz
4177.5 kHz
6268.0 kHz
8376.5 kHz
12520.0 kHz
16695.0 kHz
DD
DD
DSCSC
SCSC
SC RR
RR
Radiadi
adiadi
adiotot
otot
otelephonelephon
elephonelephon
elephonyy
yy
yNBDPNBDP
NBDPNBDP
NBDP
DIDI
DIDI
DISS
SS
STRETRE
TRETRE
TRESS
SS
SSS
SS
Sand Cand C
and Cand C
and COMOM
OMOM
OMMM
MM
MUNICUNIC
UNICUNIC
UNICAA
AA
ATT
TT
TIONION
IONION
ION
FREQUENCIEFREQUENCIE
FREQUENCIEFREQUENCIE
FREQUENCIESS
SS
S
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Remember to use the correct HF-procedures
Don‘t forget your EPIRB is the secondary means of
alerting
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

98-171832-A vii
Cyber security
Cyber risk related to this VHF radio is related to the VHF radio itself.
Installation guidance
Installation must be IMO compliant.
The following mitigation is to be observed:
• Any PC or mobile device connected to the VHF radio must be screened and
confirmed cyber-secure before connected to the VHF radio.
• The service interface must not be exposed directly to the Internet.
• If Internet access to the VHF radio is enabled through the service interface,
this interface must be protected with a network security device such as a
firewall.
•Donot use any connector on the VHF radio for charging mobile devices.
User guidance
The following mitigation is to be observed:
• Software updates and changes in the protected setup menu is only to be
performed by Cobham-authorized personnel.
• The service interface must not be exposed directly to the Internet.
• If Internet access to the VHF radio is enabled, the interface must be
protected with a network security device such as a firewall.
•Donot use any connector on the VHF radio for charging mobile devices.

viii 98-171832-A
Preface
Radio for occupational use
The SAILOR 7222 VHF DSC system obeys the requirements of SOLAS and is
intended for use in maritime environment.
SAILOR 7222 VHF DSC system is designed for occupational use only and
must be operated by licensed personnel only.
SAILOR 7222 VHF DSC system is not intended for use in an uncontrolled
environment by general public.
SAILOR 7222 VHF DSC system is designed for installation by a skilled service
person.
Training information
The SAILOR 7222 VHF DSC is designed for occupational use only and is also
classified as such. It must be operated by licensed personnel only. It must
only be used in the course of employment by individuals aware of both the
hazards as well as the way to minimize those hazards.
The radio is thus NOT intended for use in an uncontrolled environment by
general public. The SAILOR 7222 VHF DSC has been tested and complies with
the FCC RF exposure limits for Occupational Use Only. The radio also
complies with the following guidelines and standards regarding RF energy
and electromagnetic energy levels including the recommended levels for
human exposure:
• FCC OET Bulletin 65 Supplement C, evaluating compliance with FCC
guidelines for human exposure to radio frequency electromagnetic fields.
• American National Standards Institute (C95.1) IEEE standard for safety
levels with respect to human exposure to radio frequency
electromagnetic fields, 3 kHz to 300 GHz
• American National Standards Institute (C95.3) IEEE recommended
practice for the measurement of potentially hazardous electromagnetic
fields - RF and microwaves.
Below the RF exposure hazards and instructions in safe operation of the radio
within the FCC RF exposure limits established for it are described.

98-171832-A ix
Warning, radiation
Your Cobham SATCOM radio set generates electromagnetic RF (radio frequency)
energy when it is transmitting. To ensure that you and those around you are not
exposed to excessive amounts of that energy (beyond FCC allowable limits for
occupational use) and thus to avoid health hazards from excessive exposure to
RF energy, FCC OET bulletin 65 establishes an Maximum Permissible Exposure
(MPE) radius of 200 cm for the maximum power of your radio (25W selected)
with a half wave omni-directional antenna having a maximum gain of 4 dB. This
means all persons must be at least 200 cm away from the antenna when the
radio is transmitting.
Installation considerations, radiation
1. An omni-directional antenna with a maximum power gain of 4 dB must be
mounted at least 400 cm above the highest deck where people may be
staying during radio transmissions. The distance is to be measured vertically
from the lowest point of the antenna. This provides the minimum separation
distance which is in compliance with RF exposure requirements and is based
on the MPE radius of 200 cm plus the 200 cm height of an adult.
2. On vessels that cannot obey requirements in item 1, the antenna must be
mounted so that its lowest point is at least 3 ft. (0.9 m) vertically above the
heads of people on deck and all persons must be outside the 200 cm MPE
radius during radio transmission.
• Always mount the antenna at least 200 cm from possible human access.
• Never touch the antenna when transmitting
•UseonlyauthorizedCobham SATCOM accessories.
3. If the antenna has to be placed in public areas or near people with no
awareness of the radio transmission, the antenna must be placed at a
distance not less than 200 cm from possible human access.
Failure to observe any of these warnings may cause you or other people to
exceed FCC RF exposure limits or create other dangerous conditions.

x 98-171832-A
Manual overview
This manual has the following chapters and appendices:
•Introduction contains a description of the VHF radio.
•Operation explains how to make and receive voice and DSC calls over
VHF, including how to use and set up scanning, watch and replay.
•Service & maintenance contains support information including lists of
accessories and a troubleshooting guide.
•AppendixwithSpecifications and Maritime channels.
Related documents
Important
Not all installation information and instructions are
covered in this manual. Please download the
SAILOR 7222 VHF DSC Installation manual at
https://sync.cobham.com
In the installation manual you can read how to mount the
VHF radio and how to connect accessories and external
equipment, including detailed system configuration
examples with cable specifications.
Title and description Document
number
SAILOR 7224 Control Unit, Installation guide 98-173211
SAILOR 7226 VHF Transceiver Unit, Installation guide 98-164939
SAILOR 7222 VHF DSC,Installation manual
(download only)
98-171833
SAILOR 6101 and SAILOR 6103 Alarm Panel,
Installation and user manual
98-130981
Emergency call sheet 98-132369

98-171832-A xi
Contents
Chapter 1 Introduction
VHF radio with DSC Class A ..................................................................................1
Accessories available ..................................................................................................4
System configuration - example ........................................................................7
Chapter 2 Operation
General use and navigation ................................................................................ 10
VHF radio communication .................................................................................. 17
Watch ................................................................................................................................ 20
Scan .................................................................................................................................... 21
DSC calls .......................................................................................................................... 22
Replay function ........................................................................................................... 37
Settings ............................................................................................................................. 38
Chapter 3 Service & maintenance
Contact for support ................................................................................................. 53
Maintenance ................................................................................................................. 53
Status signaling ........................................................................................................... 55
Replacing the fuse in the Transceiver Unit .............................................. 57
Warranty and returning units for repair ..................................................... 58
Appendix A Specifications
SAILOR 7226 VHF Transceiver Unit ............................................................. 59
SAILOR 7224 Control Unit .................................................................................. 61
General DSC specifications ................................................................................. 63

Contents
xii 98-171832-A
Appendix B Maritime channels
International channels (INT) ..............................................................................65
US channels (US) ........................................................................................................66
Canadian channels (CA) ........................................................................................67
Binnenwasser channels (BI) ................................................................................68
Alternative channels (ALT) ..................................................................................69
Private channels (P) ..................................................................................................69
Glossary .................................................................................................................................................71
Index .................................................................................................................................................75

98-171832-A 1
Chapter 1
Introduction 1
VHF radio with DSC Class A
Exceeding standards set by IMO regulation for GMDSS Class A VHF, the August
2021 introduced Bridge Alert Management IMO resolution MSC.302(87), as well
as IEC 62923-1 & IEC 62923-2, the SAILOR 7222 VHF DSC Class A is a robust
platform for when clear communication could make the difference between a
non-event and a major incident.
As part of the required safety
equipment, use the SAILOR 7222
VHF DSC in an emergency
situation. However the best way to
guarantee functionality in an
emergency situation, is to use the
radio in daily communication on
board.
The VHF radio is a simplex/semi
duplex VHF radio consisting of
two units connected with a
standard Ethernet cable:
• SAILOR 7224 Control Unit
• SAILOR 7226 VHF Transceiver
Unit
It is designed with an easy-to-use menu-driven setup. You use the touch screen
on the SAILOR 7224 Control Unit or a connected device with a browser to enter
the desired functions. You can also select channels using the rightmost selection
knob. The large display can be customized for optimum readability and visibility
both day and night with different color themes.
The VHF radio can replay 480 seconds of received voice messages. This is a
useful feature to minimize misunderstandings and to record messages when the
radio is unattended.
With SAILOR connection boxes the VHF radio connects easily to external
equipment like a BAM system, additional handsets, water proof hand
microphones, control speaker microphone, alarm panel or external speaker. The

VHF radio with DSC Class A
2 Chapter 1: Introduction 98-171832-A
Ethernet interface connects the Control Unit with the Transceiver Unit, and
enables the VHF radio to be connected to other units in a local network. Instead
of the touch screen on the Control Unit, you can also connect a PC or other
device with a browser for setup and control via the web interface.
For a list of accessories available for the VHF radio see Accessories available on
page 4 and check with your nearest distributor.
Controls on the front plate of the Control Unit
1. Loudspeaker.
2. Large 5.5” TFT display with capacitive multi touch.
3. Volume control, on/off and Squelch control.
4. Distress button for sending a Distress alert.
5. Channel selector and dim knob with push-function to switch between
channel selection and dimming.
Figure 1: Controls on the front plate of the Control Unit
1 2
3 4 5

VHF radio with DSC Class A
98-171832-A Chapter 1: Introduction 3

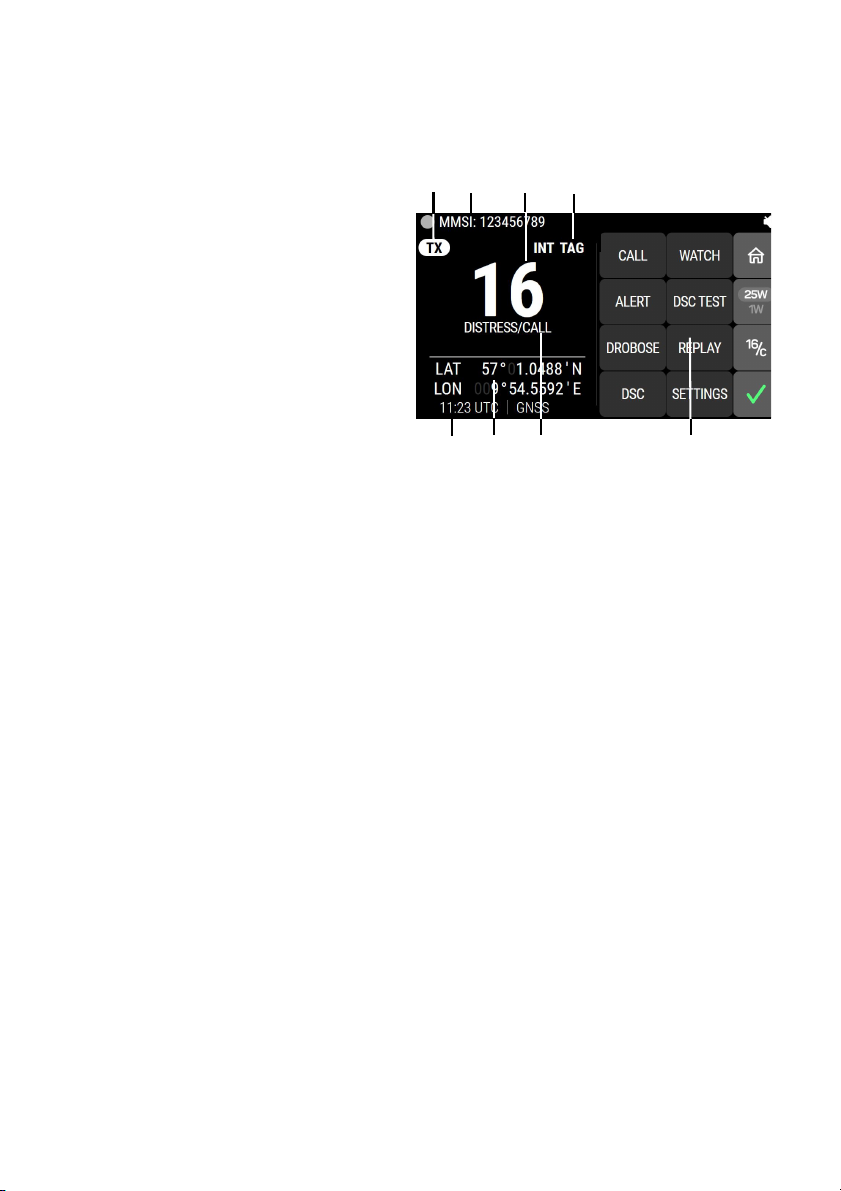

SAILOR 7222 VHF DSC display
The picture shows the display
after start-up. The display holds
various fields of information,
depending on the currently
selected function.
1. UTC time.
2. MMSI number.
3. Position information (latitude
and longitude).
4. Current working channel.
Tap to get an on-screen
keyboard for changing the
working channel.
5. Current communication direction: Rx (receive) or Tx (transmit).
6. Service line containing current temporary information relevant for the
current channel or function.
7. On-screen key functions.
8. Channel properties of the currently selected VHF channel (if any).
For a detailed description of the information shown for each of the functions
available see the chapter Operation on page 9.
5 2 4 8
1 3 6 7

Accessories available
4 Chapter 1: Introduction 98-171832-A

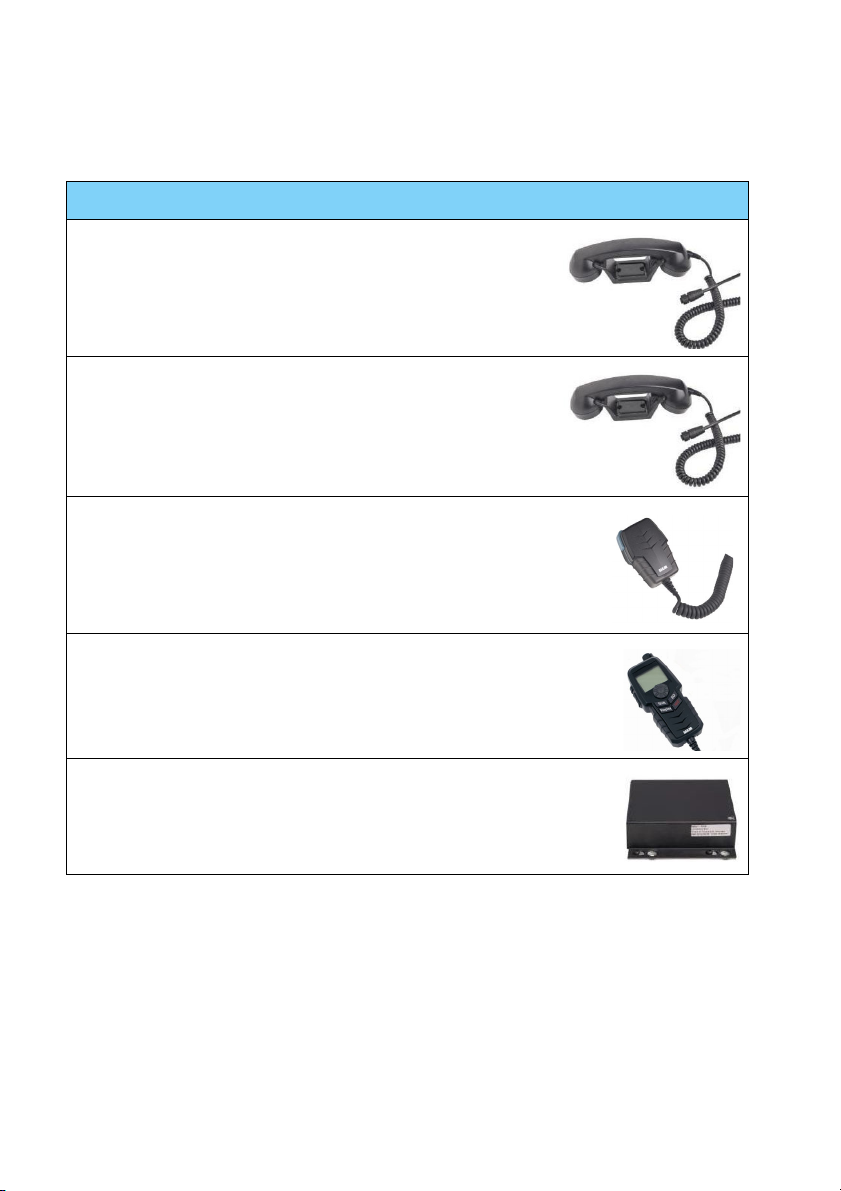

Accessories available
Part number Description
406201A-00500 SAILOR 6201 Handset with cradle
(additional)
406203A-00500 SAILOR 6203 Handset with cradle,
waterproof to IPx6.
406202A-00500 You can use the SAILOR 6202 Hand
Microphone (waterproof to IPx6 and IPx8)
instead of the handset.
406204A-00500 With the SAILOR 6204 Control Speaker
Microphone (CSM) you can control the VHF
voice functions of the SAILOR 7222 VHF DSC.
406207A-00500 The SAILOR 6207 Connection Box for parallel
Handsets including Connection Cable 406209-
941 is used for easy installation of several
SAILOR 6201/SAILOR 6203 Handsets.

Accessories available
98-171832-A Chapter 1: Introduction 5
406208A-00500 SAILOR 6208 Control Unit Connection Box
including Connection Cable 406208-941 is
used for easy installation of external
equipment and accessories:
Max. 4 SAILOR 6204 Control Speaker Microphones
VDR
SAILOR 6270 External Loudspeaker
Alarm panels and GNSS input
406209A SAILOR 6209 Accessory Connection Box
is used to connect the OPT connector on
the Control Unit to a Bridge Alert
Management unit (BAM).
406209-940
406209-941
406208-941
406204-940
Cables:
5m connection cable for bulk mount, 1x10 pole: Use this
cable to connect a handset to a SAILOR 6207 or SAILOR 6209
Connection Box in installations where the handset is not
connected directly to the SAILOR 7222 VHF DSC, but located in
a different position.
5m connection cable, 1x10 pole: Use this cable to connect
the Control Unit to a SAILOR 6207 or SAILOR 6209 Connection
Box in installations where the handset is not connected directly
to the SAILOR 7222 VHF DSC, but located in a different
position.
5m connection cable, 1x12 pole: Use this cable to connect
the Control Unit to a SAILOR 6208 Connection Box.
5m connection cable, 1x12 pole: Use this cable to connect
aSAILOR 6204 Control Speaker Microphone to a SAILOR 6208
Connection Box.
406270A If you need an additional external loudspeaker
you can connect a SAILOR 6270 External
Loudspeaker.
Part number Description

Accessories available
6 Chapter 1: Introduction 98-171832-A

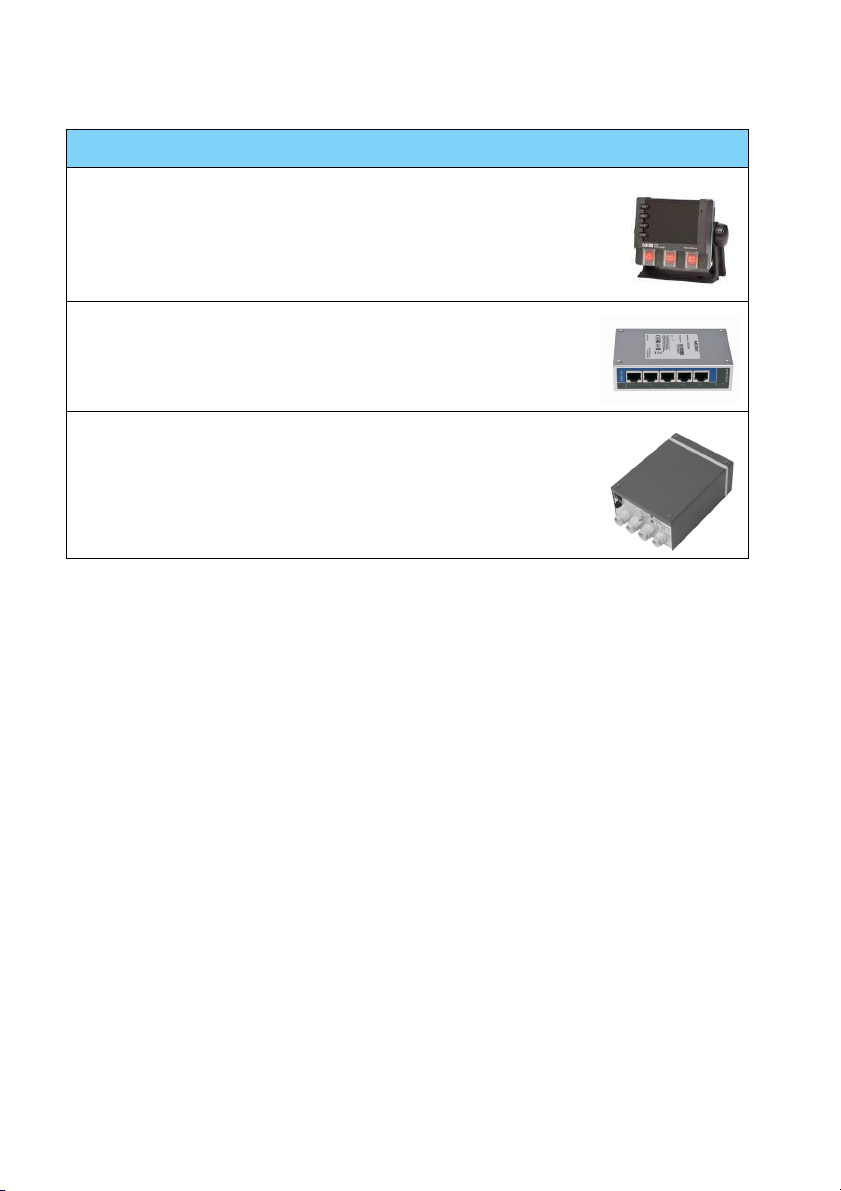

406103A-00500 With the SAILOR 6103 Multi Alarm Panel you
can activate GMDSS Distress Alarms. The Multi
Alarm Panel can be connected to the
SAILOR 7222 VHF DSC via the Ethernet
interface (LAN connector).
406197A-00500 The SAILOR 6197 Ethernet Switch is used in
installations with SAILOR 6103 Multi Alarm
Panels and in installations with a local
network. The Ethernet switch has 5 ports.
80119410 The N163S Power supply provides 24 VDC
for the SAILOR 7222 VHF DSC.
Part number Description
