Cobra EL-1002-C User manual

EL-1002-C
MAINTENANCE
warranty.
COBRA ELECTRONIC
TOUCH FREE TAP
INSTRUCTION MANUAL
Please read the instructions carefully before installation

Model No.
EL-1002-C
G1/2Inlet diameter
DC:6V(4AA alkaline batteries)
0.05MPa~0.8MPa
Power supply
Static power
consumption
Sensor
distance
18-22cm（To white board）
ater
temperature
TECHNICAL SPECIFICATION
Power connection
DC:Install 4 x AA alkaline batteries (not included) into the battery box
INSTALLATION STEPS
Always flush pipework before installation.
Kindly ensure the light in the desired installation location is not
abnormally intense as this may cause false activation.
These taps are designed for indoor installation only

COMPONENT DIAGRAM
PVC pipe
Ceramic all
5mm 230mm
Cover
Tap body
Spout
Countertop
NB* 250mm is the minimum distance between the
spout and the closest basin surface DO NOT install
closer than this to avoid false activation.
Control Box
Including solenoid valve and battery box
Screw hole
Signal line connector
ater inlet(with filter)
Flexible hose
Pipe buckle
Signal transformer line
Water inlet flexible
hose (not included)
Signal line
ater connection
1. ater outlet hose connection
Connect the tap body with the control box using
2. Connect water inlet flexible hose (not included)
Connect G1/2 water supply hose with the water inlet
Note:
Ensure there is no water leakage after connecting and turning on the water supply.
Signal line connection
Connect signal line to the control box, then screw on tightly
Keep the signal line clean and dry.
Note:
the flexible hose, tighten the pipe buckle to
secure the connection.
INSTALLATION STEPS

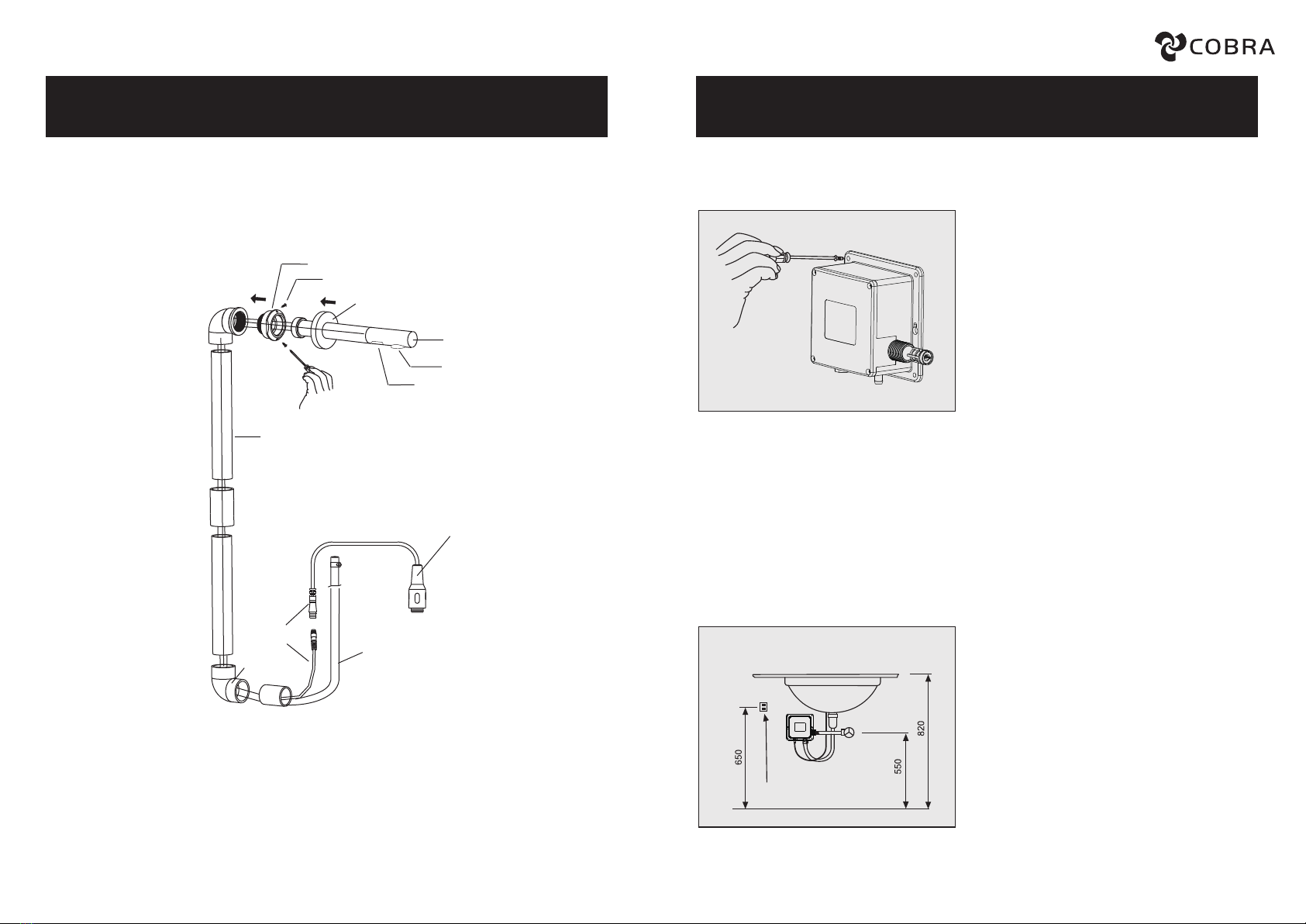

Install tap body
Step:
G1/2"fixed joint
Signal transformer line plug
Flexible hose
PVC pipe
Spout
tap body
Sensor
Cover
Signal line
1.Install PVC hose in wall, in order to install the tap body, water inlet hose and
2.Thread the signal line and flexible hose through the PVC pipe.
3.Screw fixed joint and nut tap tightly, then close the cover.
Nut
Installation of control box
1.Put the control box on the wall,
drill four holes, then insert the
plastic wall plugs
2.Fix the control box onto the wall
Note:
1.Please close the water supply and power supply before installation.
2.Be sure to install control box correctly, do not install upside down.
3.The control box must be installed in such a way that there is easy access for
Meanwhile, It must be installed less than 500mm from the basin.
(Please use the diagram below as a reference)
Power supply connector
The installation drawing of control box
maintenance purposes.
signal line.
using the screws provided.
INSTALLATION STEPS INSTALLATION STEPS
