Features of This Pro uct
• 40 CB Radio Channels
• Special Edition Chrome Cabinet
& icrophone
• Heavy-Duty Dynamic
icrophone
• Full 4 Watts A RF Power Output
• SWR Calibration eter
• Talk Back
• Instant Channel 9
• 4-Pin Front ount icrophone
Connector
• Delta -Tune
• Switchable Automatic Noise
Limiter & Noise Blanker
• Adjustable Dynamike® Boost
• 9 Ft. ic Cord
• RF Gain
1

Installation
Installation
Location
32
Mounting and
Connection
Mounting and Connection
Hold the radio with the mounting bracket in
the exact desired location. If there is no
interference, remove the bracket and use it as
a template to mark the location for the
mounting screws.
Location
Plan location of transceiver and microphone
bracket before starting the installation.
Select a location that is convenient for operation,
yet does not interfere with the driver or passenger.
The transceiver is usually mounted to the
underside of the dash with the microphone
bracket beside it.
Note
The transceiver is held in
the universal mounting bracket
by two thumbscrews which
allow for adjustment at a
convenient angle.
The bracket includes two
self-tapping screws and star
washers.The mounting must be
mechanically strong,
conveniently located.
continued
Drill the holes and secure the bracket.
2
1
Connect the antenna cable plug to the
receptacle marked “ANT” on the back of
the unit.
3

Installation
Installation
54
Note
Connecting to an accessory fuse
prevents the unit from being left
on accidentally, and also
permits operating the unit
without running the engine.
Note
In positive ground vehicles the
red wire goes to the chassis and
the black wire is connected to
the ignition switch.
Note
Before installing the CB ra io,
visually check the vehicle’s
battery connection to
etermine which terminal,
positive or negative, is
groun e (positive is the
larger of the two) to the
engine block (or chassis). A
negatively groun e vehicle
has its negative lea
groun e to the chassis.
In a negative grounded vehicle, connect the
red lead of the DC power cord to an accessory
12 volt fuse.
Connect the black lead to the negative side of
the vehicle.This is usually the chassis. Any
convenient location with a good electrical
contact (remove paint) may be used.
4
5
Plug power cable into back of unit marked
“Power”. Be sure to observe polarity markings.
Mount the microphone
bracket on either side of
the unit (driver’s left)
using two screws
supplied. Bracket should
be placed under the dash
so microphone is readily
accessible.
6
7
Attach the 4-pin microphone cable to
receptacle, on the front of unit and install unit
on bracket securely.
8

Ignition Noise Interference
Antennas
Use of a mobile receiver at low signal levels is
normally limited by the presence of electrical
noise.The primary source of noise in automobiles
is from the alternator and ignition system.
Typically, when signal level is adequate, the
background noise does not present a serious
problem. Also, when extremely low level signals
are being received, the transceiver may be
operated with the vehicle’s engine turned off.The
unit requires very little current and therefore will
not significantly discharge the vehicle’s battery.
Even though the Cobra 29 LTD SE has an
automatic noise limiter, in some installations
ignition interference may be high enough to
make good communications impossible. Many
possibilities exist and variations between vehicles
require different solutions. Consult your COBRA
dealer or a 2-way radio technician for help in
locating the source of a severe noise.
CB Antenna
Since the maximum allowable power output of
the transmitter is limited by the CC, the antenna
is critical in affecting transmission distance. Only
a properly matched antenna system will allow
maximum power output. Cobra loaded type
antenna models are highly recommended for
most installations. Consult your Cobra dealer for
further details, or call 773.889.3087 and speak to
a Cobra representative.
Marine Installation
The transceiver will not operate at maximum
efficiency in a boat without a ground plate,
(unless it has a steel hull). Before attempting
installation , consult your dealer for information
regarding an adequate grounding system and
prevention of electrolysis between fittings in the
hull and water.
CB Antenna
7
Note
For optimum performance in
passenger cars the ideal
antenna location is on the
center of the roof. Second
choice is on the
center of the trunk.
Note
Because many newer trucks
feature fiberglass door skins, the
outside mirror must be
grounded to the chassis via a
ground strap when antenna is
mounted on the mirror bracket.
Note
3-way Combination
Antennas are also available
which allow operation of all
three bands (A -F & CB),
using a single antenna.
However, this type of antenna
usually results in less than
normal transmit and receive
range when compared to a
standard-type “Single Band” CB
antenna. Call 773-889-3087 for
further information.
6
1A standard antenna connector is provided
on the transceiver for easy connection.

The CB/PA button should be in the
CB position.
Operation
9
Operation
Turning On Setting Channel
Selector
8
Turning On
Make sure the power cord, antenna and
microphone are connected to their proper
connectors before starting.
Setting Channel Selector
2
EDITION
1
Rotate the On/Off Volume knob clockwise to
a normal listening level.
Select one of forty channels and adjust
volume.The selected channel is indicated by
the LED readout directly above the channel
selector knob
1

Operation
Operation
Calibrate For
SWR (Standing
Wave Ratio)
1110
Note
Antenna Indicator LED
will illuminate when TX if
SWR is high.
Note
Calibration must be made in an
open area (never in a garage).
Vehicle doors must be closed.
No one should be standing near
the antenna. (See your antenna
directions for more complete
information).
continued
Switch to the CAL position.
2
1
Calibrate for SWR (Standing Wave Ratio)
SWR calibration is done to properly adjust the
length of the antenna and to monitor the quality
of the coaxial cable and all R connections.
This calibration is critical in order to achieve
optimum performance.

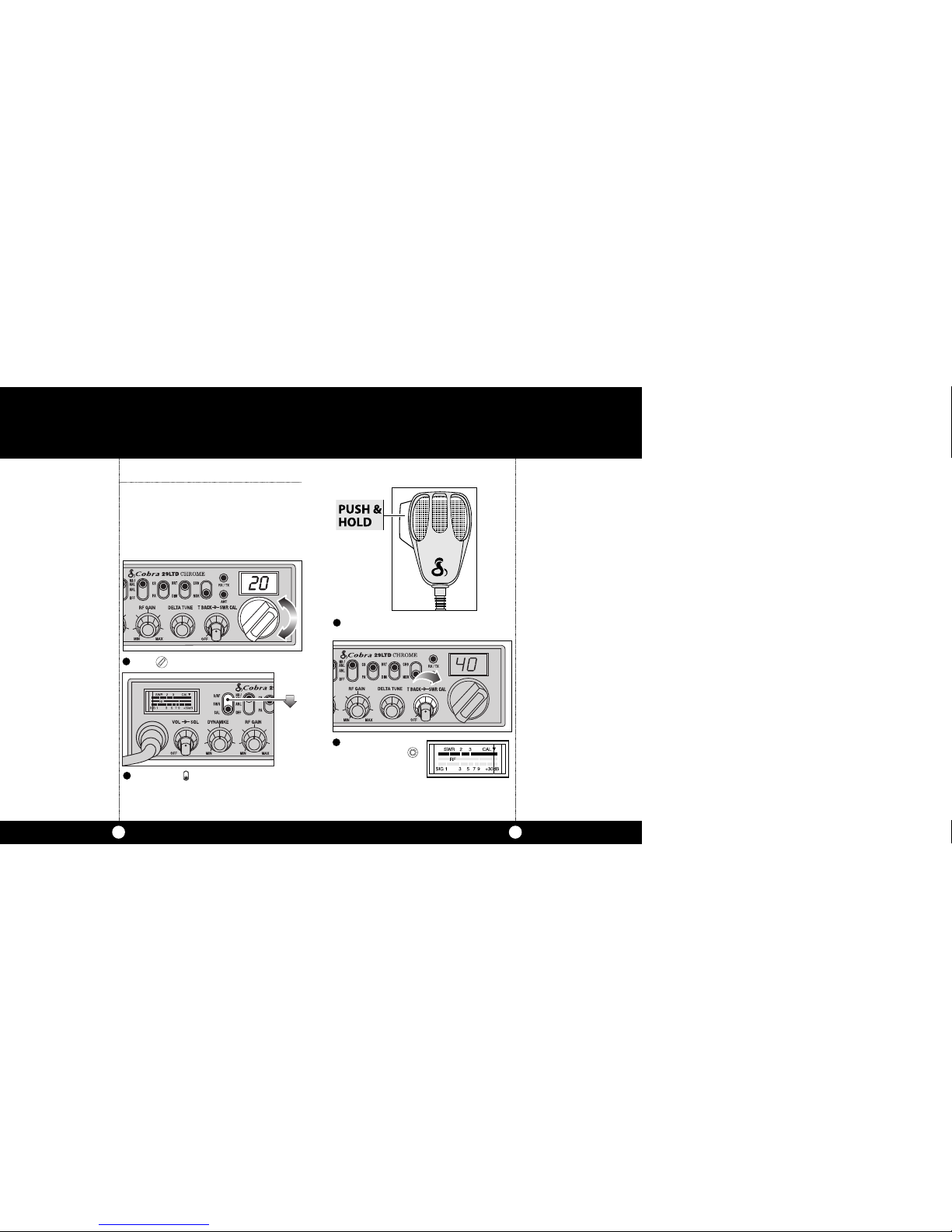

Select channel 20.

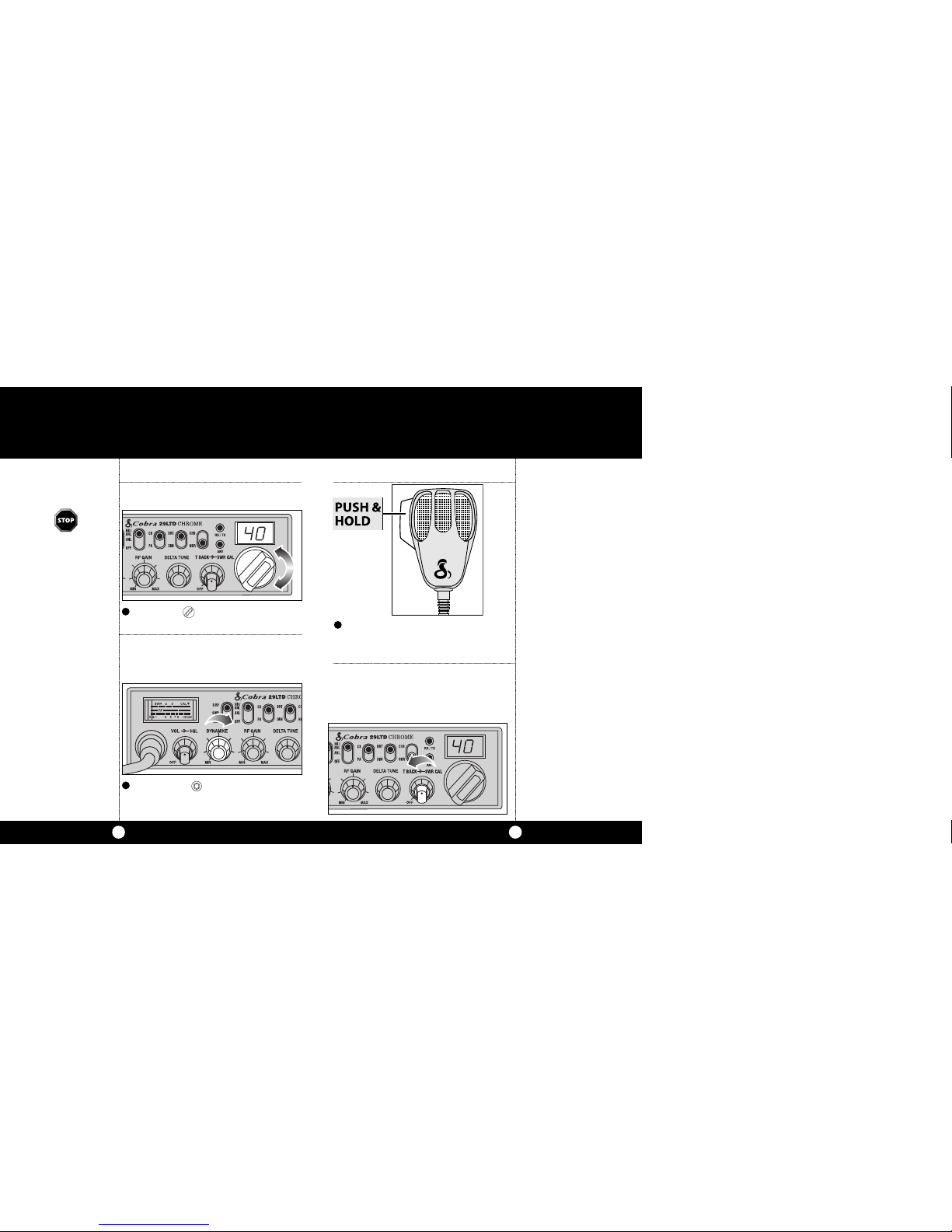

Push and hold mic button.
3
While holding mic
button adjust the
SWR CAL knob so the
meter needle swings
to the CAL ▼mark on
the meter (located on the right).
4

Operation
13
Operation
12
Note
The reading will be slightly
higher on Channels 1 and 40
compared to Channel 20.
Note
When switched to SWR position
the meter needle should ideally
be as far to the left as possible.
Anything over 3 is not
acceptable.The antenna
indicator will light. A slight
antenna height adjustment
(higher or lower) may be
required. Repeat relcalibration
steps.
Repeat the same steps two through five
on Channel 1 and 40.This will check SWR for
all channels.
6
While still holding down the mic button, set
the S/R SWR CAL switch to the SWR position,
to read the SWR reading.
5
Rotate the On/Off Volume knob clockwise
the green RX/TX LED will be illuminated.
To Receive
1
To Receive

The S/R -SWR-CAL switch must be in the
S/R position to read the meter.
Operation
15
Operation
14
1

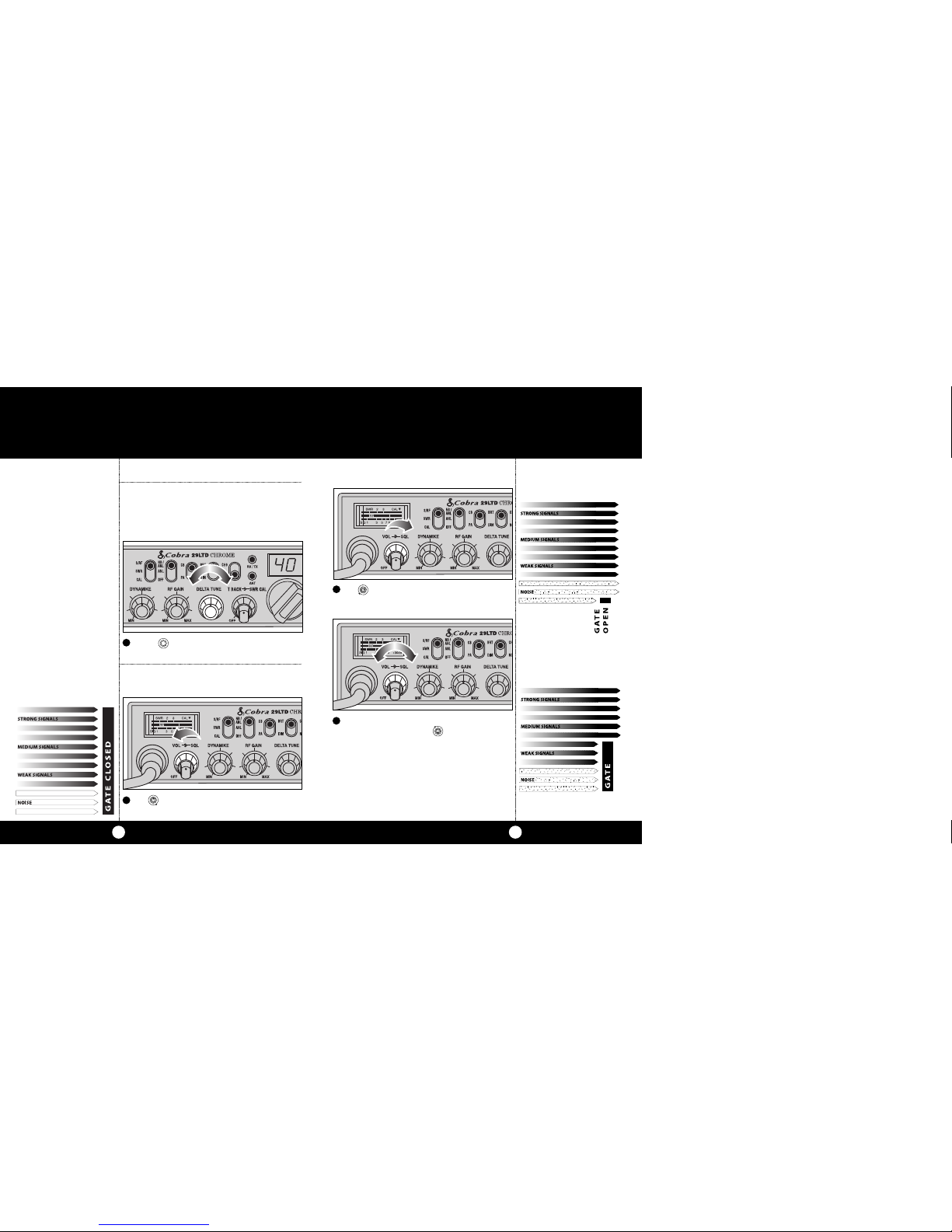

S-Meter
S-Meter
Swings proportionately to strength of incoming
signal when receiving.
Switch to NOR to select desired channel.
1
Selecting A
Channel
Selecting A Channel

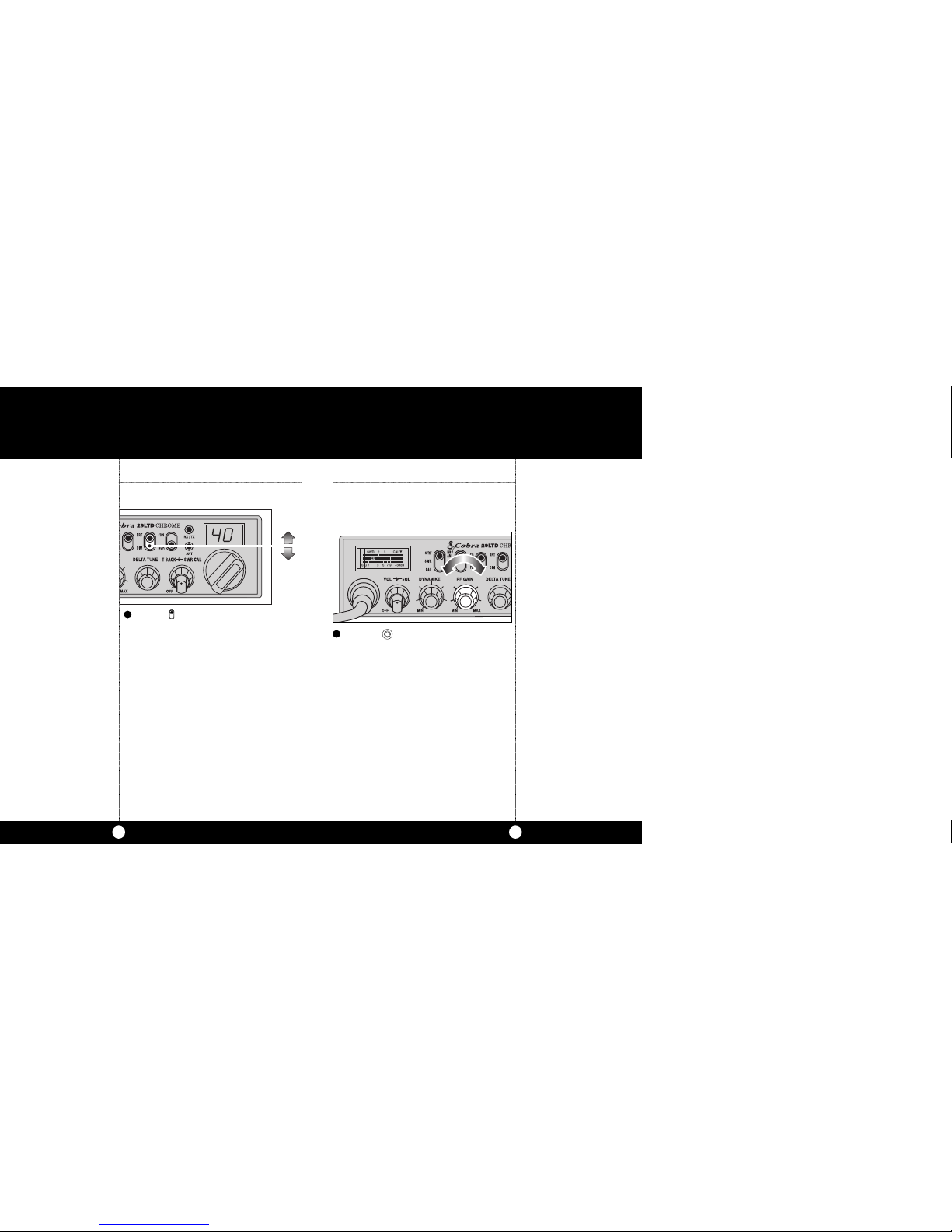

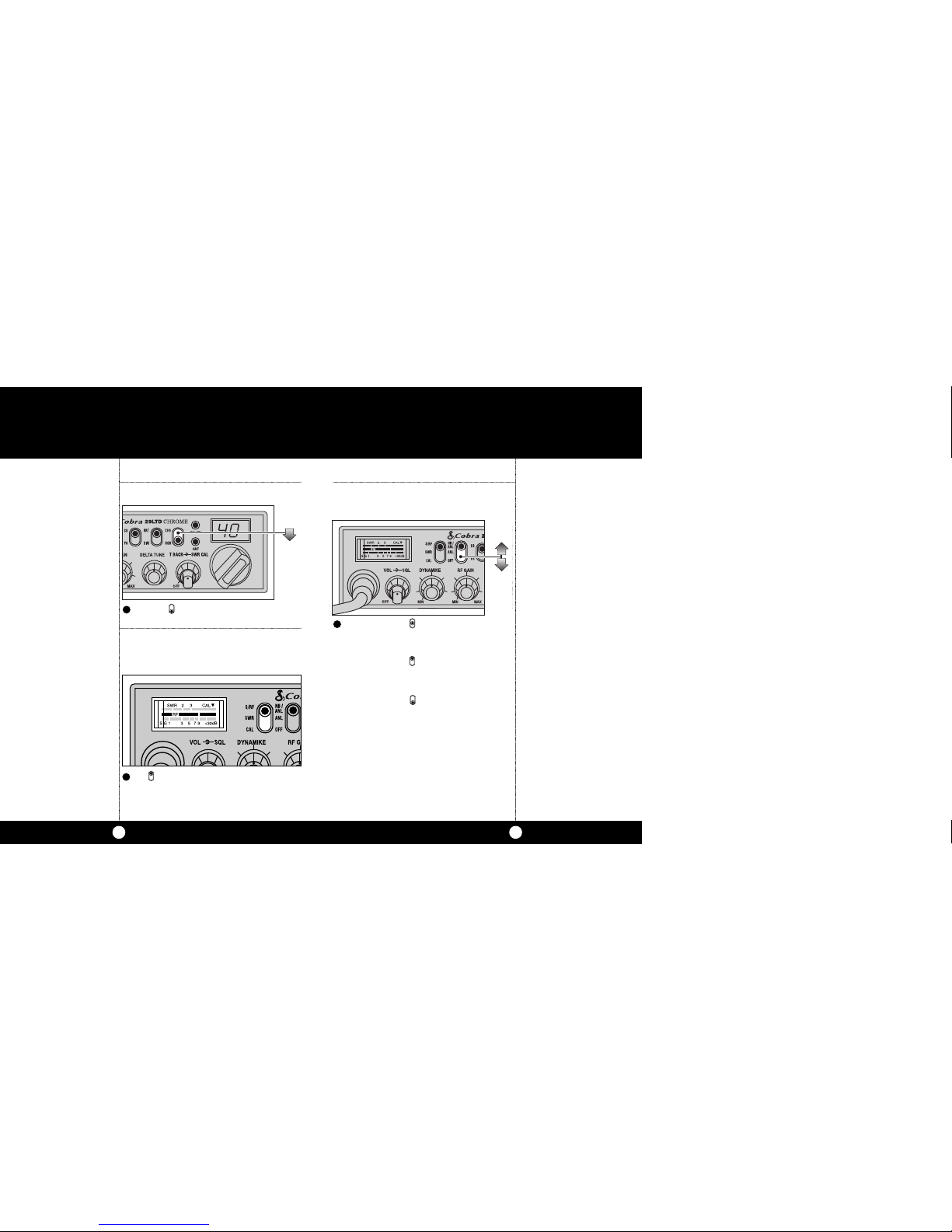

NB-ANL/ANL/
OFF (Noise
Blanker/
Automatic
Noise Limiter)
Switch
Note
The RF noise blanker is very
effective in reducing repetitive
noises such as ignition
interference.
When switched to ANL the Automatic Noise
Limiter is activated.This helps reduce noise
created by the vehicle’s electronics.
When switched to NB/ANL position the R
Noise Blanker is also activated, providing
increased noise filtration.
When switched to O position all noise
filtration will be turned off.
NB-ANL/ANL/OFF (Noise
Blanker/Automatic Noise Limiter) Switch
1

Operation
Operation
1716
RF Gain Control
Bright/Dim
Switch
RF Gain Control
The R Gain is used to optimize reception in
strong or weak signal areas.
Bright/Dim Switch
Note
The RF Gain is used to optimize
reception in weak signal areas.
Switch to BRT or DIM to control brightness
of the channel indicator and multi-function
meter for day or nighttime driving. Rotate the R Gain knob counterclockwise
to reduce gain in strong signal areas. In weak
signal areas turn clockwise to increase gain.
1
1

ull clockwise rotation closes the gate
allowing only very strong signals to enter.
ull counterclockwise rotation opens the
“gate” allowing all signals in.
To achieve the Desired Squelch Setting (DSS),
turn the Squelch control counterclockwise
until you hear noise. Now turn the control
clockwise just until the noise stops. This is the
DSS setting.
Setting Delta-Tune
Delta-Tune functions as a“fine tune” control
enabling you to capture a more readable signal,
as well as eliminate adjacent channel interference.
Setting Squelch
Squelch is the “control gate”for incoming signals.
19
Setting
Delta-Tune
18
Operation Operation
1
2
1
3
Rotate Delta-Tune knob to the center
position for optimum tuning.
Gate open
Gate set to Desire
Squelch Setting (DSS)
Gate close
Setting Squelch

Setting Dynamike®
This controls the microphone sensitivity
(outgoing audio level).
To Transmit
21
To Transmit Transmit
TalkBack
20
Setting
Dynamike®
Caution!
Be sure the antenna is properly
connected to the radio before
transmitting. Prolonged
transmitting without an
antenna, or a poorly matched
antenna, could cause damage
to the transmitter.
Be sure to read the F.C.C. Rules
and Regulations included with
this unit before transmitting.
Operation Operation
1
Select desired channel.
1
Initially, set fully clockwise so that maximum
voice volume is available. Dynamike® may have
to be reduced in some conditions.
Transmit
Push and hold mic button to transmit.Transmitter
is now activated.When transmitting,hold the
microphone two inches from your mouth and
speak in a clear, normal voice.Release to receive.
1
Setting TalkBack
This control is used to adjust the desired amount
of modulation talk back that is present at the
speaker during transmit. At fully counter-clockwise
position the talk back is off.

Operation
Operation
RF Meter
23
22
External Speaker
RF Meter
This meter swings proportionately to the R
output (outgoing signal) while transmitting.
External Speaker
The external speaker jack is used for remote
receiver monitoring.
The S/R -SWR-CAL switch must be in the
S/R position.
1
Note
The external speaker should
have 8-ohm impedance and be
rated to handle at least 4.0
watts.When the external
speaker is plugged in, the
internal speaker is
automatically disconnected.
Note
Cobra external speakers are
rated at 10 watts.
Connect an external speaker to the external
speaker jack on the rear panel.
1

Operation
Operation
PA (Public
Address)
2524
PA (Public Address)
Connect an external PA speaker to the PA jack
on the rear panel.
Set CB/PA switch to PA position.
Push and hold microphone button and speak
in a normal voice.Your voice will now transmit
on the PA speaker.
Adjust PA speaker volume with the
Dynamike® control.
Note
Speaker should have 8-ohm
impedance and be rated to
handle at least 4.0 watts.
Note
The speaker should be directed
away from the microphone to
prevent acoustic feedback.
Note
Activity on the CB channel will
be heard through the PA
speaker. Adjust volume control
to a normal listening level.
1
2
3
4

Temporary Mobile Set-Up
27
Base Station
Operation
(From 120V AC
House Current)
Temporary
Mobile Set-Up
Temporary Mobile Operation
or temporary mobile operation you may want to
purchase an optional automobile power adapter
from your COBRA dealer. This adapter and a
magnetic mount antenna allow you to quickly
“install” your transceiver for temporary use.
Base Station Operation
(From 120V AC House Current)
To operate your transceiver from home or office
you will need a 13.8 volt DC Power Pack rated at a
minimum of 2 amps, and a properly installed base
station antenna.
Home And Office Set-Up
26
Warning!
Do not attempt to operate this
transceiver by connecting it
directly to 120v ac.
Note
For further information call
Cobra Customer Service
773.889.3087.
1
Connect properly installed and matched base
station antenna.
Simply connect the red (+) and black (-)
leads of the transceiver to the corresponding
terminals of the power pack.
Plug power cable into back of unit marked
“Power”. Be sure to observe polarity markings.
2
3

How our CB Can Serve ou
How our CB Can Serve ou
2928
The CC gives these examples of permitted and
prohibited messages for channel 9. These are
only guidelines and not all-inclusive:
Permitted Example Message
Yes “Tornado sighted six miles north
of town.”
No “Post number 10.
No tornado sighted.”
Yes “Out of gas on I-95 at mile
marker 211.”
No “Out of gas in my driveway.”
Yes “ our car accident on I-94 at
Exit 11. Send police and
ambulance.”
No “Traffic moving smoothly on I-94.”
Yes “Weather Bureau has issued
thunderstorm warning.
Bring sailboat into port.”
No “Attention motorists.
Weather Bureau advises snow
tomorrow will accumulate
4 to 6 inches.”
Yes “ ire in building at 539 Main,
Evanston.”
No “Halloween patrol number 3.
All quiet.”
1. Set to channel 9 for emergencies
Be sure antenna is properly connected.
2. CB Distress Data
When transmitting an emergency, you should
request a “REACT BASE”and provide the CB
distress data (called CLIP):
Call Sign Identify yourself.
Location Be exact.
Injuries Number.Type.Trapped?
Problem Give details and help needed.
Transmit CLIP repeatedly so any monitor can assist.
Channel 9
Emergency
Messages
Note
If no response on channel 9,
try channels 19 or 14.
• Warn of traffic problems
• Provide weather and road data
• Provide help in event of an emergency
• Provide direct contact with home or office
• Assist police by reporting erratic drivers
• Get “local information” to find destination
• Communicate with family and friends
• Suggest spots to eat and sleep
• Keep you alert while traveling
A Few Rules You Should now
A. Conversations cannot last more than 5 minutes
with another station. A one minute break is
required to let others use the channel.
B. You cannot blast others off the air by use of
illegally amplified transmitters or illegally
high antennas.
C. You cannot use CB to promote illegal activities.
D. Profanity is not allowed.
E. You may not transmit music with a CB.
. Selling of merchandise and/or services is
prohibited.
A Few Rules
ou Should
Know

How our CB Can Serve ou
How our CB Can Serve ou
3130
Code Meaning
10-29 Time is up for contact
10-30 Does not conform to CC rules
10-33 Emergency traffic
10-34 Trouble at this station
10-35 Confidential information
10-36 Correct time is
10-37 Wrecker needed at
10-38 Ambulance needed
10-39 Message delivered
10-41 Turn to channel
10-42 Traffic accident at
10-43 Traffic tie up at
10-44 Have a message for
10-45 All units within range please report
10-50 Break channel
10-60 What is next message number?
10-62 Unable to copy. Use phone
10-63 Net directed to
10-64 Net clear
10-65 Awaiting your next message/assignment
10-67 All units comply
10-70 ire at
10-71 Proceed, transmission in sequence
10-77 Negative contact
10-81 Reserve hotel room for
10-82 Reserve room for
10-85 My address is
10-91 Talk closer to mic
10-93 Check my frequency on this channel
10-94 Give me a long count
10-99 Mission completed, all units secure
10-200 Police needed at
CB 10-Codes
Citizen Bands have adopted the “10-CODES” for
standard questions and answers. These codes
provide quick and easy communication, especially
in noisy areas. ollowing are some of the more
common codes and meanings:
Code Meaning
10-1 Receiving poorly
10-2 Receiving well
10-3 Stop transmitting
10-4 OK, message received
10-5 Relay message
10-6 Busy, stand by
10-7 Out of service, leaving
10-8 In service, subject to call
10-9 Repeat message
10-10 Transmission completed standing by
10-11 Talking too rapidly
10-12 Visitors present
10-13 Advise weather/roads
10-16 Make pick up at
10-17 Urgent business
10-18 Anything for us?
10-19 Return to base
10-20 My location is
10-21 Call by phone
10-22 Report in person to
10-23 Stand by
10-24 Completed last assignment
10-25 Can you contact
10-26 Disregard last info
10-27 Moving to channel
10-28 Identify your station
CB 10-Codes

29 LTD SE Specifications
Frequency Ranges
3332
GENERAL
Channels ..........................CB -40CH
requency Range . . . . . . . . . . . . . . . . . . CB - 26.965 to 27.405 MHz
requency Tolerance . . . . . . . . . . . . . . . 0.005 %
requency Control . . . . . . . . . . . . . . . . . PLL (phase lock loop) Synthesizer
Operating Temperature Range . . . . . -30° C to + 50° C
Microphone . . . . . . . . . . . . . . . . . . . . . . . Plug-in dynamic
Input Voltage . . . . . . . . . . . . . . . . . . . . . . 13.8VDC nom. (positive or negative ground)
Current Drain . . . . . . . . . . . . . . . . . . . . . Transmit: AM full mod., 1.5A (maximum)
Receive: Squelched, 0.3A;
full audio output, 1.2A (nominal)
Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5/8” D x 7-9/32”W x 2-13/64” H
Weight ............................4lbs.
Antenna Connector . . . . . . . . . . . . . . . .UH ; SO-239
Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Illuminated; indicates relative power output,
received signal strength and VSWR
TRANSMITTER
PowerOutput......................4watts
Modulation . . . . . . . . . . . . . . . . . . . . . . . .AM (Amplitude Modulation)
requency Response . . . . . . . . . . . . . . .300 to 3000 Hz
Output Impedance . . . . . . . . . . . . . . . . .50 ohms, unbalanced
RECEIVER
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . .Less than 1 µV for 10 dB (S+N) /N
Selectivity . . . . . . . . . . . . . . . . . . . . . . . . .6 dB @ 7 KHz, 60 dB @ 10KHz
Image Rejection . . . . . . . . . . . . . . . . . . .80 dB, typical
Adjacent-Channel Rejection . . . . . . . .60 dB, typical
I requencies . . . . . . . . . . . . . . . . . . . . .Double Conversion: 1st: 10.695 MHz
2nd: 455 KHz
Automatic Gain Control (AGC) . . . . . .Less than 10 dB change in audio output for
inputs from 10 to 50,000 microvolts
R Gain Control . . . . . . . . . . . . . . . . . . . .Adjustable for optimum signal reception
NoiseBlanker ......................R type
Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . .Adjustable;threshold less than 1µV
Audio Output Power . . . . . . . . . . . . . . .4 watts
requency Response . . . . . . . . . . . . . . .300 to 3000 Hz
Distortion . . . . . . . . . . . . . . . . . . . . . . . . . .Less than 5% @3 watts @ 1000 Hz
Built-in Speaker . . . . . . . . . . . . . . . . . . . .8 ohms, 5w
External Speaker (Not supplied) . . . . . .8 ohms; disables internal speaker
when connected
PA SYSTEM
Power Output . . . . . . . . . . . . . . . . . . . . . .4 watts into external speaker
External Speaker for PA . . . . . . . . . . . . .8 ohms, when PA-CB switch is in PA,
(Not Supplied) . . . . . . . . . . . . . . . . . . . . .The PA speaker also monitors the receiver;
separate jack provided
(SPECI ICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
The COBRA 29 LTD SE transceiver represents one of
the most advanced AM two-way radios used as a
Class D station in the Citizens Radio Service. This
unit features advanced Phase Lock Loop (PLL)
circuitry providing complete coverage of all 40
CB channels.
1 26.965 21 27.215
2 26.975 22 27.225
3 26.985 23 27.255
4 27.005 24 27.235
5 27.015 25 27.245
6 27.025 26 27.265
7 27.035 27 27.275
8 27.055 28 27.285
9 27.065 29 27.295
10 27.075 30 27.305
11 27.085 31 27.315
12 27.105 32 27.325
13 27.115 33 27.335
14 27.125 34 27.345
15 27.135 35 27.355
16 27.155 36 27.365
17 27.165 37 27.375
18 27.175 38 27.385
19 27.185 39 27.395
20 27.205 40 27.405
Channel Channel
CB Freq. CB Freq.
Channel In MHz Channel In MHz

Optional Accessories
35
Replacement DC Power Cor
For in vehicle use
426-002-N-001 $7.50
Replacement Mounting
Bracket
For in vehicle use
251-353-9-001 $4.50
Replacement Thumb Screws
For in vehicle use
634-081-9-001 $0.60
Replacement Microphone
Bracket
For in vehicle use
741-080-9-001 $0.45
Limited One ear Warranty
34
For Products Purchased in Canada
Your new Cobra CB radio is covered by a one year replacement
warranty. If any manufacturing defect becomes apparent in this
product within one year from the original date of purchase, it will
be replaced. Please return the CB radio to your dealer with original
or copy of dated proof of purchase. This warranty does not cover
damages due to careless handling, negligence, accident, abuse or
failure to follow operating instructions. Alteration of this product or
defacing of the serial number cancels all obligations of this
warranty. This warranty gives you specified legal rights. Additional
warranty rights may be provided by law in some areas.
For Products Purchased in the U.S.A.
Cobra Electronics Corporation warrants that its Cobra CB radios,
and the component parts thereof, will be free of defects in
workmanship and materials for a period of one year from the date
of first consumer purchase.This warranty may be enforced by the
first consumer purchaser, provided that the product is utilized
within the U.S.A.
Cobra will,without charge, repair or replace,at its option, defective CB
radios, products or component parts upon delivery to the Cobra
actory Service department,accompanied by proof of the date of first
consumer purchase,such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the
product for warranty service, but the return charges will be at Cobra’s
expense,if the product is repaired or replaced under warranty.
This warranty gives you specific legal rights,and you may also
have other rights which may vary from state to state.
Exclusions:This limited warranty does not apply: 1) To any
product damaged by accident; 2) In the event of misuse or abuse
of the product or as a result of unauthorized alterations or repairs;
3) If the serial number has been altered, defaced or removed; 4) If
the owner of the product resides outside the U.S.A. All implied
warranties, including warranties of merchantability and fitness for a
particular purpose are limited in duration to the length of this
warranty. Cobra shall not be liable for any incidental, consequential
or other damages; including, without limitation, damages resulting
from loss of use or cost of installation.
Some states do not allow limitations on how long an implied
warranty lasts and/or do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations may
not apply to you.
or Products Purchased Outside the U.S.A.
Please contact your local dealer for warranty information.
Cobra Electronics
Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
11
YY
ee
aa
rr
WW
aa
rr
rr
aa
nn
tt
yy
QUA LITYSEALQUALITYSEAL
21” Base Loa e Magnet
Mount Antenna
HG A1000 $28.95
38” Base Loa e Magnet
Mount Antenna
HG A1500 $39.95
4 Pin Premium Noise-
Cancelling Microphone
HG 84 $74.95
4 Pin Premium Noise-
Cancelling Microphone
Wood Grain
HG 84W $74.95

36
Optional Accessories cont.
4 Pin Replacement Dynamic
Microphone
HG 73 $19.95
4 Pin Noise Canceling
Microphone
HG 77 $30.95
Dynamic External Speaker
HG S100 $21.95
Noise Canceling External
Speaker
HG S300 $28.95
Noise Canceling With Talk
Back External Speaker
HG S500 $32.95
Power Microphone
HG 75 $25.95
Optional Accessories
•
You can find qualit Cobra products and
accessories at our local Cobra dealer, or in the
U.S.A., ou can order directl from Cobra. See
ordering info on page 37.

The Citizens Band lies between the shortwave broadcast and
10-meter Amateur radio bands, and was established by law in
1949.The Class D two-way communications service was
opened in 1959. (CB also includes a Class A citizens band and
Class C remote control frequencies.)
Industry Canada Notice:
Operation is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including
interference that may cause undesired operation of the device.
«IC» before the equipment certification number signifies that
the Industry Canada technical specifications were met. It does
not guarantee that the certified product will operate to the
user’s satisfaction.
FCC Regulations
CC regulations permit only“transmission”(one-party to another)
rather than “broadcast”(to a wide audience). Thus, advertising is
not allowed on CB channels because that is“broadcasting”.
FCC Warnings
All transmitter adjustments other than those supplied by the
manufacturer as front panel operating controls, must be
made by, or under the supervision of, the holder of an CC-
issued general Radio-Telephone Operator’s License.
Replacement or substitution of transistors, regular diodes or
other parts of a unique nature, with parts other than those
recommended by Cobra, may cause violation of the technical
regulations of Part 95 of the CC Rules, or violation of Type
Acceptance requirements of Part 2 of the Rules.
You should read and understand Part 95 (included with this
unit) of the CC Rules and Regulations, before operating your
Cobra radio, even though the CC no longer requires
you to obtain an operator’s license.

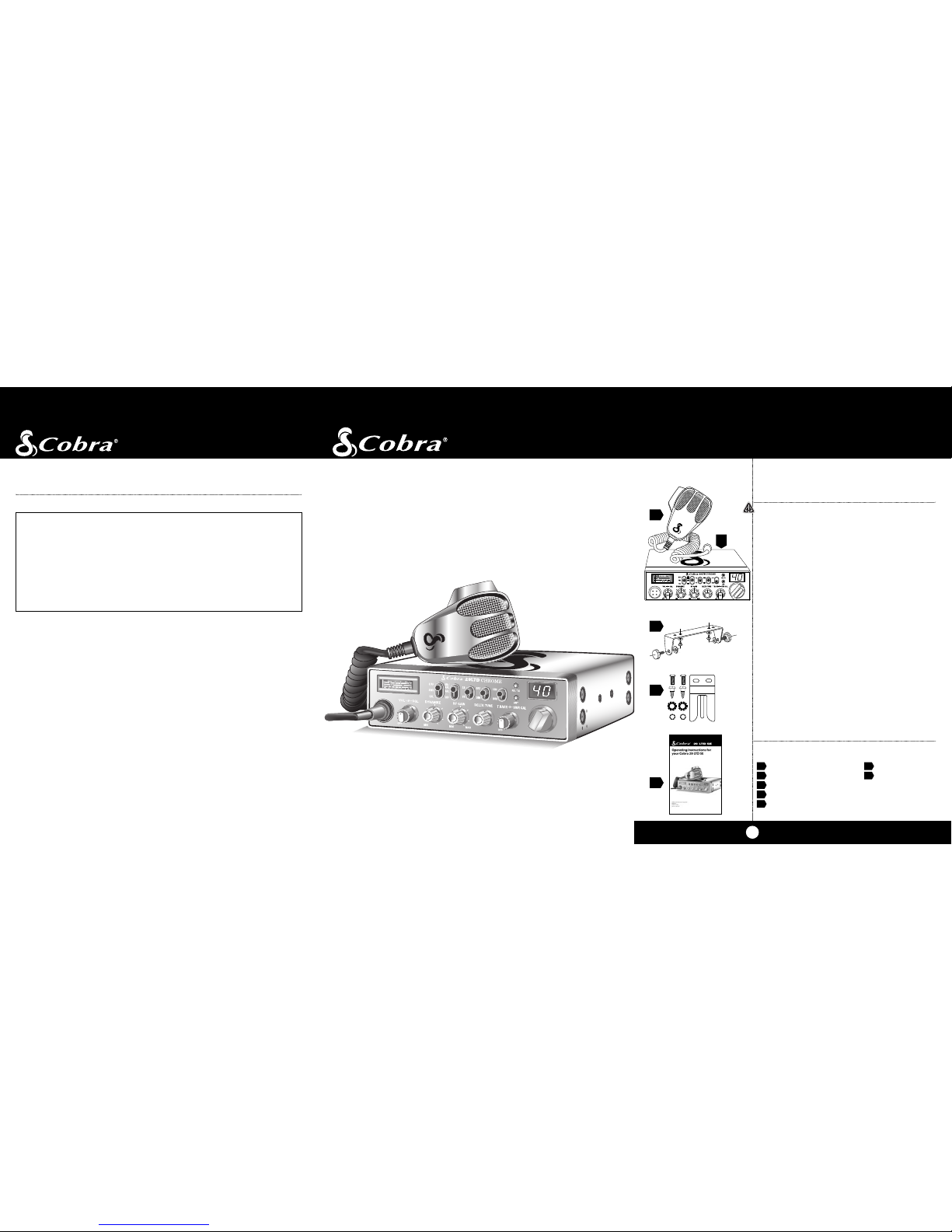

What’s Included with Your 29 LTD SE
1. CB transceiver 6. DC power cord
2. Microphone 7. CC rules
3. Transceiver bracket 1. (not shown)
4. Microphone bracket
5. Operating Manual
29 LTD SE C
Cobra E ectronics Corporation
6500 West Cort and Street
Chicago, IL 60707 USA
©2007 Cobra E ectronics Corporation
Version A
Printed in China
Part No. 480-373-P
Operating Instructions for
your Cobra 29 LTD SE
The CB Story
A1
In this user’s manual, you should find all the information you need to operate your CB radio.
If you require further assistance after reading this manual, Cobra Electronics offers the following
customer assistance services:
Automated Help Desk (English Only)24 hours a day, 7 days a week [phone] (phone).
Customer Assistance Operators (English and French) 9:00 a.m. to 5:00 p.m. Eastern Time,
Monday to Friday (except Holidays) - [phone], ext. 2-264 (phone).
Questions (English and French) Faxes can be received at [phone] (fax).
Technical Assistance English and French. www.cobra.ca (on-line: Frequently Asked Questions).
English and panish. [email protected] (e-mail).
For assistance Outside Canada,the U.S.A. or in French, contact your local dealer.
If you have any questions about operation or installing your new Cobra product, or if you are missing parts…
Please call Cobra first! DO NOT RETURN THIS PRODUCT TO THE STORE!
For Products Purchased in Canada
If your product should require factory service, please call AVS Technologies Inc. at 514-683-1771 ext. 2-264 before
sending your power inverter. or out of warranty service,ship this product prepaid to: AVS Technologies Inc., 2100
Trans Canada Hwy S., Montreal, Quebec,H9P 2N4,www.cobra.ca.We reserve the right to repair or replace the product
with an equivalent unit. Please include the following information: Date of Purchase, Model Number, Dealer Purchased
rom, Dealer Address, Dealer Phone Number.
For Products Purchased in the U.S.A.
If your product should require factory service, please call Cobra first before sending your product. This will ensure
the fastest turn-around time on your repair. You may be asked to send your product to the Cobra factory. It will be
necessary to furnish the following to have the product serviced and returned.
1) or warranty repair include some form of proof-of-purchase, such as a mechanical reproduction or carbon of a
sales receipt. If you send the original receipt,it cannot be returned.
2) Send the entire product.
3) Enclose a description of what is happening with the product. Include a typed or clearly printed name and
address of where the product is to be returned.
4) Pack product securely to prevent damage in transit. If possible,use the original packing material.
5) Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or Priority Mail to
avoid loss in transit to Cobra actory Service, Cobra Electronics Corporation, 6500 West Cortland Street, Chicago,
Illinois 60707 U.S.A.
6) If the product is in warranty, upon receipt of your unit, it will either be repaired or exchanged depending on the model.
Please allow approximately three to four weeks before contacting Cobra for status. If the product is out of
warranty,a letter will automatically be sent informing you of the repair charge or replacement charge. If you have
any questions, please call 773-889-3087 for assistance.
If You Think You Need Service
3
2
4
5
1
Cobra®, Dynamike®, Nothing Comes Close to a Cobra® and the snake design are registered trademarks of Cobra
Electronics Corporation, USA.
Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation,USA.
