Cocraft HSR 1300 User manual

ENGLISHSVENSKANORSKSUOMIDEUTSCH
Ver. 20161118
Original instructions
Bruksanvisning i original
Originalbruksanvisning
Alkuperäinen käyttöohje
Original Bedienungsanleitung
Art.no Model
18-4736 YT6702
31-9311 YT6702
Important!
Read the entire instruction manual
carefully and make sure that you fully
understand it before you use the
equipment. Keep the manual for future
reference.
Viktig information:
Läs hela bruksanvisningen noggrant och
försäkra dig om att du har förstått den
innan du använder utrustningen. Spara
bruksanvisningen för framtida bruk.
Viktig informasjon:
Les disse anvisningene nøye og forsikre
deg om at du forstår dem, før du tar
produktet i bruk. Ta vare på anvisningene
for seinere bruk.
Tärkeää tietoa:
Lue nämä ohjeet huolellisesti ja varmista
että olet ymmärtänyt ne, ennen kuin
alat käyttää laitetta. Säilytä ohjeet
myöhempää tarvetta varten.
Wichtiger Hinweis:
Vor Inbetriebnahme die komplette
Bedienungsanleitung sorgfältig
durchlesen und aufbewahren.
HSR 1300
18-4736 • 31-9311
LAWN RAKER / SCARIFIER
MOSSRIVARE/VERTIKALSKÄRARE
MOSERIVER/VERTIKALSKJÆRER
PYSTYLEIKKURI/SAMMALEENPOISTAJA
VERTIKUTIERER/RASENLÜFTER
COMBINED SCARIFIER AND DETHATCHER

ENGLISH
2
Lawn Raker/Scarifier
Art.no 18-4736 Model YT6702
31-9311 YT6702
Please read theentire instruction manual before using theproduct and then save it for future
reference. We reserve theright for any errors in text or images and any necessary changes
made to technical data. In theevent of technical problems or other queries, please contact our
Customer Services (see address details on theback).

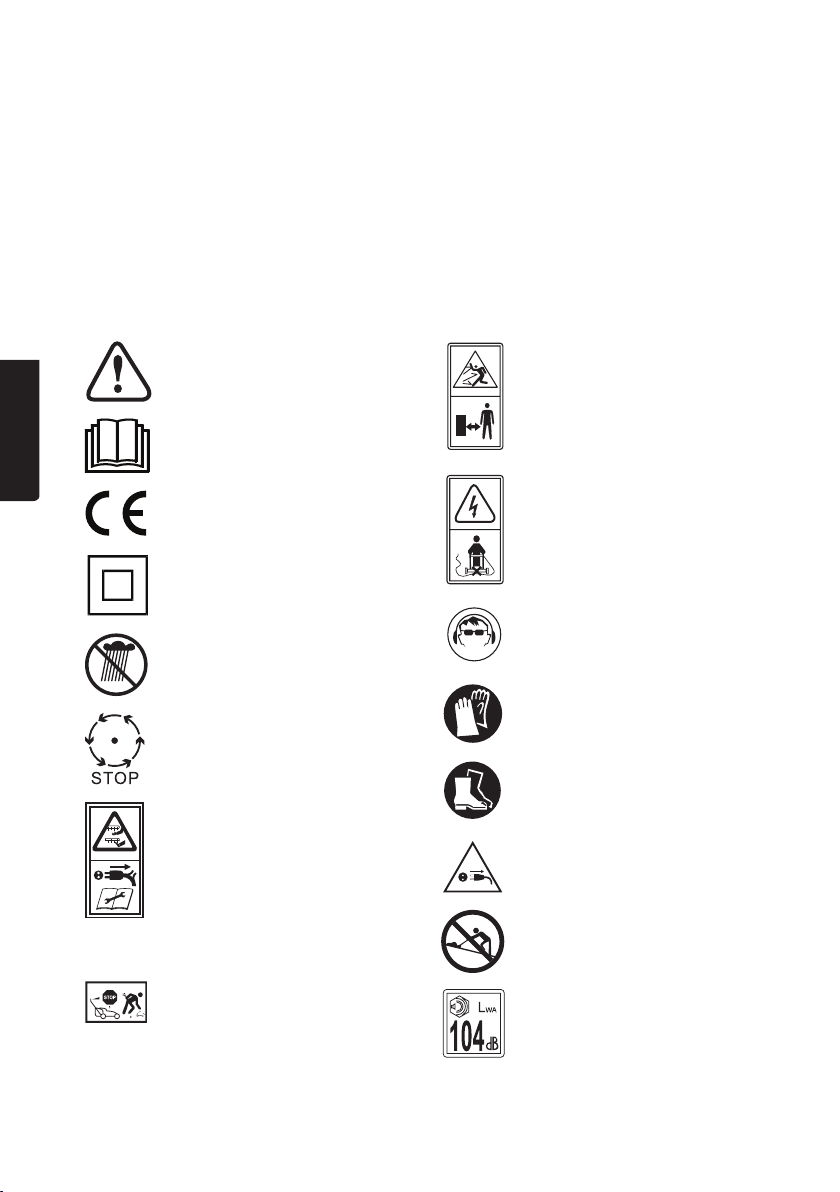

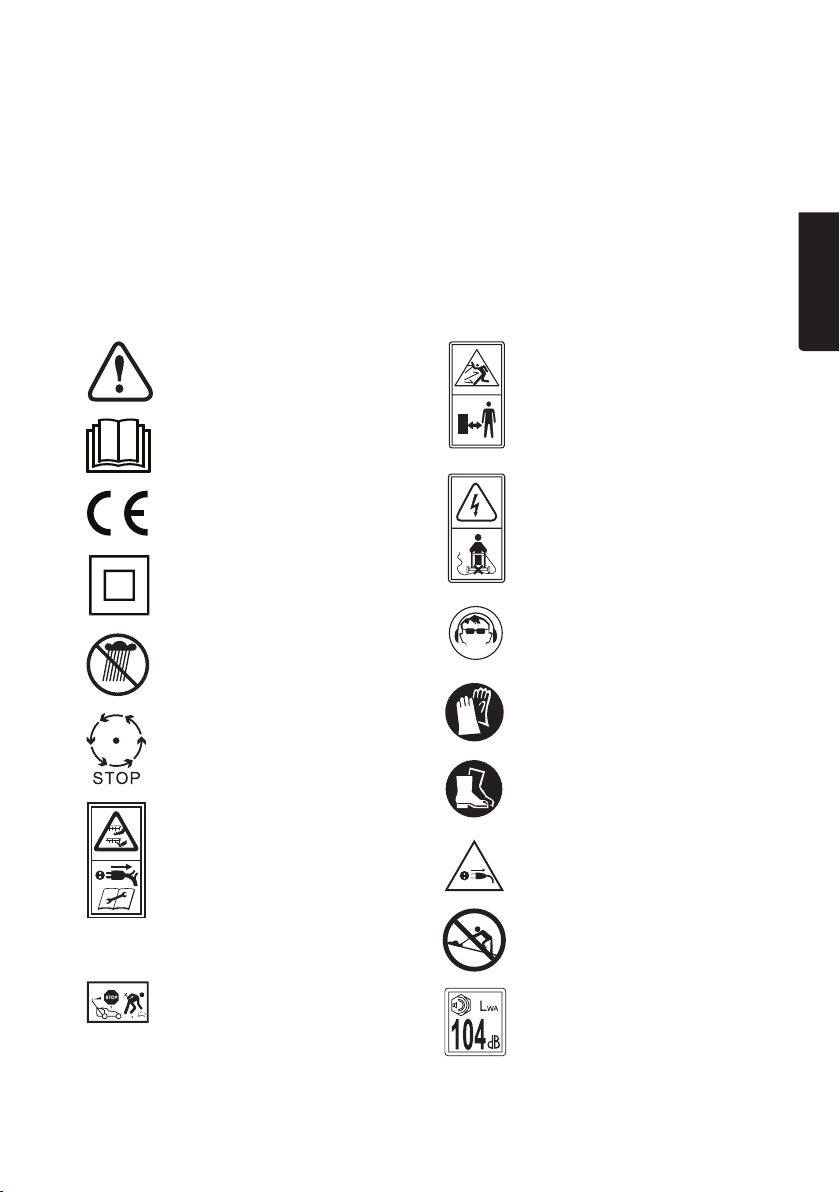

Safety
Warning!
Read theinstruction manual before
operating this machine.
CE marking.
Double insulation.
To avoid electric shock avoid cutting
thegrass after it has rained. Donot
leave theraker/scarifier outdoors
duringrain.
Theblades will continue to rotate after
themotor has been turnedoff.
Extremely sharp cutting blades.
Theblades will continue to rotate
after themotor has been turnedoff.
Unplugthemains lead before carrying
out any maintenance, repairs or service.
Inspect thearea to be raked before
starting work. Remove any sticks,
stones or debris that could be thrown
by therotating drum from thepath
of thelawn raker. If you notice any
objects in thepath of theraker, switch
it off and remove theobjects before
continuing work.
Keep bystanders at
asafe distance.
Keep themains lead
away from therotating
cuttingblade.
Always wear approved safety
glasses/visor and hearing
protection.
Wear protective gloves.
Wear safety shoes with steel
toecaps and slip-resistant
soles.
Unplug themains lead
immediately if thecable has
become damaged.
Always work across
theface of slopes,
never up and down.
Guaranteed noise level.

ENGLISH
3
General safety instructions
• Thelawn raker must not be used by anyone (including children) suffering from physical
or mental impairment. This product should not be used by anyone that has not read
theinstruction manual unless they have been instructed in its use by someone who will take
responsibility for their safety.
• Never let children play with thelawn raker.
• Thelawn raker must only be used as described in this instruction manual.
• Remember that it is theuser who is ultimately responsible for any accidents or hazards that
cause possible injury to others and to property.
• If themains lead is damaged it must be replaced by aqualified electrician or Clas
Ohlson Customer Services.
• Thelawn raker should be connected to amains outlet protected by a30 mA RCD.
• Never use thelawn raker if you are tired, sick, under theinfluence of alcohol or medicine.
Pre-work safety precautions
• Read theentire instruction manual carefully.
• Never let children or others use thelawn raker without having read theinstruction manual.
Check for any local regulations that may stipulate aminimum operating age.
• Never use thelawn raker in thepresence of bystanders, especially children or animals.
• Always wear sturdy boots or shoes and long trousers. Never use thelawn raker while
barefoot or wearing open-toed sandals.
• Never wear loose-fitting clothing or clothes which have any loose hanging straps or bands.
• Always inspect thearea to be raked/scarified before starting work. Remove any objects that
could be thrown by thelawn raker from thearea to be raked/scarified.
• Make sure that thelawn raker is completely assembled and that all parts are whole and
functioning normally before commencing work.
• Check that all thecables to be used are intact and undamaged. Also check thefixed motor
connection cable on thelawn raker.
• Never use thelawn raker if any of thecables or their connections are damaged.
• Make sure that all screws and bolts are properly tightened and that all safety devices are in
place before commencing work.

ENGLISH
4
Operating safety precautions
• Thelawn raker is not designed for professional use or to be used for hire. Theproduct is only
intended for domestic use.
• Only use extension leads approved for outdoor use.
• Only use thelawn raker during daylight hours or under good lighting conditions.
• Thelawn raker should only be connected to a230–240 V, 50 Hz mains outlet protected by
a30mA (RCD).
• Avoid raking/scarifying wet grass.
• Always work at arelaxed pace. Never hurry.
• Be extra careful when raking/scarifying on slopes.
• Always rake/scarify across theface of slopes, never up and down.
• Always be extra careful when changing directions on aslope.
• Never rake/scarify on steep slopes.
• Always be extra careful when pulling thelawn raker towards you or walking backwards when
raking.
• Always turn thelawn raker off and unplug it before crossing surfaces other than grass such
as gravel and asphalt.
• Never use thelawn raker if any part of its housing has been damaged. Never use thelawn
raker without having thecollector attached.
• Make sure that thelawn raker stands steady on all four wheels before starting. Keep hands
and feet away from thehousing and therotating drum at all times.
• Turn thelawn raker off and disconnect it from thepower supply whenever taking apause
from work.
• Turn thelawn raker off and disconnect it from thepower supply whenever emptying
thecollector, cleaning or carrying out any other type of maintenance.
• Turn thelawn raker off and disconnect it from thepower supply whenever theblades or
tines on thedrum strike any foreign object. Check theblades, tines and springs for damage.
Repair any eventual damage before restarting thelawn raker.
• If any abnormal vibration or noise is detected, turn off thelawn raker and unplug it
immediately. Check theblades and springs, tighten any loose screws and repair any damage
before recommencing work.
• Always be aware of thelocation of themains lead while raking/scarifying. Make sure that
themains lead does not come into contact with thelawn raker or its rotating blades.

ENGLISH
5
1 19 20
13
14
15
2
3
4
6
7
8
9
10
11
12
18
17
16
5

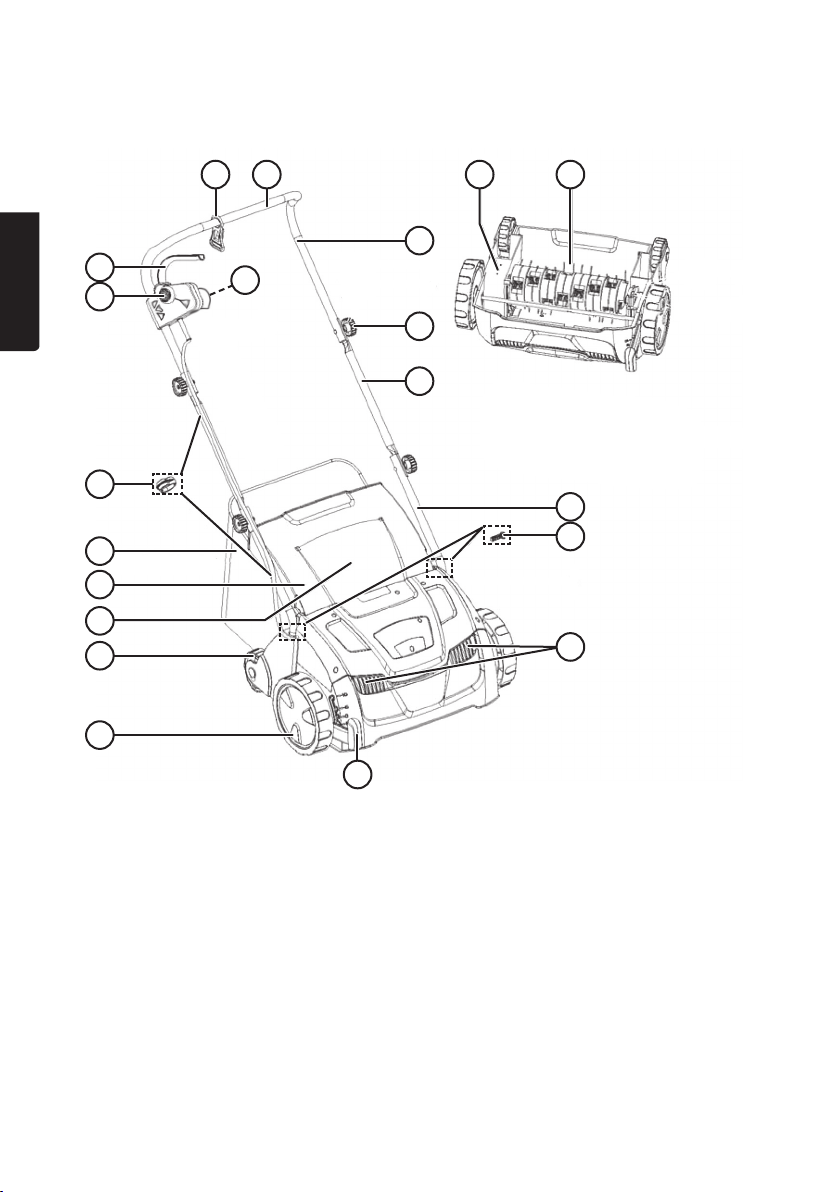

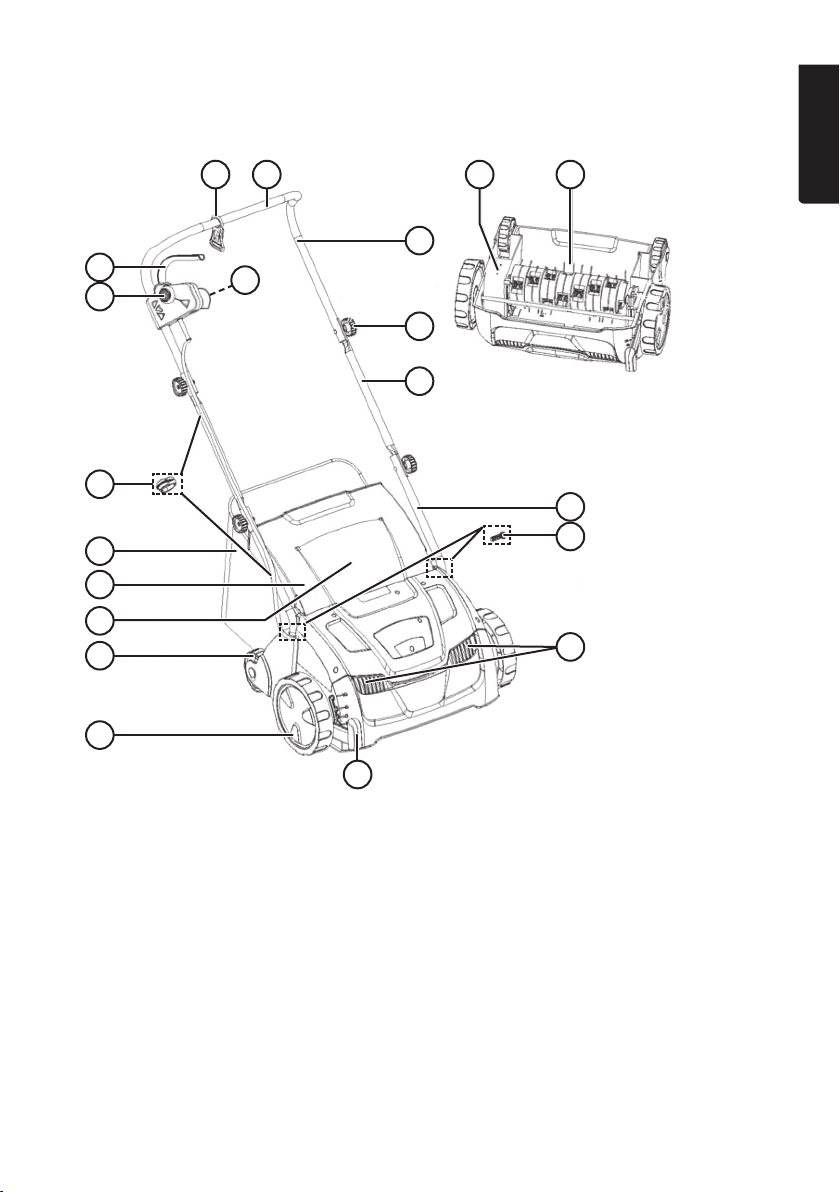

Product description
1. Handle
2. Cable hook
3. Start/stop lever
4. Safety switch
5. Power lead socket
6. Cable clips
7. Collector
8. Deck
9. Discharge chute
10. Rear support wheel
11. Front wheel
12. Height adjuster
13. Handle, upper section
14. Handle screws and locking knobs (4 ×)
15. Handle, middle section
16. Handle, lower section
17. Lower handle locking screws
18. Ventilation slits
19. Drive shaft
20. Rake drum

ENGLISH
6
16 16
17
15
16
14
13
15
16
15 14
6

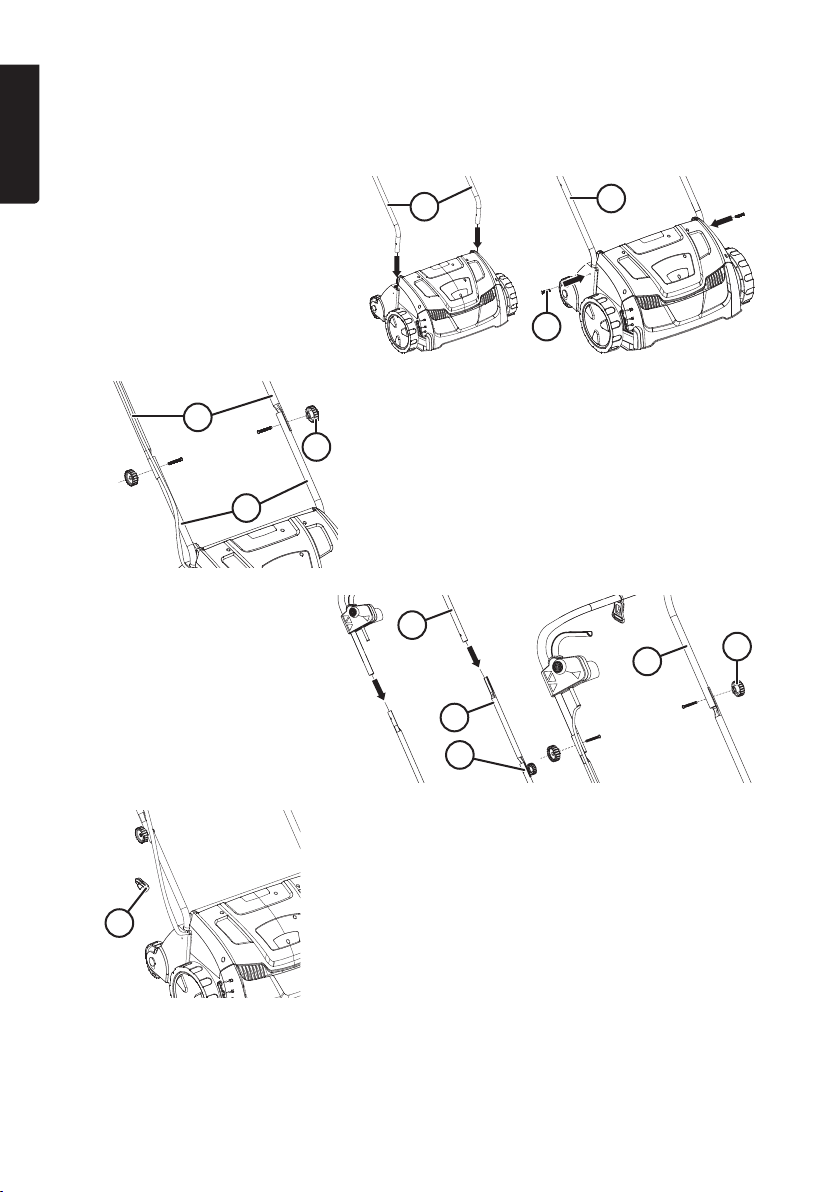

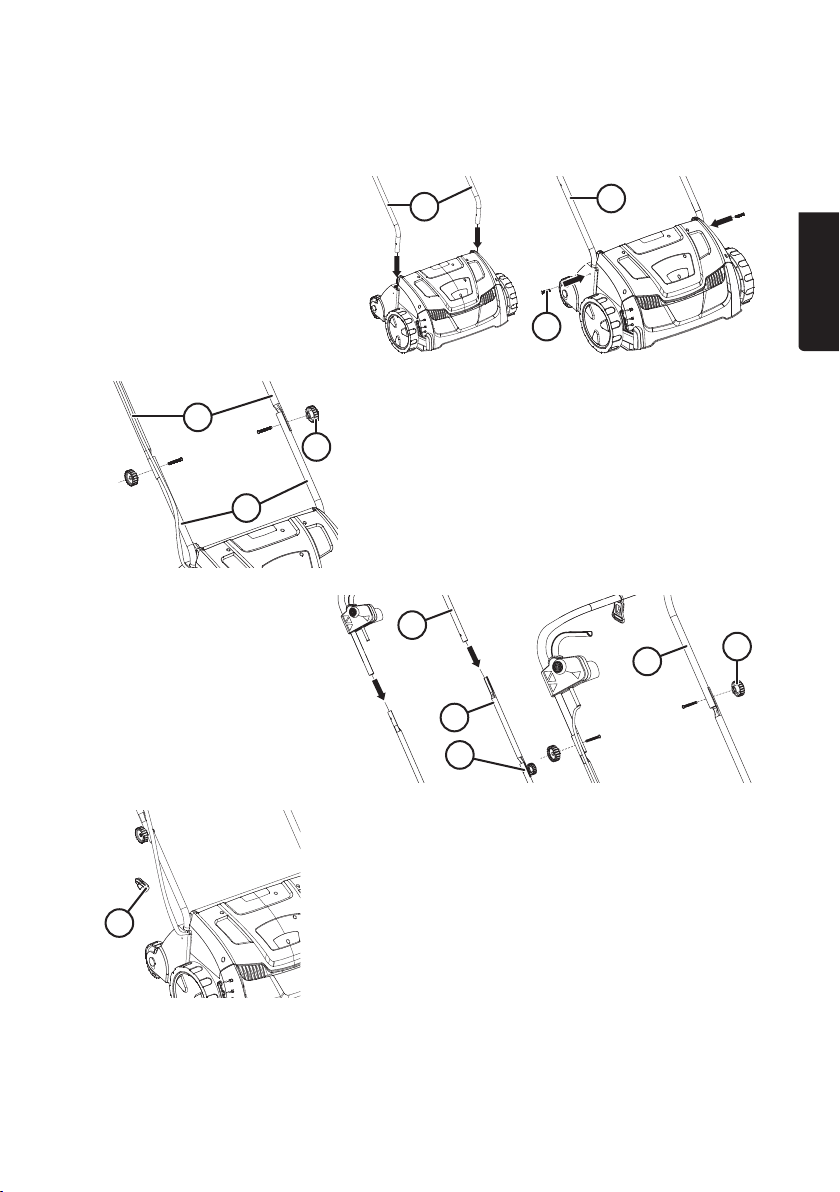

Assembly
Handle
1. Slot thelower handle section (16)
into theattachment holes on
thechassis and secure it with
thelocking screws (17).
2. Attach themiddle handle section (15) to thelower
section using screws and locking knobs.
3. Attach theupper handle
section (13) to themiddle
section using screws and
locking knobs.
4. Fasten themotor connection cable to thehandle
using thesupplied clips.

ENGLISH
7
3
4
8
7

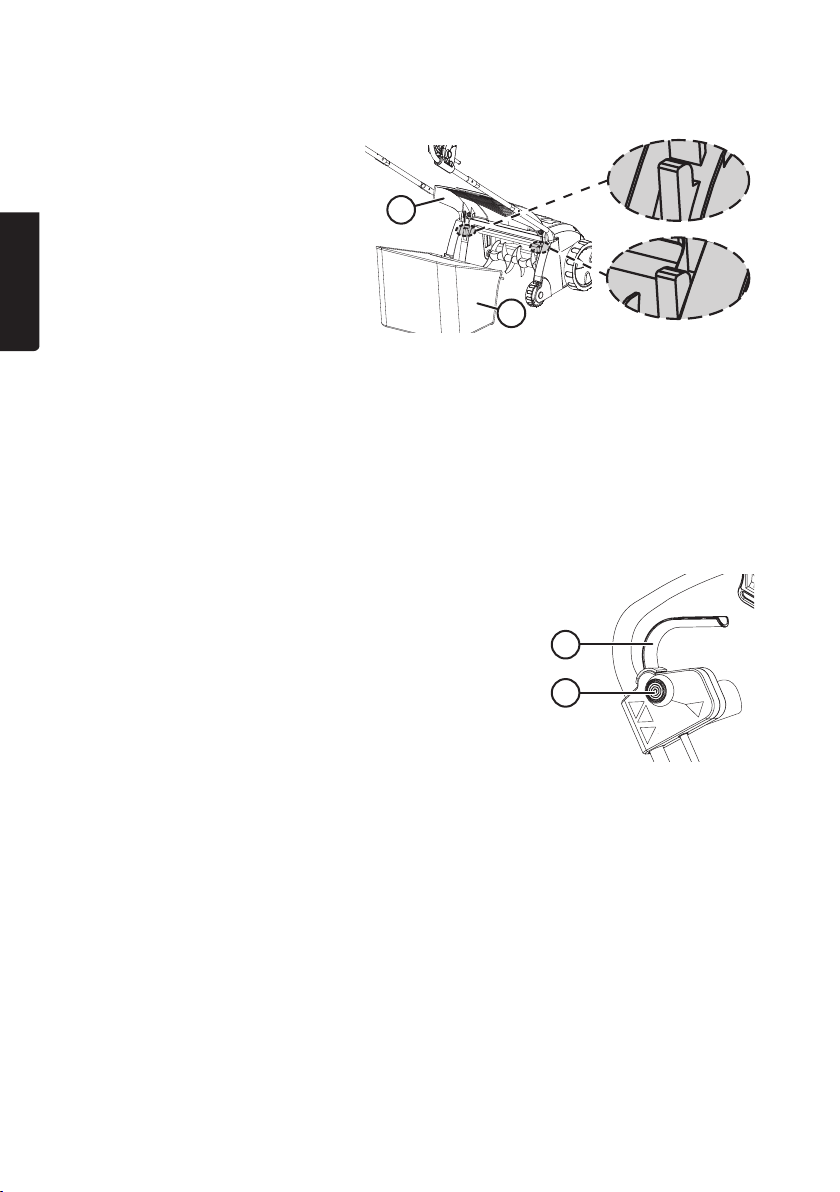

Collector
1. Lift thedeck (8) and hang
thecollector onto its bracket.
2. Lower thedeck onto thecollector.
Operating instructions
Connecting the mains lead
Note: Only use anextension lead approved for outdoor use.
1. Connect theextension lead to thesocket (5) on thelawn raker and hang thecable on
thestrain relief hook on thehandle (2).
2. Theextension lead should only be connected to a230–240 V, 50 Hz mains outlet protected
by a30 mA (RCD).
Start
Note: When switching thelawn raker on, make sure that
thelawn raker does not grip thelawn and pull away from you.
Set theheight adjuster (12) to thehighest setting. Thelawn
raker is at thehighest setting when theadjuster is closest to
theground. Press theadjuster in to move it. Make sure that
thelawn raker is on aneasily worked surface when it is switched on.
Thereafter, adjust theworking height to theappropriate setting.
1. Press and hold in thesafety switch (4).
2. Press thestart/stop lever (3) completely in towards
thehandle. Thelawn raker will switch on.
3. Keep holding thestart/stop lever and release thesafety switch.
Hold thehandle with both hands.
Switching off
Turn off themower by releasing thestart/stop lever.

ENGLISH
8
5 settings are available:
+10: 10mm higher than normal setting, for transport and storage
(adjuster closest to theground)
+5: 5 mm above normal setting
0: normal setting
−5: 5 mm below normal setting
−10: 10mm below normal setting
Scarifying
• Make sure that theextension lead always trails behind or lies on anarea that has already
been scarified.
• Be extra careful not to damage theextension lead or pinch it while working.
• Scarify with aslight overlap to achieve thebest results.

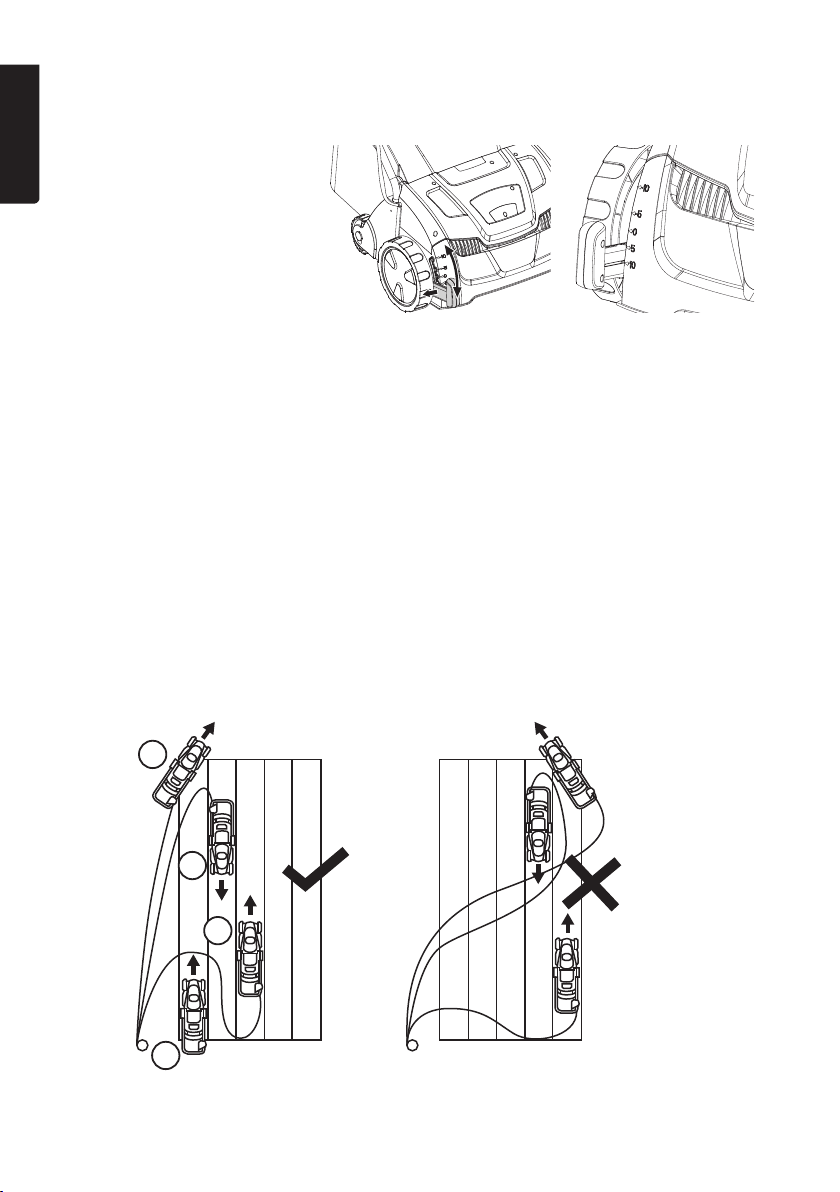

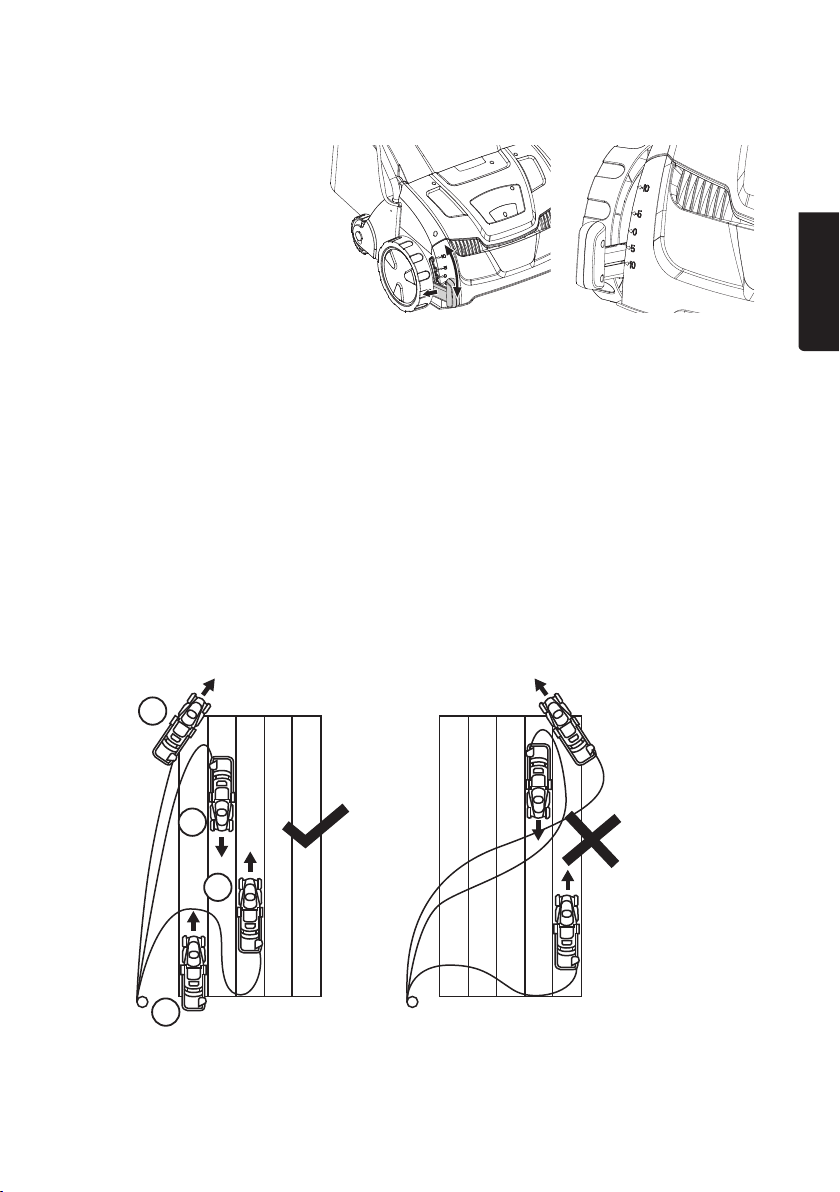

Protecting theextension lead while scarifying:
1
2
3
4
Working height
Theworking height is adjusted
by moving theheight adjuster
to thecorrect position.
Press theadjuster in to move it.

ENGLISH
9
Emptying the collector
1. Switch thelawn raker off and disconnect it from thepower supply.
2. Lift thedeck alittle and detach thecollector.
3. Empty thecollector and clean thedischarge chute of any excessive grass and debris.
Use aproper tool for cleaning thechute. Never use your hands or feet.
4. Refit thecollector.
Overload protection
Thelawn raker is fitted with anoverload safety cut-off protection device which switches themotor
off if it is overloaded. Thelawn raker might become overloaded if theworking height setting is
unsuitable for theterrain or if moss or thatch is preventing thedrum from rotating.
If theoverload safety cut-off switch is triggered:
1. Disconnect thelawn raker from thepower supply and let themotor cool.
2. Remove thedebris or alter theworking height setting before resuming work.
Care, maintenance and storage
Note: Always disconnect thelawn raker from theelectrical supply and let it cool before carrying
out any service or maintenance.
Care and maintenance
• Clean theexterior of thelawn raker using adamp cloth. Use only mild cleaning agents,
never solvents or corrosive chemicals.
• Make sure that theventilation slits on themotor housing are clean and free from contaminants.
• Inspect thelawn raker regularly to make sure that all bolts and nuts are tight and that there is
no visible damage.
• Regular checks should be made to ensure that thelawn raker is always in good running condition.
• Repairs must only be carried out by qualified service technicians and only using genuine
spare parts.
• Always keep theunderside of thelawn raker free from grass, moss and debris for optimum
performance.
• Regular checks should be made to make sure that theraker drum is intact.
Storage
• Before storing thelawn raker, switch it off, unplug it and let it cool.
• Clean thelawn raker thoroughly and check for any signs of visible damage.
• Check that all screws, bolts and nuts are securely tightened.
• Store thelawn raker in adry, sheltered place out of thereach of children.

ENGLISH
10
Troubleshooting guide
Thelawn raker will not start. • Theextension lead is not connected correctly.
• Is thewall socket live?
• Unplug thelawn raker and make sure that theraker drum
can rotate freely and is not hindered by grass and debris in
thedrum housing or discharge chute.
Themotor loses power. • Check theworking height. If thelawn raker is set too low
themotor may struggle and lose power.
• Unplug thelawn raker and make sure that theraker drum
can rotate freely and is not hindered by grass and debris in
thedrum housing or discharge chute.
Abnormal vibrations occur. • Check that theraker drum is not damaged or loose.
Replace if necessary.
• Unplug thelawn raker and make sure that theraker drum
can rotate freely and is not hindered by grass and debris in
thedrum housing or discharge chute.
Responsible disposal
This symbol indicates that this product should not be disposed of with general
household waste. This applies throughout theentire EU. In order to prevent
any harm to theenvironment or health hazards caused by incorrect waste
disposal, theproduct must be handed in for recycling so that thematerial can
be disposed of in aresponsible manner. When recycling your product, take it to
your local collection facility or contact theplace of purchase. They will ensure that
theproduct is disposed of in anenvironmentally sound manner.
Specications
Voltage 230–240 V, 50 Hz
Power 1300W
No-load speed 2990 rpm
Working width 320mm
Weight 11kg
Noise levels LpA = 84.5 dB(A), K = 3 dB(A)
LwA = 97.9 dB(A), K = 3 dB(A)
Vibration value 3.591m/s², K = 1.5 m/s²
