Cocraft HB18 User manual

ENGLISHSVENSKANORSKSUOMIDEUTSCH
Important:
Read the entire instruction manual
carefully and make sure that you fully
understand it before you use the
equipment. Keep the manual for future
reference.
Viktig information:
Läs hela bruksanvisningen noggrant och
försäkra dig om att du har förstått den
innan du använder utrustningen. Spara
bruksanvisningen för framtida bruk.
Viktig informasjon:
Les disse anvisningene nøye og forsikre
deg om at du forstår dem, før du tar
produktet i bruk. Ta vare på anvisningene
for seinere bruk.
Tärkeää tietoa:
Lue nämä ohjeet huolellisesti ja varmista
että olet ymmärtänyt ne, ennen kuin
alat käyttää laitetta. Säilytä ohjeet
myöhempää tarvetta varten.
Wichtiger Hinweis:
Vor Inbetriebnahme die komplette
Bedienungsanleitung sorgfältig
durchlesen und aufbewahren.
HB18
ADJUSTABLE IMPACT DEPTH
40-7980
NAIL GUN
SPIKPISTOL T-DYCKERT SPIKERPISTOL
NAULAIN T-DYCKERT STAUCHKOPFNAGLER
Ver. 20180614
Original instructions
Bruksanvisning i original
Originalbruksanvisning
Alkuperäinen käyttöohje
Original Bedienungsanleitung
Art.no Model
40-7980 XAGD50
10−50mm

ENGLISH
3
T-Brad Nail Gun
Art.No 40-7980 Model XAGD50
Please read theentire instruction manual before using theproduct and save it
for future reference. We reserve theright for any errors in text or images and any necessary
changes made to technical data. If you have any questions regarding technical problems please
contact Customer Services.
Safety
Warning:
• Never hold your hand or any other part of yourbody close to the muzzle of the nail gun when
thegun is connected with thecompressed air hose.
• Never point thetool at any person or animal.
• Do not play with thetool.
• Never depress thetrigger if thenose of thetool is not pointed at theworkpiece.
• Always handle thetool with care.
• Never depress thetrigger or release thesafety catch while you are loading thetool.
• Use thetool solely for thepurpose for which it is intended.
• Never use thetool in such away that it is pointed at yourself or someone else in thework area.
• Do not use thetool as ahammer.
• Carry thetool by thehandle, not by theair hose.
• Never carry thetool with thetrigger depressed.
• Never modify thetool in departure from theoriginal design.
• Always keep in mind that misuse or faulty handling of this tool could injure yourself and others.
• Never fasten or tape thesafety catch and/or trigger in activated position.
• Never leave atool unattended when it is connected to theair line.
• Do not use this tool if it does not bear alegible warning decal.
• Do not continue using atool that is leaking air or is not working properly. Contact our
Customer Service for servicing.
• When using thetool, hold it in such away that no injury to thehead or body could result
should afall in pressure or hard spots on theworkpiece cause therecoil force to increase.
• Do not nail too close to theedge of aworkpiece. Thenail could pass through theworkpiece
and cause damage.
• Disconnect thetool from thecompressed air for transporting.
• Check frequently that both thetrigger and thesafety catch are working properly.
• Do not take apart any part of thetool.
• Make no provisional repairs.
• Always have authorized personnel do servicing and repairs, and only with original spare parts.
• Avoid weakening thehousing by engraving or scratching it, etc.
• Always make anote of where theelectric cable goes into walls, floors or ceilings before you
begin to use thenail gun.
• Thecompressed air fitting for thenail gun must be of thequick-coupling type. Theconnecting
piece on thetool may not have arear valve so that some air remains under pressure when
thenail gun has been disconnected.

ENGLISH
4
Compressed air feed and connections
Warning:
To prevent accidents due to unintended firing, theoperator should always disconnect
thecompressed air:
• Before adjusting
• When cleaning thenail gun
• When removing astuck nail
• When thetool is not being used
• When moving thetool to another work area
Warning:
• Use only compressed air in pneumatically driven tools. Never use acid or flammable gases to
drive thetool since they carry therisk of explosion.
• Thecompressor capacity must be sufficient to ensure anadequate air pressure and flow for
theintended use. Afall in pressure in thesystem can reduce thetool’s thrust. See Specifications
for setting theright pressure for thetool.
• Thecompressed air lines should be mounted on anincline, with thehighest point closest to
thecompressor. Aneasily accessed water separator should be installed at thelowest points.
Thewater separator should be emptied at least once aday, or more often if needed. Dirt and
water in thecompressed air lines are one of many causes of wear in pneumatically actuate tools.
• Thetool connection fittings should be equipped with areducing valve with water separator
directly at theconnection site. Afilter helps to achieve maximum effect at minimum wear.
Thefilter must have sufficient flow capacity for theintended mounting site or connecting point.
Thefilter must be kept clean if it is to be able to deliver clean compressed air to thetool. See
themanufacturer‘s instructions for proper filter care. Adirty or clogged filter will cause afall in
pressure, which reduces thenail gun’s effectiveness.
• Thepressure regulator must be adjustable from 0 to 7 bar.
• Theair hoses must tolerate at least 10.5 bar working pressure or 150% of themaximum
air pressure thesystem can create. Themeter line should have aquick coupling for quick
detachment from thenail gun’s nipple.
• Make sure that thecompressed air fed to thenail gun does not exceed themaximal
permissible working pressure (7 bar). Initially set themeter pressure at thelowest
recommended working pressure; See Specifications.
• Check that thenail gun is working properly by running function and safety checks for every job.
Warning:
To prevent serious eye injury from flying nails and/or slivers, theoperator and others in
theworking area must be equipped with eye protection that covers both thefront and thesides
when loading, using or servicing thetool.
Glasses without eye protection on theside and facemasks do not give adequate protection.

ENGLISH
5
1
2
3
4
5
6
7
8

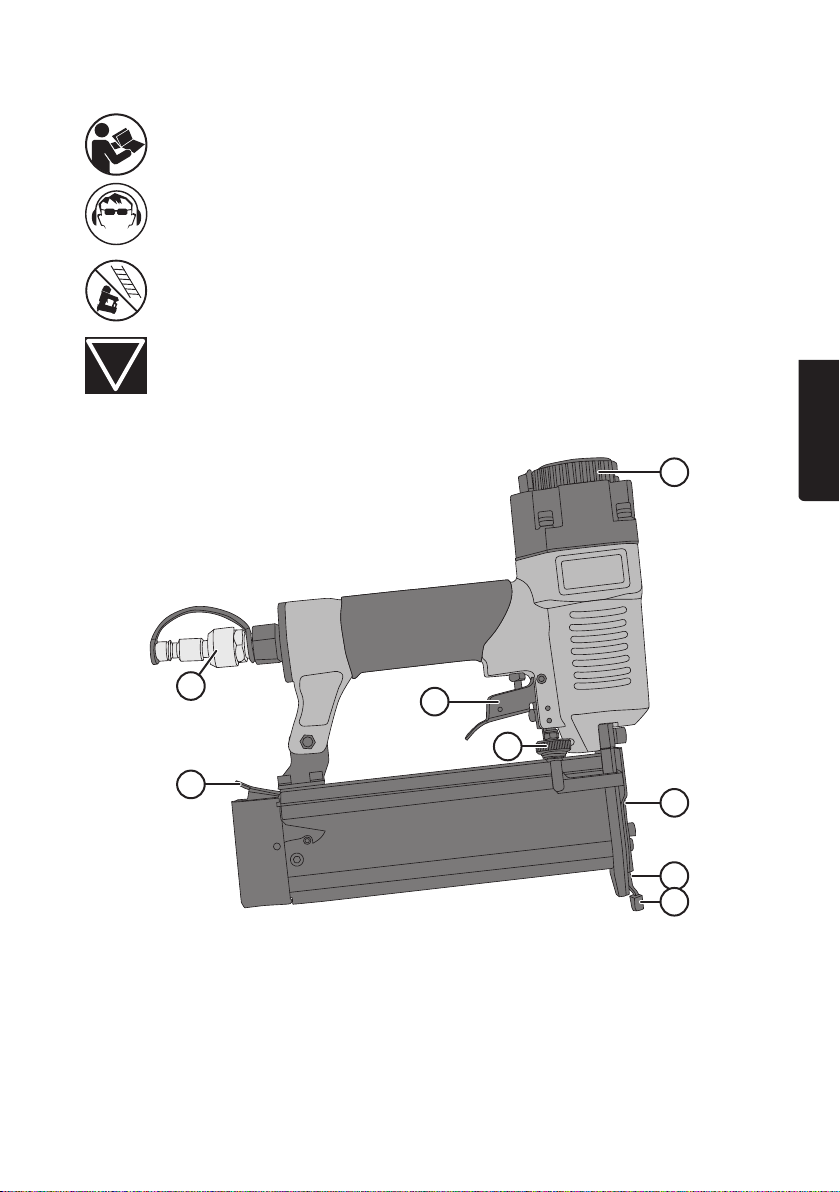

Warning symbols on tool
Read theinstructions for use.
Theuser and other persons in thework area must use protective glasses and
hearing protection.
Thetool should not be used on scaffolding or ladders. Do not use thenail gun if
thefastening unit could shoot through something and hit someone on theother side.
Thegun is equipped with asafety trigger.

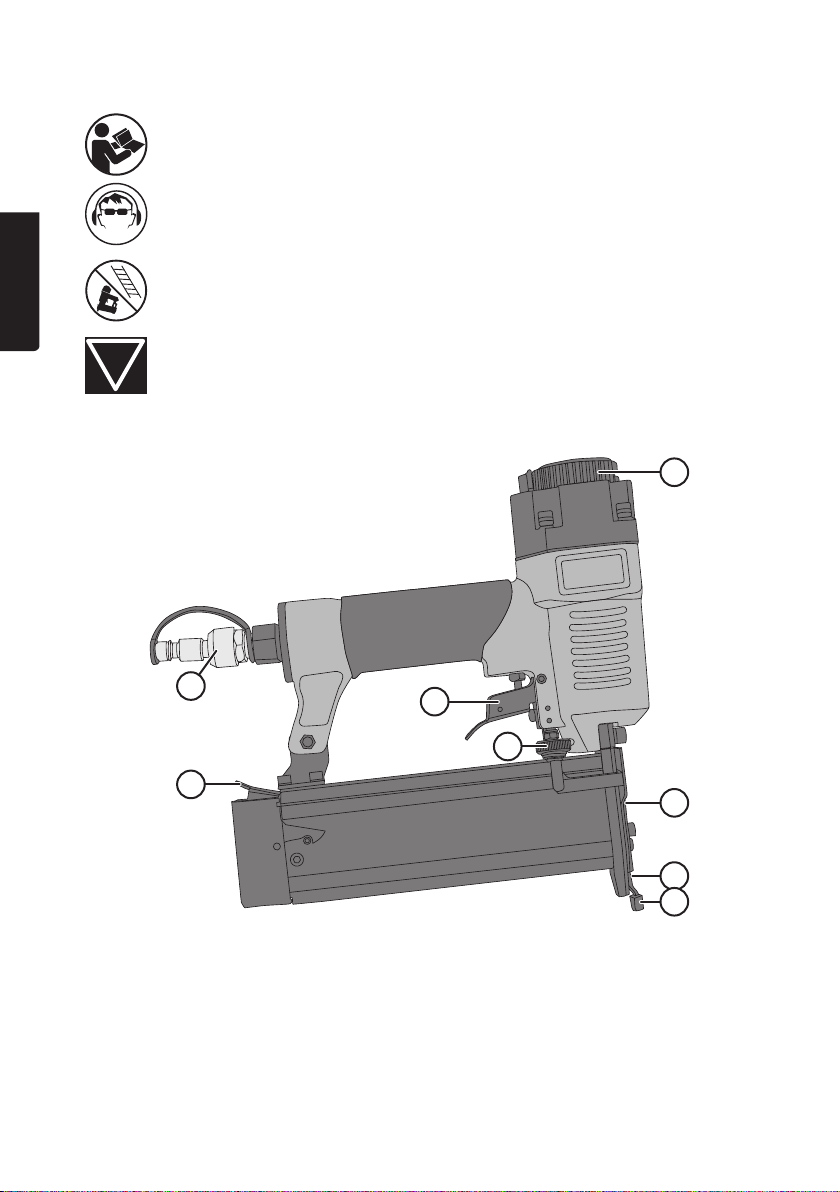

Product description
1. Air inlet coupling
2. Magazine lock
3. Trigger
4. Impact depth adjustment knob
5. Air outlet adjustment knob
6. Front plate
7. Safety lock
8. Rubber guard

ENGLISH
6
Installation
Suggestion for installation
• Thecompressor used to drive thetool must be able to maintain aworking pressure of at least
4 bar for thetool to work properly.
• Use quick-couplings to easily disconnect thetool and hose from thecompressor.
• Make sure that theconnected tool and hoses do not have alower capacity than
thecompressor and that they are correctly fitted.
• If apressure regulator is used it must be able to be set for aworking pressure of 4–7 bar.
Lubrication
Note: Lubricate thetool with afew drops of oil in theair-line connection before using thetool for
thefirst time.

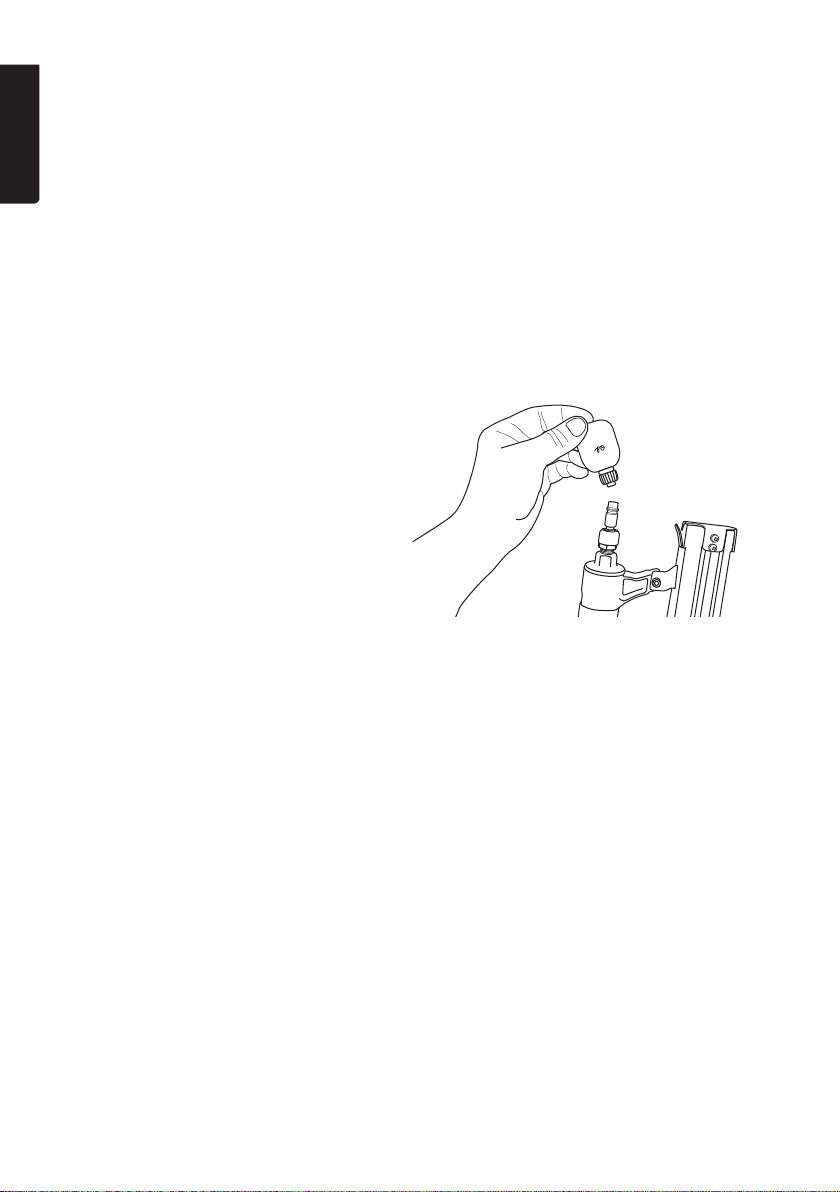

1. Disconnect thecompressed air from
thenail gun.
2. Put 4–5 drops of oil in theair inlet.
Note: Do not use ordinary motor oil as
it contains additives that will damage
thetool. Oil for lubricating apneumatic
tool is available commercially.
3. Wipe away any oil that may come out of
theair inlet when beginning to
use thetool.
Function and safety checks
1. Disconnect thecompressed air from thenail gun.
2. Remove any nails from themagazine.
3. Make sure that thesafety lock moves freely up and down by pressing thetool against awork surface.
4. Connect to thecompressed air.
5. Press thetool against thework surface. Thetool must not fire.
6. Take thetool away from thework surface, and make sure thesafety lock returns to its
position. Press thetrigger in. Thetool must not fire.
7. Press thetool against thework surface, press thetrigger. Thetool should fire.

ENGLISH
7
2. Place nails in themagazine, ensure that
thetips point downward, and lie against
thebottom of themagazine.
3. Shove themagazine back until
themagazine lock clicks firmly in place.

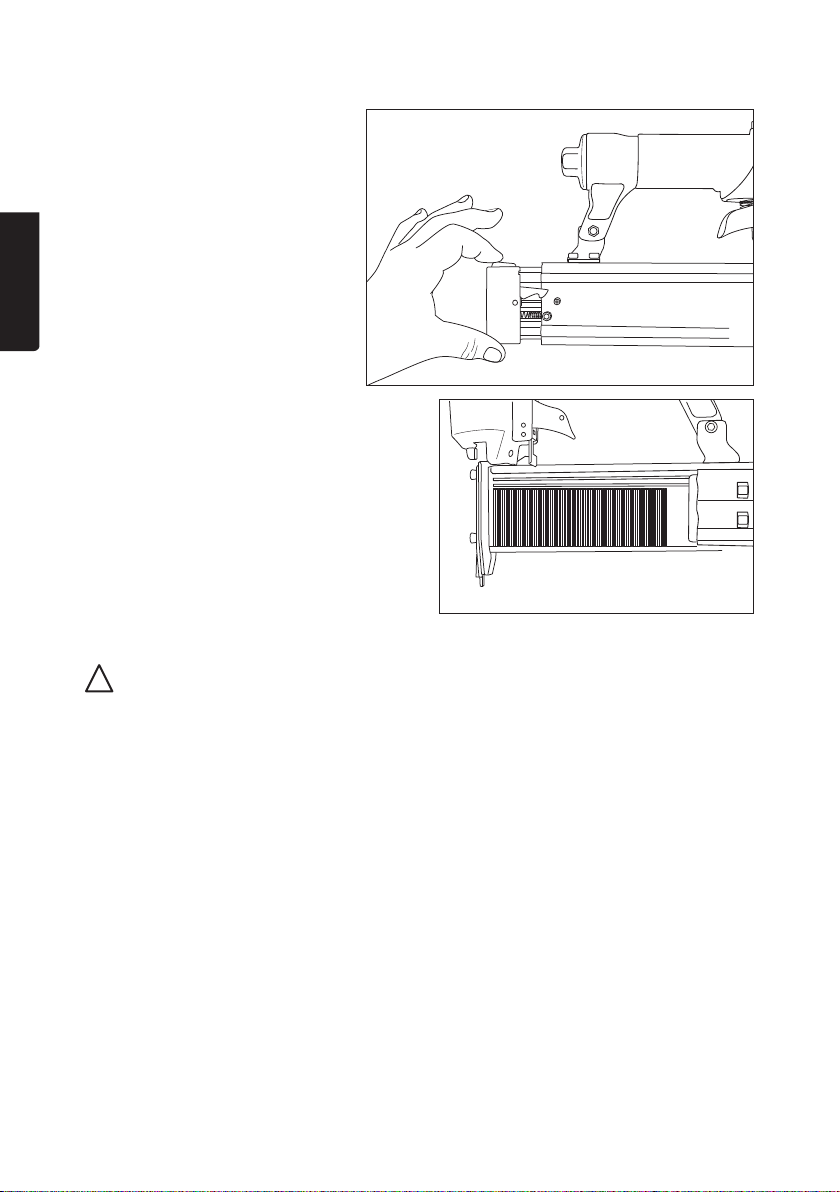

Loading
1. Open themagazine by
pressing thelock down
and pulling it straight out.
Instructions for use
Important:
Always test-fire the nail gun on a scrap piece of the same material as the workpiece.
Set the impact depth to the desired level using the adjustment knob.
1. Hold the nail gun in a firm grip.
2. Press the nail gun against the workpiece.
3. Pull the trigger and release it after the gun has fired.
4. Move the nail gun to the next firing position and repeat.
You can also keep the trigger held in and press the nail gun against the work surface to fire.

ENGLISH
8
Setting the impact depth and impact force
A. Adjusting the impact depth with the adjustment knob
Turn the adjustment knob (4) anticlockwise to reduce the impact depth or clockwise to increase
the impact depth.
The rubber guard (8) can be removed to increase the impact depth even more.
B. Adjusting the impact force with pressure regulator on air hose
If thenail has not been driven deep enough first check whether theimpact depth adjustment knob (4)
is set at themaximum nail depth. If it is at themaximum raise theair pressure by 0.5 bar
increments and check with thenailing control after each increment. Do not exceed themax.
working pressure (7 bar).
If thenail has been driven in too deep, reduce theair pressure by 0.5 bar at atime, checking
theresult each time. Do not go below theminimum recommended working pressure (4 bar).
Always work with thelowest possible working pressure. This minimizes thenoise and vibration
levels and theinternal components of thenail gun will last longer.
Removing a nail that has become jammed
1. Disconnect theair hose from thenail gun.
2. Remove themagazine and dislodge thenail that has
become stuck and/or remove the3 screws which hold
thefront plate in place using theincluded Allen key.
3. Remove both theouter and inner front plate.
4. Remove thenail that has become stuck and then refit
thefront plate.

ENGLISH
9
Troubleshooting
Warning:
Always disconnect thecompressed air before doing any checks on thenail gun.
Air leaks from thegun. • Check all screws and tighten with Allen keys.
Thenail gun does not nail
or does so sluggishly.
• Check all screws and tighten with Allen keys.
• Make sure that thenail gun receives theright working
pressure from thecompressor (4–7 bar).
• Make sure there are no air leaks between thecompressor
and thenail gun.
Nail jams in tool. • Make sure thenails are theright size.
• Check that thenails are not damaged.
• Clean themagazine.
• Remove thefront plate , clean it and check that there is no damage.
Care and maintenance
With theincluded Allen keys, regularly check that all screws are properly tightened.
Responsible disposal
This symbol indicates that this product should not be disposed of with general
household waste. This applies throughout theentire EU. In order to prevent
any harm to theenvironment or health hazards caused by incorrect waste
disposal, theproduct must be handed in for recycling so that thematerial can
be disposed of in aresponsible manner. When recycling your product, take it to
your local collection facility or contact theplace of purchase. They will ensure that
theproduct is disposed of in anenvironmentally sound manner.
Specications
Length 245 mm
Height 240 mm
Width 56 mm
Weight 1.3 kg
Magazine capacity 100 units
Pressure range 4–7 bar
Nail size 10–50 mm

SVENSKA
10
Spikpistol T-Dyckert
Art.nr 40-7980 Modell XAGD50
Läs igenom hela bruksanvisningen före användning och spara den sedan för framtida bruk.
Vi reserverar oss för ev. text- och bildfel samt ändringar av tekniska data. Vid tekniska problem
eller andra frågor, kontakta vår kundtjänst (se adressuppgifter på baksidan).
Säkerhet
Varning!
• Håll aldrig enhand eller någon annan kroppsdel inom spikpistolens utskjutningsområde när
den är ansluten till tryckluftsledningen.
• Rikta aldrig spikpistolen mot någon annan.
• Lek inte med spikpistolen.
• Tryck aldrig in avtryckaren om inte säkerhetsspärren är riktad mot arbetsstycket.
• Hantera alltid spikpistolen varsamt.
• Tryck aldrig in avtryckaren eller utlös säkerhetsspärren medan du laddar spikpistolen.
• Använd spikpistolen endast på avsett sätt.
• Använd endast T-dyckert 18 med dimension 10–50 mm.
• Använd aldrig spikpistolen på ettsådant sätt att enspik riktas mot dig själv eller någon annan
inom arbetsområdet.
• Använd inte spikpistolen som hammare.
• Bär spikpistolen med fattning om dess handtag, inte iluftslangen.
• Bär aldrig spikpistolen med intryckt avtryckare.
• Ändra inte spikpistolen från originalutförande.
• Var alltid medveten om att missbruk och felaktig hantering av den här spikpistolen kan skada
dig själv och andra.
• Fixera/tejpa aldrig fast säkringsspärr och/eller avtryckare iaktiverat läge.
• Lämna aldrig spikpistolen, som är kopplad till luftslang, utan uppsikt.
• Använd inte den här spikpistolen om den inte är försedd med läsbar varningsdekal.
• Fortsätt inte att använda enspikpistol som läcker luft eller inte fungerar riktigt. Kontakta vår
kundtjänst för ev. service.
• Håll vid användning spikpistolen på ettsådant sätt att inga skador kan uppstå på huvud eller
kropp om spikpistolens rekyl ökar istyrka på grund av tryckfall eller hårda ställen iarbetsstycket.
• Spika inte för nära kanten på arbetsstycket. Spiken kan passera genom arbetsstycket och
vålla skador.
• Koppla från tryckluften före transport av spikpistolen.
• Kontrollera ofta att både avtryckare och säkerhetsspärr fungerar korrekt.
• Ta inte isär någon del av spikpistolen.
• Gör inga provisoriska lagningar.
• Låt behörig personal utföra service och reparationer, och endast med originalreservdelar.
• Undvik att försvaga höljet genom gravering etc.
• Ta reda på var elledningar etc. går iväggar, golv och tak innan du börjar
använda spikpistolen.
• Tryckluftsanslutningen för spikpistolen måste vara av typ snabbkoppling. Anslutningen på
verktyget får inte ha backventil så att luft under tryck finns kvar när spikpistolen har kopplats loss.
