Code 900FD User manual

Using the CR900FD in a Universal Stand
The CR900FD has a stand detecon feature. By
default, when the CR900FD is placed in the stand,
the reader will automacally enter into moon
detecon mode. When in this mode, simply place
a bar code in the scan eld to acvate the reader.
The CR900FD will beep and ash a green LED to
indicate a ‘good read’ has occurred.
When the CR900FD is removed from the stand,
the reader switches to manual mode and the
trigger must be pressed to read a bar code.
Press and hold the CR900FD trigger, the two
blue bars eming from the reader are used for
targeng. Center the blue bars in the middle of
a bar code.
The opmal reading distance from reader to bar
code is approximately 4.0” (10 cm).
For USB Cable: plug the USB end of the Anity® cable into a USB port on the host device.
Aer several seconds, the reader will beep twice and the LED will turn o to indicate the
CR900FD is ready for use.
For RS232 Cable: plug the power supply into the AC outlet, plug the power supply cord into
the barrel jack of the cable, and connect the RS232 connector to the appropriate serial port
on the host device. Aer several seconds, the reader will beep twice and the LED will turn o
to indicate the CR1400 is ready for use.
Using the CR900FD Out of a Universal Stand
Powering on the CR900FD CR900FD Default Sengs
UPC/EAN/JAN
Code 39
Code 93
The CR900FD, out of the box, will read the following 1D bar codes:
The CR900FD can be upgraded to read 2D bar codes with the purchase of a license key. 2D
license keys can be purchased individually or as a package. Available licenses:
Conguraon Codes
Once the reader is at the opmal distance, the CR900FD will read the bar code (when the
trigger is pressed). The CR900FD will beep and ash a green LED to indicate a ‘good read’ has
occurred.
2 3
Code 128
Interleaved 2 of 5
Codabar
GS1 DataBar (RSS)
PDF417
Data Matrix
QR Code
Aztec Code
All 2D bar codes
Visit www.codecorp.com for upgrading/license key informaon.
Upgrade Opons
Note: a CR900FD will read Data Matrix conguraon codes.
The CR900FD can be quickly, and easily congured to meet the needs of dierent use cases.
A common conguraon is reading bar codes found on cell phone screens. To enable, or
disable, cell phone reading mode, scan the appropriate code below.
For more conguraon opons refer to the CR900FD Conguraon Guide located at
www.codecorp.com. For custom conguraon opons, please contact us at
[email protected].
Enable Cell Phone Reading Mode Disable Cell Phone Reading Mode

Quickstart Guide
C007258_02_CR900FD_Quickstart_Guide

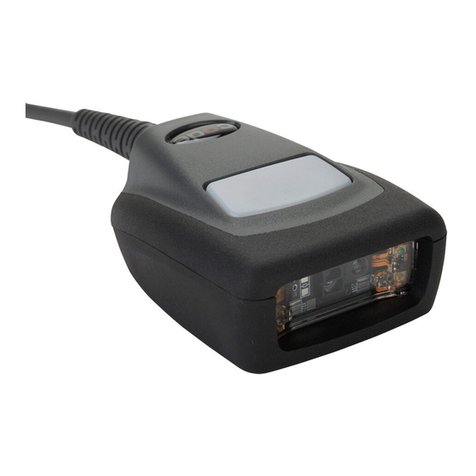

Code Reader™ 900FD (CR900FD)
USB Anity® Cable RS232 Anity® Cable
w/ Power Supply
Aaching/Detaching a Cable
To aach a cable, plug the RJ-50 end of the Anity® cable into boom of the reader (Figure
1). Firmly push the connector into the reader unl a snap can be heard, to indicate the cable
is properly aached. To detach a cable, press a paper clip into the hole on the back of the
CR900FD (Figure 2), and gently pull the cable from the reader.
Figure 2Figure 1
Included with your CR900FD
Depending on the kit ordered, the following may have been shipped with your reader:
Universal Stand
Universal Stand Assembly (included when ordered as a Kit/Package)
Cleaning a CR900FD
The following agents are approved to clean a Code bar code reader:
1) Alcohol Wipes
2) CaviWipes® Disinfecng Towelees
3) Clorox® Disinfecng Wipes
4) Clorox® Bleach Soluon (10% Clorox bleach, 90% tap water)
5) Medical DiAirKem
6) Sani-Cloth® HB, Super Sani-Cloth® Germicidal, Sani-Cloth® Plus Germicidal Disposable Wipes
7) Virex® II Disinfectant Cleaner
Warranty
Code’s CR900FD carries a ve year standard warranty. Universal Stands follow the warranty
of the reader, and cables have a 90 day warranty period. For more warranty informaon,
please refer to the www.codecorp.com.
14870 S. Pony Express Rd. #200 Bluffdale, UT 84065
www.codecorp.com [phone]
© 2012. Code Corporaon. All Rights Reserved. 4
