Codyson CD-4820 User manual
Lengthened tank
Stronger transducer
5 Recycle digital timer
Heater
Circuit protector
Radiator Fan
Wet-proof PCB
Three separable wires
Industry IC
Strong plastic housing
1
INTRODUCTION
Ultrasonic cleaning technology uses water as media, makes high frequency
vibration releases billions of small bubbles. These bubbles breaking with
power, which dropping dirt from cleaning articles safely and effectively.
With 5 circle time setting and heating devise, this machine is our new generation,
which has bigger capacity (2600ml), and stronger cleaning power (160w) while
still easy to operate as before. Some industrial spare parts being adopted, allows
its working in long time frame, and in dampness environment. In this case, the
using range has been expanded.
No special solution required, only using plain tap water
Definition of Main Feature
INDEX
Ultrasonic cleaners are very easy to use. Although to get the best from your new
purchase, we recommend you read this User Guide before getting down to any
serious cleaning. It also contains important safety information as well as practical
hints.
Read the user guide
SAFETY INSTRUCTIONS -------------------------------------------1/2
WHAT CAN NOT BE CLEANED --------------------------------------- 2
USE EXTENT --------------------------------------------------------3/4
SUGGESTED APPLICATIONS ---------------------------------------- 4
DIRT ELIMINATION PROCESSES ------------------------------------ 5
FEATURES AND ACCESSORIES -------------------------------------- 5
REGARDING 5 DIGITAL TIMES CHOOSING ------------------------- 6
FOUR DIFFERENT WAYS OF CLEANING -------------------------7/8/9
OPERATION INSTRUCTIONS --------------------------------------9/10
USER MAINTENANCE ------------------------------------------------11

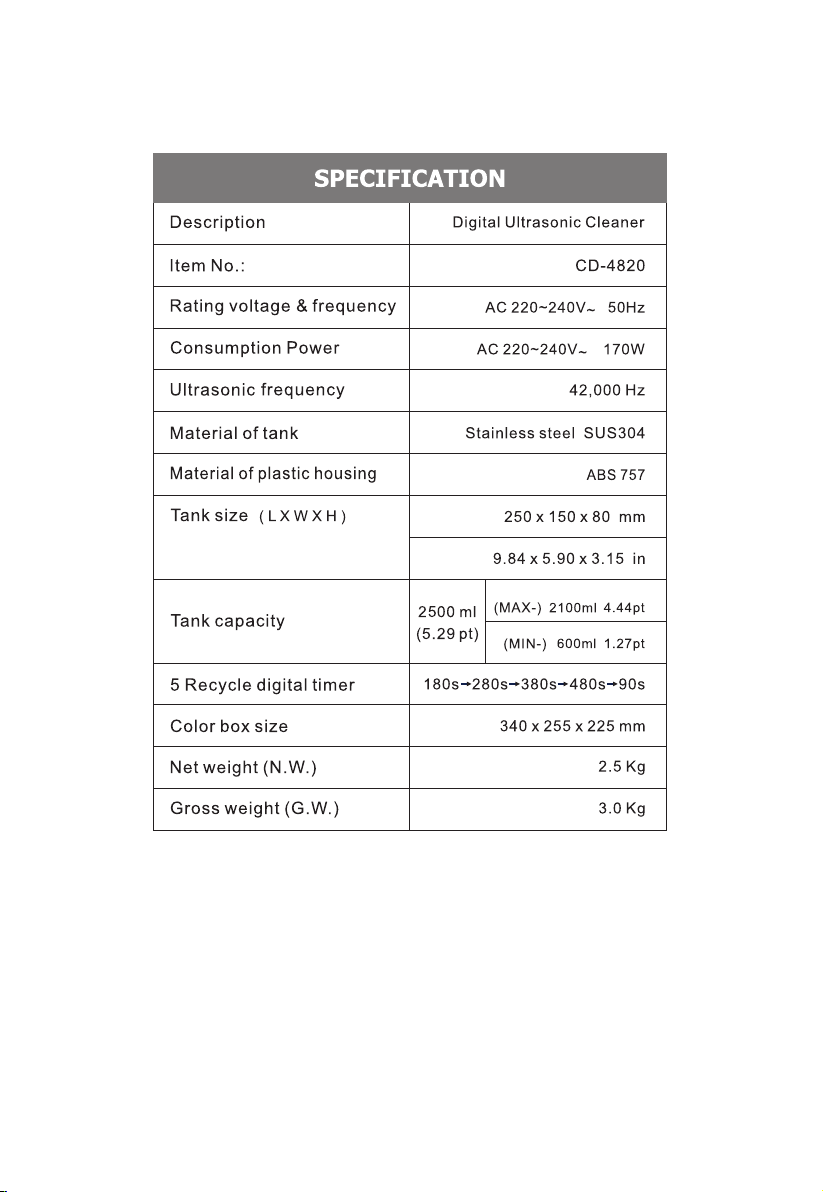

SPECIFICATION ------------------------------------------------------12
DANGER- To reduce the risk of electrocution:
Unplug this unit
immediately after
using.
Keep the unit in a
safe place to avoid
falling into water or
other liquid.
Do not use while
bathing.
Do not immerse the
unit into water or
other liquid.
Do not reach for the
unit that has fallen
into water. Unplug it
immediately.
Do not place or store
product where it can
to or be pulled into a
tub or sink.
Don't use the product if there isn't water in the cleaning tank.
The product may be off or can't be switch off when it is subjected to electromagnetic
interference like Fast Transients. If it is occur please follow the instruction described
in the manual to set the function again for operation.
Do not place or drop into water or other liquid.
To avoid damage may caused by high temperature, please shut down the cleaner for
no less than 3 minutes and change the used water after three 480s working circles.
！
This appliance has a polarized plug (one blade is wider than the other). As a safety
feature, this plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this safety feature.
(This only available for UL cord and plug)
SAFETY INTRODUCTIONS
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
1
INTRODUCTION
Ultrasonic cleaning technology uses water as media, makes high frequency
vibration releases billions of small bubbles. These bubbles breaking with
power, which dropping dirt from cleaning articles safely and effectively.
With 5 circle time setting and heating devise, this machine is our new generation,
which has bigger capacity (2600ml), and stronger cleaning power (160w) while
still easy to operate as before. Some industrial spare parts being adopted, allows
its working in long time frame, and in dampness environment. In this case, the
using range has been expanded.
No special solution required, only using plain tap water
Definition of Main Feature
INDEX
Ultrasonic cleaners are very easy to use. Although to get the best from your new
purchase, we recommend you read this User Guide before getting down to any
serious cleaning. It also contains important safety information as well as practical
hints.
Read the user guide
SAFETY INSTRUCTIONS -------------------------------------------1/2
WHAT CAN NOT BE CLEANED --------------------------------------- 2
USE EXTENT --------------------------------------------------------3/4
SUGGESTED APPLICATIONS ---------------------------------------- 4
DIRT ELIMINATION PROCESSES ------------------------------------ 5
FEATURES AND ACCESSORIES -------------------------------------- 5
REGARDING 5 DIGITAL TIMES CHOOSING ------------------------- 6
FOUR DIFFERENT WAYS OF CLEANING -------------------------7/8/9
OPERATION INSTRUCTIONS --------------------------------------9/10
USER MAINTENANCE ------------------------------------------------11
SPECIFICATION ------------------------------------------------------12
DANGER- To reduce the risk of electrocution:
Unplug this unit
immediately after
using.
Keep the unit in a
safe place to avoid
falling into water or
other liquid.
Do not use while
bathing.
Do not immerse the
unit into water or
other liquid.
Do not reach for the
unit that has fallen
into water. Unplug it
immediately.
Do not place or store
product where it can
to or be pulled into a
tub or sink.
Don't use the product if there isn't water in the cleaning tank.
The product may be off or can't be switch off when it is subjected to electromagnetic
interference like Fast Transients. If it is occur please follow the instruction described
in the manual to set the function again for operation.
Do not place or drop into water or other liquid.
To avoid damage may caused by high temperature, please shut down the cleaner for
no less than 3 minutes and change the used water after three 480s working circles.
！
This appliance has a polarized plug (one blade is wider than the other). As a safety
feature, this plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this safety feature.
(This only available for UL cord and plug)
SAFETY INTRODUCTIONS
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.

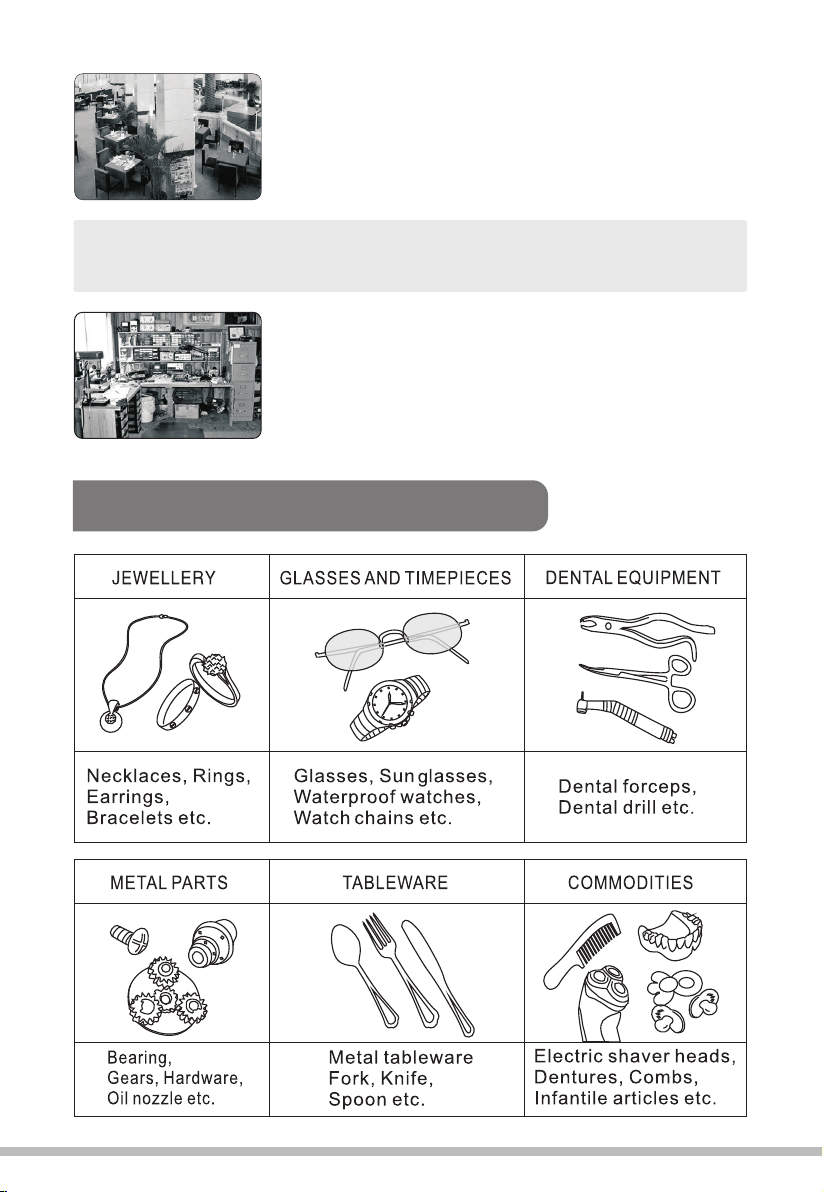

cleaning in-process and f inishing n ecklaces, f inger rings, earrings
etc. With machine's 65 ℃ heating devise, the polishing wax on
the surface of the in process articles will be cleaned out.
(2). Chemical lab:
(1). Jewelry manufacturer and gem store:
cleaning test tube.
(3). Dental clinic:
Cleaning dental drill, dental forceps during their sanitizing.
3
USE EXTENT
2
SAFETY INTRODUCTIONS
Do not fill the tank
with abrasives or
corrosive chemicals.
Do not immerse the
unit into water to
avoid electric shock.
Never operate this unit if cord or plug is damaged. If it is not
working properly, damaged or has been dropped into water, return
the damaged unit to a service centre for examination and repair.
Do not disassemble
the unit except for the
authorized technician.
Unplug the unit before
filling. Do not exceed
the"MAX"mark.
Do not touch the
socket with wet hand
to avoid electric shock.
Use the unit properly as per its instruction manual. Do not use
attachments not recommended by the manufacturer.
The unit should never
be left unattended
when plugged in.
Keep the unit and the
cord away heated sur-
faces, and place it on
the dry and level
surface.
SAVE THESE INSTRUCTIONS
WARNING-To reduce the risk of burn or injury to persons
！
Never drop or insert any object into any opening or hose.
Never block the air openings of the unit or place it on a soft surface, such as a bed or
couch, where the air openings may be blocked. Keep the air openings free of lint, hair,
and the like.
Do not use this unit when
sleeping or drowsy, and
do not use outdoors or
operate where aerosol
(spray) products are being
used or where oxygen is
being administered.
BIJOUTERIE
Hawksbill, Pearl, emerald,
Ivory, Coral, Agate.
PRECIOUS METAL
Soldering metal, electro
plating metal, bindings
WATCH
Watch, Pocket watch
OTHERS
Wood, Glass, contact lens,
ceramic, camera colored filter.
Maybe the less rigidity of hawksbill or coral will be
scrubbed, color changed or brightness lost caused by
the rubbing of one object or surface against another.
Be broken off will be happened to the unsolid point of
the soldering and binding items by ultrasonic cleaning.
The cracked electro plating will be enlarged after
cleaning
The water will be in the watch movement of little
waterproof function for the ultrasonic strong osmosis
occasionally.
(Except the waterproof watch
under 30m or more)
WHAT CAN NOT BE CLEANED
Maybe rift of ceramic, wooden items, or laminated
glasses will be enlarged by ultrasonic cleaning. (It
won't be happened for the item in perfect condition).
(4). Family:
C leaning nursing bottles, rubber nipples and baby tools
effectively. And b etter a nd fa ster t han o t her mini ultrasonic
cleaner.
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working
electrical equipments to an appropriate waste disposal centre.
Environment friendly disposal
cleaning in-process and f inishing n ecklaces, f inger rings, earrings
etc. With machine's 65 ℃ heating devise, the polishing wax on
the surface of the in process articles will be cleaned out.
(2). Chemical lab:
(1). Jewelry manufacturer and gem store:
cleaning test tube.
(3). Dental clinic:
Cleaning dental drill, dental forceps during their sanitizing.
3
USE EXTENT
2
SAFETY INTRODUCTIONS
Do not fill the tank
with abrasives or
corrosive chemicals.
Do not immerse the
unit into water to
avoid electric shock.
Never operate this unit if cord or plug is damaged. If it is not
working properly, damaged or has been dropped into water, return
the damaged unit to a service centre for examination and repair.
Do not disassemble
the unit except for the
authorized technician.
Unplug the unit before
filling. Do not exceed
the"MAX"mark.
Do not touch the
socket with wet hand
to avoid electric shock.
Use the unit properly as per its instruction manual. Do not use
attachments not recommended by the manufacturer.
The unit should never
be left unattended
when plugged in.
Keep the unit and the
cord away heated sur-
faces, and place it on
the dry and level
surface.
SAVE THESE INSTRUCTIONS
WARNING-To reduce the risk of burn or injury to persons
！
Never drop or insert any object into any opening or hose.
Never block the air openings of the unit or place it on a soft surface, such as a bed or
couch, where the air openings may be blocked. Keep the air openings free of lint, hair,
and the like.
Do not use this unit when
sleeping or drowsy, and
do not use outdoors or
operate where aerosol
(spray) products are being
used or where oxygen is
being administered.
BIJOUTERIE
Hawksbill, Pearl, emerald,
Ivory, Coral, Agate.
PRECIOUS METAL
Soldering metal, electro
plating metal, bindings
WATCH
Watch, Pocket watch
OTHERS
Wood, Glass, contact lens,
ceramic, camera colored filter.
Maybe the less rigidity of hawksbill or coral will be
scrubbed, color changed or brightness lost caused by
the rubbing of one object or surface against another.
Be broken off will be happened to the unsolid point of
the soldering and binding items by ultrasonic cleaning.
The cracked electro plating will be enlarged after
cleaning
The water will be in the watch movement of little
waterproof function for the ultrasonic strong osmosis
occasionally.
(Except the waterproof watch
under 30m or more)
WHAT CAN NOT BE CLEANED
Maybe rift of ceramic, wooden items, or laminated
glasses will be enlarged by ultrasonic cleaning. (It
won't be happened for the item in perfect condition).
(4). Family:
C leaning nursing bottles, rubber nipples and baby tools
effectively. And b etter a nd fa ster t han o t her mini ultrasonic
cleaner.
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working
electrical equipments to an appropriate waste disposal centre.
Environment friendly disposal
DIRT ELIMINATION PROCESSES
Many tiny bubbles are
created when ultrasonic
sound is passed through
liquid.
Bubble are imploded
constantly under the
ultrasonic.
The dirt splits into tinys
and separate from the
item to create cleaning
result
5
FEATURES AND ACCESSORIES
(6). Precision machinery repair:
4
cleaning pneumatic valve, hydraulic directional control valve, overflow
valve, fuel injection nozzle, precision gear driving sets and bearings,
the excellent cleaning result can achieve, the deepest dirt and grease
inside the tiny lacuna can be cleaned out. After refresh the new
lubricating grease, just like giving the new life to these parts.
Remark: To oxidative silver or tin tableware , it can't be removed with plain water.
Chemical method is used for this problem. The ultrasonic cleaner is just for cleaning dirt or dust.
Be kept cleaning and storage well everyday can postpone the oxidative phenomena.
(5). Restaurant:
Cleaning and maintaining high-quality engraved tableware like
handle of knives, forks as well as the filter of the coffee machine,
incredible cleaning effect can get.
SUGGESTED APPLICATIONS
DIRT ELIMINATION PROCESSES
Many tiny bubbles are
created when ultrasonic
sound is passed through
liquid.
Bubble are imploded
constantly under the
ultrasonic.
The dirt splits into tinys
and separate from the
item to create cleaning
result
5
FEATURES AND ACCESSORIES
(6). Precision machinery repair:
4
cleaning pneumatic valve, hydraulic directional control valve, overflow
valve, fuel injection nozzle, precision gear driving sets and bearings,
the excellent cleaning result can achieve, the deepest dirt and grease
inside the tiny lacuna can be cleaned out. After refresh the new
lubricating grease, just like giving the new life to these parts.
Remark: To oxidative silver or tin tableware , it can't be removed with plain water.
Chemical method is used for this problem. The ultrasonic cleaner is just for cleaning dirt or dust.
Be kept cleaning and storage well everyday can postpone the oxidative phenomena.
(5). Restaurant:
Cleaning and maintaining high-quality engraved tableware like
handle of knives, forks as well as the filter of the coffee machine,
incredible cleaning effect can get.
SUGGESTED APPLICATIONS
FOUR DIFFERENT WAYS OF CLEANING
Only using normal tap water
Put the item on the mesh screening, and then put the
mesh screening into the stainless steel tank. Keep the
item is immerged in the water, ensure the water is
above "MIN-" marking but does not exceed the "MAX-"
marking.
1
Put the item to be cleaned on the mesh screening, then
fill the water. Ensure the item is immerged in the water;
the water level should above the "MIN-" marking, but
does not exceed the"MAX-" marking. Put the plug and
press the "ON" button.
TURN ON THE HEATER, ENHANCE CLEANING:
Used to clean the polishing wax on the surface of semi finished rings, necklace etc.
If need reduce the time of heating, can put in
some warm water, but can't put in boiled water.
GENERAL CLEANING
Note: On the cleaning, the dirt appeared from the
item, just looks like "smoking", meanwhile, the
clean water changed to be dirty. When there is no
"Smoking" appeared, the item is clean now, no need
to clean more times. (Usually in 180s is enough).
If the water is dirty, change the dirty water with
clean water, go on cleaning another item.
Press the "TC" button, the heater is working, around 40
minutes later, the temperature of the water is about 65℃,
the heater will auto shut off.
Press "SET" button, choose one circle from 280/380/480S, then press "ON" button, the
unit start to work.
Note: Using 65℃ warm water, it can melt the polishing wax on the surface of the item, it also
can soft the oiled dirt, therefore, can enhance cleaning.
7
2
REGARDING 5 DIGITAL TIME CHOOSING
It will automatically display 180S when power at the first time,
It is the most common cleaning time. Pressing ON, it begins
cleaning. The time displayed is the time left. When the time
"000 " is displayed, the unit will automatically stop.
Pressing SET, there is a new time displayed, every time press
SET, it will change to the next time display. It usually use for
the first time cleaning of the product, the dirt staying on the
product is long, so it needs more time to clean.
It usually use for the first time cleaning of several products
together. Choosing this for shorten the cleaning process.
It usually use for cleaning the greasy valve, greasy gear,
greasy bearing and such as these metal parts, when choosing
this time, using the heater together. This function can soften
the oils to increase the cleaning result.
There still has dirt likes smoke come out when it closes to
finish the 180s cleaning. Using this step.
This step is usually taken after finishing the above steps, but
the water in tank is dirty, replacing with clean water and then
cleaning another 90s to keep clean of the product's surface.
Long time cleaning may cause the original unfirm screw
on the product, the original unfirm inlaid product become
loosen.
6
FOUR DIFFERENT WAYS OF CLEANING
Only using normal tap water
Put the item on the mesh screening, and then put the
mesh screening into the stainless steel tank. Keep the
item is immerged in the water, ensure the water is
above "MIN-" marking but does not exceed the "MAX-"
marking.
1
Put the item to be cleaned on the mesh screening, then
fill the water. Ensure the item is immerged in the water;
the water level should above the "MIN-" marking, but
does not exceed the"MAX-" marking. Put the plug and
press the "ON" button.
TURN ON THE HEATER, ENHANCE CLEANING:
Used to clean the polishing wax on the surface of semi finished rings, necklace etc.
If need reduce the time of heating, can put in
some warm water, but can't put in boiled water.
GENERAL CLEANING
Note: On the cleaning, the dirt appeared from the
item, just looks like "smoking", meanwhile, the
clean water changed to be dirty. When there is no
"Smoking" appeared, the item is clean now, no need
to clean more times. (Usually in 180s is enough).
If the water is dirty, change the dirty water with
clean water, go on cleaning another item.
Press the "TC" button, the heater is working, around 40
minutes later, the temperature of the water is about 65℃,
the heater will auto shut off.
Press "SET" button, choose one circle from 280/380/480S, then press "ON" button, the
unit start to work.
Note: Using 65℃ warm water, it can melt the polishing wax on the surface of the item, it also
can soft the oiled dirt, therefore, can enhance cleaning.
7
2
REGARDING 5 DIGITAL TIME CHOOSING
It will automatically display 180S when power at the first time,
It is the most common cleaning time. Pressing ON, it begins
cleaning. The time displayed is the time left. When the time
"000 " is displayed, the unit will automatically stop.
Pressing SET, there is a new time displayed, every time press
SET, it will change to the next time display. It usually use for
the first time cleaning of the product, the dirt staying on the
product is long, so it needs more time to clean.
It usually use for the first time cleaning of several products
together. Choosing this for shorten the cleaning process.
It usually use for cleaning the greasy valve, greasy gear,
greasy bearing and such as these metal parts, when choosing
this time, using the heater together. This function can soften
the oils to increase the cleaning result.
There still has dirt likes smoke come out when it closes to
finish the 180s cleaning. Using this step.
This step is usually taken after finishing the above steps, but
the water in tank is dirty, replacing with clean water and then
cleaning another 90s to keep clean of the product's surface.
Long time cleaning may cause the original unfirm screw
on the product, the original unfirm inlaid product become
loosen.
6
1
OPERATION INSTRUCTIONS
Open the lid, putting the products in the shift in line
and then putting the shift in the tank.
To avoid the scratch and friction of the products,
do not lap them over.
Add the water in the stainless steel tank, the water
should over the surface of the product but within the
range of MIN mark and MAX mark.
Inserting one side of the detachable plug and cord into
the body of the machine, the other to the socket.
(See picture).
180s will be displayed when the power is on. Press ON,
it begins cleaning. 180s is the most common working
cycle. During cleaning, the time displayed on the screen
is the time left.
Pressing "SET", you can choose 5 optional working
cycle: 180S 280S 380S 480S 90S
Red
Note: After cleaning, the water always changed to be"black", push away the dirty
water, and wipe the stainless steel tank, using clean tap water, then cleaning again
using normal way, until can't see the "smoking" dirt, it means cleaning is finished.
Using mesh screening can avoid the attrition between the item and stainless steel tank,
it also can reduce the attrition between items.
When put the item and mesh screening into the tank, the unit also can clean the mesh
screening, therefore, the mesh screening can absorb 15% ultrasonic energy. (Plastic
basket can absorb 20% ultrasonic energy.)
How to use mesh screening
2
9
When cleaning the table wares, the table wares
should keep level. If the table wares overlap together,
while cleaning the items, attrition can be happened,
the table wares will lose gloss as the scrap.
If the item with too much oiled dirt, can use 1 spoons
liquid soap (about 4 ml).
Press "SET" button, choose one circle from 280/380/480S, then press "ON" button, the
unit start to work.
As using liquid soap, so need to wash the item again with clean water, or using clean
water go on cleaning 90S, in order to clear away the liquid soap.
Note: The liquid soap is neutral liquid and very normal for home using, it is "soft" chemical
liquid. Using a little in ultrasonic cleaning, can soft the oiled dirt, to make the oiled dirt can't
condense again on the surface of the item, to enhance result of cleaning.
Put the item on the mesh screening, and then put the
mesh screening into the stainless steel tank. Keep the
item is immerged in the water, ensure the water is above
"MIN-" marking but does not exceed the "MAX-" marking.
3
PUT A LITTLE LIQUID WASH SOAP TO ENHANCE CLEANING:
STRENGTHENED CLEANING FOR CLEANING OILED DIRTY PARTS
Using to clean pneumatic valve, hydraulic directional control valve, fuel injection
precision gear driving sets and bearings which with too much oiled dirt.
This cleaning way also means +
2 3
Used to clean the knife, fork, spoon which with too much oiled dirt. (If with less oiled
dirt, can according to ).
2
put the item on the mesh screening, and then put the
mesh screening into the stainless steel tank. Keep the
item is immerged in the water, ensure the water is
above"MIN-" marking but does not exceed the "MAX-"
marking.
Press the "TC" button, the heater is working, around 40
minutes later, the temperature of the water is about 65℃,
the heater will auto shut off. Then put 1 spoons liquid
soap (about 4ml), press "SET" button, choose 480S time
circle, then press"ON" button, the unit start to work.
8
4
1
OPERATION INSTRUCTIONS
Open the lid, putting the products in the shift in line
and then putting the shift in the tank.
To avoid the scratch and friction of the products,
do not lap them over.
Add the water in the stainless steel tank, the water
should over the surface of the product but within the
range of MIN mark and MAX mark.
Inserting one side of the detachable plug and cord into
the body of the machine, the other to the socket.
(See picture).
180s will be displayed when the power is on. Press ON,
it begins cleaning. 180s is the most common working
cycle. During cleaning, the time displayed on the screen
is the time left.
Pressing "SET", you can choose 5 optional working
cycle: 180S 280S 380S 480S 90S
Red
Note: After cleaning, the water always changed to be"black", push away the dirty
water, and wipe the stainless steel tank, using clean tap water, then cleaning again
using normal way, until can't see the "smoking" dirt, it means cleaning is finished.
Using mesh screening can avoid the attrition between the item and stainless steel tank,
it also can reduce the attrition between items.
When put the item and mesh screening into the tank, the unit also can clean the mesh
screening, therefore, the mesh screening can absorb 15% ultrasonic energy. (Plastic
basket can absorb 20% ultrasonic energy.)
How to use mesh screening
2
9
When cleaning the table wares, the table wares
should keep level. If the table wares overlap together,
while cleaning the items, attrition can be happened,
the table wares will lose gloss as the scrap.
If the item with too much oiled dirt, can use 1 spoons
liquid soap (about 4 ml).
Press "SET" button, choose one circle from 280/380/480S, then press "ON" button, the
unit start to work.
As using liquid soap, so need to wash the item again with clean water, or using clean
water go on cleaning 90S, in order to clear away the liquid soap.
Note: The liquid soap is neutral liquid and very normal for home using, it is "soft" chemical
liquid. Using a little in ultrasonic cleaning, can soft the oiled dirt, to make the oiled dirt can't
condense again on the surface of the item, to enhance result of cleaning.
Put the item on the mesh screening, and then put the
mesh screening into the stainless steel tank. Keep the
item is immerged in the water, ensure the water is above
"MIN-" marking but does not exceed the "MAX-" marking.
3
PUT A LITTLE LIQUID WASH SOAP TO ENHANCE CLEANING:
STRENGTHENED CLEANING FOR CLEANING OILED DIRTY PARTS
Using to clean pneumatic valve, hydraulic directional control valve, fuel injection
precision gear driving sets and bearings which with too much oiled dirt.
This cleaning way also means +
2 3
Used to clean the knife, fork, spoon which with too much oiled dirt. (If with less oiled
dirt, can according to ).
2
put the item on the mesh screening, and then put the
mesh screening into the stainless steel tank. Keep the
item is immerged in the water, ensure the water is
above"MIN-" marking but does not exceed the "MAX-"
marking.
Press the "TC" button, the heater is working, around 40
minutes later, the temperature of the water is about 65℃,
the heater will auto shut off. Then put 1 spoons liquid
soap (about 4ml), press "SET" button, choose 480S time
circle, then press"ON" button, the unit start to work.
8
4
USER MAINTENANCE
1
2
This machine has taken several measurements to protect the
circuit, but if working without water (over 20 seconds) will
short the life of the machine.
Damage will be occurred if works without water.
This machine has a circuit protecting it when over heat.
Stop 15 minutes if working for 3 working cycles continuously
to prolong the life of the machine is recommended.
3
Unplug and empty the unit after using.
Do not keep water in the tank for a long time.
4
Wipe the tank and unit with dry towel.
Do not wash the complete unit with water to avoid the
risk of shock.
Keep in cool and dry place.
11
5
Red
Press "ON" button to start cleaning while the right green
indication light is on.
During cleaning, you can hear the "BUZZ" voice,
it means the unit is working .
This machine has a circuit protecting it when over heat. When the right red indication light
is on, it means this circuit works. If pressing ON, the time left will be displayed but there is
no ultrasonic wave. The machine needs to stop working for 15 minutes, then pressing ON
and the right green light is on, the machine can work normally.
4
10
Red
3
When cleaning is finished, unplug it and open the lid,
then take out the item. At last, pour away the water
from stainless steel tank and wipe it up.
5
When the timer counts down "000 ", the unit will automa-
tically stop. If required you can stop / pause the cleaning
process at any time by pressing the OFF button, pressing
the ON button again will resume the cleaning and the
countdown will continue. When cleaning has finished,
you can repeat the process by pressing ON button again.
Green
Using the HEATER function.
Pressing the TC button starts the built in heater. The
red LED on the left of the control panel will illuminate.
The water will heat to a maximum of 65 degrees C.
Please refer to the point of four different ways of
cleaning for details.
2
If required, you can stop / pause the cleaning process at
any time by pressing the OFF button, pressing ON again
will resume the cleaning and the countdown will continue.
The program can be reset at any time by pressing the SET
button.
USER MAINTENANCE
1
2
This machine has taken several measurements to protect the
circuit, but if working without water (over 20 seconds) will
short the life of the machine.
Damage will be occurred if works without water.
This machine has a circuit protecting it when over heat.
Stop 15 minutes if working for 3 working cycles continuously
to prolong the life of the machine is recommended.
3
Unplug and empty the unit after using.
Do not keep water in the tank for a long time.
4
Wipe the tank and unit with dry towel.
Do not wash the complete unit with water to avoid the
risk of shock.
Keep in cool and dry place.
11
5
Red
Press "ON" button to start cleaning while the right green
indication light is on.
During cleaning, you can hear the "BUZZ" voice,
it means the unit is working .
This machine has a circuit protecting it when over heat. When the right red indication light
is on, it means this circuit works. If pressing ON, the time left will be displayed but there is
no ultrasonic wave. The machine needs to stop working for 15 minutes, then pressing ON
and the right green light is on, the machine can work normally.
4
10
Red
3
When cleaning is finished, unplug it and open the lid,
then take out the item. At last, pour away the water
from stainless steel tank and wipe it up.
5
When the timer counts down "000 ", the unit will automa-
tically stop. If required you can stop / pause the cleaning
process at any time by pressing the OFF button, pressing
the ON button again will resume the cleaning and the
countdown will continue. When cleaning has finished,
you can repeat the process by pressing ON button again.
Green
Using the HEATER function.
Pressing the TC button starts the built in heater. The
red LED on the left of the control panel will illuminate.
The water will heat to a maximum of 65 degrees C.
Please refer to the point of four different ways of
cleaning for details.
2
If required, you can stop / pause the cleaning process at
any time by pressing the OFF button, pressing ON again
will resume the cleaning and the countdown will continue.
The program can be reset at any time by pressing the SET
button.
Table of contents
Other Codyson Ultrasonic Jewelry Cleaner manuals
