Coffee Queen CHOCOLINO DUO User manual

CHOCOLINO
CAFÉLINO
USER MANUAL
UM_EN
Part No.: 1764133_01

CHOCOLINO & CAFÉLINO
2
CONTENT
CONTENT.........................................................................................................................................................2
GENERAL............................................................................................................................................................4
Introduction ..............................................................................................................................................................4
Warnings....................................................................................................................................................................4
Precautions................................................................................................................................................................4
Intended use..............................................................................................................................................................4
Facts & weight...........................................................................................................................................................5
OVERVIEW OF COMPONENTS.........................................................................................................6
CHOCOLINO/CAFÉLINO...................................................................................................................................6
Exterior view ............................................................................................................................................................ 6
Interior view..............................................................................................................................................................7
CHOCOLINO/CAFÉLINO DUO....................................................................................................................... 8
Exterior view ............................................................................................................................................................ 8
Interior view..............................................................................................................................................................9
CAFÉLINO TRIO...................................................................................................................................................10
Exterior view ..........................................................................................................................................................10
Interior view............................................................................................................................................................11
Function buttons....................................................................................................................................................12
CHOCOLINO/CAFÉLINO.................................................................................................................................12
CHOCOLINO/CAFÉLINO DUO.....................................................................................................................13
CAFÉLINO TRIO...................................................................................................................................................14
INSTALLATION AND START-UP......................................................................................................15
Positioning................................................................................................................................................................15
Electrical connection.............................................................................................................................................15
Water connection and start-up..........................................................................................................................15

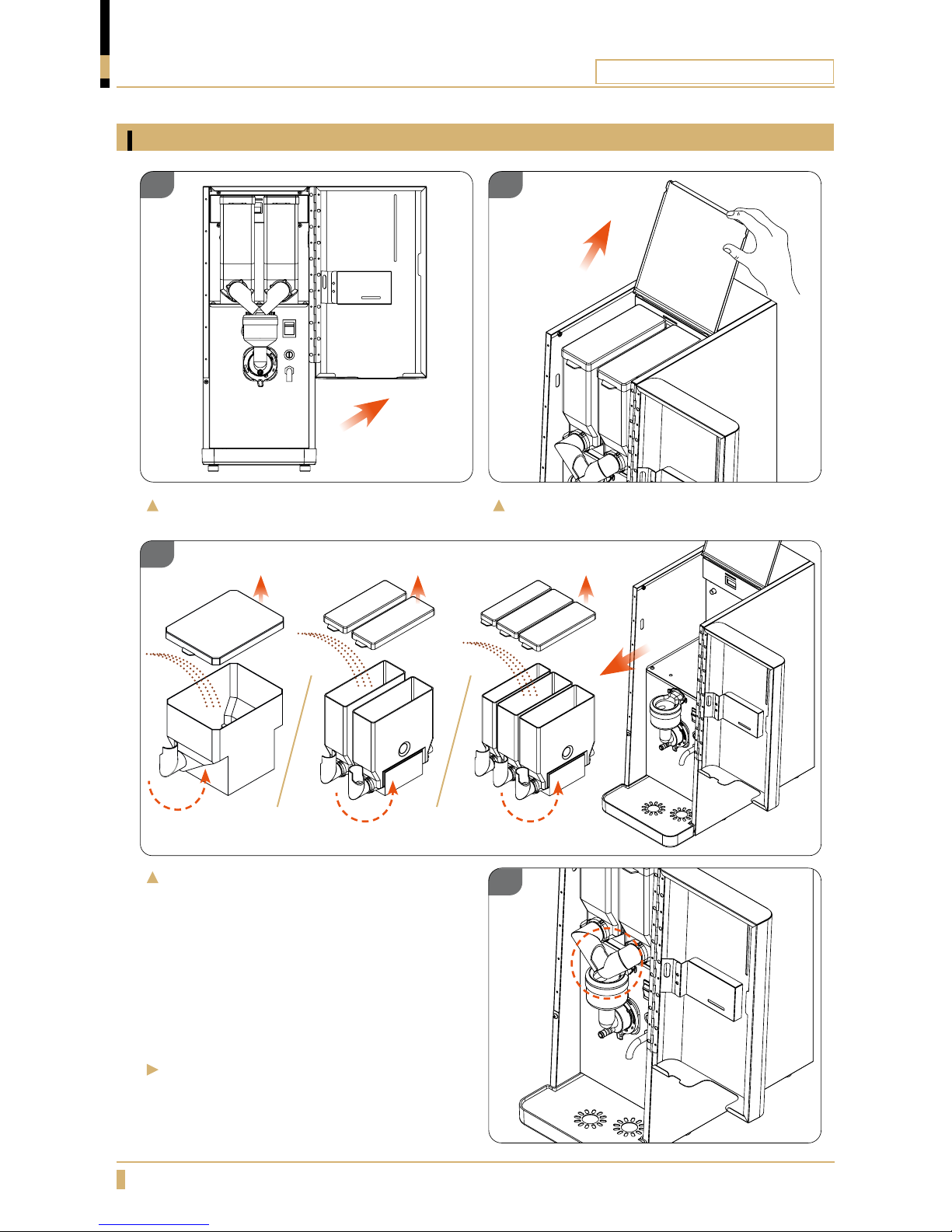

Fill ingredient canisters.........................................................................................................................................16
OPERATION ..................................................................................................................................................17

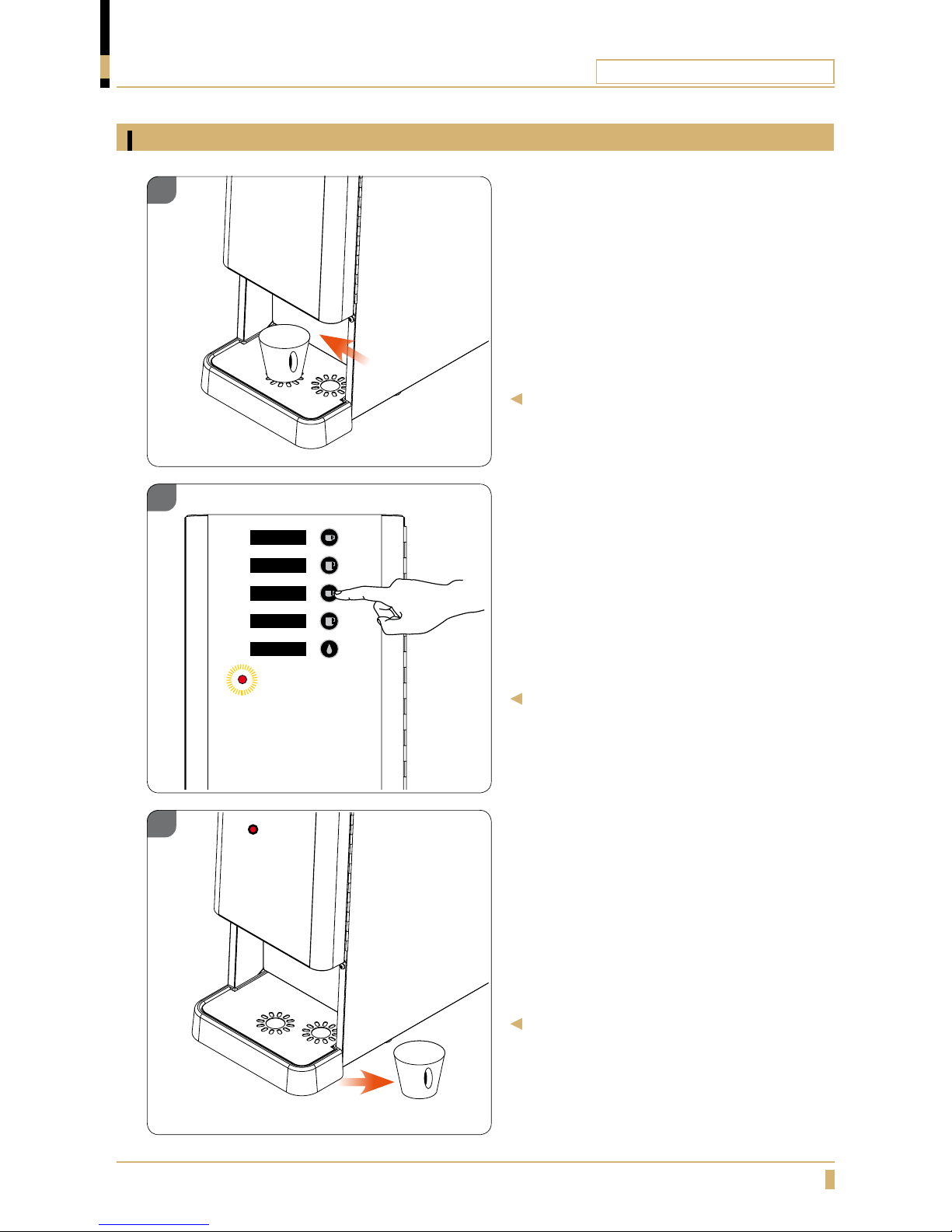

Brewing a cup of drink..........................................................................................................................................17
CLEANING AND CARE.........................................................................................................................18

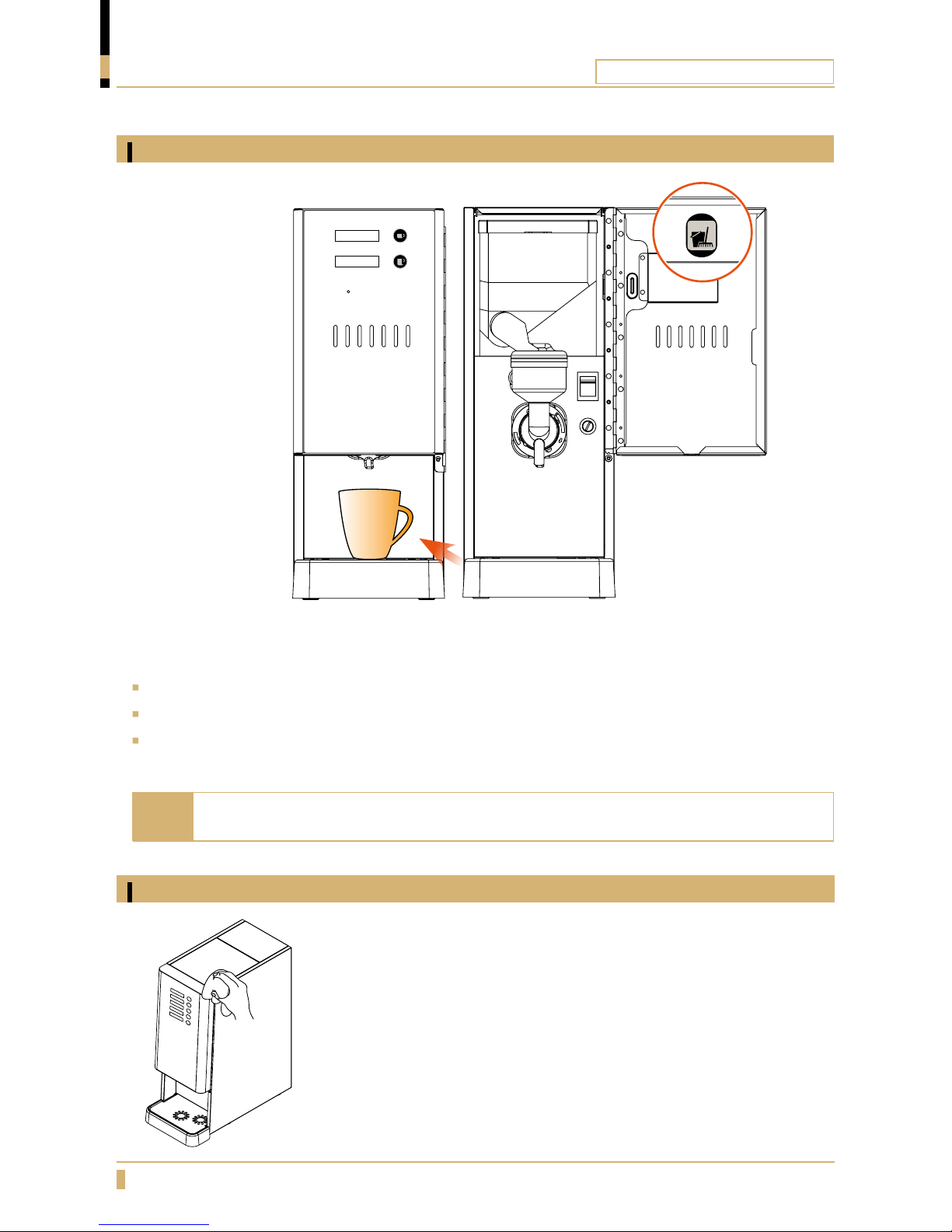

Cleaning once a day...............................................................................................................................................18
Rinsing the mixing system....................................................................................................................................18
Exterior cleaning ....................................................................................................................................................18
Weekly cleaning......................................................................................................................................................19

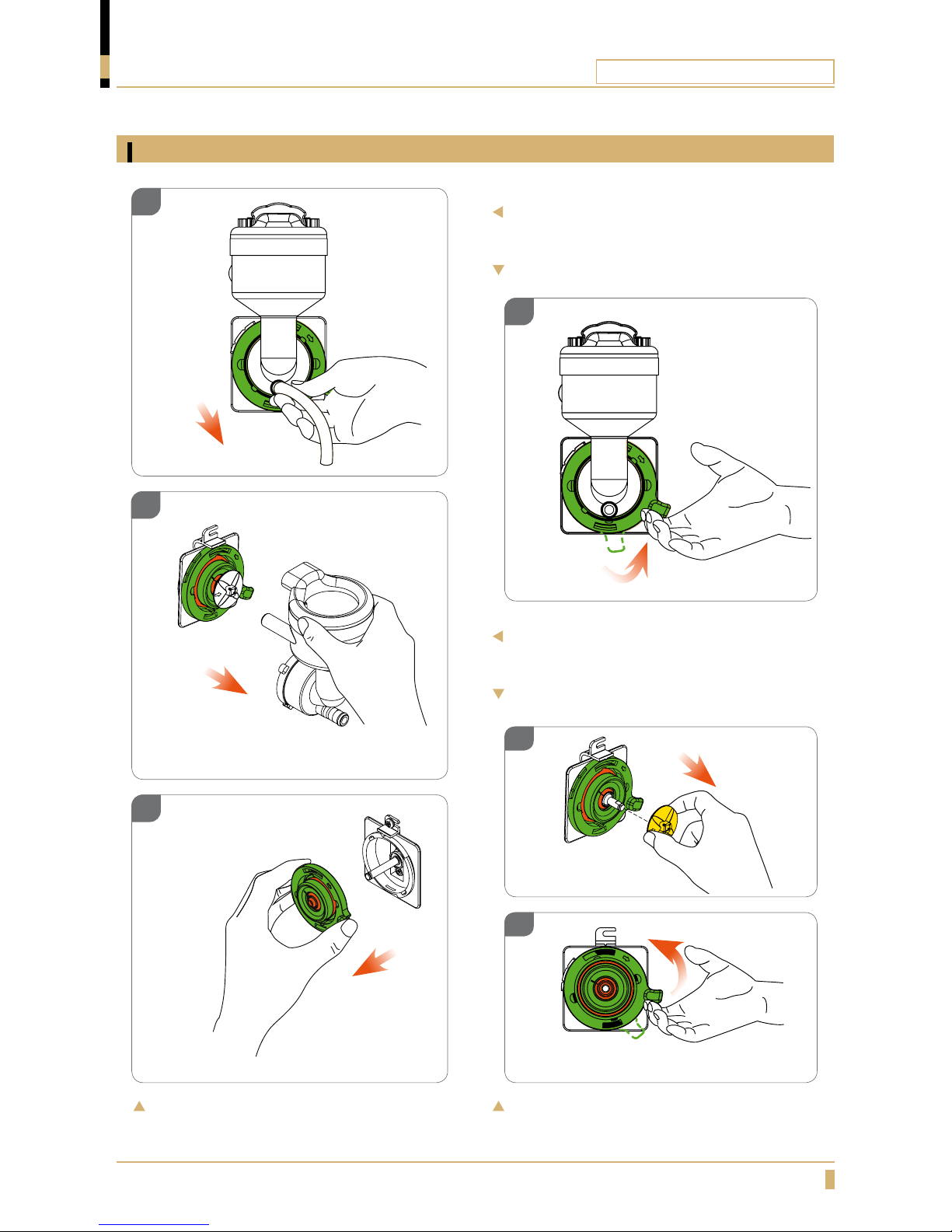

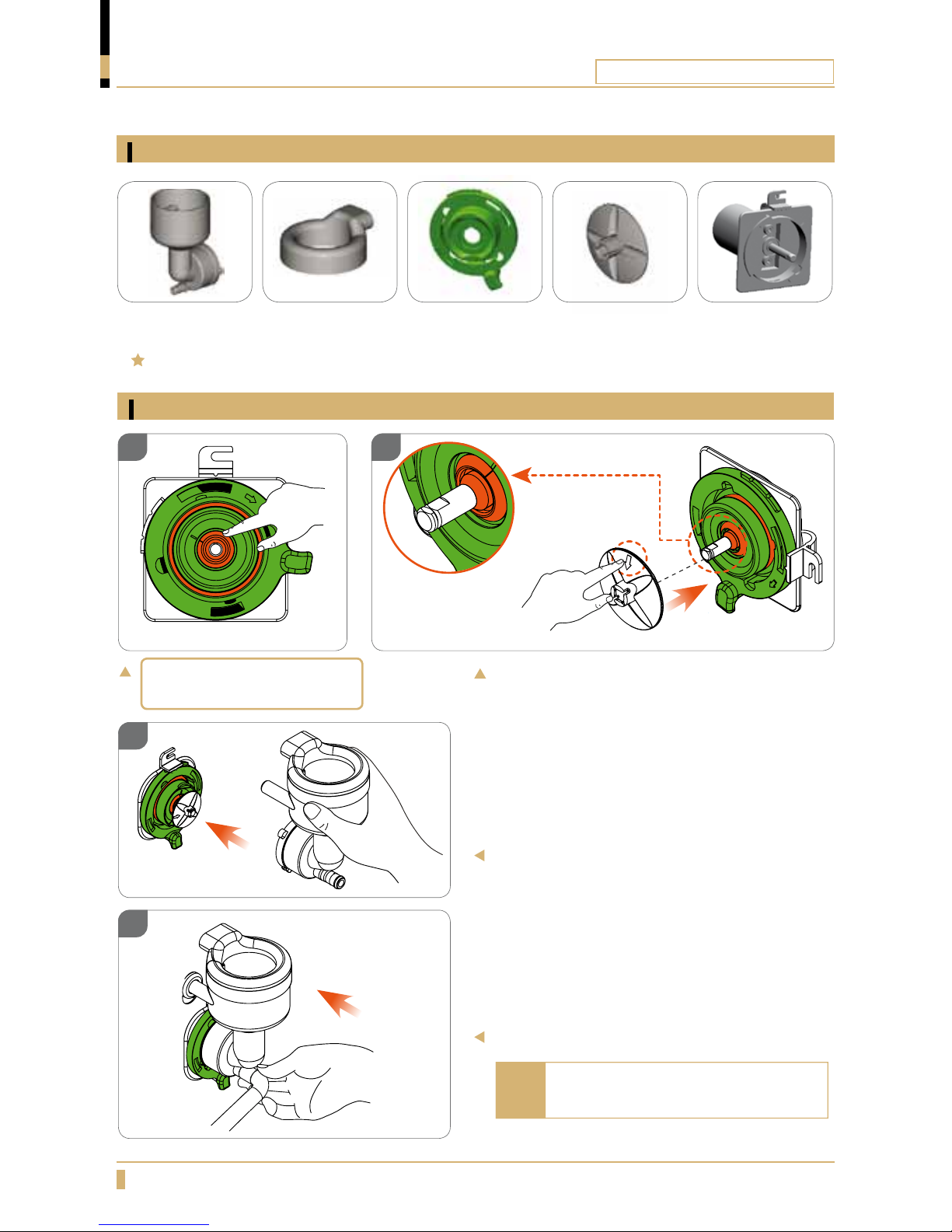

Disassemble mixing system .................................................................................................................................19
Wash these parts ...................................................................................................................................................20
Reassemble mixing system .................................................................................................................................20

CHOCOLINO & CAFÉLINO
3
CONTENT
PROGRAMMING ....................................................................................................................................... 21
Enter the pin code................................................................................................................................................ 21
Adjust drink time settings................................................................................................................................... 22
Adjust recipe values.............................................................................................................................................. 23
CHOCOLINO/CAFÉLINO................................................................................................................................ 23
CHOCOLINO/CAFÉLINO DUO.................................................................................................................... 24
CAFÉLINO TRIO.................................................................................................................................................. 26
Reset cup counter ................................................................................................................................................ 27
STORAGE AND TRANSPORTATION .......................................................................................... 28
Long-term storage and transportation ............................................................................................................ 28
Emptying the water tank ..................................................................................................................................... 28
DIMENSION SKETCH............................................................................................................................. 29
CHOCOLINO/CAFÉLINO................................................................................................................................ 29
CHOCOLINO/CAFÉLINO DUO.................................................................................................................... 30
CAFÉLINO TRIO.................................................................................................................................................. 31
IMPORTANT!
INFO.
CAUTION!
INFO.
More INFO. INFO.
Some important information may appear in textboxes seen below
Note

CHOCOLINO & CAFÉLINO
4
GENERAL
Read the user guide before using the machine.
This guide contains important instructions for
proper and safe use of the vending machine.
Always keep this guide close at hand for future
reference.
Introduction
Thank you for choosing a CHOCOLINO/CAFÉLINO vending machine.
We hope you enjoy it !
Warnings
Never immerse the machine, plug or mains
cable in water because there is a danger of
electric shock.
The appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure they
do not play with the appliance.
Do not use the machine if the mains cable, plug
is damaged or the machine has fallen down.
If the mains cable is damaged it must be
replaced by the manufacturer, service agent or
similarly qualified persons in order to avoid a
hazard.
Only plug the machine into a properly installed
earthed safety socket whose line voltage
matches the technical data for the machine.
Do not use the machine outdoors so it can be
exposed to weather (rain, snow, frost). It will
cause material damage to the machine.
Do not try to open the machine or repair it in
any way.To avoid danger only have the machine
repaired in a technical workshop, Service
Centre or by a qualified person.
Remove the mains cable from the socket when
the machine is not in use for longer periods.To
do this, pull the plug not the cable.
This appliance must be placed in a horizontal
position which is resistant to any water that
may leak.
Place the machine out of the reach of children.
Position the mains cable so that people cannot
trip over it. Keep it away from sharp edges and
heat sources.
The new hose-sets supplied with this appliance
are to be used, old hose-sets must not be re-
used.
This appliance is not suitable for installation in
an area where a pressure washer may be used.
This appliance must not be cleaned with a
pressure washer.
This appliance is intended to be used in
household and similar applications such as:
-Staff kitchen areas in shops.
-Ofces and other commercial working
environments.
-On agricultural estates.
-By clients in hotels, motels and other
residential type environments.
-Bed and breakfast type environments.
For the optimal performance of the machine
these parameters shall not be exceeded:
-Maximum permissible inlet water pressure :
800KPa (8Bar)
- Minimum permissible inlet water pressure:
200KPa (2Bar)
- Maximum working temperature: 40°ºC
- Minimum working temperature: 10°ºC
Precautions
Intended use

CHOCOLINO & CAFÉLINO
5
GENERAL
FACTS CHOCOLINO/CAFÉLINO
SINGLE DUO TRIO
Hot water outlet None Yes Yes
Drink options 2 4 4
Ingredient canister 1 2 3
Electronic temperature
control Yes Ye s Ye s
Cleaning function Yes Ye s Ye s
Brew time 10s/cup 10s/cup 10s/cup
Power supply 220-230V 1N ~2200W 50/60Hz
Water connection Cold water 1/2” R
Height,Width, Depth 460, 180, 450 mm 530, 220, 450 mm 530, 220, 450 mm
MODEL/NAME CHOCOLINO/CAFÉLINO
SINGLE DUO TRIO
Weight 14 kg 17 kg 17 kg
Facts & weight

CHOCOLINO & CAFÉLINO
6
OVERVIEW OF COMPONENTS

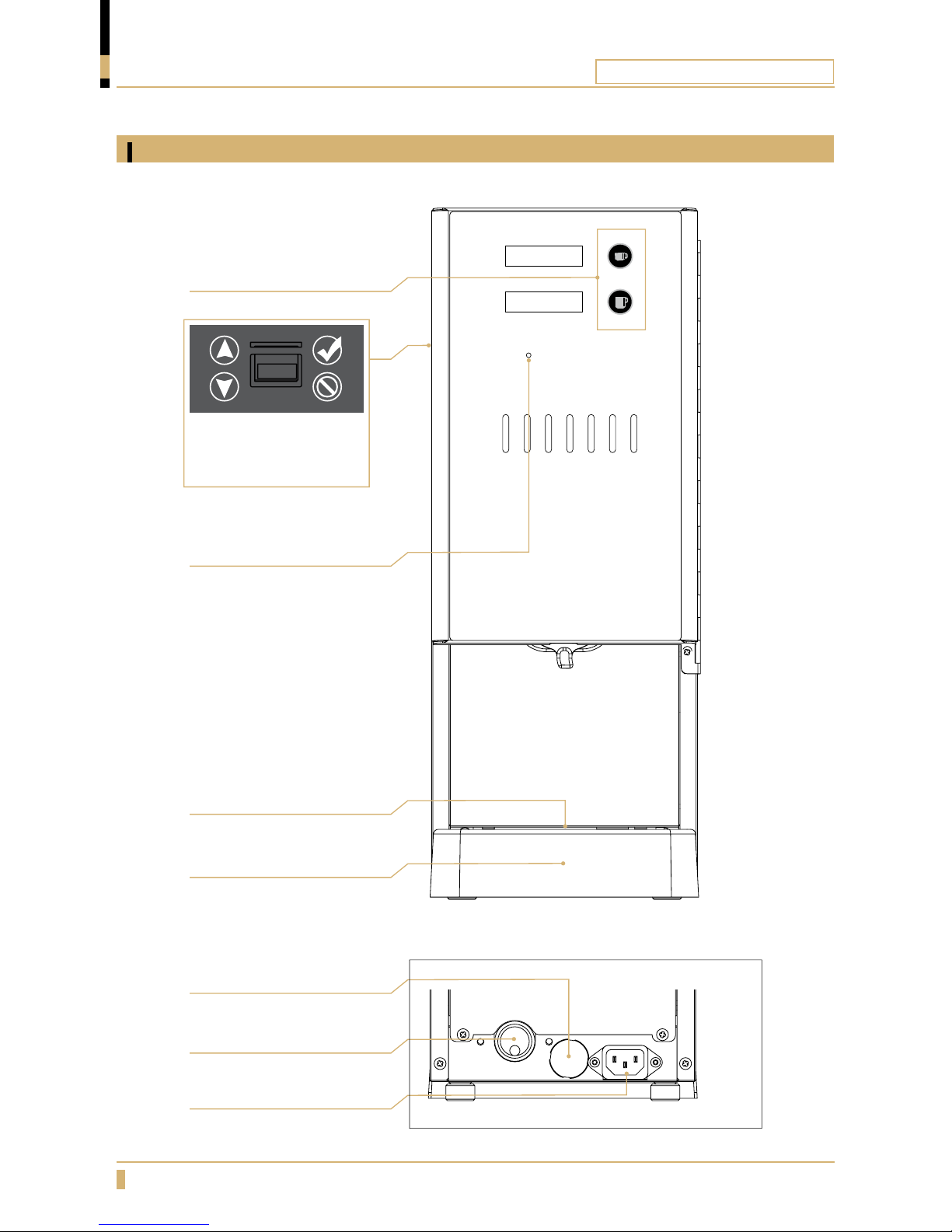

Exterior view
Drink buttons
CHOCOLINO/CAFÉLINO
BACK
Ready lamp
Drip tray
Drip tray insert
Water connection
Power socket
Service plug
(For emptying of water tank)
Programming Switch is
placed behind canister
inside the machine.

CHOCOLINO & CAFÉLINO
7
Ingredient canister
Cleaning button
OVERVIEW OF COMPONENTS

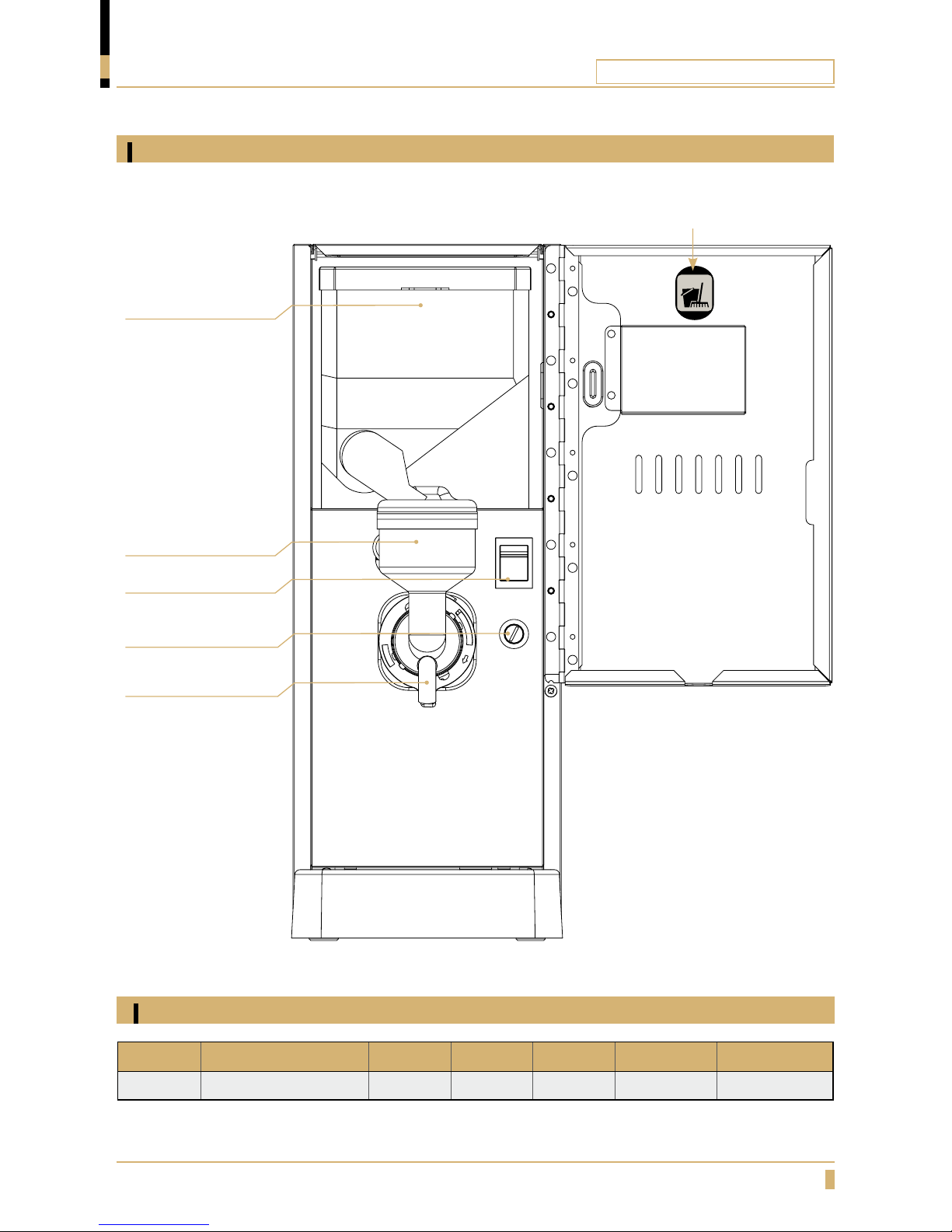

Interior view
CHOCOLINO/CAFÉLINO
Mixing bowl
Power switch
Ingredient canisters
DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT
Canister Coffee / Chocolate 137mm 225mm 156mm 0.55 / 1.2kg ~270 / 65 cups
4 Amp fuse
Drink outlet

CHOCOLINO & CAFÉLINO
8
OVERVIEW OF COMPONENTS
Exterior view
CHOCOLINO/CAFÉLINO DUO
Drink menu
Drink buttons
Programming switch is
placed behind canister
inside the machine.
BACK
Drip tray
Drip tray insert
Service plug
(For emptying of water tank)
Water connection
Power socket

CHOCOLINO & CAFÉLINO
9
OVERVIEW OF COMPONENTS
Interior view
CHOCOLINO/CAFÉLINO DUO
Ingredient canisters
Cleaning button
Mixing bowl
Power switch
Drink outlet
4 Amp fuse
Hot water outlet
Ingredient canisters
DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT
Canister Topping 67mm 225mm 200mm 0.85kg ~100 cups
Canister Coffee / Chocolate 67mm 225mm 200mm 0.35 / 1.1kg ~175 / 55 cups

CHOCOLINO & CAFÉLINO
10
OVERVIEW OF COMPONENTS
Exterior view
CAFÉLINO TRIO
Drink menu
Drink buttons
Programming Switch is
placed behind canister
inside the machine.
BACK
Drip tray
Drip tray insert
Service plug
(For emptying of water tank)
Water connection
Power socket

CHOCOLINO & CAFÉLINO
11
OVERVIEW OF COMPONENTS

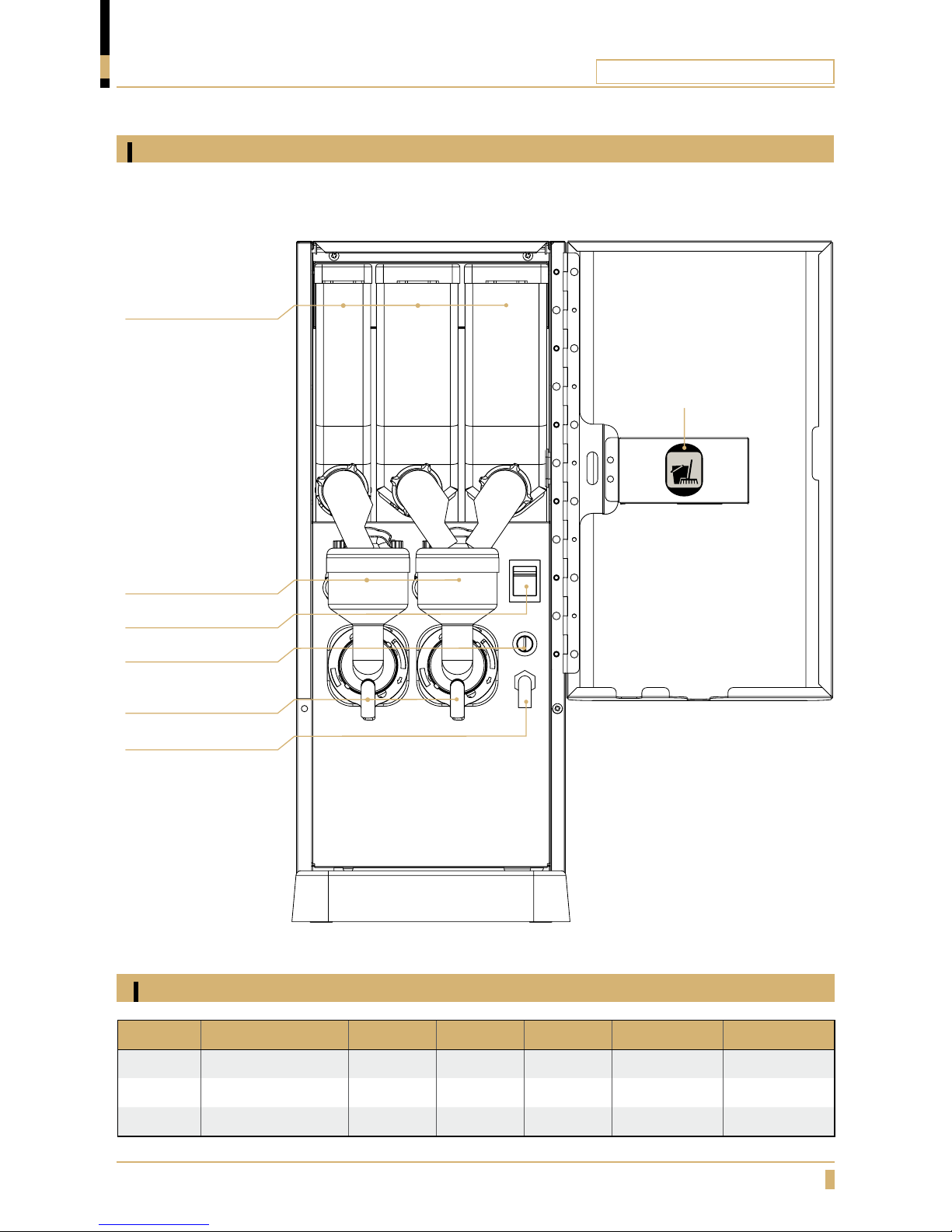

Interior view
CAFÉLINO TRIO
Ingredient canisters
Cleaning button
Mixing bowls
Power switch
Drink outlets
4 Amp fuse
Hot water outlet
Ingredient canisters
DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT
Canister Coffee 45mm 225mm 200mm 0.35kg ~175 cups
Canister Chocolate 67mm 225mm 200mm 1.1kg ~55 cups
Canister Topping 67mm 225mm 200mm 0.45kg ~55 cups

CHOCOLINO & CAFÉLINO
12
OVERVIEW OF COMPONENTS
Function buttons
CHOCOLINO/CAFÉLINO
Ready Lamp
The lamp is lit
constantly when
the machine is
ready.
The lamp ash
when a drink is
being dispensed.
Cleaning of mixing system
CHOCOLINO
CAFÉLINO
Standard cup
Standard cup
Large cup
Large cup
SMALL CHOCOLATE
SMALL COFFEE
CHOCOLATE
COFFEE

CHOCOLINO & CAFÉLINO
13
Standard cup
Standard cup
Standard cup
Standard cup
Large cup
Large cup
Large cup
Large cup
Hot water
Hot water
OVERVIEW OF COMPONENTS

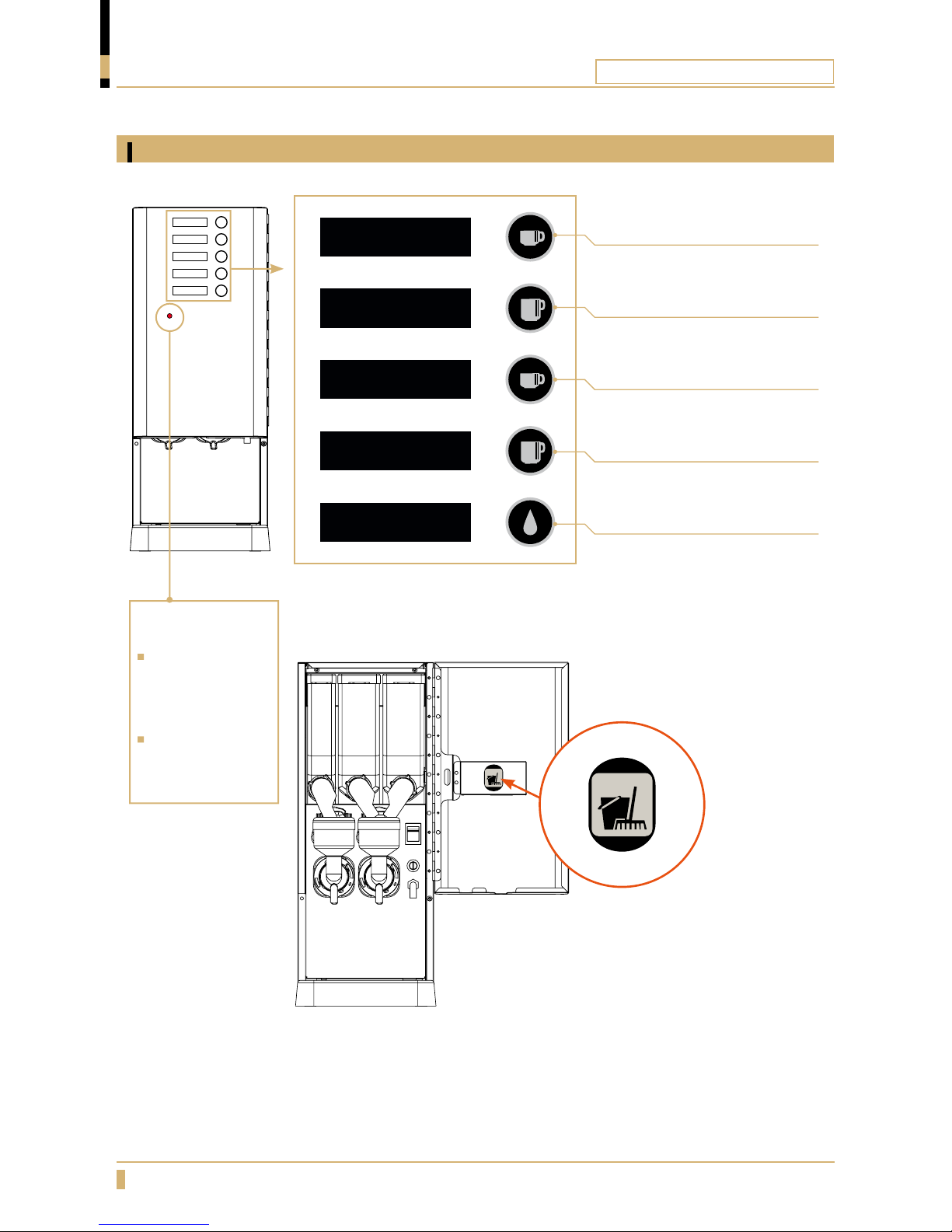

Function buttons
CHOCOLINO/CAFÉLINO DUO
Ready Lamp
The lamp is lit
constantly when
the machine is
ready.
The lamp ash
when a drink is
being dispensed.
Cleaning of mixing system
COCOLATE
SMALL COFFEE
LARGE CHOCOLATE
COFFEE
CHOCOLATE
CAPPUCCINO
LARGE CHOCOLATE
CAFE LATTE
HOT WATER
HOT WATER
CHOCOLINO
CAFÉLINO

CHOCOLINO & CAFÉLINO
14
OVERVIEW OF COMPONENTS
Function buttons
CAFÉLINO TRIO
Standard cup (mixer 1)
Standard cup (mixer 2)
Large cup (mixer 1)
Large cup (mixer 2)
Hot water
Ready Lamp
The lamp is lit
constantly when
the machine is
ready.
The lamp ash
when a drink is
being dispensed.
COFFEE
CAFE LATTE
CAPPUCCINO
CHOCOLATE
HOT WATER
Cleaning of mixing system

CHOCOLINO & CAFÉLINO
15
INSTALLATION AND START-UP
Positioning
Place the machine on a at horizontal surface that will
support the weight of the machine.
Make sure air is able to circulate behind
the machine (minimum 10cm).
Note
Min. 10cm
Water connection and start-up
Connect the supplied water hose to the cold water
connection using a ½’’ R-connection(A).When pushing the
machine into position make sure there is no interference
to the hose to ensure proper water ow.
Water supply to the machine is the customer’s
responsibility according to instruction and advice from the
supplier.
In areas with high level lime problem, a descaling lter
should be mounted.
Open the water tap.
Turn on the power switch(B) inside the door.The water
tank will ll automatically with1.8 litres of water.The
element will not be powered until the water reaches the
level indicator.
The temperature is set to 85º Celsius.
Close the door.
A
B
The new hose set supplied with the appliance shall be used and that old hose sets
shall not be reused. Connection to a closable valve is recommended. Min. water
pressure; 2bar (200kPa). Max. waterpressure; 8bar (800kPa).
Note
Electrical connection
IMPORTANT!
Connect the plug to a separate earthed wall socket.
220-230V 50-60Hz, 10 Amp.

CHOCOLINO & CAFÉLINO
16
01 02
03
04
INSTALLATION AND START-UP
Fill ingredient canisters
Open the door.
Remove the ingredient canisters to avoid
spilling in the machine, ll the canisters with
coffee, chocolate and topping powder.When
lling the powder, keep the opening of the
canister chute upwards.
Reassembly canisters.
When placing the ingredient canisters, ensure
that the openings of the canister chutes point
down toward the mixing bowl (A).
Lift the up lid.
SINGLE DUO TRIO
A

CHOCOLINO & CAFÉLINO
17
OPERATION
Brewing a cup of drink
Place a cup under the drink outlet.
Choose a drink by pressing any of the
buttons, the lamp will start to ash during
dispensing(A).
Wait until the lamp stops ashing before
removing the cup.
01
02
03
A

CHOCOLINO & CAFÉLINO
18
CLEANING AND CARE
Rinsing the mixing system
The mixing bowl can be cleaned easily using the cleaning button located on the inside of the door (See
g.B).We recommend you clean/rinse the entire mixing system at least once a day.
Place a large cup or container in center under the drink outlet. (See g.A)
Press the cleaning button (See g.B)
The machine starts to “knock” the valves and rinsing the mixer and mixer bowl with hot water for 5
seconds.
Cleaning once a day
A
B
Exterior cleaning
When cleaning exterior of the machine, use a soft rag with liquid cleaning
agent to prevent scratches.
Repeat the rinsing procedure 2-3 times to get a better cleaning effect.
Note

CHOCOLINO & CAFÉLINO
19
CLEANING AND CARE
Disassemble mixing system
Turn the mounting plate lever anticlockwise.
Loosen or take out canisters and pull out the
outlet hose.
Loosen the mixing bowl by pulling it straight
out.
Loose the impellor by pulling it straight out.
Loosen the mounting plate.Turn the lever
anticlockwise, until it stops.
Pull the mounting plate straight out.
05
04
01
03
06
02
Weekly cleaning

CHOCOLINO & CAFÉLINO
20
CLEANING AND CARE
Reassemble mixing system
The at side of the whipper shaft must
correspond with the marked arrow on the
whipper.
To t the whipper push onto the shaft until a click
sound can be heard. It is only possible to assemble
the whipper in one way.
Fix the mixing bowl and condensation trap. Push-t
the mixing bowl and x with lever.
Connect the outlet hose.
0201
03
04
Check all seals (red) before
reassembly of parts.
Ensure that all water hoses have been
connected and tted.
Note
Wash these parts
All parts must be dry before reassembly.
Mixing Bowl Condensation Trap Mounting Plate Whipper Clean with a moist
cloth and wipe dry.
Weekly cleaning
