D-Link DCS-2670L User manual

FULL HD 180° OUTDOOR WI-FI CAMERA
DCS-2670L
QUICK
INSTALLATION
GUIDE
INSTALLATIONSANLEITUNG
GUIDE D’INSTALLATION
GUÍA DE INSTALACIÓN
GUIDA DI INSTALLAZIONE
INSTALLATIEHANDLEIDING
INSTRUKCJA INSTALACJI
INSTALAČNÍ PŘÍRUČKA
TELEPÍTÉSI SEGÉDLET
INSTALLASJONSVEILEDNING
INSTALLATIONSVEJLEDNING
ASENNUSOPAS
INSTALLATIONSGUIDE
GUIA DE INSTALAÇÃO
ΟΔΗΓΟΣ ΓΡΗΓΟΡΗΣ ΕΓΚΑΤΑΣΤΑΣΗΣ
VODIČ ZA BRZU INSTALACIJU
KRATKA NAVODILA ZA UPORABO
GHID DE INSTALARE RAPIDĂ

DCS-2670L
2
ENGLISH

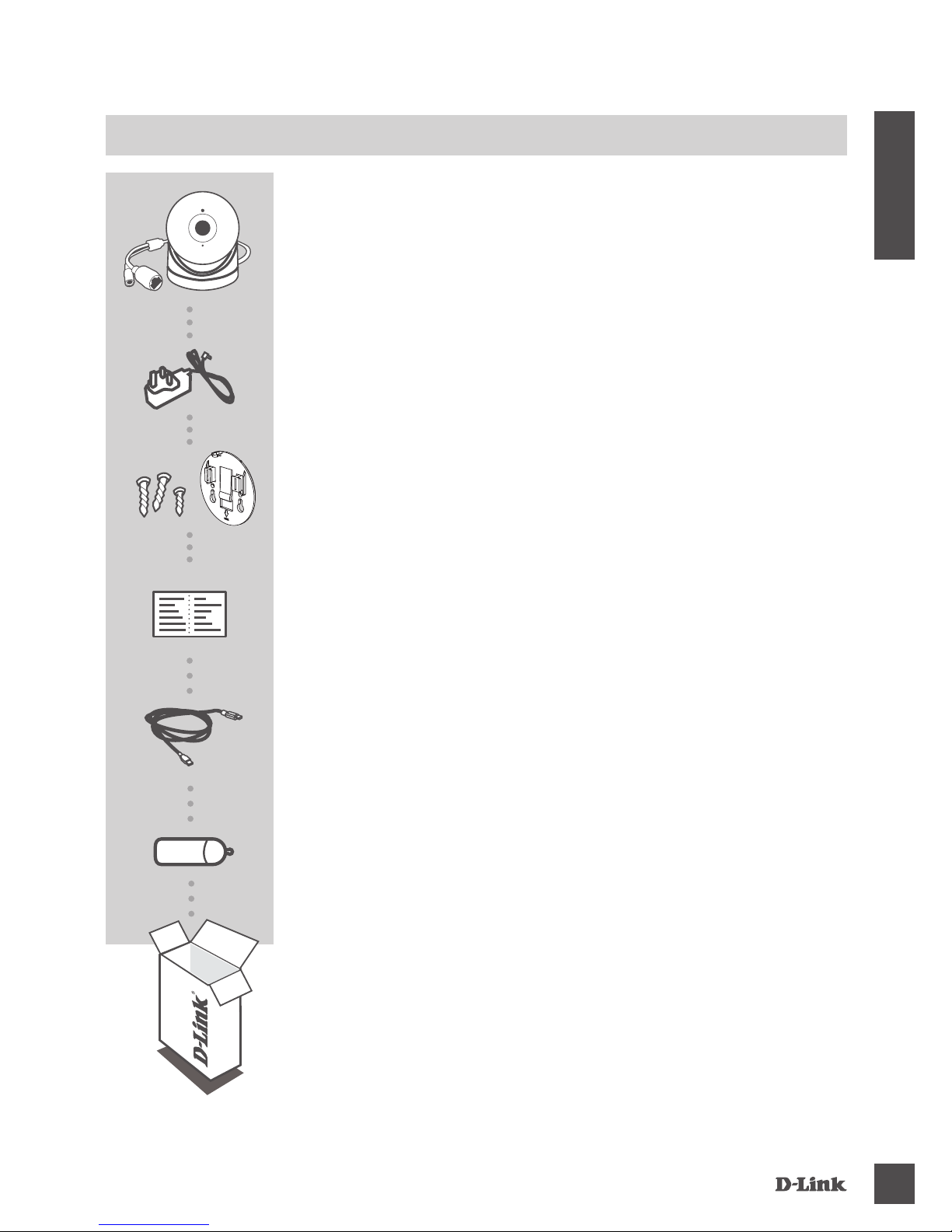

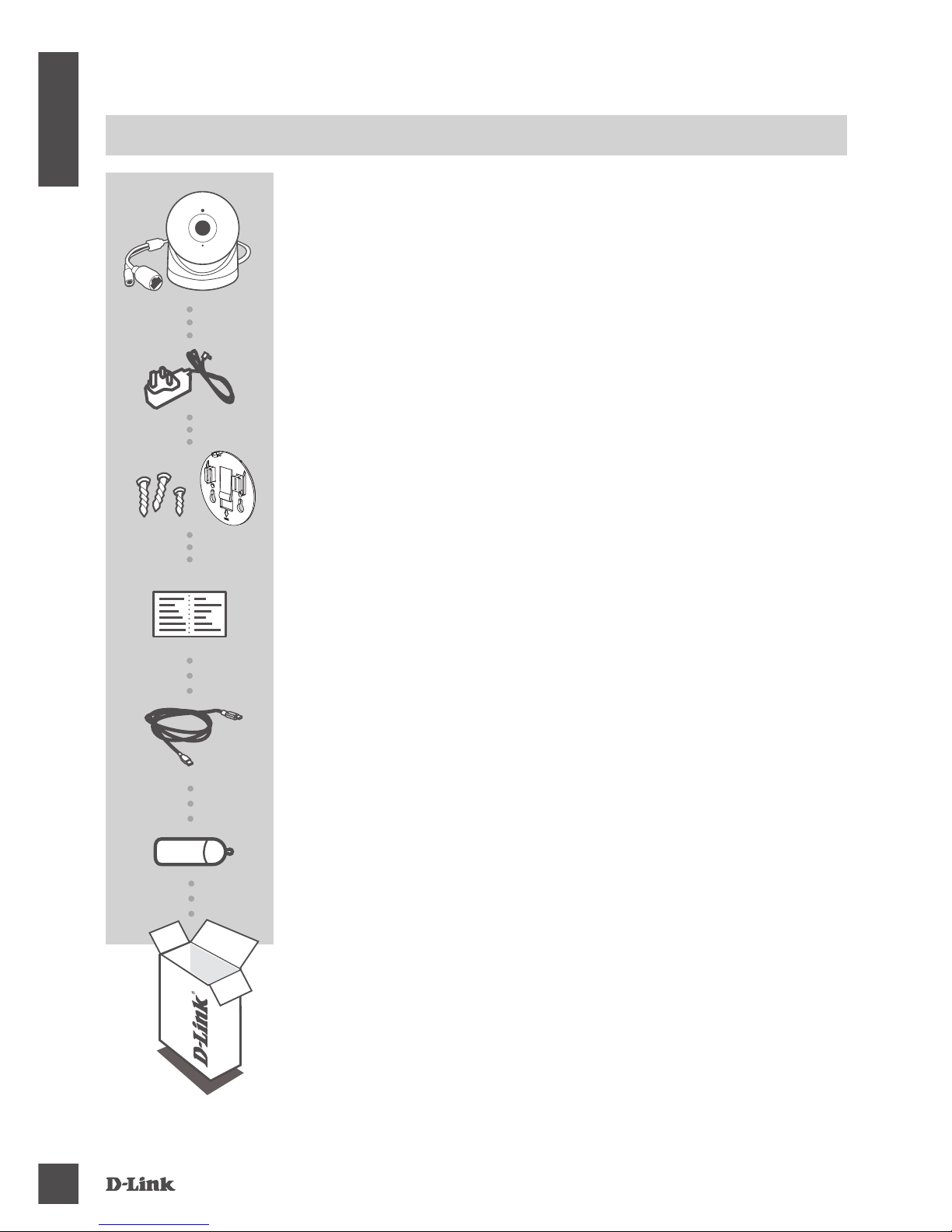

PACKAGE CONTENTS
FULL HD 180° OUTDOOR WI-FI CAMERA
DCS-2670L
MOUNTING KIT
POWER ADAPTER
If any of these items are missing from your package,
contact your reseller.
QUICK INSTALLATION CARD
ETHERNET CABLE
WATERPROOF CABLE CONNECTOR

DCS-2670L 3
ENGLISH
SYSTEM REQUIREMENTS
• A broadband Internet connection
• Existing 10/100 Ethernet-based network or 802.11 n/g/b router (a D-Link
router is recommended)
• iPhone®, iPad®, iPod®touch or Android™ smartphone or tablet (please refer to
the mobile app's store page to check whether your device is compatible)
• A mobile device with Bluetooth 4.0 is required for Bluetooth setup
Please follow the instructions below to set up your mydlink camera.
Congratulations, your DCS-2670L is now ready to use! Be sure to check the
mydlink.com website periodically for the latest firmware updates to keep your
product protected and up to date with the latest features.
Note: If you experience issues registering this camera with your mydlink
account, or if you purchased an open box or resold unit, perform a hard
reset by pressing and holding the Reset button on the device for 10
seconds while the device is powered on. If you are returning the device
to the place of purchase, please perform the hard reset procedure to
clear the device of any personal data.
Step 1: On your mobile device, download mydlink Lite by searching for
mydlink Lite in the iTunes App Store or Google Play.
Step 2: Launch the mydlink Lite app and create a new account or sign in to
your existing account.
Step 3: The app will guide you through the rest of the setup process. When
asked to scan the QR code, use the code on the provided Quick
Install Card or on the device label.
PRODUCT SETUP
SETTING UP YOUR CAMERA WITH MYDLINK LITE

DCS-2670L
4
ENGLISH

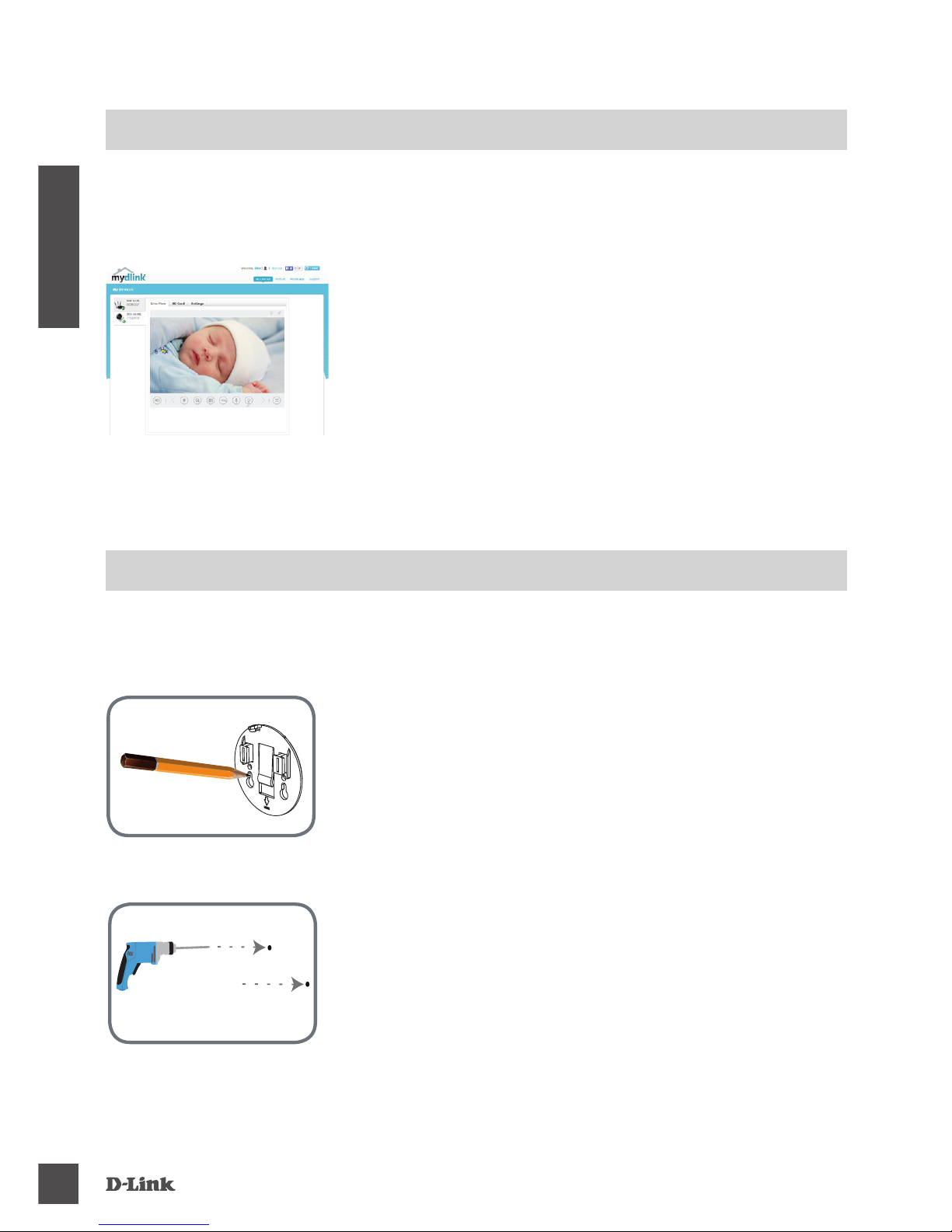

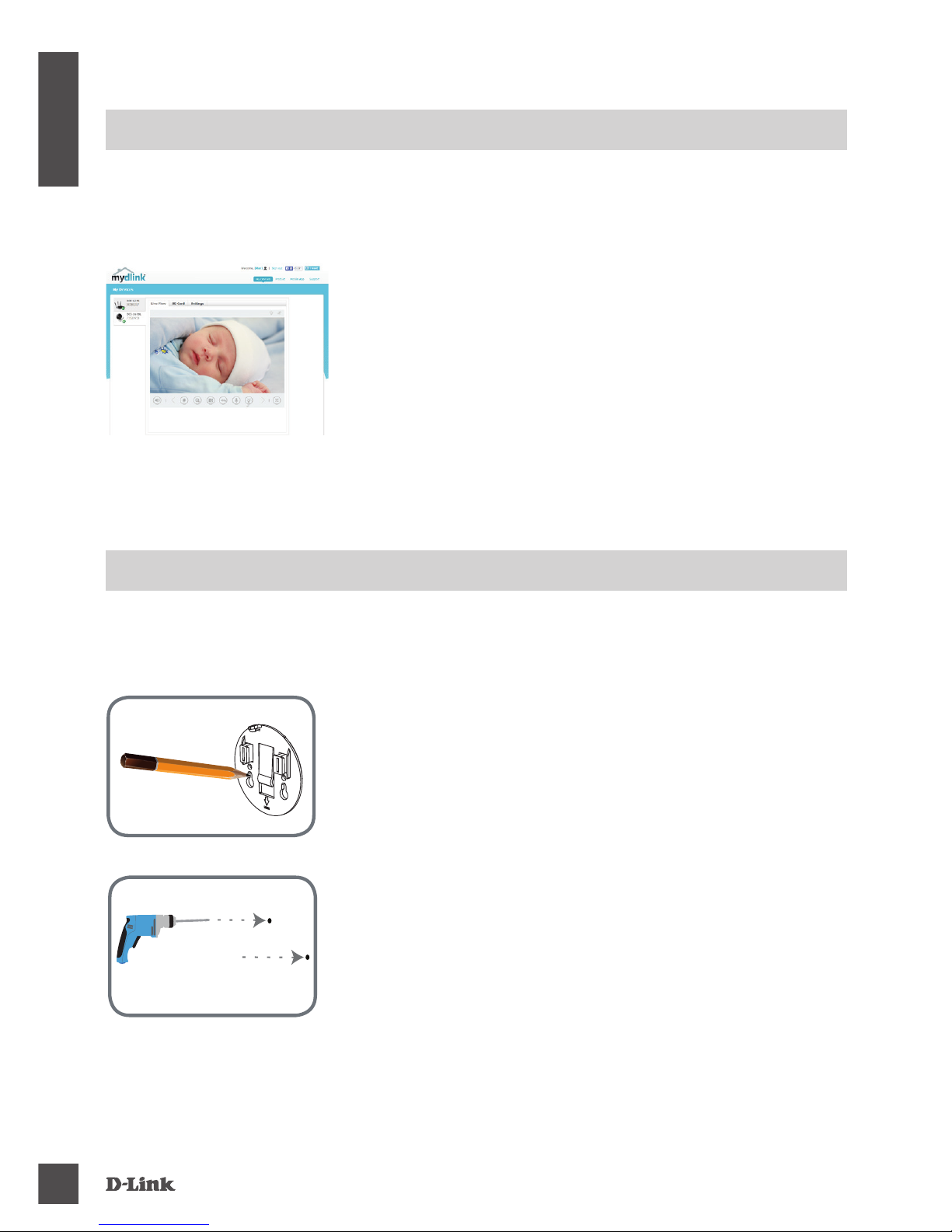

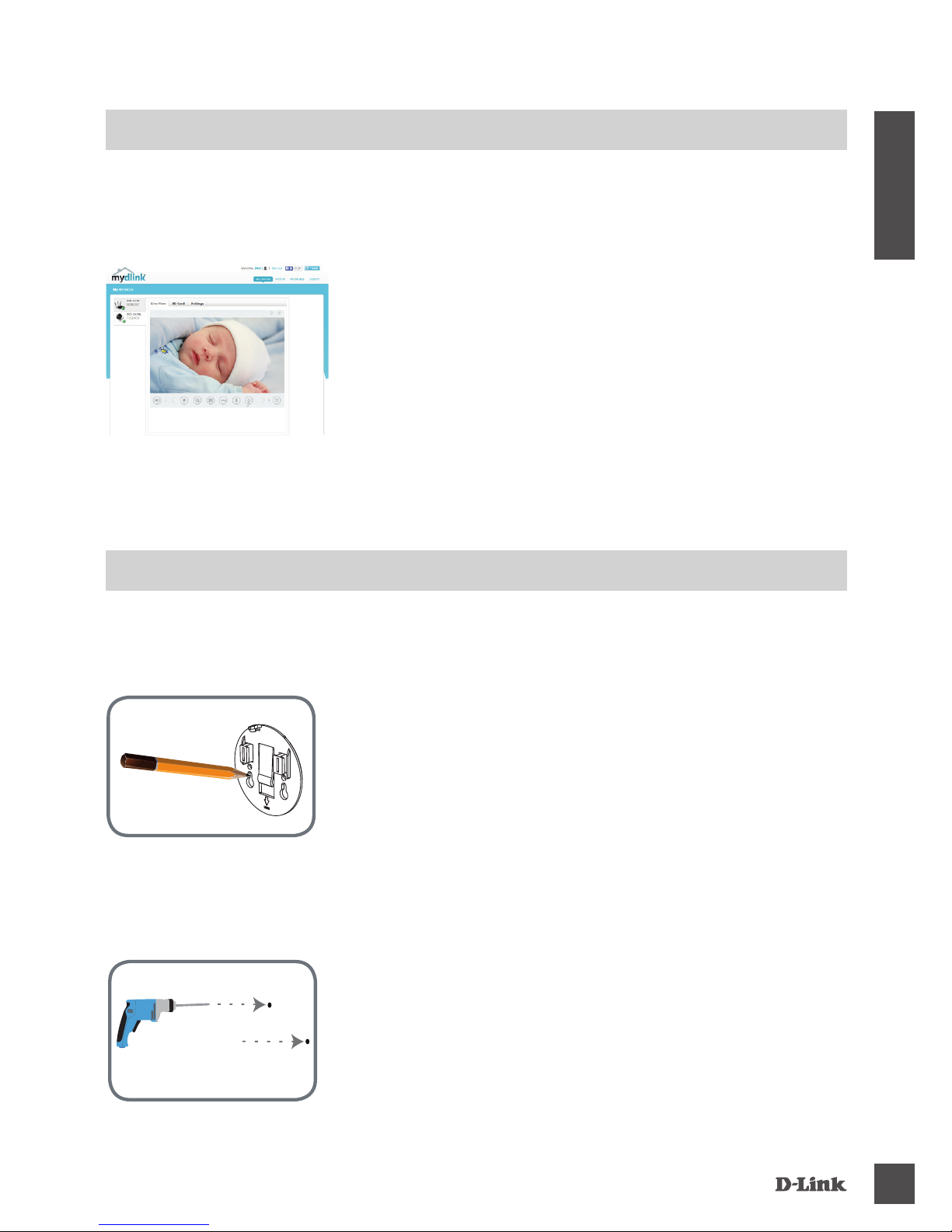

MOUNTING THE CAMERA
Please refer to the steps below to assist you with mounting the camera. It is
recommended that you configure the camera before mounting.
Step 1:
Open a web browser and go to www.mydlink.com,
then sign into mydlink.
Step 2:
Select your camera from the device list, and your
camera’s Live View will appear.
After registering your DCS-2670L camera with a mydlink account in the
mydlink Lite mobile app, you will be able to remotely access your camera from
the mydlink website.
mydlink PORTAL
Step 1:
Place the baseplate where you want to position the
camera and use a pencil to mark the holes. You can
use the large holes for a removable installation, or
the small holes for a fixed one. Make sure the lock
arrow on the plate is pointing down.
Step 2:
Depending on the material of the wall or ceiling, use
proper tools to drill holes 25 mm deep with a 6 mm
drill bit where you marked. If the wall is made out of
concrete, drill the holes first, then insert the plastic
anchors to support the screws.

DCS-2670L 5
ENGLISH

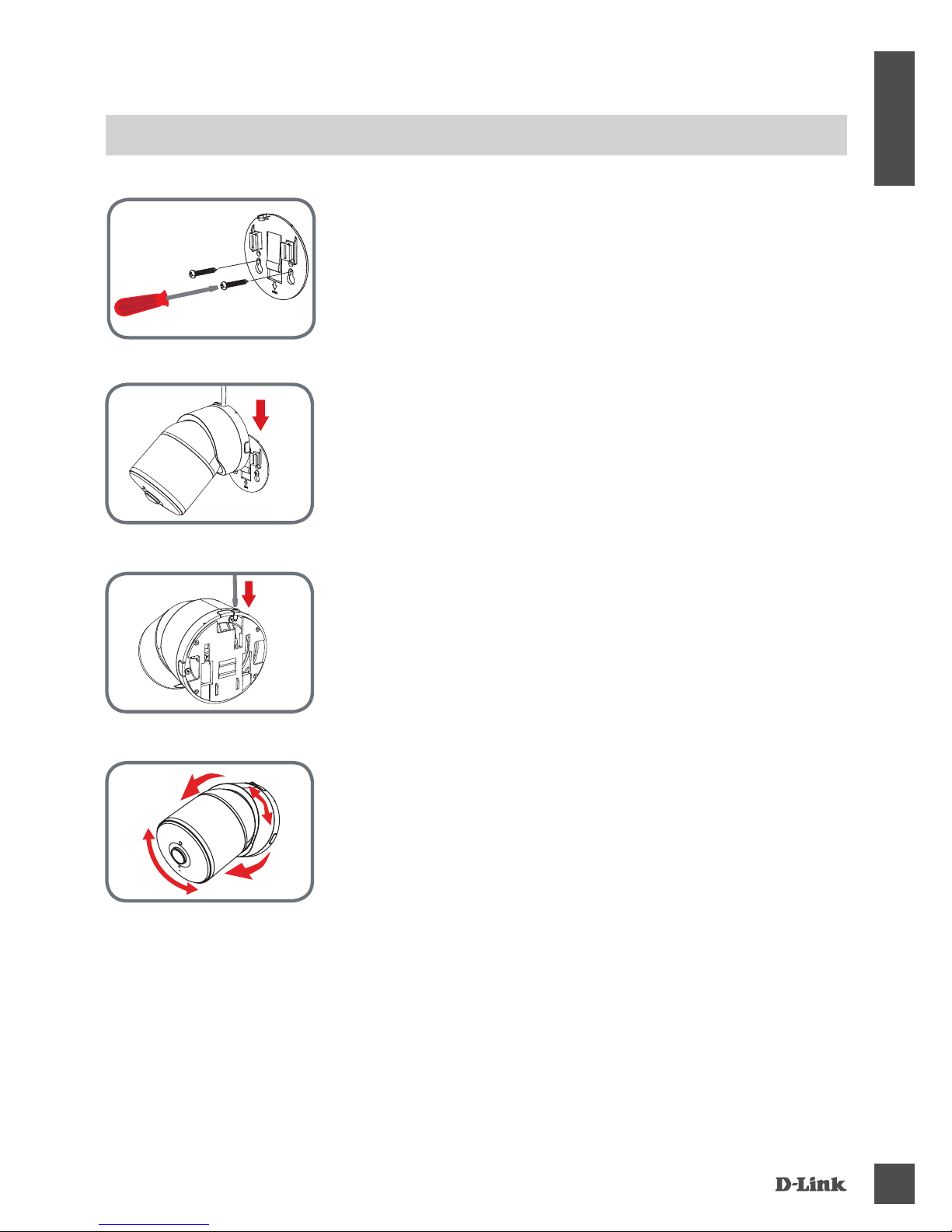

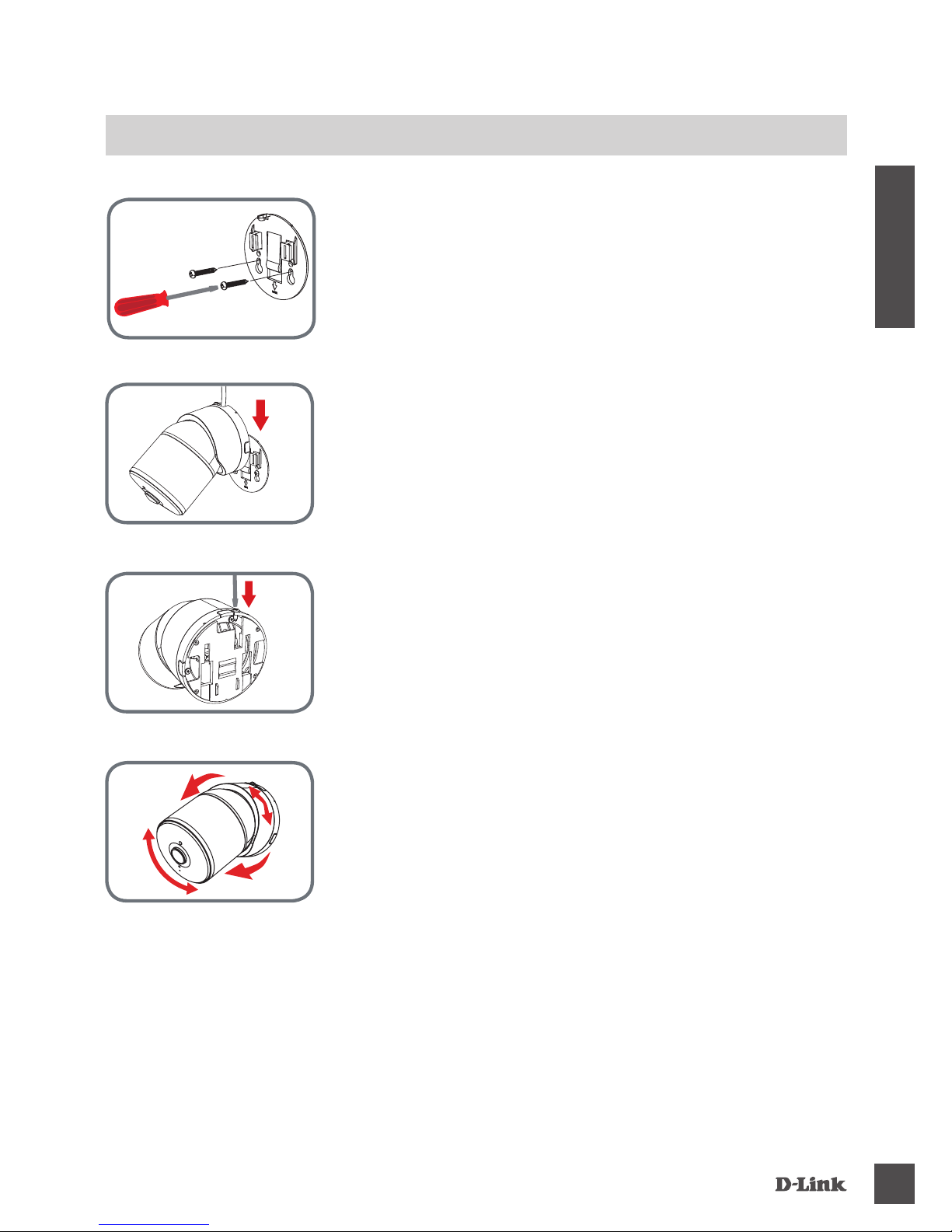

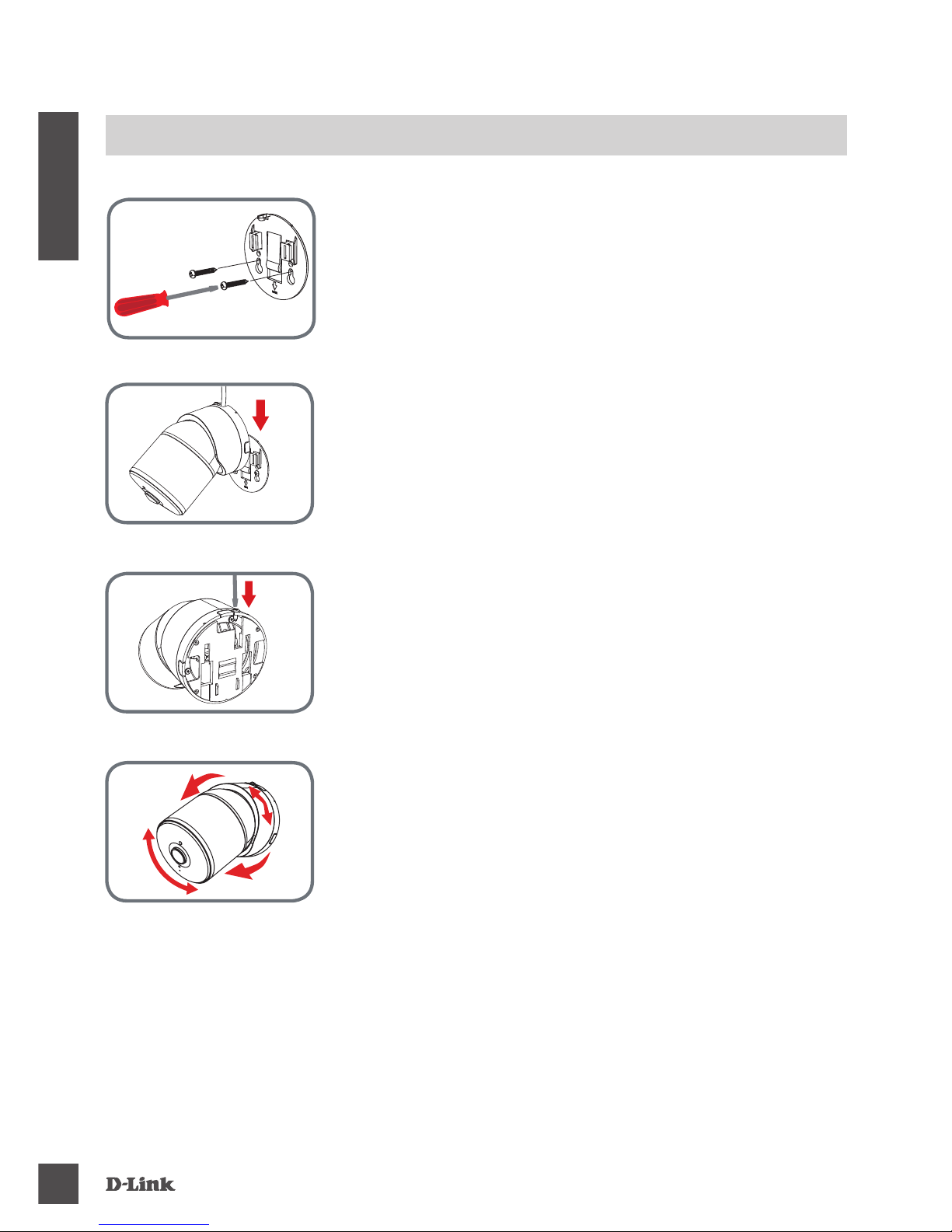

Step 4:
Place the camera over the baseplate and align the
nub with the hole on the camera. Attach the camera
by sliding it in the direction of the arrow. Then screw
the baseplate to the camera body.
MOUNTING THE CAMERA
Step 6:
Adjust the angles via the camera body and rotate the
silver base until you achieve your desired viewing
angle.
Step 5:
Once the camera is secured to the baseplate, use a
screwdriver to fasten the screw next to the hole at the
back of the camera body.
Step 3:
Place the baseplate over the holes that are in the
wall. Make sure to align the baseplate holes with the
holes in the wall. Use the supplied screws to attach
the baseplate to the surface of the wall.

DCS-2670L
6
ENGLISH

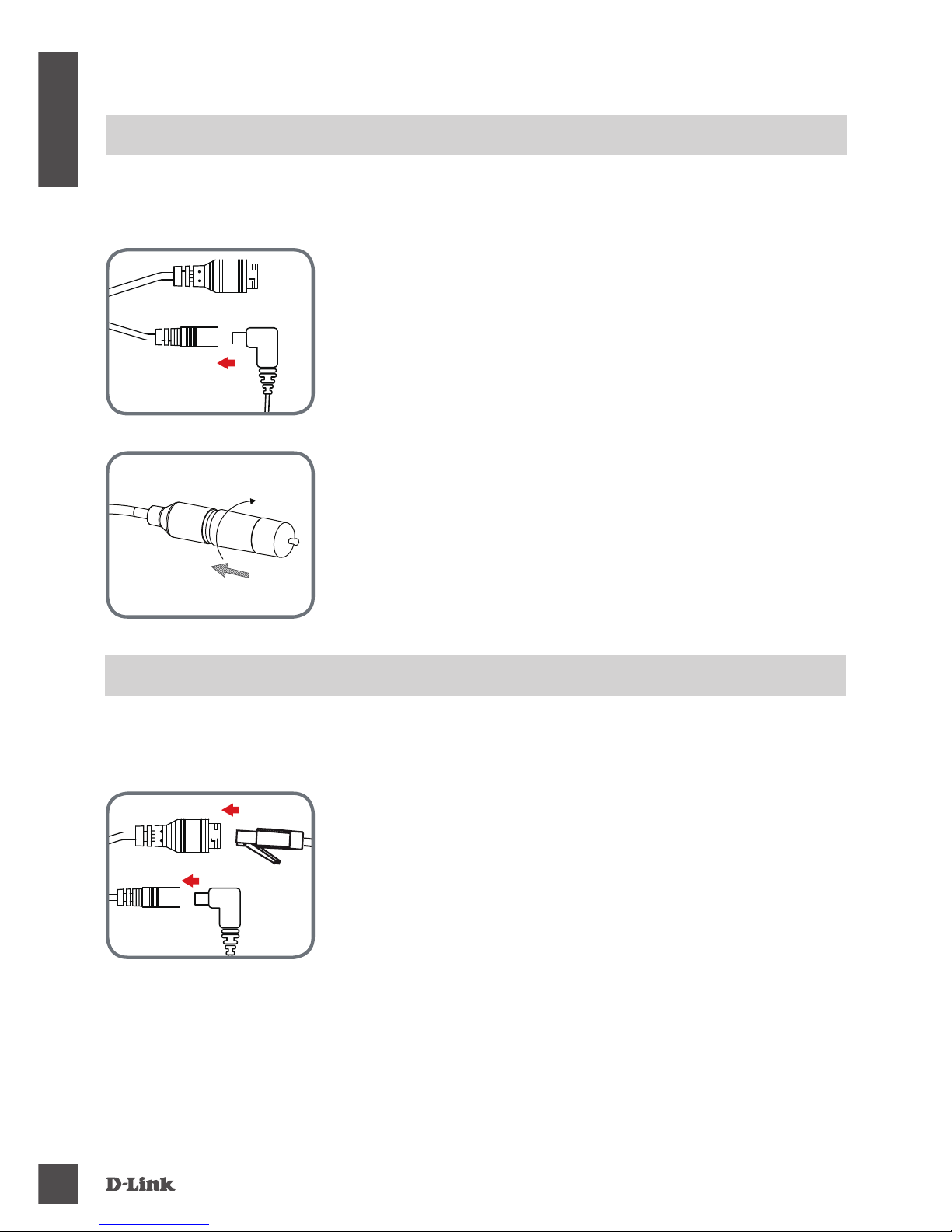

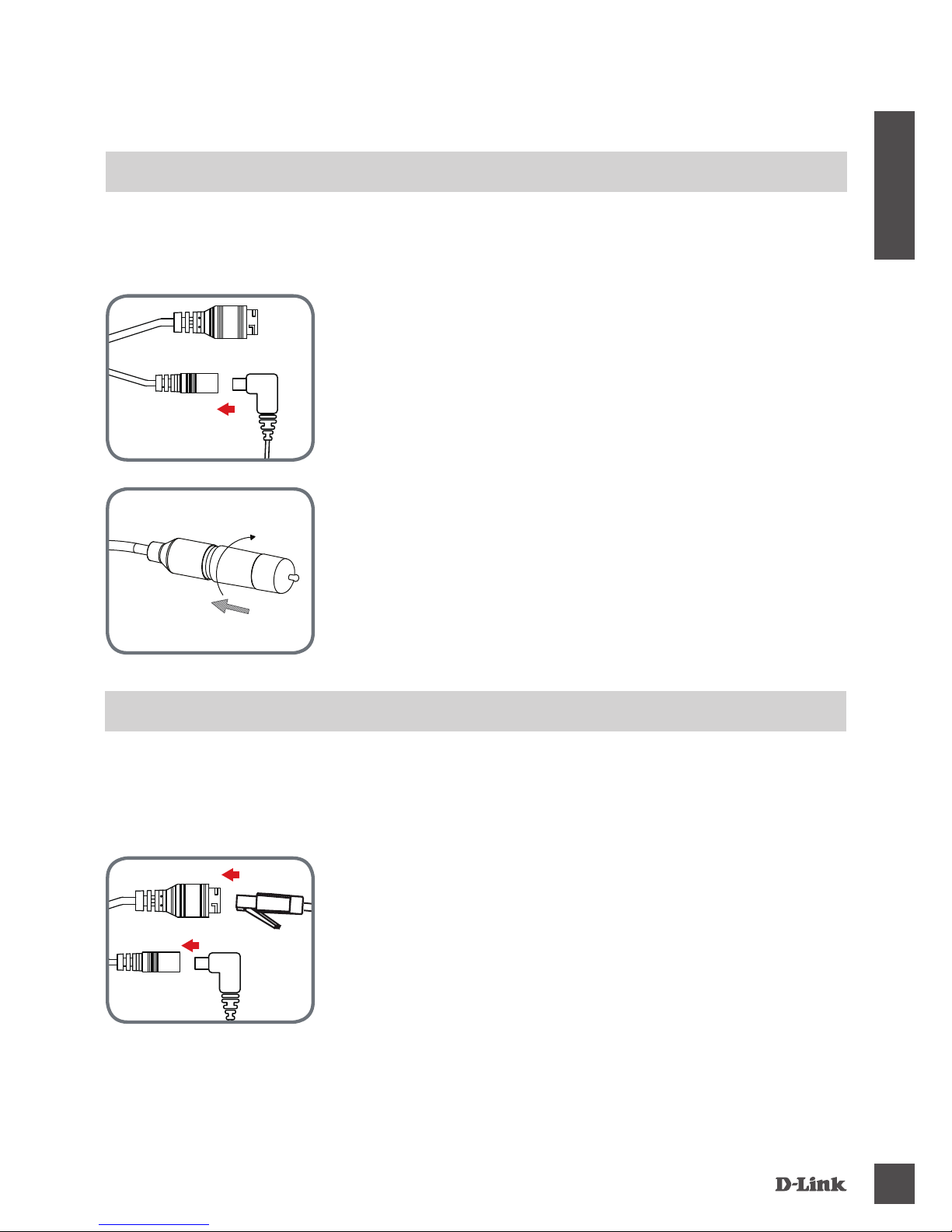

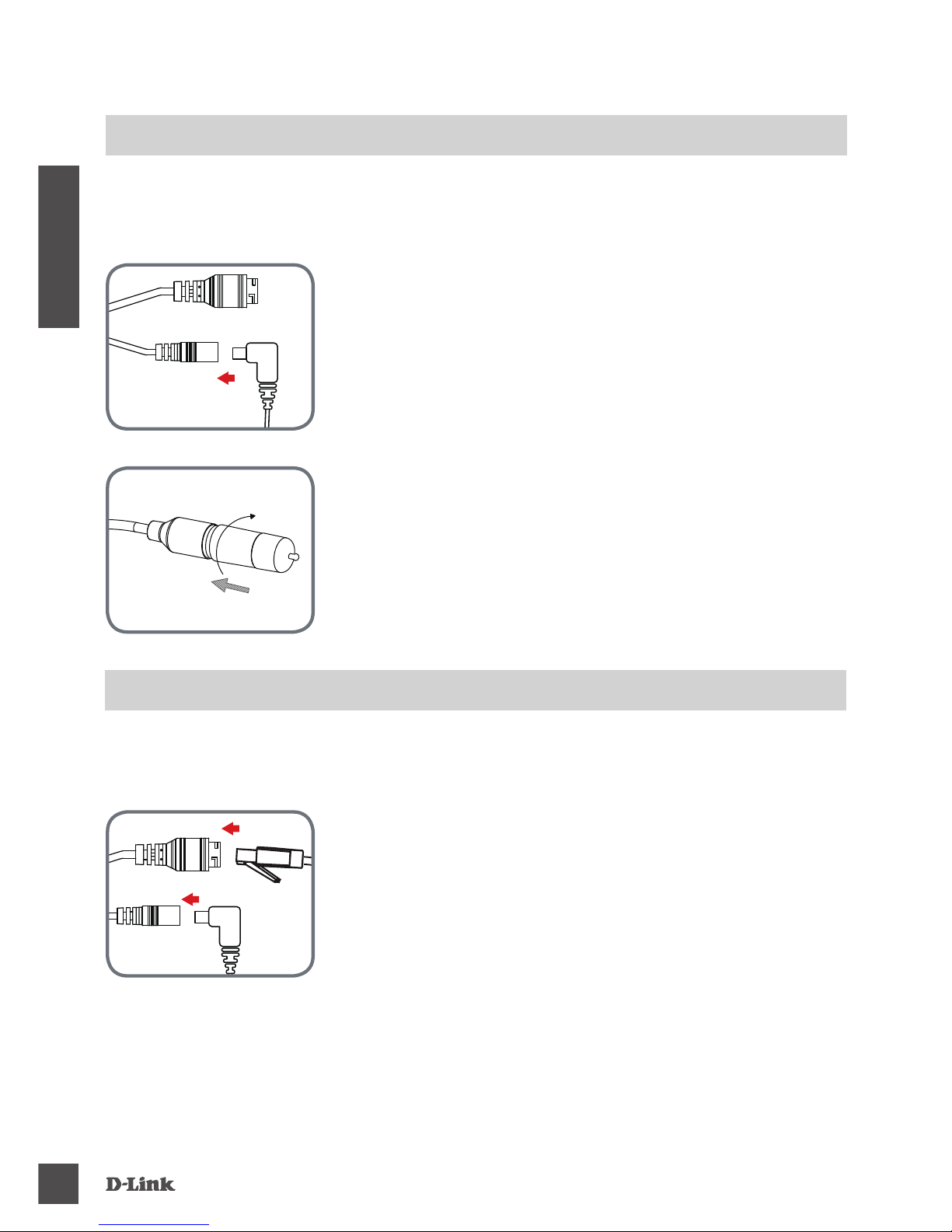

WATERPROOFING YOUR CAMERA
After configuring your camera, follow the instructions below to prevent water
from entering the camera's Ethernet and Power Cable connections.
Step 1:
Plug the power adapter into the dongle.
Step 2:
To waterproof the Ethernet socket, align the cap
according to the thread and twist it clockwise to seal
it.
WATERPROOFING YOUR CONNECTORS WHEN USING WI-FI
WATERPROOFING YOUR ETHERNET CONNECTOR
If you are using an Ethernet connection, follow the instructions below to
prevent water from entering the camera's Ethernet cable connector.
Step 1:
Connect the power and Ethernet cables.

DCS-2670L 7
ENGLISH
Caution: Due to its IP65 rating we recommend that you install your device
under a roof or a shelter to protect the Power and Ethernet connections from
water seepage. However, the cables and connections need to be located
away from all potential water hazards.

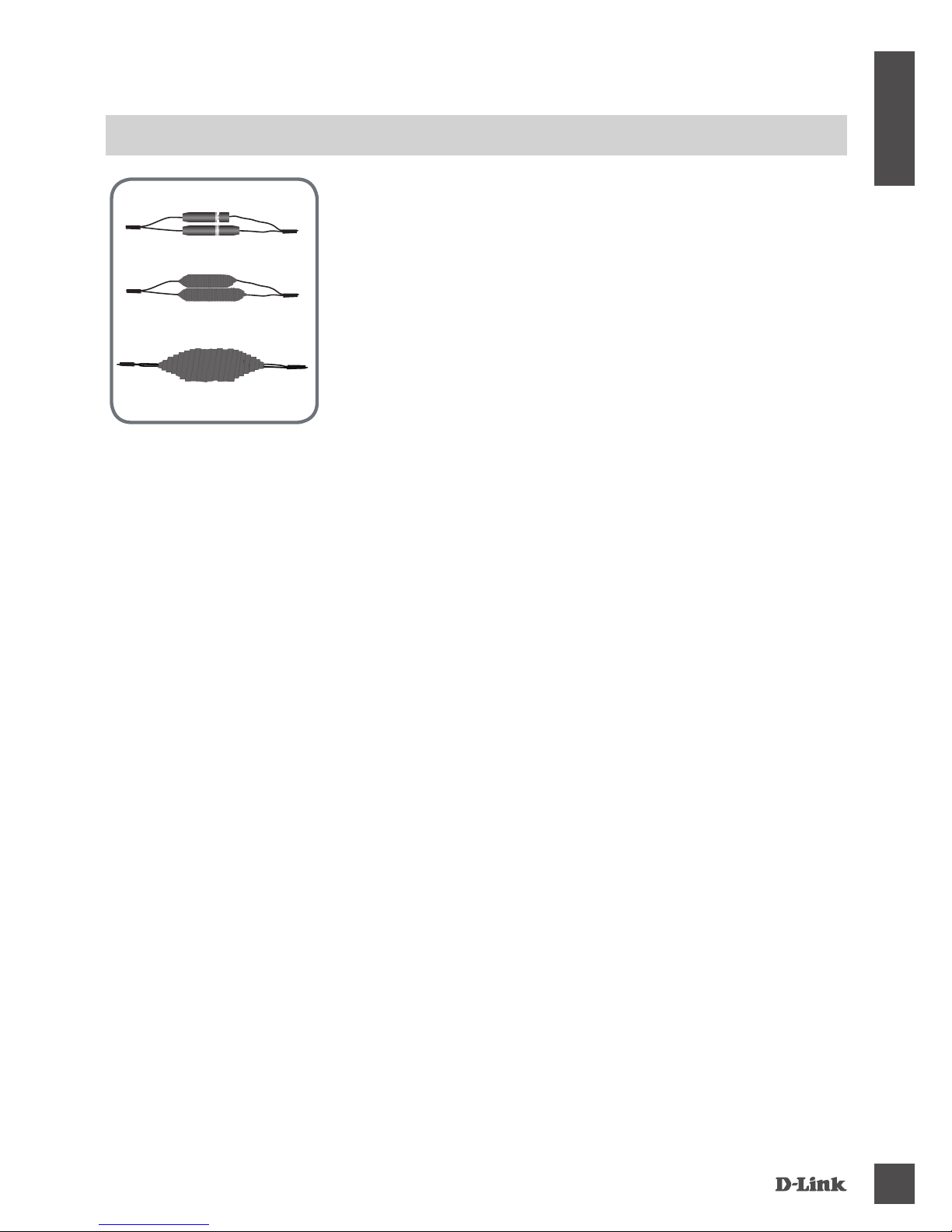

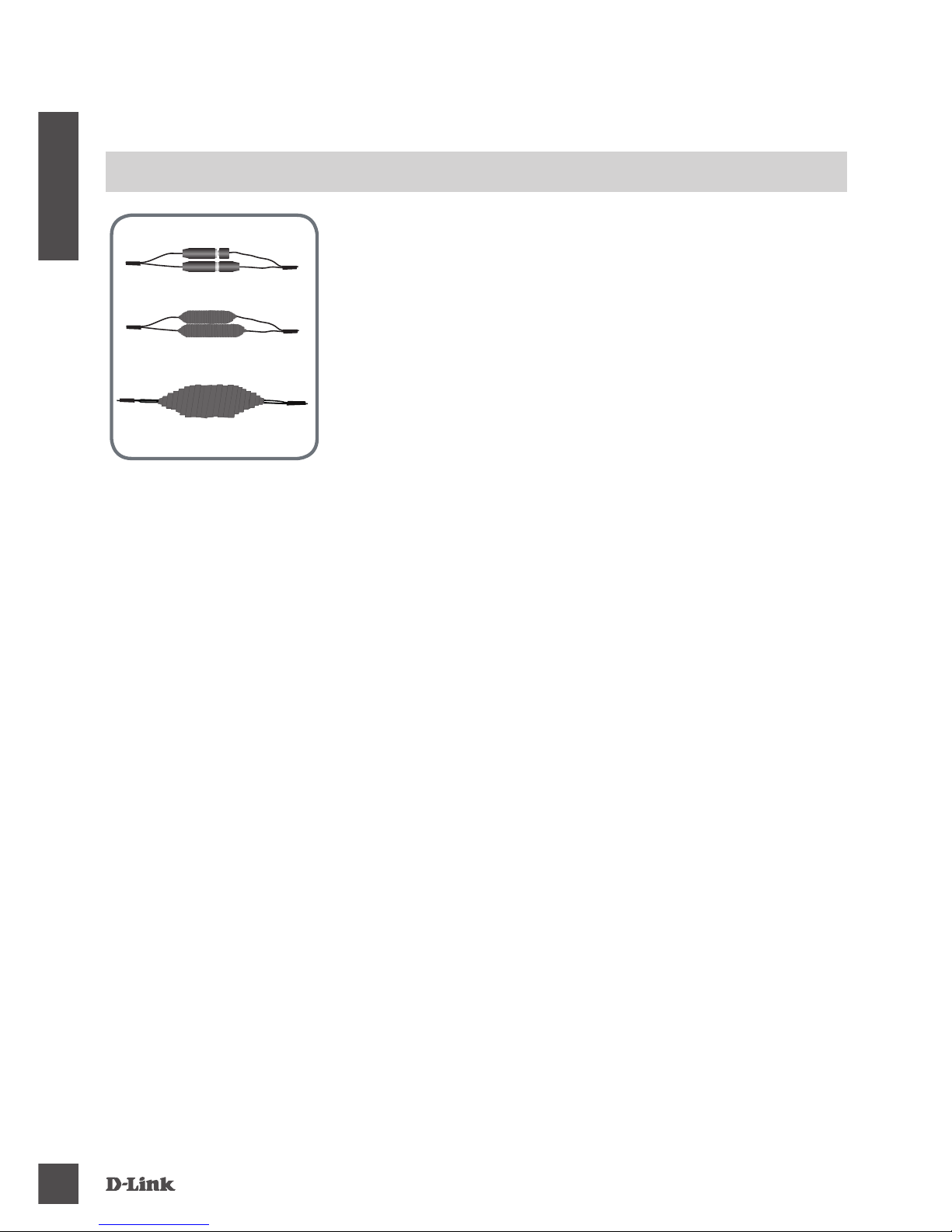

Wind waterproof tape, such as butyl rubber or vinyl
tape, around the individual cables and connectors
in a half-overlapping manner then wrap all the
connectors together. Be sure to cover all of the
connectors and any unsheathed cables.
Note: Butyl rubber tape should be wrapped by
stretching the tape to about twice its length, and
wrapping it around the cable. Failure to stretch the
tape sufficiently will result in insufficient waterproofing
performance.
USING WATERPROOF TAPE
WATERPROOFING YOUR CAMERA

DCS-2670L
8
ENGLISH
TROUBLESHOOTING
FREQUENTLY ASKED QUESTIONS
1. WHY IS THE CAMERA VIEW HAZY OR BRIGHT WHEN USING NIGHT
VISION MODE?
The IR night vision lights on the camera may be reflecting off of a nearby
surface or window. Try repositioning your camera to avoid reflections or
glare.
2. WHAT CAN I DO IF I FORGET MY CAMERA PASSWORD?
If you forget your camera password, you will need to perform a hard reset
of your camera. This process will change all your settings back to the
factory defaults.
To reset your camera, please use an unfolded paperclip to press and hold
the RESET button for at least 10 seconds while your camera is plugged in.
3. WHAT CAN I DO IF MY DCS-2670L IS NOT WORKING CORRECTLY?
Reset the camera (see next step) and run the setup steps on page 3
again.
To make sure your hardware is installed correctly, make sure that:
- the power LED is green
- your Internet connection is working
- your router’s LAN & WAN connections are working
- your router supports UPnP®
- your camera is on the same network as your mobile device
- both your mobile device and camera have a working Internet connection
If your camera is still not working, check your router and make sure it has
the latest firmware.
TECHNICAL SUPPORT dlink.com/support

DCS-2670L 9
DEUTSCH
PACKUNGSINHALT
FULL HD 180° WLAN-AUSSENKAMERA
DCS-2670L
MONTAGESET
STROMADAPTER/NETZTEIL
Wenn eines dieser Elemente in Ihrer Packung fehlt,
wenden Sie sich bitte an Ihren Fachhändler.
KURZINSTALLATIONSKARTE
ETHERNET-KABEL
WASSERDICHTER KABELANSCHLUSS

DCS-2670L
10
DEUTSCH
SYSTEMVORAUSSETZUNGEN
• Eine Breitbandinternetverbindung
• Ein bestehendes 10/100 Ethernet-basiertes Netzwerk oder einen 802.11 n/g/b
Router (ein D-Link-Router wird empfohlen)
• Ein iPhone®, iPad®, iPod®Touch oder Android™ Smartphone oder Tablet (Auf
der Seite des mobilen App Store können Sie überprüfen, ob Ihr Gerät kompatibel
ist.)
• Ein Mobilgerät mit Bluetooth 4.0 ist für die Bluetooth-Einrichtung erforderlich.
Führen Sie die folgenden Schritte zum Einrichten Ihrer mydlink-Kamera durch.
Ihre DCS-2670L kann nun verwendet werden. Suchen Sie in regelmäßigen
Abständen auf der Website mydlink.com nach Firmware-Aktualisierungen, um
anhand neuer Firmware Ihr Produkt geschützt und, was seine Funktionen betrifft,
auf dem neuesten Stand zu halten.
Hinweis: Wenn Sie Probleme bei der Registrierung dieser Kamera in Ihrem
mydlink-Konto haben oder wenn Sie ein gebrauchtes Gerät gekauft haben oder
das Gerät weiterverkaufen, sollten Sie einen Hard Reset durchführen, indem
Sie die Reset-Taste am Gerät 10 Sekunden lang gedrückt halten, während
das Gerät eingeschaltet ist. Wenn Sie das Gerät am Kaufort zurückgeben,
führen Sie bitte den Hard Reset durch, um alle persönlichen Daten vom
Gerät zu löschen.
Schritt 1: Suchen Sie nach mydlink Lite im iTunes App Store oder bei Google
Play und laden Sie mydlink Lite auf Ihr Mobilgerät herunter.
Schritt 2: Starten Sie die mydklink Lite-App und erstellen Sie ein neues Konto
oder melden Sie sich mit Ihrem bestehenden Konto an.
Schritt 3: Die App führt Sie durch den weiteren Einrichtungsprozess. Wenn Sie
aufgefordert werden, einen QR-Code zu scannen, verwenden Sie den
Code oder auf dem Geräteaufkleber.
EINRICHTUNG DES PRODUKTS
EINRICHTEN IHRER KAMERA MIT MYDLINK LITE
