COLBOR CL330M User manual

Thank you for choosing COLBOR product. Please read this manual
carefully before use and follow all instructions mentioned herein.
Video Light User Manual
CL330M

Caring For Your COLBOR Product

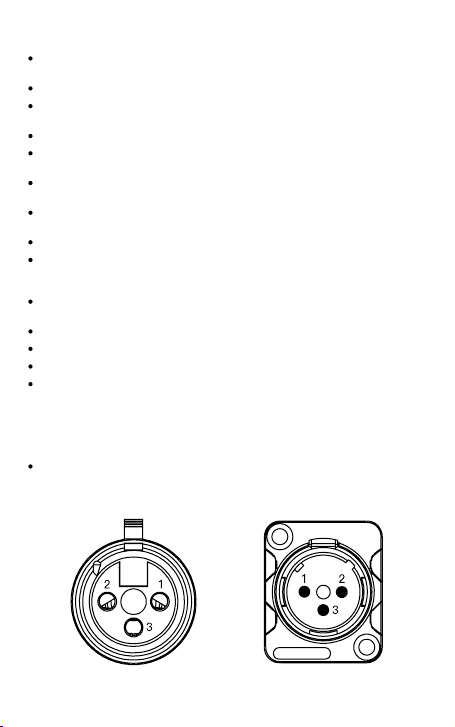

Power Connection
You must use the power adapter that comes with the product rather than
other adapters to avoid damaging the lamp. The positive and negative
connections of the power adapter interface( DC OUT) and the lamp power
interface (DCIN) are shown below:
+ -- +
N N
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
The product is not waterproof.
Do not leave the product unattended while in use. Keep out of reach of
children.
Do not handle with wet hands. Do not touch the hot COB surface.
Please do not block the ventilation and do not look at the light directly when
it is on.
Do not attempt to disassemble or modify the product. Doing so voids
warranty.
Please have the product checked or repaired by authorized technicians if
any malfunctions happened.
Disconnect from the power supply when it is not in use.
Do not cover, inverted COB and radiator for high temperature, do not cover,
inverted, do not touch the lamp holder and radiator vent with your hands
when the product in use.
Do not use any power adapter of other products to avoid the lamp
malfunction.
Malfunction may be caused by dropping, impact of external force.
Failure to follow all the instructions may result in mechanics damage.
Our company reserves the right of nal interpretation of the product.
Product design and specications are subject to change without prior
notice.

Product Instructions
① LED Display Screen
② EFF Mode Button
③ EFF Rate Option Button
④ Color Temperature Mode Button
⑤ Setting Button
⑥ Brightness Control/Setting Menu Knob
⑦ DC 48V Power Port
⑧ Power Button
⑨ Bowens Mount
⑩ COB Lamp Beads
⑪ Lamp Angle Adjustment Locking
Grip
⑫ Lamp Holder
⑬ Air Outlet
⑭ NATO Slideway
⑮ Air Inlet
⑯ Lamp Handle
⑰ Umbrella Hole
⑱ Umbrella Hole Screw
⑲ Lamp Holder Screw
Light Installation
Hold the COB cover with the Bowens Mount
tenon and rotate it as the direction of the arrow.
Note: Be sure to remove COB protective cover
and COB protective lm before use.
Installation of reector: Align the reector with the groove around the lamp
head and clip it in, turn the reector as the direction of the arrow, and the
reector installation will be completed after the top rod rebounds.
Removal of reector: Under the instructions of “Lamp Cap Protection Cover
Removal".
1. Removal of lamp cap protection cover
2. Installation and removal of reector

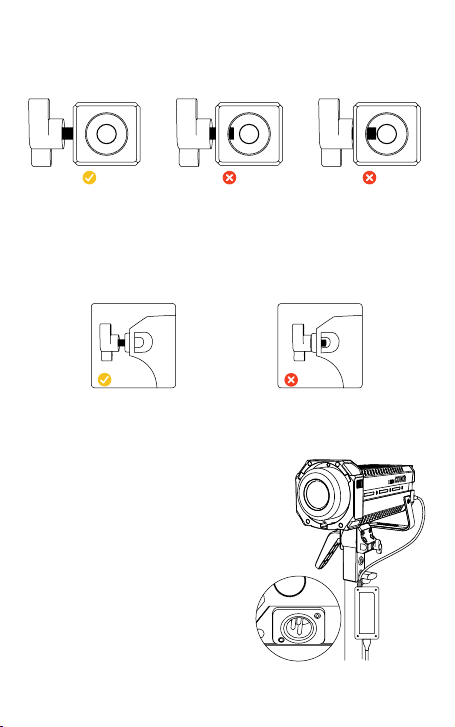

Rotate the lamp holder screw until the inner wall not shielded and put the
product on the top of the lamp holder to tighten the bracket screw for xation.
Adjust the lamp body irradiation Angle and tighten the lamp holder Angle grip
xed.
3. Installation and xation of light
Screw out, the inner
wall of the bracket
without any shelter
Halfway the screw out The screw is not out
at all
Screw out, the inner wall of the
soft light cover without shelter
The screw is not out at all
Insert the handle of the soft light umbrella into the umbrella hole. After
adjustment, lock the cover hole screw.
4. Install the soft light cover
(1) Mount the power adapter
Do not suspend the power adapter in the air. Use
wire rings to hang it on the lamp stand.
5. Power Connection
(3) Power cord storage
Please turn off the lamp before unplugging
the power cord. When unplug the power
cable, hold down the safety lock on the
connector before removing it. If unlocked,
do not forcibly remove the power supply.
(2) Power with power adapter
Connect the power adapter, align the pin with the
DC power interface of the lamp body, and then
power through the cable
after stable.

(4) Power with V-port battery
Mount the V-port battery to the lamp by complimentary the NATO expansion
bar with VM3 (optional), and then connect the D-tap to XLR power cable to
start the lamp.
Note:
* When battery runs low, the brightness will adjust accordingly for protecting
the power cord from overheating due to excessive current.
* Dual V-port battery mobile power supply solution is recommended.

None grouping status. The product defaults to the factory
status, and will not be aected by other groups.
If the icon ashes, it means that the internal temperature of the
product is too high, and cooling measures need to be taken. If
the icon disappears, it means that the operation is normal.
③ Group Status Icon
④ Product Overheated Alarm Icon
A stands for Group A. There are fteen groups (A~O). T
stands for Tx.
A stands for Group A. There are fteen groups (A~O). R
stands for Rx.
A stands for Group A. There are fteen groups (A~O). TR
stands for TxRx.
Operation Instructions
1. Please remove the COB protective cover before using the light.
2. Turn on the lamp: After conrming that the power connection is normal,
press the switch to "-", and the screen will display the brand and product
module, and then enter the operation interface. (Default mode: CCT)
3. Turn o the lamp: press the switch to "o" to turn o the power switch.
1. Status Icon Description
After selecting wireless connection in Settings menu, the
icon will be displayed dynamically.
The icon is always on to indicate successful pairing with
mobile APP.
The icon disappears to indicate mobile APP pairing failure, or
the product is unpaired.
Smart Mode. The product will adjust the fan speed according
to the internal detected temperature to ensure that it is in
optimal working condition.
Quiet Mode. The fan keeps running at low speed for minimum
noise, and overheating protection will be activated if the
product temperature is higher than the alarm value.
Performance Mode. Fan runs at the highest speed to ensure
heat dissipation.
① APP Connection Status Icon
② Fan Status Icon

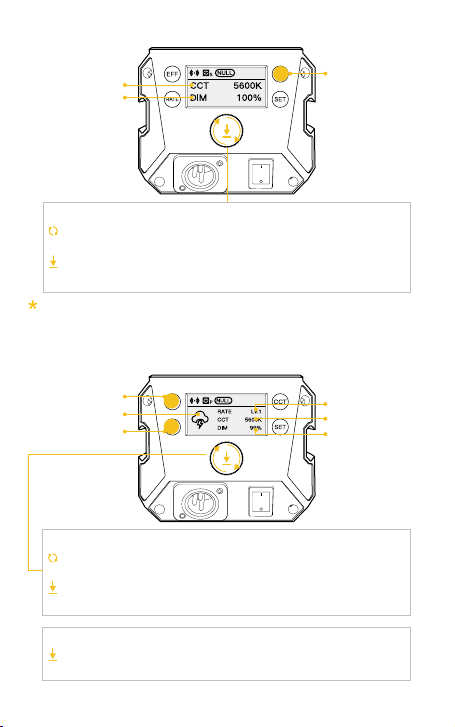

2. CCT Mode (Short press CCT Mode Button to enter)
Turning the knob will enlarge the current setting parameter value, and it will
automatically return to the main screen after 1.5 seconds of no operation.
Brightness
Color Temperature
CCT Mode Button
Turn the knob clockwise or anti-clockwise to adjust brightness (DIM)
from 0%~100%
Press down the knob to quickly switch the preset brightness to 0%,
25%, 50%, 75%, and 100%
Brightness Control Knob
3. EFF Mode (Short press EFF Mode Button to enter)
Turn the knob clockwise or anti-clockwise to adjust brightness (DIM)
from 0%~100%
Press down the knob to quickly switch the preset brightness to 0%,
25%, 50%, 75%, and 100%
Press to switch light eect: Pulsing → Explosion → Faulty
Bulb → Welding → Strobe → Lightning → S.O.S
Brightness Control Knob
Light Eect Mode (EFF) Button
EFF Mode Button
Rate Option Button
EFF Color Temperature
Rate
Brightness

RATE：Lv.1 - Lv.5
DIM：0%-100%
CCT：5600K
RATE：Lv.1 - Lv.5
DIM：0%-100%
CCT：5600K
RATE：Lv.1 - Lv.5
DIM：0%-100%
CCT：5600K
RATE：Lv.1 - Lv.5
DIM：0%-100%
CCT：5600K
RATE：Lv.1 - Lv.5
DIM：0%-100%
CCT：5600K
RATE：Lv.1 - Lv.5
DIM：0%-100%
CCT：5600K
RATE：LOCK
DIM：0%-100%
CCT：5600K
Pulsing
Explosion
Faulty Bulb
Welding
Strobe
Lightning
S.O.S
EFF
4. Setting
1. Short press the setting botton to enter settings menu.
2. Turn the knob clockwise or anti-clockwise to choose setting.
3. Press the setting botton to adjust corresponding setting (Short press the
setting botton to adjust the wireless connection mode).
Fan Mode
Wireless
Connection
Communication
Settings Options
SMART/ QUIET/ PERFORMANEC
SMART: The product will detect
the current internal temperature to
adjust the fan speed by itself.
QUIET: The fan will run at low
speed. If the product temperature
reaches the alarm value, it will
start the power-o protection
mechanism.
PERFORMANEC: Fan runs at
the highest speed to ensure heat
dissipation.
APP/Remote Control
Long press the setting button for
pairing (One mode for each time）
TX/ RX/ TXRX (TX by default)
Group NULL/ A~O (NULL by default)
Response
Initial brightness
setting
Language
SHARP/ SMOOTH
(SMOOTH by default)
Default、0%、25%、75%、100%
EN/ CN
Curve LINEAR, L.CURVE, E.CURVE,
S.CURVE.

5. APP Connection & Light Control
Scan the QR code，or search “COLBOR STUDIO" in app store to download
the app for light control.
CL330M Pairing:
1. Press the
settings button and enter the pairing mode. Short press the
settings button to choose “APP”, then long press the settings button for 3
seconds for pairing.
Product INFO.
Short press the setting botton to
enter the production information
interface. Press the setting botton
again to go back to settings menu.
① Hardware Version
② Firmware Version
③ Protocol Version
④ MAC Address

2. Open the APP and click the “ + " on the upper right, then click the scene
one and click the + on the upper right. Showing CL330M means successfully
pairing.

3. Click the CL330M for control.

CL330M Group Control:
1. After successfully pairing the CL330M, click the group then click the“ + "
on the top right. Choose the light for grouping and click the conrm bottom.
Showing Group One means successfully grouping.
2. Click the group for lighting control.

Equipped with a NATO extension bar and an NQD quick-release device, the
lights can be spliced together, and up to three lights can be spliced.
Color Rendering Index
Color Temperature Range
Beam Angle
Illumination
COB Output Power
Power
Light Working Voltage
Cooling Mode
Connector
Body Material
Light Dimension (mm)
Light Weight
Operating Temperature
96+
5600K（±200K）
≈∠ 120° Reector ≈∠ 45°
See the Form 1 Below
330W
360W（Max）
DC 48V 7.5A
SMART/ QUIET/PERFORMANEC
Three Core Cannon Head
( 2 For Active, And 1 For Negative)
Aluminum Alloy+ABS
299*128*232mm
2.07kg
-10~40℃
Specications

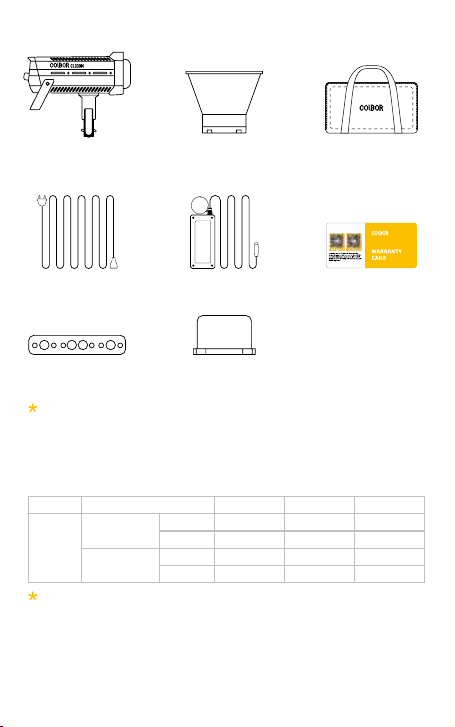

Package List
Form 1
Power adapters may vary according to sales region.
CL330M Video
Light x1
3m Plum Tail Cable
x1
NB3.58（Optional）
x1
Carrying Bag x1
(not included in
CL330M Lite)
Power Adapter (with
Wire Lanyard) x1
COB Cover x1
Reector (Bowens Mount) x1
(not included in CL330M Lite)
Warranty Card x1
The data is given from testing in a laboratory baesed on BHR45.
Illumination
Light Base
Reector
1m
LUX
FC
LUX
FC
14,800
1,380
80,200
7,450
1,000
93
3,170
295
2,130
198
7,590
705
5m3mCCT
5600K

WARRANTY
Warranty Period
Thank you for purchasing COLBOR products.
1.Customers are entitled to free replacement or repair service in case of quality
defect(s) found in the product under normal use within 30 days upon receipt of
the product.
2.Original COLBOR products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the rst end-user.
Within the warranty period, if product defect or failure is attributable to material
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).
Warranty Exclusions and Limitations
1.Faults resulted from inappropriate use of a product without following its
operation specication
2.Articial damage, e.g. crash, squeeze, scratch, soaking, exposing to rain or
damp
3.Modications to a product by its user or a third party without prior written
consent of COLBOR, e.g. replacement of element or circuit, label alteration
4.The code on product is inconsistent with that of warranty certicate, or the
code on the product or warranty certicate is altered or torn o
5.All consumable accessory attached to a product, like cable, cover
6.Faults as a result of force majeure, such as re, ood, lightning, etc.
Warranty Claim Procedure
1.If failure or any problem occurs to your product after purchase, please
contact a local agent for assistance, or you can always contact COLBOR’s
customer service through email.
2.Please retain your sales receipt and warranty certicate as proof of
purchase.If any of these documents is missing, only sales return or chargeable
service will be provided.
3.If the COLBOR product is out of the warranty coverage, the service and the
parts cost will be charged.
Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue,
Liwan District, Guangzhou, China, 510000
[email protected]
www.colborlight.com
Guangzhou Zhiying Technology Co., Ltd
