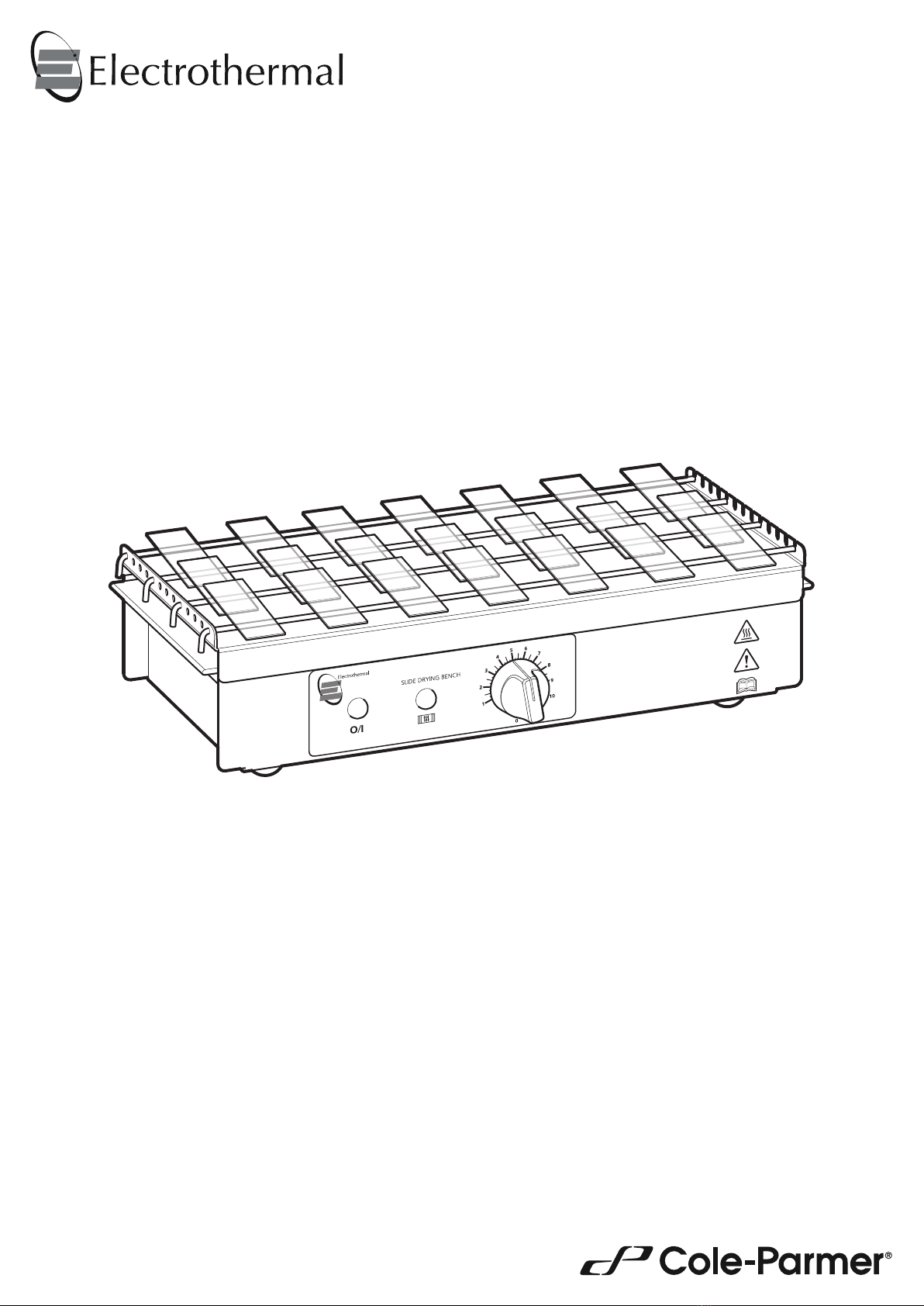

Cole Parmer Electrothermal MH6616 User manual

Instruction Manual
M6627 / Version 7.4
Slide Drying Bench
MH6616
MH6616X1

Please take your time to read this Instruction Manual in order to understand the safe and
correct use of your new Electrothermal product.
It is recommended the Responsible Body for use of this equipment reads this Instruction
Manual and ensures the user(s) are suitably trained in its operation.
Section 1.
Page 3
Section 2.
Page 4
Section 3.
Page 5
Section 4.
Page 7
Section 5.
Page 8
Section 6.
Page 9
Section 7.
Page 10
Section 8.
Page 11
Section 9.
Page 12
Section 10.
Page 15
Section 11.
Page 16
Section 12.
Page 17
Section 13.
Page 19
Introduction.
Symbols and using this Instruction Manual.
Safety Information.
Unpack and Contents.
Installation.
Environmental protection.
Production Operation.
Technical Specification.
Maintenance.
Parts and Accessories.
Customer Support.
Notes.
EC Declaration of Conformity.
©The copyright of this instruction manual is the property of Cole-Parmer Ltd. This instruction manual is supplied by
Cole-Parmer Ltd on the express understanding that it is to be used solely for the purpose for which it is supplied. It
may not be copied, used or disclosed to others in whole or part for any purpose except as authorised in writing by
Cole-Parmer Ltd. Cole-Parmer Ltd. reserves the right to alter, change or modify this document without prior
notification.
In the interest of continued development Cole-Parmer Ltd. reserve the right to alter or modify the design and /or
assembly process of their products without prior notification.
This product is manufactured in the United Kingdom by Electrothermal, part of the Cole-Parmer Group of
companies.
2

1. INTRODUCTION
1.1. This Slide Drying Bench aids the preparation of microscope slides at the
specimen mounting stage. Accepting up to 50 slides, it has the facility for
drying slides in different orientations. The temperature control is provided
by a built-in energy regulator controlling temperature up to 100C. The case
and top are painted aluminium. The various options for mounting slides on
the equipment are summarised in section 7.2.
3

2. SYMBOLS AND USING THIS INSTRUCTION MANUAL.
2.1. Throughout this Instruction Manual the following symbols are shown
to identify conditions which pose a hazard to the user, or to identify actions that should be
observed. These symbols are also shown on the product, or its packaging. When a symbol is
shown next to a paragraph or statement it is recommended the user takes particular note of
that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or
other people.
The Responsible Body and the Operator should read and be familiar with this Instruction
Manual in order preserve the protection afforded by the equipment.
To prevent injury or equipment damage it is the manufacturer’s recommendation that all
persons using this equipment are suitably trained before use.
2.2. Symbols defined.
Caution, risk of danger. See note or adjacent
symbol.
Protective conductor terminal to be earthed.
(Do not loosen or disconnect).
Caution / risk of electric shock
Recyclable Packing Material
Do not dispose of product in normal domestic
waste.
Caution. Hot surface.
Refer to Instruction Manual
Bio Chemical Hazard. Caution required. Will
require decontamination.
4

3. SAFETY INFORMATION.
This product has been designed for safe operation when used as detailed in accordance with
the Manufacture’s instructions.
NOTE: Failure to use this equipment in accordance with the manufacture’s operating instruction
may compromise your basic safety protection afforded by the equipment and may invalidate the
warranty / guarantee. The warranty / guarantee does not cover damaged caused by faulty
installation or misuse of the equipment.
3.1. Prevention of Fire and Electric Shock.
To prevent a risk of fire or electric shock, DO NOT open your
product case without authorisation. Only qualified Service
personnel should attempt to repair this product
Replace fuses only with the type as listed in section, Parts and
Accessories and Technical Specifications. (See fuse type and
rating)
Ensure the Mains Power Supply conforms to rating found on the
data plate located on the back of this Product.
Never Operate this equipment with out connection to earth /
ground. Ensure the mains supply voltage is correctly earthed /
grounded in accordance with current area legislation.
3.2. General Safe Operating Practice.
Always follow good laboratory practice when using this
equipment. Give due recognition to your company’s safety and
legislative health & safety procedures and all associated
legislation applicable to your areas of operation. Check
laboratory procedures for substances being heated and ensure
all hazards (e.g. explosion, implosion or the release of toxic or
flammable gases) that might arise have been suitably
addressed before proceeding. When heating certain
substances the liberation of hazardous gases may require the
use of a fume cupboard or other means of extraction.
Do not position the product so that it is difficult to disconnect
from the mains supply.
Do not immerse unit in water or fluids.
Do not spill substances onto this unit. If spillage does occur,
disconnect unit from mains supply and follow instruction as
detailed in Section ‘Maintenance’.
Do not cover this unit whilst in use.
It is not recommended to leave any heating apparatus
unattended during operation.
Only use Original Equipment manufacture’s spares and
accessories. Ref Section 10.
The equipment is not spark, flame or explosion proof and has
not been designed for use in hazardous areas in terms of BSEN
60079-14:1997. Keep flammable, low flash point substances
away from the apparatus.
5

Do not operate or handle any part of this product with wet
hands.
Do not touch the heating surface whilst in use.
Do not lean or stretch over equipment.
Keep the Mains Plug and Lead set cable away from the heating
surface.
6

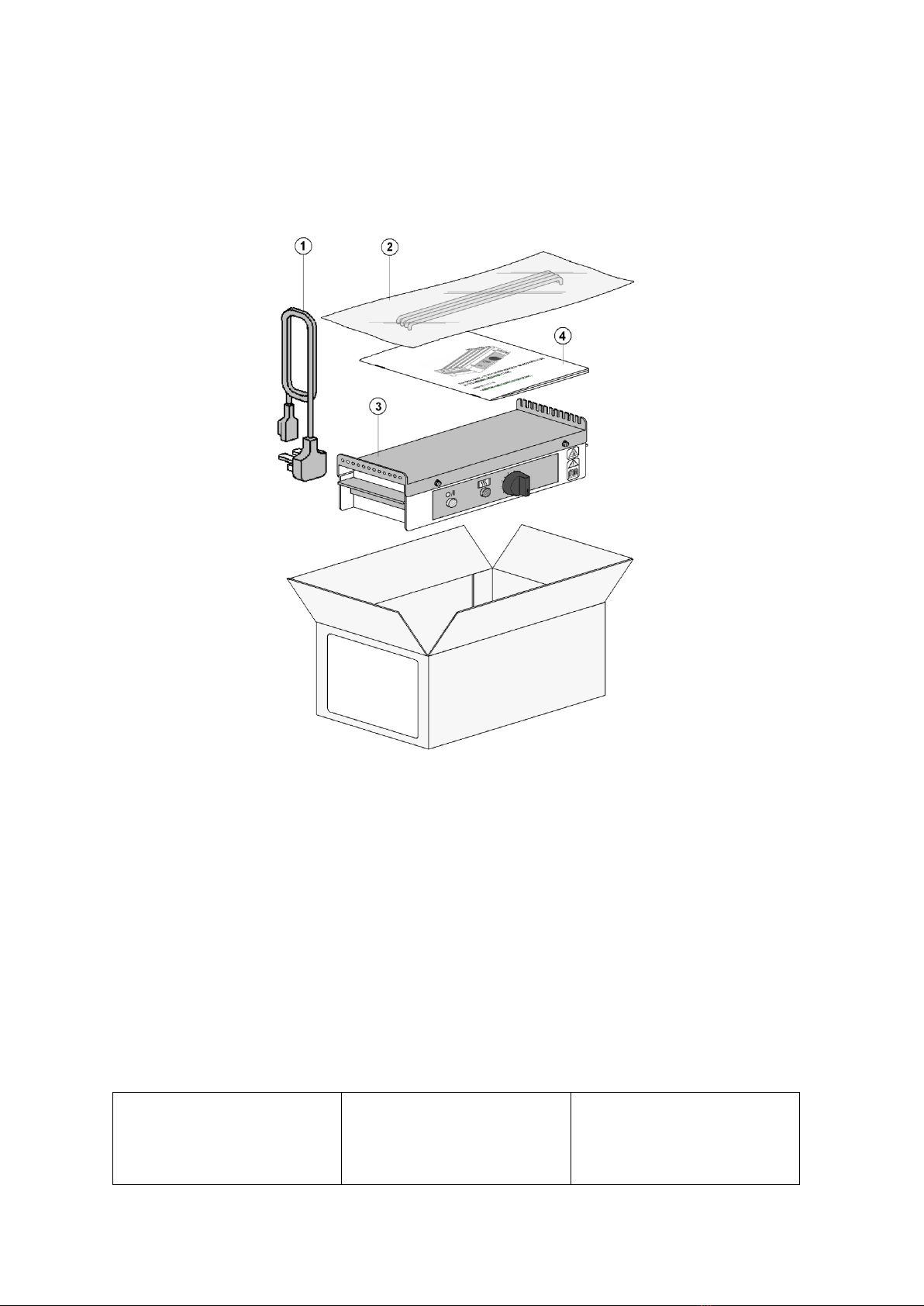

4. UNPACKING AND CONTENTS.
Please check the contents of this carton against the diagram.
For your future reference
please record your products
Serial and Model numbers.
Unit Serial Number
Unit Model/Cat Number.
Item No Qty
1 A/R
2 4
3 1
4
Description
Mains Cord set.
(Illustration only- may vary depending on variant)
Support rods
Slide Dry Bench
Instruction Manual 1
7

5. INSTALLATION.
5.1. Electrical safety and installation.
5.1.1. This equipment is designed to safe under the following conditions:-
Indoor use.
Altitude up to 2000 meters.
Temperatures between 5C and 40C.
Maximum relative humidity 80% for temperatures up to 31C decreasing linearly to 50%
relative humidity at 40C.
Mains supply voltage fluctuations up to 10% of the nominal voltage.
Transient over voltages typically present on the mains supply. (Overvoltage category II)
Applicable rated pollution degree 2.
5.1.2. This equipment must be earthed / grounded to a fixed earth / grounded mains
socket outlet. The mains supply is to be earthed / grounded in accordance with current
legislation.

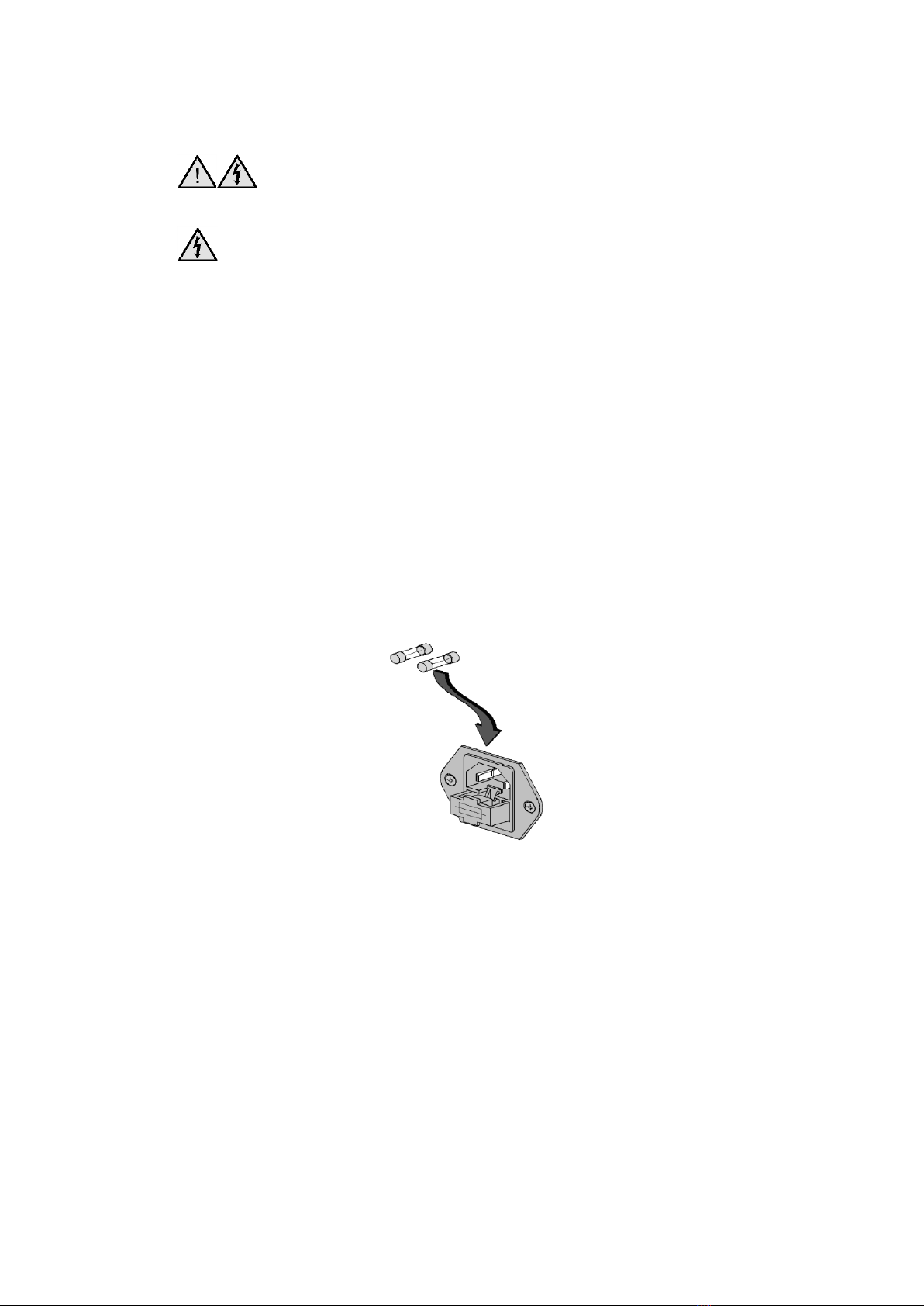

5.1.3. Ensure only the correct rated mains input fuses are fitted. (Where applicable ensure the
correct mains cable fuse if fitted). See Technical Information Section 8 of the Instruction
Manual.
5.1.4. Check the voltage on the product data label of this unit. Ensure the rating conforms to
your local supply.
5.1.5. It is recommended this unit be connected to a mains supply source which incorporates
an RCD or GFCI device.
5.1.6. The unit is supplied with a moulded plug and mains lead set wired as follows.
Green / Yellow
or
Green
=
Earth / Ground
Blue
or
White
=
Neutral
Brown
or
Black
=
Live / line hot.
5.2. Install equipment is used on a clean, dry, non-combustible, solid work surface with at
least 300mm suitable clearance all around from other equipment / objects.
8

6. ENVIRONMENTAL PROTECTION.
6.1. Maximum consideration to environmental issues within the design and
manufacturing process without compromising end product performance and value.
6.2. Packaging materials have been selected such that they may be sorted for
recycling.
6.3. At the end of your product and accessories life, it must not be discarded as
domestic waste. Ref: EU Directive 2002/96/EC on Waste Electrical and Electronic
Equipment Directive (WEEE). Please contact your distributor / supplier for further
information. For end users outside of the EU consult applicable regulations.
6.4. This product should only be dismantled for recycling by an authorised recycling
company.
This product and accessories must be accompanied by a completed
Decontamination Certificate prior to any disposal. Copies of the Certificate are
available from Distributor/Manufacturer.
9

7. PRODUCT OPERATION
This unit has been designed for safe operation when used as described in
accordance with the manufacturers instructions.
Note: failure to use this equipment in accordance with the manufacturers ‘Instruction manual’
may compromise your basic safety protection afforded by this equipment and may invalidate
the terms of the Warranty / Guarantee.
7.1. Overview.
Your Slide Drying Bench has been designed for easy operation. The illustrations
show a detailed layout of your Slide Drying Bench.
Item No
Description
1
Support Bars
2
Drying surface
3
Hot surface warning
4
Earth test point
5
Carrying handles
6
Power On indicator
7
Heater On indicator
8
Temperature control regulator knob and On/Off switch.
9
Mains input IEC socket.
10
Data plate label.
7.2. Place the slides to be dried on the bench surface. The slides can be arranged on
the bench in a number of ways as illustrated.
7.3. Connect the unit to the mains power ensuring the correct voltage is being applied.
The White ‘Power on’ Neon will illuminate.
7.4. Set the temperature control regulator knob to position 10. The Amber ‘Heater on’
neon will illuminate.
7.5. When the required bench temperature has been reached (this can be monitored
using a suitable Surface temperature Probe) turn the regulator down to just
maintain required temperature setting.
The maximum temperature obtainable at setting 10 is 100C nominal.
7.6. When slides are dry, switch off the unit at the regulator knob and disconnect from
the mains electrical supply. Allow slides to cool before further handling.
10

8. TECHNICAL SPECIFICATION.
8.1. Specification.
Maximum power consumption.
Fuse rating (115V).
Fuse rating (230V).
Operational climatic conditions.
Heating Element
Case Construction
Thermal Insulation
Capacity.
Mains Supply Power.
Mains Power Lead set (UK) 13A BS1362
Mains Power Lead set (Europe)
Mains Power Lead set (USA)
Lead set plug fuse (UK –only)
160 Watts
2.5 Amps (5 x 20mm dia Glass
Quickblow)
1.25 Amps (5 x 20mm dia Glass
Quickblow)
Temperature range 5C to 40C.
Humidity not to exceed 80%.
Silicone Rubber Mat Heater.
Painted Aluminium.
Ceramic Fibre sheet.
Maximum 50 slides at 76 x 25mm
(3” x 1”).
230V-AC or 115/100V-AC @
50/60Hz
3 core earthed / ground. 2 meters
long
Moulded IEC plug and Lead set –
supply cord H05 V V-F- Replace
only with equivalent cable.
3 core earthed / ground. 2 meters
long
Moulded IEC plug and Lead set –
supply cord H05 V V-F- Replace
only with equivalent cable.
3 core earthed / ground. 2 meters
long
Moulded IEC plug and Lead set –
supply cord SJT VW 1- Replace
only with equivalent cable.
13A
8.2. The Ingress Protection rating for this product is classified as IPX1

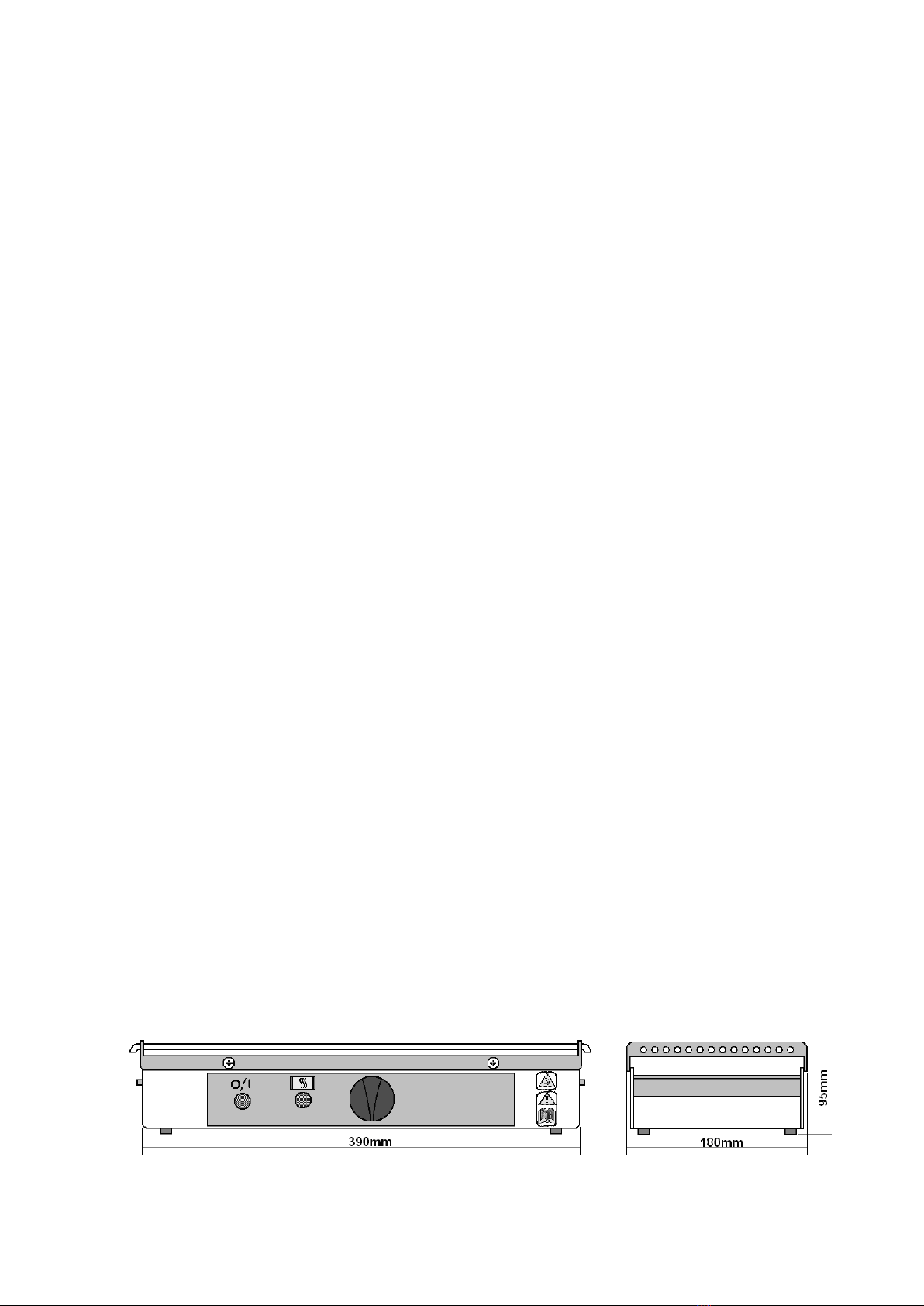

8.3. Dimensions & Weight (unpacked).
Weight 1.8 Kg (4lb).
11

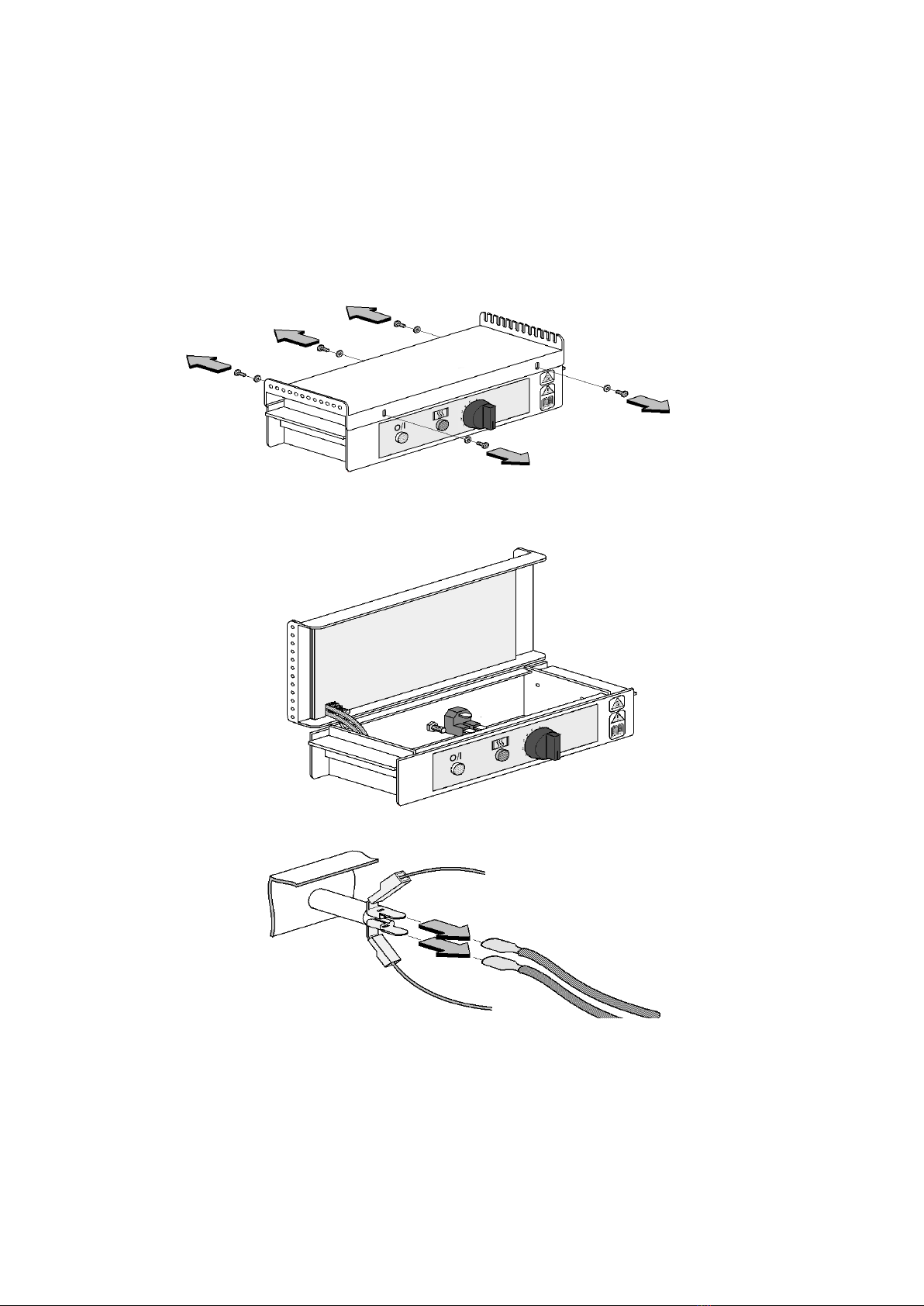

9. MAINTENANCE
9.1. General Information
Unplug the unit from the mains input voltage supply and allow it to cool before
undertaking any maintenance tasks.
Maintenance should only be carried out under the direction of the Responsible Body, by a
competent electrician. Failure to do so may result in damage to the product and in extreme
cases be a danger to the end user.
With proper care in operation this equipment has been designed to give many years of reliable
service. Contamination or general misuse will reduce the effective life of this product and may
cause a hazard.
Maintenance for the unit should include:
Periodic electrical safety testing (an annual test is recommended as the minimum
requirement).
Regular inspection for damage with particular attention to the mains lead and plug set.
Routine cleaning of the equipment should be undertaken using a clean cloth.
DO NOT USE SOLVENTS FOR CLEANING ANY PART OF THIS EQUIPMENT.
9.2. Fuse Replacement.
The mains fuse holder is located at rear your product. Refer to Technical Specification, ‘Fuse
Rating’ for correct fuse type and rating. Turn your product off and remove it from the mains
supply. Open fuse draw and remove fuses. Fit replacement fuses and close the draw.
12

9.3. Replacing the Heater Mat.
WARNING: The Insulation Pressure Plate contains insulation made from Refractory Ceramic
Fibres (RCF) classified as a category 2 carcinogen under EU Directive 67/548/EC. Follow the
guidelines for working with RCF as laid down in the ECFIA Code of Practise.
In the event of a heater element becoming open circuit the following procedure
should be adopted for its replacement.
9.3.1. Unplug and disconnect the unit from the power source.
9.3.2. Unscrew and remove the screws retaining the top plate. Lift the top plate
clear.
9.3.3. Hinge back the heater mat and insulation pressure plate, the insulation
should be carefully removed and placed on the top plate. This will reduce the
risk of damage to the insulation.
9.3.4. Remove any wire ties, now disconnect the heater leads from the amber
neon.
9.3.5. Connect the replacement mat.
9.3.6. Replace wire ties and insulation and hinge the heater into position over the
insulation.
9.3.7. Place Top plate in position and refit all the fixing screws.
9.3.8. The Responsible Body shall check the electrical safety of the unit before
further use.
13

9.4. Spillage and Decontamination.
In the event of spillage switch off and unplug this product from the mains electrical supply. Wipe
off all excess liquid from the reaction block and surrounding area using an absorbent soft cloth.
Allow sufficient time for any ingressed liquid to evaporate before commencing with use.
If in doubt please consult Customer Support. Refer to section 10.
If the equipment has been exposed to contamination, the Responsible Body is
responsible for carrying out appropriate decontamination. If hazardous material has
been spilt on or inside the equipment, decontamination should only be undertaken
under the control of the Responsible Body with due recognition of possible hazards.
Before using any cleaning or decontamination method, the Responsible Body should
check with the manufacturer the proposed method will not damage the equipment.
Prior to further use, the Responsible Body shall check the electrical safety of the unit.
Only if all safety requirements are met can the unit be used again. The above procedure
is intended as a guide. Should spillage occur with a toxic or hazardous fluid then special
precautions may be necessary.
Decontamination Certificate.
Note: In the event of thisequipment or any part of the unit becoming damaged, or requiring
service, the item(s) should be returned to the manufacturer for repair accompanied by a
decontamination certificate. Copies of the Certificate are available from
Distributor/Manufacturer.
At the end of life, this product must be accompanied by a Decontamination Certificate.
See section 6.3 and 6.4
14

10. PARTS & ACCESSORIES.
230V
115V
REMH6616
AZ9137
AZ9139 AZ9139
CRM5607 CRM5619
CRM5608 CRM5620
AZ9127 AZ9128
AZ9039 (F1.25A) AZ9040 (F2.5A)
HH179(S) -
HH180(S) -
Heater Mat
Slide Support Rod Qty 4
Neon Clear
Neon Amber
Energy Regulator
Fuse (Qty 10)
Plug and lead set (UK)
Plug and lead set (Europe)
Plug and lead set (USA) -CRM6288
15

11. CUSTOMER SUPPORT.
For help and support in using this product, please contact Customer Services at the following
address.
Cole-Parmer Ltd.
Beacon Road,
Stone,
Staffordshire,
ST15 0SA,
United Kingdom
Tel: [phone]
Service: [email protected]
General enquiries: [email protected]
Order enquiries: [email protected]
Technical support: [email protected]
www.electrothermal.com
16

12.NOTES
17

18

and so we cannot guarantee that interference will not
occur in practice. Where there is a possibility that injury,
damage or loss might occur if equipment malfunctions
due to radio frequency interference, or for general
advice before use, contact the manufacturer.
This product meets the applicable EC
harmonised standards for radio frequency
interference and may be expected not to
interfere with, or be affected by, other equipment with
similar qualifications. We cannot be sure that other
equipment used in its vicinity will meet these standards
19
Declaration of Conformity is also available to view online at www.electrothermal.com
This declaration of conformity is issued under the sole responsibility of the manufacturer
Object of Declaration Slide Drying Bench
(reference the attached list of catalogue numbers)
The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation:
Signed for and on behalf of the above manufacturer
EU Declaration of Conformity
Product Laboratory Equipment
Manufacturer Cole-Parmer Ltd
Beacon Road
Stone, Staffordshire
ST15 0SA
United Kingdom
File Number P225
Authorised Cole-Parmer
Representative Beacon Road
Stone, Staffordshire
ST15 0SA
United Kingdom
Additional Information
Place of Issue
Date of Issue
Authorised Representative
Title
Signature
Year of CE Marking: 1996
Stone, Staffordshire, UK
13 August 2014. Revised 09 June 2017
Steve Marriott
Technical Director
References to the relevant harmonised standards used or referen
to which conformity is declared:
Low Voltage Directive
EMC Directive
RoHS Directive
2014/30/EU
2011/65/EC
2006/95/EC
IEC/EN 61010-1:2010
Safety requirements for electrical equipment for
measurement, control and laboratory use.
Part 1: General requirements.
Particular requirements for laboratory equipment for the
heating of materials.
Electrical equipment for measurement, control and
laboratory use. EMC requirements.
Part 1: General requirements (Class B).
IEC/EN 61010-2-010:2014
IEC/EN 61326-1:2013
(until 19 April 2016)
2014/35/EU (from 20 April 2016)

Thank you for reading this data sheet.
For pricing or for further information, please contact us at our UK Office, using the details
below.
UK Office
Keison Products,
P.O. Box 2124, Chelmsford, Essex, CM1 3UP, Engl nd.
Tel: [phone]
F x: [phone]
Em il: s [email protected]
Please note - Product designs and specifications are sub ect to change without notice. The user is responsible for determining the
suitability of this product.
