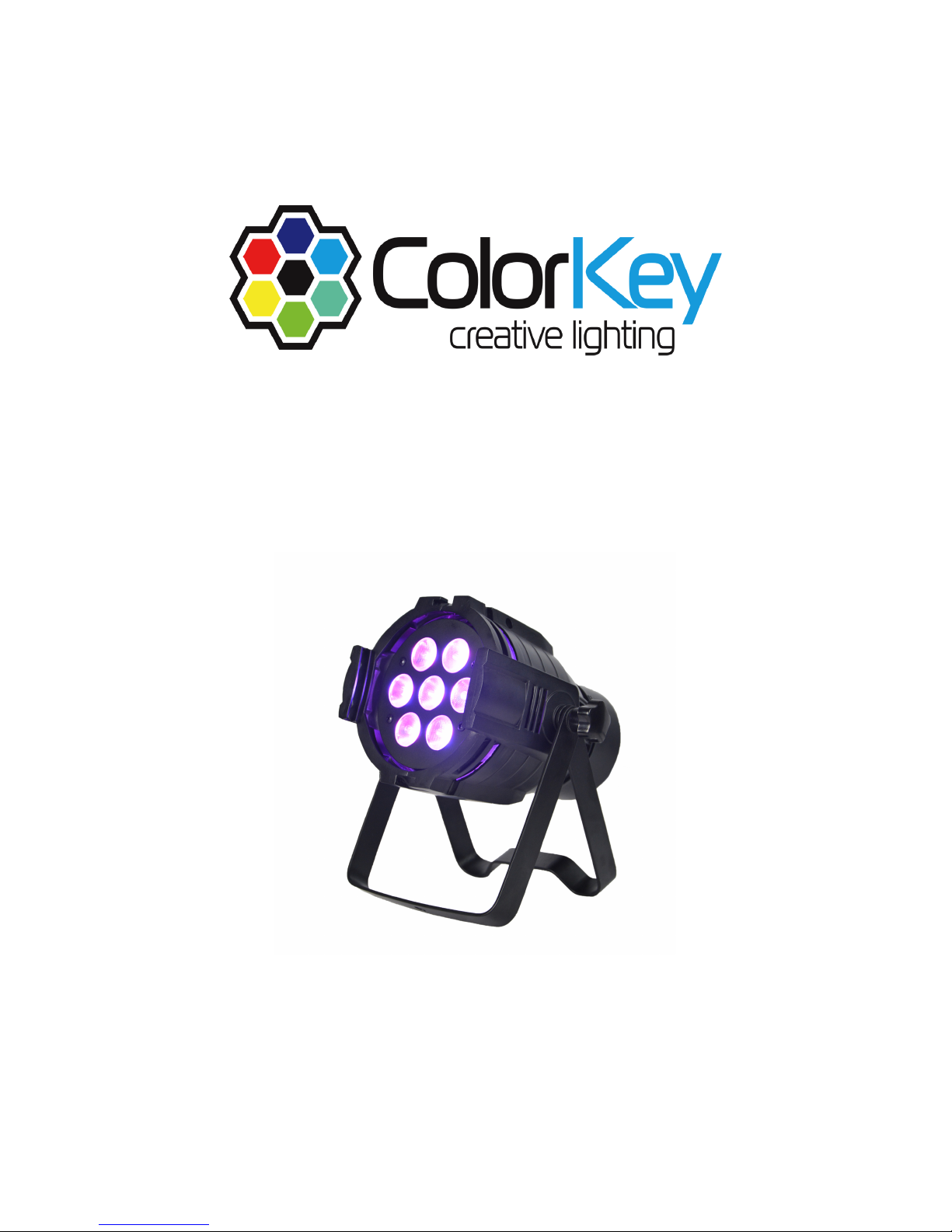

ColorKey MicroPar HEX 7 User manual

MicroPar HEX 7
7x12w 6in1 LEDs (RGBAW-UV)
USER MANUAL

Table of Contents
1. Introduction ................................................................................................. 1
2. Safety............................................................................................................ 2
3. DMX Values & Function................................................................................ 3
4. Display Operation ......................................................................................... 6
5. Menu Guide & Operation .............................................................................. 7
6. DMX Connections ....................................................................................... 11
7. Master/Slave Mode Operation .................................................................... 12
8. Troubleshooting .......................................................................................... 12
9. Technical Information.....…..……………………….…………………………...13

1
1. Introduction
!Summary
Thank you for purchasing the ColorKey MicroPar HEX 7. Please read these instructions
carefully before use. O perating this fixture according to these instructions is important to
avoid any possible damage or accidents caused by misuse.
!Product Introduction
The ColorKey MicroPar Hex 7 uses a MicroPar cast aluminum housing and adopts 7
high-powered 6-in-1 LEDs. Each LED is made up of Red, Green, Blue, Amber, White
and Ultraviolet LEDs. This fixture features long life span, low power consumption,
amazing color mixing and bright output. Each of the 6 colors can be independently
controlled. Built-in modes include; dimming, strobe, gradual change, color fading, color pulse
as well as other programs. This fixture uses a switching power supply that is lightweight
and requires minimal power consumption . This fixture also features universal protocol
DMX-512.
!Packing list
"1x MicroPar HEX 7
"User Manual
"Warranty Card

2
2. Safety
!Safety Notes
Caution! Opening this unit voids warranty. Contact ColorKey for any service requests.
Warning! To avoid electrical shock, be sure to disconnect power before any service or when
moving or setting up the fixture.
Caution! Avoid direct eye exposure with the fixture when on.
!Safety Instruction
●The MicroPar HEX 7 has an automatic voltage switch and will automatically detect voltage
when connected to power. Please be sure to check voltage is within the range of this
fixture’s specifications.
●Before use, check this fixture for damage that may have been caused during the shipping
process. Do not use and contact ColorKey immediately should you notice any damage.
● This fixture is designed for indoor use only; operating this fixture outdoors may cause
damage.
●This fixtures maybe mounted in any position provided there is adequate space for
ventilation.

3
3. DMX Values & Function
!DMX 3 Channel Mode
Channel
Value
Function
Notes
CH1
0-255
Static Color
CH2
0-255
UV
0-100%
CH3
0-255
Master Dimmer
!DMX 6 Channel Mode
Channel
Value
Function
Notes
CH1
0-255
Red
0-100%
CH2
0-255
Green
0-100%
CH3
0-255
Blue
0-100%
CH4
0-255
Amber
0-100%
CH5
0-255
White
0-100%
CH6
0-255
Ultraviolet (UV)
0-100%

4
!DMX 10 Channel Mode
Channel
Value
Function
Notes
Priority
CH1
0-255
Master Dimmer
0-100%
1
CH2
0-255
Red
0-100%
CH3
0-255
Green
0-100%
CH4
0-255
Blue
0-100%
CH5
0-255
Amber
0-100%
CH6
0-255
White
0-100%
CH7
0-255
Ultraviolet (UV)
0-100%
CH8
0-14
Dimming
2
15-255
Strobe Speed
CH9
0-31
N/A
Not used
3
32-63
Built-in Program
Dark to Bright
Must use CH1, 2, 3,
4, 5, and/or 6 to
activate
CH 10, program
speed adjustment.
64-95
Built-in Program
Bright to Dark
96-127
Built-in Program
Dark—Bright—Dark
128-159
Color Fade
160-191
Dark—Bright—Dark
Auto Run
192-223
Color Change
224-255
Sound Activated
CH10
0-255
Speed Adjustment
Slow-Fast

5
!DMX 11 Channel Mode
Channel
Value
Function
Notes
Priority
CH1
0-255
Master Dimmer
1
CH2
0-255
Red
0-100%
CH3
0-255
Green
0-100%
CH4
0-255
Blue
0-100%
CH5
0-255
Amber
0-100%
CH6
0-255
White
0-100%
CH7
0-255
Ultraviolet (UV)
0-100%
CH8
0-14
Dimming
2
15-255
Strobe Speed
CH9
0-31
N/A
3
32-63
Built-in Program
Dark to Bright
Must use CH 1, 2, 3,
4, 5 and/or 6 to
activate.
CH10 is speed
adjustment.
64-95
Built-in Program
Bright to Dark
96-127
Built-in Program
Dark—Bright—Dark
128-164
Color Fade
165-191
Dark—Bright—Dark
Auto Run
192-223
Color Change
224-255
Sound Activated
CH10
0-255
Speed Adjustment
Slow-Fast
CH11
0-5
Display Setting
6-55
Dimmer 0
56-105
Dimmer 1
106-155
Dimmer 2
156-205
Dimmer 3
206-255
Dimmer 4

6
4. Display Operation
!MENU: Access the menu/Scroll through menu options
!ENTER: Open/Select the current menu option
!UP: Scroll through menu selection or parameter increase
!DOWN: Scroll through menu selection or parameters decrease

7
5. Menu Guide & Operation
Addr
d001-d512
DMX Mode
CHnd
3CH/6CH/10CH/11CH
DMX Channel
Mode
SLAU
SL.AU
Slave Mode
SP--
SP00-SP15
Built-in Program
Speed
Pr--
Pr00-Pr67
Built-in Program
MENU
FAdE
FA00-FA15
Color Fade
FLAS
FL00-FL15
White Strobe
Mode
rL--
r.000-r.255
Red Dimmer
GL--
G.000-G.255
Green Dimmer
bL--
b.000-b.255
Blue Dimmer
JL--
J.000-J.255
Amber Dimmer

8
AL--
A.000-A.255
White Dimmer
UL--
U.000-U.255
UV Dimmer
SouA
So.uA
Sound Activated
LED
On/Off
Display On/Off
nodE
nod0-nod4
DMX Dimmer
Mode
UErn
UE2.0
Software Version
UtSt
r.000-r.255
G.000-G.255
b.000-b.255
J.000-J.255
A.000-A.255
U.000-U.255
Uson/oFSEon/oFrEt
White balance
setting

9
1．Operating instruction:
To operate your unit in DMX mode, follow these steps:
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP/DOWN until “Addr” is displayed.
!Press ENTER to proceed. Display will flash indicating you have entered edit mode.
!Press UP/DOWN to select desired DMX address. This will display as d001-d512.
!Press ENTER to save and store your selections. T he screen will stop flashing
indicating you have exited edit mode.
To select DMX Channel Mode, follow these steps:
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP/DOWN until “CHnd” is displayed.
!Press ENTER to proceed. Display will flash to indicating you have entered edit mode.
!Press UP/DOWN to select desired DMX channel mode (3CH, 6CH, 10CH or 11CH).
!Press ENTER to save and store your selections. The screen will stop flashing
indicating you have exited edit mode.
To select Display On/Off, follow these steps:
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP/DOWN until “LED” is displayed.
!Press ENTER to proceed. Display will flash indicating you have entered edit mode.
!Press UP/DOWN until desired selection is displayed (“On” or “OFF”).
!Press ENTER to save and store your selections. The screen will stop flashing
indicating you have exited edit mode.
Note*** Display will remain on for approximately 2 minutes after the last button
selection. When the display is off, press any button to activate display.
2. Details of Built-in Programs (Pr- -)
!Press MENU to activate display / return to ‘main menu’ screen.

10
!Press UP / DOWN until “Pr- -“ is displayed.
!Press ENTER to proceed. Display will flash indicating you have entered edit mode.
!Press UP / DOWN until desired selection is displayed (see chart below “Pr- -“).
! Press ENTER to save and store your selections. The screen will stop flashing
indicating you have exited edit mode.
Built-in Program Chart:
!Pr32 - Pr35 are speed adjustable. SP00 is the fastest, SP15 is the slowest.
!Pr00 - Pr63：R,G,B,A,W,UV single color or multi-colors lighting
!Pr64 - 6 Color Change mode
!Pr65 - 6 Color Change + Strobe
!Pr66 - Multi-Color Change
!Pr67 - Multi-Color Change + Strobe
3. White balance setting（UtSt）
!Press MENU to activate display / return to ‘main menu’ screen.
!Press UP/DOWN until “UtSt” is displayed.
!Press ENTER to proceed. Display will flash indicating you have entered edit mode.
!Press UP/DOWN until desired selection is displayed (from 0 to 255).
! Press ENTER to save and store your selections. The screen will stop flashing
indicating you have exited edit mode.
Note*** USon indicates white balance function is on. USoF indicates white balance function
is off. SEon indicates the transfer of white balance data to other matching fixtures. SEoF
indicates invalid. rEt indicates save and exit. When white balance data is set, press UP or
DOWN until “rEt” is displayed and press ENTER to select and store your selections.
Note*** Changing the white balance data controls the output of selected colors. For example,
if r000 is set, when switching the white balance function to ‘On,’ there will be no red color
output.

11

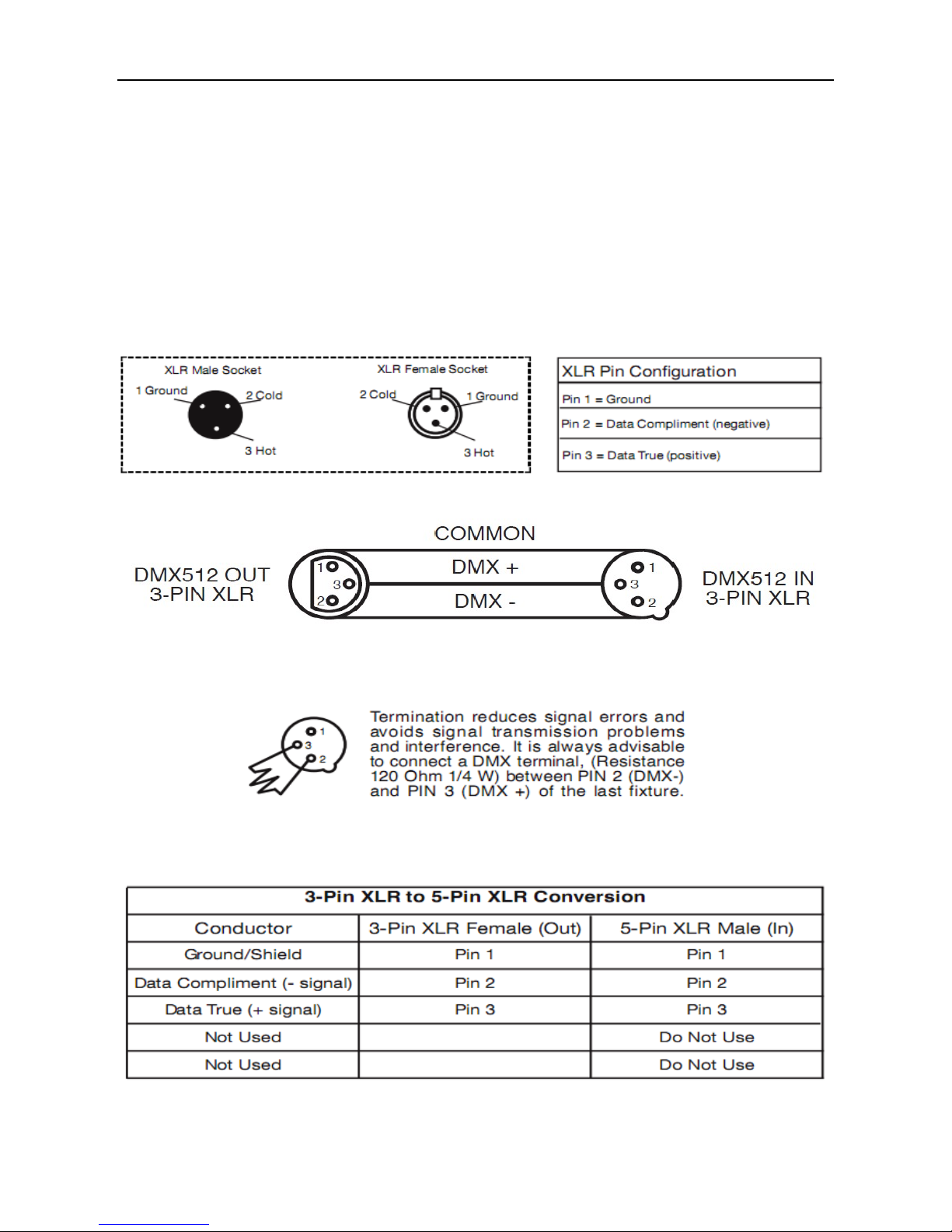

6. DMX Connections
!DMX Cable：
The MicroPar HEX 7 can be controlled via DMX using a 3-pin XLR connection. The
standard DMX connection is XLR is: one end connects to the male plug, and the other
connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal
Noted：In order to avoid failures and interference signal transmission，we connect a
resistance120Ω（1/4W ）at the end of the DMX connecting as below:
!The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable

12
7. Master/Slave Mode Operation
Master/Slave
Master/Slave mode allows you to connect multiple units together using one (1) unit to control
others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a
controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal
via DMX to Slave units which will react in synchronization. When a fixture is set into ‘Slave
Mode’, this fixture will receive the Master signal. To ensure a fixture is in ‘Slave Mode’ the
fixture’s display must read “SLAV”. To avoid master signal and DMX signal interference, do
not connect DMX when using Master/Slave mode. If using a DMX run longer than 60 meters
and/or over 32 units, a signal amplifier may be required.
8. Troubleshooting
Problem
Solutions
No DMX control
#Make sure that the DMX cable is properly connected
#Make sure that the DMX controller is operational
#Check the DMX cable for tears or breaks
#Make sure that the fixture is in DMX mode
Fixture does not
respond to sound
#Make sure that the fixture is in Sound Active mode.

13
9. Technical Information
Input voltage: AC 100V-264V/47-63HZ
Output voltage: DC28V
Consume: 84W
Lamp Type: High Power LED (12W)
Lamp Spec: RGBAW-UV 6-in-1 12W (7PCS)
Refresh rate :> 400HZ
Life span: 50000~100000hours
Control Signal: DMX512, sound activated, auto run
Control mode: DMX512, Mater/Slave, Sound Activated, Stand Alone
DMX channels: 3CH/6CH/10CH/11CH
Beam Angle: 25°
Cooling mode: Fan cooling
Anti-electricity intension: 1.5KV
Insulation Resistance:＞２MΩ
IP rated: IP20
Size: 140(D)*190(W)*240(H)mm
Net Weight: 1.5KG
Notice to consumer: ColorKey offers a 2-year limited warranty. Please visit our website at
www.ColorKeyLED.com to register your product.
Please note: As we continue to work towards improving our products and your experience
as a user, we recommend that you check our website periodically for updates to user
manuals and specifications at www.ColorKeyLED.com or you may contact us directly at
[email protected].
