Combi Child Car Seat
Joytrip Advance ISOFIX Series
User Manual
This product can be installed to vehicle seats approved for installation of ISOFIX
However, this does not mean that this child car seat can be installed to any vehicle
【Child seat mode】
【Junior seat mode】
For the safety of the child, please read this
user manual carefully before use and use the
with Warranty Card
DANGER
CAUTION
Do not use the child car seat if the child does not meet the following conditions:
[Child seat mode]
Applicable child year, height and weight: 15 months or older withaheight
of 76 cm to 105 cm and a weight of up to 20 kg
[Junior seat mode]
Applicable child height: Height of 100 cm to 150 cm
To avoid causing stress to the child, avoid continuous long-time usage and
give the child abreak from the child car seat aboutonce every hour.

1
Before Use
Before Use
Before Use……………………………………………………………………………………2
Name of Parts ………………………………………………………………………………3
Use Conditions ……………………………………………………………………………… 5
Applicable Vehicle Seats……………………………………………………………………6
Types of Vehicle Seatbelts and Precautions for Use (When Using Seatbelts) …………………7
Inapplicable Vehicle Seats …………………………………………………………………8
For Safe Use of the Child Car Seat …………………………………………………… 10
Assembling ……………………………………………………………………………… 17
Using Child Seat Mode
Preparation of Installation ……………………………………………………………… 20
Installing to the Vehicle ………………………………………………………………… 22
Checklist after Installation ……………………………………………………………… 28
Uninstalling from the Vehicle …………………………………………………………… 30
Adjusting the Baby Shoulder Belt and Head Guard Positions ……………………… 31
Seating the Child ………………………………………………………………………… 33
Unseating the child ……………………………………………………………………… 36
Using Junior Seat Mode
Changing to Junior Seat Mode ………………………………………………………… 37
Preparation of Installation ……………………………………………………………… 43
Installing to the Vehicle ………………………………………………………………… 44
Seating the Child ………………………………………………………………………… 46
Checklist after Installation ……………………………………………………………… 49
Returning to Child Seat Mode ………………………………………………………… 50
Maintenance and Other
Using the Inner Cushion ………………………………………………………………… 51
Attaching and Removing the Covers…………………………………………………… 52
Changing to Storage Mode……………………………………………………………… 55
Storing the Child Car Seat in Storage Mode ………………………………………… 57
Carrying the Child Car Seat in Storage Mode ………………………………………… 58
Maintenance Method …………………………………………………………………… 59
Storage and Disposal …………………………………………………………………… 60
Warranty Card …………………………………………………………………………… 61
Contact Information …………………………………………………………… Back cover
Table of Colntents

2
Before Use
For the safety of the child, please read this user manual carefully before use and
-
-
important items that indicate potential consequences if not followed properly, and are
Before Use
DANGER
WARNING
CAUTION
-
HINT
<About using second-hand child car seats>
·
·

3
Before Use
Name of Parts
Front
Waist
belt guide
Seat
base
Baby belt
Backrest
Head
cushion
Shoulder
belt guide
Head guard adjustment lever
Head guard
Insert
tongue
BuckleInsert
tongue
stopper
* If the Insert tongue goes
through the stopper, wrap
the Insert tongue stopper.
Crotch belt cover
Shoulder belt
cover
Shoulder belt
cover base
Baby belt adjustment
button
Adjustment
belt
User manual
storage pocket
①
②
③

4
Before Use

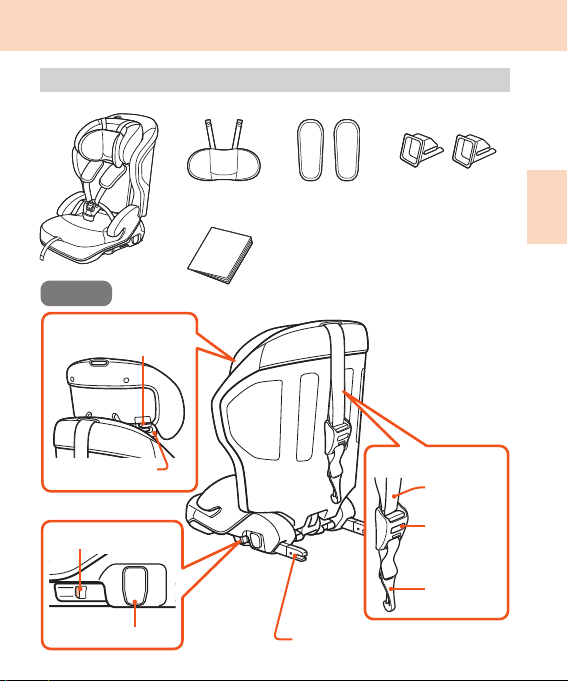

Package contents
Back
●Main body ●Head cushion ●ISOFIX
Insertion guide
●User manual
(this manual)
●Shoulder belt cover
Tether belt
Tensioner
Top tether
hook
ISOFIX connector
Top tether
Head guard back
Lot No.
Shoulder area
belt guide
Connector
adjustment lever
Connector release
lever

5
Before Use
Use conditions
The child car seat is used in the following modes according to the weight of the child.
Mode Child seat mode Junior seat mode
Use status
Using the head cushion
(head part)
Conditions
15 months or older with
a height of 76 cm to
105 cm or a weight of
up to 20 kg
Height of 100 cm to 150 cm
How to
restrain
the child
Restrain the child with a
baby belt.
Store the baby belt and restrain the child
directly with the vehicle seatbelt.
How to
fasten the
child car
seat in the
vehicle
Fasten the child car
seat in the vehicle
seat with the ISOFIX
connector and top
tether.
Fasten the
child car seat
in the vehicle
seat with
the ISOFIX
connector,
top tether
and a vehicle
seatbelt that
restrains the
child.
Fasten the
child car seat
in the vehicle
seat with
the ISOFIX
connector
and a vehicle
seatbelt that
restrains the
child.
Fasten the
child car
seat in the
vehicle
seat with
a vehicle
seatbelt that
restrains the
child.
Do not use the child car seat if the child does not meet the following conditions:
[Child seat mode]
Applicable child year, height and weight: 15 months or older with a
height of 76 cm to 105 cm and a weight of up to 20 kg
[Junior seat mode]
Applicable child height: Height of 100 cm to 150 cm
DANGER

6
Before Use
This child car seat can be installed to vehicle seats approved for installation of ISOFIX child car seats.
However, this does not mean that the child car seat can be installed in any vehicle
equipped with ISOFIX anchors (bars).
When using the child car seat, always check the vehicle compliance and check the user
manual of the vehicle to make sure the ISOFIX size classes noted below are supported.
Vehicle compliance can be checked at the following website.
ISOFIX size classes of this product
Applicable Vehicle Seats
When using the child seat mode (Heightof 76 cm to 105 cm)
ISOFIX anchoring system
(bars) provided between the vehicle
backrest and seat in order to install
an ISOFIX child car seat. The name
and position may differ according
to the vehicle, so always check the
user manual of the vehicle.
Top tether anchoring system
the top tether hook. The name and position may differ according to the vehicle, so
always check the user manual of the vehicle.
* Example of the top tether anchor position
Heightof the child Anchors
76 cm to 105 cm F2X
Heightof the child Anchors
100 cm to 150 cm B2
ISOFIX
compatible mark
i-Size
conformity mark
ISOFIX
anchor
<Vehicle seat back>
Top tether anchor
<Luggage space> <Rear parcel shelf>
<Floor> <Ceiling>

7
Before Use

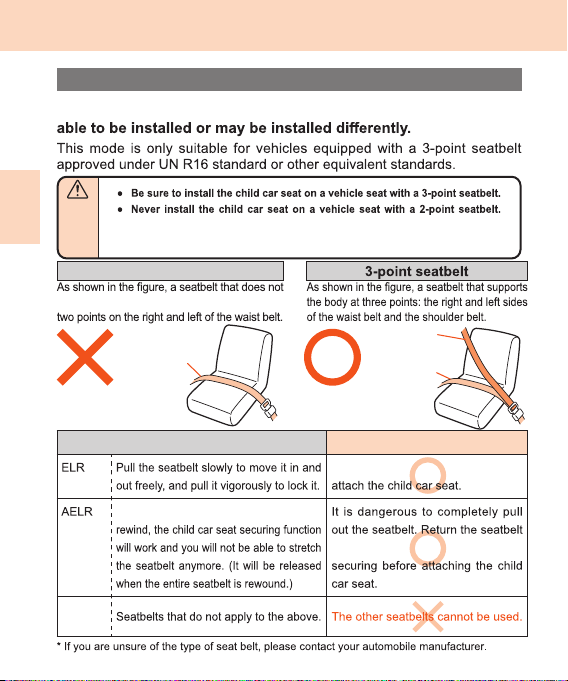

Types and characteristics of seatbelts (how to distinguish them) Precautions for installation
Slowly pull out the seatbelt and
If you pull out all the seatbelt and then let it
once to cancel the child car seat
Other
Types of Vehicle Seatbelts and Precautions for Use (When Using Seatbelts)
When using the junior seat mode (Heightof 100 cm to 150 cm)
Depending on the type of seatbelt, the child car seat may not be
Installing the child car seat on such a vehicle seat may prevent the child
car seat from functioning properly, which is dangerous to the child.
Waist belt
Shoulder
belt
Waist belt
2-point seatbelt
have a shoulder belt and supports the body at
DANGER

8
Before Use
Inapplicable Vehicle Seats
noneof the conditionsnoted below apply.
* If the headrest of the vehicle seat can be removed, which enables
*Onlywhen used in child seat mode
that is not equipped
with ISOFIX anchors (bars) and
top tether anchor.
…Installation is possible to a vehicle seat
center of the seat
base.
or
surface
Continue
.

9
Before Use
Inapplicable Vehicle Seats
* Only when used in the junior
seat mode
-
belt
the vehicle seatbelt when you sit in
* Only when used in the junior
seat mode
* Only when used in the junior
seat mode
short vehicle seatbelt
* Only when used in the junior
seat mode
comes from a position before the
* Only when used in the junior
seat mode
with a vehicle seatbelt

10
Before Use

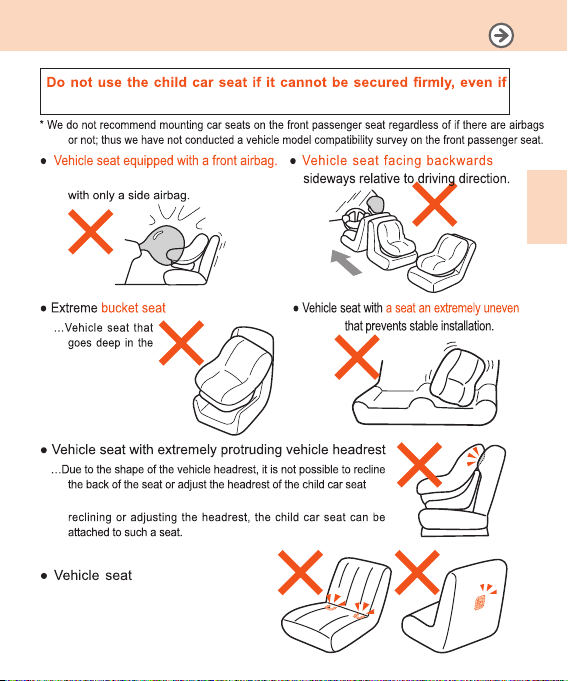

● Do not install the child car seat to a
vehicle seatequipped with a front
airbag.
In case of collision, the deploying
airbag will strongly impact the child
seat, which is dangerous to the child.
…Installation is possible to a vehicle seat
with only a side airbag. ●In the child seat mode, this prod-
uct cannot be fastened with a
vehicle seatbelt.
●Do not seat a child who does
not satisfy the use conditions,
or install the child car seat to
an inapplicable vehicle seat.
●Do not allow the child to stand,
crouch or kneelon the child car
seat.
※In the child seat mode, make
sure that the crotch belt cover
and baby belt properly fit the
child when the child is seated,
the right and left tongues are
inserted into the buckle and the
insert color indicator has
changed to green.
DANGER
For Safe Use of the Child Car Seat
Improper handling will result in imminent risk of death or serious
injury.
Continue

11
Before Use
For Safe Use of the Child Car Seat

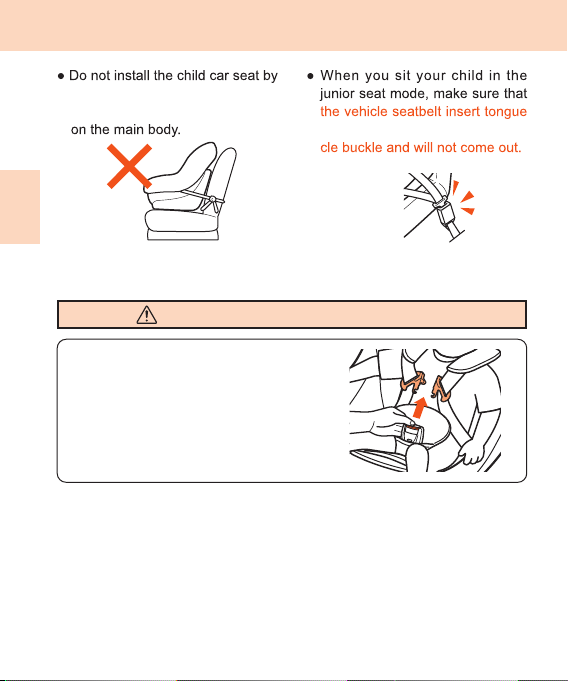

In case of accident or other emergency,
an accompanying adult should press
the buckle button to release the baby
belt (the vehicle seatbelt in the junior
seat mode) and evacuate the child from
the vehicle immediately.
Evacuation in case of emergency
is properly inserted into the vehi-
a method other than described
in this user manual and indicated

12
Before Use
If a two- or three-door vehicle has a per-
WARNING

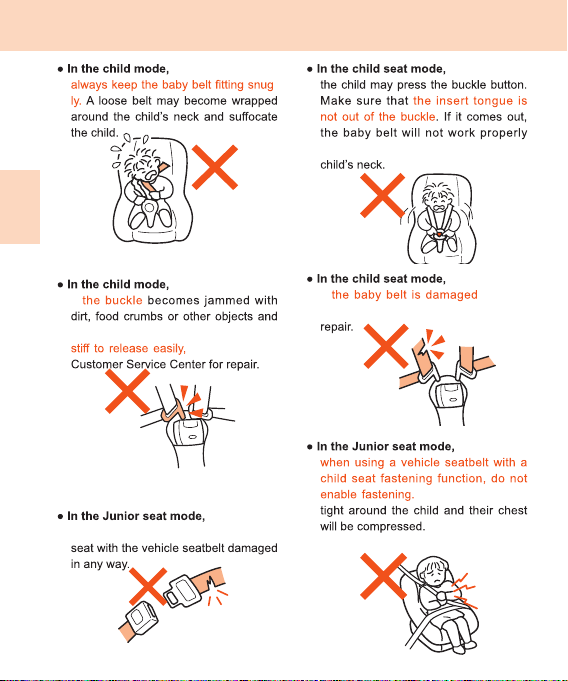

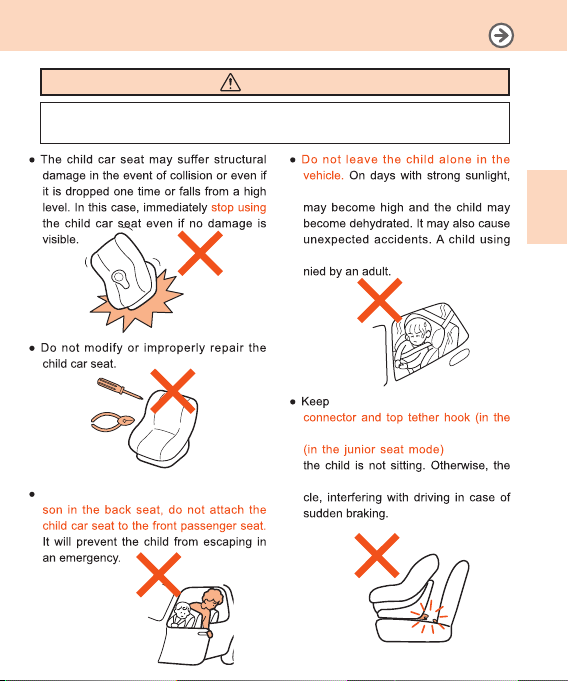

Improper handling may result in death or serious injury.
the temperature inside the vehicle
the child car seat must be accompa-
the child chair fastened with the
child seat mode) or the vehicle seatbelt
even when
child car seat may roll inside the vehi-
Continue

13
Before Use
and may become wrapped around the
if , contact
Combi’s Customer Service Center for
The belt will be too
-
if
cannot be fastened securely or is too
contact Combi’s
do not install the child car seat in a
For Safe Use of the Child Car Seat

14
Before Use
-
cle doors or other movable parts
parts to become hot and burn the
t h e
-
vehicle seat,
may remain on the vehicle seat
CAUTION
Improper handling may result in injury or damage to property.
the seat cover and other sewn
parts or the urethane and other
replace these parts with parts not
specifically authorized by Combi
-
Continue

15
Before Use
If you have any unfastened ob-
be careful
as they may hit the child in the
the child car seat as described in
a vehicle seat with cushions on
sure that other children on board
For Safe Use of the Child Car Seat

16
Before Use
Daily inspection

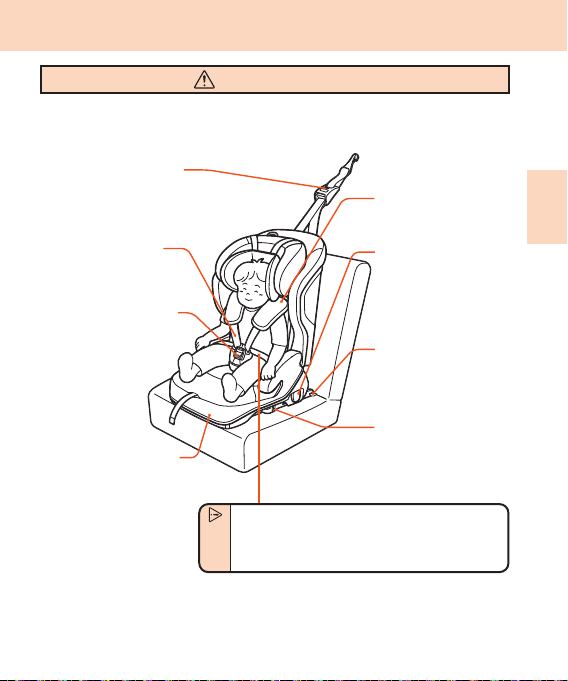

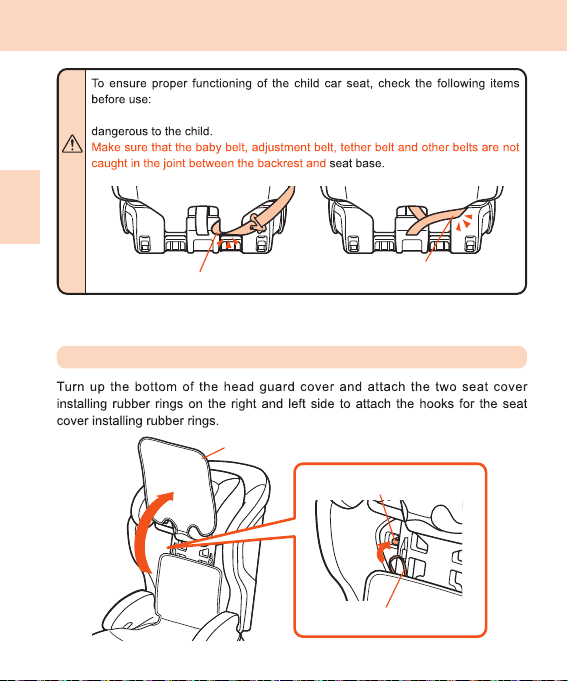

To ensure proper function of the child car seat, check the following
items before use:
Check that the baby
belt
is adjusted to the
correct
position.
The
tensioner insert color
indicator
of the top tether
shows ‘green’.
Check that the
connectors
are fastened securely
to
the ISOFIX anchors of the
vehicle.
Check that the
connector
adjustment lever
color
indicators show
the
locked condition (‘red’
is
not visible).
Check that the
connector
release button
color
indicators show
the
locked condition (‘green
’
is visible).
* The illustration shows an example of the child seat mode.
T
ry to rock the base in all
directions
to make sure
that
the child car seat is
securely
fastened to the
vehicle seat.
Check
that the insert
tongue
is firmly inserted
into
the buckle and the
insert
color indicator has
changed to green.
Check
that the baby
belt
fits snugly against
the child
’s body.
● Check that the baby belt is not twisted or loose.
● Always pull down the baby waist belt to firmly
hold the pelvis position.
WARNING

17
Before Use
Assembling
This product is shipped from the factory with the Backrest and Seat base
separated.
careful of people around you and be
car seat, hold i t as shown in the
1
Installing the backrest
Junction
between the
backrest and
seat base
CAUTION

18
Before Use
① Align the backrest hookwith the seat base joint.
② With the backrest hooks aligned with the seat base joints, slowly raise
the backrest until it touches the seat base.
* When raising, go over the two protrusions. (Refer to Backrest usage range.)
2
Backrest usage range
protrusion.
② When you raise it further, you can go over the second protrusion and make the
backrest self-supporting. Use the backrest in the range between the points where
you go over the first and second protrusions.
Hook
Joint
①
②
①
②
First protrusion Second protrusion
①②
Continue
①

19
Before Use
Assembling
Attaching the seat cover installing rubber ring
Seat cover installing
rubber ring
Hook for seat cover
installing rubber ring
Bottom of the head guard cover
Failure to do so may cause the child car seat to function improperly, which is
The baby belt is caught in the joint.
The adjustment belt is caught
in the joint.
*The removal is the reverse procedure from installing the backrest.
CAUTION
