CombiSteel 7013.013 Series User manual

Kitchen Machine
7013.0130 - 7013.0132
User Manual
Gebruikershandleiding
Gebrauchsanweisung
Le mode d’emploi

2
www.combisteel.com
CONTENT
ENGLISH
1 Machine illustration diagram............................................................................................................................ 4
2 Parts list ............................................................................................................................................................ 5
3 Function features .............................................................................................................................................. 6
4 Assembly........................................................................................................................................................... 6
5 Operating .......................................................................................................................................................... 6
6 Safety caution ................................................................................................................................................... 8
7 Maintenance..................................................................................................................................................... 9
8 Trouble and solution ......................................................................................................................................... 9
9 Technical specifications.....................................................................................................................................9
10 Electric drawing.............................................................................................................................................. 10
NEDERLANDS
1 Illustratie onderdelen machine....................................................................................................................... 12
2 Onderdelenlijst ............................................................................................................................................... 13
3 Functies........................................................................................................................................................... 14
4 Montage.......................................................................................................................................................... 14
5 Bediening ........................................................................................................................................................ 14
6 Veiligheid ........................................................................................................................................................ 16
7 Onderhoud...................................................................................................................................................... 17
8 Problemen en oplossingen ............................................................................................................................. 17
9 Technische specificaties ..................................................................................................................................17
10 Elektronische tekening................................................................................................................................... 18
DEUTSCH
1 Abbildung geräteteile...................................................................................................................................... 20
2 Liste der einzelteile ......................................................................................................................................... 21
3 Funktionen...................................................................................................................................................... 22
4 Montage.......................................................................................................................................................... 22
5 Gebrauch......................................................................................................................................................... 22
6 Sicherheit ........................................................................................................................................................ 24
7 Wartung .......................................................................................................................................................... 25
8 Probleme und lösungn.................................................................................................................................... 25
9 Technische spezifikationen ............................................................................................................................. 25
10 Elektronische abbildung................................................................................................................................. 26
FRANÇAIS
1 Vue éclatée de l’appareil................................................................................................................................. 28
2 Liste des pièces ............................................................................................................................................... 29
3 Fonctions......................................................................................................................................................... 30
4 Montage.......................................................................................................................................................... 30
5 Utilisation........................................................................................................................................................ 30
6 Mesures de sécurité........................................................................................................................................ 32
7 Entretien ......................................................................................................................................................... 33
8 Dépannage et solutions .................................................................................................................................. 33
9 Spécifications techniques ............................................................................................................................... 33
10 Schéma électronique ..................................................................................................................................... 34

3
www.combisteel.com
The product is executed standards of GB4706.38-2003.
Note: please save the manual carefully for checking.
Welcome, you made a choice for our 7Lfoodstuff mixer. The mixer is developed with update technology. It can
mix dough, dumpling stuffing, circumrotates eggs and cream mixing. Constant-torque and infinitely variable
speed Technologies have been used in the mixer. You can select any rotating speed from 147 rpm for different
load. There is a overload protect installation in the newest mixer. It is fine-looking, easy and safety to operate.
There are large application fields. Also, this mixer is working efficient and smoothly. It is an excellent helper to
make cake and dough food in west food kitchen, bread-room, bar, restaurant and home etc.

4
www.combisteel.com

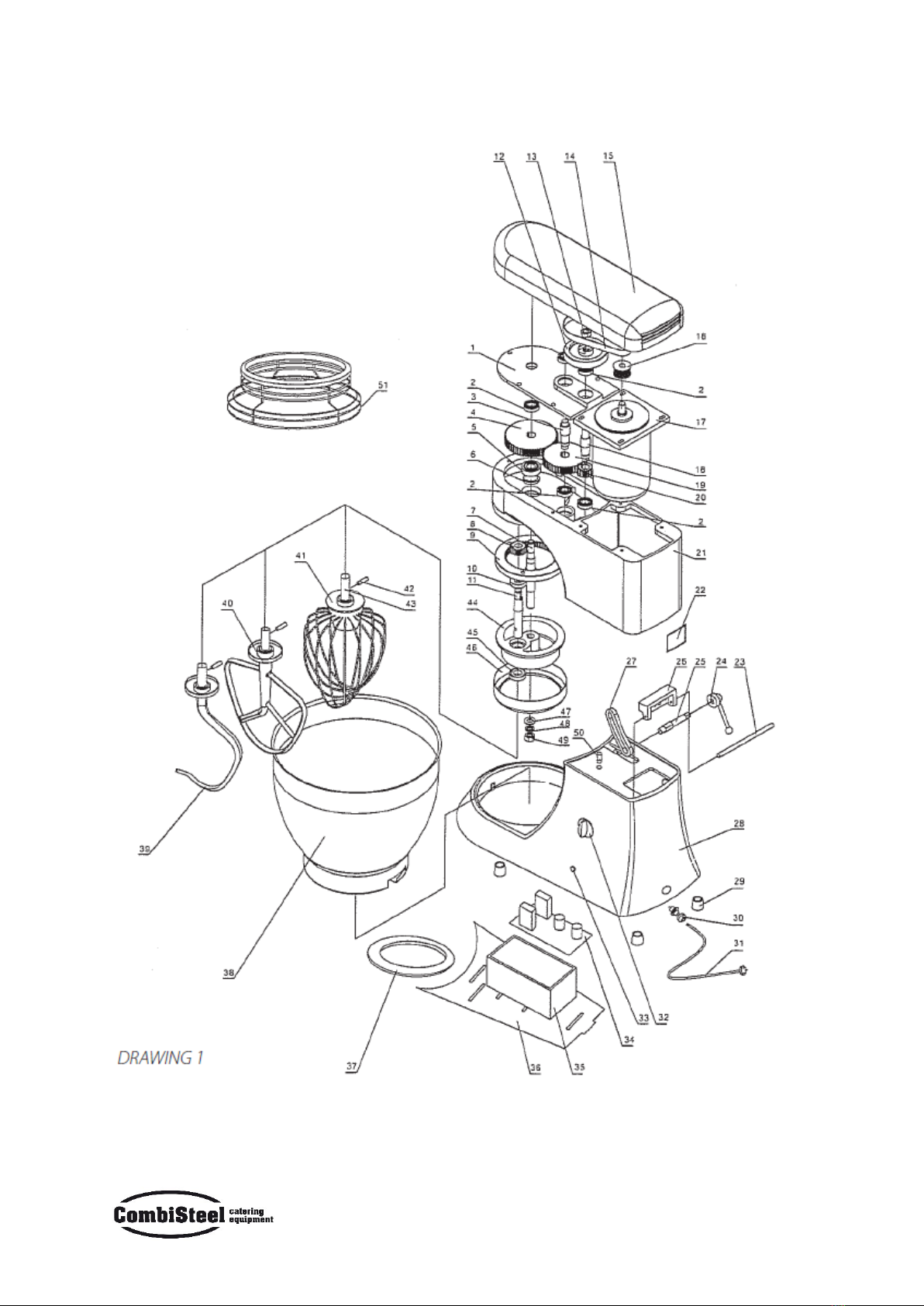

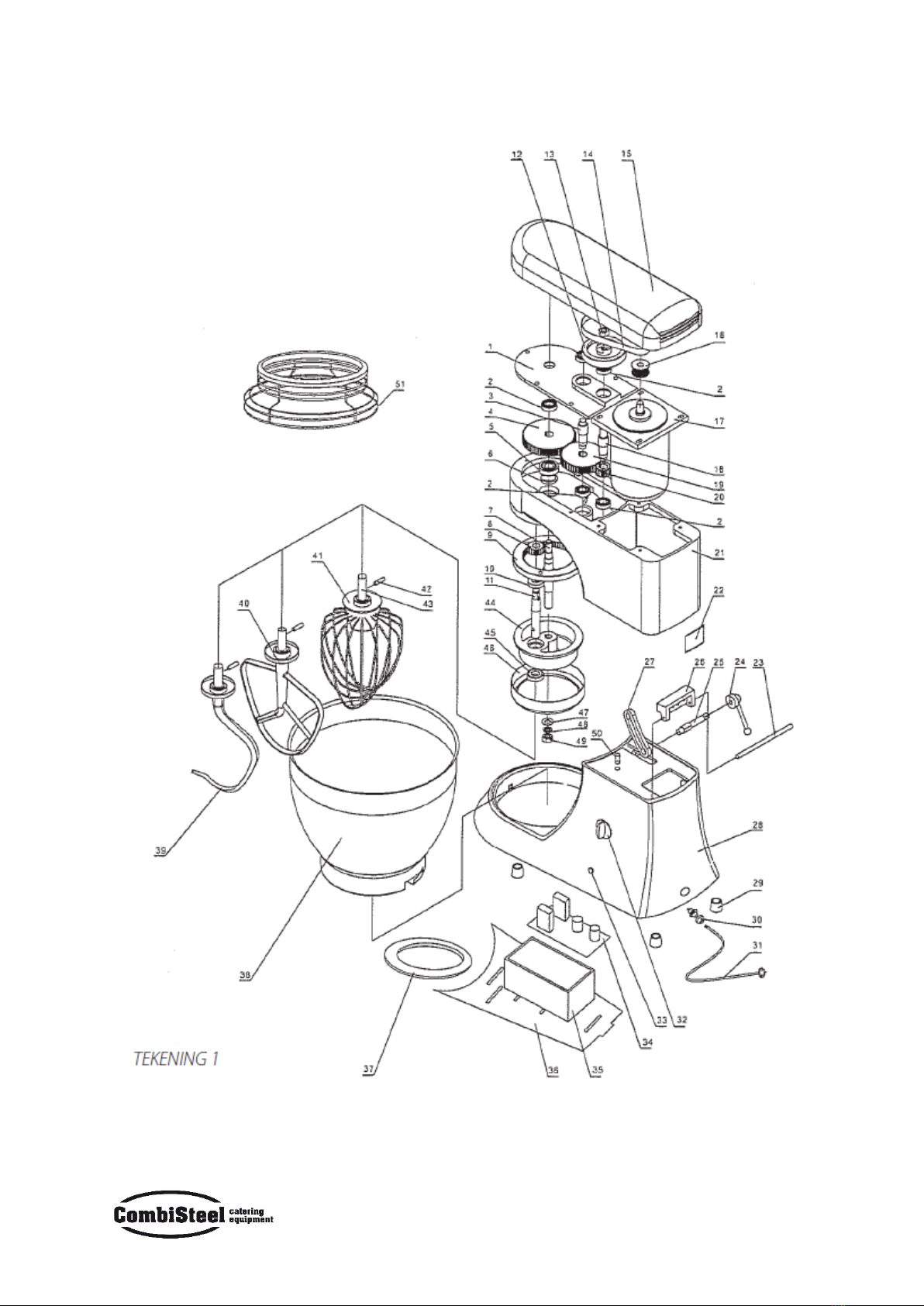

1 Machine illustration diagram

5
www.combisteel.com
2 Parts list
Items
Part number
Description
Remark
1
CS10003-04
Root Plane
2
CS10003-1
Contain Oil Bearing
22x10x6(5)
3
CS10003-11
Middle Axle
4
CS10003-16
Large Gear
5
GB278-80101
Bearing
6
12x25x10HG/T2811
Seal
7
CS10003-19
Center Axle
8
CS10003-17
8 CS10003-17 Planet Gear
9
CS10003-15
Inner Gear
10
CS10003-23
Bearing
2
11
CS10003-14
Mixing Axle
12
CS10003-03
Large Belt Wheel
13
GB617D-80-M8(left)
Nut
14
120XL037
Belt
15
CS10003-07
Top Cover
16
CS10003-05
Small Belt Wheel
17
CS10003-02
Motor
18
CS10003-08
Axle of Belt Wheel
19
CS10003-12
Transfer Gear
20
CS10003-10
Driving Gear
21
CS10003-01
Body
22
CS10003-63
Name plate
23
CS10003-43
Axle pin
24
CS10003-48
Handle
25
CS10003-25
Support Axle
26
CS10003-06
Overturn Seat
27
CS10003-24
Supper Plane
28
CS10003-18
Base Plane
29
CS10003-21
Adjusting Screw
4
30
M16x10x30
Electric Cable Plug
31
GB5023.5-1997
Electric Wire
3x0,75mm 2,L=1850mm
32
Speed Adjusting Button
33
Switch Indicator hight
34
CS10003-62
Circuit Plate
35
CS10003-39
Electronic Box
36
CS10003-22
Base Plate
37
CS10003-27
Rubber Mat
38
CS10003-36
Mixing Bowl
39
CS10003-29
Hook Shape Mixing Agitator
40
CS10003-30
Racket Shape Mixing
41
CS10003-31
Net Shape Mixing Agitator
42
CS10003-41
Pin
3
43
CS10003-46
Connecting Axle
3
44
CS10003-09
Main Axle Cover

6
www.combisteel.com
45
20x25x7HG/T2811
Seal
46
CS10003-28
Adorning Cover
47
GB95-85-08
Cushion
48
GB93-76-08
Spring Cushion
49
GB6170-86-M8
Nut
50
CS10003-53
Orientation Pin
51
CS10003-60
Protection net
Indication: Have no explain the spare parts’ quantity in annotations fence equal to one.
3 Function features
The mixer has used infinitely variable speed and planetary gear Technologies, so it has a large speed range. Easily
operated. It can mix dough, dumpling stuffing, circumrotates eggs and cream mixing. It is very good to use in
west food kitchen, bread-room, bar restaurant and home.
4 Assembly
4.1 It is better to put the mixer on horizontal & stable plane. The best height of the plane is between 650mm-
750mm. Please leave 150 mm space distance at front and rear, leave 300mm at left and right.
4.2 The power must use a separating electronic socket with fuse device protecting. Rated voltage is 220V~ and
frequency is 50 Hz.
4.3 The electronic socket must have ground connection.
4.4 It is necessary to invite electricians to connect it to power.
5 Operating
Operating parts are in drawing #2
5.1 Assemble and Disassemble
Shut off the machine, by turning the handle in a clockwise direction into a horizontal position. The head of
machine will rise an angle automatically. Then release the handle, rising the head “A” to 45°. The head will be
locked and the handle will leap back to vertical position.
Along a key of the mixer axle, insert the mixing agitator “D” to a hole in axle of mixer “C” lightly, turning left to
“stop point” to assemble the mixing agitator. Reverse the process to disassemble the mixing agitator. Rotate the
handle to horizontal by left hand, the head will fall down, push the head down to lock. Now it is in a working
position. The handle will leap back to horizontal position.

7
www.combisteel.com

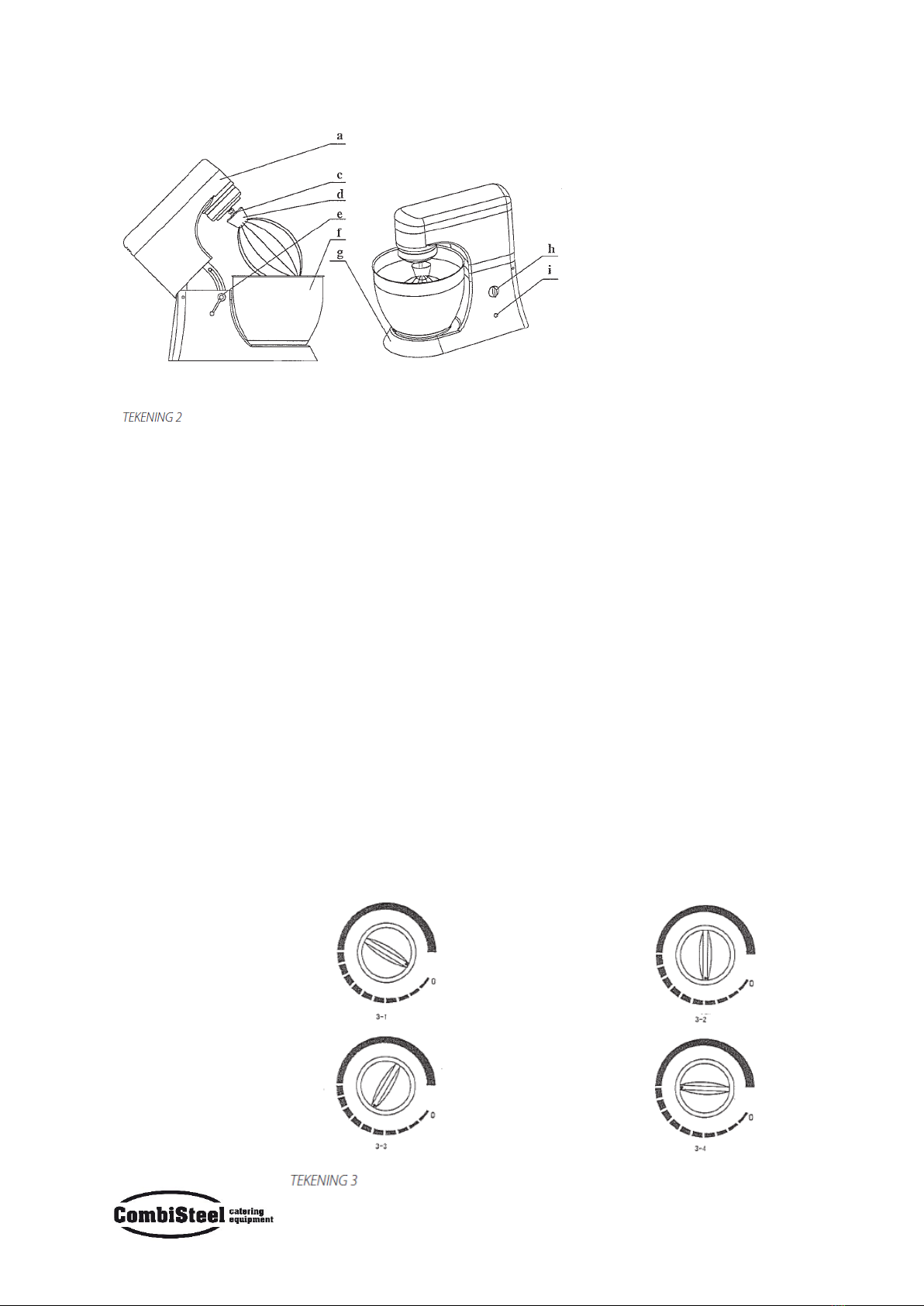

Drawing of the mixer head raising
a. Head of mixer
c. Axle of mixing
d. Agitator of mixing
e. Handle
f. Bowl of mixing
g. Base plane
h. Speed adjusting
i. Switch
5.2 Make choice for a suitable mixing agitator. There are three kinds of shape mixing agitator to choose.
5.2.1 Hook shape mixing agitator (no. 39) is for sticking and large things, such as dough etc.
5.2.2 Plane shape mixing agitator (no. 40) is for bulking things, such as meat dumpling stuffing etc.
5.2.3 Net shape mixing agitator (no. 41) is for unstuck or just a little stockless things. Such as eggs and cream.
Note: Don’t select the mixing agitator wantonly. Otherwise the machine will not be working, or will be broken.
Please choose the mixing agitator and speed cove fully.
5.3 How to assembly and disassembly the bowl.
Shut off the machine, rise the head of the mixer “A”. Hold tight stainless steel body with your two hands, follow
the hour hand revolve to halt point. It should be fixed. Reversing the process to disassemble the bowl. Doing the
step 5.1 again, pushing the head down to lock and the handle “e” is at vertical position.

8
www.combisteel.com
5.4 The speed adjusting
Set the speed button to “O” position (Drawing 3-1), connect the electronic power, indicator light will be on. Start
the machine by turning the button in a clockwise direction to adjust the speed according to property of mixing
thing and the mixing agitator. The speed will increase while the button from left to right.
When the arrow is standing on top (drawing 3-2), the mixer is low speed, this is good for dough.
When the arrow is standing in the middle has (drawing 3-3), the mixer is at middle speed, this is good for meat
dumpling stuffing.
When the arrow is standing right (drawing 3-4), the mixer is at high speed, this is good for eggs.
This mixer has variable speeding, so you can choose best speed for your job.
Rotary direction: (from shaft out): The rotary direction of main shaft cover (item 44) is clockwise (red arrow) and
rotary direction of mix shaft (item 11) is anti-clockwise.
Note: Don’t go against the rotation direction as written above. Otherwise the working efficiency will be reduced.
Or the mixer will break. Don’t use the machine over 10 minutes each time. The max. flour weight to mix doesn’t
be over 500 gr.
5.5 How to adjust the height of the mixing agitator.
Sometimes the interval between bottom of mixing agitator to bowl is too close and sometimes it is too big,
adjusting the height of mixing agitator is necessary. Detail is bellowing (drawing 4).
a. Shut off the power.
b. Use a wrench to release the nut of the mixing agitator.
c. Adjust the interval.
d. Tighten up the nut.
5.6 When the job is finished, please return the speed button back to “O” position, then turn off the machine,
shut off the power.
6 Safety caution
6.1 Remove the machine, after shutting of the power. When disassemble the mixing agitator, the mixing bowl
machine must be turn off.
6.2 Don’t use wet fingers on operating the machine.
6.3 Don’t wet the unit or immerse the mixer in water.
6.4 If any parts are broken or it does not work the way it shoot be, stop the machine, waiting to fix it by
technician.
6.5 Don’t put any fingers in the bowl while it is working.
6.6 Under age persons please keep away from the machine.
6.7 When the machine is working or the head is raising, the handle “e” must be at vertical position.
6.8 When the head is raising, don’t put any fingers or link parts between head and stand of machine for injury.
6.9 There is a ground point (Mark …….) at the back please keep this in original position after each maintenance.

9
www.combisteel.com
7 Maintenance
7.1 the mixer belongs to the category of food equipment, all parts that contact with food has to be removed
and wash clear every day after working. Don’t use cleaning pharmaceuticals that may be injure persons.
7.2 Don’t turn it on if there is nothing in the bowl.
7.3 When mixing agitator hits the bowl, stop working immediately, and correct the space or change the agitator
or bowl if necessary.
7.4 Please contact with supplier for technicians to maintain the machine.
8 Trouble and solution
Trouble
Reason
Solution
Turn on, but don’t
work
1. no power
2. the speed button is not on “O”
position
1. check the power plug and socket
2. turn the button to “O” then start the
machine
Temperature of motor
is increase & speed is
decrease
1. voltage is too low
2. load is too large
3. Mixing head is not suitable
4. Belt is wear out
1. Check the electronic Voltage
2. Reduce quantity of mixing (table 2)
3. Choice suitable agitator
4. Change a new belt
Suddenly stops while
working
1. load is too large
2. Voltage undulate too large
3. Fuse is broken
4. Continue working time is too
long
1. Reduce quantity of mixing (table 2)
2. Check the voltage
3. Change a new fuse
4. Wait a few minutes then restart again.
Speed button is out of
order
1. The speed button is loose
2. The button is broken after long
time work
1. Tighten up the screw of speed button
2. Make a call for maintenance
Mixing head beat the
barrel
The head position is correct
According to the item 5.5 to adjust
Note: Please changes the carbon brush of electronic motor when it stops working for a long time.
9 Technical specifications
Description
Unit
Parameter
Volume of mixing barrel
L
7,5
Speed mixing mandrel
r/min
Revolution: 40 - 250
Rotation: 147 - 917
Rated voltage
V
220 / 230 / 240 / 1101
Rated Frequency
Hz
50 / 60
Input power
W
325
Electric current
A
1,5 / 3
Max. eggs weight
Gr
500
Max. dough mixing
Gr
500 (dry flour)
Working environment
Indoor
Net weight
KG
22
Dimension
mm 7,5
400 x 250 x 410

10
www.combisteel.com
10 Electric drawing
