General feature
Degree of protection (EN 60529) IP66
Suitable for Offshore application 1000 h
UV-Ray resistance (UNI-ISO 4892 / UNI-ISO 4582) 500 h
Measuring range 40°C to +120°C
Environment temperature -40°C to 55°C
Cable connection M 25 x 1.5
Cable box (EN 50005 / EN 60947-7-1 / IEC 947-7-1) According to standard
Wire section to be used on clamp box Up to 2.5 mm2
Max. rated pressure 500 mbar, different pressure are available on demand. Contact us for other options
Electrical characteristics Double insulation
Current ac dc
Circuit type Ohmic Ohmic inductive
(cosφ > 0,5)
Ohmic Ohmic inductive
(L/R < 40ms)
Voltage 220 127 24 220 127 24 220 127 24 220 127 24
Electric rating Oil level 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A
Pressure switch 6A 6A 6A 2A 2A 2A 0,6A 0,6A 0,6A 0,6A 0,6A 0,6A
Thermostat 16A 16A 16A 4A 4A 4A 0,6A 0,6A 0,6A 0,2A 0,3A 1,8A
Technical features
Description and functions Measure Checking test value
Oil level (Float)
The device indicates any gas evolvement or oil level variation.
- Slight oil level variation or any insignicant gas evolvement is denoted by the
oat position between “MIN” & “MAX” on the display.
- At major oil variation level or gas evolvement the oat stops at “MIN” and
opens/closes the alarm circuit.

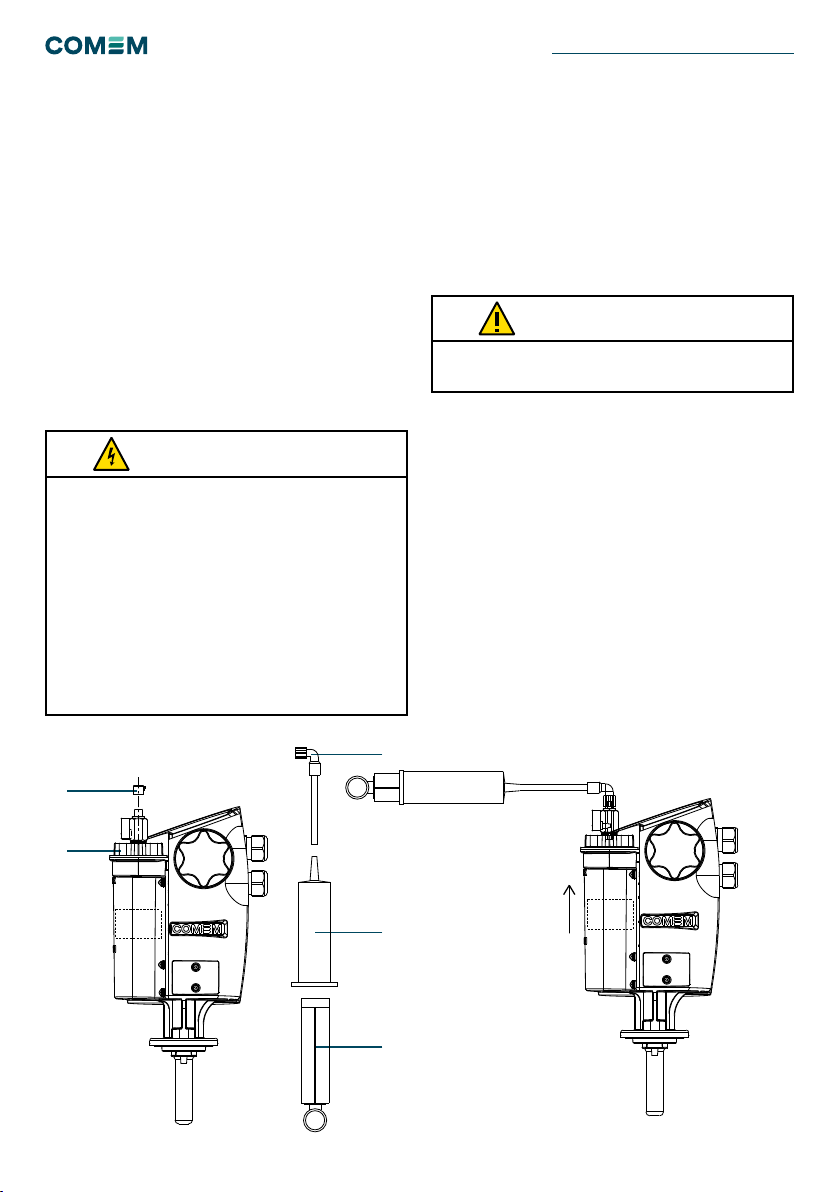

- Any accumulated gas can be drawn off by the valve provided.
Max 150 cm3Locate the magnet close to the oat
(between MAX and MIN). Drawn it
downwards until it reaches “MIN”.
To reset the oat to its correct
position draw the magnet upwards
and detach.
Pressure (Pressure switch)
This feature measures the internal pressure of transformer. The normal level is
to be set by the user according to the transformer manufacturer’s instructions.
When pressure exceeds a pre set level the alarm circuit is triggered by a change
over contact.
100 mbar to
500 mbar
With the internal pressure at least
100mbar set the adjusting knob of the
pressure switch to minimum.
Temperature
“T2” Thermostat switch (Alarm)
The feature measures the internal oil temperature of the transformer.
The normal operating value is to be set by the user according to the transformer
manufacturers instructions. At a pre set temperature the alarm circuit is triggered
by a change over contact (T2).
30°C to 120°C Open the rear cover using both hands,
do not lever at one side only.
The adjustment knob of the alarm
switch “T2” should be set to the
minimum value.
“T1” Thermostat switch (Stop)
The feature measures the internal oil temperature of the transformer.
The normal operating value is to be set by the user according to the transformer
manufacturers instructions. At a pre set temperature the stop circuit is triggered
by a change over contact (T1).
30°C to 120°C The adjustment knob of the stop
switch “T1” should be set to zero.
The adjustment knob of the stop
switch “T1” should be set to the
minimum value.
Thermometer
The device measures the internal temperature of the transformer, which shall
be visualized outside the device through the protection window.
The thermometer is equipped with a drag pointer.
30°C to 160°C The protection window is to be
unscrewed so that the pointer shall
be set to the minimum values.
Table 4
* -1000/+1000 mbar - 4/20 mA is available on demand
Table 5
Table 3
Table 2
INTEGRATED SAFETY DEVICES eRIS2
Analogue Output
Temperature 4-20 mA proportional to the measuring temperature range (0°C-4 mA.... 160°C-20 mA)
Pressure 4-20 mA proportional to the pressure range (0 mbar - 4 mA … 500 mbar - 20mA)*
Max
distance
for
analougue
output
Max 30 m / 98 ft. Contact us for other options ([email protected])
