Comfort Glow CF26NR Quick start guide

Save this manual for future reference.
Save this manual for future reference.
For more information, visit www.desatech.com
For more information, visit www.desatech.com
VENT-FREE GAS
BAY FRONT FIREPLACE
OWNER’S OPERATION AND
INSTALLATION MANUAL
Patent Pending
Fireplace Shown
With Optional
Bay Front Mantel
CF26NR
CF26PR
19,000 to 26,000 Btu/Hr
Remote Control Ready
AUTO
OFF
ON
WARNING: If the information in this manual is not fol-
lowed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the fire
department.
— Installationandservicemustbeperformedbyaquali-
fied installer, service agency, or the gas supplier.
WARNING: Improper installation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manualforcorrectinstallationand
operational procedures. For as-
sistanceor additionalinformation
consult a qualified installer, ser-
vice agency, or the gas supplier.
WARNING: This is an unvented
gas-fired heater. It uses air (oxy-
gen) from the room in which it is
installed. Provisions for adequate
combustion and ventilation air
must be provided. Refer to Air for
Combustion and Ventilation sec-
tion on page 4 of this manual.
Thisappliancemaybeinstalledinanaftermarket*,permanentlylocated,manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

109774
2
For more information, visit www.desatech.com
For more information, visit www.desatech.com
IMPORTANT: Read this owner’s manual carefully
andcompletelybeforetryingtoassemble,operate,or
service this fireplace. Improper use of this fireplace
can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide
poisoning.
SAFETY INFORMATION
Carbon Monoxide Poisoning: Early signs of carbon monoxide
poisoningresemble theflu, withheadaches, dizziness,or nausea.If
you have these signs, the fireplace may not be installed or working
properly. Get fresh air at once! Have fireplace inspected and
serviced by a qualified service person. Some people are more
affected by carbon monoxide than others. These include pregnant
women,peoplewithheartorlungdiseaseoranemia,thoseunderthe
influence of alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An odor-making
agentisaddedtoeachofthesegases.Theodorhelpsyoudetectagas
leak. However, the odor added to these gases can fade. Gas may be
present even though no odor exists.
Make certain you read and understand all warnings. Keep this
manual for reference. It is your guide to safe and proper operation
of this fireplace.
WARNING ICON G 001
WARNINGS
DANGER: Carbon monoxide poisoning may lead
to death!
TABLE OF CONTENTS
SAFETY INFORMATION
WARNING:Anychangetothisheateroritscontrols
can be dangerous.
WARNING:Donot allow fanstoblow directly into
the fireplace. Avoid any drafts that alter burner flame
patterns. Ceiling fans can create drafts that alter
burner flame patterns. Altered burner patterns can
cause sooting.
WARNING: Do not use a blower insert, heat
exchanger insert, or other accessory not approved
for use with this heater.
Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
Do not place clothing or other flammable material on
or near the appliance. Never place any objects in the
fireplace or on logs.
Fireplace front and screen become very hot when
running heater. Keep children and adults away from
hot surface to avoid burns or clothing ignition. Fire-
placewillremain hotfora timeaftershutdown. Allow
surface to cool before touching.
Carefully supervise young children when they are in
the room with fireplace. When using the hand-held
remote accessory, keep selector switch in the OFF
position to prevent children from turning on burners
with remote.
Youmustoperatethisfireplacewithafireplacescreen
in place. Make sure fireplace screen is closed before
running heater.
Keeptheappliance area clearandfree fromcombus-
tiblematerials,gasoline,andotherflammablevapors
and liquids.
1. This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases.
TABLE OF CONTENTS
SAFETY INFORMATION ............................................................ 2
PRODUCT IDENTIFICATION ..................................................... 3
UNPACKING ............................................................................... 3
LOCAL CODES........................................................................... 4
PRODUCT FEATURES .............................................................. 4
OPTIONAL REMOTE CONTROLACCESSORIES .................... 4
AIR FOR COMBUSTION AND VENTILATION ........................... 4
INSTALLATION ........................................................................... 6
OPERATING FIREPLACE ........................................................ 17
INSPECTING BURNERS.......................................................... 19
CLEANING AND MAINTENANCE ............................................ 20
WIRING DIAGRAM ................................................................... 20
TROUBLESHOOTING .............................................................. 21
SPECIFICATIONS .................................................................... 24
REPLACEMENT PARTS .......................................................... 24
SERVICE HINTS....................................................................... 24
TECHNICAL SERVICE ............................................................. 24
PARTS CENTRALS .................................................................. 24
ACCESSORIES ........................................................................ 25
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 26
WARRANTY INFORMATION...................................... Back Cover

109774
3
3
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in
your building.
• immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
3. Do not place propane/LP supply tank(s) inside any structure.
Locate propane/LP supply tank(s) outdoors.
4. This fireplace shall not be installed in a bedroom or bathroom.
5. Do not use this fireplace as a wood burning fireplace. Use only
the logs provided with the fireplace.
6. Do not add extra logs or ornaments such as pine cones, ver-
miculite,or rockwool. Usingthese addeditems cancause soot-
ing. Do not add lava rock around base. Rock and debris could
fall into the control area of fireplace.
7. This fireplace is designed to be smokeless. If logs ever appear
to smoke, turn off fireplace and call a qualified service person.
Note: During initial operation, slight smoking could occur due
to log curing and fireplace burning manufacturing residues.
8. Toprevent thecreation ofsoot,follow theinstructions inClean-
ing and Maintenance, page 20.
9. Before using furniture polish, wax, carpet cleaner, or similar
products, turn heater off. If heated, the vapors from these prod-
ucts may create a white powder residue within burner box or
on adjacent walls or furniture.
10. This fireplace needs fresh air ventilation to run properly. This
fireplace has an Oxygen Depletion Sensing (ODS) safety
shutoffsystem.TheODS shutsdownthe fireplaceif notenough
fresh air is available. See Air for Combustion and Ventilation,
pages 4 through 6. If fireplace keeps shutting off, see Trouble-
shooting, pages 21 through 23.
11. Do not run fireplace
• where flammable liquids or vapors are used or stored.
• under dusty conditions.
12. Do not use this fireplace to cook food or to burn paper or other
solid fuels.
13. Do not use fireplace if any part has been under water. Immedi-
ately call a qualified service technician to inspect the room
fireplace and to replace any part of the control system and any
gas control which has been under water.
14. Turn fireplace off and let cool before servicing, installing, or
repairing. Make sure the selector switch is in the OFF posi-
tion. Only a qualified service person should install, service or
repair fireplace.
SAFETY INFORMATION
Continued
15. Make sure the selector switch is in the OFF position when you
are away from home for long periods of time.
16. Operating fireplace above elevations of 4,500 feet could cause
pilot outage.
17. Do not operate fireplace if any log is broken. Do not operate
fireplace if a log is chipped (dime-sized or larger).
18. To prevent performance problems, do not use propane/LP fuel
tank of less than 100 lbs. capacity (propane/LP gas only).
19. Provide adequate clearances around air openings.
SAFETY INFORMATION
PRODUCT IDENTIFICATION
UNPACKING
AUTO
OFF
ON
PRODUCT IDENTIFICATION

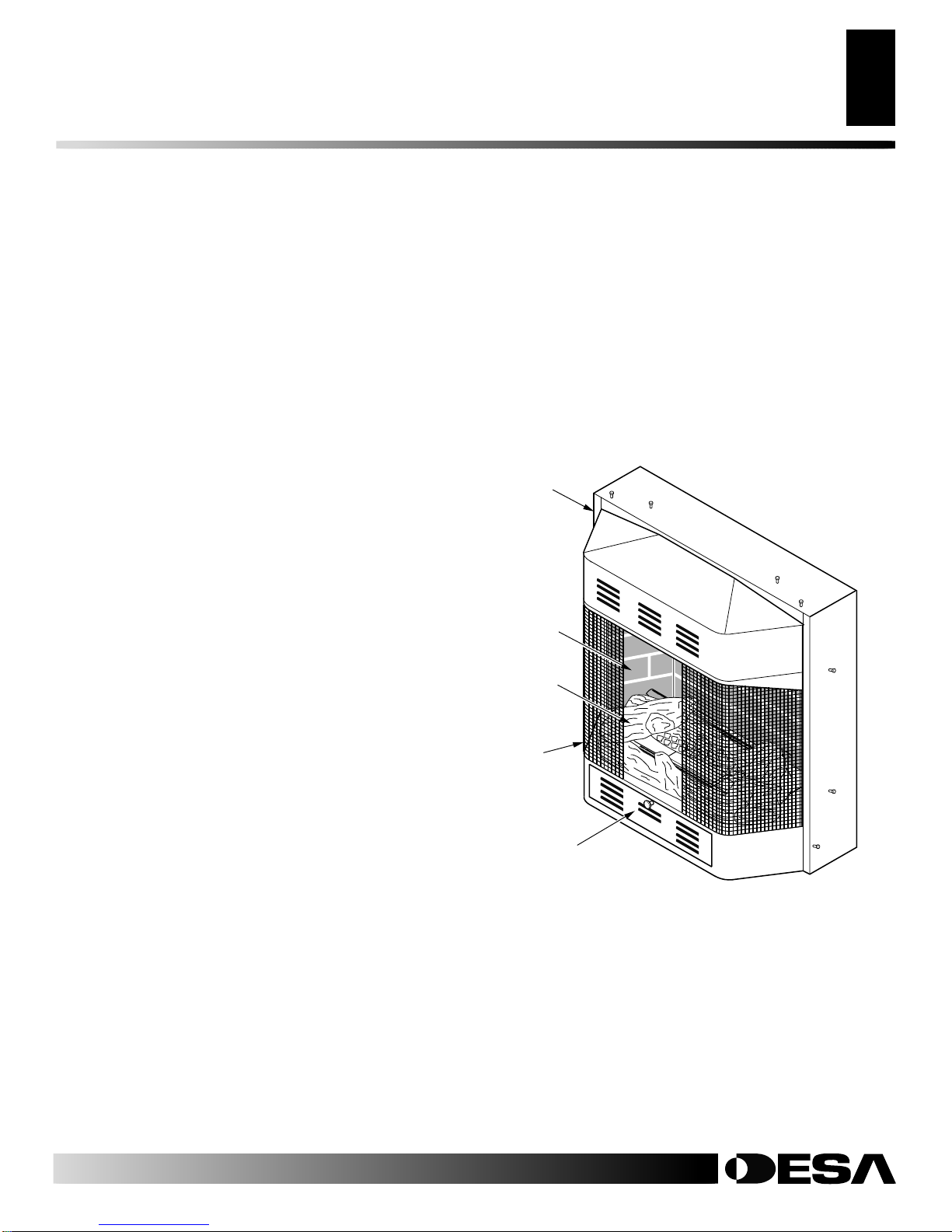

Figure 1 - Vent-Free Gas Compact Fireplace
Heater Controls
(Inside Door)
Screen
Fireplace
Cabinet
Logs
Brick
Liner
UNPACKING
1. Remove and fireplace from carton.
2. Remove all protective packaging applied to fireplace for
shipment.
3. Make sure your fireplace includes one hardware packet.
4. Check fireplace for any shipping damage. If fireplace is dam-
aged, promptly inform dealer where you bought fireplace.

109774
4
For more information, visit www.desatech.com
For more information, visit www.desatech.com
LOCAL CODES
Installandusefireplacewithcare.Followalllocalcodes.Intheabsence
of local codes, use the latest edition of The National Fuel Gas Code,
ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT FEATURES
SAFETY PILOT
This fireplace has a pilot with an Oxygen Depletion Sensing (ODS)
safety shutoff system. The ODS/pilot is a required feature for vent-
free room fireplaces. The ODS/pilot shuts off the fireplace if there is
not enough fresh air.
PIEZO IGNITION SYSTEM
This fireplace has a piezo ignitor. This system requires no matches,
batteries, or other sources to light fireplace.
OPTIONAL REMOTE
CONTROL ACCESSORIES
There are two optional remote controls that can be purchased
separately for this log heater:
• hand-held ON/OFF remote
• hand-held thermostat remote
See Accessories, page 25.
LOCAL CODES
PRODUCT FEATURES
OPTIONAL REMOTE CONTROL ACCESSORIES
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation
AIR FOR COMBUSTION AND
VENTILATION
Today’s homes are built more energy efficient than ever. New
materials,increased insulation,andnew constructionmethods help
reduce heat loss in homes. Home owners weather strip and caulk
aroundwindows anddoorsto keepthe cold airout andthewarm air
in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home
needs to breathe. Fresh air must enter your home. All fuel-burning
appliances need fresh air for proper combustion and ventilation.
Exhaustfans,fireplaces,clothesdryers,andfuelburningappliances
drawairfromthehousetooperate.Youmustprovideadequatefresh
air for these appliances. This will insure proper venting of vented
fuel-burning appliances.
WARNING: This heater shall not be installed in a
confined space or unusually tight construction un-
less provisions are provided for adequate combus-
tion and ventilation air. Read the following instruc-
tionstoinsureproperfreshair forthisandotherfuel-
burning appliances in your home.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation
classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 4 through 6 will help you classify your
space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. walls and ceilingsexposedto the outsideatmosphere
have a continuous water vapor retarder with a rating
of one perm (6 x 10-11 kg per pa-sec-m2) or less with
openings gasketed or sealed and
b. weather stripping has been added on openable win-
dows and doors and

109774
5
5
For more information, visit www.desatech.com
For more information, visit www.desatech.com
c. caulking or sealants are applied to areas such as
joints around window and door frames, between sole
platesandfloors,betweenwall-ceiling joints,between
wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
If your home meets all of the three criteria above, you
must provide additional fresh air. See
Ventilation Air
From Outdoors
, page 6 .
Ifyourhome does notmeetall of thethreecriteria above,
proceed to Determining Fresh-Air Flow For Fireplace
Location .
AIR FOR COMBUSTION AND
VENTILATION
Continued
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater _____________ Btu/Hr
Gas water heater* _____________ Btu/Hr
Gas furnace _____________ Btu/Hr
Vented gas heater _____________ Btu/Hr
Gas fireplace logs _____________ Btu/Hr
Other gas appliances* + _____________ Btu/Hr
Total = _____________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws com-
bustion air from the outdoors and vents to the outdoors.
Example:
Gas water heater _____________ Btu/Hr
Vent-free heater + _____________ Btu/Hr
Total = _____________ Btu/Hr
4. Compare the maximum Btu/Hr the space can support with the actual
amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
56,000 Btu/Hr (actual amount of Btu/Hr used)
Thespaceintheaboveexample is a confined space because the actual Btu/
Hrused ismorethanthemaximum Btu/Hrthespacecansupport.Youmust
provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the
extra space provides an unconfined space, remove door to adjoining
roomoraddventilationgrillsbetweenrooms.SeeVentilation Air From
Inside Building, page 6.
B. Vent room directly to the outdoors. See Ventilation Air From Out-
doors, page 6.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room un-
confined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can
support,thespaceisanunconfinedspace.Youwillneednoadditionalfresh
air ventilation.
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation (Cont.)
Determining Fresh-Air Flow For Fireplace Location
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a
confined space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an unconfining space as
aspacewhosevolumeisnotlessthan50cubicfeetper1,000Btuper
hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed*, through openings not
furnishedwithdoors, are consideredapartofthe unconfined space.
* Adjoining rooms are communicating only if there are doorless
passageways or ventilation grills between them.
WARNING: If the area in which the heater may be
operated is smaller than that defined as an uncon-
fined space or if the building is of unusually tight
construction,provideadequatecombustionandven-
tilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Sec-
tion 5.3 or applicable local codes.
30,000
26,000
56,000
DETERMINING FRESH-AIR FLOW FOR
FIREPLACE LOCATION
Determining if You Have a Confined or
Unconfined Space
Usethiswork sheet todetermineifyou have aconfinedorunconfined space.
Space:Includestheroominwhichyouwillinstallheaterplusanyadjoining
rooms with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling
height) = 2560 cu. ft. (volume of space)
Ifadditionalventilation to adjoiningroomissupplied withgrillsoropen-
ings, add the volume of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine the maximum Btu/Hr
the space can support.
__________ (volume of space) x 20 = (Maximum Btu/Hr the space
can support)
Example: 2560 cu. ft. (volume of space) x 20 = 51,200 (maximum
Btu/Hr the space can support)

109774
6
For more information, visit www.desatech.com
For more information, visit www.desatech.com
AIR FOR COMBUSTION AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space.
When ventilating to an adjoining unconfined space, you must
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting the two spaces
(see options 1 and 2, Figure 2). You can also remove door into
adjoining room (see option 3, Figure 2). Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provideextrafreshairbyusingventilationgrillsorducts.Youmust
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor. Connect these items directly to the
outdoorsorspacesopentotheoutdoors.Thesespacesincludeattics
and crawl spaces. Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 5, Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air into
attic if attic has a thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.

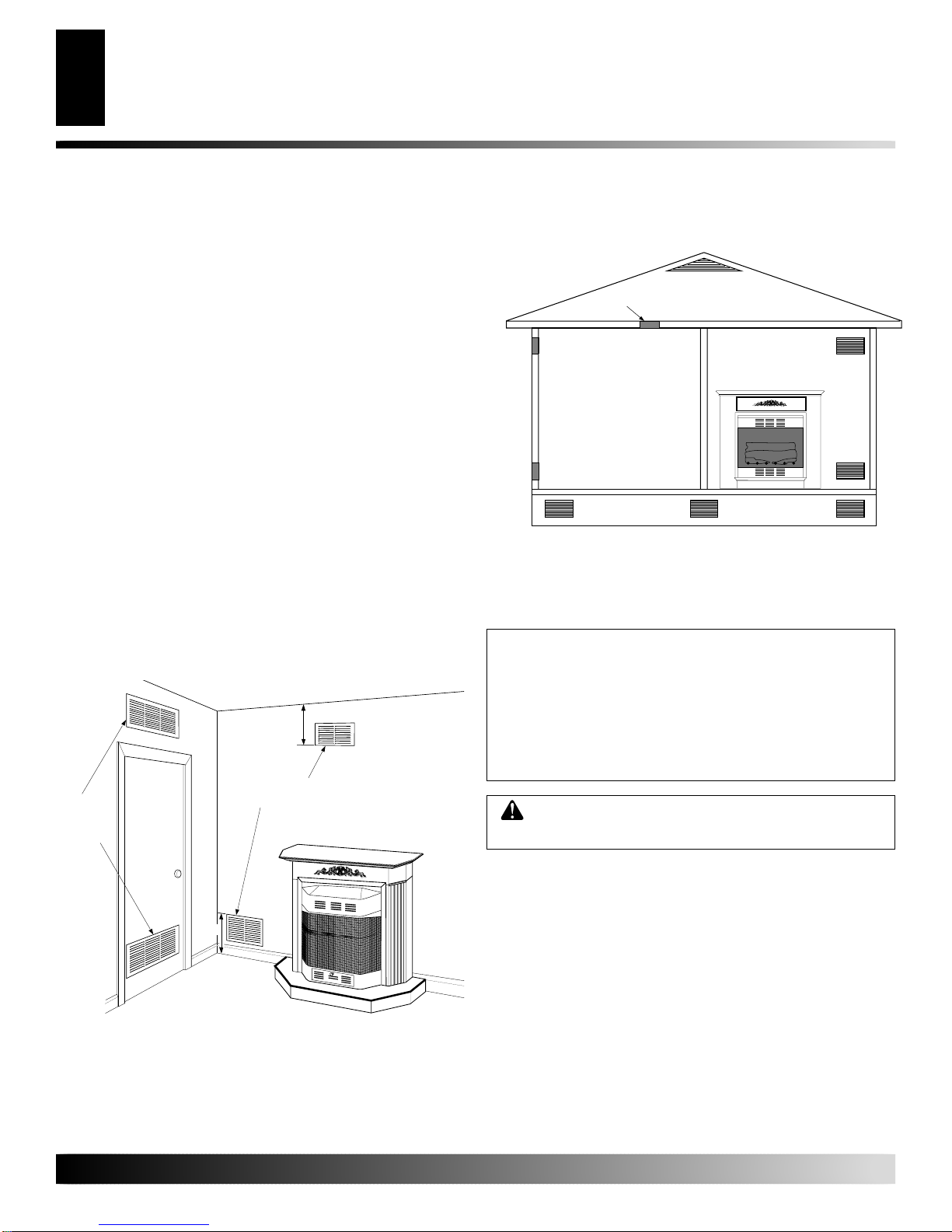

Figure 3 - Ventilation Air from Outdoors Shown with Optional
Mantel
Figure 2 - Ventilation Air from Inside Building Shown with
Optional Mantel
AIR FOR COMBUSTION AND VENTILATION
Ventilation Air
INSTALLATION
INSTALLATION
WARNING: A qualified service person must in-
stall fireplace. Follow all local codes.
Note: Your fireplace is designed to be used in zero clearance
installations.Wallorframingmaterialcanbeplaceddirectlyagainst
anyexterior surfaceon thefireplace,except wherestandoff spacers
are integrally attached. If standoff spacers are attached to your
fireplace, these spacers can be placed directly against wall or
framing materials.
Use the dimensions shown for rough openings to create the easiest
installation (see Built-In Fireplace Installation, page 8).
NOTICE: This heater is intended for use as supple-
mental heat. Use this heater along with your primary
heating system. Do not install this heater as your
primary heat source. If you have a central heating
system, you may run system’s circulating blower
while using heater. This will help circulate the heat
throughoutthehouse.Intheeventofapoweroutage,
you can use this heater as your primary heat source.
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into Adjoining
Room,
Option 1

109774
7
7
For more information, visit www.desatech.com
For more information, visit www.desatech.com
INSTALLATION
Check Gas Type
Installation Items
Locating Fireplace
CHECK GAS TYPE
Useonlythe correcttypeofgas (natural orpropane/LP).Ifyour gas
supplyisnotthecorrectgastype,donotinstallfireplace.Calldealer
where you bought fireplace for proper type fireplace.
INSTALLATION ITEMS
Before installing fireplace, make sure you have the items listed
below.
• external regulator (propane/LP gas only) (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• ground joint union
• sediment trap
• tee joint
• pipe wrench
• test gauge connection*
* A CSA design-certified equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge connection. Purchase
the optional CSA design-certified equipment shutoff valve from
your dealer. See Accessories, page 25.
Note: If desired, purchase a four-sided brass trim kit for built-in
installations. See Accessories, page 25.
INSTALLATION
Continued
Youcanrecessfireboxintothewall.Youcanalsopositionfireplace
in the optional cabinet mantels. IMPORTANT: Only use optional
cabinet mantels specified in this manual. Purchase the optional
mantel from your dealer (see Accessories, page 25).
LOCATING FIREPLACE
WARNING: Maintain the minimum clearances
shown in Figure 4. If you can, provide greater clear-
ances from floor, ceiling, and joining wall.
CAUTION: This fireplace creates warm air cur-
rents.Thesecurrentsmoveheattowallsurfacesnext
to fireplace. Installing fireplace next to vinyl or cloth
wall coverings or operating fireplace where impuri-
ties (such as, but not limited to, tobacco smoke,
aromatic candles, cleaning fluids, oil or kerosene
lamps, etc.) in the air exist, may discolor walls or
cause odors.
WARNING: Never install the fireplace
•in a bedroom or a bathroom
•in a recreational vehicle
•where curtains, furniture, clothing, or other flam-
mable objects are less than 42 inches from the
front, top, or sides of the fireplace
•as a fireplace insert
•in high traffic areas
•in windy or drafty areas
IMPORTANT: Vent-freefireplacesaddmoisturetotheair.Although
this is beneficial, installing fireplace in rooms without enough venti-
lationairmaycausemildewtoformfromtoomuchmoisture.SeeAir
for Combustion and Ventilation, pages 4 through 6.
CAUTION: If you install the fireplace in a home
garage
•fireplace pilot and burner must be at least 18
inches above floor.
•locatefireplacewheremovingvehiclewillnothitit.
For convenience and efficiency, install fireplace
• where there is easy access for operation, inspection, and service.
• in coldest part of room.
An optional blower kit is available from your dealer. See Accesso-
ries, page 25. If planning to use blower, locate fireplace near an
electrical outlet.

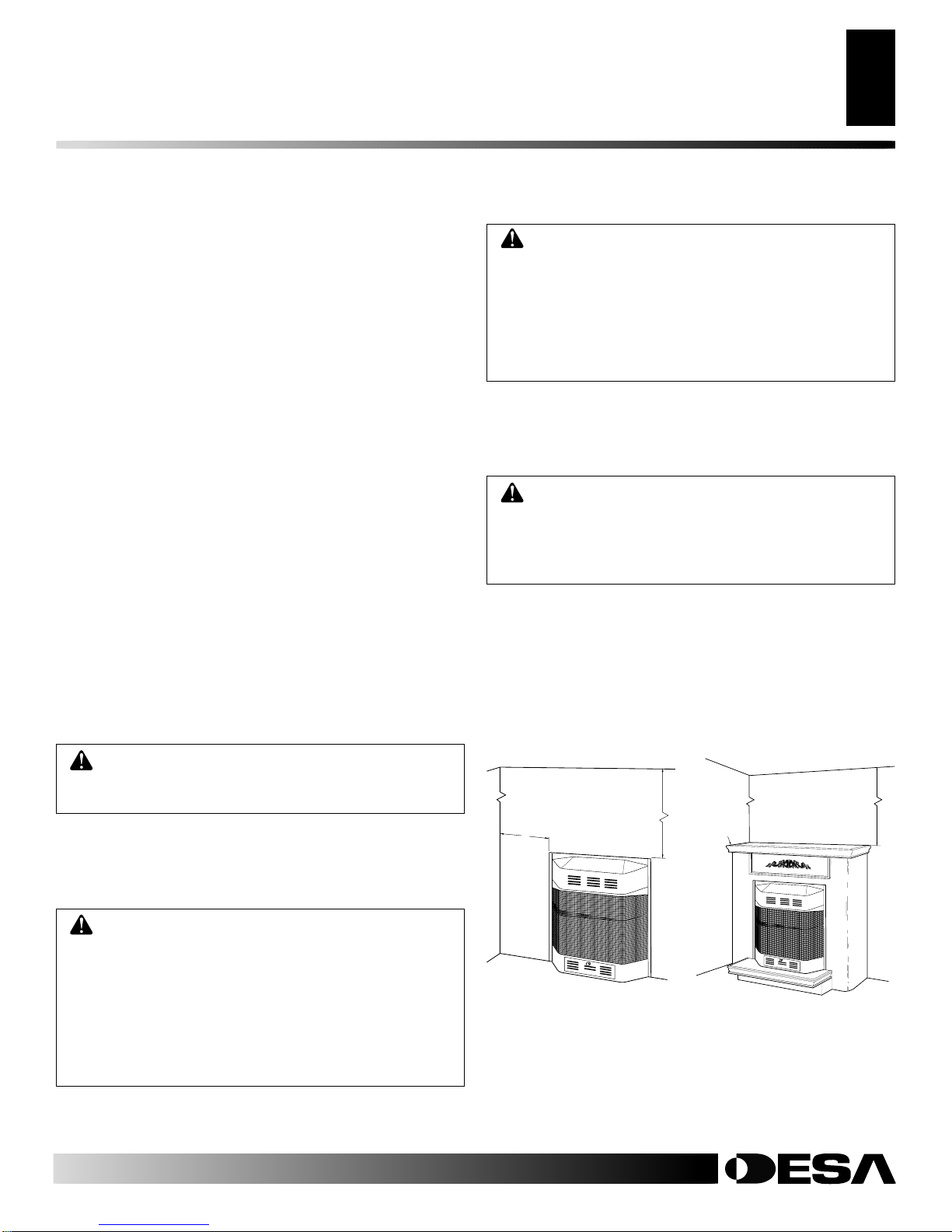

Figure 4 - Mounting Clearances As Viewed From Front of
Fireplace
0" Minimum To Top Surface Of Carpeting,
Tile Or Other Combustible Material
6"
Minimum
From
Sides Of
Fireplace
Left
Side
CEILING
42" Minimum
FLOOR
Right
Side
Top Of
Mantel Can
Be Flush
With Wall
Left
Side
CEILING
Right
Side
42"
Minimum
Note: When installing fireplace directly on carpeting, tile or other
combustible material, other than wood flooring, the fireplace shall
be installed on a metal or wood panel extending the full width and
depth of the fireplace.
Built-In Installation Mantel Installation

109774
8
For more information, visit www.desatech.com
For more information, visit www.desatech.com
36
5
/ 8 "25
7
/ 8 "
51
3
/ 4 "
26
7
/ 8 "
26
7
/ 8 "
26
7
/ 8 "
3/4" Off
The Floor
Minimum
10
1
/ 2 "
INSTALLATION
Continued
Minimum Clearances For Side Combustible
Material, Side Wall, and Ceiling
A. Clearances from the side of the fireplace cabinet to any com-
bustible material and wall should follow diagram in Figure 5.
Example: The face of a mantel, bookshelf, etc. is made of
combustible material and protrudes 3 1/2" from the wall. This
combustible material must be 4" from the side of the fireplace
opening (see Figure 5).
B. Clearances from the top of the fireplace opening to the ceiling
should not be less than 42 inches.
C. For mantel clearances, see Figure 9 on page 9.

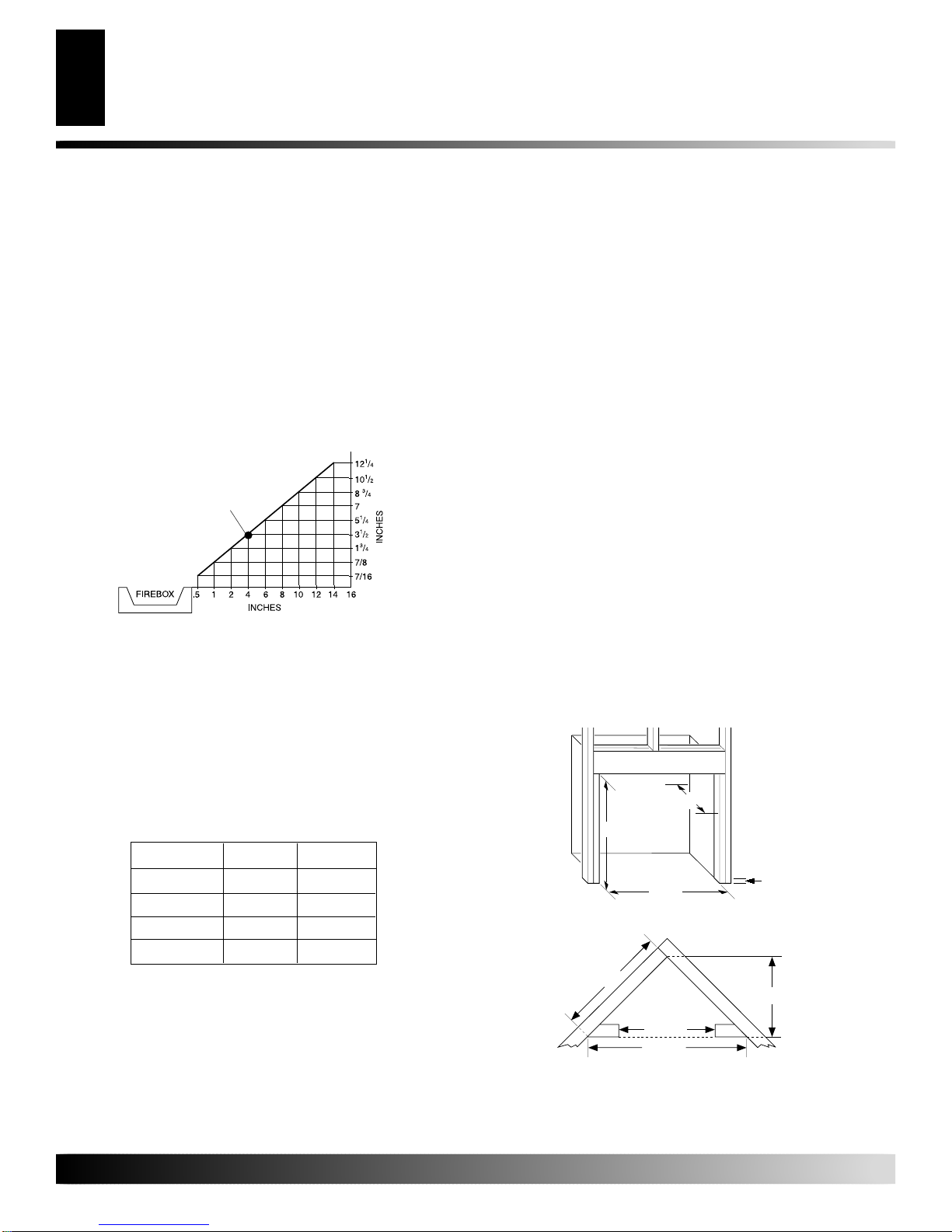

Figure 5 - Minimum Clearance for Combustible to Wall
*Minimum 16 inches from Side Wall
*
Example
INSTALLATION
Locating Fireplace (Cont.)
Built-In Fireplace Installation
1. Frame in rough opening. Use dimensions shown in Figure 6
for the rough opening.
If installing in a corner, use dimensions shown in Figure 7 for
the rough opening. The height is 26 1/8" which is the same as
the wall opening above.
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing fireplace
into a framed-in enclosure. This makes the front of fireplace flush
with wall. Follow the instructions below to install the fireplace in
this manner. If installing a built-in mantel above the fireplace, you
must follow the clearances shown in Figure 9, page 9. If using for
built-in installation off of the floor, follow clearances shown in
Figure 4, page 7.
Actual Framing
Height 26" 26 7/8"
Front Width 26 3/4" 26 7/8"
Depth 9 1/2" 10 1/2"
Bottom 3/4" 3/4"
2. An optional blower accessory is available (see Accessories,
page 25). There are two options for connecting blower to elec-
trical source.
Option one: Have a licensed electrician install a properly
grounded, three-prong 120-volt electrical outlet at fireplace
location. Locate outlet inside the framed enclosure. Blower
power cord will plug into this outlet.
Option two:Have alicensed electricianconnect blower toelec-
trical source at junction box inside fireplace.
If using option one, have electrical outlet installed at this time.
If using option two, do not connect blower to electrical source
at junction box until step 6.
3. Install gaspipingto fireplacelocation.This installation includes
an approved flexible gas line (if allowed by local codes) after
the equipment shutoff valve. The flexible gas line must be the
last item installed on the gas piping.
4. Carefully set fireplace in front of rough opening with back of
fireplace inside wall opening.
5. Attach flexible gas line to fireplace gas regulator. See Con-
necting Equipment Shutoff Valve to Heater Control, page 13.
6. If the optional blower has been installed connect blower to
electrical source.
Option one: Route blower electrical cord through side or rear
access door of fireplace. Plug electrical cord into electrical outlet.
Option two: Havealicensed electricianconnect blowerto elec-
trical source at junction box inside fireplace.
Figure 7 - Rough Opening for Installing in Corner
Figure 6 - Rough Opening for Installing in Wall

109774
9
9
For more information, visit www.desatech.com
For more information, visit www.desatech.com
AUTO
OFF
ON
13" 16" 19" 21"
2 1/2"
6"
8"
10"
Minimum Non-
Combustible
Material
7. Bend four nailing flanges on outer casing with pliers (see Fig-
ure 8).
8. Attach fireplace to wall studs using nails or wood screws
through holes in nailing flange.
9. Check all gas connections for leaks. See Checking Gas Con-
nections, page 14.
IMPORTANT: When finishing your firebox, combustible materi-
alssuchaswallboard,gypsumboard,sheetrock,drywall,plywood,
etc. may be butted up next to the sides and top of the firebox.
Combustible materials should never overlap the firebox front fac-
ing. Firebox should not be placed on top of carpet or other kinds of
fibrous material.
Figure 8 - Attaching Fireplace to Wall Studs
Nails or
Wood
Screws
Nailing
Flanges
WARNING: Do not allow any combustible materi-
als to overlap the firebox front facing.
IMPORTANT: Noncombustible materials such as brick, tile, etc.
may overlap the front facing, but should never cover any necessary
openings like louvered slots.
WARNING:Donotallow noncombustiblematerials
to cover any necessary openings like louvered slots.
WARNING: Use only noncombustible mortar or
adhesives when overlapping the front facing with
noncombustible facing material.
WARNING: Never modify or cover the louvered
slots on the front of the firebox.
INSTALLATION
Continued
INSTALLATION
Built-In Fireplace Installation (Cont.)
Mantel Clearances for Built-In Installation
Removing Brick Liner Retainer
MANTEL CLEARANCES FOR BUILT-IN
INSTALLATION
NOTICE: If your installation does not meet the mini-
mum clearances shown, you must do one of the
following:
•raise the mantel to an acceptable height
•remove the mantel
NOTICE:Surfacetemperatures ofadjacentwallsand
mantels become hot during operation. Walls and
mantels above the firebox may become hot to the
touch. If installed properly, these temperatures meet
the requirement of the national product standard.
Followallminimumclearancesshowninthismanual.
Ifplacing mantelabove built-in fireplace,you mustmeetminimum
clearance between mantel shelf and top of fireplace opening.
Figure 9 - Minimum Mantel Clearances for Built-In Installation
Mantel Shelf
Note: All vertical
measurements are
from top of fireplace
opening to bottom of
mantel shelf.
REMOVING BRICK LINER RETAINER
1. Using Phillips screw driver, remove 2 screws attaching brick
liner retainers to vertical sides.
2. Remove brick liner retainers and discard. Replace 2 screws
into vertical sides.

109774
10
For more information, visit www.desatech.com
For more information, visit www.desatech.com
AUTO
OFF
ON
Slot
INSTALLATION
Continued
INSTALLATION
Assembling Brass Trim
Optional Mantel Installation
ASSEMBLING BRASS TRIM
(Brass trim shipped with mantel)
1. Remove packaging from three remaining pieces of brass trim.
2. Locate two adjusting plates with set screws, and two shims in
the hardware packet.
3. Align shim under adjusting plate as shown in Figure 10.
4. Slide one end of adjusting plate/shim in slot on mitered edge
of top brass trim (see Figure 10).
5. Slide other end of adjusting plate/shim in slot on mitered edge
of side brass trim (see Figure 10).
6. While firmly holding edges of brass trim together, tighten both
set screws on the adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other corner.
8. Set brass assembly aside for later installation.
Mitered Edge
Slot
Shim
Set Screws
Adjusting
Plate Side Brass
Trim
Top Brass
Trim
Figure 10 - Assembling Brass Trim
OPTIONAL MANTEL INSTALLATION
Note: Refer to instructions provided with the mantel for assembly
instructions. Refer to instructions below for system installation. If
using blower accessory (see Accessories, page 25), see installation
instructions on pages 11 and 12.
1. Choose location for fireplace and install gas supply line.
2. Remove screen from fireplace by removing screws in each
end of screen rod (see Figure 11). Hold screen rod cover while
removing five hex head screws underneath hood (see Figure
12). Carefully lift and pull out hood (see Figure 13).
3. Assemble brass trim kit. See Assembling Brass Trim, above.
Figure 12 - Removing Hood Screws
Hood
Screen
Rod
Cover
Screw
Figure 13 - Removing Hood
Mantel Screw
Location
Figure 11 - Removing Screen
4. Place brass trim on the shoulder screws located on the side
and top of the fireplace. Firmly snap the brass trim over the
shoulder screws on fireplace (see Figure 14).
5. Place mantel base close to wall in desired fireplace location.
6. Install gas line. See Connecting Equipment Shutoff Valve To
Gas Supply, page 12
7. Carefully placefireplace onmantel base and center left to right.
Check for gas leaks. See Checking Gas Connections, page 14.
8. Refer to instructions provided with the mantel for permanent
attachment to wall.
9. Slide mantel around fireplace. Be careful not to damage wall
or mantel.
10. Adjust assembly to remove any gaps. From back side of fire-
place,attach two2" wood screwsthrough basemountingblocks
attached to bottom sides of mantel into base (see instructions
provided with mantel).
11. Attach remaining two 3" wood screws from hardware pack
through openings inside of fireplace sides into the mantel. See
Figure 13, for screw hole location.
Figure 14 - Attaching Brass Trim to Fireplace
Shoulder
Screws
Assembled
Brass Trim

109774
11
11
For more information, visit www.desatech.com
For more information, visit www.desatech.com
INSTALLATION
Continued
INSTALLATION
Installing Blower Assembly - GA3450T
Note: If you are using a mantel with your heater, use the following
instructions. If your heater is built-in, see For Built-In Installation
on page 12.
1. Screen and hood should be removed from fireplace (see page
10). Remove log set and set aside.
2. Install snap bushings found in hardware kit into both holes in
rear of blower control shield (see Figure 15).
3. Make sure the wire harness is firmly connected to the termi-
nals on the blower bracket assembly.
4. Note the wire locations on back of AUTO/OFF/ON switch.
Carefully remove red wire from the AUTO terminal and blue
wire from the ON terminal. Black wire can remain on middle
or OFF terminal (see Figure 16).
5. Carefully disconnect green and white wires from power cord
harness at their insulated connectors.
6. In top of the heater cabinet, locate the four mounting holes on
theouter casing.Alignthese fourholes withthoseon theblower
bracket assembly.Attach blower bracket assembly to the outer
casing with 4 - #10 screws provided (see Figure 16).
7. Route the wire harness through the hole to the left side of heat
deflector. Pull wire harness through lower opening to the left
of the blower control shield. (see Figure 16).
8. Insert the 4 wire harness into one of the round holes in the rear
of the blower control shield and through the rectangular hole
in the front of shield (see Figure 16).
9. Reconnect red wire to the AUTO switch position. Reconnect
bluewire tothe ONswitch position. Reconnectgreen andwhite
wires to the power cord.
10. Install the switch plate on the blower control shield with 2 -
#10 screws provided (see Figure 17). Route power cord out of
the cabinet by inserting it through the bushing on the outer
casing (see Figure 16). Plug fan kit into 120-Volt grounded
power supply and test operation. Note: When switch is in the
AUTO position, the fan will start after the heater has run for a
few moments. The fan will continue to run for several mo-
ments after the heater has been turned off. When switch is in
the ON position, the fan will run until turned to OFF. Reinstall
hood assembly and close lower louver door.
11. Place log set back on the unit.
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation.
CAUTION: Verify proper operation after servicing.
INSTALLING BLOWER ASSEMBLY - GA3450T
Snap
Bushing
Figure 15 - Installing Snap Bushings
Blower
Control
Shield
Figure 16 - Installing Blower Bracket Assembly
AUTO
OFF
ON
Wire Harness
Blower Bracket
Assembly
Screw
Power
Cord
Shield Cover
Wire
Harness
Switch
Plate
Switch
Heat
Deflector
Blue Red
Blower
Control
Shield
Wiring
Routing
Hole
Blower
Control Shield
Figure 17 - Installing Switch Plate to Blower Control Shield
Switch
Plate
Screw

109774
12
For more information, visit www.desatech.com
For more information, visit www.desatech.com
WARNING: A licensed electrician must connect
the wiring harness to electrical supply following all
local codes. Electrician must provide a clamp on the
box cover to secure the wiring. Wiring should be
routed through the bushing in the hole on the outer
casing of heater.
1. Install a snap bushing found in hardware kit into one of the
holes found rear of blower control shield. The other hole is for
a strain relief clamp (not supplied) to secure incoming electri-
cal supply.
2. Follow steps 2 through 6 in Installing Blower Assembly -
GA3450T, page 11.Also remove black wire from middle/OFF
switch terminal.
For Built-In Installation
WARNING: ELECTRICAL GROUNDING
INSTRUCTIONS - This appliance is equipped with a
three-prong (grounding) plug for your protection
againstshockhazardandshouldbepluggeddirectly
into a properly grounded three-prong receptacle.
INSTALLATION
Continued
INSTALLATION
Installing Blower Assembly - GA3450T (Cont.)
Connecting Equipment Shutoff Valve To Gas Supply
Figure19-WiringDiagramForFanAccessoryBuilt-InInstallation
If any of the original wire as supplied with the appliance must be replaced, original
replacements must be used. DESA part no. 104015-01 (105°C) for power cord, and
DESA part no. 103968-01 (200°C) for wire harness.
101584-06
120 Vac. 60 Hz. .30 Amps
DESA International, Bowling Green, KY
Red Red
Fan Switch
(Auto/Off/On)
Blue
Blue
Thermostat
Switch
(N.O.)
Green
White Green
White
On
110/115
V.A.C.
Blower
Motor
Black
Off
1
23
Auto
WARNING: Never attempt to service heater while it is plugged in,
operating,orhot.Burnsandelectrical shockcouldresult.Onlyaquali-
fied service person should service or repair heater.
WARNING: Label all wires prior to disconnection when servicing
controls.Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Figure 18 - Installing Blower Bracket Assembly
AUTO
OFF
ON
Blower Bracket
Assembly
Screw
Wire Harness
Power Cord
Blower
Control
Shield
Wire Harness
Switch
Plate
Switch
Clamp Connector
(not included)
Outlet
Receptacle
Blue Red
Shield
Cover
Strain
Relief
3. Remove black plastic strain relief and power cord from switch
plate (see Figure 18). The power cord supplied will not be used
in built-in installations. Pop in the plastic snap bushing found
in hardware kit into the hole left by supply cord/strain relief.
4. A licensed electrician must follow the wiring diagram in Figure 19
to connect incoming electrical supply to fan kit wiring harness.
5. Test to make sure the blower is working properly.
6. Reinstallhood assembly (seepage10)andcloselowerlouver door.
7. Place log set back on the unit.
CONNECTING EQUIPMENT SHUTOFF VALVE
TO GAS SUPPLY
WARNING: A qualified service person must con-
nect fireplace to gas supply. Follow all local codes.
IMPORTANT: Checkgaslinepressurebeforeconnectingfireplace
to gas line. Gas line pressure must be no greater than 14 inches of
water. If gas line pressure is higher, fireplace regulator damage
could occur.
WARNING:Neverconnectnaturalgasfireplaceto
private (non-utility) gas wells. This gas is commonly
known as wellhead gas.
CAUTION: Never connect propane/LP fireplace
directly to the propane/LP supply. This fireplace
requires an external regulator (not supplied). Install
the external regulator between the fireplace and
propane/LP supply.

109774
13
13
For more information, visit www.desatech.com
For more information, visit www.desatech.com
INSTALLATION
Continued
INSTALLATION
Connecting Equipment Shutoff Valve To Gas Supply (Cont.)
Connecting Equipment Shutoff Valve to Heater Control
For propane/LP units,the installer must supply an external regula-
tor. The external regulator will reduce incoming gas pressure. You
must reduce incoming gas pressure to between 11 and 14 inches of
water. If you do not reduce incoming gas pressure, fireplace regu-
lator damage could occur. Install external regulator with the vent
pointing down as shown in Figure 20. Pointing the vent down
protects it from freezing rain or sleet.
CAUTION:Useonlynew,blackironorsteelpipe.
Internally-tinned copper tubing may be used in cer-
tain areas. Check your local codes. Use pipe of 1/2"
or greater diameter to allow proper gas volume to
fireplace. If pipe is too small, undue loss of volume
will occur.
We recommend that you install a sediment trap in supply line as
showninFigure21.Locatesedimenttrapwhereitiswithinreachfor
cleaning. Install in piping system between fuel supply and heater.
Locatesediment trapwhere trappedmatter isnot likelyto freeze.A
sediment trap traps moisture and contaminants. This keeps them
from going into fireplace controls. If sediment trap is not installed
or is installed wrong, fireplace may not run properly.
CAUTION: Use pipe joint sealant that is resistant
to liquid petroleum (LP) gas.
O
F
F
P
I
L
O
T
O
N
H
I
L
O
* Purchase the optional CSA design-certified equipment shutoff
valve from your dealer. See Accessories, page 25.
** Minimum inlet pressure for purpose of input adjustment.
Cap Pipe Tee
Nipple Joint
3" Minimum
Sediment Trap
Gas
Control
Natural Gas
From Gas Meter
(5" W.C.** to 10.5"
W.C. Pressure)
Propane/LP Gas
From External
Regulator
(11" W.C.** to
14" W.C. Pressure)
CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible
Gas Hose
Figure 21 - Gas Connection
Figure 20 - External Regulator with Vent Pointing Down
(Propane/LP Units Only)
Propane/LP
Supply
Tank
Vent
Pointing
Down
External
Regulator
CONNECTING EQUIPMENT SHUTOFF VALVE
TO HEATER CONTROL
Installation Items Needed
• Phillips screwdriver
• sealant (resistant to propane/LP gas, not provided)
1. Route flexible gas line (provided by installer) from equipment
shutoff valve into fireplace through side or rear access holes in
outer casing.
AUTO
OFF
ON
Figure 22 - Routing Flexible Gas Line
Equipment
Shutoff Valve
Outer
Casing
To Gas Supply
Installation must include an equipment shutoff valve, union, and
plugged1/8"NPTtap.LocateNPTtapwithinreachfortestgaugehook
up. NPT tap must be upstream from fireplace (see Figure 21).
IMPORTANT: Install equipment shutoff valve in an accessible
location. The equipment shutoff valve is for turning on or shutting
off the gas to the appliance.
Checkyourbuildingcodesforanyspecialrequirementsforlocating
equipment shutoff valve to fireplaces.
Apply pipe joint sealant lightly to male NPT threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe
could result in clogged fireplace valves.

109774
14
For more information, visit www.desatech.com
For more information, visit www.desatech.com

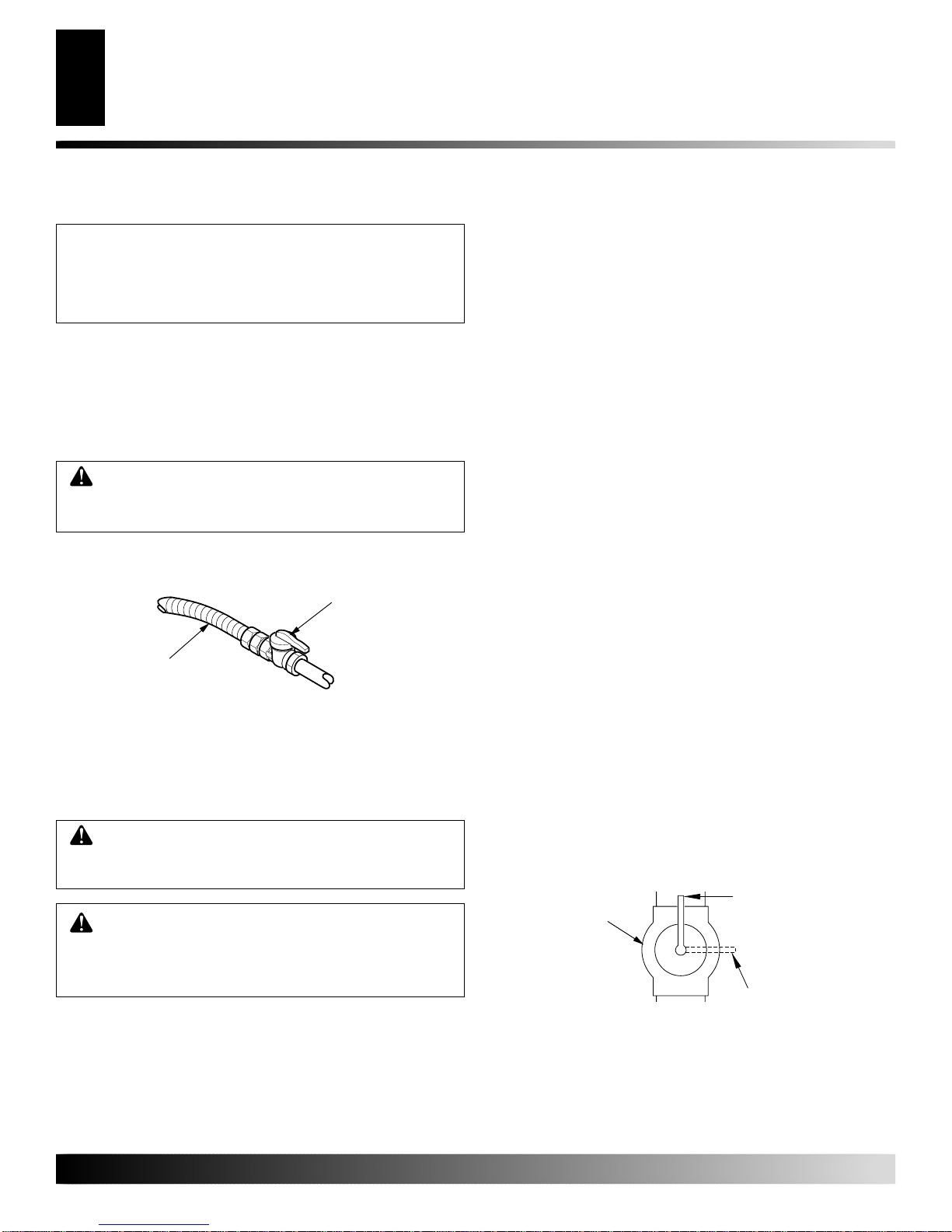

INSTALLATION
Connecting Equipment Shutoff Valve to Heater Control (Cont.)
Checking Gas Connections
INSTALLATION
Continued
Figure 23 - Attaching Flexible Gas Lines Together
➞
➞
Flexible Gas Line from
Fireplace Gas Regulator
To Fireplace
Gas Regulator Equipment Shutoff Valve
Provided by Installer
Propane/LP
To External
Regulator
Natural Gas
To Gas Meter
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect appliance with its appliance main gas valve (con-
trol valve) and equipment shutoff valve from gas supply pip-
ing system. Pressures in excess of 1/2 psig will damage fire-
place regulator.
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping and connections
forleaksafterinstallingorservicing.Correctallleaks
at once.
WARNING: Never use an open flame to check for
aleak.Applyanoncorrosiveleakdetectionfluidtoall
joints.Bubblesformingshowaleak.Correctallleaks
at once.
2. Cap off open end of gas pipe where equipment shutoff valve
was connected.
3. Pressurizesupplypipingsystembyeitheropeningpropane/LPsup-
ply tank valve for propane/LP gas or opening main gas valve lo-
cated on or near gas meter for natural gas, or using compressed air.
4. Check all joints of gas supply piping system. Apply a non-
corrosive leak detection fluid to gas joints. Bubbles forming
show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff valve to gas supply.
Check reconnected fittings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 24).
2. Pressurizesupplypipingsystembyeitheropeningpropane/LPsup-
ply tank valve for propane/LP gas or opening main gas valve lo-
cated on or near gas meter for natural gas, or using compressed air.
3. Check all joints from gas meter to equipment shutoff valve
(see Figures 25 or 26, page 15). Apply a noncorrosive leak
detection fluid to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Pressure Testing Fireplace Gas Connections
1. Open equipment shutoff valve (see Figure 24).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of fireplace is in the OFF position.
4. Check all joints from equipment shutoff valve to thermostat gas
valve (see Figures 25 or 26, page 15). Apply a noncorrosive
leak detection fluid to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light fireplace (see Operating Fireplace, pages 17 through
19). Check all other internal joints for leaks.
7. Turn off fireplace (see To Turn Off Gas to Appliance, page 18).
8. Replace front panel.
Figure 24 - Equipment Shutoff Valve
ON
POSITION
OFF
POSITION
Open
Closed
Equipment
Shutoff
Valve
NOTICE : Most building codes do not permit con-
cealed gas connections. A flexible gas line is pro-
vided to allow accessibility from the fireplace (see
Figure23).The flexible gassupplyline connection to
the equipment shutoff valve should be accessible.
CAUTION: Avoid damage to regulator. Hold gas
regulator with wrench when connecting it to gas
piping and/or fittings.
2. Apply pipe joint sealant lightly to male threads of gas connec-
tor attached to flexible gas line (see Figure 23).
3. Check all gas connections for leaks. See Checking Gas Con-
nections.
4. Feed flexible gas line into fireplace base area. Make sure the
entire flexible gas line is in fireplace mantel base area.

109774
15
15
For more information, visit www.desatech.com
For more information, visit www.desatech.com
INSTALLATION
Checking Gas Connections (Cont.)
Installing Logs
INSTALLATION
Continued
Gas Meter
Figure 25 - Checking Gas Joints, Natural Gas (Shown With
Optional Mantel)
Equipment
Shutoff Valve
Figure 26 - Checking Gas Joints, Propane/LP Gas (Shown with
Optional Mantel)
Propane/LP
Supply Tank
Equipment
Shutoff Valve
WARNING: Failure to position the parts in accor-
dancewiththesediagramsorfailuretouseonlyparts
specifically approved with this heater may result in
property damage or personal injury.
INSTALLING LOGS
It is very important to install the logs exactly as instructed. Do not
modify logs. Only use logs supplied with heater.
Place one-piece log set on grate to fit as illustrated in Figure 27.
Make sure back section of log set is seated into “U”-shaped cutout
in center of chassis (see Figure 27). IMPORTANT: Make sure log
does not cover any burner ports (see Figure 28).
CAUTION:Afterinstallationandperiodicallythere-
after,checkto ensurethatno flamecomesin contact
withany log.WiththeheatersettoHigh,checktosee
if flames contact any log. If so, reposition logs ac-
cording to the log installation instructions in this
manual. Flames contacting logs will create soot.
Figure 27 - Installing One-Piece Log Set
AUTO
OFF
ON
One Piece Log Set
Burner
"U"-shaped
Cutout in Chassis
Chassis
Figure 28 - Installing One-Piece Log Set (Top View)
One Piece Log Set
Burner Ports

109774
16
For more information, visit www.desatech.com
For more information, visit www.desatech.com

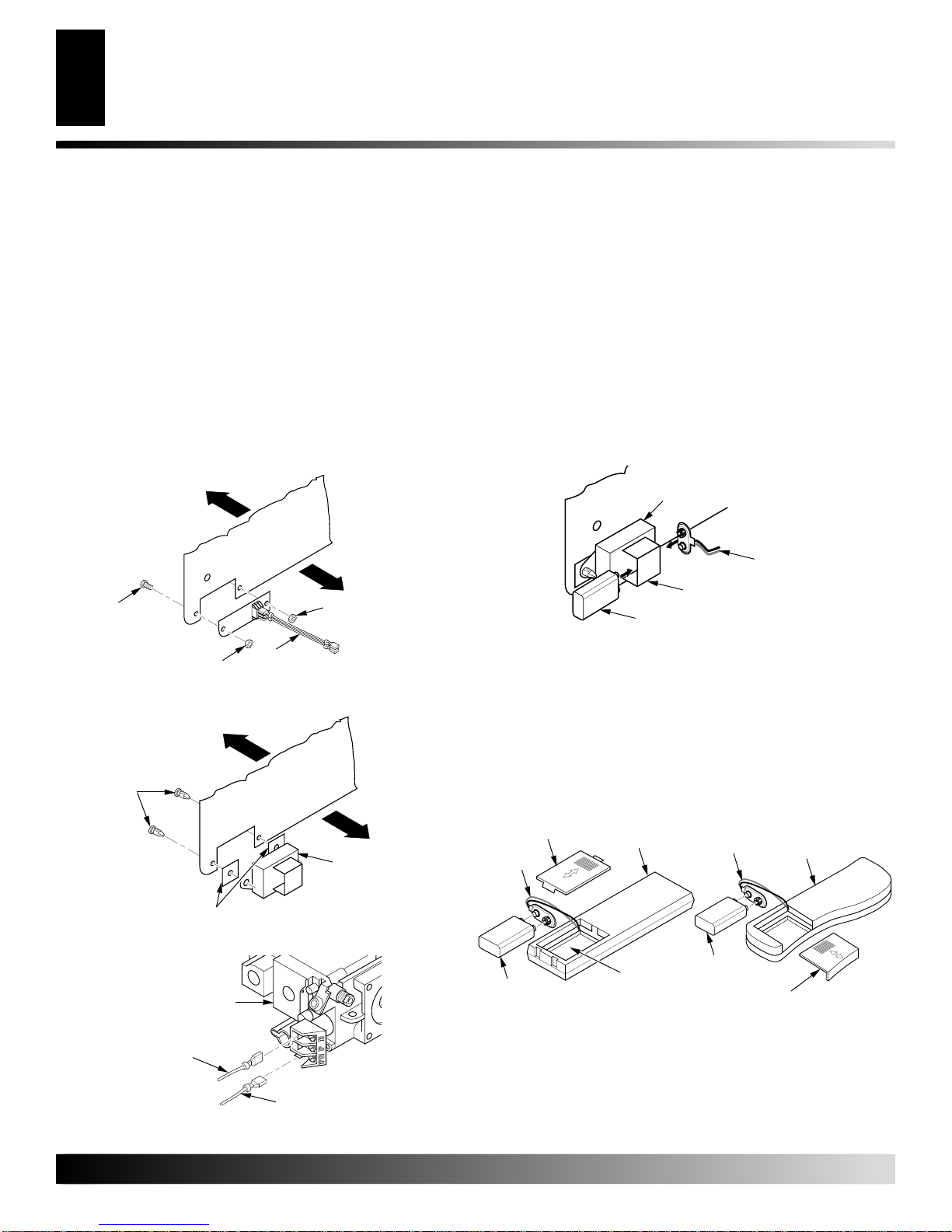

INSTALLATION
Continued
INSTALLATION
Optional Wireless Hand-Held Remote Control Accessories
Installing Wireless Remote Control Accessory
OPTIONAL WIRELESS HAND-HELD REMOTE
CONTROL ACCESSORIES
(CGHRC & CGHRCT Series)
Installing Receiver
1. Disconnect switch wires from the control valve.
2. Remove screws and nuts.
3. Remove switch plate (see Figure 29). Discard after removing.
4. Install remote receiver unit onto gas log heater base using clips
(2) and insulating washers provided.
5. Push clips firmly into place (see Figure 30).
6. Connect wires as shown in Figure 31.
Figure 29 - Switch Plate and Wiring Harness (Switch Plate and
Orientation May Vary Depending On Model)
Front
Back
Wires
Nut
Nut
Screw
Front
Front
Bac
k
Figure 30 - Installing Remote Receiver
Insulating Washers
Remote
Receiver
Mounting
Clips
Back
Back
Figure 31 - Connecting Wires
Red Wire From
Receiver
Valve
White Wire
From Receiver
Front
INSTALLING WIRELESS REMOTE CONTROL
ACCESSORY
Two 9-volt alkaline batteries (not included) are required to operate
this heater with the wireless hand held remote control set. One
battery must be installed in the receiver and one in the hand-held
remote control unit.
Note: Only use alkaline batteries.
Installing 9-Volt Battery in Receiver
1. Locate back of receiver under front burner of heater.
2. Locate the battery clip mounted on the back of the receiver.
3. Slide a 9-volt battery through the clip.
4. Attach the terminal wires to the battery.
Figure 32 - Installing Receiver on the Back of the Base
Battery
Clip
9-Volt
Battery
Receiver
Terminal
Wires
Installing 9-Volt Battery (Not Included) in Hand-
Held Remote Control Unit
1. Remove battery cover on back of remote control unit.
2. Attach terminal wires to the battery. Place battery into the bat-
tery housing.
3. Replace battery cover onto remote control unit.
Figure33-InstallingBatteryin
Hand-Held Remote Control
Unit (CGHRC Series)
Figure34 -InstallingBatteryin
Hand-HeldRemoteControlUnit
(CGHRCTA Series)
Battery Cover
9-Volt
Battery
Terminal
Wires
Remote
Control Unit
Battery
Housing
Remote
Control Unit
Terminal
Wires
9-Volt
Battery Battery Cover

109774
17
17
For more information, visit www.desatech.com
For more information, visit www.desatech.com

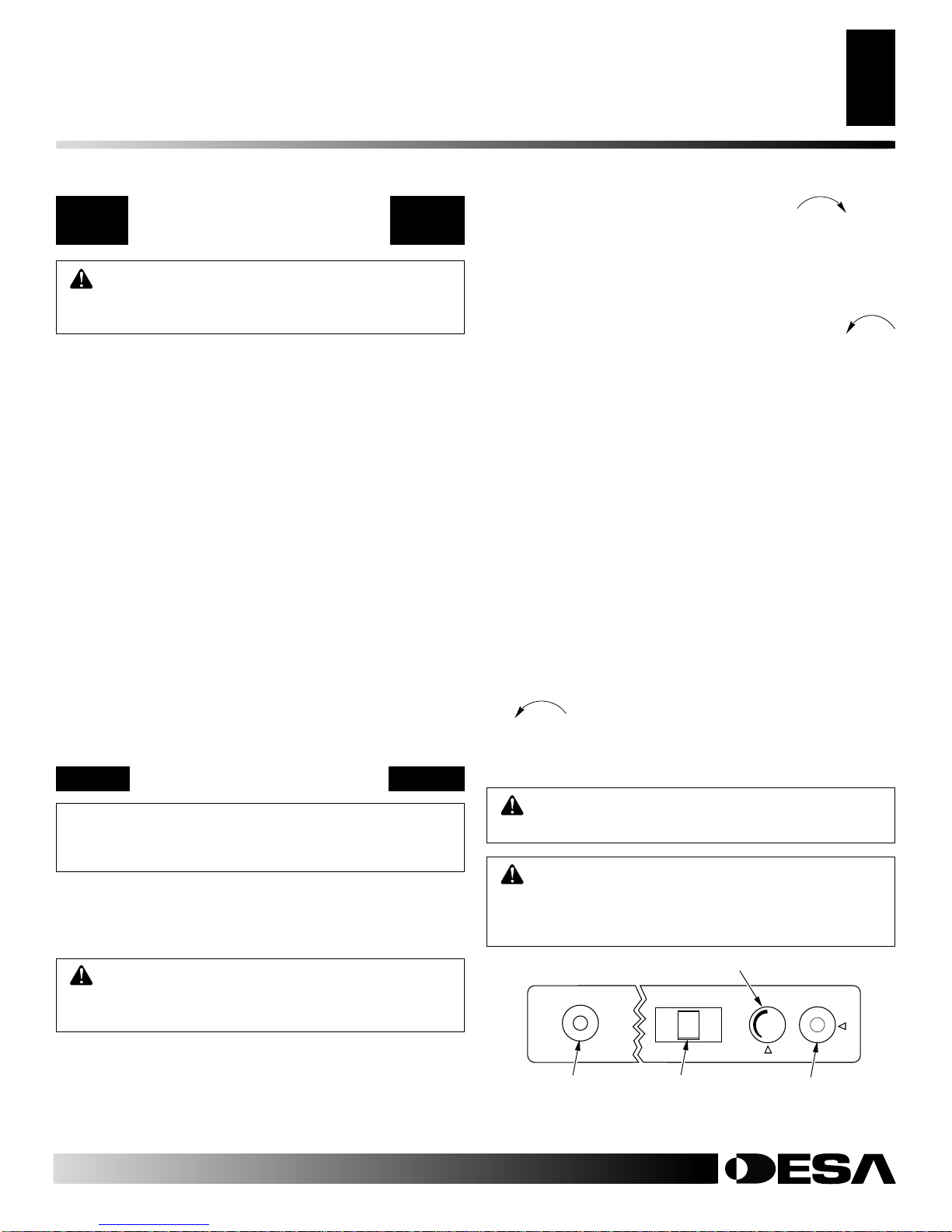

OPERATING FIREPLACE
FOR YOUR SAFETY READ
BEFORE LIGHTING
WARNING:Ifyoudo notfollowtheseinstructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IFYOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire de-
partment.
C. Useonlyyourhand topushin orturnthe gas controlknob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified service techni-
cian or gas supplier. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
LIGHTING INSTRUCTIONS
NOTICE:Duringinitialoperationofnewheater,burning
logswillgiveoffapaper-burningsmell.Opena window
to vent smell. This will only last a few hours.
1. STOP! Read the safety information above.
2. Make sure equipment shutoff valve is fully open.
3. Set switch to OFF position.
WARNING: Burners will come on automatically
withinoneminutewhentheselectorswitchisintheON
position after the pilot is lit.
4. Press in and turn control knob clockwise to the
OFF position.
5. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Fol-
low “B” in the safety information in column 1. If you don’t
smell gas, go to the next step.
6. Press in and turn control knob counterclockwise
to the PILOT position. Press in control knob for five (5)
seconds (see Figure 35).
Note: You may be running this heater for the first time
after hooking up to gas supply. If so, the control knob may
need to be pressed in for 30 seconds or more. This will al-
low air to bleed from the gas system.
7. With control knob pressed in, press and release ignitor but-
ton. This will light pilot. The pilot is attached to the front
burner.Ifneeded,keeppressingignitorbuttonuntilpilotlights.
Note: If pilot does not stay lit, contact a qualified service
person or gas supplier for repairs. Until repairs are made,
lightpilot withmatch.Tolightpilotwith match,see Manual
Lighting Procedure, page 18.
8. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob.
• If control knob does not pop out when released, contact
a qualified service person or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4 through 8.
9. Slightly push in and turn control knob counterclockwise
to the ON position.
10. Waitoneminute andswitchselector switchtothe ONposi-
tion to light burners.
11. Set flame adjustment knob to any level between HI and LO.
Figure35-ControlKnobandIgnitorButtonLocation(Shownas
Supplied, No Control Options)
O
F
F
P
I
L
O
T
O
N
L
O
I
H
AUTO
OFF
ON
Control Knob
Ignitor Button Selector Switch
Flame Adjustment Knob
CAUTION: Do not try to adjust heating levels by
using the equipment shutoff valve.
WARNING:Makesuretheselectorswitchisinthe
OFF position when you are away from home for long
periods of time. Heater will come on automatically
with selector switch in the ON position.
OPERATING FIREPLACE
For Your Safety Read Before Lighting
Lighting Instructions

109774
18
For more information, visit www.desatech.com
For more information, visit www.desatech.com
MANUAL LIGHTING PROCEDURE
1. Followsteps1through6underLightingInstructions,page17.
2. Depress control knob and light pilot with match.
3. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob. Now follow
steps 9 through 11, column 2 page 17.
OPTIONAL REMOTE OPERATION
Note: All remote control accessories must be purchased sepa-
rately (see Accessories, page 25). Follow instructions included
with the remote control.
Thermostat Control Operation
(Optional CGHRCTA Series Only) The thermostat control set-
ting on the remote control unit can be set to any comfort level
between WARMER and COOLER. The burners will turn on
and off automatically to maintain the comfort level you select.
Theidealcomfortsettingwillvarybyhouseholddependingupon
theamountofspacetobeheated,theoutputofthecentralheating
system, etc.
ON
OFF
REMOTE
O
F
F
P
I
L
O
T
O
N
L
O
I
H
Figure 37 - Setting the Selector Switch, Control Knob, and
Flame Adjustment Knob for Remote Operation
Selector Switch in Remote Position
(Optional Remote Control)
Control Knob
in On Position
Flame Adjustment Knob
NOTICE: You must light the pilot before using the
hand-held remote control unit. See Lighting Instruc-
tions
on page 17.
1. After lighting, let pilot flame burn for about one minute.
Turn control knob to ON position. Adjust flame adjust-
ment knob anywhere between HI and LO. Slide the selec-
tor switch to the REMOTE position.
NOTE: The burner
may light if hand-held remote ON button was on when se-
lector switch was last turned off. You can now turn the
burner on and off with the hand-held remote control unit.
IMPORTANT: Do not leave the selector switch in the RE-
MOTE position when the pilot is not lit. This will drain the
battery.
IMPORTANT: Besure topressthe ON/OFFbuttonsonthe
hand-heldremotecontrol unit forupto 3 secondsto assure
proper operation.
CGHRC Series Operation:
2a. Press the ON/OFF button to turn the burners on and off.
When turning burners off, the pilot will remain lit.
CGHRCTA Series Operation
2b. Press the AUTO/ON/OFF button on the hand-held remote
control (see Figure 38, page 19). The lights to the left of the
button will showAUTO, ON, or OFF.
• In the ON mode, the burners will ignite.The heater is in
manual mode when ON is lit.
• In the AUTO mode, the thermostat in the hand-held re-
mote unit controls the room temperature.To increase the
room temperature, press the top arrow of theTEMP but-
ton.To lower the room temperature, press the bottom ar-
row of the TEMP button. At higher settings the heater
will run longer.
IMPORTANT: This remote control has been specially engi-
neeredtotakean airtemperaturesampleevery5.5minutes
in the auto mode. It will not respond immediately to the
temperature setting being turned up or down.
Ignitor
Electrode
Pilot Burner
Figure 36 - Pilot
OPERATING FIREPLACE
Continued
TO TURN OFF GAS TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise to the OFF position.
2a. Set selector switch in the OFF position
2b. If Using Optional Hand-Held Remote: Setselector switchin
the OFF position to keep from draining battery.
Shutting Off Burner Only (pilot stays lit)
Youmayshut offtheburnersand keepthepilotlit bydoingone
of the following:
1. Turncontrol knobclockwise tothePILOTposition.
2. Use remote control manual OFF button.
3. Set selector switch in the OFF position.
OPERATING FIREPLACE
Lighting Instructions (Cont.)
To Turn Off Gas To Appliance
Manual Lighting Procedure
Optional Remote Operation

109774
19
19
For more information, visit www.desatech.com
For more information, visit www.desatech.com
OPERATING FIREPLACE
Continued
OPERATING FIREPLACE
Optional Remote Operation (Cont.)
INSPECTING BURNERS
Pilot Flame Patterns
Burner Flame Pattern
Burner Primary Air Holes
Main Burner
Increases Room
Temperature in
AUTO Mode
Decreases Room
Temperature in
AUTO Mode
Turns Burner On
or Off and Allows
You to Choose
the Auto Setting
Shows Temperature
Setting
Figure 38 - Thermostat Hand-Held Remote Control Unit
Selections (CGHRCTA Series Only)
The Log Heater
will Automatically
Cycle between
Pilot and the Heat
Setting that has
been Selected
IMPORTANT: The hand-held remote control unit must be
near the heater. Do not keep the hand-held remote control
unit too close to the heater. The thermostat on the hand-
held remote control unit will heat up too quickly and turn
the heater off.
3. To turn the burner off, press theAUTO/ON/OFF button un-
til OFF lights.The pilot will remain lit.
IMPORTANT: To turn the pilot off, manually turn the con-
trol knob on the heater to the OFF position.
INSPECTING BURNERS
Check pilot flame pattern and burner flame patterns often.
PILOT FLAME PATTERN
Figure 39 shows a correct pilot flame pattern. Figure 40 shows an
incorrectpilotflamepattern.Theincorrectpilotflameisnottouching
thethermocouple.Thiswillcausethethermocoupletocool.Whenthe
thermocouple cools, the heater will shut down.
If pilot flame pattern is incorrect, as shown in Figure 40
• turn heater off (see To Turn Off Gas to Appliance, page 18)
• see Troubleshooting, pages 21 through 23
BURNER PRIMARY AIR HOLES
Air is drawn into the burner through the holes in the fitting at the
burnerentrance.These holes maybecomeblockedwithdust or lint.
Periodically inspect these holes for any blockage and clean if
needed. Blocked air holes will create soot.
MAIN BURNER
Periodicallyinspectallburnerflameholeswiththeheaterrunning.All
slottedburner flame holesshouldbe openwithyellowflame present.
All round burner flame holes should be open with a small blue flame
present. Some burner flame holes may become blocked by debris or
rust,withnoflamepresent.If so, turnoffheaterandletcool.Remove
blockage. Blocked burner flame holes will create soot.
BURNER FLAME PATTERN
Figure 41 shows a correct burner flame pattern. Figure 42 shows an
incorrect burner flame pattern. If burner flame pattern is incorrect,
• turn heater off (see To Turn Off Gas to Appliance, page 18)
• see Troubleshooting, pages 21 through 23
Thermocouple
Pilot Burner
Figure39-CorrectPilotFlame
Pattern Figure40-IncorrectPilotFlame
Pattern
Thermocouple
Pilot Burner
Figure41-Correct Flame PatternwithControlKnobSettoHigh
Flame
Figure 42 - Incorrect Flame Pattern with Control Knob Set to
High Flame
Approx. 3-6"
Above Top of
Logs
More Than 8"
Above Top of
Logs

109774
20
For more information, visit www.desatech.com
For more information, visit www.desatech.com
CLEANING AND
MAINTENANCE
WARNING: Turn off heater and let cool before
cleaning.
CAUTION: Youmustkeepcontrolareas, burners,
and circulating air passageways of heater clean.
Inspect these areas of heater before each use. Have
heaterinspectedyearlybyaqualifiedserviceperson.
Heater may need more frequent cleaning due to
excessive lint from carpeting, bedding material, pet
hair, etc.
CLEANING BURNER INJECTOR HOLDER
AND PILOT AIR INLET HOLE
Theprimaryairinletholesallowtheproper amount ofairtomixwith
the gas. This provides a clean burning flame. Keep these holes clear
of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each
heating season. Blocked air holes will create soot. We recommend
that you clean the unit every three months during operation and have
heater inspected yearly by a qualified service person.
We also recommend that you keep the burner tube and pilot
assembly clean and free of dust and dirt. To clean these parts we
recommendusingcompressedairnogreaterthan30PSI.Yourlocal
computer store, hardware store, or home center may carry com-
pressed air in a can. You can use a vacuum cleaner in the blow
position. If using compressed air in a can, please follow the direc-
tionsonthecan.Ifyoudon'tfollowdirectionsonthecan, youcould
damage the pilot assembly.
1. Shut off the unit, including the pilot.Allow the unit to cool for
at least thirty minutes.
2. Inspect burners, pilot, and primary air inlet holes on injector
holder for dust and dirt (see Figure 43).
3. Blow air through the ports/slots and holes in the burners.
4. Check the injector holder located at the end of the burner tube
again. Remove any large particles of dust, dirt, lint, or pet hair
with a soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air holes on the injector holder.
6. In case any large clumps of dust have now been pushed into
the burner repeat steps 3 and 4.
Clean the pilot assembly also. A yellow tip on the pilot flame
indicates dust and dirt in the pilot assembly. There is a small pilot
airinletholeabouttwoinchesfromwherethe pilotflamecomesout
ofthe pilot assembly(seeFigure 44).Withtheunit off,lightlyblow
airthroughtheairinlethole.Youmayblowthroughadrinkingstraw
if compressed air is not available.
Figure 43 - Injector Holder On Outlet Burner Tube
Burner
Tube Injector
Holder
Primary Air
Inlet Holes
Figure 44 - Pilot Inlet Air Hole
Burner
Tube
Pilot
Assembly
Pilot Air
Inlet Hole
Ports/Slots
CLEANING AND MAINTENANCE
Cleaning Burner Injector Holder And Pilot Air Inlet Hole
Cabinet
WIRING DIAGRAM
CABINET
Air Passageways
• Use a vacuum cleaner or pressurized air to clean.
Exterior
• Use a soft cloth dampened with a mild soap and water mixture.
Wipe the cabinet to remove dust.
WIRING DIAGRAM
Switch
Black
Auto
Off
On Red
Red
White
Thermopile
Gas Control
TPTH TH
TH
TPTH TP
TP
