Comfort Glow CGCF26TN Quick start guide

Save this manual for future reference.
OWNER’S OPERATION AND INSTALLATION MANUAL
VENT-FREE NATURAL GAS
COMPACT FIREPLACE
Shown with Optional
Cabinet Mantel/Hearth
Base Accessory
®
14,000 to 26,000 Btu/Hr
withThermostat
CGCF26TN
This appliance may be installed in an aftermarket* manufactured (mobile) home, where not
prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer. (I.E. Installation of this
product is permitted after the manufactured (mobile) home is sited)
This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency, or the gas supplier.
WARNING:Improperinstallation,
adjustment,alteration,service,or
maintenance can cause injury or
property damage. Refer to this
manualforcorrectinstallationand
operational procedures. For as-
sistance or additional informa-
tion consult a qualified installer,
service agency, or the gas sup-
plier.
WARNING: This is an unvented
gas-fired heater. It uses air (oxy-
gen) from the room in which it is
installed.Provisionsforadequate
combustion and ventilation air
mustbeprovided.Referto
Airfor
Combustionand Ventilation sec-
tion on page 6 of this manual.

2
103668
CONTENTS SECTION PAGE
Safety Information continues on next page
Safety Information...................................................................................2
Product Identification ..............................................................................4
Local Codes .............................................................................................4
Product Features ......................................................................................4
Unpacking................................................................................................4
Assembly .................................................................................................4
Air for Combustion and Ventilation........................................................6
Installation ...............................................................................................10
Connecting to Gas Supply .......................................................................16
Checking Gas Connections......................................................................18
Operating Fireplace .................................................................................19
Inspecting Burner ....................................................................................22
Cleaning and Maintenance ......................................................................24
Troubleshooting.......................................................................................24
Technical Service ....................................................................................28
Specifications ..........................................................................................28
Service Hints ...........................................................................................28
Replacement Parts ...................................................................................28
Accessories ..............................................................................................29
Illustrated Parts List.................................................................................30, 31
Parts Centrals...........................................................................................32
Warranty Information ..............................................................................Back cover
WARNING ICON G001
WARNINGS
IMPORTANT: Read this owner’s manual carefully and completely
beforetryingtoassemble,operate,orservicethisfireplace.Improper
useofthisfireplacecancauseseriousinjuryordeathfromburns,fire,
explosion, electrical shock, and carbon monoxide poisoning.
WARNING ICON G001
DANGER
Carbon monoxide poisoning may lead to death!
SAFETY
INFORMATION
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning
resembletheflu,withheadaches,dizziness,ornausea.Ifyouhavethesesigns,the
fireplace may not be working properly. Get fresh air at once! Have fireplace
serviced. Somepeoplearemoreaffectedbycarbonmonoxidethanothers.These
includepregnantwomen,peoplewithheartorlungdiseaseoranemia,thoseunder
the influence of alcohol, and those at high altitudes.
NaturalGas: Natural gas is odorless. An odor-making agentisaddedtonatural
gas. The odor helps you detect a natural gas leak. However, the odor added to
natural gas can fade. Natural gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this manual for
reference. It is your guide to safe and proper operation of this fireplace.

3
103668
SAFETY
INFORMATION
Continued
WARNING ICON G 001
WARNINGS Continued
WARNING: Any change to this fireplace or its controls can be dangerous.
1. This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building.
• immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
3. This fireplace shall not be installed in a bedroom or bathroom.
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less than 36
inches from the front, top, or sides of the fireplace
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
5. Do not use this fireplace as a wood-burning fireplace. Use only the logs provided with
the fireplace.
6. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool.
Using these added items can cause sooting. Do not add lava rock around base. Rock
and debris could fall into the control area of fireplace.
7. You must operate this fireplace with the fireplace screen in place. Make sure fireplace
screen is in place before running fireplace.
8. This fireplace is designed to be smokeless. If logs ever appear to smoke, turn off
fireplace and call a qualified service person. Note: During initial operation, slight
smoking could occur due to log curing and fireplace burning manufacturing residues.
9. Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner
flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered
burner patterns can cause sooting.
10. This fireplace needs fresh air ventilation to run properly. This fireplace has an oxygen
depletion sensor (ODS) pilot light safety system. The ODS shuts down the fireplace if
not enough fresh air is available. See Air for Combustion and Ventilation, pages 6
through 9. If fireplace keeps shutting off, see Troubleshooting, pages 24 through 27.
11. Do not run fireplace
• where flammable liquids or vapors are used or stored.
• under dusty conditions.
12. Do not use this fireplace to cook food or burn paper or other objects.
13. Never place any objects in the fireplace or on logs.
14. Fireplace front and screen becomes very hot when running fireplace. Keep children
and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will
remain hot for a time after shut-down. Allow surfaces to cool before touching.
15. Carefully supervise young children when they are in same room with fireplace.
16. Do not use fireplace if any part has been under water. Immediately call a qualified
service technician to inspect the room fireplace and to replace any part of the control
system and any gas control which has been under water.
17. Turn off and unplug fireplace and let cool before servicing. Only a qualified service
person should service and repair fireplace.
18. Operating fireplace above elevations of 4,500 feet could cause pilot outage.
19. Do not use a blower insert, heat exchanger insert, or other accessory not approved for
use with this fireplace.
20. Do not operate fireplace if any log is broken. Do not operate fireplace if a log is
chipped (dime-sized or larger).

4
103668
PRODUCT
IDENTIFICATION
LOCAL CODES Install and use fireplace with care. Follow all local codes. In the absence of local
codes, use the latest edition of The National Fuel Gas Code ANSI Z223, also
known as NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Figure 1 - Vent-Free Propane/LP Gas Compact Fireplace
UNPACKING 1. Remove log box and fireplace from carton. The hood is not attached.
2. Remove all protective packaging applied to fireplace for shipment.
3. Make sure your fireplace includes one hardware packet.
4. Check fireplace for any shipping damage. If fireplace is damaged, promptly
inform dealer where you bought fireplace.
PRODUCT
FEATURES
Safety Pilot
This fireplace has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room fireplaces. The ODS/pilot
shuts off the fireplace if there is not enough fresh air.
Piezo Ignition System
This fireplace has a piezo ignitor. This system requires no matches, batteries, or
other sources to light fireplace.
Thermostatic Heat Control
This fireplace has a thermostat sensing bulb and a control valve. The thermostat
will automatically modulate the heat output to maintain a consistent room tempera-
ture. This results in greater fireplace comfort. This can also result in lower gas bills.
Ignitor Button
Screen
Fireplace
Cabinet
Logs
Control Knob
ASSEMBLY
WARNING ICON G001
WARNING
Always have branch support and screen in place before operating
fireplace.Thispreventsexcessivetemperaturesonfireplacesurfaces.

5
103668
ASSEMBLING FIREPLACE
Tools Required: Phillips screwdriver, 5/16" hex wrench, and slotted screwdriver
Installing Log
1. Remove back log, branch, and hood from log box. Discard protective packaging.
2. Remove two shipping screws above screen (see Figure 2).
3. Lift screen up and pull out to remove.
4. An optional blower is available. See Accessories, page 32. Install optional
blower now. Follow installation instructions provided with blower.
5. Gently place back log on burner support (see Figure 2). The log should fit flat
against top of burner support. Place two #10 one-inch-long screws through burner
support into the log and tighten. Place branches on branch support (see Figure 2).
6. Reattach screen by placing notches in screen frame over shoulder screws and
pushing down.
Figure 2 - Assembling Fireplace
Back Log
Screen
Branch
Burner
Support
Screw
Branch
Support
Screen Shipping Screw
Shoulder Screw
WARNING ICON G001
WARNING
Failure to position the parts in accordance with these diagrams or
failuretouseonlypartsspecificallyapprovedwiththisfireplacemay
result in property damage or personal injury.
Assembling Hood
1. Lift screen off heater.
2. Remove two 1-3/4" screws from louver assembly (see Figure 2). Save these screws.
Figure 3 - Assembling Hood
Screw
3. Pull louver assembly straight out from the cabinet. Be careful not to scratch the
paint. Set louver assembly and screws aside.
4. Locate two black Phillips sheet metal screws from the hardware packet.
5. Place hood over top edge of firebox wrapper.
6. Attach hood with two short screws in center of hood.
7. Replace upper and lower assembly and 1-3/4" screws removed in step 2.
ASSEMBLY
Continued
Upper
Louver
Assembly
2 Short
Screws
1-3/4" Screws

6
103668

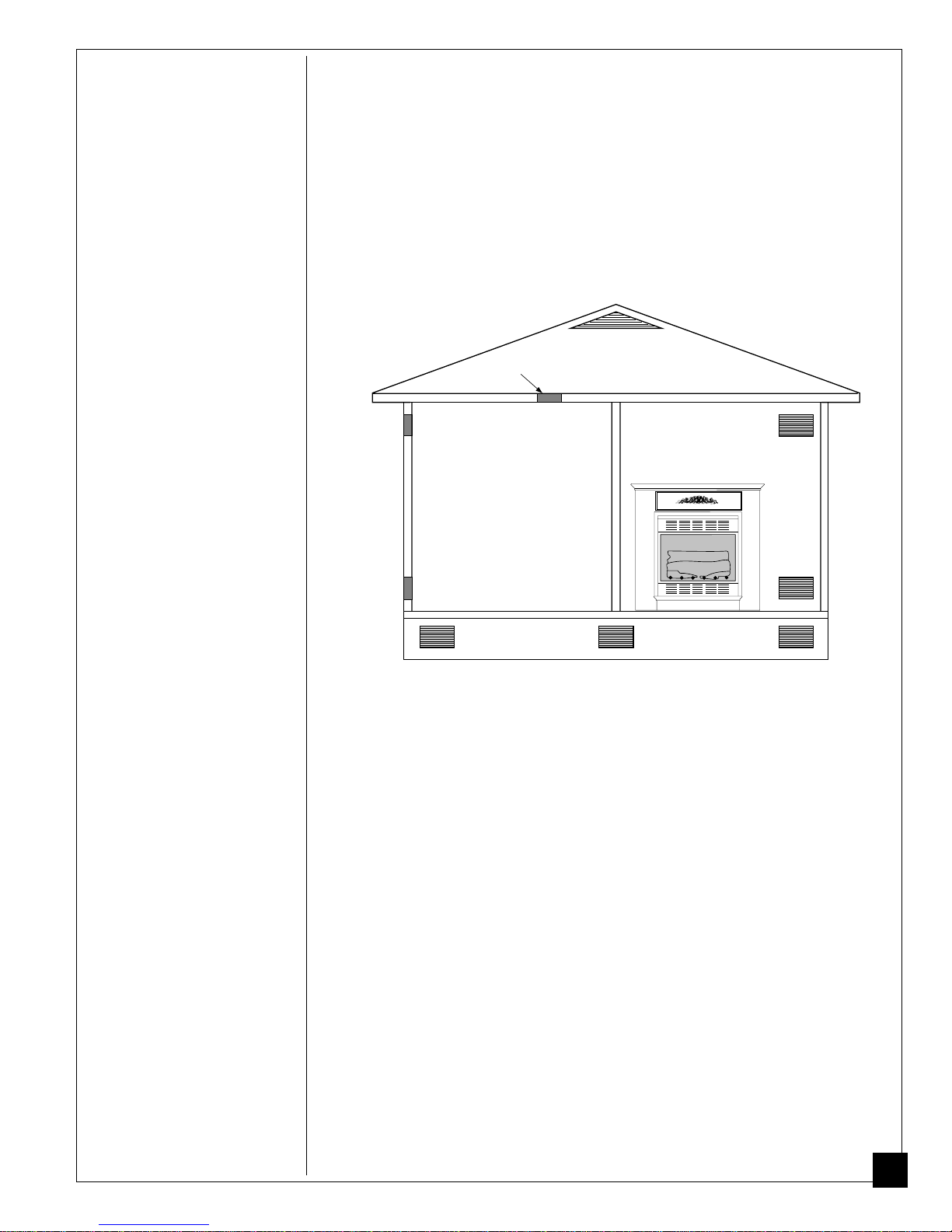

AIR FOR
COMBUSTION
AND
VENTILATION
WARNING ICON G 001
WARNING
This heater shall not be installed in a confined space unless
provisions are provided for adequate combustion and ventilation
air. Read the following instructions to insure proper fresh air for
this and other fuel-burning appliances in your home.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from
the house to operate. You must provide adequate fresh air for these appliances.
This will insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following is excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction; 2. Unconfined Space; 3. Confined Space.
The information on pages 6 through 9 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm (10-6 per-pa-m2) or
less with openings gasketed or sealed and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide addi-
tional fresh air. See Ventilation Air From Outdoors , page 9 .
If your home does not meet all of the three criteria above, proceed to page 7.
Confined and Unconfined Space
The National Fuel Gas Code (ANSIZ223.1, 1992 Section 5.3) defines a confined
space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour
(4.8 m3per kw) of the aggregate input rating of all appliances installed in that space
and an unconfining space as a space whose volume is not less than 50 cubic feet per
1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the space in which the
appliances are installed*, through openings not furnished with doors, are consid-
ered a part of the unconfined space.
* Adjoining rooms are communicating only if there are doorless passageways or
ventilation grills between them.

7
103668
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING FRESH-AIR FLOW FOR FIREPLACE LOCATION
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install fireplace plus any adjoining rooms
with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space
can support.
____________ (volume of space) ÷50 cu. ft. = (Maximum Btu/Hr
the space can support)
Example: 2560 cu. ft. (volume of space) ÷50 cu. ft. = 51.2 or 51,200 (maximum
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free fireplace ___________________ Btu/Hr
Gas water heater* ___________________ Btu/Hr
Gas furnace ___________________ Btu/Hr
Vented gas heater ___________________ Btu/Hr
Gas fireplace logs ___________________ Btu/Hr
Other gas appliances* +___________________ Btu/Hr
Total =___________________ Btu/Hr
Example: Gas water heater 30,000 Btu/Hr
Vent-free fireplace +26,000 Btu/Hr
Total =56,000 Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr
used.
_________________ Btu/Hr (maximum the space can support)
_________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
56,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can support. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 8.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 9.
C. Install a lower Btu/Hr fireplace, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space
is an unconfined space. You will need no additional fresh air ventilation.
Continued

8
103668
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
Figure 4 - Ventilation Air from Inside Building Shown with Optional Mantel
WARNING ICON G001
WARNING
If the area in which the heater may be operated is smaller than
that defined as an unconfined space, provide adequate combus-
tion and ventilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3 or appli-
cable local codes.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to
anadjoiningunconfinedspace,youmustprovidetwopermanentopenings:onewithin
12"oftheceilingandonewithin12"oftheflooronthewallconnectingthetwospaces
(see options 1 and 2, Figure 4). You can also remove door into adjoining room (see
option 3, Figure 4). Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills
or ducts.
WARNING ICON G001
WARNING
Rework worksheet, adding the space of the adjoining unconfined
space. The combined spaces must have enough fresh air to supply all
appliances in both spaces.
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into Adjoining
Room,
Option 1

9
103668
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
Figure 5 - Ventilation Air from Outdoors Shown with Optional Mantel
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two
permanent openings: one within 12" of the ceiling and one within 12" of the floor.
Connect these items directly to the outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces.
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has
a thermostat-controlled power vent. Heated air entering the attic will activate the
power vent.
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic

10
103668
INSTALLATION NOTICE
Aqualifiedservicepersonmustinstallfireplace.Followalllocalcodes.
You can recess firebox into the wall. You can also position fireplace in the optional
cabinet or corner mantels. IMPORTANT: Only use optional cabinet or corner mantels
specified in this manual. Purchase the optional mantel from your dealer (see
Accessories, page 29).
WARNING ICON G001
CAUTION
This fireplace creates warm air currents. These currents move heat
to wall surfaces next to fireplace. Installing fireplace next to vinyl
or cloth wall coverings or operating fireplace where impurities in
the air (such as tobacco smoke) exist, may discolor walls.
WARNING ICON G001
WARNING
Never install the fireplace
• in a bedroom or a bathroom
• in a recreational vehicle
• wherecurtains,furniture,clothing,orotherflammableobjectsare
less than 36 inches from the front, top, or sides of the fireplace
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
IMPORTANT: Vent-free fireplaces add moisture to the air. Although this is beneficial,
installing fireplace in rooms without enough ventilation air may cause mildew to form
from too much moisture. See Air for Combustion and Ventilation, pages 6 through 9.
LOCATING FIREPLACE
WARNING ICON G001
WARNING
Maintain the minimum clearances shown in Figures 6 and 7 (page 11). If
you can, provide greater clearances from floor, ceiling, and joining wall.
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural gas, do not install fireplace.
Call dealer where you bought fireplace for proper type fireplace.
INSTALLATION ITEMS
Before installing fireplace, make sure you have the items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas) • manual shutoff valve * • ground joint union
• sediment trap
• tee joint
• pipe wrench
* AnA.G.A.design-certifiedmanual shutoff valvewith1/8"NPTtap is anacceptable
alternative to test gauge connection. Purchase the optional A.G.A. design-certified
manual shutoff valve from your dealer. See Accessories, page 29.
Note: If desired, purchase a four-sided brass trim kit for built-in installations. See
Accessories, page 29.

11
103668
Figure 7 - Mounting Clearances As Viewed From
Front of Fireplace Shown with Optional Mantel
WARNING ICON G001
CAUTION
If you install the fireplace in a home garage
• fireplace pilot and burner must be at least 18 inches above floor.
• locate fireplace where moving vehicle will not hit it.
INSTALLATION
Continued
For convenience and efficiency, install fireplace
• where there is easy access for operation, inspection, and service.
• in coldest part of room.
An optional blower kit is available from your dealer. See Accessories, page 29. If
planning to use blower, locate fireplace near an electrical outlet.
6"
Minimum
From
Sides Of
Fireplace
Left
Side
CEILING
36"
Minimum
FLOOR
Right
Side
Top Of
Mantel Can
Be Flush
With Wall
Left
Side
CEILING
Right
Side
36"
Minimum
Figure 6 - Mounting Clearances As Viewed From
Front of Fireplace Shown Built In The Wall

12
103668
INSTALLING
Continued
36 5/8" 25 7/8"
51 3/4"
26 7/8"

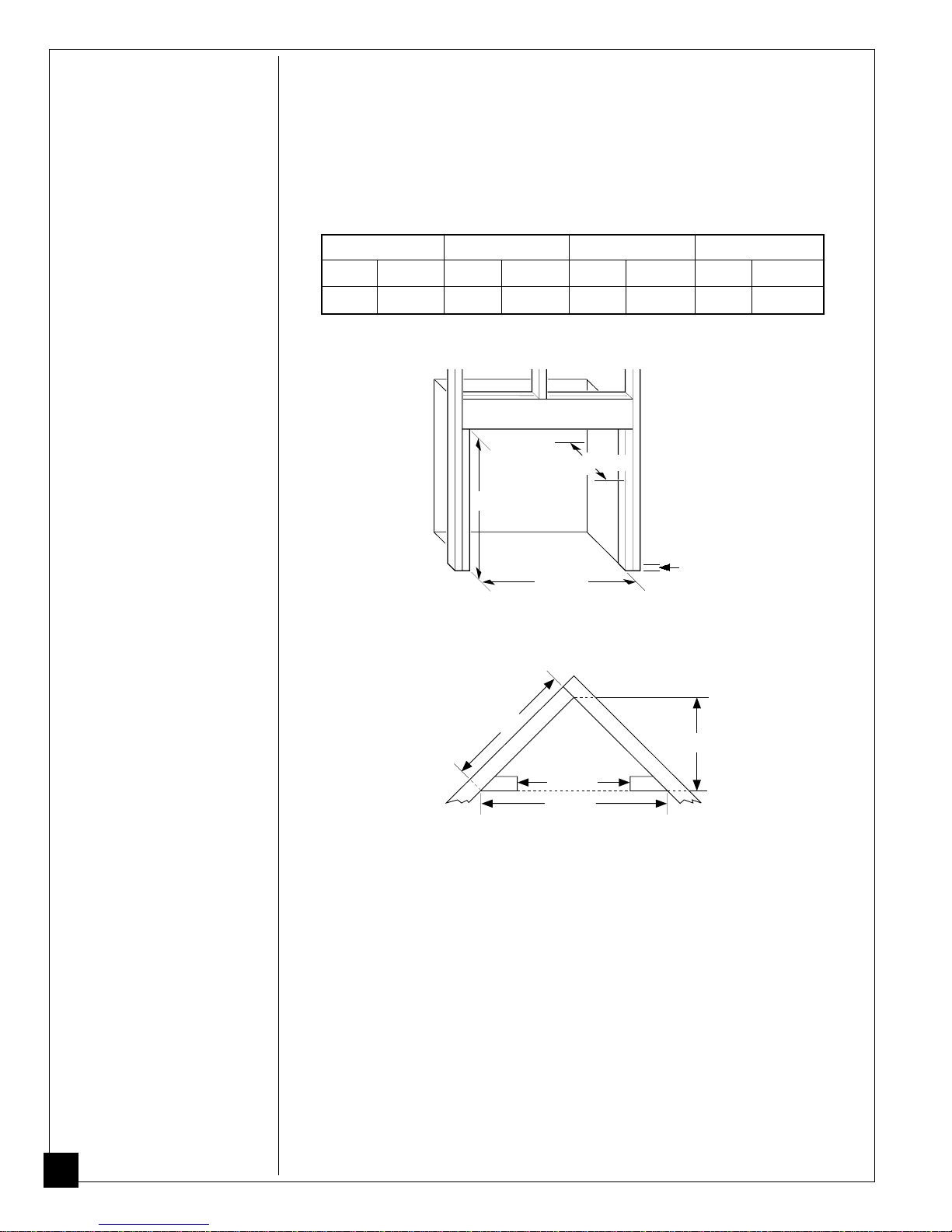

Figure 9 - Rough Opening for Installing in Corner
2. An optional blower accessory is available (see Accessories, page 29). There
are two options for connecting blower to electrical source.
Option one: Have a licensed electrician install a properly grounded, three-
prong 120-volt electrical outlet at fireplace location. Locate outlet inside the
framed enclosure. Blower power cord will plug into this outlet.
Option two: Have a licensed electrician connect blower to electrical source
at junction box inside fireplace.
If using option one, have electrical outlet installed at this time. If using option
two, do not connect blower to electrical source at junction box until step 7.
3. Install gas piping to fireplace location. This installation includes an approved
flexible gas line (if allowed by local codes) after the manual shutoff valve. The
flexible gas line must be the last item installed on the gas piping.
4. If you have not assembled firebox, follow instructions on page 5.
5. Carefully set fireplace in front of rough opening with back of fireplace inside
wall opening.
If installing in a corner, use dimensions shown in Figure 9 for the rough opening.
The height is 26 1/8" which is the same as the wall opening above.
1. Frame in rough opening. Use dimensions shown in Figure 8 for the rough
opening.
26 7/8"
26 7/8"
3/4" Off
The Floor
Minimum
10 1/2"
Figure 8 - Rough Opening for Installing in Wall
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing fireplace into a framed-in
enclosure. This makes the front of fireplace flush with wall. An optional brass trim kit
accessory is available (see Accessories, page 29). Brass trim will extend past sides of
fireplace approximately 1/2inch. This will cover the rough edges of the wall opening. If
installingabuilt-inmantelabovethefireplace,butyoumustfollowtheclearancesshown
inFigure11,page13.Followtheinstructionsbelowtoinstallthefireplaceinthismanner.
Height Front Width Depth Bottom
Actual Framing Actual Framing Actual Framing Actual Framing
26" 26 7/8" 26 3/4" 26 7/8"9
1
/2" 10 1/2"3/4"3/4"

13
103668
INSTALLING
Continued
Continued
6. Attach flexible gas line to fireplace gas regulator. See Connecting Fireplace to
Gas Supply, page 17.
7. If the optional blower has been installed connect blower to electrical source.
Option one: Route blower electrical cord through side or rear access door of
fireplace. Plug electrical cord into electrical outlet.
Option two: Have a licensed electrician connect blower to electrical source
at junction box inside fireplace.
8. Bend four nailing flanges on outer casing with pliers (see Figure 10).
9. Attach fireplace to wall studs using nails or wood screws through holes in
nailing flange.
10. Check all gas connections for leaks. See Checking Gas Connections, page 18.
11. If using optional brass trim kit, install the trim after final finishing and/or
painting of wall. See instructions included with brass trim accessory for attach-
ing brass trim.
Figure 10 - Attaching Fireplace to Wall Studs
Mantel Clearances for Built-In Installation
If placing mantel above built-in fireplace, you must meet minimum clearance
between mantel shelf and top of fireplace opening.
Nailing
Flanges
Nails or Wood
Screws
Distances to
Underside of
Built-in Mantel
Underside of
Mantel Shelf
20" 24
1
/2 " 27
1
/2 " 30"
All minimum
distances are
in inches
Top of
Fireplace
Opening
2
1/2
"
6"
8"
10"
If your installation does not meet the above minimum clearances, you must:
• raise the mantel to an acceptable height, OR
• remove the mantel.
Figure 11 - Minimum Mantel Clearances for Built-In Installation
Mantel Shelf
Side of
Firebox

14
103668
INSTALLING
Continued
Figure 12 - Attaching Brass Trim to Fireplace
Shoulder
Screws
Assembled
Brass Trim
OPTIONAL MANTEL INSTALLATION
Note: Refer to instructions provided with the mantel for assembly instructions. Refer to
instructions below for system installation. Refer to instructions on page 5 for firebox
assembly.Bloweraccessoryshouldbeinstalledifitisbeingused(seeAccessories,page29).
1. Unscrew four brass screws that attach top louver to fireplace. Remove louvre
from fireplace and set aside.
2. Place fireplace on wood base.
3. Place mantel around fireplace/base assembly.
4. Assemble brass trim kit. See Assembling Brass Trim, page 15.
5. Firmly snap brass trim kit on shoulder screws. Shoulder screws are located on
fireplace cabinet (see Figure 12).
6. Align brass trim kit for flush fit around opening.
7. Use two 3" wood screws provided and attach fireplace base to wooden base (see
Figure 12).
Figure 13 - Attaching Wood Base to Floor
1 3/4"Screw Wood
Base
Hole for 3"
wood screw
for attaching
fireplace to
wooden base
Hole for 3"
wood screw
for attaching
fireplace to
mantel
8. Remove brass trim kit and mantel. Be careful not to damage wall or mantel.
9. Place wood base next to wall at installation location.
10. Attach wood base to floor with two 1 3/4" black screws provided (see Figure 13).
Ifthefloorisconcreteuseanchormethod(seeAttachingWoodBasetoSolidFloor,
page 15).
11. Install gas line. See Connecting To Gas Supply, pages 16.
12. Check for leaks. See Checking Gas Connections, page 18.
13. Place mantel around fireplace. Be careful not to damage wall or mantel.
14. Placebrasstrimkitontheshoulderscrewslocatedonthesideandtopofthefireplace.
Firmly snap the brass trim over the shoulder screws on fireplace (see Figure 12).
15. Adjust assembly to remove any gaps. Attach remaining two 3" wood screws from
hardware pack through openings inside of fireplace sides into the mantel. The
openings are located at top behind the area for the brass louvers (see Figure 13).
16. Reinstall top brass louvers.

15
103668
Attaching Wood Base to Solid Floor
For attaching base to solid floors (concrete or masonry)
Note: Floor anchors and mounting screws are in hardware package. The hardware
package is provided with fireplace.
1. Drill holes at marked locations using 5/16" drill bit. For solid floors (concrete or
masonry), drill at least 1" deep.
2. Fold floor anchor as shown in Figure 15.
3. Insert floor anchor (wings first) into hole. Tap anchor flush to floor.
4. Insert mounting screws through base and into floor anchors.
5. Tighten screws until base is firmly fastened to floor.
Figure 15 - Folding Anchor
Assembling Brass Trim (Brass trim shipped with mantel)
1. Remove packaging from three remaining pieces of brass trim.
2. Locate two adjusting plates with set screws, and two shims in the hardware packet.
3. Align shim under adjusting plate as shown in Figure 14.
4. Slide one end of adjusting plate/shim in slot on mitered edge of top brass trim (see
Figure 14).
5. Slide other end of adjusting plate/shim in slot on mitered edge of side brass trim
(see Figure 14).
6. While firmly holding edges of brass trim together, tighten both set screws on the
adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other corner.
8. Set Brass Assembly aside for later installation.
Side Brass Trim
Top Brass Trim
Mitered Edge
Figure 14 - Assembling Brass Trim
Shim
Set Screws
Adjusting
Plate
Slot
Slot
INSTALLING
Continued

16
103668
CONNECTING
TO GAS
SUPPLY
NOTICE
A qualified service person must connect fireplace to gas supply.
Follow all local codes.
IMPORTANT: Check gas line pressure before connecting fireplace to gas line. Gas
line pressure must be no greater than 14 inches of water. If gas line pressure is
higher, fireplace regulator damage could occur.
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from fireplace (see Figure 16).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged fireplace valves.
Install sediment trap in supply line as shown in Figure 16. Locate sediment trap
where it is within reach for cleaning. Locate sediment trap where trapped matter is
not likely to freeze. A sediment trap traps moisture and contaminants. This keeps
them from going into fireplace controls. If sediment trap is not installed or is
installed wrong, fireplace may not run properly.
WARNING ICON G001
WARNING
Never connect fireplace to private (non-utility) gas wells. This gas is
commonly known as wellhead gas.
WARNING ICON G001
CAUTION
Use only new, black iron or steel pipe. Internally-tinned copper
tubing may be used in certain areas. Check your local codes. Use
pipe of 1/2" or greater diameter to allow proper gas volume to
fireplace. If pipe is too small, undue loss of pressure will occur.
WARNING ICON G001
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
*PurchasetheoptionalA.G.A.design-certifiedmanualshutoffvalvefromyourdealer.
See Accessories, page 29.
A.G.A. Design-Certified
Manual Shutoff Valve
With 1/8" NPT Tap*
3" Minimum
From Gas Motor
(5" W.C. to 10.5" W.C.
Pressure)
Approved
Flexible
Gas Line
Tee Joint
Pipe Nipple
Cap
Sediment
Trap
Figure 16 - Gas Connection

17
103668
CONNECTING
TO GAS
SUPPLY
Continued
Continued
Figure 17 - Removing Log Base Assembly From Fireplace
CONNECTING FIREPLACE TO GAS SUPPLY
Installation Items Needed
• Phillips screwdriver
• sealant (resistant to propane gas, not provided)
1. Remove fireplace screen. Remove two screws that hold fireplace screen in place
for shipping. These screws are located near top of screen. Discard screws. Lift
fireplace screen up and pull out to remove.
2. Remove screws that attach branch support to fireplace (see Figure 17). Care-
fully lift up branch support and remove from fireplace (see Figure 17).
3. Routeflexiblegaslinefrommanualshutoffvalveintofireplacethroughsideorrear
accessholesinoutercasing.Routeflexiblegassupplylinethroughfireplaceaccess
holes in outer casing.
Flexible Gas Line
from Fireplace Gas
Regulator
To Fireplace
Gas Regulator
4. Apply pipe joint sealant lightly to male threads of gas connector attached to
flexible gas line (see Figure 18). Connect flexible gas line to flexible gas line
attached to gas regulator of fireplace (see Figure 18).
5. Check all gas connections for leaks. See Checking Gas Connections, page 18.
6. Replace branch support back into fireplace. Feed flexible gas line into fireplace
base area while replacing branch support. Make sure the entire flexible gas line
is in fireplace base area. Reattach branch support to fireplace with screws
removed in step 3.
NOTICE
Most building codes do not permit concealed gas
connections. A flexible gas line is provided to allow
accessibility from the fireplace. The flexible gas
supply line connection to the manual shutoff valve
should be accessible.
➞
Figure 18 - Attaching Flexible Gas Lines Together
Gas Connector
Flexible Gas Line from
Manual Shutoff Valve
Manual Shutoff Valve
➞
To Gas
Supply
Flexible Gas Line
Branch
Support
Screen
Screen Shipping
Screw
Shoulder Screw

18
103668
ON
POSITION
OFF
POSITION
PRESSURE TESTING GAS SUPPLY PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect fireplace and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 psig will damage fireplace regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or
opening main gas valve located on or near gas meter.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 19).
2. Pressurize supply piping system by either using compressed air or opening main
gas valve located on or near gas meter.
3. Check all joints from gas meter to manual shutoff valve (see Figure 20). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
PRESSURE TESTING FIREPLACE GAS CONNECTIONS
1. Open manual shutoff valve (see Figure 19).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of fireplace is in the OFF position.
4. Check all joints from manual shutoff valve to thermostat gas valve (see Figure 20).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light fireplace (see Operating Fireplace, pages 19 through 21). Check all other
internal joints for leaks.
7. Turn off fireplace (see To Turn Off Gas to Appliance, page 21).
8. Replace front panel.
Open
Closed
Manual
Shutoff
Valve
CHECKING
GAS
CONNECTIONS
Figure 19 - Manual Shutoff Valve
Gas Meter
Figure 20 - Checking Gas Joints
Manual
Shutoff
Valve
WARNING ICON G001
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
WARNING ICON G001
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.

19
103668
OPERATING
FIREPLACE FOR YOUR SAFETY READ BEFORE LIGHTING
Continued
WARNING ICON G001
WARNING
If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Turn control knob clockwise
Clockwise
to the OFF position.
Ignitor Button

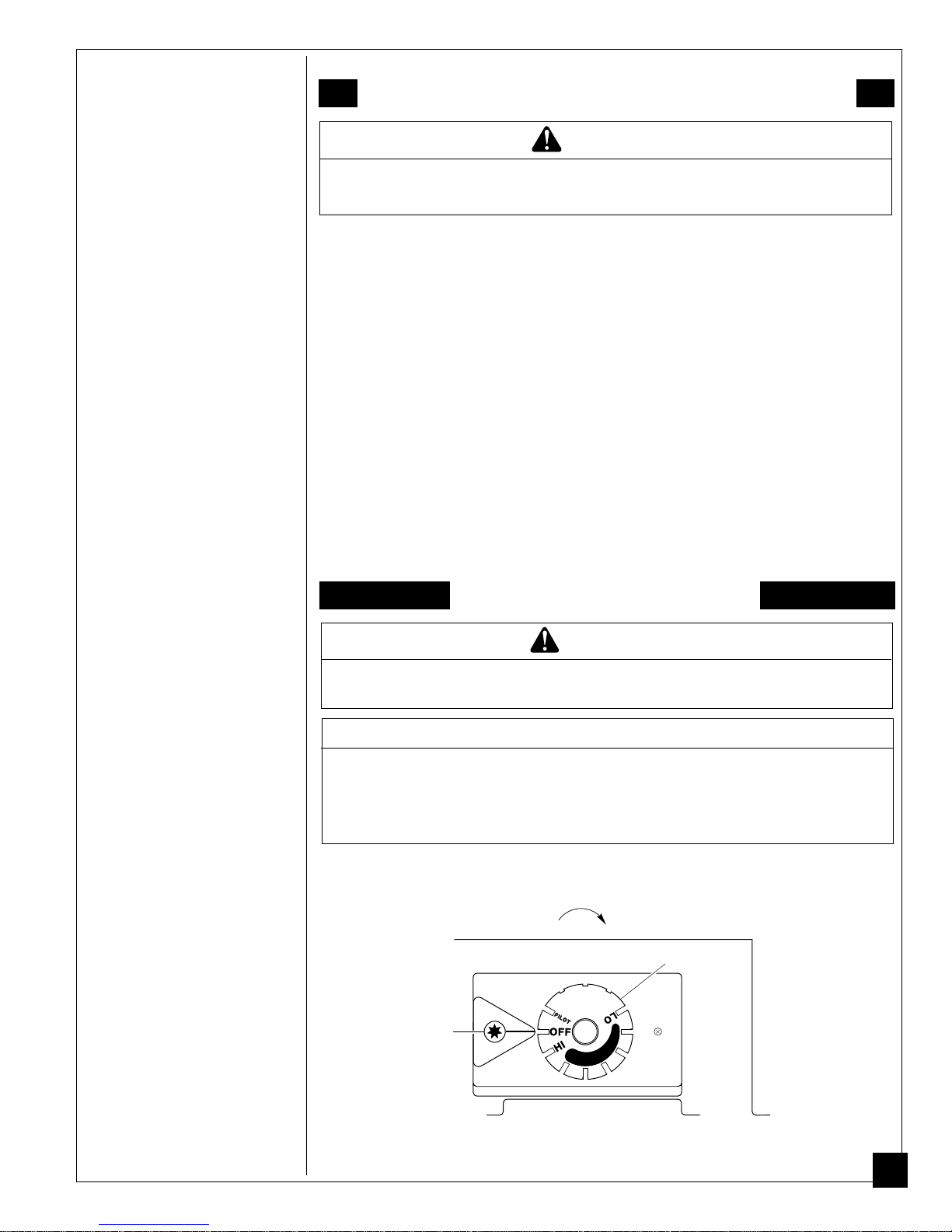

Figure 21 - Control Knob In The OFF Position
A. This appliance has a pilot which must be lighted by hand. When lighting
the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure
to smell next to the floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don’t try to repair it,
call a qualified service technician or gas supplier. Force or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call
a qualified service technician to inspect the appliance and to replace any
part of the control system and any gas control which has been under water.
Control Knob
WARNING ICON G001
WARNING
You must operate this fireplace with the fireplace screen in place.
Make sure fireplace screen is installed before running fireplace.
NOTICE
During initial operation of new fireplace, burning logs will give off
a paper-burning smell. Orange flame will also be present. Open
window to vent smell. Operate fireplace on HI position to burn off
odor. This will only last a few hours.

20
103668
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including
near the floor. If you smell gas, STOP! Follow “B” in the safety information
at the top of page 19. If you don’t smell gas, go to the next step.
5. Turn control knob counterclockwise
C-clockwise
to the PILOT position. Press
in control knob for five (5) seconds (see Figure 21, page 19).
Note: You may be running this fireplace for the first time after hooking up
to gas supply. If so, the control knob may need to be pressed in for 30
seconds. This will allow air to bleed from the gas system.
• If control knob does not pop up when released, contact a qualified
service person or gas supplier for repairs.
6. With control knob pressed in, push down and release ignitor button. This
will light pilot. The pilot is attached to the front of burner. If needed, keep
pressing ignitor button until pilot lights.
Note: If pilot does not stay lit, refer to Troubleshooting, pages 24 through
27. Also contact a qualified service person or gas supplier for repairs.
Until repairs are made, light pilot with match. To light pilot with match,
see Manual Lighting Procedure, page 21.
7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30
seconds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7. This fireplace has a safety
interlock system. Wait one (1) minute before lighting pilot again.
8. Turn control knob counterclockwise
C-clockwise
to desired heating level. The
main burner should light. Set control knob to any heat level between HI
and LO.
OPERATING
FIREPLACE
Continued
WARNING ICON G001
CAUTION
Do not try to adjust heating levels by using the manual shutoff valve.
Thermocouple Pilot Burner

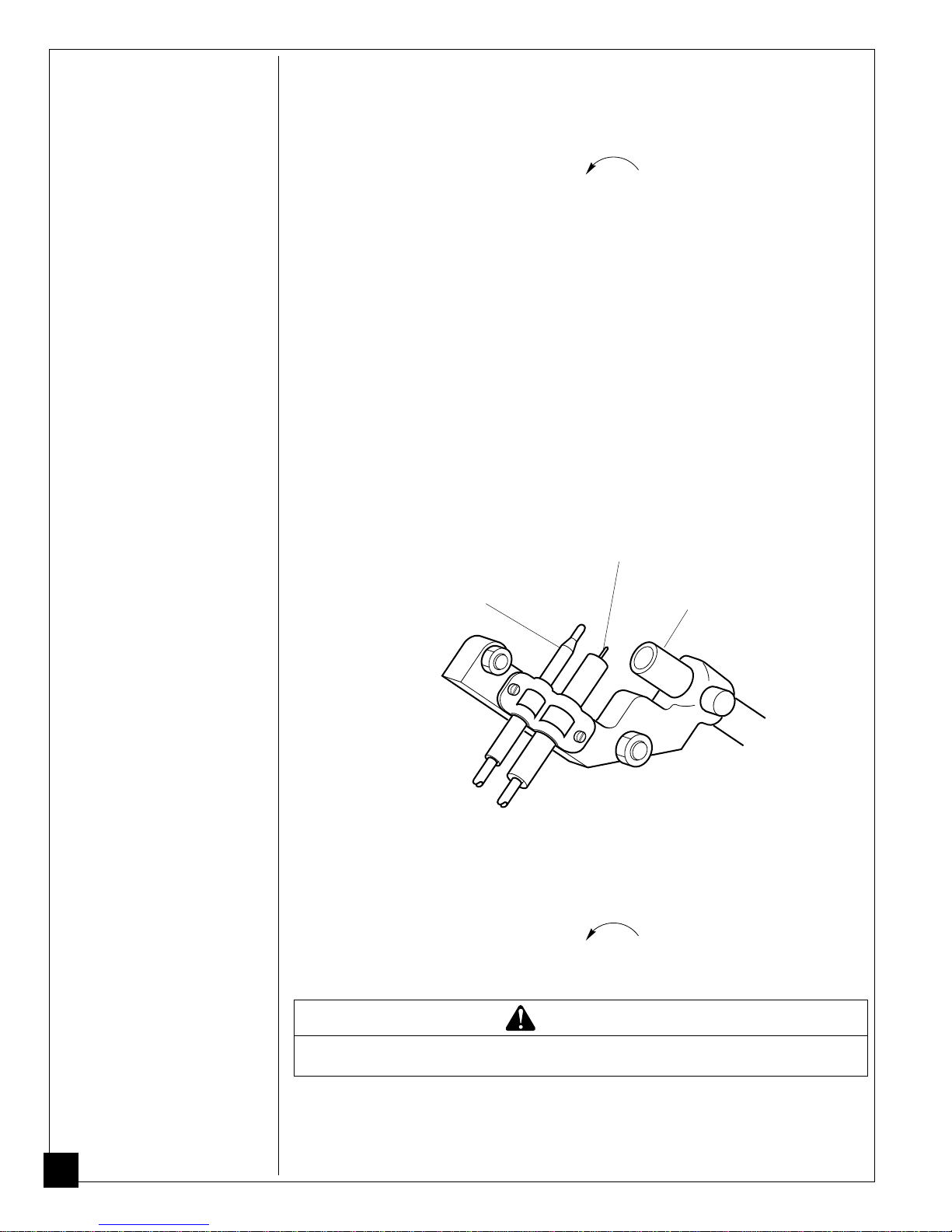

Figure 22 - Pilot
Ignitor Electrode
