Comfort Glow Comfort Glow CGD3924P Quick start guide

Save this manual for future reference.
YELLOW FLAME DESIGN
UNVENTED (VENT-FREE)
PROPANE/LP GAS LOG HEATER
(Manually-Controlled Models Also Designed Certified as Vented Decorative Appliance)
This appliance may be installed in an aftermarket* manufactured (mobile) home, where
not prohibited by state or local codes. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
OWNER’S OPERATION AND INSTALLATION MANUAL
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your build-
ing.
• Immediately call your gas supplier
fromaneighbor’sphone.Followthe
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
— Installation and service must be per-
formedbyaqualifiedinstaller,service
agency, or the gas supplier.
18", 24", and
30"Variable
Manually-
Controlled
Models
CGD3018P
CGD3924P
CGD3930P
®
24" and 30"
Thermostatically-
Controlled Models
CGD3924PT
CGD3930PT
Patent Pending
WARNING:Improperinstallation,adjust-
ment,alteration,service,ormaintenance
can cause injury or property damage.
Refer to this manual for correct installa-
tionandoperationalprocedures.Foras-
sistance or additional information con-
sult a qualified installer, service agency,
or the gas supplier.
WARNING:Thisgaslog set is for installa-
tion in a masonry solid fuel burning fire-
place,aU.L.listedmanufacturedsolidfuel
burning fireplace or an AGA design certi-
fied vent-free firebox listed for use with
thesegaslogmodels(IncludingCGFB32C
and CGFB32NC series).
WARNING: This is an unvented gas-fired
heater. It uses air (oxygen) from the room
in which it is installed. Provisions for ad-
equatecombustionandventilationairmust
be provided. Refer to Air for Combustion
and Ventilation section in this manual.

2
103604
CONTENTS SECTION PAGE
SAFETY
INFORMATION WARNING ICON G 001 WARNINGS
IMPORTANT: Read this owner’s manual carefully and completely before
trying to assemble, operate, or service this heater. Improper use of this
heater can cause serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
WARNINGICON G001 DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble
the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not
be working properly. Get fresh air at once! Have heater serviced. Some people are more
affected by carbon monoxide than others. These include pregnant women, people with
heart or lung disease or anemia, those under the influence of alcohol, and those at high
altitudes.
Propane Gas: Propane gas is odorless. An odor-making agent is added to the gas. The
odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be
present even though no odor exists.
Make certain you read and understand all Warnings. Keep this manual for reference. It is
your guide to safe and proper operation of this heater.
Safety Information continues on next page
Safety Information................................................................................... 2
Product Identification .............................................................................. 4
Local Codes ............................................................................................. 4
Unpacking................................................................................................ 4
Product Features ...................................................................................... 4
Air for Combustion and Ventilation........................................................ 5
Installing .................................................................................................. 8
Check Gas Type ............................................................................... 8

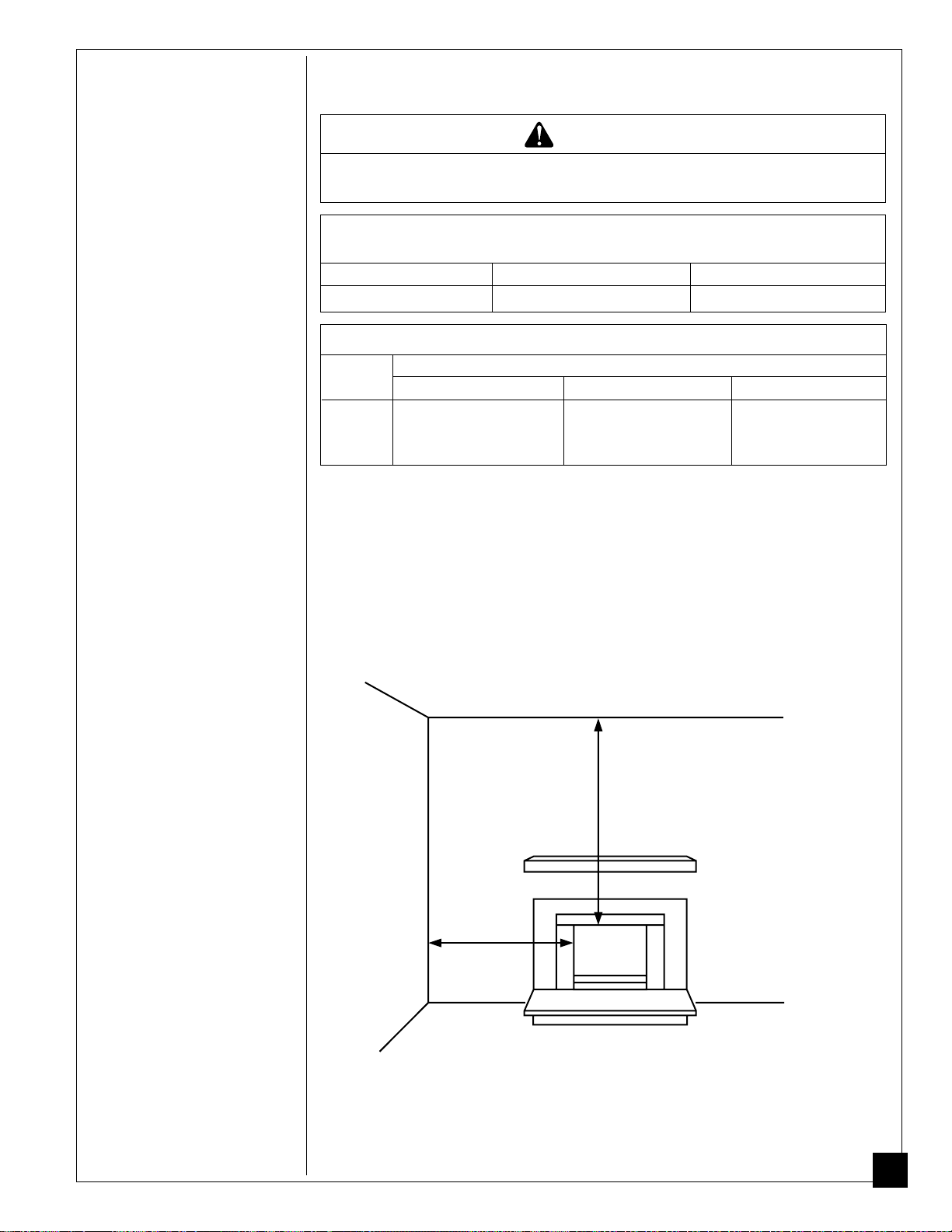

Installation and Clearances (Vent-Free Operation Only)................. 9

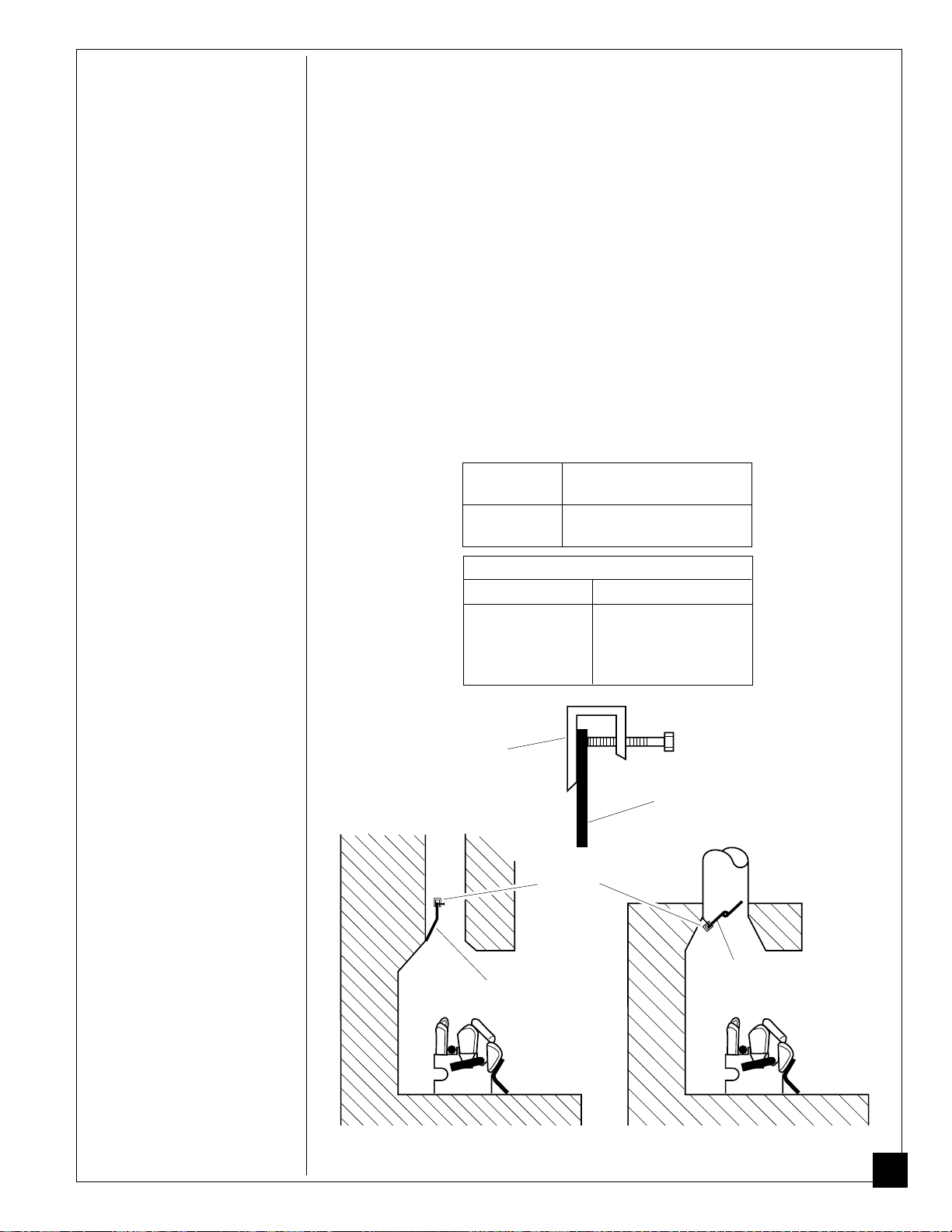

Installing Damper Clamp Accessory for Vented Operation ............ 13
Installing Heater Base Assembly ..................................................... 14

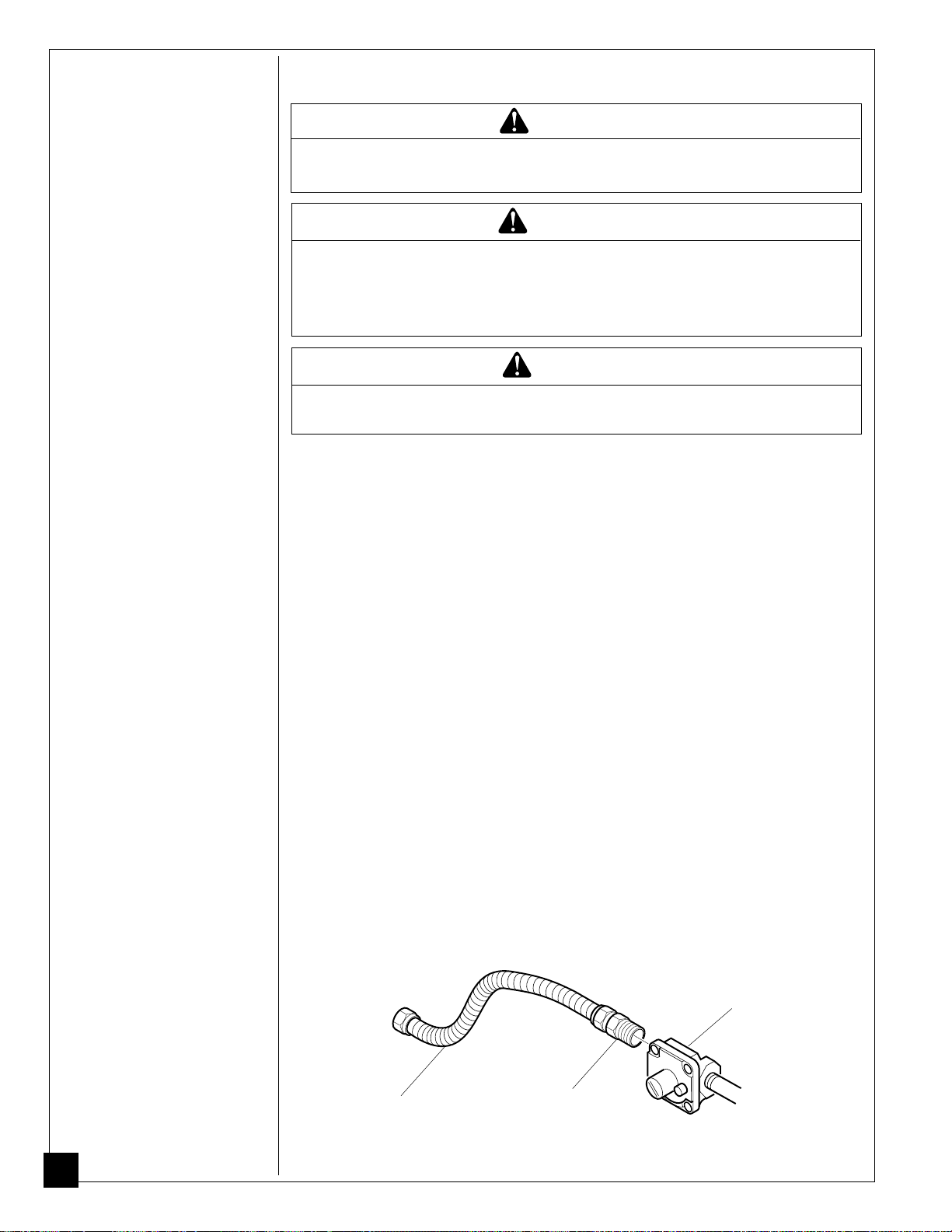

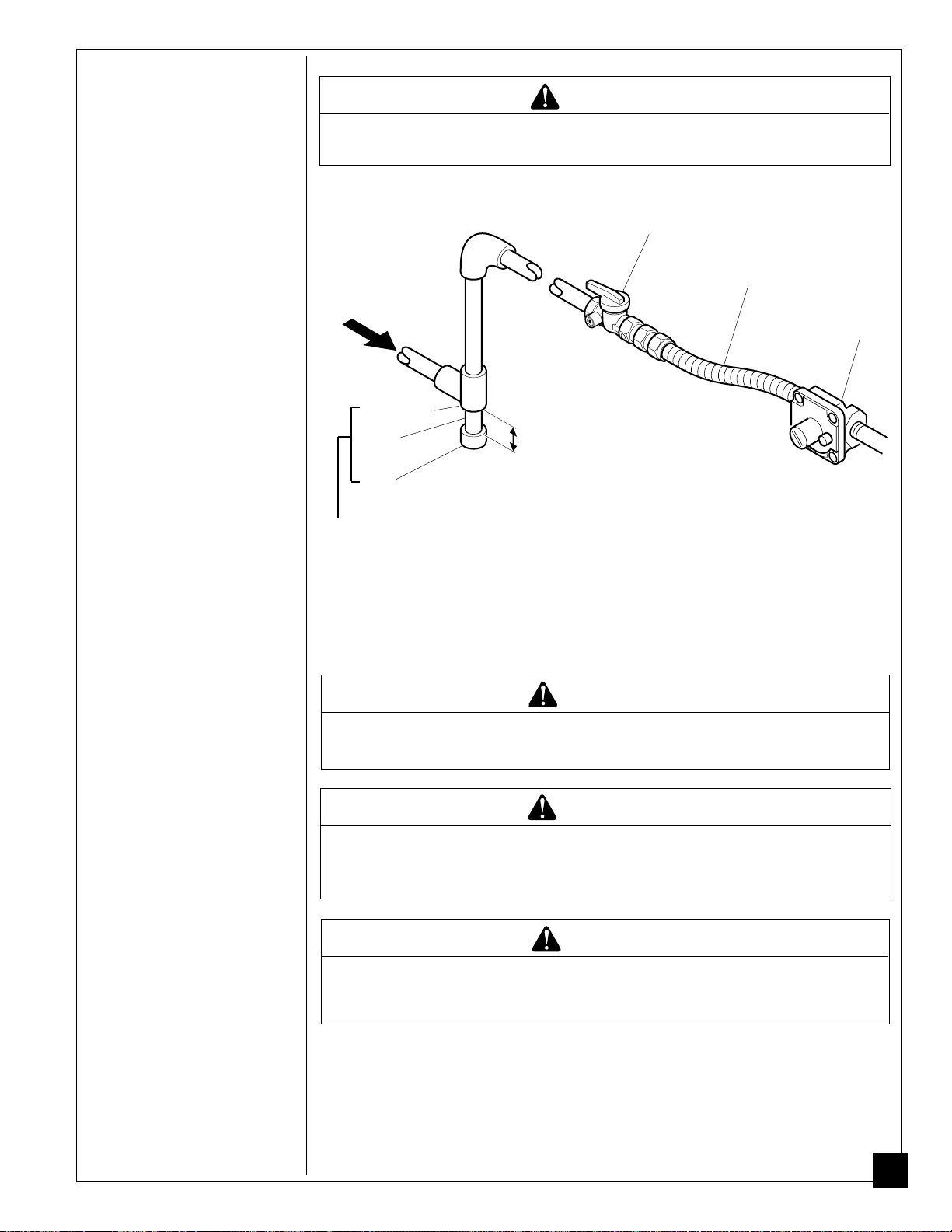

Connecting to Gas Supply................................................................ 15
Checking Gas Connections .............................................................. 17
Installing Logs.................................................................................. 19
Operating Heater (Manually-Controlled Models) ................................... 20
Operating Heater (Thermostatically-Controlled Models) ....................... 22
Inspecting Burners................................................................................... 24
Cleaning and Maintenance ...................................................................... 25
Troubleshooting....................................................................................... 25
Optional Positioning of Thermostat Sensing Bulb .................................. 29
Technical Service .................................................................................... 31
Specifications .......................................................................................... 31
Service Hints ........................................................................................... 31
Replacement Parts ................................................................................... 32
Parts Central ............................................................................................ 32
Accessories .............................................................................................. 33
Illustrated Parts Lists ............................................................................... 34
Warranty Information .............................................................................. Back Cover

3
103604
SAFETY
INFORMATION
Continued
WARNING ICON G 001
WARNINGS Continued
WARNING: Any change to this heater or its controls can be dangerous.
1. This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
2. Donotplacepropane(LP)supplytank(s)insideanystructure.Locatepropane(LP)supply
tank(s) outdoors.
3. Topreventperformanceproblems,donotusepropanefueltankoflessthan100lbs.capacity.
4. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building
• immediatelycallyourgassupplierfromaneighbor’sphone.Followthegassupplier’s
instructions
• if you cannot reach your gas supplier, call the fire department
5. This heater shall not be installed in a bedroom or bathroom unless installed as a vented
appliance (Variable Manually-Controlled Models Only) (see page 13).
6. Never install the heater
• in a recreational vehicle
• wherecurtains,furniture,clothing,orotherflammable objects are less than 36 inches
from the front, top, or sides of the heater
• in high traffic areas
• in windy or drafty areas
7. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be
cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote
will ignite if highly heated. Inspect chimney flue for damage. If damaged, operate heater
with flue damper closed.
8. Iffireplacehasglassdoors,neveroperatethisheaterwithglassdoorsclosed.Ifyouoperate
heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if
fireplaceopeninghasventsatthebottom,youmustopentheventsbeforeoperatingheater.
9. You must operate this heater with a fireplace screen in place. Make sure fireplace screen
is closed before running heater.
10. This log heater is designed to be smokeless. If logs ever appear to smoke, turn off heater
and call a qualified service person.
Note: During initial operation, slight smoking could
occur due to log curing and heater burning manufacturing residues.
11. Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner
flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered
burner patterns can cause sooting.
12. Do not use a blower insert, heat exchanger insert or other accessory not approved for use
with this heater.
13. This heater needs fresh, outside air ventilation to run properly. This heater has an oxygen
depletion sensor (ODS) pilot light safety system. The ODS shuts down the heater if not
enough fresh air is available. See Air for Combustion and Ventilation, pages 5 through 8.
If heater keeps shutting off, see Troubleshooting, pages 25 through 28.
14. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
15. Do not use this heater to cook food or burn paper or other objects.
16. Never place any objects on the heater.
17. Heater base assembly becomes very hot when running heater. Keep children and adults
awayfromhotsurfacetoavoidburnsorclothingignition. Heaterwillremainhotforatime
after shutdown. Allow surface to cool before touching.
18. Carefully supervise young children when they are in the room with heater.
19. Do not use heater if any part has been exposed to or under water. Immediately call a
qualifiedservicetechniciantoinspecttheroomheaterandtoreplaceanypartofthecontrol
system and any gas control which has been under water.
20. Donotoperateheaterifanylog is broken. Do not operate heater if a log is chipped (dime-
sized or larger).
21. Turn heater off and let cool before servicing. Only a qualified service person should
service and repair heater.
22. Operating heater above elevations of 4,500 feet could cause pilot outage.

4
103604
PRODUCT
IDENTIFICATION

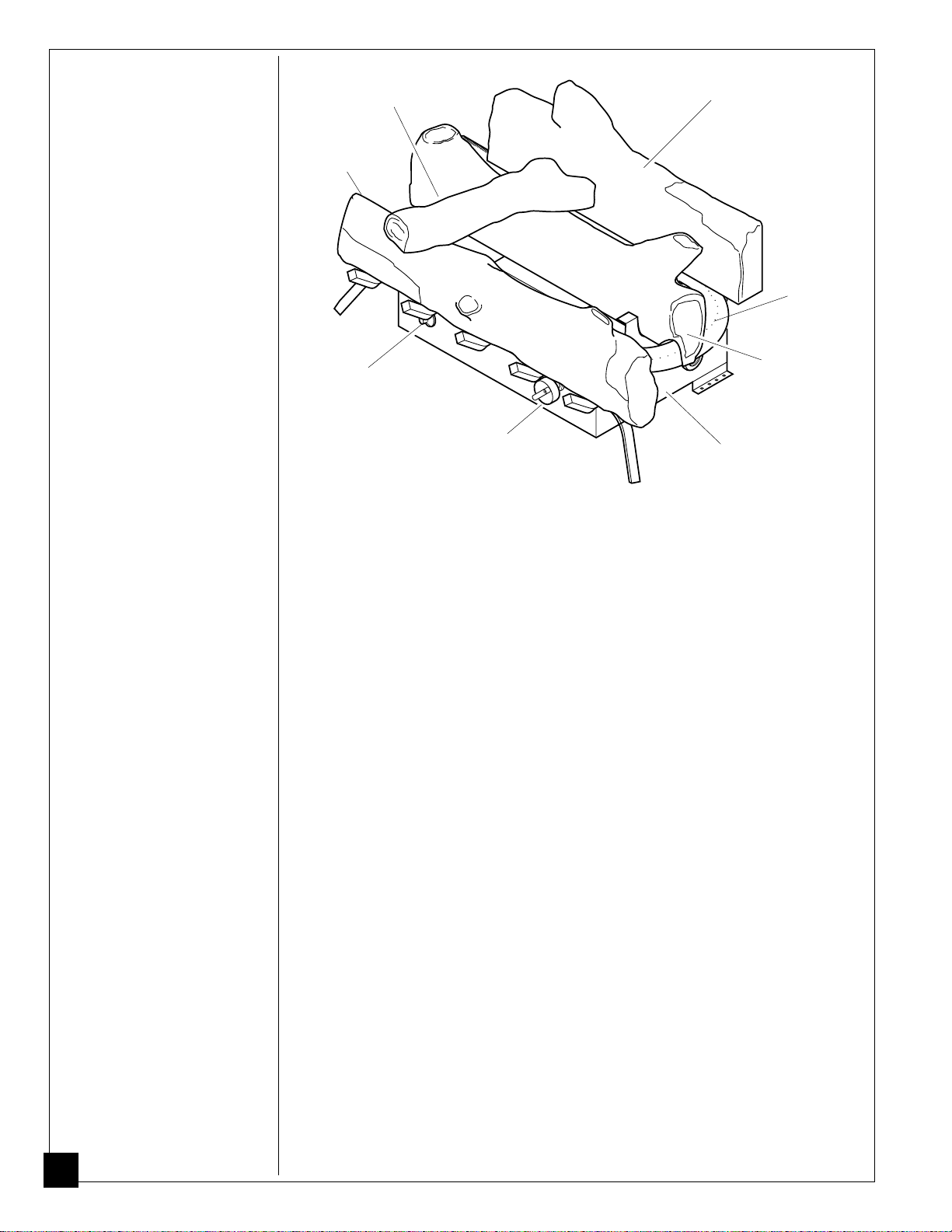

Figure 1 - Vent-Free Gas Log Heater
LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of The National Fuel Gas Code ANSI Z223, also
known as NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Operation
This heater is clean burning. It requires no outside venting. There is no heat loss out a
ventorupachimney.Heatisgeneratedbyrealisticdancing,yellowflames.Thisheater
is designed for vent-free operation with flue damper closed. State and local codes in
some areas prohibit the use of vent-free heaters. You can operate heater as a vented
product by opening flue damper.
Safety Pilot
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts
off the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other
sources to light heater.
PRODUCT
FEATURES
UNPACKING 1. Remove logs and heater base assembly from carton.
Note: Do not pick up heater
base assembly by burners. This could damage heater. Always handle base
assembly by grate.
2. Remove all protective packaging applied to logs and heater for shipment.
3. Check all items for any shipping damage. If damaged, promptly inform dealer
where you bought heater.
Front Log
Control Knob
Back Log
Base Grate
Burner
Piezo
Ignitor
Crossover Log
Middle Log
Note: Where listed vented decorative logs are required, thermostat operation is not
permitted.

5
103604
AIR FOR
COMBUSTION
AND
VENTILATION
WARNING ICON G 001
WARNING
This heater shall not be installed in a confined space unless
provisions are provided for adequate combustion and ventilation
air. Read the following instructions to insure proper fresh air for
this and other fuel-burning appliances in your home.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from
the house to operate. You must provide adequate fresh air for these appliances.
This will insure proper venting of vented fuel-burning appliances.
Continued
PROVIDING ADEQUATE VENTILATION
The following is excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction; 2. Unconfined Space; 3. Confined Space.
The information on pages 5 through 7 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a con-
tinuous water vapor retarder with a rating of one perm (6x10-11 per
pa•sec•m2) or less with openings gasketed or sealed and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide addi-
tional fresh air. See Ventilation Air From Outdoors, page 7.
If your home does not meet all of the three criteria above, proceed to page 6.
Confined and Unconfined Space
The National Fuel Gas Code (ANSIZ223.1, 1992 Section 5.3) defines a confined
space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8
m3per kw) of the aggregate input rating of all appliances installed in that space and
anunconfinedspace asa spacewhose volumeis notless than50 cubicfeet per1,000
Btu per hour (4.8 m3per kw) of the aggregate input rating of all appliances installed
inthat space. Roomscommunicatingdirectly withthe spaceinwhich theappliances
areinstalled*,throughopeningsnotfurnishedwithdoors,areconsideredapartofthe
unconfined space.
* Adjoining rooms are communicating only if there are doorless passageways or
ventilation grills between them.

6
103604
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this work sheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space
can support.
____________ (volume of space) ÷50 cu. ft. = (Maximum Btu/Hr
the space can support)
Example: 2560 cu. ft. (volume of space) ÷50 cu. ft. = 51.2 or 51,200 (maximum
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater ___________________ Btu/Hr
Gas water heater* ___________________ Btu/Hr
Gas furnace ___________________ Btu/Hr
Vented gas heater ___________________ Btu/Hr
Gas fireplace logs ___________________ Btu/Hr
Other gas appliances* +___________________ Btu/Hr
Total =___________________ Btu/Hr
Example: Gas water heater 40,000 Btu/Hr
Vent-free heater +39,000 Btu/Hr
Total =79,000 Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr
used.
_________________ Btu/Hr (maximum the space can support)
_________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
79,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can support. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 7.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space
is an unconfined space. You will need no additional fresh air ventilation.

7
103604
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
WARNING ICON G 001
WARNING
If the area in which the heater may be operated is smaller than
that defined as an unconfined space, provide adequate combus-
tion and ventilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3 or appli-
cable local codes.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an
adjoiningunconfinedspace,youmustprovidetwopermanentopenings:onewithin12"ofthe
ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1
and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2).
Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
WARNING ICON G 001
WARNING
Rework worksheet, adding the space of the adjoining unconfined
space. Thecombinedspacesmusthave enoughfresh airtosupply all
appliances in both spaces.
Figure 3 - Ventilation Air from Outdoors
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling and one within 12" of the floor. Connect
these items directly to the outdoors or spaces open to the outdoors. These spaces include
attics and crawl spaces.
IMPORTANT: Donotprovideopeningsforinletoroutletairintoatticifattichasathermostat-
controlled power vent. Heated air entering the attic will activate the power vent.
Figure 2 - Ventilation Air from Inside Building
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"

8
103604
INSTALLING NOTICE
Aqualifiedservicepersonmustinstallheater.Followalllocalcodes.
WARNING ICON G 001
WARNING
Before installing in a solid fuel burning fireplace, the chimney flue
andfireboxmustbecleanedofsoot,creosote,ashesandloosepaint
by a qualified chimney cleaner. Creosote will ignite if highly heated.
Inspect chimney flue for damage. If damaged, operate heater with
flue damper closed.
WARNING ICON G 001
WARNING
Sealanyfreshairventsorashclean-outdoorslocatedonfloororwall
of fireplace. If not, drafting may cause pilot outage or sooting. Use a
heat-resistant sealant. Do not seal chimney flue damper.
WARNING ICON G 001
WARNING
Never install the heater
• in a bedroom or bathroom unless installed as a vented appli-
ance (Variable Manually-Controlled Models Only) (see page 13)
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects
are less than 36 inches from the front, top, or sides of the heater
• in high traffic areas
• in windy or drafty areas
WARNING ICON G 001
CAUTION
This heater creates warm air currents. These currents move heat
to wall surfaces next to heater. Installing heater next to vinyl or
cloth wall coverings or operating heater where impurities in the air
(such as tobacco smoke) exist, may discolor walls.
IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial,
installing heater in rooms without enough ventilation air may cause mildew to form
from too much moisture. See Air for Combustion and Ventilation, pages 5 through 7.
CHECK GAS TYPE
Use only propane gas. If your gas supply is not propane, do not install heater. Call
dealer where you bought heater for proper type heater.
NOTICE
State or local codes may only allow operation of this appliance in a
vented configuration. Check your state or local codes.

9
103604
INSTALLING
Continued
Continued
INSTALLATION AND CLEARANCES (Vent-Free Operation Only)
WARNING ICON G 001
WARNING
Maintain the minimum clearances. If you can, provide greater clear-
ances from floor, ceiling, and adjoining wall.
Carefully follow the instructions below. This will ensure safe installation into a
masonry, U.L. listed manufactured fireplace, or AGA design certified vent-free
firebox listed for use with these models.
Minimum Wall and Ceiling Clearances (see Figure 4)
A. Clearances from the side of the fireplace opening to any combustible wall
should not be less than 16 inches.
B. Clearances from the top of the fireplace opening to the ceiling should not be
less than 42 inches.
Figure 4 - Minimum Clearance to Wall and Ceiling
LOG SIZING REQUIREMENTS
Log Minimum Firebox Size
Size Height Depth Front Width
18" 17" 14" 20"
24" 17" 14" 26"
30" 17" 14" 32"
MINIMUM FIREPLACE CLEARANCE
TO COMBUSTIBLE MATERIALS
Log Size Side Wall Ceiling
18", 24", 30" 16" 42"
42"
16"
Left and Right
Sides

10
103604
Heat Resistant
Material (A)
INSTALLING
Continued
NOTICE
You may use this heater as a vented product. If so, you must
always run heater with chimney flue damper open. If running
heater with damper open, non-combustible material above fire-
place opening is not needed. Go to Installing Damper Clamp
Accessory for Vented Operation, page 13.
Minimum Non-Combustible Material Clearances
If Not Using Mantel
Note: If using a mantel, go to page 11. If not using a mantel, follow the informa-
tion on this page.
You must have non-combustible material(s) above the fireplace opening. Non-
combustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch
thick. With sheet metal, you must have non-combustible material behind it. Non-
combustible material must extend at least 8" up (for all models). If non-combus-
tible material is less than 12", you must install the fireplace hood accessory (24"
and 30" models only). See chart below and Figure 5 for minimum clearances.
IMPORTANT: If you cannot meet these minimum clearances, you must operate
heater with chimney flue damper open. Go to Installing Damper Clamp Accessory
for Vented Operation, page 13.
Non-Combustible Requirements for
Material Distance (A) Safe Installation
12" or more Non-combustible material okay.
Between 8" and 12" 24" or 30" Models: Install fireplace hood accessory
(GA6050 or GA6052, see Accessories, page 33).
18" Model: Non-combustible material okay.
Less than 8" Non-combustible material must be extended to at
least 8". See Between 8" and 12", above. If you
cannot extend material, you must operate heater
with flue damper open.
Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace

11
103604
INSTALLING
Continued
Minimum Non-Combustible Material Clearances (Continued)
If Using Mantel
You must have non-combustible material(s) above the fireplace opening. Non-
combustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch
thick. With sheet metal, you must have non-combustible material behind it. Non-
combustible material must extend at least 8" up (for all models). If non-combus-
tible material is less than 12", you must install the fireplace hood accessory (24"
and 30" models only). Even if non-combustible material is more than 12", you
may need the hood accessory to deflect heat away from your mantel shelf. See
chart below and Figures 6 and 7 for minimum clearances.
IMPORTANT: If you cannot meet these minimum clearances, you must operate
heater with chimney flue damper open. Go to Installing Damper Clamp Acces-
sory for Vented Operation, page 13.
Figure 6 - Minimum Mantel Clearances Without Using Hood
Minimum Non-
Combustible
Material
Minimum Non-
Combustible
Material Height
Distances to
Underside of
Mantel
Top of Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
12"
(A)
20" 24
1
/2 " 27
1
/2 " 30"
All minimum
distances are
in inches
Log Set
24"/30" Models
8" 14" 16
3
/4 "18
1
/2 " 20" 18" Model
2
1/2
"
6"
8"
10"
Non-Combustible Requirements for
Material Distance (A) Safe Installation
12" or more Non-combustible material okay.
Between 8" and 12" 24" or 30" Models: Install fireplace hood accessory
(GA6050 or GA6052, see Accessories, page 33).
18" Model: Non-combustible material okay.
Less than 8" Non-combustible material must be extended to at
least 8". See Between 8" and 12", above. If you
cannot extend material, you must operate heater
with flue damper open.
Mantel Clearances
In addition to meeting non-combustible material clearances, you must also meet
required clearances between fireplace opening and mantel shelf. If you do not
meet the clearances listed below, you will need a hood.
Determining Minimum Mantel Clearance
If you meet minimum clearance between mantel shelf and top of fireplace open-
ing, a hood is not required (see Figure 6).
Continued

12
103604
14"
Min.
Combustible
Material
Non-Combustible Material
Hearth
5"
Min.
Combustible
Material
INSTALLING
Continued
Floor Clearances
A. If installing appliance on the floor level, you must maintain the minimum
distance of 14" to combustibles (see Figure 8).
B. If combustible materials are less than 14" to the fireplace, you must install
appliance at least 5" above the combustible flooring (see Figure 9).
Figure 9 - Minimum Fireplace Clearances Above Combustible Flooring
If your installation does not meet the above minimum clearances, you must:
• operate the logs only with the flue damper open, OR
• raise the mantel to an acceptable height, OR
• remove the mantel.
Figure 7 - Minimum Mantel Clearances When Using Hood
Minimum Non-
Combustible
Material 8"
Min. 12" 15" 18"
All minimum
distances are
in inches
Log Set
18", 24", 30"
Models
20"
2
1/2
"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050, GA6052)
Top of Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
Figure 8 - Minimum Fireplace Clearances If Installed at Floor Level
Determining Minimum Mantel Clearance When Using a Hood
If minimum clearances in Figure 6 are not met, you must have a hood. When
using a hood there are still certain minimum mantel clearances required. Follow
minimum clearances shown in Figure 7 when using hood.

13
103604
INSTALLING
Continued
INSTALLING DAMPER CLAMP ACCESSORY FOR
VENTED OPERATION
Note: When used as a vented heater, appliance must be installed only in a solid-
fuel burning fireplace with a working flue and constructed of non-combustible
material.
If your heater is a manually controlled model, you may use this heater as a vented
product. There are three reasons for operating your heater in the vented mode.
1. The fireplace does not meet the clearance to combustibles requirements for
vent-free operation.
2. State or local codes do not permit vent-free operation.
3. You prefer vented operation.
Ifreasonsnumber1or2aboveapplytoyou,youmustpermanentlyopenchimneyflue
damper.Youmustinstallthedamperclampaccessory(toorder,seeAccessories,page
33). This will insure vented operation (see Figure 10). The damper clamp will keep
damper open. Installation instructions are included with clamp accessory.
See chart below for minimum permanent flue opening you must provide. Attach
damperclampsotheminimumpermanentflueopeningwillbemaintainedatalltimes.
Area of Various Standard Round Flues
Diameter (ins.) Area (sq. ins.)
5" 20 sq. inches
6" 29 sq. inches
7" 39 sq. inches
8" 51 sq. inches
Chimney Minimum Permanent
Height (ft.) Flue Opening (sq. ins.)
6' to 15' 39 sq. inches
15' to 30' 29 sq. inches
Damper
Damper
Clamp
Damper
Clamp
Damper
Damper
Manufactured FireplaceMasonry Fireplace
Continued
Figure 10 - Attaching Damper Clamp

14
103604
INSTALLING
Continued
INSTALLING HEATER BASE ASSEMBLY
WARNING ICON G 001
WARNING
If installing in a sunken fireplace, special care is needed. You
must raise the fireplace floor to allow access to heater control
panel. This will insure adequate air flow and guard against soot-
ing. Raise fireplace floor with non-combustible material. Make
sure material is secure.
WARNING ICON G 001
CAUTION
Do not pick up heater base assembly by the burner. This could
damage heater. Only handle base assembly by grates.
IMPORTANT: Make sure the heater burners are level. If heater is not level, heater
will not work properly. For thermostat models, avoid damage to thermostat bulb.
Avoid nicks or sharp bends in thermostat bulb wire. Keep thermostat bulb in
mounting bracket.
Installation Items Needed
• hardware package (provided with heater)
• approved flexible gas hose (not provided) (if allowed by local codes)
• sealant resistant to propane (propane/LP) gas, not provided
• electric drill with 3/16" drill bit
1. Apply pipe joint sealant lightly to male threads of the fitting to be threaded into
gas regulator. Connect approved flexible gas hose to gas regulator of heater
(see Figure 11).
IMPORTANT: Holdgas regulator withwrenchwhenconnectingflexible gas hose.
2. Locate masonry screws in hardware package.
3. Position heater base assembly in fireplace.
4. Mark screw locations through holes in mounting brackets (see Figure 12, page
15). If installing in a brick-bottom fireplace, mark screw locations in mortar
joint of bricks.
5. Remove heater base from fireplace.
6. Drill holes at marked locations using 3/16" drill bit.
7. Attach base assembly to fireplace floor using two masonry screws (in hardware
package) (see Figure 12, page 15).
8. Connect to gas supply. See Connecting To Gas Supply, page 15.
Heater Gas
Regulator
Flexible Gas Hose
(if allowed by local codes)
Figure 11 - Attaching Flexible Gas Hose to Heater Gas Regulator
WARNING ICON G 001
WARNING
Youmustsecure thisheaterto fireplace floor.Ifnot, heaterwillmove
when you adjust controls. Moving heater may cause a gas leak.
Fitting

15
103604
INSTALLING
Continued
CONNECTING TO GAS SUPPLY
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
WARNING ICON G 001
CAUTION
Never connect heater directly to the propane supply. This heater
requires an external regulator (not supplied). Install the external
regulator between the heater and propane supply.
Installation Items Needed
Before installing heater, make sure you have the items listed below.
• external regulator (supplied by
installer, see page 16)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• manual shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* AnA.G.A.design-certifiedmanualshutoffvalvewith1/8"NPTtapisanacceptable
alternative to test gauge connection. Purchase the optional A.G.A. design-certified
manual shutoff valve from your dealer. See Accessories, page 33.
Continued
Masonry Screw
Mounting
Bracket
Figure 12 - Attaching Base Assembly to Fireplace Floor

16
103604
INSTALLING
Continued
The installer must supply an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas pressure to between 11 and
14 inches of water. If you do not reduce incoming gas pressure, heater regulator
damage could occur. Install external regulator with the vent pointing down as
shown in Figure 13. Pointing the vent down protects it from freezing rain or sleet.
Figure 13 - External Regulator With Vent Pointing Down
Propane
Supply Tank
External
Regulator
Vent Pointing
Down
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from heater (see Figure 14, page 17).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged heater valves.
WARNING ICON G 001
CAUTION
Use only new, black iron or steel pipe. Internally-tinned copper
tubing may be used in certain areas. Check your local codes. Use
pipe of 1/2" diameter or greater to allow proper gas volume to
heater. If pipe is too small, undue loss of pressure will occur.
Install sediment trap in supply line as shown in Figure 14, page 17. Locate sedi-
ment trap where it is within reach for cleaning. Locate sediment trap where trapped
matter is not likely to freeze. A sediment trap traps moisture and contaminants.
This keeps them from going into heater controls. If sediment trap is not installed or
is installed wrong, heater may not run properly.
WARNING ICON G 001
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

17
103604
WARNING ICON G 001
CAUTION
Avoid damage to regulator. Hold gas regulator with wrench when
connecting it to gas piping and/or fittings.
Figure 14 - Gas Connection
*PurchasetheoptionalA.G.A.design-certifiedmanualshutoffvalvefromyourdealer.
See Accessories, page 33.
** Minimum inlet pressure for purpose of input adjustment.
INSTALLING
Continued
Pressure Testing Gas Supply Piping system
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
WARNING ICON G 001
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
WARNING ICON G 001
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
WARNING ICON G 001
CAUTION
Make sure external regulator has been installed between propane
supply and heater. See guidelines under Connecting to Gas Sup-
ply, page 15.
CHECKING GAS CONNECTIONS
Continued
Tee Joint
Pipe
Nipple
Cap
3" Minimum
Sediment
Trap
Gas
Regulator
From
Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
A.G.A. Design-Certified
Manual Shutoff Valve
With 1/8" NPT Tap* Approved Flexible
Gas Hose (if allowed
by local codes)

18
103604

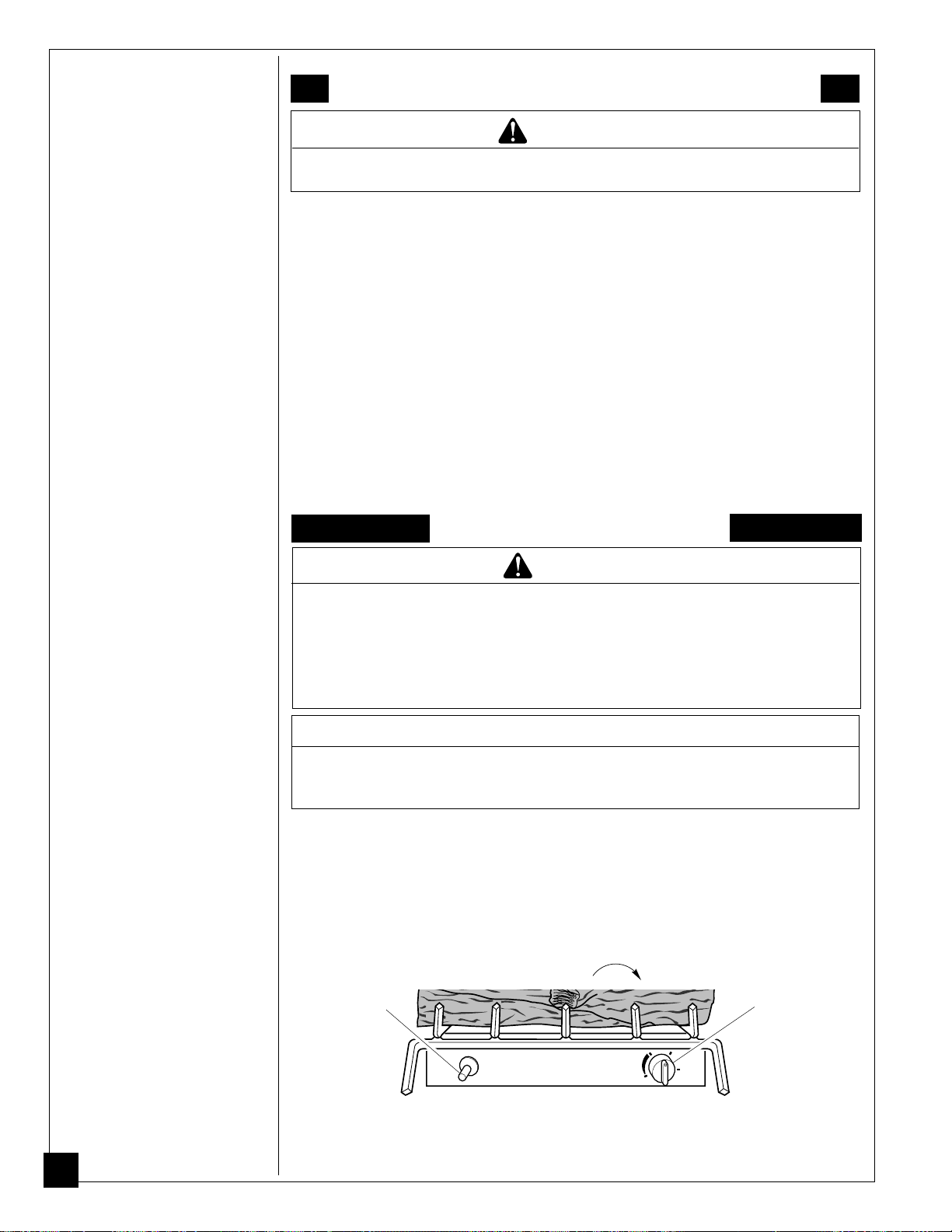

ON
POSITION
OFF
POSITION
3. Pressurize supply piping system by either using compressed air or
opening propane supply tank valve.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and manual shutoff valve to gas supply. Check reconnected
fittings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 15).
2. Pressurize supply piping system by either using compressed air or opening
propane supply tank valve.
3. Check all joints from propane supply tank to manual shutoff valve (see Figure
16). Apply mixture of liquid soap and water to gas joints. Bubbles forming
show a leak.
4. Correct all leaks at once.
Pressure Testing Heater Gas Connections
1. Open manual shutoff valve (see Figure 15).
2. Open propane supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from manual shutoff valve to control valve (see Figure 16).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, pages 20 through 22 [manually-controlled
models] or pages 22 through 24 [thermostatically-controlled models]). Check
all other internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 21 [manually-con-
trolled models] or page 24 [thermostatically-controlled models]).
INSTALLING
Continued
Figure 15 - Manual Shutoff Valve
Open
Closed
Manual
Shutoff
Valve
Figure 16 - Checking Gas Joints
Manual
Shutoff
Valve
Propane
Supply Tank
Thermostat Gas Valve or
Control Valve Location

19
103604
INSTALLING
Continued
WARNING
Failure to position the parts in accordance with these diagrams or failure
to use only parts specifically approved with this heater may result in
property damage or personal injury.
INSTALLING LOGS
Each log is marked with a number. These numbers will help you identify the log
when installing. It is very important to install these logs exactly as instructed. Do
not modify logs. Only use logs supplied with heater.
1. Locate pegs on the bottom of back log (#1). Slide these pegs into the holes in
the grate base behind the burner (see Figure 17).
2. Placethebase of themiddle log(#2) in theU-shaped slotsof the gratebase infront
of the back log. The cutout on the right of the middle log should fit over the burner
(see Figure 18). Make sure the front of the middle log is resting on the tabs of the
grate base and the cutout area is centered over the burner “U” bend.
3. Locate the recesses on the back of the front log (#3). Fit these recesses between
the posts of the grate base (see Figure 19).
4. Locate the notches in the bottom of the crossover log (#4). Place the crossover
log on top of the middle log and front log. Make sure the notches of the cross-
over log lines up with rectangular knobs on top of the middle and front logs
(see Figure 20).
Figure 17 - Installing Back Log (#1) Figure 18 - Installing Middle Log (#2)
Figure 19 - Installing Front Log (#3) Figure 20 - Installing Crossover Log (#4)
Peg
Hole in
Grate Base
Burner
Back Log (#1)
Crossover
Log (#1)
Notches
Rectangular
Knobs
Cutout
Tab
U-Shaped
Slot
Middle Log (#2)
“U” Bend
3
Front Log (#3)
Recess
Post
Post

20
103604
OPERATING
HEATER
Manually-Controlled
Models
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Press in and turn control knob clockwise
Clockwise
to the OFF position.
Figure 21 - Control Knob and Ignitor Button Location
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B” in the safety information above. If you
don’t smell gas, go to the next step.
PILOT
OFF
LO
HI
Control Knob
Ignitor Button
FORYOUR SAFETY READ BEFORE LIGHTING
WARNING ICON G 001
WARNING
If you do not follow these instructions exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell
next to the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t try to repair it, call a qualified service
technician or gas supplier. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.
LIGHTING INSTRUCTIONS
WARNING ICON G 001
WARNING
• If fireplace has glass doors, never operate this heater with glass doors
closed. If you operate heater with doors closed, heat buildup inside
fireplace will cause glass to burst. Also if fireplace opening has vents at
the bottom, you must open the vents before operating heater.
• You must operate this heater with a fireplace screen in place. Make sure
fireplace screen is closed before running heater.
NOTICE
During initial operation of new heater, burning logs will give off a paper-
burning smell. Orange flame will also be present. Open damper or
window to vent smell. This will only last a few hours.
Note: Homeowners generally prefer to operate their heater with the chimney damper
closed. This will put all the heat into the room. However there may be times you will
desire the full flames of the Hi heat setting but will find the heat output excessive. You
can open the chimney damper (if you have one) fully or partially to release some of
the heat. WARNING: Damper handle will be hot if heater has been running.
