Comfort LY-EB103 User manual

TRAVELLER SERIES
POWER CHAIR
Use'r Manual
LY-EB103.LY-EB103-N
LY-EB103-S.LY-EB103-A

INTRODUCTION
SAFETY
FEATURE GUIDE
SPECIFICATIONS
CONTROL PANEL AND OPERATION
COMFORT ADJUSTMENTS
MANUAL TRANSMISSION
GETTING ONTO YOUR POWER CHAIR
THE CHARGER
THE BATTERIES
CHARGE BATTERY
EMI/RFI
MAINTENANCE
WARRANTY
BASIC TROUBLESHOOTING
DISASSEMBLY
The Battery will disconnect the red wire, the positive (+) terminal to
conserve battery power during transportation.
Please connect the red wire before use the power chair.
1
2-5
6
7
8-19
20-21
22
23
24-27
28
29
30-33
34
35
36-37
38
WARNING
Failure to heed the cautions in this user's manual may result in damage
to your power chair.
Failure to heed the warnings in this user's manual may result in personal
injury.
To enhance user's driving experience and to maximize comfort and
convenience that we suggest you would follow.

Congratulations on the purchase of your new Comfort Power Chair. Your
power chair design combines the most advanced state-of-the-art
components with modern, attractive styling. We are certain that the
design features and trouble-free operation of your power chair will add
convenience to your daily living and ensure complete satisfaction.
At Comfort, your safety is important to us.
These instructions were produced for your
benefit. Your understanding of these instructions is essential for
thesafe operation of your new Comfort Power Chair.
Comfort is not liable for damage to property or personal injury arising
out of the unsafe use of a Comfort Power Chair. Comfort is also not
liable for any property damage or personal injury arising out of the
failure of any person and/or user to follow the instructions and
recommendations set forth in this manual or any other instructions or
recommendations contained in other power chair related literature
issued by Comfort or contained on the Comfort Power Chair itself.
This user's manual is compiled from the latest specifications and
product information available at the time of publication. We reserve the
right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and
explanations in this manual and the product you have purchased.
Please read the maintenance warranty, and make sure the Authorized
and the seal. Keep the maintenance warranty to protect your rights.
The user's manual is one part of your power chair. If you want to sell
your power chair, don't forget to give the user's manual. Take the user's
manual when driving .If you experience any problem with your power
chair that you are not able to solve, or if you do not feel capable of safely
following any of the instructions and/or recommendations contained in
this manual, please contact your authorized Comfort provider for
assistance.
Please read and follow all of
the instructions in this manual before you attempt to operate your
power chair for the first time.
Do not modify your power chair in any way not authorized by Comfort.
Unauthorized modifications may result in personal injury and/or damage
to your power chair.

The first time operating the power chair , you should be attended by a
family member or a friend.
As you begin using your power chair during daily activities, you will
probably encounter situations in which you will need some practice.
Simply take your time and you will soon be in full and confident control
as you maneuver through doorways, on and off elevators, up and down
ramps, and over moderate terrain.
Transferring onto and off of your power chair requires a good sense of
balance. Always have an attendant or healthcare professional present
while learning to properly transfer yourself.
If you require a positioning belt to safely operate your power chair,
make sure it is fastened securely.
It may be difficult for traffic to see you when you are seated on your
power chair. You should not operate your power chair on public streets
and roadways.
Never use your power chair to negotiate steps or escalators.
If you are in the doorway of an elevator when the door begins to close,
push on the rubber door edge or allow the rubber door edge to contact
the power chair and the door will reopen.
Determine if the door opens toward or away from you. Drive your power
chair gently and slowly forward / backward to push / pull the door open.
Keep a watch for pedestrians, obstacle, pothole particularly when
reversing.
Do not bend, lean, or reach for objects .If you have to pick them up from
the floor by reaching down between your knees. Such use may cause
your power chair to tip and result in personal injury.
Power chair batteries are heavy. See specifications table. If you are
unable to lift that much weight, be sure to get help. Lifting beyond your
capacity can result in personal injury.
Practice more
Positioning belts
Pubic streets and roadway
Negotiate steps or escalators
Elevator
Doors
Reaching and Bending
Battery
Do not operate your power chair for the first time without completely
reading and understanding this user's manual.

Approach slowly, as you encounter a ramp or incline.
Do not attempt to climb over an obstacle which is more than 75mm high
or 100mm width.
Do not drive up or down an incline that is more than 10/12 degree.
If you must stop when climbing, accelerate slowly.
Avoid prolong climbing
When driving down a ramp, keep your power chair's speed adjustment
set to the lowest speed setting and driving in the forward direction only.
On any sort of an incline or decline, never place your power chair in
freewheel mode while seated on it or standing next to it.
Do not attempt to have your power chair proceed backwards down any
step, curb, or other obstacle.
Excessively high cornering speeds can create the possibility of tipping.
Factors which affect the possibility of tipping include, but are not limited
to, cornering speed, steering angle how sharply you are turning ,
uneven road surfaces, inclined road surfaces, riding from an area of low
traction to an area of high traction such as passing from a grassy area
to a paved area especially at high speed while turning , and abrupt
directional changes. High cornering speeds are not recommended. If
you feel that you may tip over while cornering, reduce your speed and
steering angle to prevent your power chair from tipping.
Always protect the batteries from freezing and never charge a frozen
battery. Charging a frozen battery may result in personal injury and / or
damage to the battery.
Consult your physician if you are taking any prescribed or over-the-
counter medication which may impair your operation of the power chair.
Do not drive under the influence of alcohol or drugs, speak to your
doctor first if you are unsure about driving or taking medication.
Avoid putting all of your weight on the flootplate. Such use may cause
your power chair to tip and result in personal injury.
Comfort power chair is designed for one person only, passengers are
prohibited.
Prescription Drugs / Physical Limitation
Alcohol
Weight
Cornering Information

When cornering sharply, reduce your speed. When using your power
chair at higher speeds, do not corner sharply. This greatly reduces the
possibility of a tip or fall. To avoid personal injury or property damage,
always exercise common sense when cornering.
Take wide swings with your power chair's front wheel around any tight
corners, and your power chair's rear wheels will follow a wide arc. Not
cut the corner short, and not bump into or get hung up on any railing
corners.
Your power chair is designed to provide optimum stability under normal
driving conditions dry, level surfaces composed of concrete, blacktop,
or asphalt. However, Comfort recognizes that there will be times when
you will encounter other surface types. For this reason, your power
chair is designed to perform admirably on packed soil, grass, and
gravel. Feel free to use your power chair safely on lawns and in park
areas.
Reduce your power chair's speed when driving on uneven terrain
and/or soft surfaces.
Avoid tall grass that can become tangled in the running gear.
Avoid loosely packed gravel and sand.
If you feel unsure about a driving surface, avoid that surface.
Comfort recommends that you do not operate your power chair in icy
or slippery conditions or on salted surface. Such use may result in an
accident, personal injury, or adversely affect the performance and
safety of your power chair.
Comfort recommends that you do not expose your power chair to any
type of moisture at any time rain, snow, mist, or wash . Such expose
can damage your power chair. Never operate your power chair if it has
been expose to moisture until it has dried thoroughly.
Do not attempt to move an occupied power chair between floors using
a stairway. If moving a power chair between floors by means of a
stairway, the occupant must be removed and transported
independently of the power chair.
Do not attempt to lift the power chair by any removable parts. Lifting by
means of any removable parts of a power chair may result in injury to
the user or damage to the power chair.
Stairways

1.Remove the occupant from the power chair.
2.Remove batteries from power chair. Refer to installing / removing
batteries.
3.Bend your knees and keep your back straight.
4.Using non-removable parts of the power chair, lift the power chair off
of the ground and transfer the power chair up or down the stairs.
5.The power chair should not be lowered until the last stair has been
negotiated and the power chair has been carried away from the
stairway.
Follow these instructions for moving the power chair between floors
when an elevator is not available:

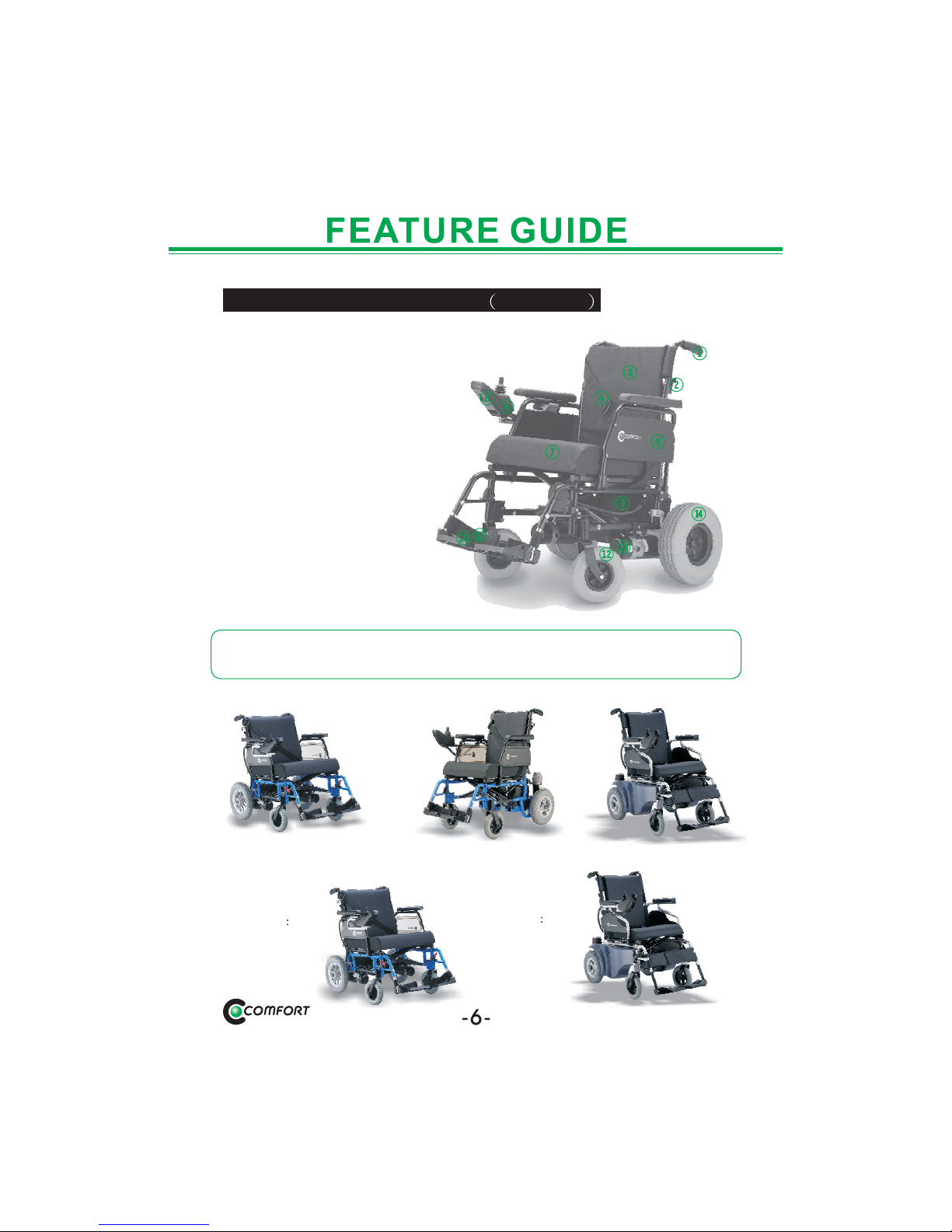

The Power Chair Front View LY-EB103
1.Handgrip
2.Foldable back switch
3.Seatback
4.Positioning belt
5.Battery charging inlet
6.Controller
7.Seat base
8.Flip-backward armrest
9.Battery
10.Foot plate
11.Heel loop
12.Caster wheel
13.Motor
14.Drive wheel
Every power chair has some different parts, the pictures only for
reference.
LY-EB103-N LY-EB103-S LY-EB103-A
LY-EB103-N
()
Optional light
LY-EB103-A
(Optional light)

SPECIFICATIONS
Item No
Seat Width
Seat Depth
Seatback Height
Seat Base Height
Width
Height
Length
Motor Output
Battery
Batteries Weight
Charger
N.W.(w/o battery)
Brakes
Max loading
Slop Gradeability
Range
Front Wheels
Rear Wheels
Maximum Speed
LY-EB103 LY-EB103-N LY-EB103-S LY-EB103-A
A 18" J 16"
17"
A 24.5" J 22.5"
Electric-Magnetic Brakes
120kgs
34.5"
40"
450WX24VX2pcs
25kgs(36AH)/ 31kgs(50AH)
24VX5Amp
43kgs
36AHX12VX2pcs/
50AH X 12V X2pcs
18"
Max:20"
Max:21"
A 27" J 25" A 27" J 25"
35kgs 30kgs
200WX24VX2pcs
20AHX12VX2pcs
15kgs(7.5kgs X 2)
24VX2Amp
10
25km
200X50 PU castor
2.5"-6" pneumatic tyre
8.5km/h
12
30km(36AH)/ 40km(50AH)
200X50PU castor
4.10/3.50-5
pneumatic tyre
/4.00-5(optional)
12 1/2X2 1/4
pneumatic tyre
(or PU tyre)
35.5"
39.5"
37.5"
43"
17"
35"
8.0km/h 9.0km/h

1
2
3
4
5
6
7
1.Battery Condition Meter
2.Maximum Speed/Profile Indicator
3.On/OffKey
4.Horn Key
5.Speed / Profile Decrease Key
6.Speed / Profile Increase Key
7.Joystick
VSI Controller
The battery condition meter is locked in front of the joystick. This is a
10-segment illuminated display that indicates that the VSI is powered
on and also gives the battery status, and the electrical system status.
Batteries charged; VSI and
electrical system OK.
charge batteries if possible; VSI and
electrical system OK.
Charge batteries as soon as
possible; VSI and electrical system OK.
Indicates a fault in the VSI or the electrical
system. Refer to "Trouble Codes."
The joystick was not in the neutral
position when the controller was turned on. If you get "ripple up and
down of lights", turn off the controller, allow the joystick to return to
the neutral position, then turn on the controller.
When the batteries approach a discharged state, the first red light will
begin to slowly flash, reminding you the batteries need to be charged
immediately.
Red, yellow, and green lights lit:
Red, and yellow lights lit:
Red lights only lit or slow flash:
Rapid flash of lights:
Ripple up and down of lights:
Battery Condition Meter
CONTROL PANEL AND OPERATION

CONTROL PANEL AND OPERATION
There are two keys that control either the speed or the profile. This
depends on how your VSI was programmed. Press the speed / profile
increase key to increase the speed or change the profile. The speed /
profile setting is displayed on the maximum speed / profile indicator. If
your power chair was programmed with a drive profile, contact your
Comfort Specialist for more information.
The horn key activates the horn.
The VSI has a feature that enables you to lock your power chair to
prevent unauthorized use.
Speed / Profile Keys
Horn Key
Locking / Unlocking the VSI
1.With the VSI powered on, press and hold
the on / off key. After 1second, the VSI
should beep.
2.Release the on / off key.
3.Push the joystick to the full forward
position until the VSI beep.
4.Pull the joystick to the full rearward
position until the VSI beep.
5.Release the joystick. There should be a
long beep.
6.The VSI is locked now.
To Lock the VSI Please follow the steps
We recommend that the first few times you operate your power chair,
you set speed to the slowest setting until you become familiar with your
new power chair.
VSI Controller

1.Press the on / off key and power on the VSI. The
maximum speed / profile indicator should ripple
left and right.
2.Push the joystick to the full forward position until
the VSI beep.
3.Push the joystick to the full rearward position until
the VSI beep.
4.Release the joystick. There should be a long beep.
5.The VSI is unlocked now.
To Unlock the VSI Please follow the steps
If the above procedure fails to either lock or unlock the VSI, contact your
Comfort Specialist.
You charge the power chair batteries through the 3-pin socket located
on the front of the VSI. Off-board charger current should not exceed 12
amps. Contact your Comfort Specialist for more information.
The VSI controller is equipped with a thermal circuit. The circuit
monitors the temperature of the controller, which roughly translates to
motor temperature. In the event that the VSI controller becomes
excessively hot above 140 F motor current amperage is reduced.
For every degree above 140 F, the motor current limit is reduced by
.55 Amps until the VSI controller reaches 158 F, at which time the current
output is reduced to zero. This reduces your power chair's "power,"
which could also reduce your power chair's speed, and allows the
electrical components and motors to cool down. When the temperature
returns to a safe level, your power chair resumes its normal operation.
Off-board Charger / Programming Socket
Thermal Rollback
The VSI controller is designed with the user's safety as the prime
consideration. It incorporates many sophisticated self-test features
Trouble Codes
-10-
CONTROL PANEL AND OPERATION
VSI Controller

which search for potential problems at a rate of 100 times per second. If
the VSI detects a problem either in its own circuits or in the power chair's
electrical system, it may decide to stop the power chair, depending on
the severity of the problem. The VSI is designed to maximize the user's
safety under all normal conditions. The table below identifies the
individual error codes. Error codes are displayed as a rapid flashing. If
you get one of these error codes, contact your Comfort Specialist.
Trouble Code Diagnosis an Solution
The batteries need charging or there is a bad connection to
the batteries. Check the connections to the batteries. If the
connections are good, try charging the batteries.
The left motor has a bad connection. Check the left motor
connection.
The left motor has a short circuit to a battery connection.
Contact your Comfort Specialist.
The right motor has a bad connection. Check the right motor
connection.
The right motor has a short circuit to a battery connection.
Contact your Comfort Specialist.
The power chair is being inhibited by the battery charger.
Unplug the battery charger.
A joystick fault is indicated. Make sure that the joystick is in
the neutral center position before turning on the controller.
A controller fault is indicated. Make sure that all connections
are secure.
The parking brakes have a bad connection. Check the
parking brake and motor connections. Make sure the
controller system connections are secure.
An excessive voltage has been applied to the controller.
This is usually caused by a poor battery connection. Check
the battery connections.
1
2
3
4
5
6
7
8
9
10
CONTROL PANEL AND OPERATION
VSI or Vr2 Controller

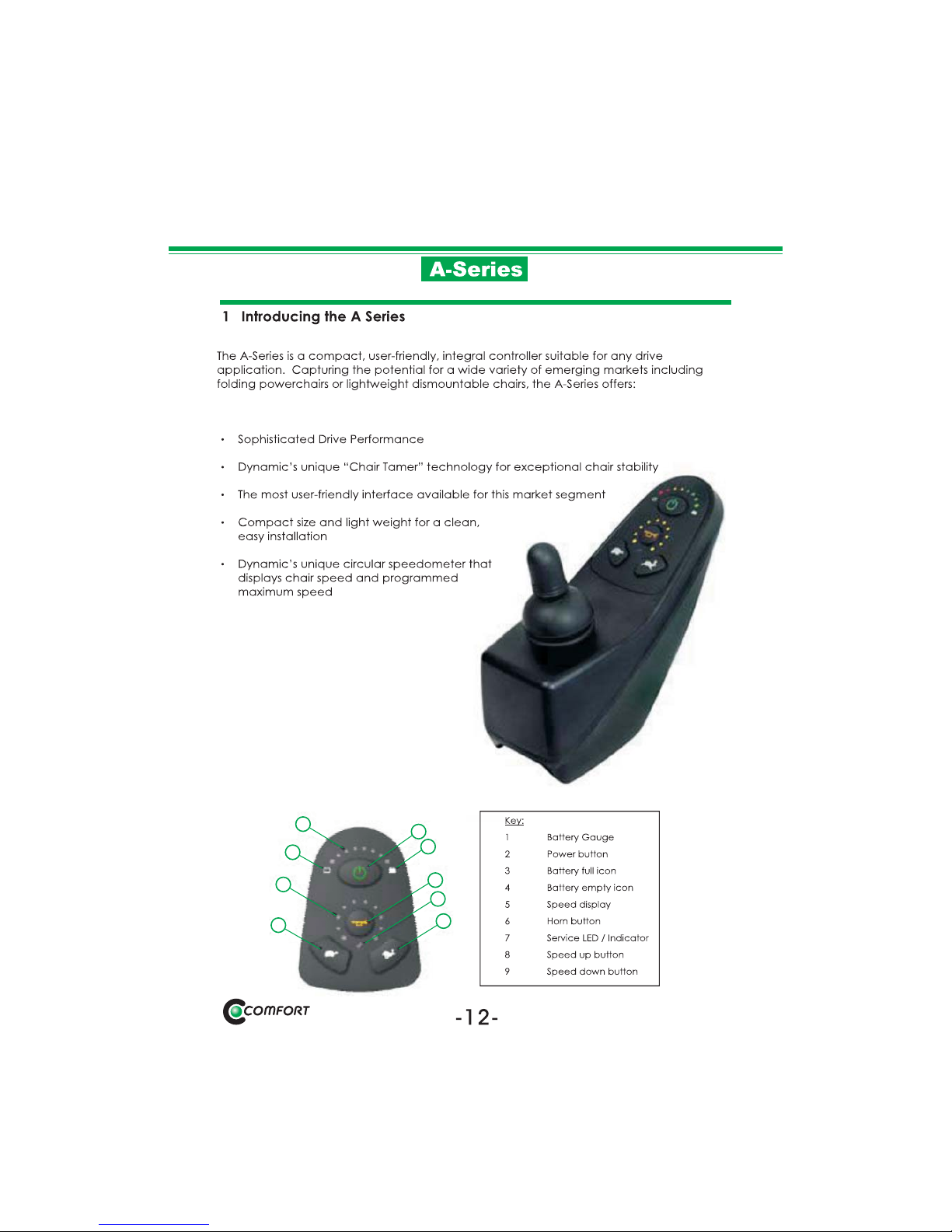

CONTROL PANEL AND OPERATION
12
3
4
56
7
8
9

CONTROL PANEL AND OPERATION

CONTROL PANEL AND OPERATION

CONTROL PANEL AND OPERATION
-15-

CONTROL PANEL AND OPERATION
-16-

CONTROL PANEL AND OPERATION
-17-

CONTROL PANEL AND OPERATION
-18-
