Programmable thermostat
Comfort WiFi with floor and
room temperature sensor
INTRODUCTIONS. The Comfort WiFi is an electronic PWM/PI thermostat for
temperature control by means of an NTC sensor located either externally or
internally within the thermostat.
The thermostat is for flush mounting in a wall socket with a wall surface,
integrated into all the frames of the most famous manufacturer’s switches. A
baseplate for wall mounting is also available.
Comfort WiFi thermostat can be used as a controller for electric room heating
pursuant to EN 50559 standard.
Product programme. Comfort WiFi Clock-thermostat with two sensors: floor
sensor and built-in room sensor.
IMPORTANT SAFETY INSTRUCTIONS. WARNINGS. To avoid electric shock,
disconnect the heating system power supply at the main panel before carrying
out any work on this thermostat and associated components. Installation must
be carried out by qualified personnel in accordance with appropriate statutory
regulations (where required by law). Installation must comply with national and/
or local electrical codes.
CAUTIONS! This instruction must be observed, otherwise the liability of the
manufacturer shall be voided. Any changes or modifications made to this
thermostat shall void the liability of the manufacturer.
Maximum product lifetime is achieved if the product is not turned off but set at
the lowest possible set point / frost protection when heat is not required.
NOTE. The language used in the original documentation is English. Other
language versions are a translation of the original documentation.
3
EN

The manufacturer cannot be held liable for any errors in the documentation.
The manufacturer reserves the right to make alterations without prior notice.
Content may vary due to alternative software and/or configurations.
1. MOUNTING OF FLOOR SENSOR
sealed and placed in the concrete layer as close as possible to the surface. The
installation pipe must be centred between the heating cable loops. Sensor cable
can be extended by up to 100 m by means of a separate cable.
2. MOUNTING OF THERMOSTAT WITH BUILT-IN SENSOR
The room sensor is used for comfort temperature regulation in rooms. The
a way as to allow free air circulation around it. Draughts and direct sunlight or
other heat sources must be avoided.
3. OPENING THE THERMOSTAT
1. Pic. 1).
2. Release the front cover ONLY by inserting a small screwdriver into the slot
at the centre of the bottom side of the front cover to press and hold the
catch securing the front cover.
3. Then carefully pull the front cover away, initially from the lower part of the
thermostat, then from the upper part of the thermostat.
4. CONNECTIONS
Connect the wires in accordance with the diagram. The wires must be connected
as follows (Pic. 2):
4

5
Term. 1: Neutral (N)
Term. 2: Live (L)
Term. 3-4:Output, max. 16 A
Term. X: Do not connect
5. MOUNTING THE THERMOSTAT
1. Mount the thermostat in the wall socket (Pic. 3).
2. Fit the frame and carefully press the cover onto the thermostat - starting
with the upper part of the cover, then the lower part of the cover. Ensure
that both the power slide button on the cover and the power switch pin in
the thermostat are down (Pic. 4).
3. Click the cover into place by applying light, even pressure.
WARNING! Do not apply pressure to the corners of the display cover or to the
display itself. DO NOT
the back.
6. OPERATING THE THERMOSTAT
There is an ON/OFF switch on the left side of the thermostat: up is ON - down is
the touch.
through the set up of::
1. Region
2. Language
3. Date
4. Time
5. Floor Type

6
7. PROGRAMMING
See user manual. http://www.ojelectronics.com/OWD5
8. TROUBLESHOOTING

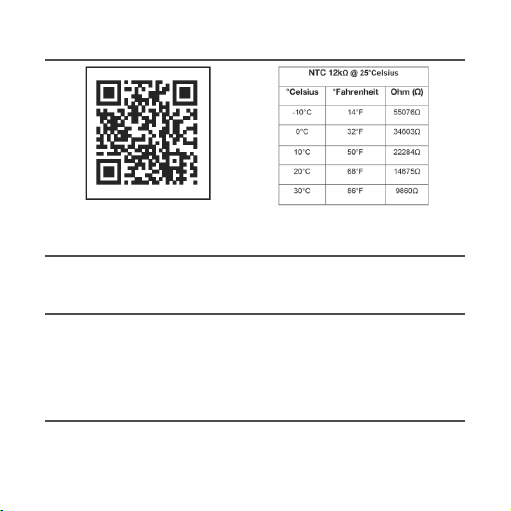

If the sensor is disconnected or short-circuited, the heating system is switched
Pic. 5).
9. ERROR CODES
E0: Internal fault. The thermostat must be replaced.
E1: Built-in sensor defective or short-circuited. Replace the thermostat, or use
E2: External sensor disconnected, defective or short-circuited. Reconnect the
sensor if disconnected, or replace the sensor.
E5: Internal overheating. Inspect the installation.
10. MAINTENANCE
The thermostat is maintenance free. Keep the thermostat’s air vents clean and
unobstructed at all times. The thermostat may only be cleaned with a dry cloth.

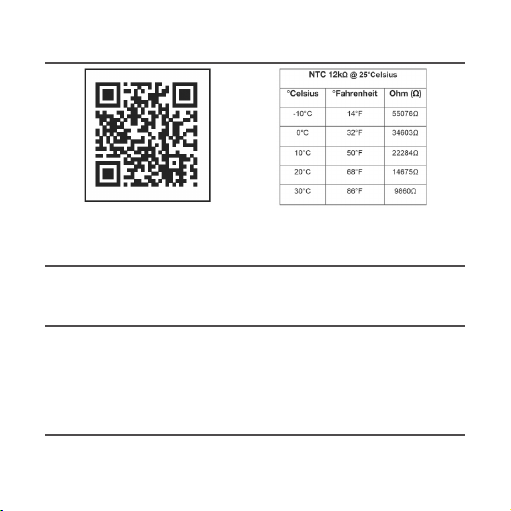

Pic. 5

7
11. APPROVALS AND STANDARDS
Comfort Heat UAB hereby declares that the product is in conformity with the
following directives of the European Parliament:
LVD - Low Voltage Directive
EMC - Electromagnetic Compatibility
RoHS - Restriction of the use of certain Hazardous Substances
RED - Radio Equipment Directive
Applied standards and approvals. According to the following standard: EN
60730-1, EN 60730-2-9, EN 300 328, EN 301 489-17, EN 301 489-1, EN 62479, EN
50559
Protection from electric shock must be assured by appropriate
installation. Must be installed according to the requirements of Class II
(reinforced insulation).
12. ENVIRONMENT AND RECYCLING
Protect the environment by disposing of the package in compliance with local
regulations for waste processing.
Recycling of obsolete appliances. Equipment containing electrical
components must not be disposed of along with domestic waste. It
must be separately collected together with electrical and electronic
waste in accordance with current local regulations.

13. TECHNICAL DATA
Supply voltage 100-240 VAC ±10% 50/60 Hz
Max. pre-fuse 16 A
Built-in interupter 2-pole, 16 A
Enclosure rating IP 21
Wire size, terminals 2, solid core wire
Current > 13 A to 16 A - 2.5 mm2, solid core wire
ELV limits realized SELV 24 V DC
Output relay Make contact - SPST - NO
Output, load Max. 16 A / 3600 W
Control principle PWM / PI
Standby consumption
Battery backup 5 years (storage)
Battery life, typical 5 years (storage) 10 years (powered)
RF frequency band* 2.4 GHz
WLAN* IEEE 802.11 b/g/n – 2,4 GHz
Security* WPA / WPA2
8

9
Dimensions HxWxL 84/84/40 mm
Display 176x220 pixels TFT - resistive touch
Control pollution
degree 2
Overvoltage category III
Rated impulse voltage 4 kV
* You can change the settings for these temperatures to suit your needs – see
Operating Modes in this manual.
14. WARRANTY
Warranty period for thermostat Comfort WiFi is 36 months. Warranty is valid if
the following documents are presented:
1.
2.
The obligation of Comfort Heat will be to repair or supply a new unit, free of
charge to the customer, without secondary charges linked to repairing the unit.
The Comfort Heat warranty does not cover installation made by unauthorised
electricians, or faults caused by incorrect designs supplied by others, misuse,
damage caused by others, or incorrect installation or any subsequent damage
that may occur. If Comfort Heat is required to inspect or repair any defects
caused by any of the above, then all work will be fully chargeable.

11
