Commell LS-571 User manual

LS-571
5.25” Embedded Miniboard
User’s Manual
Edition 1.3
2009/7/20

LS-571 User’s Manual
-1-
Copyright
Copyright 2007, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice
to make improvements to the products.
This document contains proprietary information and protected by copyright. No part
of this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property
of their respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages
resulting from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular
purpose.
The company has the right to revise the manual or include changes in the
specifications of the product described within it at any time without notice and
without obligation to notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

LS-571 User’s Manual
-2-
Packing List:
Please check the package content before you starting using the board.
Hardware:
LS-571 Embedded Miniboard x 1
Cable Kit:
Floppy Cable x 1
ATA33 IDE Cable x1
SDTV Cable x 1
Printer Port Cable x 1 YPbPr Cable x 1
USB Cable x 2
SATA Cable x 2
HD Audio Port Cable x 1 COM port Cable x 2

LS-571 User’s Manual
-3-

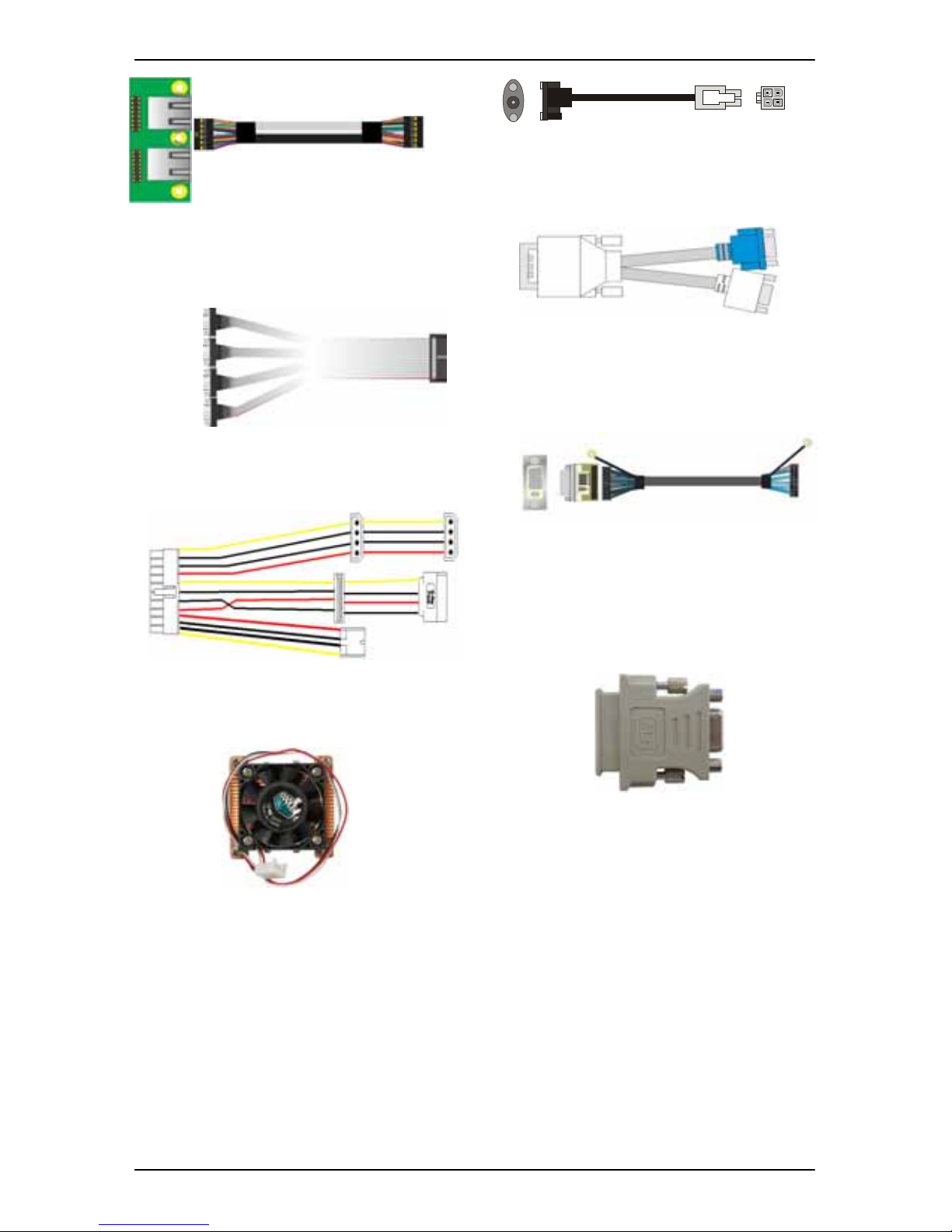

CPU Cooler x 1
Printed Matters:
Driver CD x 1 (Including User’s Manual)
DC Power Cable x 1
Quad COM ports DB9 male Cable x 1
LAN Connector x1 & LAN Cable x 2
ATX Power Output Cable x 1
DVI module with DVI Cable x 1
(LS-571TXD、LS-571TXD2)
DVI module with DVI Cable x 2
(LS-571TXD2、LS-571T2X )
DVI VGA Cable x 1
(LS-571TXD、LS-571TXD2)
DVI to VGA module x1 (LS-571TX2)
DVI to VGA module x2 (LS-571T2X)

LS-571 User’s Manual
-4-
Index
Chapter 1 <Introduction>.......................................................................................7
1.1 <Product Overview>..................................................................................7
1.2 <Product Specification>.............................................................................8
1.3 <Mechanical Drawing>............................................................................10
1.4 <Block Diagram>.....................................................................................11
Chapter 2 <Hardware Setup>...............................................................................12
2.1 <Connector Location>.............................................................................12
2.2 <Jumper Location & Reference>.............................................................13
2.3 <Connector Reference>..........................................................................15
2.3.1 <Internal Connectors> ................................................................15
2.4 <CPU and Memory Setup> .....................................................................16
2.4.1 <CPU Setup>..............................................................................16
2.4.2 <Memory Setup> ........................................................................17
2.5 <CMOS Setup>.......................................................................................18
2.6 <Enhanced IDE Interface>......................................................................19
2.7 <Serial ATA Interface>.............................................................................20
2.8 <Floppy Port>..........................................................................................21
2.9 <Ethernet Interface>................................................................................22
2.10 <Onboard Display Interface>.................................................................23
2.10.1 <Digital Display>.......................................................................24
2.10.2 <HDTV Interface>.....................................................................28
2.11 <Integrated Audio Interface> .................................................................29
2.12 <GPIO Interface>..................................................................................31
2.13 <Power Supply>....................................................................................32
2.13.1.1 <DC_IN Input>.......................................................................32
2.13.1.2 <ATX Output>........................................................................33
2.13.2 <ATX Power Mode>..................................................................34
2.14 <Switch and Indicator>..........................................................................35

LS-571 User’s Manual
-5-
Chapter 3 <System Setup> ..................................................................................36
3.1 <Audio Configuration>.............................................................................36
3.2 <Video Memory Setup>...........................................................................37
3.3 <Display Properties Setting>...................................................................38
Chapter 4 <BIOS Setup> ......................................................................................40
Appendix A <I/O Port Pin Assignment>..............................................................42
A.1 <IDE Port>..............................................................................................42
A.2 <Serial ATA Port>....................................................................................43
A.3 <Floppy Port> .........................................................................................43
A.4 <IrDA Port>.............................................................................................43
A.5 <SMBUS Port> .......................................................................................44
A.6 <Serial Port 1>........................................................................................44
A.7 <Serial Port 2>........................................................................................44
A.8 <Parallel Port>........................................................................................46
A.9 <LAN Port>.............................................................................................46
A.10 <USB Interface> ...................................................................................47
A.11 <COM3/4/5/6 Port>...............................................................................47
A.12 <DVI Port>............................................................................................48
Appendix B <Flash BIOS>....................................................................................49
B.1 <Flash Tool> ...........................................................................................49
B.2 <Flash BIOS Procedure>........................................................................49
Appendix C <System Resources>.......................................................................50
C.1 <Direct Memory Access (DMA)> ............................................................50
C.2 <Input /Output (IO)>................................................................................50
C.3 <Memory Address Map>...............................................................52
C.4 <Memory>.....................................................................................53
Appendix D <Programming GPIO’s>...................................................................54
Appendix E <Programming Watchdog Timer>...................................................55
Contact Information..............................................................................................56

LS-571 User’s Manual
-6-
(This page is left for blank)

LS-571 User’s Manual
-7-
Chapter 1 <Introduction>
1.1 <Product Overview>
LS-571, the new generation of the 5.25” Miniboard, supports Intel Merom
Processors for 533/800MHz front side bus and features Intel GM(E)965 and ICH8M
chipset, integrated GMA X3100 graphics, DDR2 memory, REALTEK High Definition
Audio, Serial ATA and two Intel Gigabit LAN.
Intel Merom Processor
The board supports Intel Core 2 Duo/Celeron M socket-P processor with
533/800MHz front side bus, L2 Cache: All specification depend on the CPU.
(1M/2M/3M/4M/6M) , to provide more powerful performance than before.
New features for Intel GM(E)965 chipset
The board integrates Intel GM(E)965 and ICH8M chipset, to provide new generation
of the mobile solution, supports Intel GMAX3100 graphics, DDR2 533/667MHz
memory, built-in high speed mass storage interface of serial ATA, High Definition
Audio with 2 channels surrounding sound.
All in One multimedia solution
Based on Intel GM(E)965 and ICH8M chipset, the board provides high performance
onboard graphics, 24-bit dual channel LVDS interface, HDTV and 2 channels High
Definition Audio, to meet the very requirement of the multimedia application.
Flexible Extension Interface
The board provides Compact Flash Type II socket, two mini-PCI socket and one PCI
slot.

LS-571 User’s Manual
-8-
1.2 <Product Specification>
General Specification
Form Factor 5.25 Inches Embedded Miniboard
CPU Support Intel Core 2 Duo/Celeron M Mobile Processor
Package type: Micro-FCPGA478 (Socket-P)
L2 Cache: All specification depend on the CPU. (1M/2M/3M/4M/6M)
Front side bus: 533/800 MHz
Memory One 533/667MHz DDRII 200-pin SO-DIMM up to 2GB
Onboard Memory Optional onboard 667MHz 1GB DDRII SDRAM
Chipset Intel GM(E)965 & ICH8M (82801HBM)
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power
Management ACPI 1.0 compliant, supports power saving mode
PCI Enhanced IDE One 44-pin UltraATA33 IDE interface supports up to 2 ATAPI
devices
Serial ATA
Interface 3 x serial ATAII interface with 300MB/s transfer rate
VGA Interface Intel integrated extreme GMA X3100 (Graphic Media Accelerator)
Technology
Video Memory Up to 384MB shared with system memory
DVI Interface One onboard CH7307C DVI transmitter 26-pin DVI connector with
optional Chrontel CH7307C DVI transmitter
LVDS interface Onboard 18/24-bit Single/dual channel LVDS connector with
+3.3V/+5V/+12V supply
One optional Chrontel CH7308 LVDS transmitter for 18/24-bit
Single/dual channel LVDS interface with + 3.3V/+5V/+12V supply
SDTV/HDTV
Interface Onboard 5x2-pin SDTV/HDTV interface
Audio Interface Intel integrated ICH8M with Realtek ALC888 HD Audio
LAN Interface Two Intel 82573L Gigabit LAN
Solid State Disk IDE supports 44-pin DiskOnModule with +5V/+3.3V power supply,
One Compact Flash Type II
GPIO interface Onboard programmable 8-bit Digital I/O interface
Extended Interface One PCI slot, Two Mini PCI socket to support Mini PCI Type IIIA
Internal I/O Port 1 x slim FDD port, 1 x GPIO port, 1 x Parallel Port, 8 x USB ports, 1
x IDE, 1 x LVDS, 1 x LCD inverter connector, 1 x DVI, 1 x HDTV, 1 x
Fornt panel Audio connector, 1 x CDIN connector, 1 x
RS232/422/485, 5 x COM Port, 1 x IrDA Port and 1 x SMBus Port
Temperature Operating within 0~60 centigrade
Storage within –20~85 centigrade
Power Requirement Standard 20-Pin ATX power supply or 12V DC Input

LS-571 User’s Manual
-9-
Dimension 203mm x 146mm
Ordering Code
LS-571TXD-P Onboard CRT, LVDS, HDTV, DVI, 2 x Intel Gigabit LAN, 8 x
USB2.0, PCI, 2 x Mini-PCI, GPIO Port, IrDA, Slim FDD, Parallel
Port, RS232/422/485, 3 x SATA, HD Audio, SMBus and CF
LS-571TXD-1G Onboard CRT, LVDS, HDTV, DVI, 2 x Intel Gigabit LAN, 8 x
USB2.0, PCI, 2 x Mini-PCI, GPIO Port, IrDA, Slim FDD, Parallel
Port, RS232/422/485, 3 x SATA, HD Audio, SMBus, CF and
Onboard 1G DDRII 667MHz
LS-571TXD2-P Onboard CRT, LVDS, HDTV, 2 X DVI, 2 x Intel Gigabit LAN, 8 x
USB2.0, PCI, 2 x Mini-PCI, GPIO Port, IrDA, Slim FDD, Parallel
Port, RS232/422/485, 3 x SATA, HD Audio, SMBus and CF
LS-571T2X-P Onboard 2 X CRT, LVDS, HDTV, 2 x Intel Gigabit LAN, 8 x USB2.0,
PCI, 2 x Mini-PCI, GPIO Port, IrDA, Slim FDD, Parallel Port,
RS232/422/485, 3 x SATA, HD Audio, SMBus, CF and (Without
DVI interface)
LS-571TX2-P Onboard CRT, 2 x LVDS, HDTV, 2 x Intel Gigabit LAN, 8 x USB2.0,
PCI, 2 x Mini-PCI, GPIO Port, IrDA, Slim FDD, Parallel Port,
RS232/422/485, 3 x SATA, HD Audio, SMBus, CF and (Without
DVI interface)
For further product information please visit the website at http://www.commell.com.tw
