Commell MPX-954 User manual

MPX-954
User’s Manual
Edition: 1.0
2009/10/30

MPX-954 User’s Manual
2
Copyright
Copyright 2009 all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior
notice to make improvements to the products. This document contains proprietary
information and protected by copyright. No part of this document may be
reproduced, copied, or translated in any form or any means without prior written
permission of the manufacturer. All trademarks and/or registered trademarks
contains in this document are property of their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages
resulting from the performance or use of this product. The company does not issue
a warranty of any kind, express or implied, including without limitation implied
warranties of merchantability or fitness for a particular purpose. The company has
the right to revise the manual or include changes in the specifications of the
product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

MPX-954 User’s Manual
3
Packing List:
Hardware：
MPX-954 PCI Express mini Card x1
Cable Kit:
CD Content：
Drivers & User’s Manual
Dual DB9 Cable X 2
(OALES-BKU2)

MPX-954 User’s Manual
4

MPX-954 User’s Manual
5
(This Page is left for Blank)

MPX-954 User’s Manual
6
Chapter 1 <Introduction>
1.1 <General Specification>
General Specification
Form Factor PCI Express mini card
Controller OXFORD OXPCIe954
Features Four 16C950 High performance UART channels

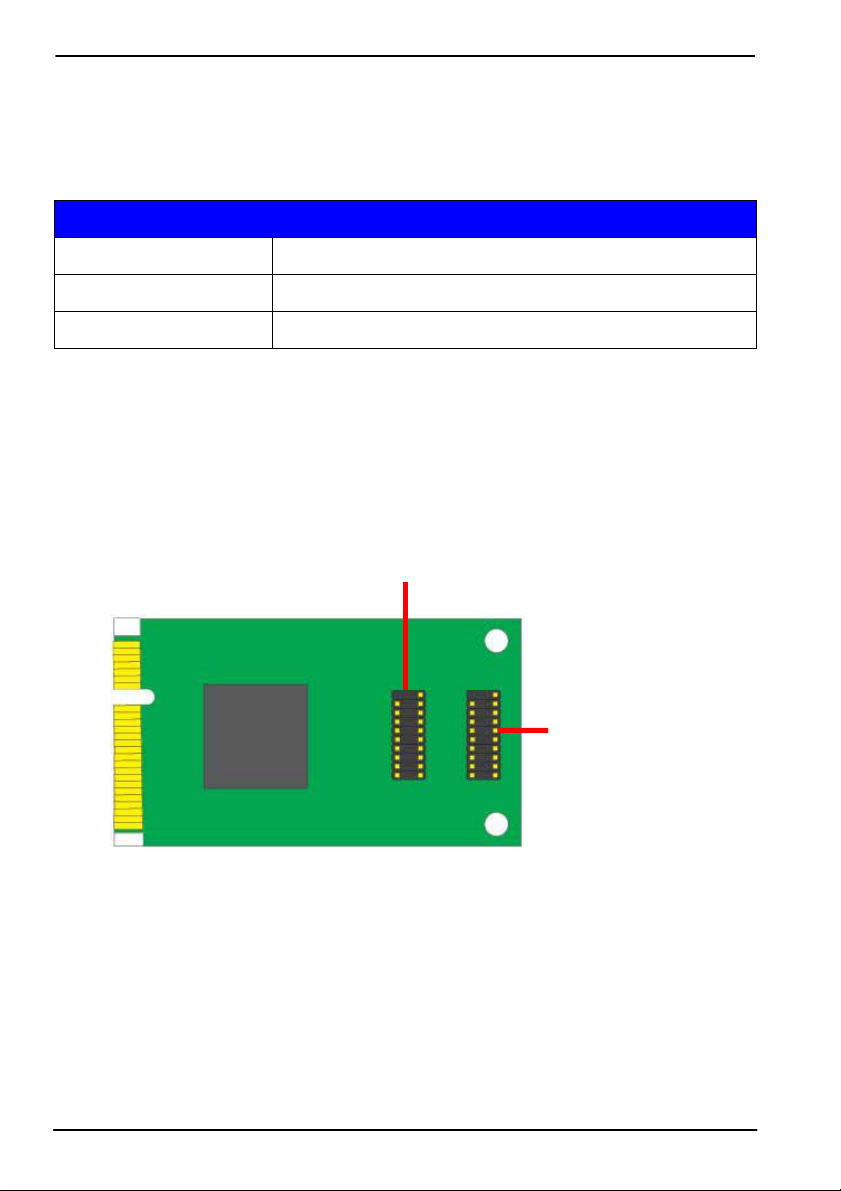

1.2 <Connector Assignment>
CN_COM1/2
CN_COM3/4

MPX-954 User’s Manual
7
1.21 <COM Port>
Connector: CN_COM1/2
Type:20-pin (10x2 pitch=1.27x2.54mm) header
Pin Description Pin Description
1 DCD1- 2 RX1-
3 TX1- 4 DTR1-
5 GND 6 DSR1-
7 RTS1- 8 CTS1-
9 RI1 10 NC
11 DCD2- 12 RX2-
13 TX2- 14 DTR2-
15 GND 16 DSR2-
17 RTS2- 18 CTS2-
19 RI2 20 NC
Connector: CN_COM3/4
Type:20-pin (10x2 pitch=1.27x2.54mm) header
Pin Description Pin Description
1 DCD3- 2 RX3-
3 TX3- 4 DTR3-
5 GND 6 DSR3-
7 RTS3- 8 CTS3-
9 RI3 10 NC
11 DCD4- 12 RX4-
13 TX4- 14 DTR4-
15 GND 16 DSR4-
17 RTS4- 18 CTS4-
19 RI4 20 NC

MPX-954 User’s Manual
8
1.3 <Driver Setting>
1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ …
2. Please choose “Device Manager”
3. You can see other devices ”PCI Serial Port”

MPX-954 User’s Manual
9
4. Please choose “Other PCI Bridge Device” then press
Update Driver
5. Please choose ”NO, not this time“

MPX-954 User’s Manual
10
6. Install software for ”PCI Serial Port” Please choose ”Install
from a list or specific location”
7. Please choose “Search for the best driver in these location”
Check “Include this location in the search” then press
“D:\Driver\MPX-954\MPX-954\x86”

MPX-954 User’s Manual
11
9. Completing the hardware update wizard
10. Install finish

MPX-954 User’s Manual
12
Contact Information
Any advice or comment about our products and service, or anything
we can help you please don’t hesitate to contact with us. We will do
our best to support you for your products, projects and business.
Taiwan Commate Computer Inc.
Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih
Taipei Hsien, Taiwan
TEL [phone]
FAX [phone]
Website TUhttp://www.commell.com.twUT
E-Mail TU[email protected]UT (General Information)
TU[email protected]UT (Technical Support)
