Commell LE-565 User manual

LE-565
5.25 inch Embedded Miniboard
User’s Manual
Edition 1.0
2006/06/19
All manuals and user guides at all-guides.com
all-guides.com

LE-565 User’s Manual
2
Copyright
Copyright 2006. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
All manuals and user guides at all-guides.com

LE-565 User’s Manual
3
Packing List
Please check the package before you starting setup the system
Hardware:
LE-565 series motherboard x 1
Cable Kit:
Serial ATA Ribbon Cable x 2
44-pin ATA33 IDE Cable x 1 26-pin Slim Type Floppy Cable x 1
Printed Matters:
User’s Manual x 1
Driver CD x 1
COM Port Cable x 1
40-pin ATA100 IDE Cable x 1
Audio Port Cable x 1 USB Cable x 1
Power Cable x 1
COM Port & Printer Port Cable x 1
PS2 Cable x 1
All manuals and user guides at all-guides.com

LE-565 User’s Manual
4
Index
Chapter 1 <Introduction>.....................................................................................7
1.1 <Product Overview>.................................................................................7
1.2 <Product Specification>...........................................................................8
1.3 <Mechanical Drawing>....................................................................... …10
1.4 <Block Diagram>....................................................................................11
Chapter 2＜Hardware Setup＞……………………………………………….……..12

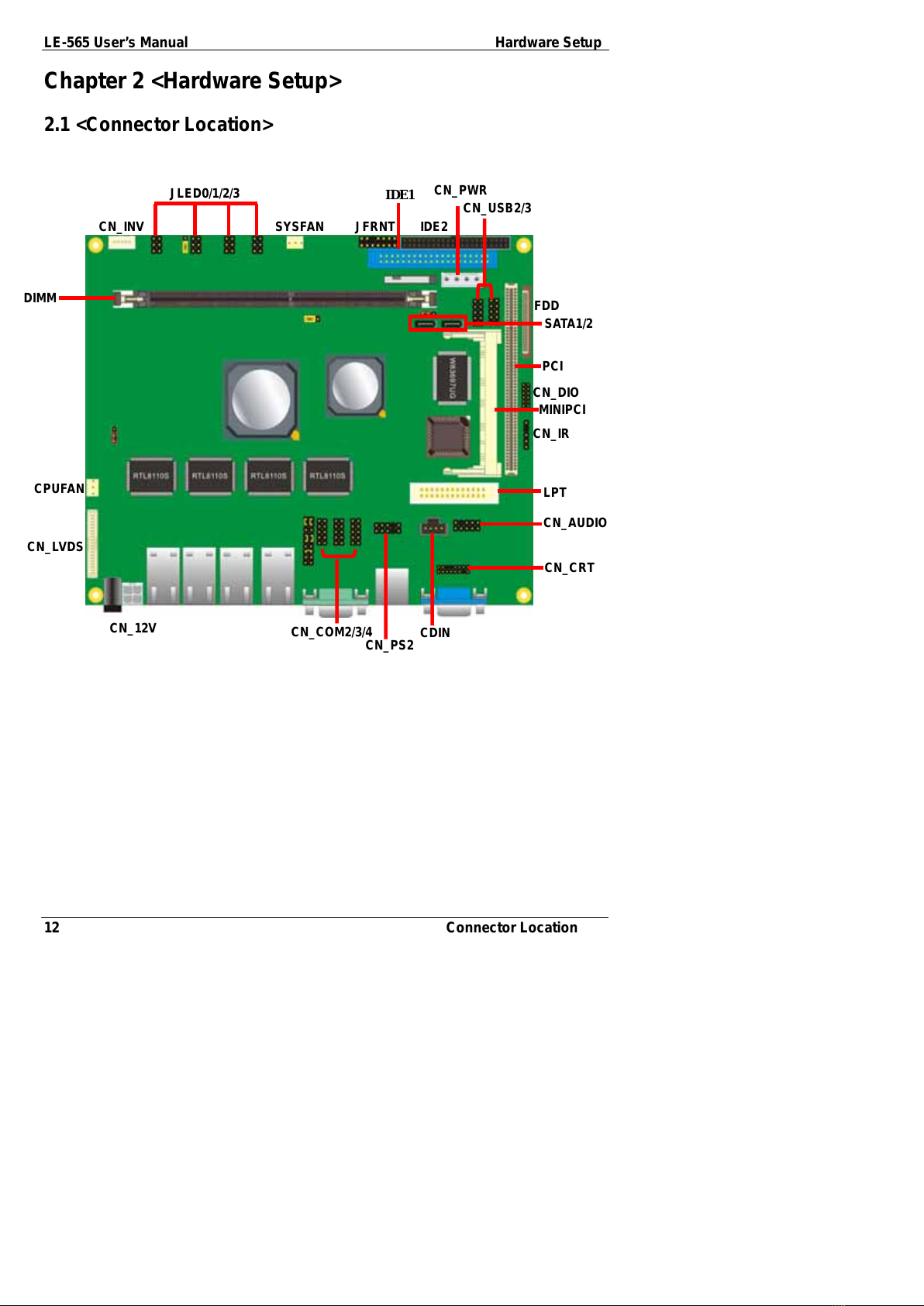

2.1 <Connector Location> ......................................................................……12
2.2 <Jumper Reference>………………………………………………………..14
2.3 <Connector Reference>.........................................................................15
2.3.1 <Internal Connector>..................................................................15
2.3.2 <External Connector>.................................................................15
2.4 <CPU and Memory Setup>....................................................................16
2.4.1< CPU>........................................................................................16
2.4.2 <Memory> ..................................................................................16
2.5 <CMOS ATX Setup>..............................................................................17
2.6 <Enhanced IDE & CF Interface>............................................................18
2.7 <Serial ATA Interface>...........................................................................19
2.8 <Floppy Port>.........................................................................................20
2.9 <LAN Interface>.....................................................................................21
2.10 <Onboard Display Interface>……………………………………………...22
2.10.1 <Analog VGA Interface>………….……………………………….22
2.10.2 < Digital Display >…………………………………………...23
2.11 <Onboard Audio Interface>……………………………………….………27
2.12 <USB2.0 Interface>..............................................................................28
2.13 <GPIO Interface>.................................................................................30
2.14 <Serial Port Jumper Setting>...............................................................31
2.15 <Power and Fan Connector>……………………………………………..33
All manuals and user guides at all-guides.com

LE-565 User’s Manual
5
2.15.1 <Power Input>..........................................................................33
2.15.2 <Power Output>…………………………………………………….34
2.15.3 <Fan Connector>......................................................................34
2.16 <Indicator and Switch>.........................................................................35
Chapter 3 <System Configuration>...................................................................37
3.1 <SATA RAID Configuration>..................................................................37
3.2 <Audio Configuration> ...........................................................................39
3.3 <Display Configuration>.........................................................................40
Chapter 4 <BIOS Setup> ....................................................................................44
Appendix A <I/O Port Pin Assignment> ...........................................................46
A.1 <IDE Port>.............................................................................................46
A.2 <Floppy Port> ........................................................................................48
A.3 <IrDA Port>............................................................................................48
A.4 < CRT Port >..........................................................................................49
A.5 <Serial ATA Port>..................................................................................49
A.6 <Serial Port>..........................................................................................49
A.7 <LAN Port>............................................................................................50
Appendix B <Flash BIOS>..................................................................................52
B.1BIOS Auto Flash Tool.............................................................................52
B.2Flash Method..........................................................................................52
Contact Information............................................................................................54
All manuals and user guides at all-guides.com

LE-565 User’s Manual
6
(The Page is Left For Blank)
All manuals and user guides at all-guides.com
all-guides.com

LE-565 User’s Manual Introduction
Product Overview
7
Chapter 1 <Introduction>
1.1 <Product Overview>
LE-565 is the 5.25 inch embedded miniboard based on VIA chipset. It integrates VIA
embedded chipset for CN700 with VT8237R Plus, DDR 333/400 SDRAM, and serial ATA
with RAID to provide the economical embedded platform.
VIA CN700 & VT8237R Plus Chipset
The board comes with the VIA embedded chipset of CN700, supports DDR 333/400
SDRAM, integrated the S3 Graphics UniChrome Pro IGP graphics core, hardware MPEG-2
acceleration.
The VT8237R Plus provides the board to support Ultra V-Link (533MB/s) with CN700, two
serial ATA ports with RAID array function, 6 x USB2.0 ports and 5.1 channel AC97 audio.
Multimedia solution
Based on VIA CN700 chipset, the board provides 18/24-bit LVDS interface, which supports
dual independent display with CRT.
Onboard AC97 codec provides the high quality of sound including 5.1-channel stereo
DACs.
Four LAN Interface
LE-565 also comes with four Giga LAN interface, support boot-on-LAN and wake-on-LAN
function.
High Speed Hot-plug Interface
Based on VIA VT8237R Plus the board provides 6 USB2.0 interfaces with up to 480Mbps of
transferring rate.
Expanded UCR for remote Operating SETUP Bios Feature
Expanded Universal Console Redirection (UCR) is a feature for monitoring POST
messages and running Setup and an operation system from a remote serial terminal.
All manuals and user guides at all-guides.com

LE-565 User’s Manual Introduction
Product Specification
8
1.2 <Product Specification>
General Specification
Form Factor 5.25 inch miniboard
CPU VIA V4/Eden 1.0GHz processor
L1/L2 Cache: 128/128KB
Front side bus: 400MHz
Memory 1 x 184-pin DDR 333/400 SDRAM up to 1GB,onboard optional
256MB DDR SDRAM
Unbufferred, none-ECC memory supported only
Chipset VIA CN700 and VT8237R Plus
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock VIA VT8237R Plus built-in RTC with lithium battery
Enhanced IDE Enhanced IDE interface supports dual channels and up to 4
ATAPI devices at Ultra DMA133
One 40-pin and one 44-pin IDE port onboard
One Compact Flash Type II socket on solder side
Serial ATA VIA VT8237R Plus integrates 2 Serial ATA interface
RAID 0, 1 array Technology supported
Multi-I/O Port
Chipset VIA VT8237R Plus with Winbond W83697UG controller
Serial Port One external & three internal RS-232 serial ports
USB Port Four external & four internal Hi-Speed USB 2.0 ports with
480Mbps of transfer rate
Parallel Port One 26-pin internal parallel port
Floppy Port One slim type Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse Internal PS/2 keyboard and mouse
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Hardware Monitor Fan speed, CPU temperature and voltage monitoring
VGA Display Interface
Chipset VIA CN700 built-in S3 Graphics UniChrome Pro IGP graphics core
Core Frequency 200MHz
Memory BIOS selectable 16/32/64MB shard with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel
Internal 40-Pin LVDS connector
All manuals and user guides at all-guides.com

LE-565 User’s Manual Introduction
Product Specification
9
Ethernet Interface
Chipset REALTEK 8110S-32
Type 10Base-T / 100Base-TX /1000Base-TX
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Four External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset REALTEK ALC655
Interface 5.1 channel surround audio with Line-in, Line-out and MIC-in
Connector Onboard audio connector with pin header
Onboard CD-IN connector
Expansive Interface
PCI 1 x PCI slot supports up to two PCI devices through riser card
Mini PCI 1 x Mini PCI socket
Power and Environment
Power
Requirement DC 12V input with external DC Jack or onboard 4-pin connector
Dimension 146 (L) x 203 (H) mm
Temperature Operating within 0 ~ 60P
o
PC (32 ~ 140P
o
PF)
Storage within -20 ~ 85P
o
PC (-4 ~ 185P
o
PF)
Software support
Operation
System Windows 2000, Windows XP,Windows CE 4.0 or later, Windows XP Embedded Linux (Fedora Core 1, Mandrake 9.2 and Red Hat 9.0)
Ordering Code
LE-565-P VIA V4 Eden 1G With Onboard VGA, AUDIO, Giga LAN, USB2.0,
4 x COM, FDD, LPT, GPIO, LVDS, Mini PCI, SATA
LE-565-256 The same as above and with 256MB DDR SDRAM
SPD-080-12 AC-DC Adapter with 12V, 80W DC Jack output
1. The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT
All manuals and user guides at all-guides.com

LE-565 User’s Manual Introduction
MechanicalDrawing
10

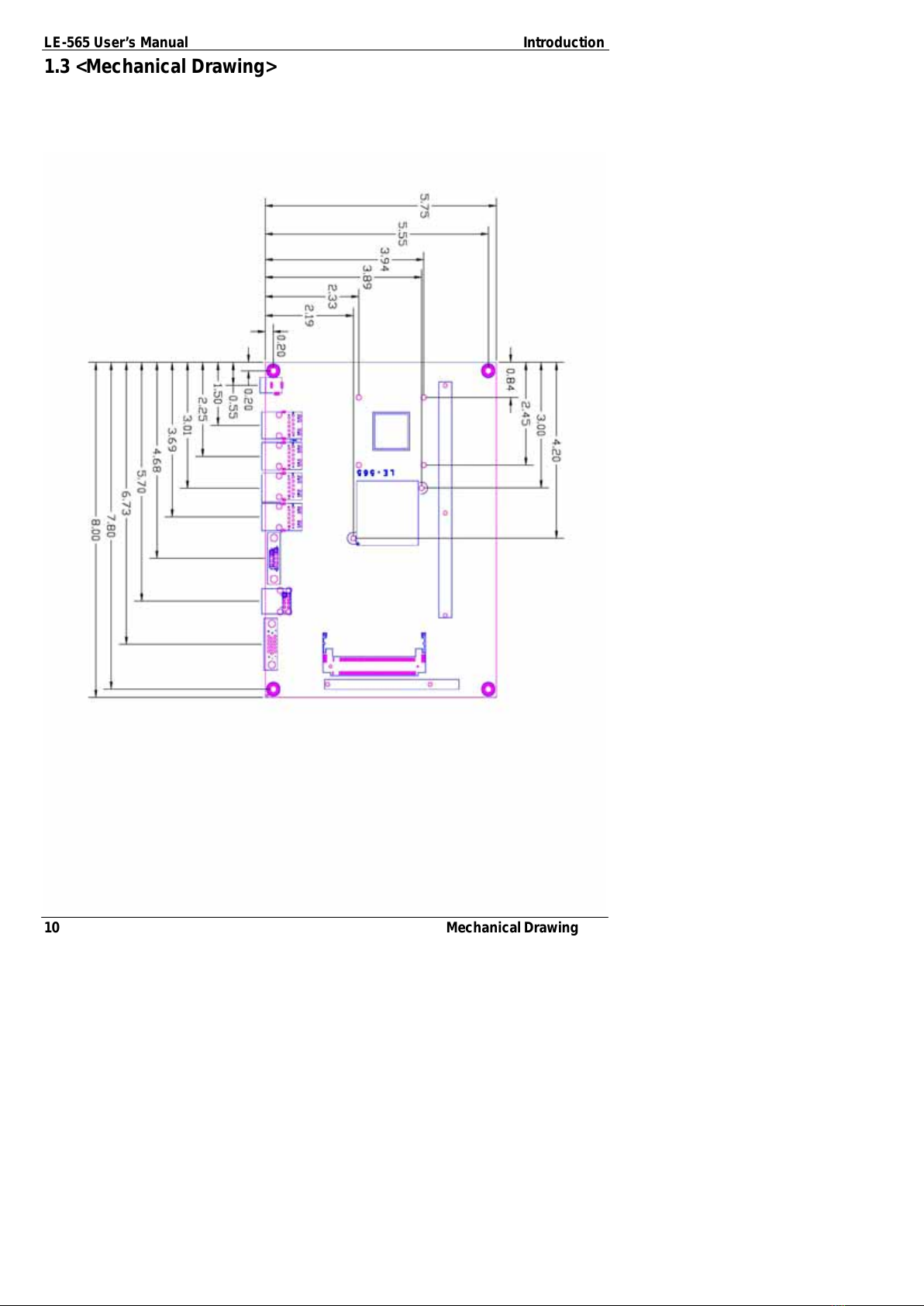

1.3 <Mechanical Drawing>
