Commell LE-37A User manual

LE-37A
3.5 inch Motherboard
User’s Manual
Edition 1.2
2012/08/29

LE-37A User’s Manual
-1-
Copyright
Copyright 2012, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
TU UT

LE-37A User’s Manual
-2-
Packing List:
Please check the package content before you starting using the board.
Hardware:
LE-37A 3.5“ Miniboard x 1
Cable Kit:
SATA Cable x 1
(OALSATA-L)
Printed Matters:
Driver CD (Including User’s Manual) x 1
CPU Cooler x 1
(OHS-P-M-7)
DVI Module With DVI Cable x 1
(BADPDVI-A + OALDVI-DF13)
DC Power Cable x 1
(OALDC-A)
USB Cable x 1
(OALUSBA-3)
PS/2 Keyboard & Mouse Cable x 1
(OALPS2/MK)
COM Port Cable x 1
(OALES-BKU1NB)
Audio Cable x 1
(OALPJ-HDUNB)
1 to 3 power output cable x 1
(OAL4P-2)
SATA Power Cable x 1
(OAL4P-S2)

LE-37A User’s Manual
-3-
Index
Chapter 1 <Introduction>..............................................................................6
1.1 <Product Overview>.....................................................................................6
1.2 <Product Specification>................................................................................7

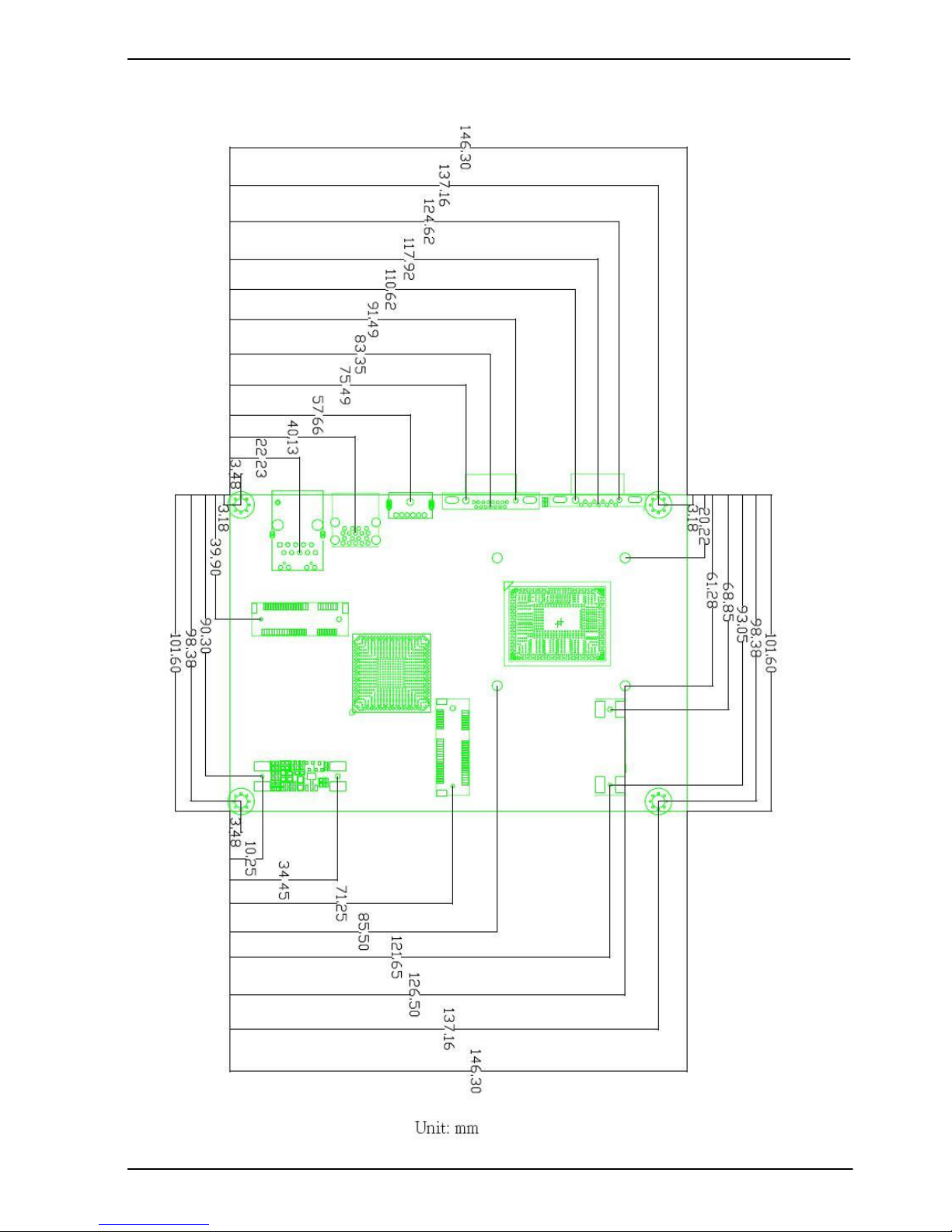

1.3 <Mechanical Drawing>.................................................................................9

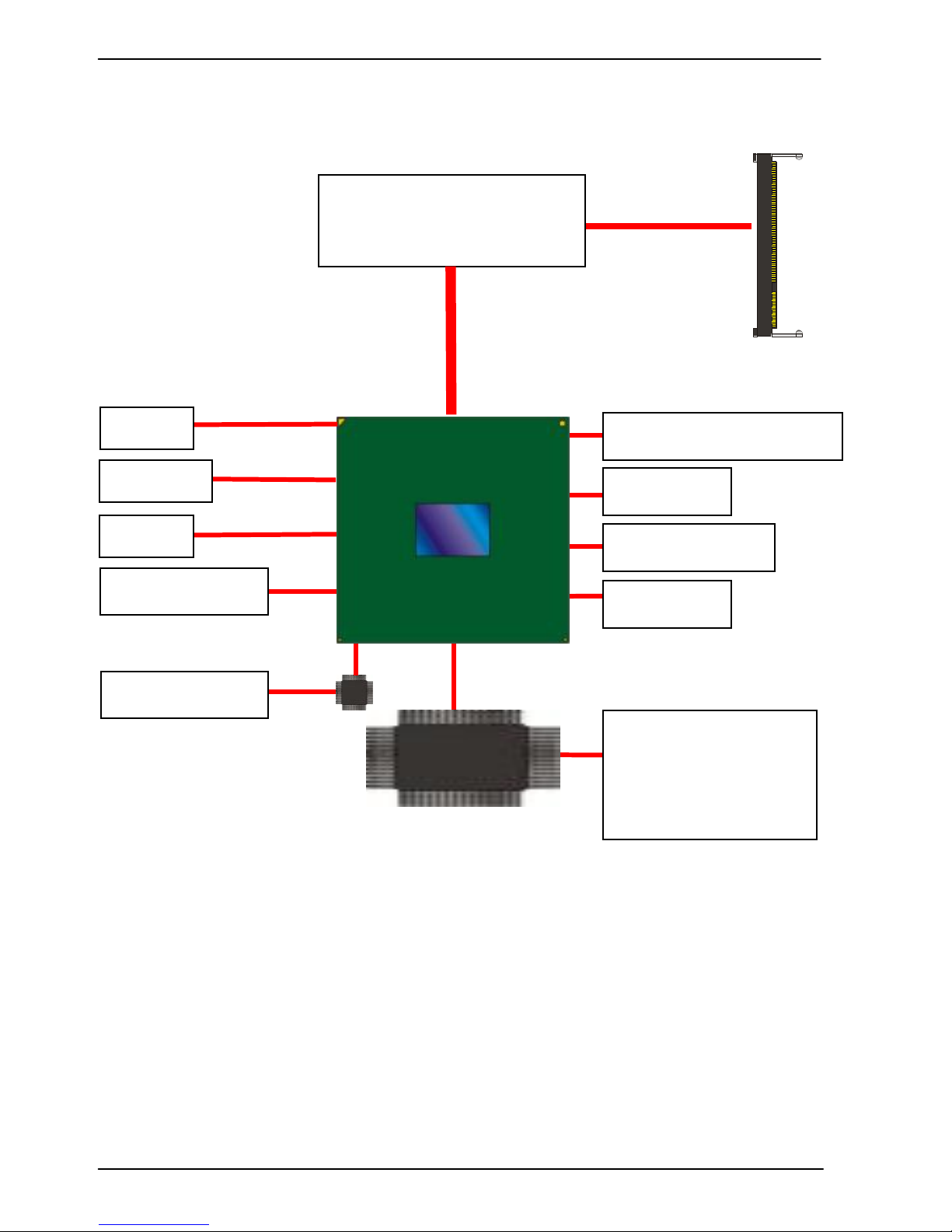

1.4 <Block Diagram>........................................................................................10
Chapter 2 <Hardware Setup>......................................................................11

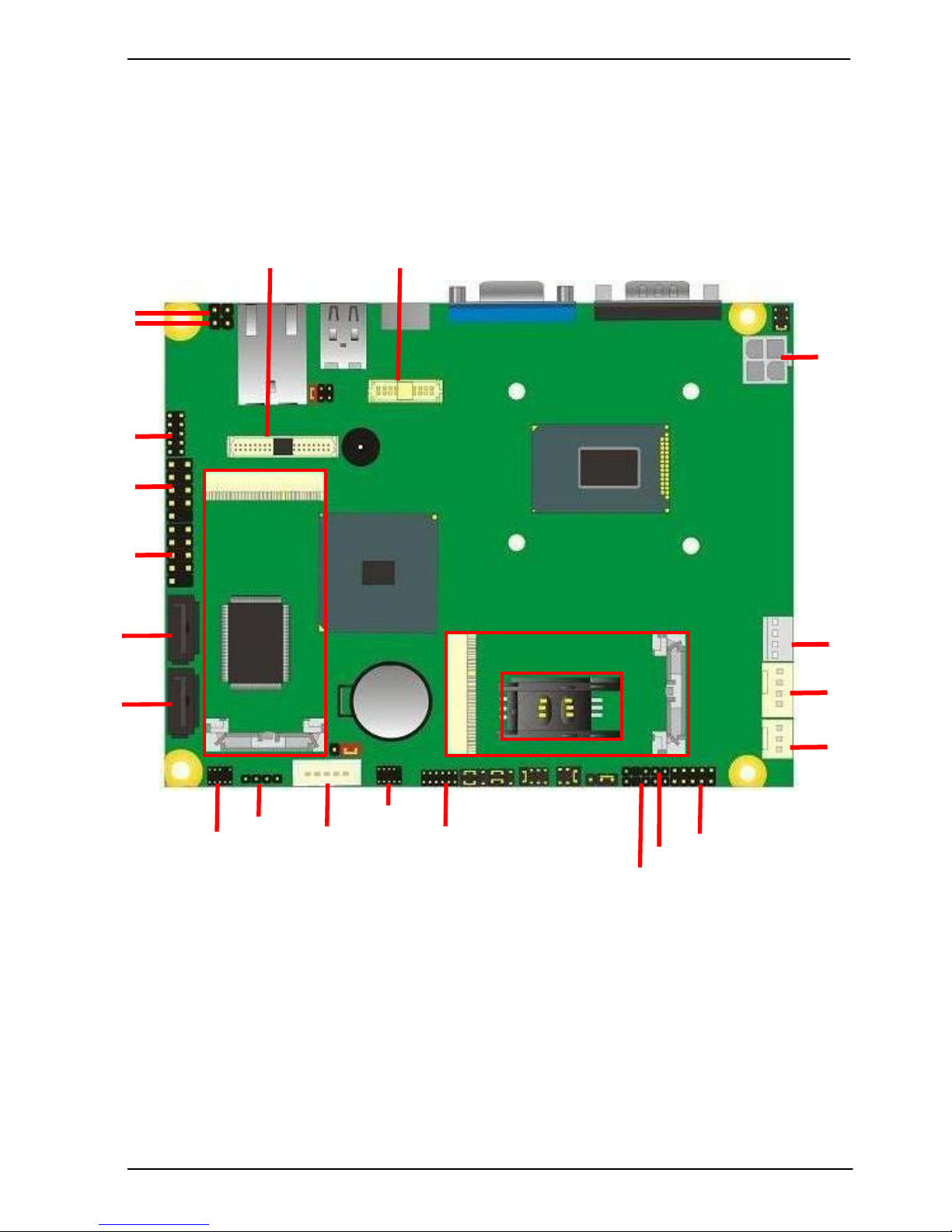

2.1 <Connector Location>................................................................................ 11

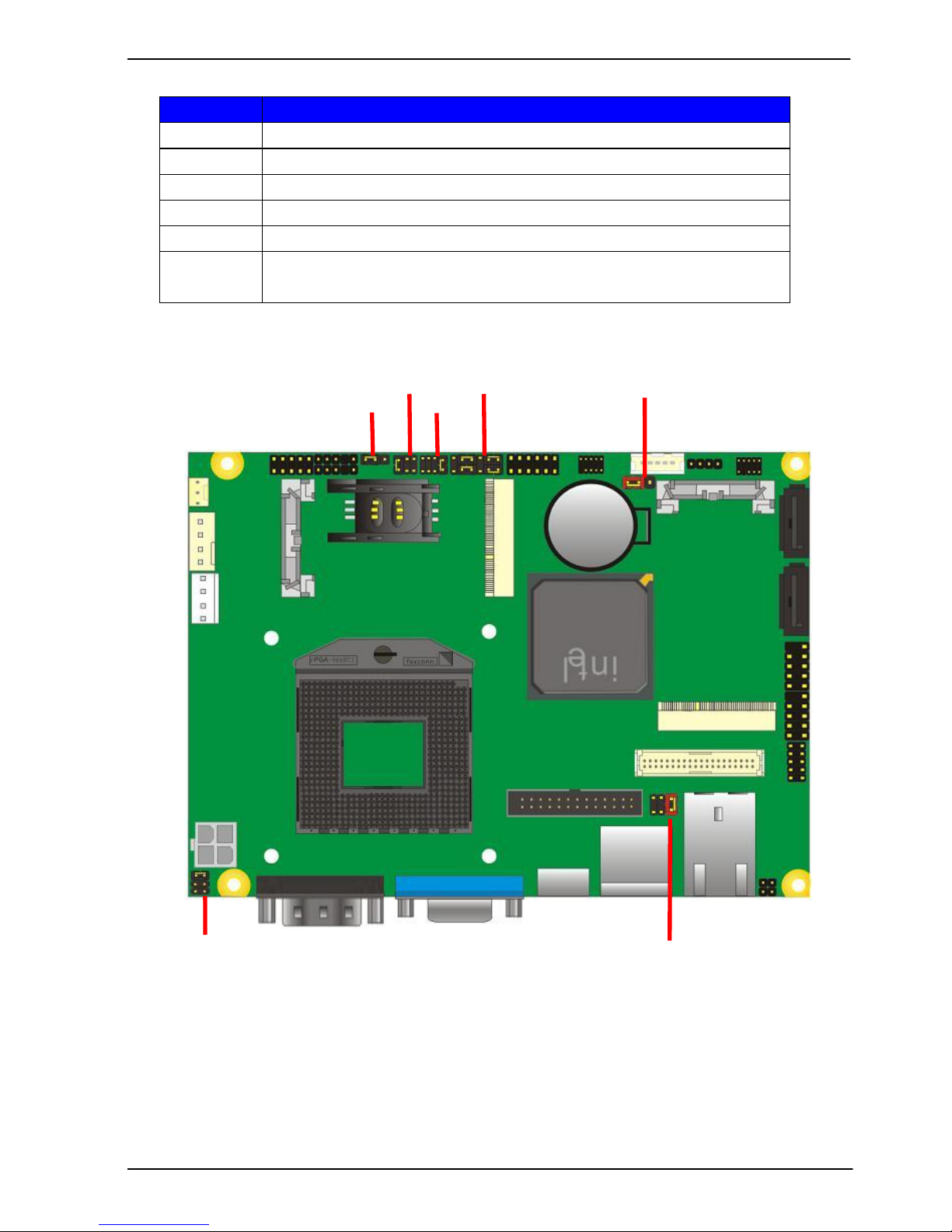

2.2 <Jumper Location & Reference>................................................................13
2.3 <Connector Reference>.............................................................................14
2.3.1 <Internal Connectors> ...................................................................14
2.3.2 <External Connectors>..................................................................14
2.4 <CPU and Memory Setup> ........................................................................15
2.4.2 <Memory Setup> ...........................................................................15
2.5 <CMOS & ATX Setup>...............................................................................16
2.6 <Serial ATA Interface>................................................................................17
2.7 <Ethernet Interface>...................................................................................17
2.8 <Onboard Display Interface> .....................................................................18
2.8.1 <Analog Display>...........................................................................18
2.8.2 <Digital Display>............................................................................19
2.8.3 <DVI Interface>..............................................................................23
2.9 <Integrated Audio Interface>......................................................................24
2.10 <USB Interface>.......................................................................................26
2.11 <Serial Port>.............................................................................................27
2.12 <PCIE Mini Card and SIM Interface>.......................................................29
2.12.1 <SIM Setup>................................................................................31
2.13 <GPIO and SMBUS Interface>.................................................................33
2.14 <Power Supply and Fan Interface >.........................................................34
2.14.1 <Power Input> .............................................................................34
2.14.2 <Power Output>...........................................................................34
44-pin

LE-37A User’s Manual
-4-
2.14.3 <Fan connector>..........................................................................35
2.15 <Switch and Indicator> .............................................................................36
Chapter 3 <System Setup> .........................................................................37
3.1 <Audio Configuration>................................................................................37
3.2 <Display Properties Setting> ......................................................................38
Chapter 4 <BIOS Setup> .............................................................................40
Appendix A <I/O Port Pin Assignment>.....................................................42
A.1 <Serial ATA Port> .......................................................................................42
A.2 <IrDA Port>.................................................................................................42
A.3 <VGA Port>................................................................................................42
A.4 <LAN Port>.................................................................................................42
A.5 <LAN LED Port>.........................................................................................43
A.6 <LPC Port>.................................................................................................43
Appendix B <Flash BIOS>...........................................................................44
B.1 <Flash Tool>...............................................................................................44
B.2 <Flash BIOS Procedure> ...........................................................................44
Appendix C <System Resources>..............................................................45
C.1 <I/O Port Address Map>.............................................................................45
C.2 <Memory Address Map>............................................................................47
C.3 <System DMA & IRQ Resources> .............................................................48
Appendix D <Programming GPIO’s> .........................................................49
Appendix E <Programming Watchdog Timer > ........................................50

LE-37A User’s Manual
-5-
(This page is left for blank)

LE-37A User’s Manual
-6-
Chapter 1 <Introduction>
1.1 <Product Overview>
LE-37A the 2nd Generation Intel of the 3.5 inch minboard, supports 2nd Generation Intel
Celeron® Processor 807UE/827E/847E and features Intel HM65 chipset, integrated HD
Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA and Intel Gigabit
LAN.
Intel Sandy Bridge Processor
The 2nd Generation Intel Celeron® Processor 807UE/827E/847E is the next generation
of 64-bit, multi-core mobile processor built on 32- nanometer process technology. Based
on a new micro-architecture.
New features for Intel HM65 chipset
The board integrates Intel HM65 chipset, supports integrated HD Graphics, built-in high
speed mass storage interface of serial ATA, High Definition Audio with 2 channels
surrounding sound.
All in One multimedia solution
Based on Intel HM65 chipset, the board provides high performance onboard graphics,
24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet
the very requirement of the multimedia application.
Flexible Extension Interface
The board provides two PCIE mini card socket.

LE-37A User’s Manual
-7-
1.2 <Product Specification>
General Specification
Form Factor
3.5 inch miniboard
CPU
Intel ® Celeron® Processor 807UE 1.0GHz (LE-37ANB)
Intel® Celeron® Processor 827E 1.4GHz (LE-37AC6)
Intel® Celeron® Processor 847E 1.1GHz (LE-37ABU)
Package type：FCBGA1023
Memory
1 x DDRIII SO-DIMM 1066/1333 MHz up to 4GB
(LE-37ANB)
1 x DDRIII SO-DIMM 1066/1333 MHz up to 8GB
(LE-37AC6 / LE-37ABU)
Support Non-ECC, unbuffered memory only
Chipset
Intel® HM65
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~
255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Serial ATA
2 x serial ATAIII interface with 600MB/s transfer rate
Optional support mSATA(SATAII) for Mini_Card2
Multi-I/O Port
Chipset
Winbond W83627DHG-P
Serial Port
One RS-232/422/485 serial port and one RS-232
USB Port
Six Hi-Speed USB 2.0 ports
with 480Mbps of transfer rate
IrDA Port
One IrDA compliant Infrared interface supports SIR
K/B & Mouse
PS/2 keyboard and mouse port
GPIO
One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
VGA Display Interface
Chipset
Intel® HD Graphics
Display Type
CRT, LCD monitor with analog display, single channel LVDS
Can support MPX-SDVOD/X for Mini_Card1
Connector
External DB15 female connector
Onboard 40-Pin LVDS and 5-Pin inverter connector
Onboard 20-Pin DVI
Ethernet Interface
Controller
1 x Intel® 82579LM Gigabit Ethernet controller
Type
Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector
One External RJ45 connector with LED

LE-37A User’s Manual
-8-
Audio Interface
Chipset
REALTEK ALC888
Interface
Stereo audio Line-out and MIC-in
Connector
Onboard audio connector with pin header
Expansive Interface
PCIE Mini Card
2 x PCIE Mini Card socket
Power and Environment
Power Requirement
DC 9V~24V input with onboard 4-pin connector
Dimension
146 (L) x 101(H) mm
Temperature
Operating within 0 ~ 60℃
Storage within -20 ~ 85℃
Ordering Code
LE-37ANB
Intel® Celeron® Processor 807UE with Onboard VGA, LVDS,
DVI, Giga LAN, USB2.0, HD Audio, SATAIII, SMBUS, LPC,
GPIO, PCIE mini card
LE-37ANBS
Intel® Celeron® Processor 807UE with Onboard VGA, LVDS,
DVI, Giga LAN, USB2.0, HD Audio, SATAIII, SMBUS, LPC,
GPIO, PCIE mini card, mSATA
LE-37AC6
Intel® Celeron® Processor 827E with Onboard VGA, LVDS,
DVI, Giga LAN, USB2.0, HD Audio, SATAIII, SMBUS, LPC,
GPIO, PCIE mini card
LE-37AC6S
Intel® Celeron® Processor 827E with Onboard VGA, LVDS,
DVI, Giga LAN, USB2.0, HD Audio, SATAIII, SMBUS, LPC,
GPIO, PCIE mini card, mSATA
LE-37ABU
Intel® Celeron® Processor 847E with Onboard VGA, LVDS,
DVI, Giga LAN, USB2.0, HD Audio, SATAIII, SMBUS, LPC,
GPIO, PCIE mini card
LE-37ABUS
Intel® Celeron® Processor 847E with Onboard VGA, LVDS,
DVI, Giga LAN, USB2.0, HD Audio, SATAIII, SMBUS, LPC,
GPIO, PCIE mini card, mSATA
The specifications may be different as the actual production.
