Commell LV-667 User manual

LV-667
Mini-ITX Motherboard
User’s Manual
Edition 1.2
2010/01/07

LV-667 User’s Manual
2
Copyright
Copyright 2004 - 2005. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-667 User’s Manual
3
Packing List
Please check the package before you starting setup the system
Hardware:
LV-667 series motherboard x 1
Cable Kit:
40-pin ATA100 IDE flat cable x 1
26-pin slim type floppy cable x 1
Serial ATA ribbon cable x 1
I/O Shield x 1
Other Accessories:
Divers CD (including User’s Manual) x 1
DVI output cable kit (LV-667D only)
SDTV cable (LV-667T only)
YPrPb component cable (LV-667T only)

LV-667 User’s Manual
4
Index
Chapter 1 <Introduction>.....................................................................................7
1.1 <Product Overview>.................................................................................7
1.2 <Product Specification>...........................................................................8

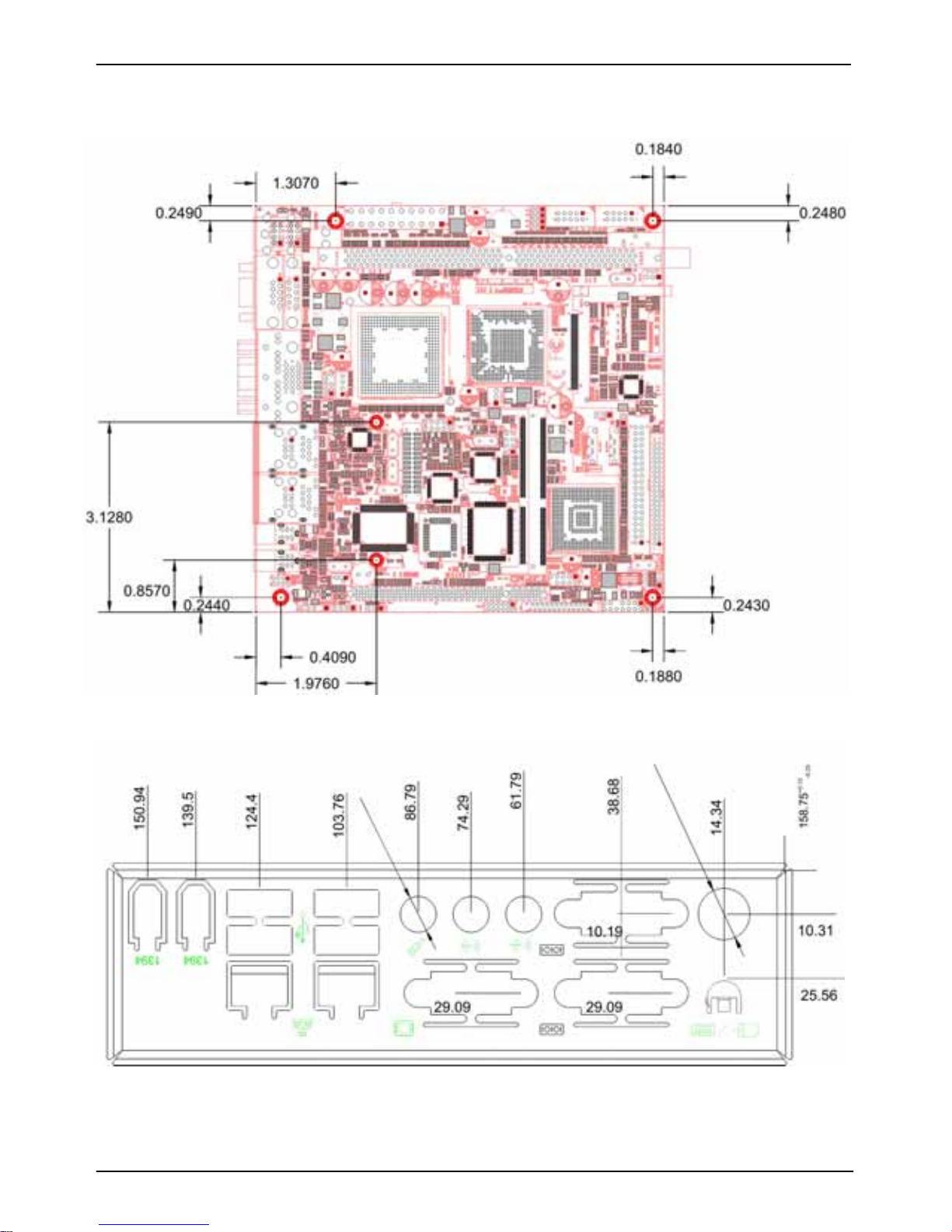

1.3 <Mechanical Drawing>........................................................................... 11
1.4 <Block Diagram>....................................................................................12
Chapter 2 <Hardware Setup>.............................................................................13
2.1 <Connector Location>............................................................................13

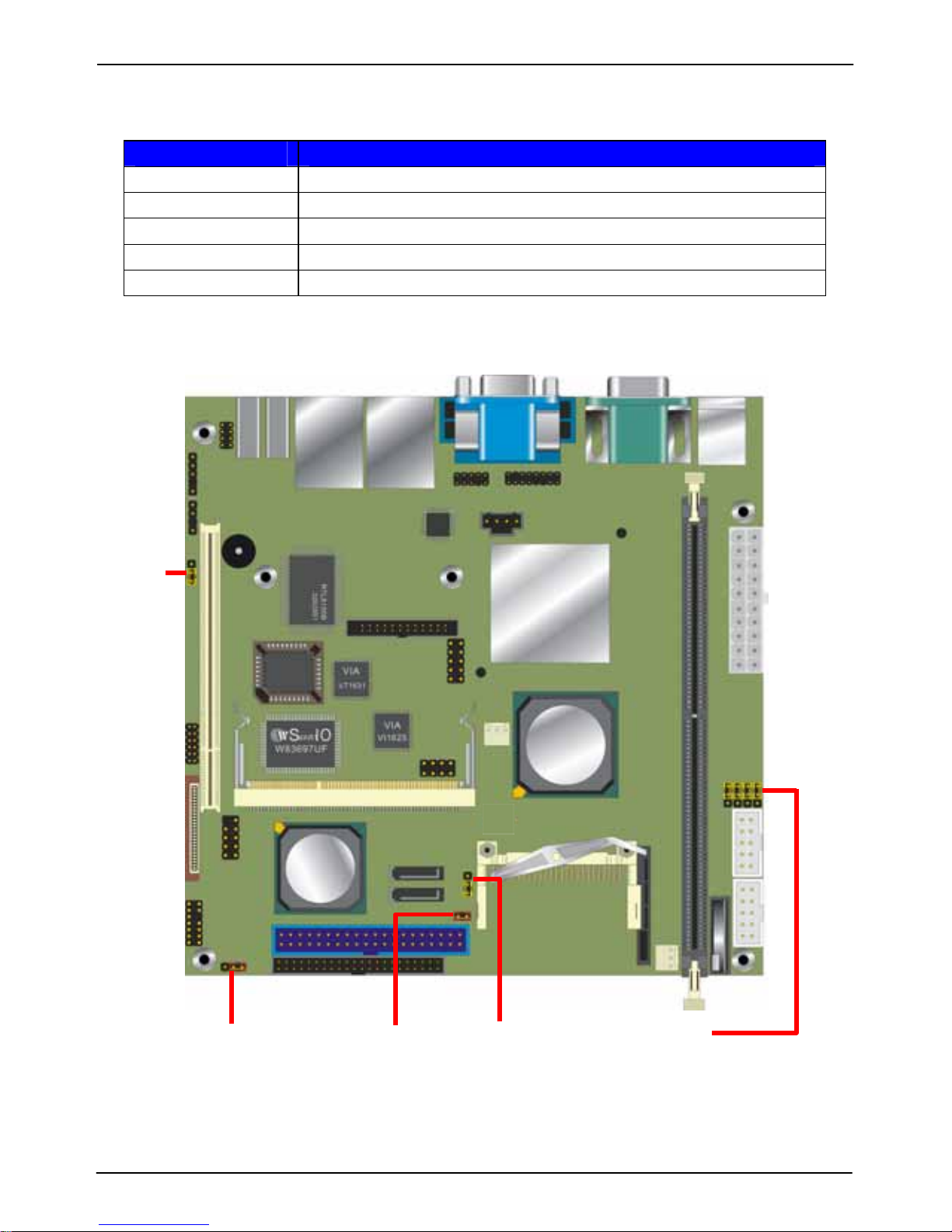

2.2 <Jumper Reference> .............................................................................14
2.3 <Connector Reference>.........................................................................15
2.3.1 <Internal Connector>..................................................................15
2.3.2 <External Connector>.................................................................15
2.4 <CPU and Memory Setup>....................................................................16
2.4.1< CPU>........................................................................................16
2.4.2 <Memory> ..................................................................................16
2.5 <CMOS Setup>......................................................................................17

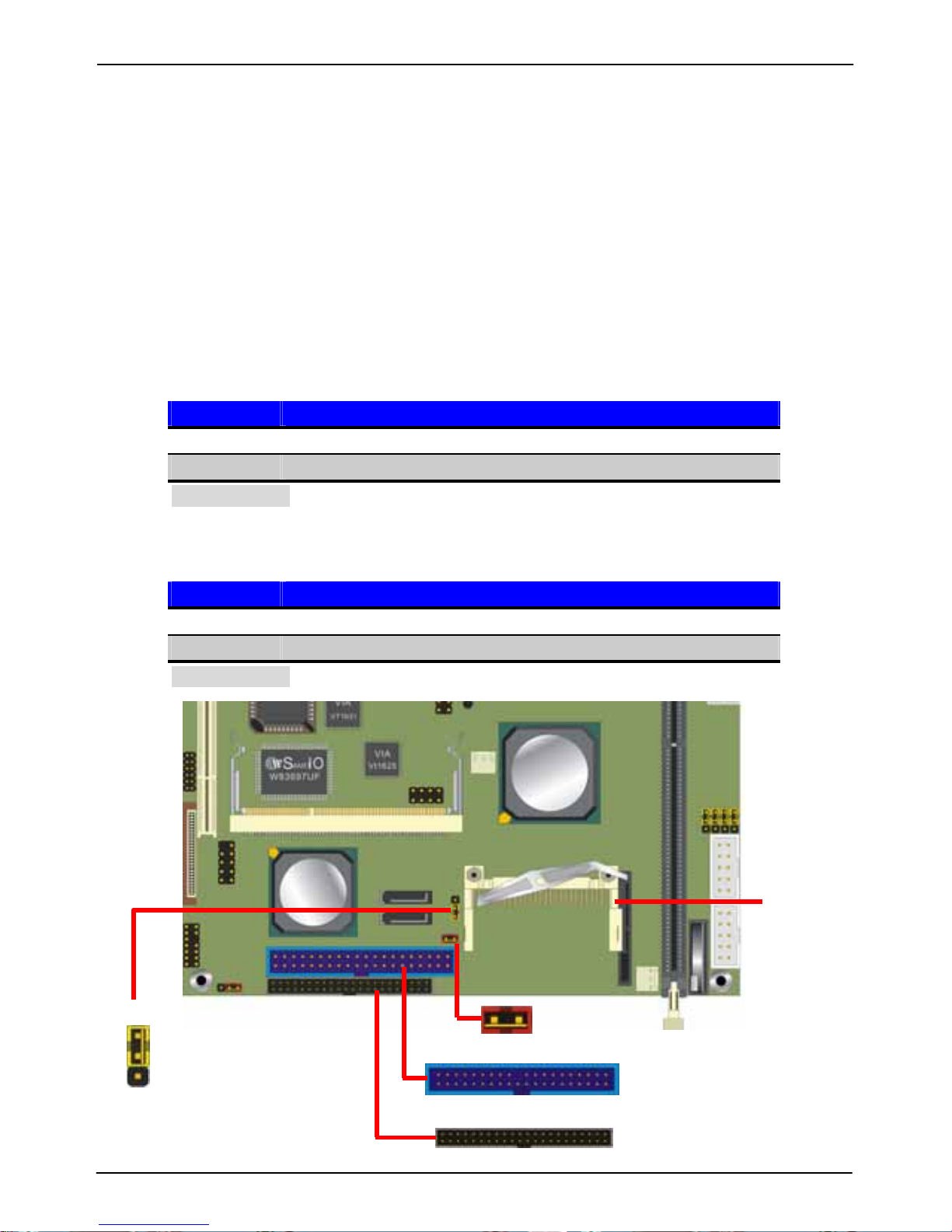

2.6 <Enhanced IDE & CF Interface>............................................................18
2.7 <Serial ATA Interface>...........................................................................19

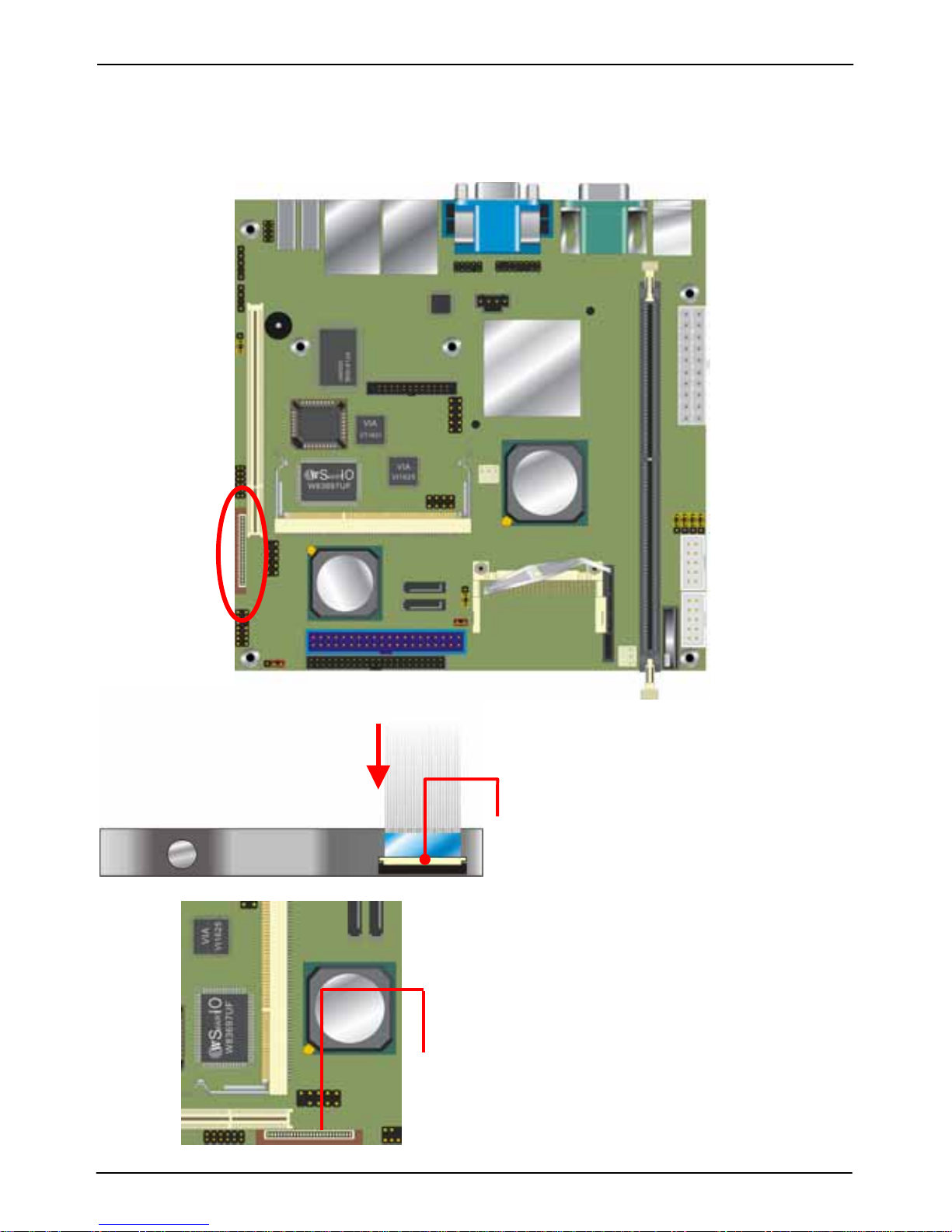

2.8 <Floppy Port>.........................................................................................20
2.9 <LAN Interface>.....................................................................................21
2.10 <Onboard Display Interface>...............................................................22
2.10.1 <Analog VGA Interface> ..........................................................22
2.10.2 <DVI Interface (LV-667D only)>...............................................23
2.10.3<TV-out Interface (LV-667T only)>............................................24
2.11 <Onboard Audio Interface>..................................................................26
2.12 <USB2.0 & IEEE1394 Interface>.........................................................28
2.13 <GPIO Interface>.................................................................................30
2.14 <Serial Port> ........................................................................................31

LV-667 User’s Manual
5
2.15 <Power and Fan Connector>...............................................................32
2.15.1 <Power Input>..........................................................................32
2.15.2 <Fan Connector>......................................................................32
2.16 <Indicator and Switch>.........................................................................33
Chapter 3 <System Configuration>...................................................................35
3.1 <SATA RAID Configuration>..................................................................35
3.2 <Audio Configuration> ...........................................................................37
3.3 <Display Configuration>.........................................................................38
Chapter 4 <BIOS Setup> ....................................................................................41
Appendix A <I/O Port Pin Assignment> ...........................................................43
A.1 <IDE Port>.............................................................................................43
A.2 <Floppy Port> ........................................................................................45
A.3 <IrDA Port>............................................................................................45
A.4 < VGA Port >..........................................................................................46
A.5 <Serial ATA Port>...................................................................................46
A.6 <Serial Port>..........................................................................................46
A.8 <LAN Port>............................................................................................47
A.9 <PS/2 Keyboard & Mouse Port>............................................................47
Appendix B <Flash BIOS>..................................................................................49
B.1 BIOS Auto Flash Tool......................................................................49
B.2 Flash Method...................................................................................49
Appendix C <System Resources> ....................................................................51
C.1 <I/O Port Address Map>........................................................................51
C.2 <Memory Address Map>.......................................................................53
C.3 <System IRQ & DMA Resource>..........................................................54
C.3.1 <IRQ> ........................................................................................54
C.3.2 <DMA>.......................................................................................55
Appendix D <Power Consumption Test>.........................................................57
Contact Information............................................................................................58

LV-667 User’s Manual
6
(The Page is Left For Blank)

LV-667 User’s Manual Introduction
Product Overview 7
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-667 is the Mini-ITX motherboard based on VIA chipset. It integrates the last VIA
embedded chipset for CN400 with VT8237, DDR266/333/400 SDRAM, and serial ATA with
RAID to provide the economical embedded platform.
VIA CN400 & VT8237 Chipset
The board comes with the VIA last embedded chipset of CN400, supports DDR266/333/400
SDRAM, integrated the S3 Graphics UniChrome Pro IGP graphics core, hardware MPEG-2
and MPEG-4 acceleration and HDTV interface.
The VT8237 provides the board to support Ultra V-Link (1GB/s) with CN400, two serial ATA
ports with RAID array function, 6 x USB2.0 ports and 5.1 channelAC97 audio.
Multimedia solution
Based on VIA CN400 chipset, the board provides optional 18/24-bit LVDS, HDTV and DVI
interface, which supports dual independent display with CRT. The board also has an
optional mini-AGP interface to work with AGP 8x graphic card.
Onboard AC97 codec provides the high quality of sound including 20-bit, stereo ADC and
6-channel stereo DACs.
Dual LAN Interface
LV-667 also comes with dual 10/100Mbps LAN interface, support boot-on-LAN and
wake-on-LAN function.
High Speed Hot-plug Interface
Based on VIA VT8237, the board provides 6 USB2.0 interfaces with up to 480Mbps of
transferring rate, 3 IEEE1394a interfaces with up to 400Mbps of transferring rate.
Expanded UCR for remote Operating SETUP Bios Feature
Expanded Universal Console Redirection (UCR) is a feature for monitoring POST
messages and running Setup and an operation system from a remote serial terminal.

LV-667 User’s Manual Introduction
Product Specification
8
1.2 <Product Specification>
General Specification
Form Factor Mini-ITX motherboard
CPU Embedded VIA C3/Eden processor
Ratio: 1.0GHz/800MHz
L1/L2 Cache: 128/64KB
Front side bus: 133MHz
Fanless with Eden 800MHz processor
Optional up to 1.2GHz with 200MHz FSB
Memory 1 x 184-pin DDR 266/333/400 SDRAM up to 1GB
Unbufferred, none-ECC memory supported only
Chipset VIA CN400 and VT8237
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock VIA VT8237 built-in RTC with lithium battery
Enhanced IDE Enhanced IDE interface supports dual channels and up to 4
ATAPI devices at Ultra DMA133
One 40-pin and one 44-pin IDE port onboard
Serial ATA VIA VT8237 integrates 2 Serial ATA interface
RAID 0, 1 array Technology supported
Multi-I/O Port
Chipset VIA VT8237 with Winbond W83697UF controller
Serial Port Two external & two internal RS-232 serial ports
USB Port Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Parallel Port None
Floppy Port One slim type Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Hardware
Monitor Fan speed, CPU temperature and voltage monitoring
VGA Display Interface
Chipset VIA CN400 built-in S3 Graphics UniChrome Pro IGP graphics core
Core Frequency 200MHz
Memory BIOS selectable 16/32/64MB shard with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel

LV-667 User’s Manual Introduction
Product Specification 9
Optional SDTV/HDTV Interface
Codec VIA VT1625
TV system NTSC (M and J) or PAL (B, D, G, H, I, M, N and Nc) TV system
Output Interface Composite, S-Video, Component (YPbPr) and D terminal
Output Format SDTV output mode for 525p or 625p
HDTV support for 1080i (D3) and 720p (D4)
Resolution NTSC - 525i(480i) , 525p(480p) , PAL - 625i(576i) , 625p(576p) ,
HDTV - 1080i , 720p
Optional DVI Interface
Codec VIA VT1632
Standard Compliant with DVI 1.0
Input Clock 25 ~ 165MHz
Resolution Up to 1600 x 1200
Output Interface DVI-D
Ethernet Interface
Chipset VIA VT6103 PHY & REALTEK 8100B
Type 10Base-T / 100Base-TX
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Dual External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset VIA VT1616
Interface 5.1 channel 3D audio with Line-in, Line-out and MIC-in
Connector External Audio phone jack for Line-out/Front, Line-in/Rear and
MIC(stereo)-in/Center
Onboard audio connector with pin header
Onboard CD-IN connector
Onboard 5-pin S/PDIF interface (optional output kit required)
Expansive Interface
Mini-AGP 1 x AGP 8x interface supported (Optional)
PCI 1 x PCI slot supports up to two PCI devices through riser card
IEEE1394 VIA VT6306 controller integrated
IEEE1394a supported
Up to 400Mb/s of transferring rate
Power and Environment
Power
Requirement Standard ATX 20-pin power supply
Dimension 170 (L) x 170 (H) mm
Temperature Operating within 0 ~ 60P
o
PC (32 ~ 140P
o
PF)
Storage within -20 ~ 85P
o
PC (-4 ~ 185P
o
PF)

LV-667 User’s Manual Introduction
Product Specification
10
Software support
Operation
System Windows 98SE/ME, Windows 2000, Windows XP Windows CE 4.0 or later, Windows XP Embedded
Linux (Fedora Core 1, Mandrake 9.2 and Red Hat 9.0)
Ordering Code
LV-667 VIA CN400 with Embedded C3 1.0GHz, VGA, SATA, 5.1CH
Audio, CF, PCI, 4 x RS232, Dual LAN, Mini-AGP
LV-667D VIA CN400 with Embedded C3 1.0GHz, VGA, SATA, 5.1CH
Audio, CF, PCI, 4 x RS232, Dual LAN, DVI
LV-667T VIA CN400 with Embedded C3 1.0GHz, VGA, SATA, 5.1CH
Audio, CF, PCI, 4 x RS232, Dual LAN, HDTV
LV-667E8
(Fanless) VIA CN400 with Embedded Eden ESP8000 processor, VGA, SATA, 5.1CH Audio, CF, PCI, 4 x RS232, Dual LAN, Mini-AGP
LV-667E8D
(Fanless) VIA CN400 with Embedded Eden ESP8000 processor, VGA, SATA, 5.1CH Audio, CF, PCI, 4 x RS232, Dual LAN, DVI
LV-667E8T
(Fanless) VIA CN400 with Embedded Eden ESP8000 processor, VGA, SATA, 5.1CH Audio, CF, PCI, 4 x RS232, Dual LAN, HDTV
MA-ATI AGP 8x graphic card with ATI M10 GPU, 64MB DDR VRAM for
Mini-AGP
MA-1631X 18/24-bit LVDS add-on card for Mini-AGP
1. Please do not order other Mini-AGP modules excluded in the list for this board.
2. The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

LV-667 User’s Manual Introduction
Product Specification 11
1.3 <Mechanical Drawing>
(Measured by Inches)
(Measured by Mini-meter)

LV-667 User’s Manual Introduction
Product Specification
12
1.4 <Block Diagram>
Embedded VIA C3 1.0GHz processo
r
1 x 184-pin
DDR266/333/400
U
p
to 1GB
CRT/LCD Monitor
Optional HDTV
Optional DVI
Optional LVDS
CN400
VT8237
Ultra V-Link
1GB/s
6 x USB2.0 Ports
VT6306
3 x IEEE1394a
PCI
8100B
LAN2
V
T6103 PHY
2 x SATA
AC97 5.1CH Codec
Optional AGP8x
4 x Serial ports
1 x Floppy ports
8-bit GPIO
IrDA
W83782D
Hardware Monitor
BIOS

LV-667 User’s Manual Hardware Setup
Connector Location 13
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
CN_1394 CN_WOL CN_AUDIO CN_VGA CDIN DIMM
ATXPWR
CN_COM3
CN_COM4
CN_I
R
SPDIF
PCI
CN_DVI
CN_HDT
V
CPUFAN
CN_DIO
CN_SDT
V
FDD
CN_USB
MINI_AGP
JFRNT
IDE1 IDE2 CN_SATA1 CN_SATA2 CF SYSFAN
PS2 COM1 USB_RJ45_1 1394_1 1394_2
SPEAKER LINE_IN MIC_IN
COM2 VGA USB_RJ45_2

LV-667 User’s Manual Hardware Setup
Jumper Reference
14
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JDOM IDE1 Pin-20 voltage setting
JLAN LAN2 Enable/Disable setting
JCFSEL Compact Flash address mode setting
JC1/JC2/JC3/JC4 Serial port output voltage setting
JLAN
JRTC JDOM JCFSEL JC4/JC3/JC2/JC1

LV-667 User’s Manual Hardware Setup
Connector Reference 15
2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
DIMM 184-pin DDR SDRAM DIMM Standard
IDE1 40-pin primary IDE connector Standard
IDE2 44-pin secondary IDE connector Standard
FDD 26-pin slim type floppy connector Standard
CN_SATA1/2 7-pin Serial ATA connector Standard
ATXPWR 20-pin power supply connector Standard
CN_AUDIO 5 x 2-pin audio connector Standard
CDIN 4-pin CD-ROM audio input connector LV-667 series
SPDIF Digital audio optical interface Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_USB 5 x 2-pin USB connector Standard
CN_1394 4 x 2-pin IEEE1394 connector Standard
CPUFAN 3-pin CPU cooler fan connector LV-667 series
SYSFAN 3-pin system cooler fan connector Standard
CN_COM3 5 x 2-pin RS232 serial port Standard
CN_COM4 5 x 2-pin RS232 serial port Standard
CN_IR 5-pin IrDA connector Standard
CN_WOL 3-pin wake on LAN connector Standard
CF Compact Flash Type II socket Standard
MINI_AGP AGP 8x interface LV-667/LV-667E8
CN_DVI 13 x 2-pin DVI interface LV-667D/LV-667E8D
CN_HDTV 5 x 2-pin HDTV interface LV-667T/LV-667E8T
CN_SDTV 4 x 2-pin SDTV interface LV-667T/LV-667E8T
JFRNT 14-pin switch/indicator connector Standard
2.3.2 <External Connector>
Connector Function Remark
VGA DB15 VGA connector Standard
USB_RJ45_1/2 Dual USB and RJ45 LAN connector Standard
COM1/2 Serial port connector Standard
PS2 PS/2 Keyboard/Mouse connector Standard
SPEAKER Audio Line-out port Standard
LINE_IN Audio Line-in port Standard
MIC_IN Audio Microphone input port Standard
1394_1/2 IEEE1394 port Standard

LV-667 User’s Manual Hardware Setup
CPU and Memory Setup
16
2.4 <CPU and Memory Setup>
2.4.1< CPU>
The board supports Embedded VIA C3/Eden processor, default ratio is C3 1.0GHz with
CPU cooler fan, Eden ESP8000 (800MHz) with heatsink only.
2.4.2 <Memory>
The board supports one 184-pin DDR266/333/400 SDRAM and up to 1GB of capacity, only
non-ECC, unbuffered memory is supported.
80-pin104-pin
Please check the pin number to match the socket side well
before installing memory module.
DIMM

LV-667 User’s Manual Hardware Setup
CMOS Setup 17

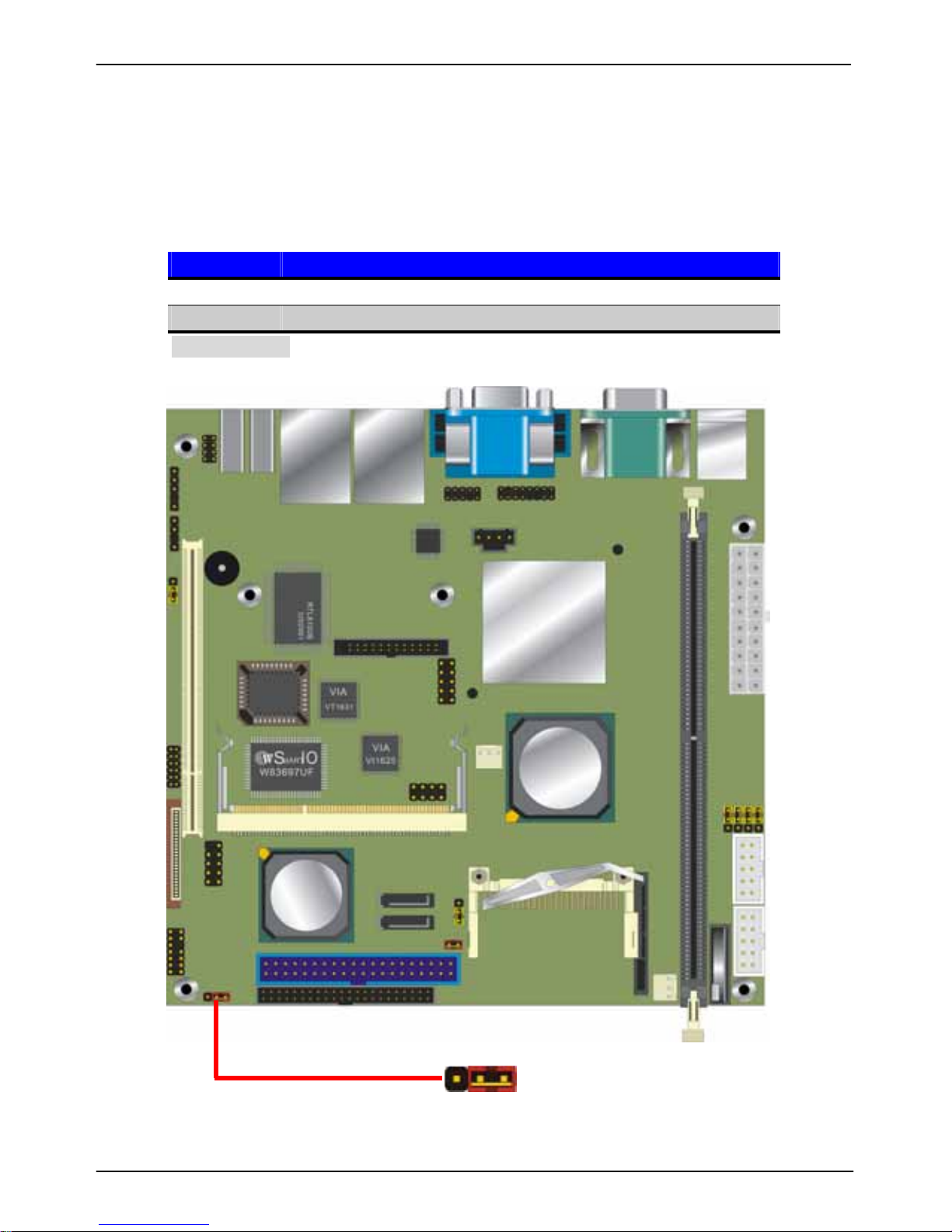

2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
JRTC
1 3

LV-667 User’s Manual Hardware Setup
Enhanced IDE & CF Interface
18
2.6 <Enhanced IDE & CF Interface>
The board supports two enhanced IDE interface, dual channel for 4 ATAPI devices with
ATA133. Based on embedded application, the board has one 40-pin IDE connector with
jumper selectable for pin-20 +5V supported, and one 44-pin IDE connector. The jumper
JDOM is two-pin type for pin-20 supplied with +5V to apply the DOM (Disk on Module).
The board also provides a Compact Flash Type II socket with jumper (JCFSEL) selectable
slave/Master mode on secondary IDE channel.
Jumper: JDOM
Type: onboard 3-pin header
JDOM Mode
ON IDE1 pin-20 5V power supply enable
OFF No 5V power supply on IDE1 pin-20
Default setting
Jumper: JCFSEL
Type: onboard 3-pin header
JCFSEL Mode
1-2 Master
2-3 Slave
Default setting
JDOM
IDE1
1
40
IDE2
1
44
CF
JCFSEL
1
3

LV-667 User’s Manual Hardware Setup
Serial ATA Interface 19
2.7 <Serial ATA Interface>
Based on VIA VT8237 Southbridge, the board supports two Serial ATA interfaces with
RAID 0 and 1 array function. The following is the list of the specification of the Serial ATA.
1. Complies with Serial ATA Specification Revision 1.0
2. Dual Channel master mode PCI
3. On-chip two-channel Serial ATA (S-ATA) PHY for support of up to two S-ATA devices
directly.
4. S-ATA drive transfer rate is capable of up to 150 MB/s per channel (serial speed of 1.5
Gbit/s).
For more information please visit VIA website (www.via.com.tw)
CN_SATA1
CN_SATA2

LV-667 User’s Manual Hardware Setup
Floppy Port
20
2.8 <Floppy Port>
The board provides a slim type floppy port; please use the 26-pin ribbon cable in the
package to connect the floppy device.
FDD
4. Lift up this plastic bar
5. Slot the cable in (Blue paste for outside)
6. Press back the plastic bar
Floppy rear side
1. Lift up the brown plastic bar
2. Slot the cable in (Blue paste for
brown bar side)
3. Press back the plastic bar
