Commell FS-A71 User manual

FS-A71
PICMG1.3 Full-size CPU Card User’s Manual
Edition: 1.2
2014/05/26

FS-A71User’sManual
-1-
Copyright
Copyright 2008. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.

FS-A71User’sManual
-2-
Packing List
Please check package component before you use our products.
Hardware:
FS-A71 PICMG1.3 Full-Size CPU card x 1
Cable Kit:
4-pin to 3-pin ATX cable x 1
(OALATX-C)/ (1040184)
PS/2 Keyboard & Mouse cable x 1
(OALPS2/MKN)/ (1040551)
Floppy flat cable x 1
(OALFD)/ (1040095)
DB25 + DB9 + ATA 100 cable x 1
(FS-A71G-Only)
(OAL1S1PFI/100)/ (1040043)
USB cable x 2
(OALUSBA-1)/ (1040172)
Other Accessories:
Divers CD (Including User’s Manual) x 1
CPU Cooler x 1
(OHS-P-M-3)/ (1190009)
SATA cable x 2
(OALSATA-L)/ (1040142)
DB9*2 + DB25 + ATA 100 cable x 1
(FS-A71G2-Only)
(OAL2S1PFI/100)/ (1040190)
Audio Port cable x 1
(OALPJ-HD)/ (1040120)

FS-A71User’sManual
-3-
Index
Chapter1 <Introduction>............................................................6
1.1 <Product Overview> .....................................................................6
1.2 <Product Specification>.................................................................7
1.3 <Block Diagram>...........................................................................9
1.4 <Mechanical Drawing >...............................................................10
Chapter 2 <Hardware Setup>.................................................11
2.1 <Connector Location>..................................................................11
2.3 <Connector Reference>................................................................13
2.3.1 <Internal Connectors> ..............................................................13
2.3.2 <External Connectors> .............................................................13
2.4 <CPU and Memory Setup>..........................................................14
2.4.1 <CPU installation>...................................................................14
2.4.2 <Memory installation>..............................................................15
2.5 <CMOS Setup>............................................................................16
2.6 <Enhanced IDE Interface>...........................................................17
2.7 <Serial ATA installation> .............................................................18
2.8 <LAN Interface>..........................................................................19
2.9 <Onboard Display Interface>.......................................................20
2.9.1 <Analog Display>....................................................................20
2.9.2 < Digital Display>....................................................................20
2.9.3<TV-out Interface> ...................................................................24
2.10 <Audio Installation>...................................................................26
2.11 <GPIO interface> .......................................................................28
2.12 <USB2.0 Interface>....................................................................29
2.12 <Power and Fan Installation>.....................................................30
2.13 <Serial Port>...............................................................................31
2.14 <Switch and Indicator>..............................................................32

FS-A71User’sManual
-4-
Chapter 3 <System Configuration>.......................................34
3.1 <Audio Configuration>................................................................34
3.2 <Video Memory Setup>...............................................................35
Chapter 4 <BIOS Setup>.........................................................36
Appendix A <I/O Port Pin Assignment>................................38
A.1 <Serial ATA Port>........................................................................38
A.2 <IrDA Port>.................................................................................38
A.3 <VGA Port>.................................................................................38
A.4 <LAN Port>.................................................................................39
A.5 <Floppy Port>..............................................................................39
A.6 <Parallel Port>.............................................................................40
Appedix B <System Resources>...........................................41
Appedix C <Flash BIOS>.........................................................45
C.1 BIOS Auto Flash Tool .......................................................................45
C.2 Flash Method...................................................................................45
Appendix D <Programming GPIO’s>....................................46
Appendix E <Watch Dog timer Setting >..............................47
Contact Information...................................................................48

FS-A71User’sManual
-5-
(This page is left for blank)

FS-A71User’sManual
-6-
Chapter1 <Introduction>
1.1 <Product Overview>
FS-A71 is the Full-size single board computer with last Intel technology with PICMG1.3
form factor. Based on Intel®GME965 and ICH8-M, the board integrates a new Core 2 Duo /
Celeron M Mobile processor 478-pin socket, DDR2 memory socket, Intel®Graphic Media
Accelerator X3100 technology, Serial ATA II for a powerful system.
Intel®Merom dual core Processor
The board supports Intel®Core 2 Duo socket-P processor with 533/667/800MHz front side
bus, 4MB L2 cache, to provide more powerful performance than before.
New features for Intel GME965 chipset
The board integrates Intel®GME965 and ICH8-M chipset, to provide new generation of the
mobile solution, supports Intel®GMA X3100 graphics, DDR2 533/667MHz memory,
Supports Intel®Flex Memory Technology built-in high speed mass storage interface of serial
ATA, High DefinitionAudio with 2 channels surrounding sound.
All in One multimedia solution
Based on Intel®GME965 and ICH8-M chipset, the board provides high performance
onboard graphics,18/24-bit Single/dual channel LVDS interface, HDTV and High Definition
Audio, to meet the very requirement of the multimedia application.
Flexible Extension Interface
The board provides Compact Flash Type II slot, two mini-PCI slot.

FS-A71User’sManual
-7-
1.2 <Product Specification>
General Specification
Form Factor PICMG1.3 Full-size CPU Card
CPU Support Intel®Core 2 Duo / Celeron M Mobile Processor
Package type: Micro-FCPGA478 (Socket-P)
Front side bus: 533/667/800 MHz
Memory 2 x 240-pin DDR2 533/667MHz SDRAM up to 3GB with dual
channel Interleaved mode
Unbufferred, non-ECC memory supported only
Chipset Intel®GME965 (Northbridge) and ICH8M (82801HBM)(Southbridge)
BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock Intel®ICH8-M built-in RTC with lithium battery
Serial ATAII Intel®ICH8-M integrates 3 Serial ATA II interface
Multi-I/O Port
Chipset Intel®82801HBM(ICH8-M) with Winbond® W83627DHG
controller
Serial Port One RS-232 and one RS232/422/485 serial ports
USB Port Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Parallel Port One internal bi-direction parallel port with SPP/ECP/EPP mode
Floppy Port One internal Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse port on bracket
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connector for fan speed controllable
VGA Display Interface
Chipset Intel®GME965 GMA X3100 (Graphic Memory Controller Hub)
Display Type CRT, LCD monitor with analog display, HDTV, LVDS
Frame Buffer Up to 256MB shared with system memory
Connector External DB15 female connector on bracket
Onboard 40-Pin LVDS connector
Onboard 9-Pin TV-out connector

FS-A71User’sManual
-8-
Ethernet Interface
Controller Intel®82573L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connectors with LED on bracket
Audio Interface
Chipset Intel®ICH8-M with Realtek ALC888 HD Audio
Intel High Definition Audio compliance
Interface 2 channels sound output
Connector Onboard Audio connector with pin header
Onboard CD-IN connector
Expansive Interface
Mini PCI Two Mini-PCI socket TYPE III A (32-bit, 33MHz)
Power supply: +3.3V, +5V, 3VSB
PCI-Express One X16 and Four X1 on PICMG 1.3 Interface
PCI Four PCI bus master on PICMG 1.3 Interface
Power and Environment
Power
Requirement +5V, +12V Requirement & optional 5VSB for ATX
Dimension 338 (L) x 126 (H) mm
Temperature Operating within 0 ~ 60℃(32 ~ 140℉)
Storage within -20 ~ 85℃(-4 ~ 185℉)
Ordering Code
FS-A71G Onboard VGA, Gigabit LAN, Mini-PCI, 3 x SATA, HD Audio,
IrDA, USB, Serial port, LPT, GPIO, FDD
FS-A71G2 Same as above and with 2 x Gigabit LAN
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

FS-A71User’sManual
-9-

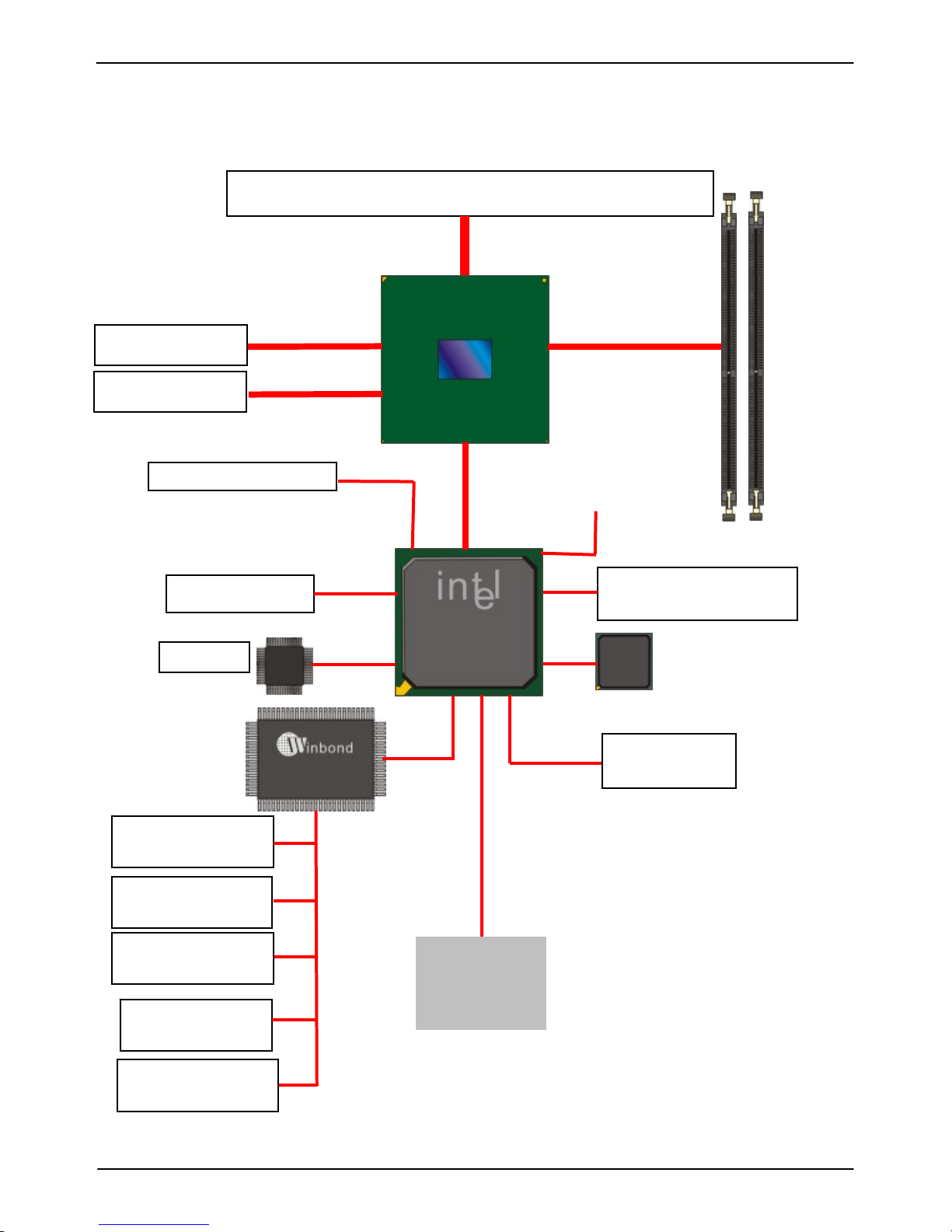

1.3 <Block Diagram>
Intel
®
Mobile Core 2 Duo / Celeron M Processo
r
Intel GME965 2 x 240-pin DDR2
533/667MHz up to
3GB
2 x Mini-PCI
6 x USB2.0
HD Audio ICH8-M
3 x Serial ATAII ports
Intel
®
82573L
2 x GLAN
BIOS
SPI
W83627DHG
2 x Serial ports
8-bit GPIO
1 x Parallel port
1 x Floppy port
1 x IrDA
four x 1 PCI EXPRESS
X16 PCI EXPRESS
4 PCI 33 MHz
LVDS &
HDTV

FS-A71User’sManual
-10-
1.4 <Mechanical Drawing >
Measurement: inch
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘

FS-A71User’sManual
-11-
PS2 RJ45_2 RJ45_1 CRT (FS-A71G2)
PS2 COM1 RJ45_1 CRT (FS-A71G)
Chapter 2 <Hardware Setup>

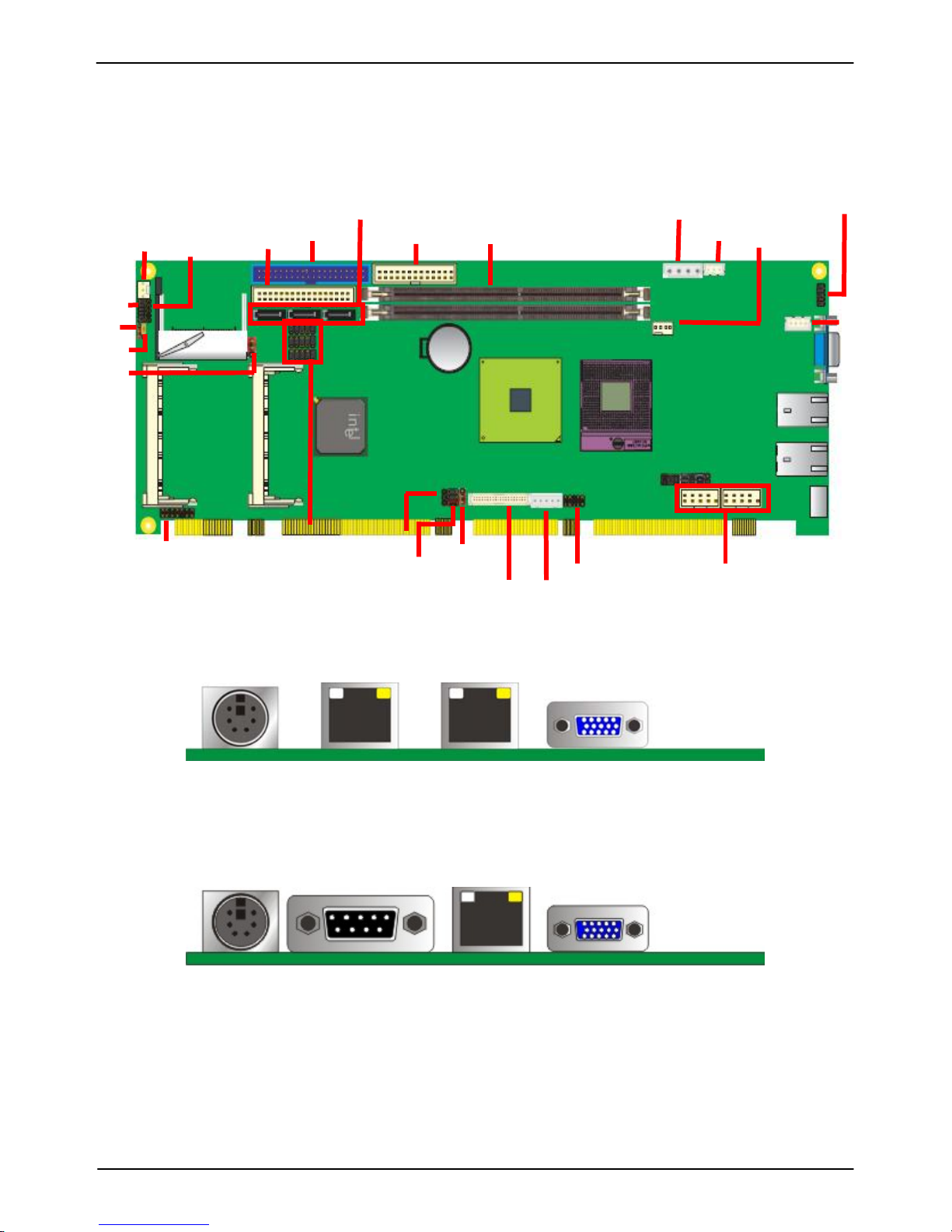

2.1 <Connector Location>
JFRNT
IDE
S_ATA1~3
JVINV
FDD
CN_DIO
DC_IN
JVCF
CN_COM1/2
CDIN
JCFSEL
CN_INV
CN_LPT DDRII_A/B
SYSFAN DC_IR CPUFAN
CN_AUDIO
JRTC
JVLCD
CN_SDVO
CN_HDTV
CN_LVDS
CN_USB1/2/3

FS-A71User’sManual
-12-
JCESEL1/2
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVINV LCD Inverter Voltage Setting
JVLCD LCD Panel Voltage Setting
JVCF CF Voltage Setting
JCSEL1/2 COM2 RS232/422/485 mode setting
JCFSEL CF with IDE mode selection
JRTC

FS-A71User’sManual
-13-
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
DDRIIA/B 240 -pin DDR2 SDRAM DIMM socket Standard
FDD 34-pin floppy connector Standard
CN_LPT 13 x 2-pin LPT connector Standard
SATAII1/2/3 7-pin Serial ATA II connector Standard
CN_AUDIO 5 x 2-pin audio connector Standard
CDIN 4-pin CD-ROM audio input connector Standard
CN_PS 3-pin ATX function connector Standard
DC_IN 4-pin power supply connector Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_USB1/2/3 10-pin USB connector Standard
CPUFAN 4-pin CPU cooler fan connector Standard
SYSFAN 3-pin system cooler fan connector Standard
CN_IR 5-pin IrDA connector Standard
JFRNT 14-pin front panel switch/indicator connector Standard
Mini-PCI 1/2 124-pin Mini-PCI socket Standard
CN_COM1/2 5 x 2-pin com connector Standard
CF Compact Flash TYPE-II socket Standard
CN_HDTV 5 x 2-pin HDTV interface Standard
2.3.2 <External Connectors>
Connector Function Remark
CRT DB15 VGA connector Standard
RJ45_1/2 RJ45 LAN connector Standard
COM DB9 RS232 connector Standard
PS2 PS/2 keyboard and mouse connector Standard

FS-A71User’sManual
-14-
2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
The board comes with the socket478 for Intel®Core 2 Duo/Celeron M socket-P processor
only it supports new generation of Intel®Core 2 Duo/Celeron M socket-P processor with
533/667/800MHz of front side bus and 4MB L2 cache. Please follow the instruction to install
the CPU properly.
1. Use the flat-type
screw drive to unlock
the CPU socket
Unlock wa
y
Check
p
oint
3. Lock the socket
2. Follow the pin direction to install
the processor on the socket

FS-A71User’sManual
-15-
2.4.2 <Memory installation>
FS-A71 has two 240-pin DDR2 DIMM support up to 3GB of memory capacity. The memory
frequency supports 533/667MHz. Only Non-ECC supported unbuffered memory is
supported only. Supports interleaved addressing in dual-channel memory configurations
even when the two channels have unequal amounts of memory populated. This is called
Intel®Flex Memory Technology. Flex memory provides higher performance with different
sized channel populations than “Asymmetric” mode (where no interleaving is used) by
allowing some interleaving.
DDRIIA/B
112-pin128-pin
Please check the pin number to match the socket side well
before installing memory module.

FS-A71User’sManual
-16-
2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin Header.
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
JRTC1
3

FS-A71User’sManual
-17-
2.6 <Enhanced IDE Interface>
The board has one UltraATA100 IDE interface to support up to 2 ATAPI devices, or one
ATAPI device and Compact Flash Type II socket, with jumper JCFSEL for IDE master/slave
mode selection. And provide JVCF jumper to set +3.3V or +5V.
Jumper: JCFSEL
Type: onboard 3-pin header
JCFSEL Mode
1-2 Master
2-3 Slave
Default setting: 2-3
Jumper: JVCF
Type: onboard 3-pin header
JVSSD Mode
1-2 +5V
2-3 +3.3V
Default setting: 1-2
1
3
1
3
1
3
JVCF
JCFSEL

FS-A71User’sManual
-18-
2.7 <Serial ATA installation>
FS-A71 has three Serial ATA II interfaces, the transfer rate of the Serial ATA II can be up to
300MB/s. Please go to http://www.serialata.org/ for more about Serial ATA technology
information. For more about the system setup for Serial ATA, please check the chapter of
SATA configuration.
SATA1~3

FS-A71User’sManual
-19-
2.8 <LAN Interface>
The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance
and Wake-On-LAN supported.
LAN
