Commell LE-37D User manual

1
LE-37D
3.5 inch Motherboard
User’s Manual
Edition 1.6
2015/04/02

2
Copyright
Copyright 2014, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular
purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Packing List:
Please check the package content before you starting using the board.
Hardware:
LE-37D 3.5 inch Miniboard x 1 (include Cooler Fan)
Cable Kit:
SATA Cable x 1
(OALSATA3-L)/(1040529)
COM Port Cable x 1
(OALES-BKU1NB)/ (1040086)

3
Cooler: HeatSink:
(OHSF-5) / (2181010016) (OHS-7) / (2181110009)
Printed Matters:
Driver CD (Including User’s Manual) x 1
1 to 3 power output cable x 1
(OAL4P-2)/ (1040051) SATA Power Cable x 1
(OAL4P-S2)/ (1040054)
DC Power Cable x 1
(OALDC-A)/ (1040433) Audio Cable x 1
(OALPJ-HDUNB)/ (1040123)
PS/2 Keyboard & Mouse Cable x 1
(OALPS2/KM)/ (1040131)
USB2.0 Cable x 1
(OALUSBA-3)/ (1040173)
CRT cable without bracket x 1
(OALVGA-SNB-7)/ (1040557)
LE-37DJIP, LE-37DJX2,
LE-37DEIP, LE-37DEX2
LE-37DNIP, LE-37DNX2

4
Index
Chapter 1 <Introduction> ..............................................................................5
1.1 <Product Overview>.....................................................................................5
1.2 <Product Specification>................................................................................6
1.3 <Mechanical Drawing>.................................................................................8
1.4 <Block Diagram>..........................................................................................9
Chapter 2 <Hardware Setup>......................................................................10
2.1 <Connector Location>................................................................................10
2.2 <Jumper Location & Reference>................................................................10
2.3 <Connector Reference>............................................................................. 11
2.3.1 <Internal Connectors> ................................................................... 11
2.3.2 <External Connectors>.................................................................. 11
2.4 <Memory and CFAST Setup> .................................................................... 11
2.4.1 < Memory Setup > ......................................................................... 11
2.4.2 < CFAST Setup >...........................................................................12
2.5 <CMOS & ATX Setup>...............................................................................13
2.6 <Serial ATA Interface>................................................................................14
2.7 <Ethernet Interface>...................................................................................14
2.8 <Onboard Display Interface>......................................................................14
2.8.1 <External Display>.........................................................................14
2.8.2 <Internal Display>..........................................................................14
2.9 <Integrated Audio Interface>......................................................................19
2.10 <USB Interface>.......................................................................................19
2.11 <Serial Port>.............................................................................................22
2.12 <PCIe Mini Card and SIM Interface>........................................................24
2.12.1 <SIM Setup>................................................................................25
2.13 <GPIO and SMBUS Interface>.................................................................27
2.14 <Power Supply and Fan Interface >.........................................................28
2.14.1 <Power Input>..............................................................................28
2.14.2 <Power Output>...........................................................................28

5
2.14.3 <Fan connector>..........................................................................29
2.15 <Switch and Indicator>.............................................................................30
Chapter 3 <System Setup> .........................................................................30
3.1 <Audio Configuration>................................................................................30
3.2 <Display Properties Setting>......................................................................31
3.3 <SATA configuration>.................................................................................33
Chapter 4 <BIOS Setup> .............................................................................34
Appendix A <I/O Port Pin Assignment>.....................................................35
A.1 <Serial ATA Port>.......................................................................................35
A.2 <LAN Port>................................................................................................35
A.3 <LPC Port>................................................................................................35
Appendix B <Flash BIOS> ..........................................................................36
B.1 <Flash Tool> ..............................................................................................36
B.2 <Flash BIOS Procedure>...........................................................................36
Appendix C <Programming GPIO’s> .........................................................37
Appendix D < Programming Watchdog Timer > .......................................38
Contact Information.....................................................................................39
Chapter 1 <Introduction>
1.1 <Product Overview>
The LE-37D motherboard is design based on Intel® Celeron® Processor J1900 / N2930
and Intel® Atom Processor E3845, delivering outstanding compute, graphical, and
media performance while operating in an extended range of thermal conditions. The
SoC bases on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm
process technology with 3-D Tri-Gate transistors, which deliver significant
improvements in computational performance and energy efficiency.
New features for Intel® Celeron® and Atom Processor
The Intel® Celeron® Processor J1900 / N2930 and Intel® Atom E3845 Processor

6
supports graphics, media performance, flexibility and more enhanced security that is
suitable for a variety of intelligent systems the ideal choice.
Outstanding integration of I/O interfaces
Supports display interfaces with graphics processing, camera interfaces with image
processing, audio with digital signal processing, multiple storage types, and legacy
embedded I/O. Provides interface expansion capabilities through industry-standard
high-bandwidth interfaces such as PCI Express* Gen 2.0, Hi-speed USB 2.0, and USB
3.0 connectivity.
All in One multimedia solution
Based on Intel® J1900 / N2920 /E3845 SoC, the board provides high performance
onboard graphics, CRT, 24-bit dual channel LVDS interface, Display Port, DVI and 2
channels High Definition Audio, to meet the very requirement of the multimedia
application.
Flexible Extension Interface
The board provides two PCIe mini slot and one SIM slot.
1.2 <Product Specification>
General Specification
Form Factor 3.5 inch motherboard
CPU Intel® Processor J1900/N2930/E3845, package type FCBGA1170
Memory 1 x DDR3L (support 1.35V) 1066/1333 SO-DIMM up to 8GB
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power
Management
Supports ACPI 5.0 compliant
Serial ATA(SATA)
Interface
1 x serial ATA interface with 300MB/s(3Gb/s) transfer rate
VGA Interface Intel® Clear Video integrated HD Graphics Technology
DVI Interface Onboard DVI connector.
(DVI and LVDS1 can’t be enabled simultaneously)
Display port
Interface
Onboard Display port connector.
(Display port and LVDS2 can’t be enabled simultaneously)

7
LVDS Interface 2 x Onboard 24-bit dual channel LVDS connector with
+3.3V/+5V/+12V supply
Audio Interface Realtek ALC262 High Definition Audio Codec
LAN Interface 2 x Intel® I210-AT Gigabit LAN
GPIO Interface Onboard programmable 8-bit Digital I/O interface.
Extended
Interface
2 x PCIE Mini card(1 x mSATA option), 1 x SIM socket, 1x CFast
(CFast and mSATA can’t be enabled simultaneously)
Internal I/O Port 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio connector, 1 x
SMBUS connector, 1 x CRT, 2 x LVDS, 1 x LPC, 4 x USB 2.0(XHCI)
and 1 x SATAII
External I/O Port 1 x RS232, 1 x DVI port, 1 x Display port, 2 x RJ45 LAN ports, 1 x
USB 3.0(XHCI)/2.0(EHCI) port, 1 x USB 2.0 ports(EHCI).
Power
Requirement
6~27V full range DC Input
Dimension 146mm x 101mm
Temperature Operating within 0~60 ℃(for LE-37DJ and LE-37DN serial)
Operating within -40~75 ℃(for LE-37DE serial)
Ordering Code
LE-37DJIP Intel Celeron Processor J1900 (2M Cache, 2.42GHz), DVI, Display Port,
CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini
card, SMBUS, GPIO, SIM, LPC, mSATA
,CFast
LE-37DNIP Intel Celeron Processor N2930 (2M Cache, 2.16GHz), DVI, Display Port,
CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini
card, SMBUS, GPIO, SIM, LPC, mSATA, CFast
LE-37DEIP Intel Atom Processor E3845 (2M Cache, 1.91GHz), DVI, Display Port,
CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini
card, SMBUS, GPIO, SIM, LPC, mSATA, CFast
LE-37DJX2 Intel Celeron Processor J1900 (2M Cache, 2.42GHz), 2 x LVDS, CRT,
Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card,
SMBUS, GPIO, SIM, LPC, mSATA, CFast
LE-37DNX2 Intel Celeron Processor N2930 (2M Cache, 2.16GHz), 2 x LVDS, CRT,
Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card,
SMBUS, GPIO, SIM, LPC, mSATA, CFast
LE-37DEX2 Intel Atom Processor E3845 (2M Cache, 1.91GHz), 2 x LVDS, CRT,
Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card,
SMBUS, GPIO, SIM, LPC, mSATA, CFast
The specifications may be different as the actual production.
For further product information please visit the website at http://www.commell.com.tw

8
1.3 <Mechanical Drawing>

9
1.4 <Block Diagram>

10
Chapter 2 <Hardware Setup>

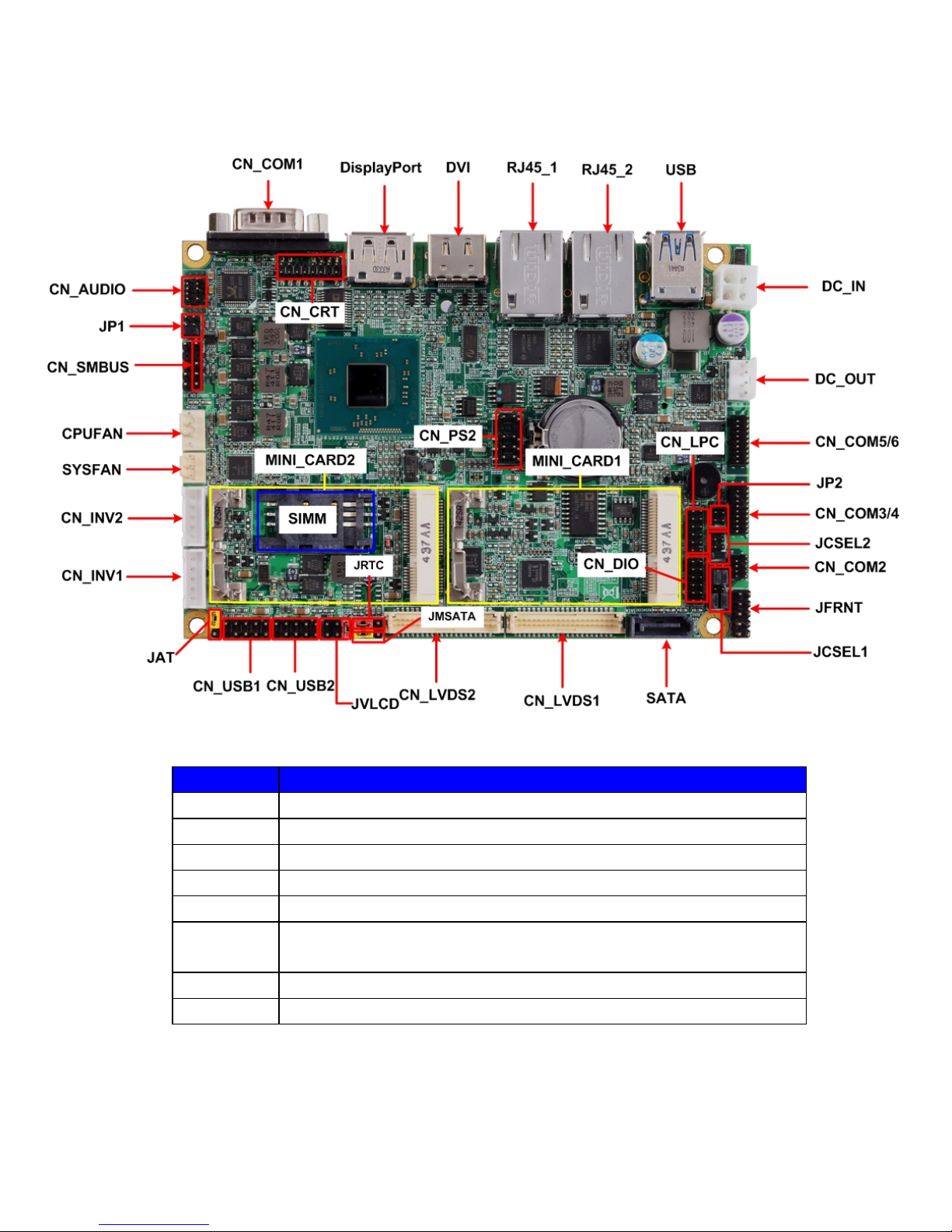

2.1 <Connector Location>
2.2 <Jumper Location & Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting
JAT Power mode select
JP1 Com1 Voltage Setting (For Pin 9)
JP2 Com2 Voltage Setting (For Pin 9)
JCSEL1
JCSEL2 CN_COM2 RS-232 RS422 RS485 Setting
CN_IR Setting
JVUSB1 USB Voltage Setting
JMSATA Mini Card1 mSATA Setting (Mini PCIe)

11
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU FCBGA 1170 CPU
SO-DIMM 204 -pin DDR3L SO-DIMM slot
SATA 7-pin Serial ATA2 connector
DC_IN DC 6~27V input connector
DC_OUT 4-pin DC output connector
CN_AUDIO 5 x 2-pin audio connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB 2/3 5 x 2-pin USB2.0 connector
CN_CRT 8 x 2-pin CRT connector
CN_LVDS1/2 20 x 2-pin LVDS connector
CN_INV1/2 5-pin LCD inverter connector
CN_COM2 9-pin RS232/485/422 connector
CN_COM 3/4 5/6 19-pin RS232 connector
CN_LPC 6 x 2-pin LPC connector
CN_PS2 5 x 2-pin PS2 connector
CN_SMBUS 5-pin SMBUS connector
JFRNT 10-pin front panel switch/indicator connector
Mini-Card1/2 52-pin Mini-PCIe slot
SIMM 6-pin slot
CFAST 7+17-pin connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 4-pin System cooler fan connector
2.3.2 <External Connectors>
Connector Function Remark
COM1 DB9 Serial port connector
DisplayPort 20-pin DisplayPort connector
DVI 19-pin HDMI connector
USB USB 2.0 and USB 3.0 connector
RJ45 1/2 RJ45 LAN connector
2.4 <Memory and CFAST Setup>
2.4.1 < Memory Setup >
The board provide 204-pin DDR3L SO-DIMM to support 1066/1333MHz up to 8GB.

12
Support Non-ECC, unbuffered memory only
2.4.2 < CFAST Setup >
The board provide one CFAST slot which supports SATA2 interface.
The CFAST has the same size with CF card, but it shows higher efficiency and stability
to transmit SATA signal.
SO-DIMM
CFAST plug closeup
Installing the CFAST in the back of the board.
Note that the slot direction and fool-proofing
Installation is complete

13
2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting: 2-3
Jumper: JAT
Type: Onboard 3-pin jumper
JAT Mode
1-2 AT Mode
2-3 ATX Mode
Default setting:2-3

14
2.6 <Serial ATA Interface>
LE-37D has one SATAII interface, the transfer rate of the SATAII can be up to 300MB/s.
2.7 <Ethernet Interface>
The board integrates with two Intel® I210-AT controllers, The Intel Gigabit Ethernet
supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance.
2.8 <Onboard Display Interface>
Based on Intel CPU with built-in HD Graphic, the board provides one DVI (onboard) and
one DisplayPort, two 40-pin LVDS interface with 5-pin LCD backlight inverter connector
and internal 16-pin CRT interface.
The board provides double display function with clone mode and extended desktop
mode for DVI, DisplayPort, CRT and LVDS.
2.8.1 <External Display>
Please connect your monitor which supports DisplayPort and DVI to connect
onboard rear I/O Port.
2.8.2 <Internal Display>
The board provides two 40-pin LVDS connector for 18/24-bit single/dual channel
panels, supports up to 1920 x 1080 resolution, with one LCD backlight inverter
connector and two jumper for panel voltage setting.
Please install LVDS cable before boot up.

15
Effective patterns of connection: 1-2 / 3-4 / 5-6
Warning: others cause damages
Connector: JVLCD (LVDS1 voltage and LVDS2 voltage must be the same)
Type: 6-pin Power select Header
Pin Description
1-2 LCDVCC (3.3V)
3-4 LCDVCC (5V)
5-6 LCDVCC (12V)
Default: 1-2

16
Connector: CN_INV
Type: 5-pin LVDS Power Header
Pin Description
1 +12V
2 PWM
3 GND
4 GND
5 ENABKL
Connector: CN_LVDS
Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40DP-1.25V or compatible
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 LVDS Detect (Note) 3 GND
6 ATX0- 5 BTX0-
8 ATX0+ 7 BTX0+
10 GND 9 GND
12 ATX1- 11 BTX1-
14 ATX1+ 13 BTX1+
16 GND 15 GND
18 ATX2- 17 BTX2-
20 ATX2+ 19 BTX2+
22 GND 21 GND
24 ACLK- 23 BTX3-
26 ACLK+ 25 BTX3+
28 GND 27 GND
30 ATX3- 29 BCLK-
32 ATX3+ 31 BCLK+
34 GND 33 GND
36 DDCPCLK 35 SMBCKL
38 DDCPDATA 37 SMBDATA
40 N/C 39 SPDIFO
Note: The LVDS Detect Pin please contact to the Panel GND.
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, because

17
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.
LCD Installation Guide:
1. Preparing the LE-37D, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
4. To connect all of the devices well.
After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
For sample illustrator only
Panel side Board side

18
Connector: CN_CRT
Connector type: 16-pin header connector (pitch = 2.00mm)
Pin Number Assignment Pin Number Assignment
1 BR 2 BG
3 BB 4 NC
5 -CRTATCH 6 IOGND1
7 IOGND1 8 IOGND1
9 NC 10 -CRTATCH
11 NC 12 5VCDA
13 5HSYNC 14 5VSYNC
15 5VCLK 16 NC
Connector: CN_DVI
Connector type:
E&T 3950-B20C-00R or similar (HIROSE DF13-20DP-1.25V compatible)
Pin Number Assignment Pin Number Assignment
1 +5V 2 +3.3V
3 HPD 4 Ground
5 TMDSTX0N 6 TMDSTX0P
7 Ground 8 TMDSTX1N
9 TMDSTX1P 10 Ground
11 TMDSTX2N 12 TMDSTX2P
13 Ground 14 TMDSTXCN
15 TMDSTXCP 16 Ground
17 DVI_DA 18 DVI_SL
19 AUXN 20 AUXP
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel Single / Dual channel
NO. Output format NO. Output format
1 640 x 480 9 1680 x 1050
2 800 x 600 10 1920 x 1200
3 1024 x 768 11 1440 x 900
4 1280 x 1024 12 1600 x 900
5 1400 x 1050 13 1024 x 768
6 1400 x 1050 14 1280 x 800
7 1680 x 1200 15 1920 x 1080
8 1366 x 768

19
2.9 <Integrated Audio Interface>
The board provides the onboard high definition audio with Realtek ALC262
Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header
Pin Description Pin Description
1 MIC_L 2 Ground
3 MIC_R 4 N/C
5 Speaker_R 6 MIC Detect
7 SENSE 8 N/C
9 Speaker_L 10 Speaker Detect
2.10 <USB Interface>
LE-37D integrates 5 x USB2.0 and 1 x USB3.0.
The specifications of USB3.0 are listed below:
The USB3.0 port need to Install USB 3.0 eXtensible Host Controller Driver and
enable xHCI Mode.
2.10.1 USB 3.0 eXtensible Host Controller Driver install
Step1. Copy the USB 3.0 driver from “Driver CD” to the local hard driver directory.
(Do not run this driver from a USB storage device)
Interface USB3.0
Controller J1900 / N2930 / E3845
Transfer Rate Up to 5Gb/s
Voltage 5V

20
Step2. Configure default BIOS, click Advanced > South Cluster Configuration > USB
Configuration, disable “EHCI Mode”.
Step3. enable “xHCI Mode” and push “F10” to save configuration. Restart your
computer.
Step4. If you enable xHCI Mode , USB 2.0 and USB 3.0 ports can’t use without
drive. We recommend that you connect PS/2 mouse / keyboard installing
USB 3.0 driver.
Step5. Double click the “Setup.exe” from the directory. Click “Next” to continue.
