Commell LE-565 User manual

LE-565
5.25 inch Embedded Miniboard
User’s Manual
Edition 1.0
2006/06/19

LE-565 User’s Manual
2
Copyright
Copyright 2006. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

LE-565 User’s Manual
3

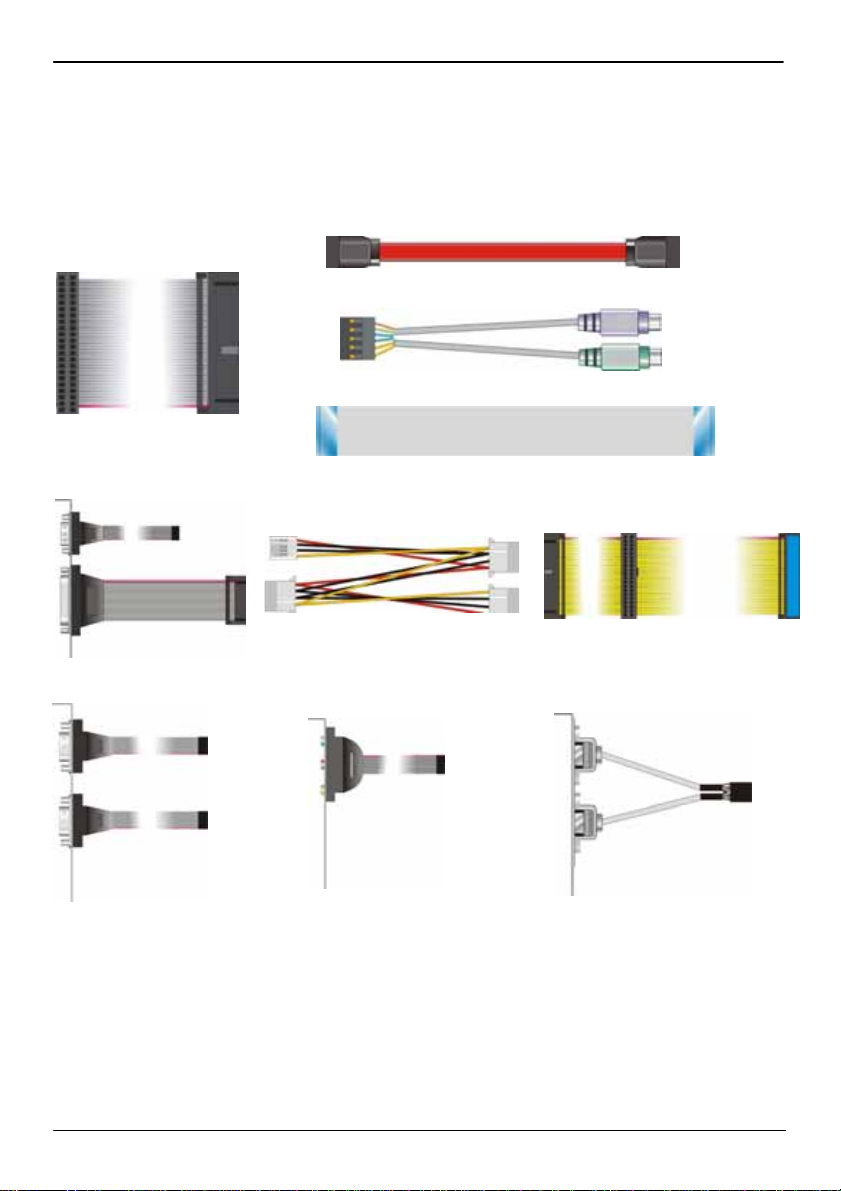

Packing List
Please check the package before you starting setup the system
Hardware:
LE-565 series motherboard x 1
Cable Kit:
Serial ATA Ribbon Cable x 2
44-pin ATA33 IDE Cable x 1 26-pin Slim Type Floppy Cable x 1
Printed Matters:
User’s Manual x 1
Driver CD x 1
COM Port Cable x 1
40-pin ATA100 IDE Cable x 1
Audio Port Cable x 1 USB Cable x 1
Power Cable x 1
COM Port & Printer Port Cable x 1
PS2 Cable x 1

LE-565 User’s Manual
4
Index
Chapter 1 <Introduction>.....................................................................................7
1.1 <Product Overview>.................................................................................7
1.2 <Product Specification>...........................................................................8
1.3 <Mechanical Drawing>....................................................................... …10
1.4 <Block Diagram>....................................................................................11
Chapter 2＜Hardware Setup＞……………………………………………….……..12
2.1 <Connector Location> ......................................................................……12
2.2 <Jumper Reference>………………………………………………………..14
2.3 <Connector Reference>.........................................................................15
2.3.1 <Internal Connector>..................................................................15
2.3.2 <External Connector>.................................................................15
2.4 <CPU and Memory Setup>....................................................................16
2.4.1< CPU>........................................................................................16
2.4.2 <Memory> ..................................................................................16
2.5 <CMOS ATX Setup>..............................................................................17
2.6 <Enhanced IDE & CF Interface>............................................................18
2.7 <Serial ATA Interface>...........................................................................19
2.8 <Floppy Port>.........................................................................................20
2.9 <LAN Interface>.....................................................................................21
2.10 <Onboard Display Interface>……………………………………………...22
2.10.1 <Analog VGA Interface>………….……………………………….22
2.10.2 < Digital Display >…………………………………………...23
2.11 <Onboard Audio Interface>……………………………………….………27
2.12 <USB2.0 Interface>..............................................................................28
2.13 <GPIO Interface>.................................................................................30
2.14 <Serial Port Jumper Setting>...............................................................31
2.15 <Power and Fan Connector>……………………………………………..33

LE-565 User’s Manual
5
2.15.1 <Power Input>..........................................................................33
2.15.2 <Power Output>…………………………………………………….34
2.15.3 <Fan Connector>......................................................................34
2.16 <Indicator and Switch>.........................................................................35
Chapter 3 <System Configuration>...................................................................37
3.1 <SATA RAID Configuration>..................................................................37
3.2 <Audio Configuration> ...........................................................................39
3.3 <Display Configuration>.........................................................................40
Chapter 4 <BIOS Setup> ....................................................................................44
Appendix A <I/O Port Pin Assignment> ...........................................................46
A.1 <IDE Port>.............................................................................................46
A.2 <Floppy Port> ........................................................................................48
A.3 <IrDA Port>............................................................................................48
A.4 < CRT Port >..........................................................................................49
A.5 <Serial ATA Port>..................................................................................49
A.6 <Serial Port>..........................................................................................49
A.7 <LAN Port>............................................................................................50
Appendix B <Flash BIOS>..................................................................................52
B.1BIOS Auto Flash Tool.............................................................................52
B.2Flash Method..........................................................................................52
Contact Information............................................................................................54

LE-565 User’s Manual
6
(The Page is Left For Blank)

LE-565 User’s Manual Introduction
Product Overview
7
Chapter 1 <Introduction>
1.1 <Product Overview>
LE-565 is the 5.25 inch embedded miniboard based on VIA chipset. It integrates VIA
embedded chipset for CN700 with VT8237R Plus, DDR 333/400 SDRAM, and serial ATA
with RAID to provide the economical embedded platform.
VIA CN700 & VT8237R Plus Chipset
The board comes with the VIA embedded chipset of CN700, supports DDR 333/400
SDRAM, integrated the S3 Graphics UniChrome Pro IGP graphics core, hardware MPEG-2
acceleration.
The VT8237R Plus provides the board to support Ultra V-Link (533MB/s) with CN700, two
serial ATA ports with RAID array function, 6 x USB2.0 ports and 5.1 channel AC97 audio.
Multimedia solution
Based on VIA CN700 chipset, the board provides 18/24-bit LVDS interface, which supports
dual independent display with CRT.
Onboard AC97 codec provides the high quality of sound including 5.1-channel stereo
DACs.
Four LAN Interface
LE-565 also comes with four Giga LAN interface, support boot-on-LAN and wake-on-LAN
function.
High Speed Hot-plug Interface
Based on VIA VT8237R Plus the board provides 6 USB2.0 interfaces with up to 480Mbps of
transferring rate.
Expanded UCR for remote Operating SETUP Bios Feature
Expanded Universal Console Redirection (UCR) is a feature for monitoring POST
messages and running Setup and an operation system from a remote serial terminal.

LE-565 User’s Manual Introduction
Product Specification
8
1.2 <Product Specification>
General Specification
Form Factor 5.25 inch miniboard
CPU VIA V4/Eden 1.0GHz processor
L1/L2 Cache: 128/128KB
Front side bus: 400MHz
Memory 1 x 184-pin DDR 333/400 SDRAM up to 1GB,onboard optional
256MB DDR SDRAM
Unbufferred, none-ECC memory supported only
Chipset VIA CN700 and VT8237R Plus
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock VIA VT8237R Plus built-in RTC with lithium battery
Enhanced IDE Enhanced IDE interface supports dual channels and up to 4
ATAPI devices at Ultra DMA133
One 40-pin and one 44-pin IDE port onboard
One Compact Flash Type II socket on solder side
Serial ATA VIA VT8237R Plus integrates 2 Serial ATA interface
RAID 0, 1 array Technology supported
Multi-I/O Port
Chipset VIA VT8237R Plus with Winbond W83697UG controller
Serial Port One external & three internal RS-232 serial ports
USB Port Four external & four internal Hi-Speed USB 2.0 ports with
480Mbps of transfer rate
Parallel Port One 26-pin internal parallel port
Floppy Port One slim type Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse Internal PS/2 keyboard and mouse
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Hardware Monitor Fan speed, CPU temperature and voltage monitoring
VGA Display Interface
Chipset VIA CN700 built-in S3 Graphics UniChrome Pro IGP graphics core
Core Frequency 200MHz
Memory BIOS selectable 16/32/64MB shard with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel
Internal 40-Pin LVDS connector

LE-565 User’s Manual Introduction
Product Specification
9
Ethernet Interface
Chipset REALTEK 8110S-32
Type 10Base-T / 100Base-TX /1000Base-TX
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Four External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset REALTEK ALC655
Interface 5.1 channel surround audio with Line-in, Line-out and MIC-in
Connector Onboard audio connector with pin header
Onboard CD-IN connector
Expansive Interface
PCI 1 x PCI slot supports up to two PCI devices through riser card
Mini PCI 1 x Mini PCI socket
Power and Environment
Power
Requirement DC 12V input with external DC Jack or onboard 4-pin connector
Dimension 146 (L) x 203 (H) mm
Temperature Operating within 0 ~ 60P
o
PC (32 ~ 140P
o
PF)
Storage within -20 ~ 85P
o
PC (-4 ~ 185P
o
PF)
Software support
Operation
System Windows 2000, Windows XP,Windows CE 4.0 or later, Windows XP Embedded Linux (Fedora Core 1, Mandrake 9.2 and Red Hat 9.0)
Ordering Code
LE-565-P VIA V4 Eden 1G With Onboard VGA, AUDIO, Giga LAN, USB2.0,
4 x COM, FDD, LPT, GPIO, LVDS, Mini PCI, SATA
LE-565-256 The same as above and with 256MB DDR SDRAM
SPD-080-12 AC-DC Adapter with 12V, 80W DC Jack output
1. The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

LE-565 User’s Manual Introduction
MechanicalDrawing
10
1.3 <Mechanical Drawing>

LE-565 User’s Manual Introduction
Block Diagram 11

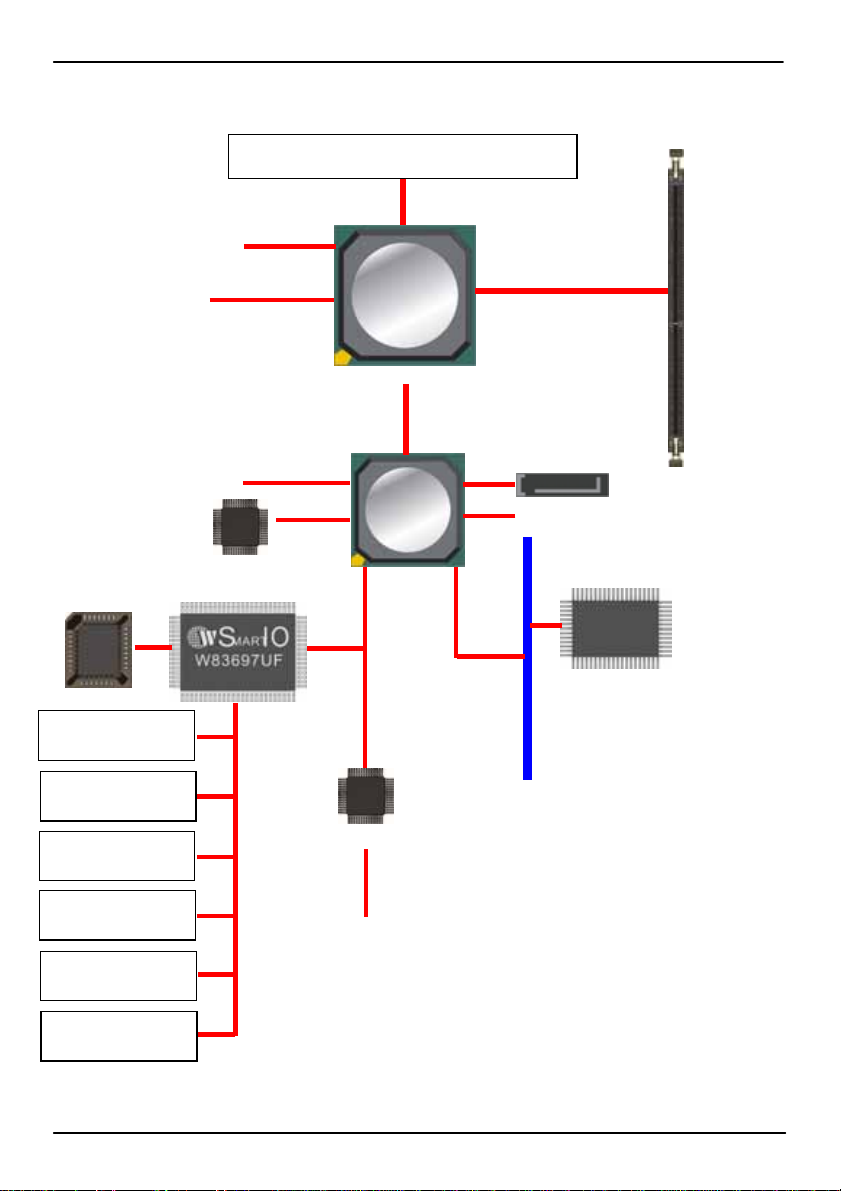

1.4 <Block Diagram>
Eden nanoBGA2
1 x 184-pin
DDR333/400
U
p
to 1GB
CRT/LCD Monitor
VT1636 LVDS
CN700
VT8237R+
Ultra V-Link
533MB/s
6 x USB2.0 Ports
PCI
4 x 8110S-32
LAN1/2/3/4
2 x SATA
AC97 ALC655
4 x Serial ports
1 x Floppy port
8-bit GPIO
IrDA
W83782G
Hardware Monitor
BIOS
2 x IDE
1 x Parallel port
PS/2 , KB/MS

LE-565 User’s Manual Hardware Setup
ConnectorLocation
12
Chapter 2 <Hardware Setup>

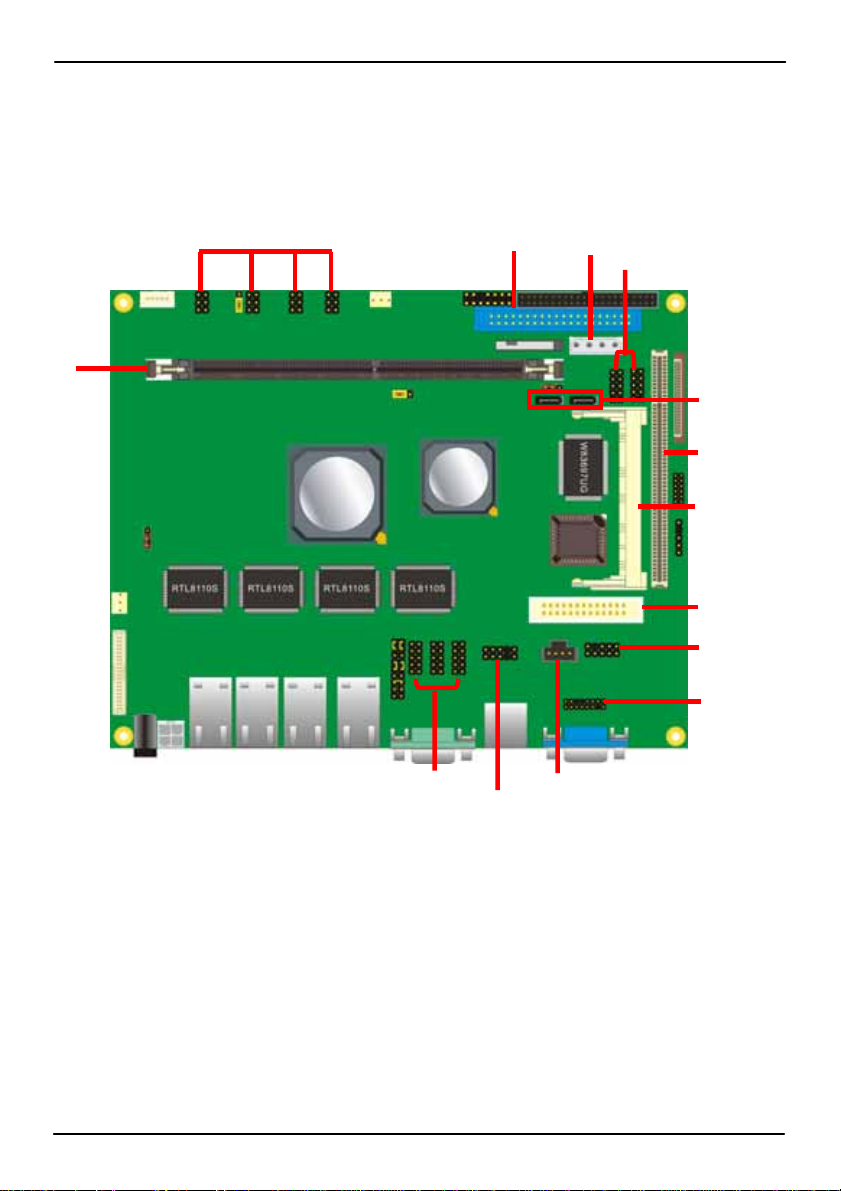

2.1 <Connector Location>
MINIPCI
CN_INV SYSFAN JFRNT IDE2
IDE1
CN_IR
LPT
CPUFAN
CN_LVDS
FDD
PCI
CN
_
DIO
JLED0/1/2/3 CN_PWR
CN_USB2/3
CN_AUDIO
CN_CRT
CN_12V CN_COM2/3/4
CN_PS2
CDIN
DIMM
SATA1/2

LE-565 User’s Manual Hardware Setup
Connector Location 13
DC_IN LAN1/2/3/4 COM1 USB CRT
CF

LE-565 User’s Manual Hardware Setup
Jumper Reference
14
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JCFSEL Compact Flash address mode setting
JVLCD LCD Panel Voltage Setting
JAT AT/ATX mode setting
JCSEL1/2 COM2 RS232/422/485 mode setting
JCFSEL
JVLCD
JRTC
JAT
JCSEL1/2

LE-565 User’s Manual Hardware Setup
Connector Reference 15
2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
DIMM 184-pin DDR SDRAM DIMM Standard
IDE1 40-pin primary IDE connector Standard
IDE2 44-pin secondary IDE connector Slim
FDD 26-pin slim type floppy connector Slim
SATA1/2 7-pin Serial ATA connector Standard
CN_12V 4-pin power supply connector Standard
CN_AUDIO 5 x 2-pin audio connector Standard
CDIN 4-pin CD-ROM audio input connector Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_USB 2/3 5 x 2-pin USB connector Standard
CPUFAN 3-pin CPU cooler fan connector Standard
SYSFAN 3-pin system cooler fan connector Standard
CN_COM2/3/4 5 x 2-pin RS232 serial port Standard
CN_IR 5-pin IrDA connector Standard
CF Compact Flash Type II socket Standard
CN_LVDS 20 x 2-pin LVDS LCD interface Standard
CN_INV 5-pin LCD inverter connector Standard
JLED0/1/2/3 3 x 2-pin LED connector Standard
CN_PWR 4-pin power output connector Standard
PCI Slim 32bit PCI slot Slim
MINIPCI Mini-PCI socket Standard
LPT 13 x 2-pin printer connector Standard
CN_PS2 5 x 2-pin PS2 connector Standard
JFRNT 14-pin switch/indicator connector Standard
2.3.2 <External Connector>
Connector Function Remark
CRT DB15 VGA connector Standard
USB Dual USB 2.0 connector Standard
COM1 DB9 Serial port connector Standard
RJ45_1/2/3/4 Four RJ45 LAN connector Standard
DC_IN DC 12V input jack Standard

LE-565 User’s Manual Hardware Setup
CPU and Memory Setup
16
2.4 <CPU and Memory Setup>
2.4.1< CPU>
The board supports VIA Eden processor, default ratio is Eden 1G (400MHz) with heatsink
only.
2.4.2 <Memory>
The board supports one 184-pin DDR333/400 SDRAM and up to 1GB of capacity, only
non-ECC, unbuffered memory is supported.
80-pin104-pin
Please check the pin number to match the socket side well
before installing memory module.
DIMM

LE-565 User’s Manual Hardware Setup
CMOS ATX Setup 17
2.5 <CMOS ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
Jumper: JAT
Type: Onboard 3-pin jumper
JAT Mode
1-2 AT mode
2-3 ATX mode -default
Default setting
JRTC 1
3
JAT
1
3

LE-565 User’s Manual Hardware Setup
Enhanced IDE&CF Interface
18

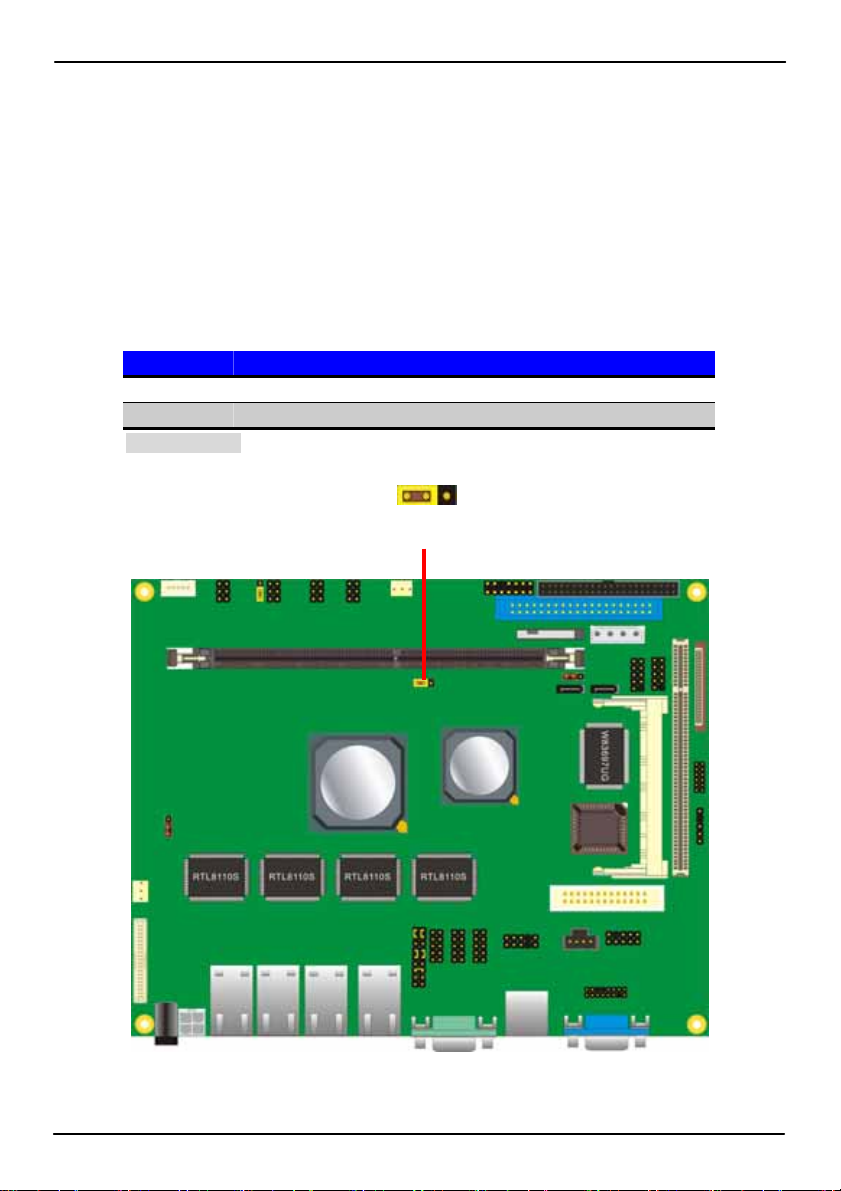

2.6 <Enhanced IDE & CF Interface>
The board supports two enhanced IDE interface, dual channel for 4 ATAPI devices with
ATA33. Based on embedded application, the board has one 44-pin IDE connector +5V
supported for disk on module.
The board also provides a Compact Flash Type II socket with jumper (JCFSEL) selectable
slave/Master mode on secondary IDE channel.
Jumper: JCFSEL
Type: onboard 3-pin header
JCFSEL Mode
1-2 Master
2-3 Slave
Default setting
JCFSEL
1
3

LE-565 User’s Manual Hardware Setup
Serial ATA Interface 19
2.7 <Serial ATA Interface>

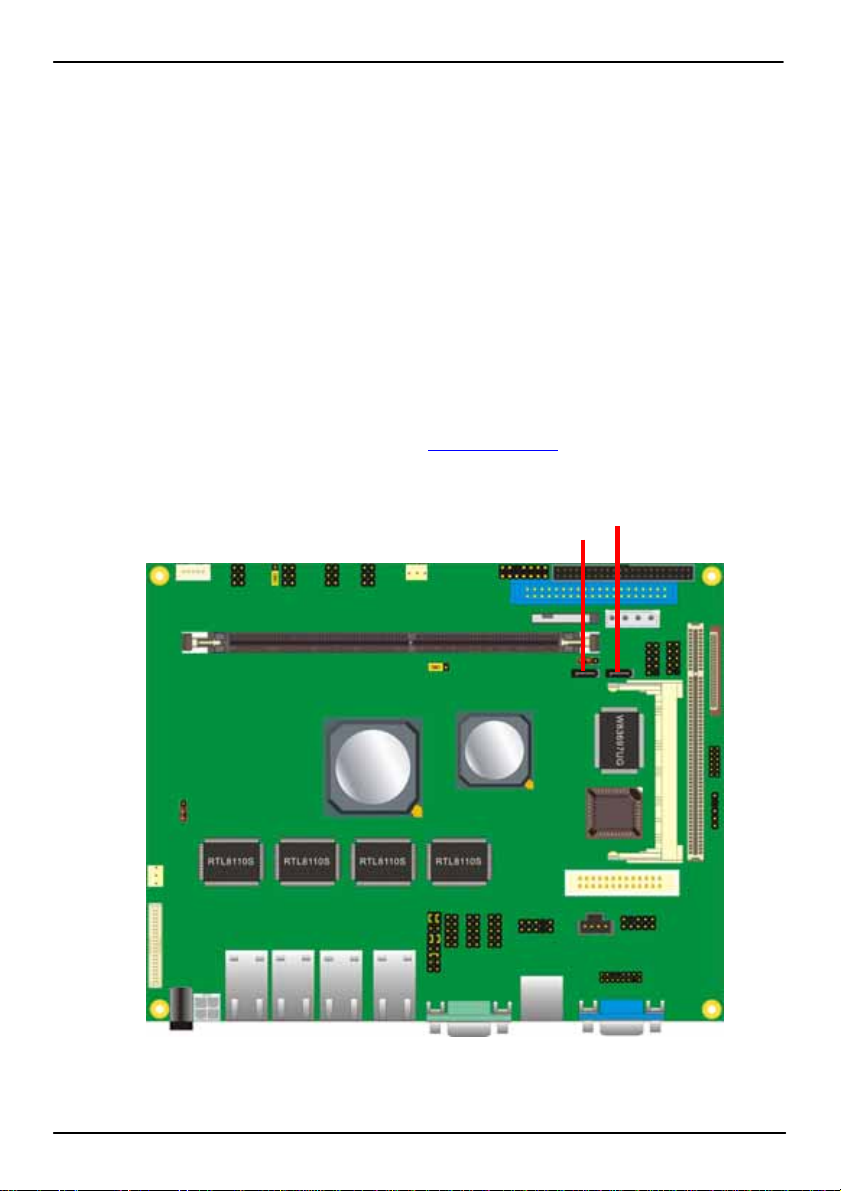

Based on VIA VT8237R Plus Southbridge, the board supports two Serial ATA interfaces
with RAID 0 and 1 array function. The following is the list of the specification of the Serial
ATA.
1. Complies with Serial ATA Specification Revision 1.0
2. Dual Channel master mode PCI
3. On-chip two-channel Serial ATA (S-ATA) PHY for support of up to two S-ATA devices
directly.
4. S-ATA drive transfer rate is capable of up to 150 MB/s per channel (serial speed of 1.5
Gbit/s).
For more information please visit VIA website (www.via.com.tw)
SATA1
SATA2

LE-565 User’s Manual Hardware Setup
Floppy Port
20
2.8 <Floppy Port>
The board provides a slim type floppy port; please use the 26-pin ribbon cable in the
package to connect the floppy device.
FDD
4. Lift up this plastic bar
5. Slot the cable in (Blue paste for outside)
6. Press back the plastic bar
Floppy rear side
1. Lift up the brown plastic bar
2. Slot the cable in (Blue paste for
brown bar side)
3. Press back the plastic bar
