Compac ComTank Master MR Manual

ComTank Installation and Setup Instructions
Version No: 1.0.0
Model: On-tank Master Pump/Dispenser (ComTank)
Date: 12/07/2019

Conditions of Use
Conditions of Use
▪Read this manual completely before working on,
or making adjustments to, the Compac
equipment
▪Compac Industries Limited accepts no liability for
personal injury or property damage resulting
from working on or adjusting the equipment
incorrectly or without authorization.
▪Along with any warnings, instructions, and
procedures in this manual, you should also
observe any other common sense procedures
that are generally applicable to equipment of this
type.
▪Failure to comply with any warnings,
instructions, procedures, or any other common
sense procedures may result in injury, equipment
damage, property damage, or poor performance
of the Compac equipment
▪The major hazard involved with operating the
Compac C5000 processor is electrical shock.
This hazard can be avoided if you adhere to the
procedures in this manual and exercise all due
care.
▪Compac Industries Limited accepts no liability for
direct, indirect, incidental, special, or
consequential damages resulting from failure to
follow any warnings, instructions, and
procedures in this manual, or any other common
sense procedures generally applicable to
equipment of this type. The foregoing limitation
extends to damages to person or property
caused by the Compac C5000 processor, or
damages resulting from the inability to use the
Compac C5000 processor, including loss of
profits, loss of products, loss of power supply,
the cost of arranging an alternative power
supply, and loss of time, whether incurred by the
user or their employees, the installer, the
commissioner, a service technician, or any third
party.
▪Compac Industries Limited reserves the right to
change the specifications of its products or the
information in this manual without necessarily
notifying its users.
▪Variations in installation and operating conditions
may affect the Compac C5000 processor's
performance. Compac Industries Limited has no
control over each installation's unique operating
environment. Hence, Compac Industries Limited
makes no representations or warranties concerning
the performance of the Compac C5000 processor
under the actual operating conditions prevailing at
the installation. A technical expert of your choosing
should validate all operating parameters for each
application.
▪Compac Industries Limited has made every effort to
explain all servicing procedures, warnings, and
safety precautions as clearly and completely as
possible. However, due to the range of operating
environments, it is not possible to anticipate every
issue that may arise. This manual is intended to
provide general guidance. For specific guidance and
technical support, contact your authorised Compac
supplier, using the contact details in the Product
Identification section.
▪Only parts supplied by or approved by Compac may
be used and no unauthorised modifications to the
hardware of software may be made. The use of non-
approved parts or modifications will void all
warranties and approvals. The use of non-approved
parts or modifications may also constitute a safety
hazard.
▪Information in this manual shall not be deemed a
warranty, representation, or guarantee. For warranty
provisions applicable to the Compac C5000
processor, please refer to the warranty provided by
the supplier.
▪Unless otherwise noted, references to brand names,
product names, or trademarks constitute the
intellectual property of the owner thereof. Subject to
your right to use the Compac C5000 processor,
Compac does not convey any right, title, or interest
in its intellectual property, including and without
limitation, its patents, copyrights, and know-how.
▪Every effort has been made to ensure the accuracy
of this document. However, it may contain technical
inaccuracies or typographical errors. Compac
Industries Limited assumes no responsibility for and
disclaims all liability of such inaccuracies, errors, or
omissions in this publication.

Product Identification
Product Identification
Specifications
Models Covered
This manual applies to Comtank Master dispensers
NOTE: Do not use this manual for earlier models. Contact
Compac for archived manuals if required.
Validity
Compac Industries Limited reserves the right to revise or change product specifications at any
time. This publication describes the state of the product at the time of publication and may not
reflect the product at all times in the past or in the future.
Manufactured By:
The Compac Comtank Master Dispenser is designed and manufactured by Compac Industries
Limited.
52 Walls Road, Penrose, Auckland 1061, New Zealand
P.O. Box 12-417, Penrose, Auckland 1641, New Zealand
Phone: + 64 9 579 2094
Fax: + 64 9 579 0635
Email: [email protected]
www.compac.biz
Copyright ©2015 Compac Industries Limited, All Rights Reserved

Document Control
Document Control
Document Information
Manual Title
On-Tank Master Installation Manual
Current Revision Author(s)
S Laycock
Original Publication Date
12th July 2019
Authorised By
W Zheng
Revision History
Version
Date
Author(s)
Revision Notes
1.0.0
12/07/19
S Laycock
New manual

Contents
Contents
Product Identification.......................................................................................... 1
Footprints............................................................................................................. 2
Remote Display .....................................................................................................2
Remote Nozzle.......................................................................................................3
Safety ................................................................................................................... 4
Static Electricity Precautions ...............................................................................4
Pre-Installation Check ..........................................................................................4
Installation ........................................................................................................... 5
Connecting the Comtank ......................................................................................5
Installing the Sim Card .........................................................................................6
Configuring Slave Displays...................................................................................6
Software............................................................................................................... 8
System...................................................................................................................8
Pumps....................................................................................................................8
Cards and Card Users ...........................................................................................9
Meters..................................................................................................................10
Tanks ...................................................................................................................10
Software Setup .................................................................................................. 11
Setup Instructions...............................................................................................11
CompacOnsite.................................................................................................... 14
Users....................................................................................................................15
Technician Options .............................................................................................15
Administrator Options.........................................................................................22
Standard User Options ........................................................................................24
Events ..................................................................................................................25
Error Codes......................................................................................................... 29
Installation Checklist......................................................................................... 30

1.
Product Identification
Product Identification
Ensure you are using the correct installation instructions and footprint drawing before commencing
site work or installation.
The identification plate is fastened to the bottom of the right-hand side panel when facing the front
of the dispenser.
The model number is on the first line of the identification plate.
Understanding the model number:
The model number for Master dispensers is split into: Chassis style, hose configuration, pump or
dispenser and specific application.
Use the table below to help identify the unit.
Style
L/min per hose
Pump style
Options
MR = single hose
MR400 = one hose @
400 l/min
P = pump*
Blank = Standard
MMR = multi
hose
MMR400 = two hoses @
400 l/min
S = dispenser*
Avi = Aviation
MMR400-80 = side A
400, side B 80
Marine = Marine
*Pumps have internal pumps, dispensers use remote pumps.
EXAMPLE: MMR 400-160S is a two-hose unit. Hose side A is 400 l/min, side B is 160 l/min with
external pumps.
NOTE: Marine and aviation models have stainless steel pipework and stainless-steel chassis.
NOTE: Make sure you use the footprint that relates exactly to your model.

2.
Footprints
Footprints

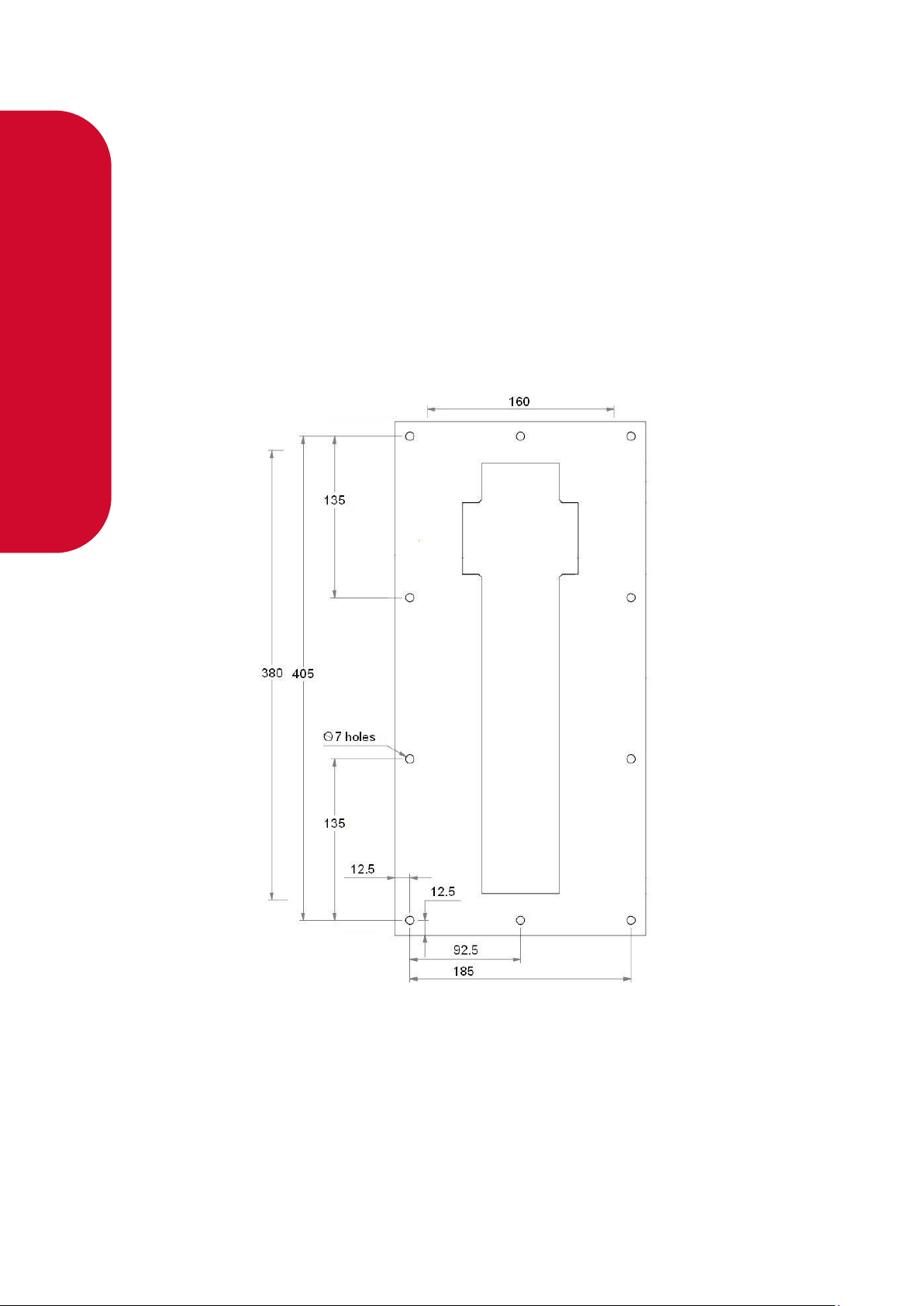

Remote Display
The display for each pump must be mounted on a flat steel plate with cutout and fastener holes
as per the drawing below. Use the supplied gasket to ensure no water can get behind the
display.
Adequate clearance is required behind the display to access fasteners and wiring. A suggested
minimum is 500 mm.
For installation, the unit is supplied with:
▪12x M6 x 19(O/D) stainless steel flat washers
▪12x M6 stainless steel spring washers
▪12x M6 stainless steel nuts

3.
Footprints
Remote Nozzle
The nozzle holders are attached to a mounting plate which should be mounted on a flat steel plate
with cutout and fastener holes as per the drawing below.
Adequate clearance is required behind the nozzle holder to access fasteners and wiring. A
suggested minimum is 500 mm.
M6 stainless steel fasteners are recommended.
The nozzle switch lead plugs into the cable from the pump.

4.
Safety
Safety
Static Electricity Precautions
Electronic components used are sensitive to static. Please take anti-static precautions.
An anti-static wrist strap should be worn and connected correctly when working on any
electronic equipment. If an anti-static wrist strap is unavailable, or in an emergency, hold onto
an earthed part of the pump/dispenser frame whilst working on the equipment. This is not a
recommended alternative to wearing an anti-static wrist strap.
NOTE: Compac Industries Limited reserves the right to refuse to accept any circuit boards
returned, if proper anti-static precautions have not been taken.
Pre-Installation Check
Once the unit is received on site, check that no damage has occurred while in transit –in
particular, damage to electronics due to vibration or jarring. All terminals and plugs should be
checked, including IC chips, to ensure they are securely in place.

5.
Installation
Installation
Comtank units are designed to be attached to existing pumps and dispensers. Before installing a
Comtank, a pump or dispenser must be already installed and working correctly. To install the
relevant pump or dispenser, refer to their respective installation manuals, which will have been
provided with the unit, or are otherwise available on the Compac website in the Resources
section:
https://www.compac.biz/resources/c/48#listingResources
When installing pumps and dispensers, the setup section can be ignored as set up can be done
from the Comtank unit once connected.
Connecting the Comtank
Once the pump or dispenser has been installed, mount the Comtank as directed in the Footprints
section (see page 2.) The Comtank can be connected to the pump/dispenser with a supplied 5
metre cable that runs between the PIN pad board of the Comtank and the K-Factor board of the
pump/dispenser. Connect the cable to the bus in port on the PIN pad board and the bus out cable
on the K-Factor board as shown:
K-Factor board on pump/dispenser
PIN Pad board on Comtank

6.
Installation
Installing the Sim Card
When installing the Comtank, the supplied sim card must be installed into the modem to access
Compac Onsite. The modem will need to be removed to install this. The modem is generally
housed in a plastic enclosure on the back left side of the pump/dispenser unit.
As shown, there is a small plastic panel on the back of the modem. This can be removed. The
supplied sim card should be installed under this panel. The panel and modem should then be
replaced.
Configuring Slave Displays
Slave displays, which are commonly present on the back of units or on remote displays, can be
configured to display side A, side B, a clone of the main display, or can be disabled. To configure
the slave display, the address must be set with the dipswitches on the slave circuit board. This
address must then be entered into the unit software with the corresponding setting (disabled,
clone, side A or side B.)
The address of the slave display must be set with the dipswitches on the slave board. Set the
address of the slave display as follows:
Switch 3
Switch 2
Address
0
0
1
1
0
2
0
1
3
1
1
4
NOTE: Switch 1 is currently unused.
The address then corresponds to a digit in the Parameter d setting. To change this setting, depress
the Parameter switch until the d setting menu appears:
Back of modem
Remove this panel

7.
Installation
Each digit corresponds to the address set on the slave display. In this example, the first digit 0
corresponds to the slave display set to address 1. The second digit 3corresponds to the slave
display set to address 2, and so on. Each display can be set to 0-3, depending on the desired
setting:
•0 –Disabled
•1 –Side A
•2 –Side B
•3 –Clone
Therefore, in this example, the slave display set to address 2 is showing a clone of the main
display. The slave display set to address 3 is showing side B. Slave displays set to address 1
and address 4 are disabled.
d 0320

8.
Software
Software
This section details what options are available for the unit and what each setting means. Some
settings may not be available for each specific unit.
System
Card Records
Before cards can be added, card records need to be set up from the unit. When setting up card
records, a PAN length, BIN range, and access number can be specified. These are encoded onto
the card and can be used to restrict access to the pumps. PAN length is the number of digits
that make up the BIN number and card number. The BIN range gives access to a range of cards
that have similar BIN numbers. BIN numbers are always 6 digits long. To make this into a BIN
range, two numbers must be added. For example, if a card had the following card number:
7824331000132017
The card is 16 digits long, therefore the PAN length is 16.
The BIN number is 782433. To allow all cards with the same BIN number access:
BIN low should be set to 78243300.
BIN high should be set to 78243399.
This would allow all cards with a BIN number of 782433 access. The Access number is used to
further restrict cards. This is a 5-digit number and will be encoded onto the cards. 0 should be
entered into the Access field if the card does not have an access number. Once the card records
are set up, specific cards can be entered into the system using PAN numbers.
If a card is hotlisted, it will be accepted even if the card PAN number has not been entered.
Otherwise, the card’s individual PAN number will have to be entered as a card. Prompts are an
optional setting which may be chosen when setting card records. The prompts that are selected
when entering a card will appear when that card is swiped; for example, if odometer is selected,
the card holder will have to enter an odometer number to access the fuel pump. Cards can be
enabled or disabled.
Passcode
For security, the unit has a passcode. This can be used to access settings from the unit. For
extra security, if the settings are accessed with the passcode, some options are not able to be
changed, such as the K-Factor setting. These must be accessed by pressing the K-Factor
switch.
The unit supports three different authorisation modes: PIN, HID or Cardreader. The system can
be set up from either CompacOnsite or from the unit itself.
Pumps
The Comtank supports two configurations, single and dual, enabling two pumps to be used
simultaneously if one card is used. These pumps are assigned a side so that they may be
individually customised. Each side must be numbered between 1-99.

9.
Software
NOTE: Entering a pump number 0 will disable the pump.
Individual settings for each pump include the fuel product used, which has a name and product
code, and the meter used at each pump. The unit supports encoder meters (max frequency
3.5Khz) or V50 meters. The K-Factor, used to calibrate fuel flow, can also be set for each pump.
The state of the pumps can be either operational or locked, which may be desired if the pump is
not operating normally. Pumps have two solenoids for product flow. If the solenoids are
unavailable, the pump preset should also be unavailable. Solenoid delay, the amount of time it
takes the solenoids to turn on after lifting the nozzle, can be customised for each side. Auto
authorisation can be enabled for a pump, allowing the pump to be authorised without lifting up
the nozzle.
Preset Cut-off and Rounding
Preset cut off is used to deliver an accurate amount of fuel. When dispensing fuel, two solenoids
are used for fuel flow. When the dispensed amount of product reaches the preset cut off, one
solenoid is turned off to slow delivery rate and dispense an accurate volume of product.
A two-digit number can be assigned to determine the preset rounding in litres. The first digit
determines how the preset is rounded down, and the second digit determines how the preset is
rounded up. For example, if Preset Rounding is set to 89 and the preset is 40;
40.08 is within .08 of 40 and would therefore be rounded down to 40.
39.91 is within .09 of 40 and would therefore be rounded up to 40.
Flow Range
A flow range is needed for each pump to dispense an accurate amount of product. If too much
or too little fuel is dispensed, the meter cannot accurately measure the dispensed fuel and
therefore should cut off and display an end of sale message. The flow range will vary for
different products. Flow low should be the lower value of the flow range, while Flow high is the
highest possible flow.
NOTE: Flow range is optional. The default value is 0.
A flow timeout can be set, which cuts off the motor after the set amount of time. The default is
000, which is 20 seconds.
Unit Price and End of Sale
The unit price is the price per litre of fuel dispensed. For this unit, it is displayed in the Card
Totals window.
End of sale indicators show why the motor stopped during the last sale.
Cards and Card Users
Card numbers must be added for a card to be valid. Card or HID numbers can be added. These
numbers should correlate to the earlier card setup done in the system section.

10.
Software
Cards can also have User IDs, which are optional prompts for cards. If a User ID is asked for the
customer dispensing fuel will have to enter a valid User ID. If a user ID is not required, and
instead the retailer wants a different prompt (such as Fleet number) user ID can be configured to
ask for different prompts.
Meters
The unit supports encoder or V50 Modbus meters. The encoder meters can be single, dual or
triple channel. Single channel encoders measure the fuel dispensed. Dual channel encoders do
this as well as determine the rotation of the meter (and therefore the direction of fuel flow).
Triple channel meters can determine if the meter is correctly connected and functioning.
K-Factor
The K-Factor is used to calibrate product flow. It is a ratio of litres dispensed per revolution of
the meter. The K-Factor may need to be calibrated after periods of time. To calibrate the pump,
dispense fuel into a certified measuring container and compare the display value with the one
dispensed.
Example:
Display shows 10.00 True volume 20.00
To calculate the correct K-Factor from the information above; firstly record the existing K-Factor.
𝑁𝑒𝑤 𝐾 𝐹𝑎𝑐𝑡𝑜𝑟 = 𝐸𝑥𝑖𝑠𝑡𝑖𝑛𝑔 𝐾 𝐹𝑎𝑐𝑡𝑜𝑟 ∗ 𝐷𝑖𝑠𝑝𝑒𝑛𝑠𝑒𝑑 𝐴𝑚𝑜𝑢𝑛𝑡
𝐷𝑖𝑠𝑝𝑙𝑎𝑦𝑒𝑑 𝐴𝑚𝑜𝑢𝑛𝑡
= 𝐸𝑥𝑖𝑠𝑡𝑖𝑛𝑔 𝐾 𝐹𝑎𝑐𝑡𝑜𝑟 ∗ 20
10
= 𝐸𝑥𝑖𝑠𝑡𝑖𝑛𝑔 𝐾 𝐹𝑎𝑐𝑡𝑜𝑟 ∗ 2
Unique ID is for a V50 meter only.
Once the K-Factor has been determined, refer to Setup Instructions (see page 11) for
instructions on how the change the K-Factor,
Tanks
Tanks can be set up with their corresponding product, number and capacity.
Tank Gauging
Tank gauging is used to determine how much fuel is left in a tank. The Comtank supports four
tank gauges; Veeder-Root, Fafnir, Vega and Virtual. To accurately gauge the volume of fuel, the
tank number, safe fill level and capacity are required. These depend on the tanks onsite. If a
Vega electronic dipstick is used, please note that more information will be required; the position
of the probe in the tank is needed. A Tank Strapping table ID will be required to calculate
volume. A Vega electronic dipstick may also be connected differently; the gauge channel may
change depending on the connection to the Comms board.

11.
Software Setup
Software Setup
To change settings from the unit you must either have access to the K-Factor switch, which is
located on the inside of the pump/dispenser unit on the K-Factor board, or have the passcode
to the unit.
Pressing the K-Factor switch will bring up a menu displaying set up options on the Keypad
display. The available options are shown below. The same menu can be accessed by pressing
Cancel on the standard display and entering the passcode.
NOTE: If the menu is accessed by entering the passcode, not all the settings will be available.
K-Factor and meter setup can only be accessed by pressing the K-Factor switch.
The K-Factor switch must be sealed after servicing.
NOTE: The system has a timeout of one minute.
Some software setup options are not shown here. Instead, only options which are required to
set up the unit are explained.
Setup Instructions
To set up the site, first set up the available products.
1. Go to Products
2. Select a product number and enter an available product
MENU
1.SITE 6.METERS
2.SYSTEM 7.TANKS
3.PUMPS 8.PRODUCTS
4.CARDS 9.DEVICE
5.CRD USER
K-Factor Switch
MENU
1.PRD #01 NOT SET
2.PRD #02 NOT SET
3.PRD #03 NOT SET
4.PRD #04 NOT SET
5.PRD #05 NOT SET
Next(#)

12.
Software Setup
Once products have been set, the site tanks can be set up.
1. Go to Tanks > Select the relevant tank
2. Enable the required tanks (selecting Enabled will toggle between enabled and disabled)
3. Number the tank –this can be any number between 00 and 99
4. Set the product in this tank and the capacity of the tank
5. Enter the tank gauge type used in the tank
Now the site tanks have been set up. Next, the pumps should be configured for the unit. To do
this:
1. Go to Pumps > Select the relevant pump
2. To allow the pump to be used, first set a pump number between 00 and 99
3. Select the product that will be used at the pump
4. Enable the pump
5. Used the (#) key to scroll for more options. Ensure the unit price is correct
All other options for pumps are optional or have default values. If these optional settings are
desired, the pump can be customised. Refer to Software for information on these options. To
change these settings, simply scroll between options using the (#) and (*) keys. Select the
desired setting and enter the desired value.
Next, the meter should be set up. To set up the meter:
1. Go to Meters > select the required side
2. Ensure the correct meter is selected. Comtank currently only has 3 channel encoder, so
this should be selected
3. Ensure the K-Factor is correct. Refer to software for instructions on how to calibrate the
K-Factor
TANK A
1.TYPE NONE
2.ENABLED DISABLED
3.TANK # 00
4.PRODUCT
5.CAPACITY 00000000
PUMP SIDE A
1.NUM 00
2.PRESET NO AVAIL
3.PROD Diesel
4.ENABLED ENABLED
5.S DELAY 000
Next(#)
1.TYPE 3CH ENC
2.K-FACTOR 100000
3.UNQ ID N/A

13.
Software Setup
The unit is now operational. For further settings and customisation of the unit refer to the service
manual supplied with the unit.
Finding the Device ID
The device ID is required to log on to CompacOnsite. If this is not known, it can be found by
going to Site > Device.
DEVICE ID
CFM000000
.compaconsite.com

14.
CompacOnsite
CompacOnsite
The unit can be set up online via CompacOnsite. To access CompacOnsite, the device ID is
needed. The following should be entered into an internet browser, replacing device ID with the
specific ID of the unit. Refer to Software Setup for instructions on finding the Device ID.
https://deviceID.compaconsite.com
The standard passwords are shown below.
IMPORTANT NOTES:
For the security of the site, ensure the passwords are changed once the unit is installed.
Access to online data is heavily dependent on the unit being powered on and connected
to the internet. Ensure the unit is online in order to have full access to all site data.
Username
Password
user
c0mpac5KUser
admin
c0mpac5KAdmin
tech
c0mpac5KTech
After log in, the CompacOnsite home screen will appear.
NOTE: The side bar will look different depending on the access level of the user.

15.
CompacOnsite
Users
There are three different user options when logging into Compac Onsite; standard, technician
and administrator. Each user can access different functionalities. Standard users can access all
basic functionalities, such as tanks, cards and transactions. Admin users can also access these,
as well as being able to access the system settings and reboot. The technician can access all
these options, as well as being able to access set up options which are needed when setting up
the site.
Technician Options
Technician users can access both administrator and standard user options. As well as this, they
can access site setup options.
Dispenser Setup
Dispenser Setup will bring up a setup menu with four options; Products, Pumps, Tank Gauging
and Tank Strapping.
In the Products tab, the current products can be viewed.
To create a product, Add Product can be selected. The product must be named and numbered
before it can be saved. The following menu will appear.
